Features
ONE-TOUCH SELF-CLEAN
Your oven cleans itself - so you don't have to.
QUICK BOIL
Get meals on the table faster with quick boil - water boils faster than the traditional setting.
QUICK BAKE CONVECTION
Bake faster and more evenly with Quick Bake Convection.

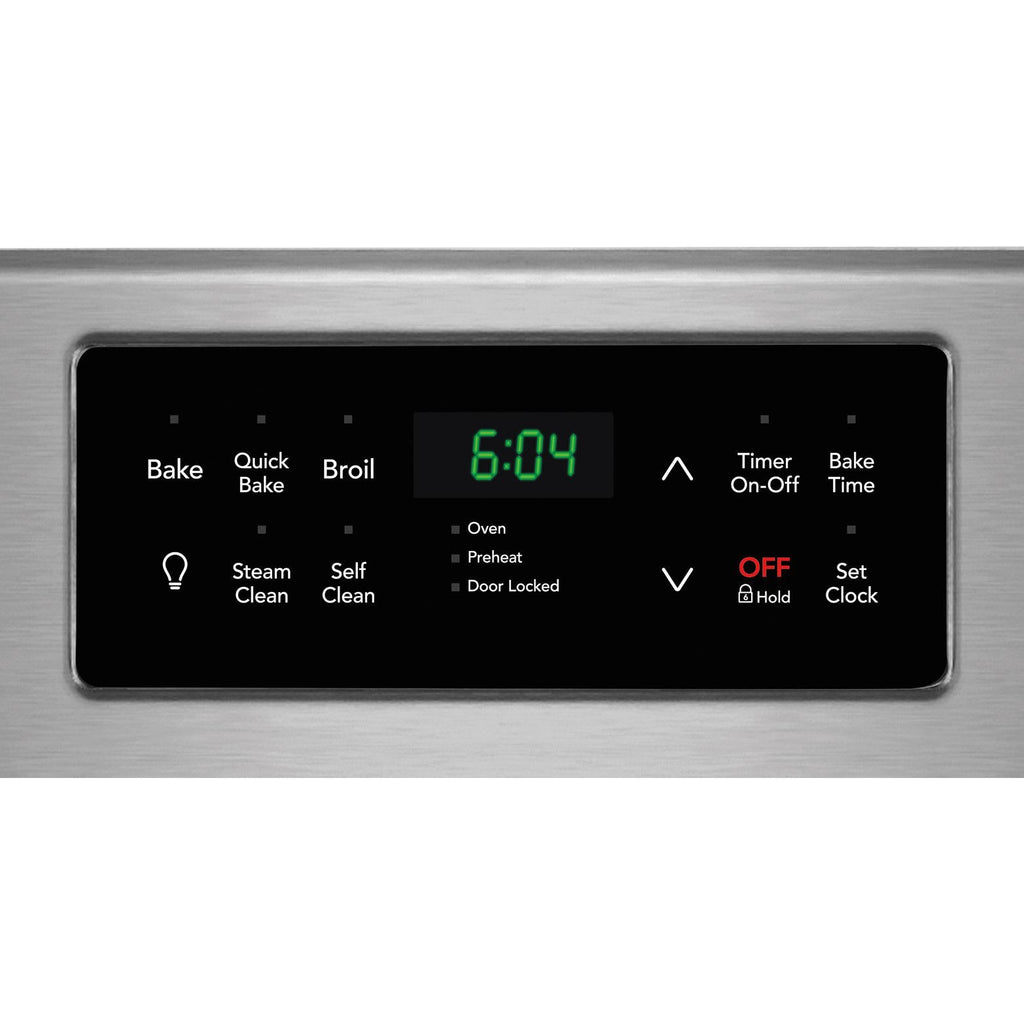

EXPRESS-SELECT® CONTROLS
Easily set cooking temperature or choose one-touch cooking options.
STEAM CLEANING
A light oven cleaning that's chemical-free, odor-free, and fast.
SMUDGE-PROOF™ STAINLESS STEEL
Real Stainless Steel with protective coating reduces fingerprints and smudges so it's easy to clean.
SPACEWISE® EXPANDABLE ELEMENTS
Flexible elements expand to meet your cooking needs — big or small.
SPACEWISE® WARMING ZONE
Keep food warm on the cooktop until everything — and everyone — is ready.
EVEN BAKING TECHNOLOGY
Frigidaire's Even Baking Technology ensures even baking every time.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Self clean: 2, 3, 4 hours
• Quick clean option
• Delay clean: 2, 3, 4 hours
• Steam cleaning: A 30-minute light oven cleaning that's chemical-free, odor-free, and fast
• Quick clean option
• Delay clean: 2, 3, 4 hours
• Steam cleaning: A 30-minute light oven cleaning that's chemical-free, odor-free, and fast
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right front: 1,200/3,200 W
• Right rear: 1,200 W
• Left front: 3,200 W
• Left rear: 1,200 W
• Center: 100W
• Oven bake: 3,500W
• Oven broil: 3,900W
• Right rear: 1,200 W
• Left front: 3,200 W
• Left rear: 1,200 W
• Center: 100W
• Oven bake: 3,500W
• Oven broil: 3,900W
Burner/Element Size
• Right front: 6"/12" (expandable)
• Right rear: 6"
• Left front: 9"
• Left rear: 6"
• Center: SpaceWise® warming zone
• Right rear: 6"
• Left front: 9"
• Left rear: 6"
• Center: SpaceWise® warming zone
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.4 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil (high/low)
• Cancel
• Set clock
• Delay clean
• Door lock
• Lockout
• Quick bake
• Steam clean
• Start button
• Timer
• Broil (high/low)
• Cancel
• Set clock
• Delay clean
• Door lock
• Lockout
• Quick bake
• Steam clean
• Start button
• Timer
Features
Technologies
• Express-Select® controls
• Quick bake convection
• Vari-Broil™ Hi / Lo broiling system
• SpaceWise® warming zone
• SpaceWise® expandable elements
• Even baking technology
• Quick bake convection
• Vari-Broil™ Hi / Lo broiling system
• SpaceWise® warming zone
• SpaceWise® expandable elements
• Even baking technology
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Kitchen timer / timed cook option
• Auto oven shut-off
• Hidden bake element
• 2 standard rack configuration
• Extra large window
• Hot surface indicator light
• Auto oven shut-off
• Hidden bake element
• 2 standard rack configuration
• Extra large window
• Hot surface indicator light
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V/208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47 inch(es) / 119.38 cm
Depth (Including Handles)
29.25 inch(es) / 74.3 cm
Weight
164.99 lb(s) / 74.84 kg
Additional Dimensions
• Interior: Height: 21"; Width: 24-3/8"; Depth: 19-1/8"
• Cutout: Height (standard): 36"; Width (min.): 30"; Depth (min.): 24"
• Depth with door open 90 degrees: 48-5/8"
• Cutout: Height (standard): 36"; Width (min.): 30"; Depth (min.): 24"
• Depth with door open 90 degrees: 48-5/8"
Shipping Dimensions
Weight
189.99 lb(s) / 86.18 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
0-12505-51161-5
