Features
QUICK BAKE CONVECTION
Bake faster and more evenly with Quick Bake Convection.
QUICK BOIL
Get meals on the table faster with quick boil - water boils faster than the traditional setting.
STEAM CLEANING
A light oven cleaning that's chemical-free, odor-free, and fast.
ONE-TOUCH SELF-CLEAN
Your oven cleans itself - so you don't have to.
SPACEWISE® WARMING ZONE
Keep food warm on the cooktop until everything — and everyone — is ready.
SPACEWISE® EXPANDABLE ELEMENTS
Flexible elements expand to meet your cooking needs — big or small.

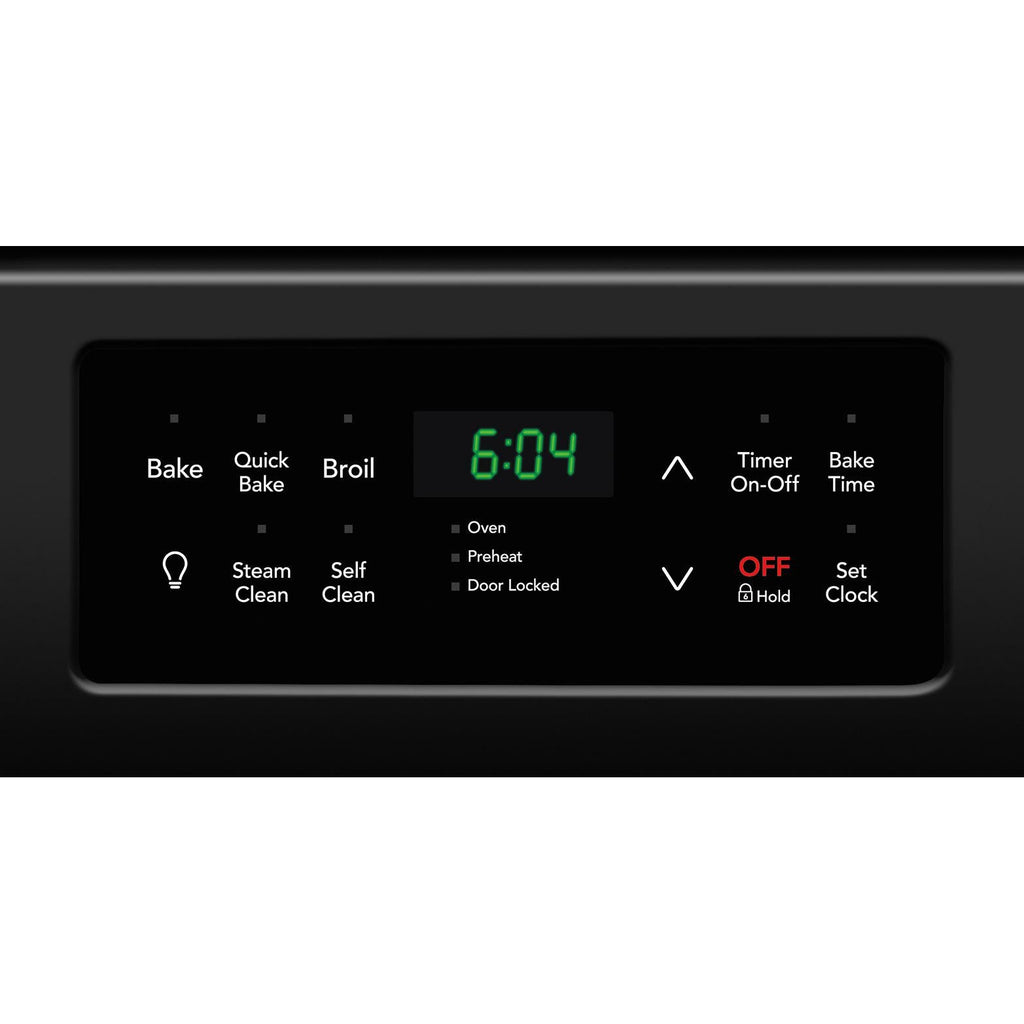

EXPRESS-SELECT® CONTROLS
Easily set cooking temperature or choose one-touch cooking options.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Black
Manufacturer Color
Black
Appliance Care
• Self Clean 2, 3, 4 Hours
• Quick Clean Option
• Delay Clean 2, 3, 4 Hours
• Steam Cleaning
• One-Touch Self-Clean
• Quick Clean Option
• Delay Clean 2, 3, 4 Hours
• Steam Cleaning
• One-Touch Self-Clean

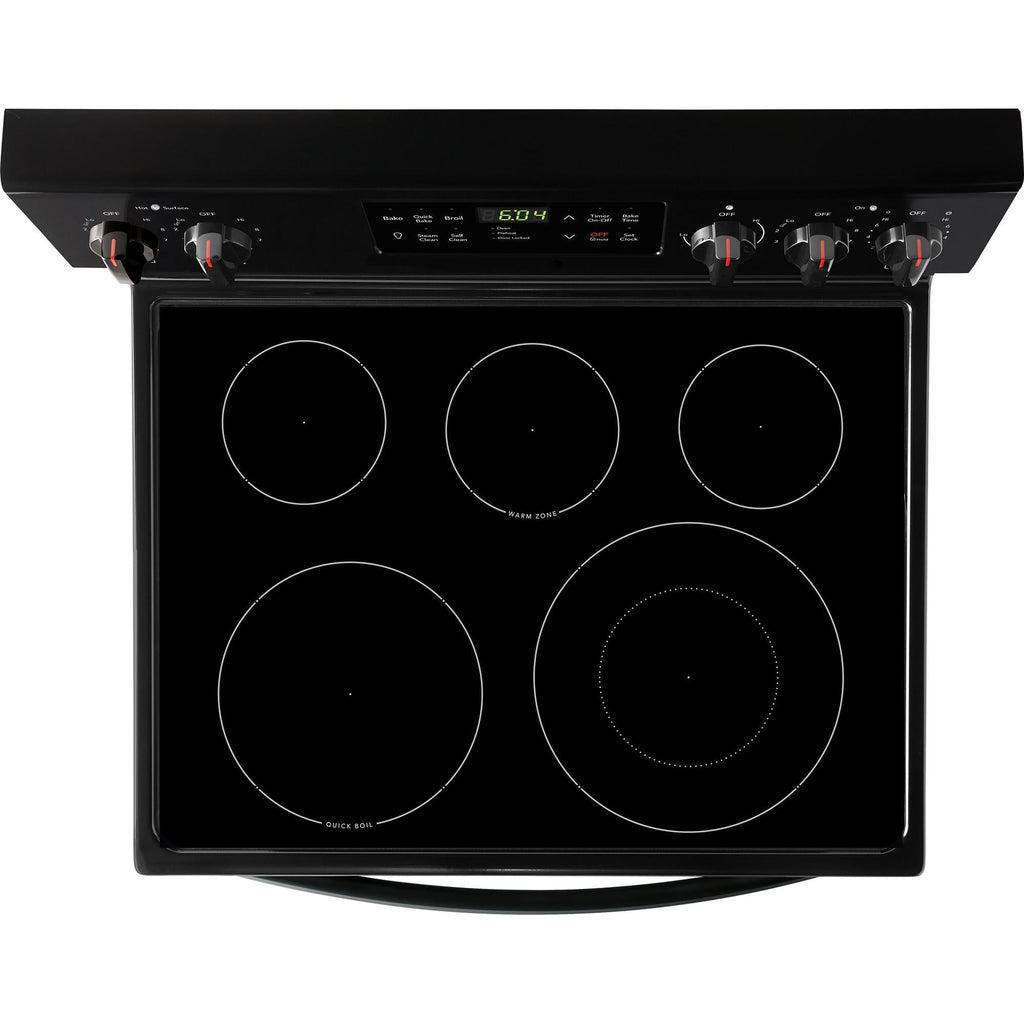

Cooktop
Burners/Elements
5
Burners/Elements Output
• Front Right Expandable: 1,200 W / 3,000 W
• Back Left: 1,200 W
• Front Left: 3,200 W
• Back Right: 1,200 W
• Back Left: 1,200 W
• Front Left: 3,200 W
• Back Right: 1,200 W
Burner/Element Size
• Front Right: 6" / 12"
• Back Left: 6"
• Front Left: 9"
• Back Right: 6"
• Back Left: 6"
• Front Left: 9"
• Back Right: 6"
Elements
Smoothtop

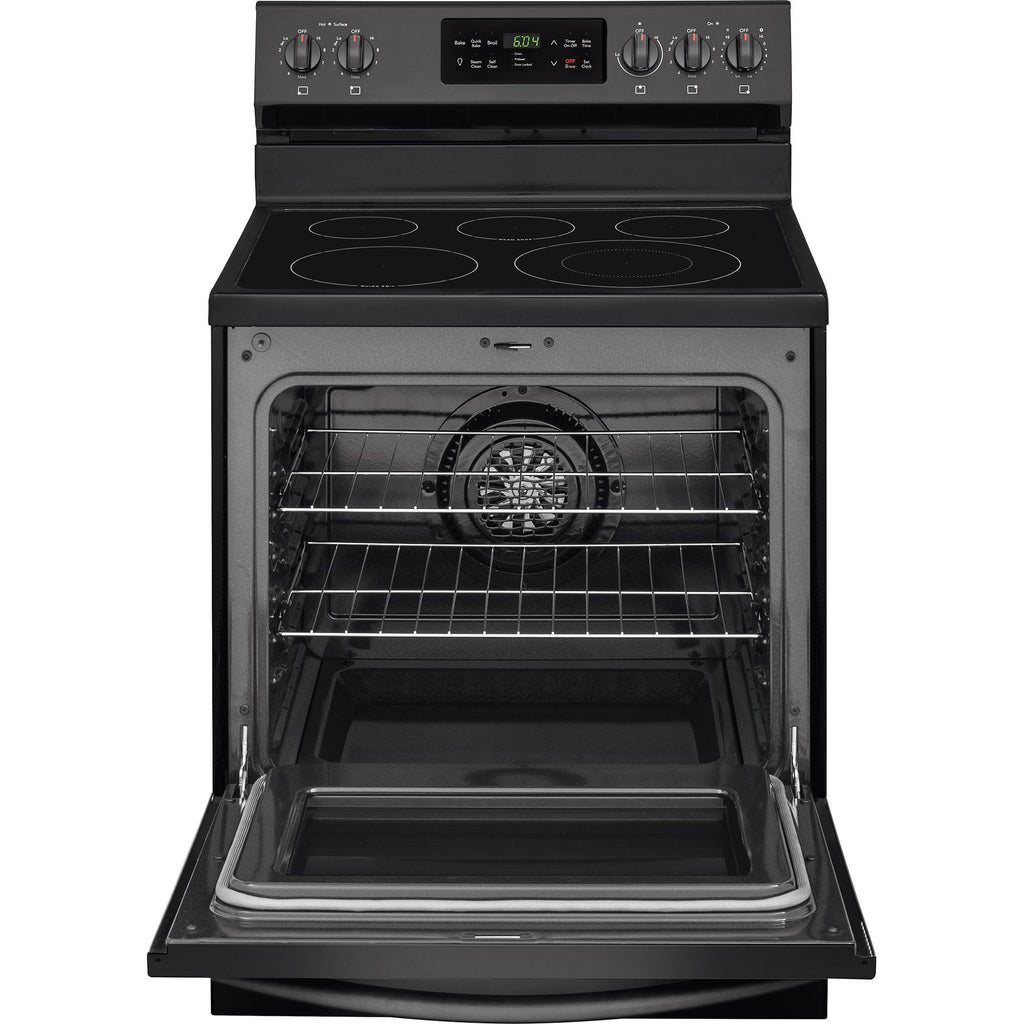

Oven
Capacity (cu. ft.)
5.4 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Cancel
• Set Clock
• Delay Clean
• Door Lock
• Lockout
• Quick Bake
• Steam Clean
• Start Button
• Timer
• Broil
• Cancel
• Set Clock
• Delay Clean
• Door Lock
• Lockout
• Quick Bake
• Steam Clean
• Start Button
• Timer
Features
Technologies
• Express-Select® Controls
• Quick Bake Convection
• Vari-Broil™ Hi / Lo Broiling System
• SpaceWise® Warming Zone
• SpaceWise® Expandable Elements
• Quick Bake Convection
• Vari-Broil™ Hi / Lo Broiling System
• SpaceWise® Warming Zone
• SpaceWise® Expandable Elements
Convection
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Kitchen Timer / Timed Cook Option
• Auto Oven Shut-Off
• Oven Lock-Out
• Hidden Bake Element
• 2 Standard Rack Configuration
• Bake Element / Broil Element (Watts): 3,500 / 3,900
• Auto Oven Shut-Off
• Oven Lock-Out
• Hidden Bake Element
• 2 Standard Rack Configuration
• Bake Element / Broil Element (Watts): 3,500 / 3,900
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V/208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
46.63 inch(es) / 118.43 cm
Depth (Including Handles)
28.41 inch(es) / 72.15 cm
Weight
164.99 lb(s) / 74.84 kg
Additional Dimensions
• Interior: Height: 21", Width: 24-3/8", Depth: 19-1/8"
• Cutout: Height (Standard): 36", Width (Min.): 30", Depth (Min.): 24"
• Depth with Door Open 90 Degrees: 48-5/8"
• Cutout: Height (Standard): 36", Width (Min.): 30", Depth (Min.): 24"
• Depth with Door Open 90 Degrees: 48-5/8"
Shipping Dimensions
Weight
180.01 lb(s) / 81.65 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
0-12505-51160-8
