Features
SPEEDHEAT™ BURNER
Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.
UNDER-OVEN BROILER
Perfectly toast a pan of garlic bread and melt cheese on top of casseroles with the under-oven broiler. It's large enough to broil an entire rack of your favorite foods. The full-width, drop-down door design spans the range from side to side, creating enough space for all your broiling needs.

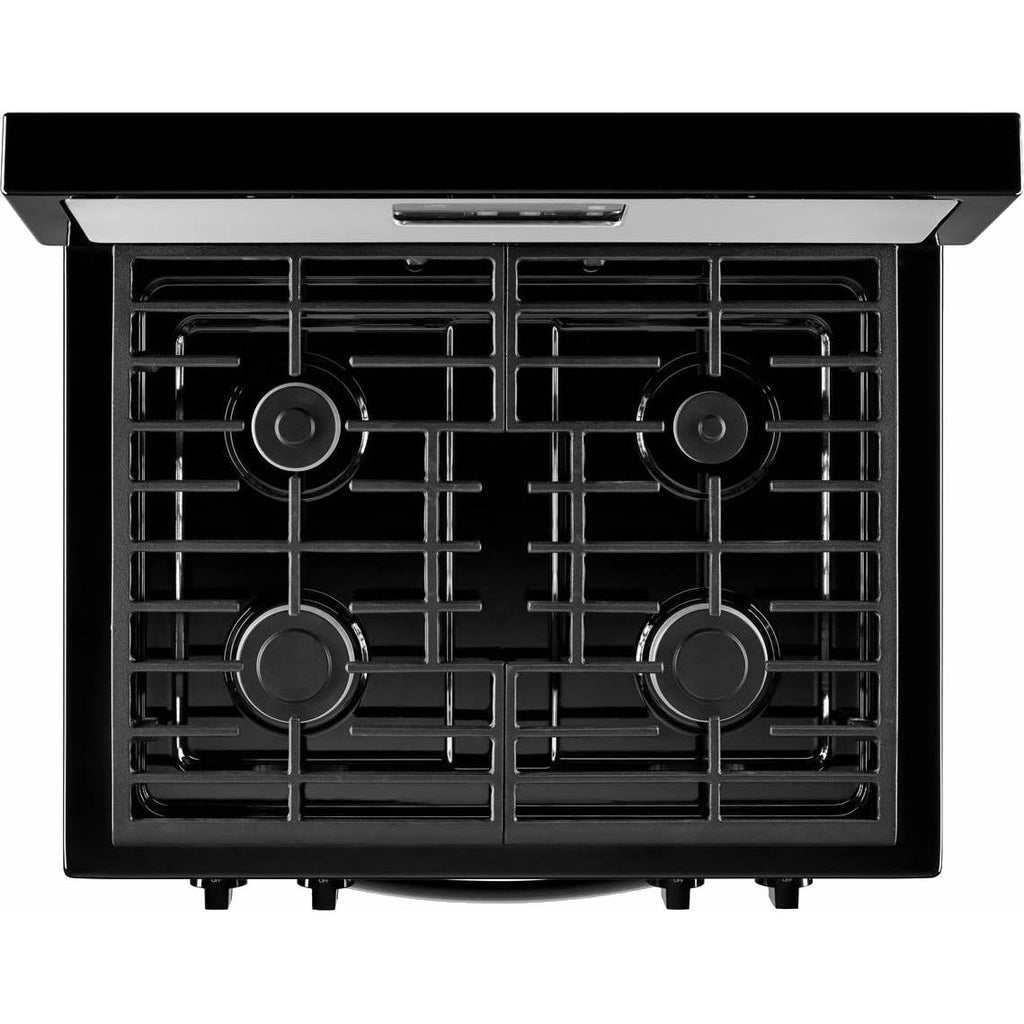

FULL-WIDTH CAST-IRON GRATES
Cast-iron grates cover nearly the whole cooktop surface, giving you the flexibility to easily slide heavy pots and pans to optimal cooking locations. The grates are dishwasher-safe, and their satin finish resists wear and tear.
Additional Features
ACCUSIMMER® BURNER
AccuSimmer® burner allows for precise temperature control that is perfect for melting chocolate or simmering sauces. When using the AccuSimmer® burner, power is reduced to deliver better control and lower temperatures.

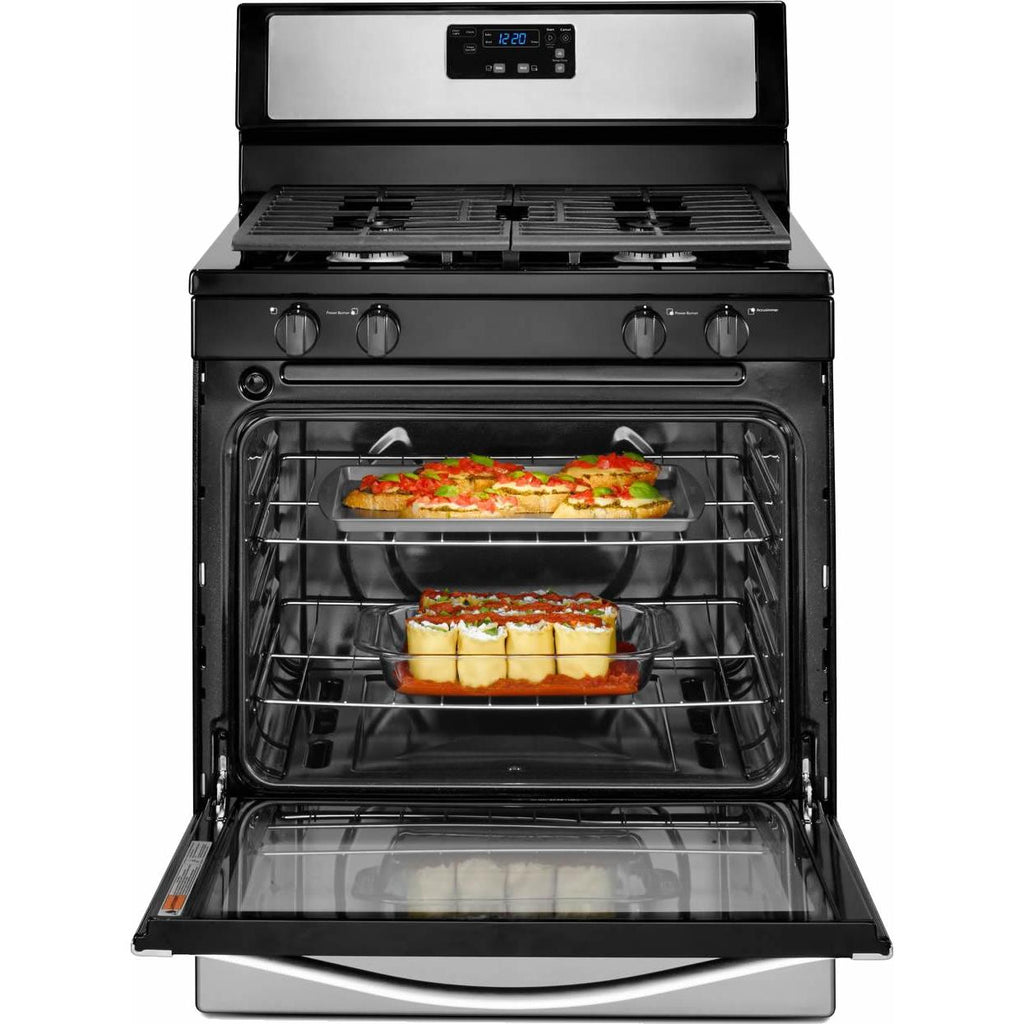

LARGE OVEN WINDOW
Keep an eye on your meal through the large oven window.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Black-on-Stainless
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Burner Power 15,000 BTU
• Left Rear Burner Power 9500 BTU
• Right Front Burner Power 15,000 BTU
• Right Rear Burner Power 5000 BTU
• Left Rear Burner Power 9500 BTU
• Right Front Burner Power 15,000 BTU
• Right Rear Burner Power 5000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.1 cu. ft.
Number of Ovens
Single
Features
Technologies
• SpeedHeat™ Burners
• AccuSimmer® Burner
• AccuSimmer® Burner
Control Lock
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Cooktop Surface Material: Porcelain Coated Steel
• Grate Details: Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish, Recessed
• Oven Cooking System Thermal
• Hidden Bake Element
• Broiler Element Power: 16,500 BTU
• 2 Oven Racks
• 5 Oven Rack Guides
• Grate Details: Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish, Recessed
• Oven Cooking System Thermal
• Hidden Bake Element
• Broiler Element Power: 16,500 BTU
• 2 Oven Racks
• 5 Oven Rack Guides
Drawer Features
Broiler
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 60 Hz
Accessories
Optional
Griddle
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
46.25 inch(es) / 117.48 cm
Depth (Without Handles)
25.13 inch(es) / 63.82 cm
Depth (Including Handles)
27.25 inch(es) / 69.22 cm
Additional Dimensions
• Depth With Door Open 90 Degree: 45-1/4"
• Oven Interior Depth: 25"
• Oven Interior Height: 18 3/8"
• Oven Interior Width: 19"
• Oven Interior Depth: 25"
• Oven Interior Height: 18 3/8"
• Oven Interior Width: 19"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
48 inch(es) / 121.92 cm
Depth
28 inch(es) / 71.12 cm
Weight
136 lb(s) / 61.69 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049291116
