Features

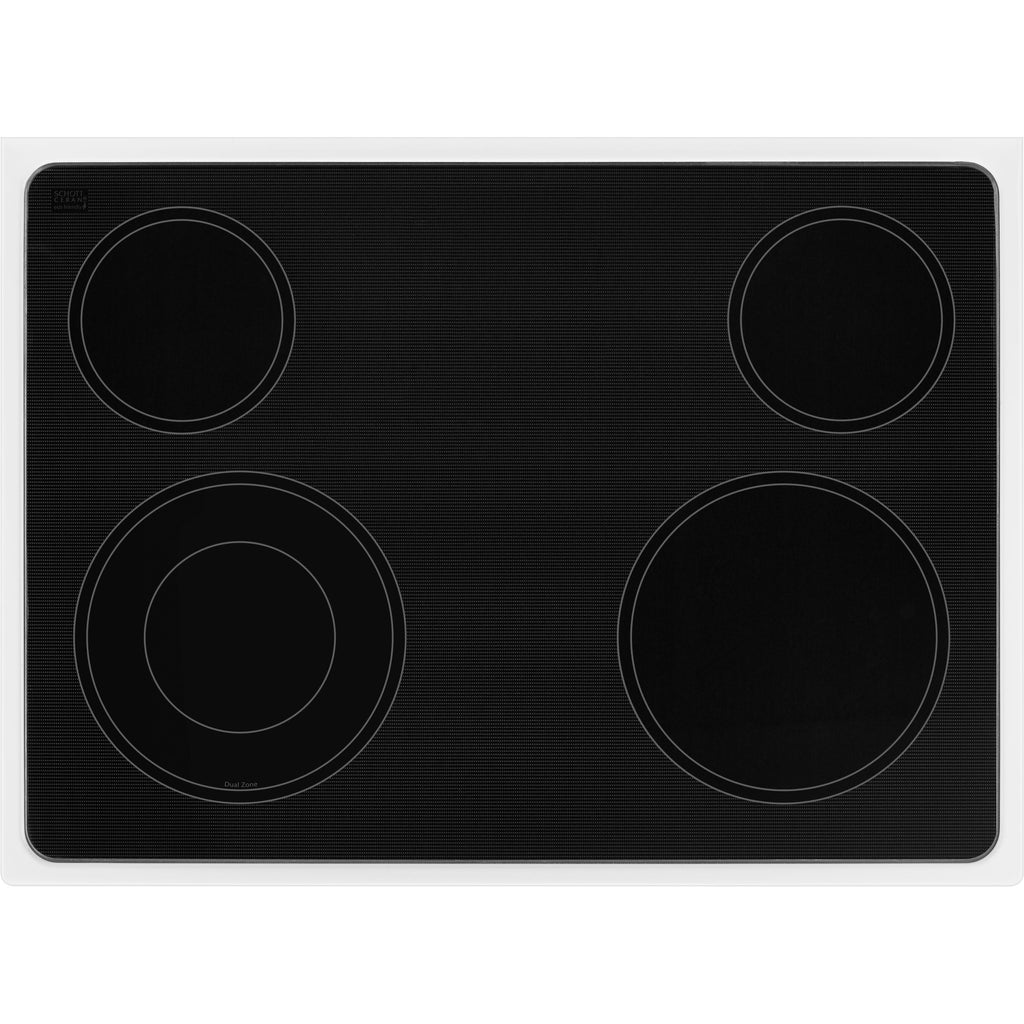

EASY WIPE CERAMIC GLASS COOKTOP
The ceramic glass cooktop provides an ideal space for cooking and easy cleanup.
Additional Features
COUNTER DEPTH RANGE
Unlike most ranges on the market, Whirlpool® counter depth ranges are all made to fit seamlessly into your kitchen. Designed to fit within 2" of a standard 25" depth countertop, you can be sure they will stand out in the kitchen, without sticking out. Plus, optimized oven design maintains the cooking capacity you need to get dinner on the table.
EASYVIEW™ LARGE OVEN WINDOW
Keep the heat inside your oven while checking on dishes through the industry's largest window5 available. Now you can keep a close eye on cooking progress without opening the door or disturbing oven temperature.
FLEXHEAT™ ELEMENT
The FlexHeat™ element is like having two or three elements in one. A 6" inner ring is great for smaller pots and pans, while expandable outer rings make room to heat larger cookware.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element Power: 3000W
• Right Rear Element Power: 1200W
• Left Rear Element Power: 1200W
• Right Front Element Power: 2500W
• Right Rear Element Power: 1200W
• Left Rear Element Power: 1200W
• Right Front Element Power: 2500W
Burner/Element Size
• Left Front: 9"
• Right Rear: 6"
• Left Rear: 6"
• Right Front: 9"/6"
• Right Rear: 6"
• Left Rear: 6"
• Right Front: 9"/6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.8 cu. ft.
Number of Ovens
Single
Features
Technologies
FlexHeat™ Dual Radiant Element
Control Lock
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Easy-Wipe Ceramic Glass Cooktop
• EasyView™ Large Oven Window
• Counter-Depth Range
• Heating Element On Indicator Light
• 2 Oven Racks
• Door Removable
• Bake Element Power: 2400 W
• EasyView™ Large Oven Window
• Counter-Depth Range
• Heating Element On Indicator Light
• 2 Oven Racks
• Door Removable
• Bake Element Power: 2400 W
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V
• 60 Hz
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47.87 inch(es) / 121.6 cm
Depth (Without Handles)
25.31 inch(es) / 64.3 cm
Depth (Including Handles)
27.75 inch(es) / 70.49 cm
Additional Dimensions
• Depth With Door Open 90 Degree: 46-3/4"
• Maximum Height: 47-7/8"
• Maximum Height: 47-7/8"
Shipping Dimensions
Weight
150 lb(s) / 68.04 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049354699
