Features

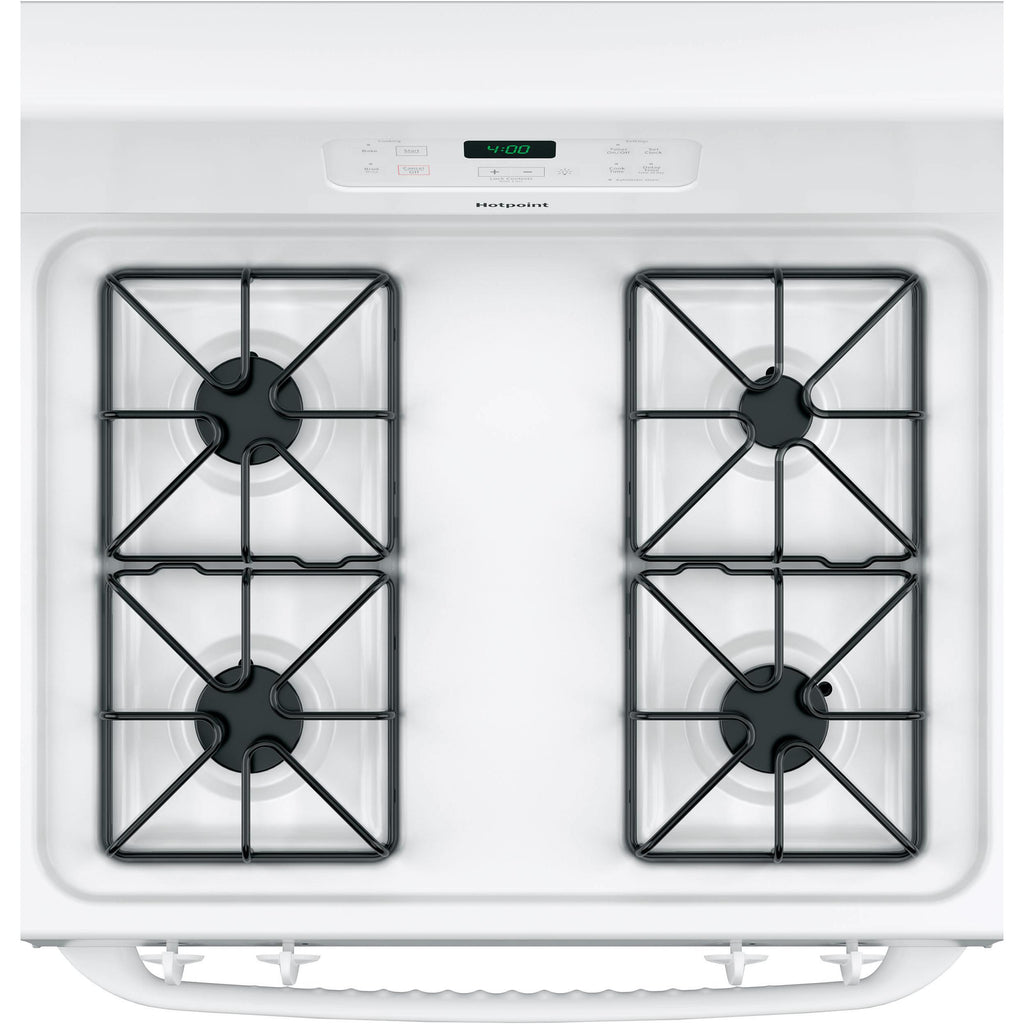

SEALED COOKTOP BURNERS
Sealed cooktop burners contains spills and make cleaning quick and easy.
STANDARD CLEAN OVEN
Standard clean oven smooth surface and rounded corners make clean-up quick and easy.
HEAVY STEEL GRATES
Heavy steel grates heavy-duty steel grates deliver the highest level of cooktop performance.
BROILER DRAWER
Broiler Drawer delivers high concentrated heat for crisping and browning.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Burner: 9,500 BTU
• Left Rear Burner: 9,500 BTU
• Right Front Burner: 12,500 BTU
• Right Rear Burner: 5,000 BTU Precise Simmer
• Left Rear Burner: 9,500 BTU
• Right Front Burner: 12,500 BTU
• Right Rear Burner: 5,000 BTU Precise Simmer
Burners
Sealed
Oven
Capacity (cu. ft.)
4.8 cu.ft.
Number of Ovens
Single
Features
Oven Light
Yes
Additional Information
• Bake/Broiler BTU Rating - LP (000's BTU's): 16.0 Bake / 16.0 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's): 18.0 Bake / 18.0 Broiler
• Electronic Ignition System
• Cooktop Surface: Porcelain-Enamel
• Cooktop Burner Grate Material: Heavy Steel
• Valves (Degree of Turn): 140
• Control Location: Front
• 4 Leveling Legs
• 2 Oven Racks
• 6 Rack Positions
• Big View Oven Window
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's): 18.0 Bake / 18.0 Broiler
• Electronic Ignition System
• Cooktop Surface: Porcelain-Enamel
• Cooktop Burner Grate Material: Heavy Steel
• Valves (Degree of Turn): 140
• Control Location: Front
• 4 Leveling Legs
• 2 Oven Racks
• 6 Rack Positions
• Big View Oven Window
Drawer Features
Broiler
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
LP Conversion Kit
Optional
• Removable One-Piece Drip Bowls
• One-Piece Drip Pans
• One-Piece Drip Pans
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
46.87 inch(es) / 119.06 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Oven Interior Dimensions (W x H x D): 24" x 18-1/2" x 19"
• Depth with Door Open: 46-3/8"
• Depth with Door Open: 46-3/8"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691832065
