Features

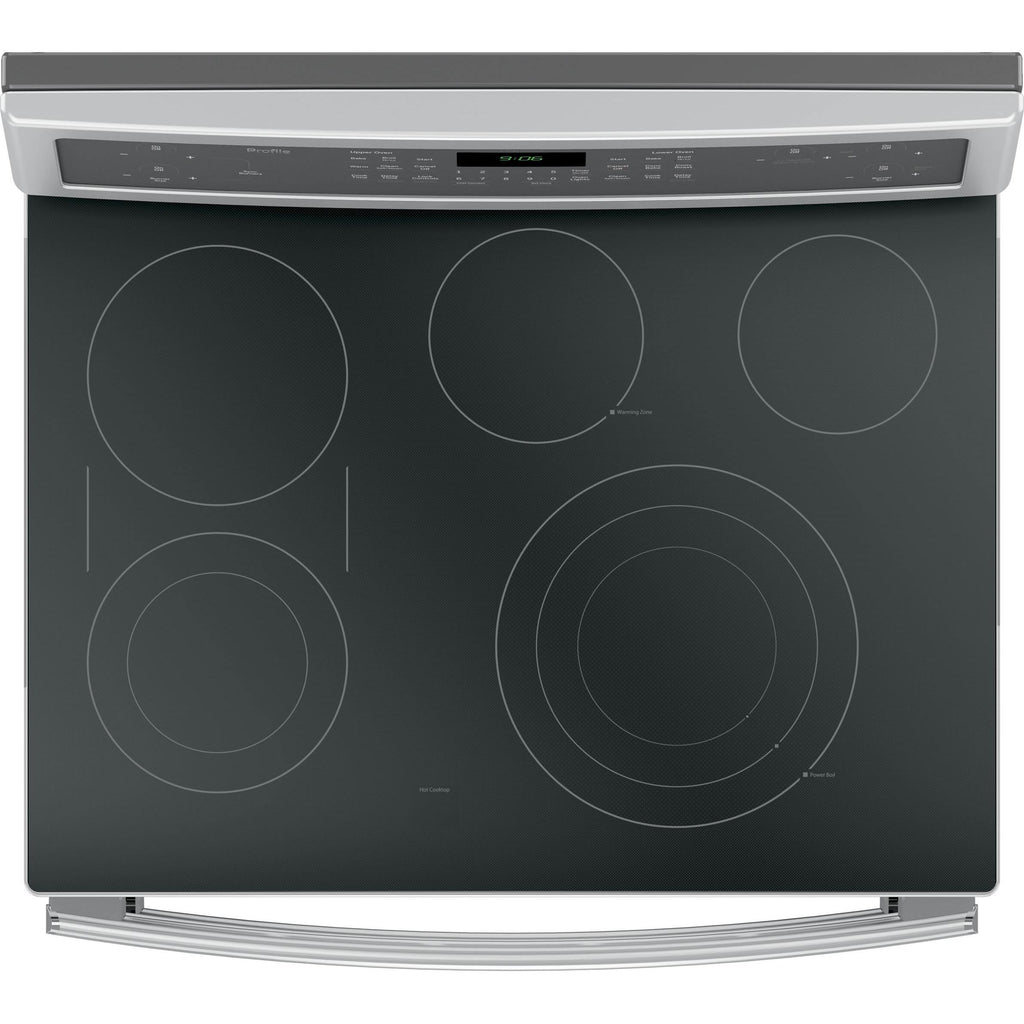

EDGE-TO-EDGE COOKTOP
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

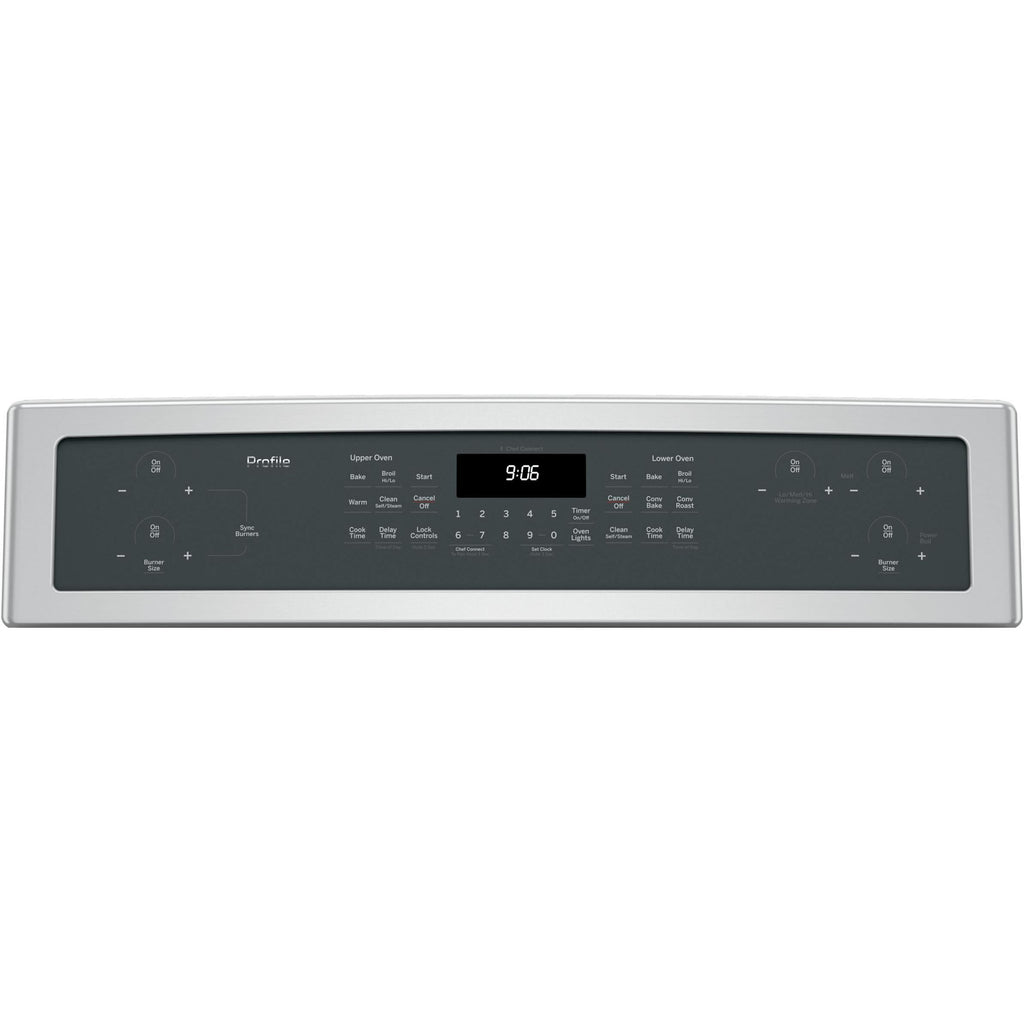

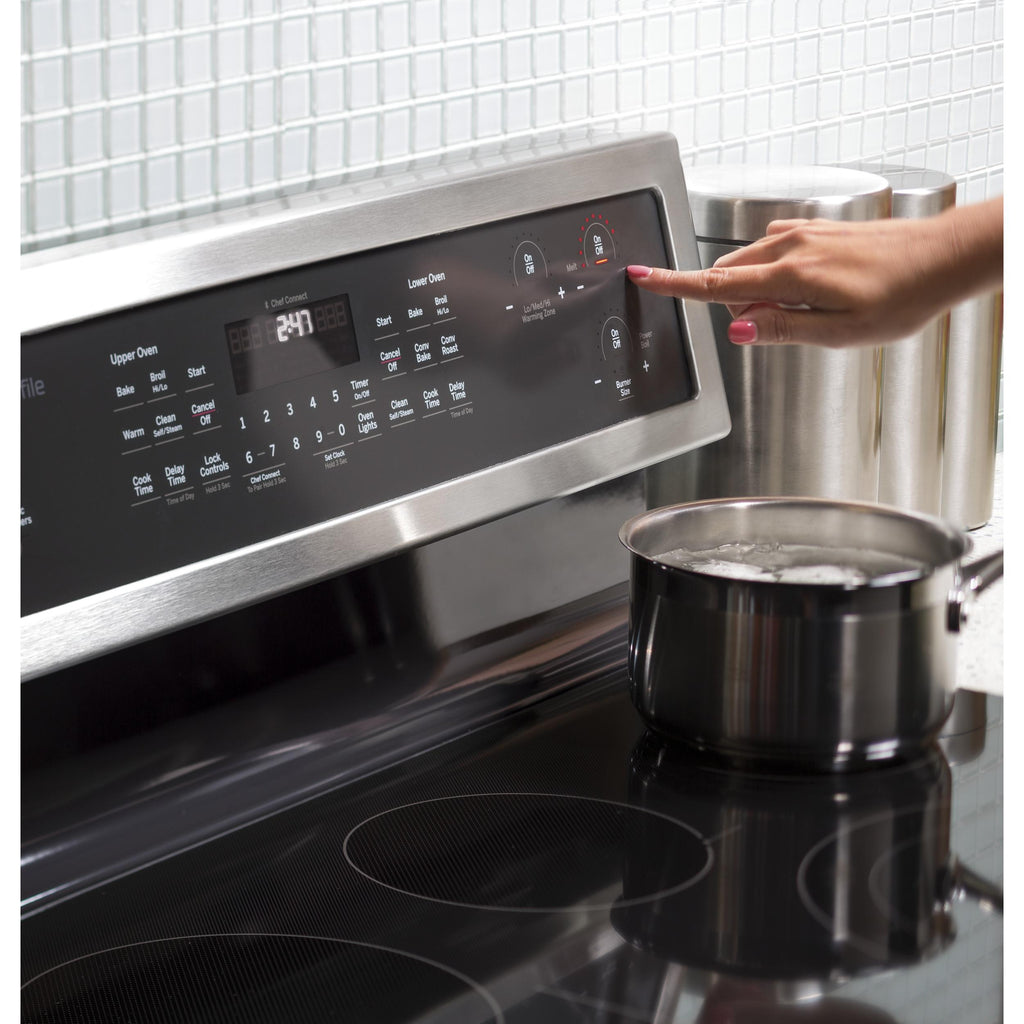

ELECTRONIC TOUCH CONTROLS
Enjoy easy operation and cleanability with streamlined controls

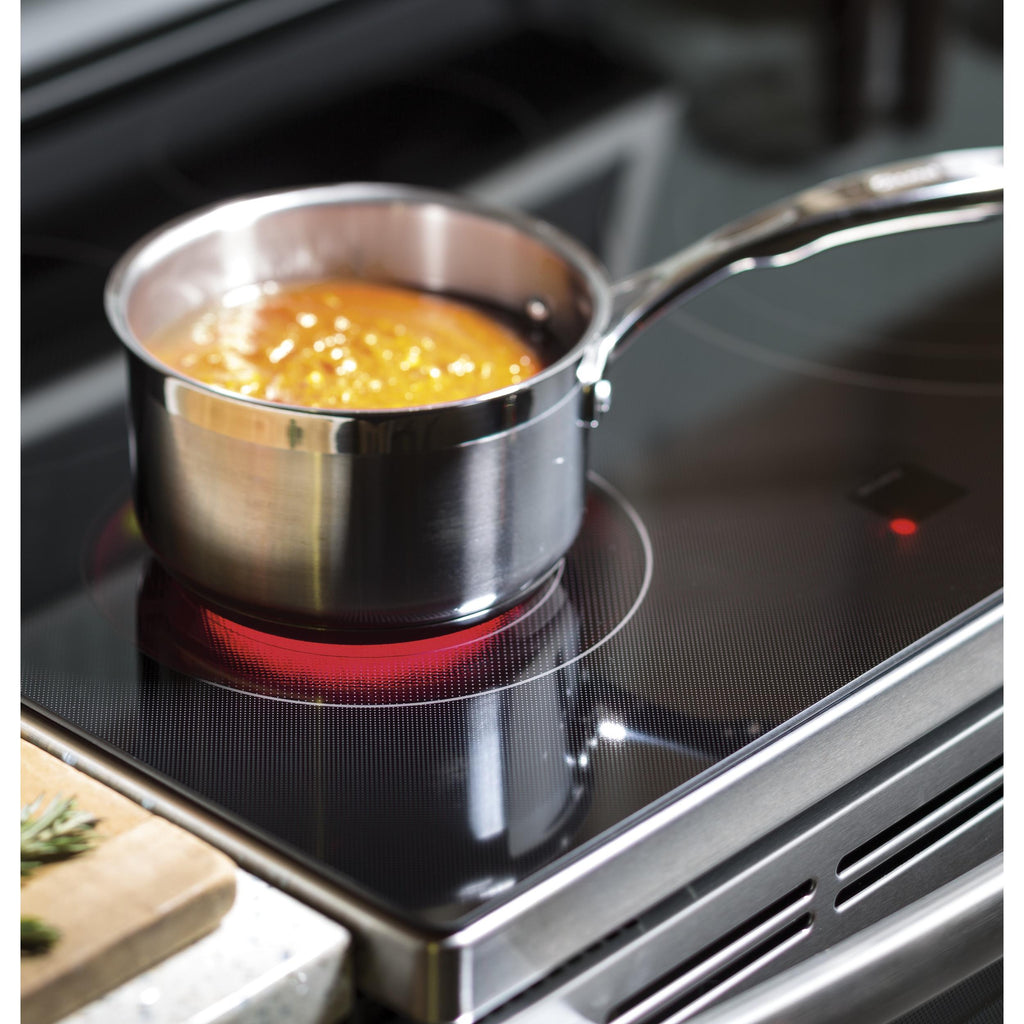

12"/9"/6" 3,600W POWER BOIL
Pots and pans fit perfectly on the flexible heating element.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

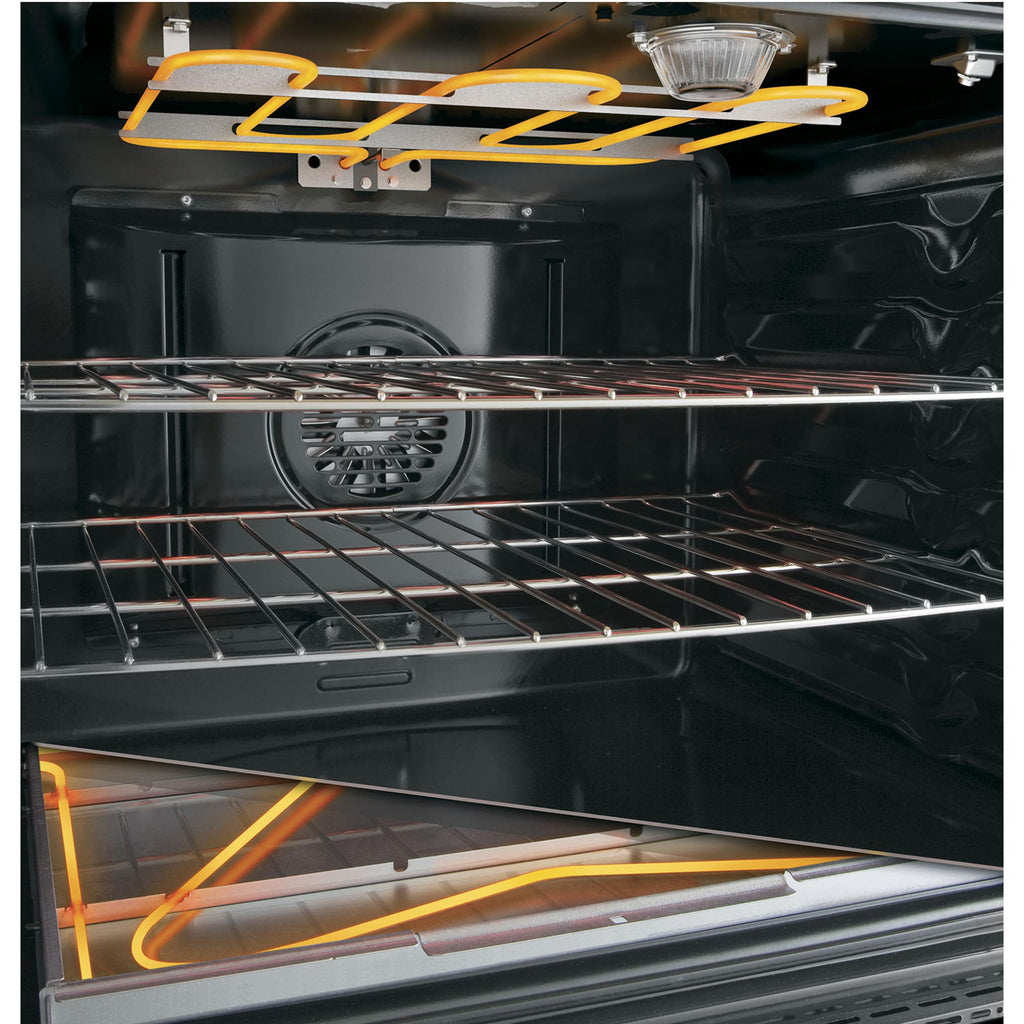

TRUE EUROPEAN CONVECTION WITH PRECISE AIR
Advanced convection uses a 3rd heating element and a reversing fan to provide the highest level of heat and air circulation.

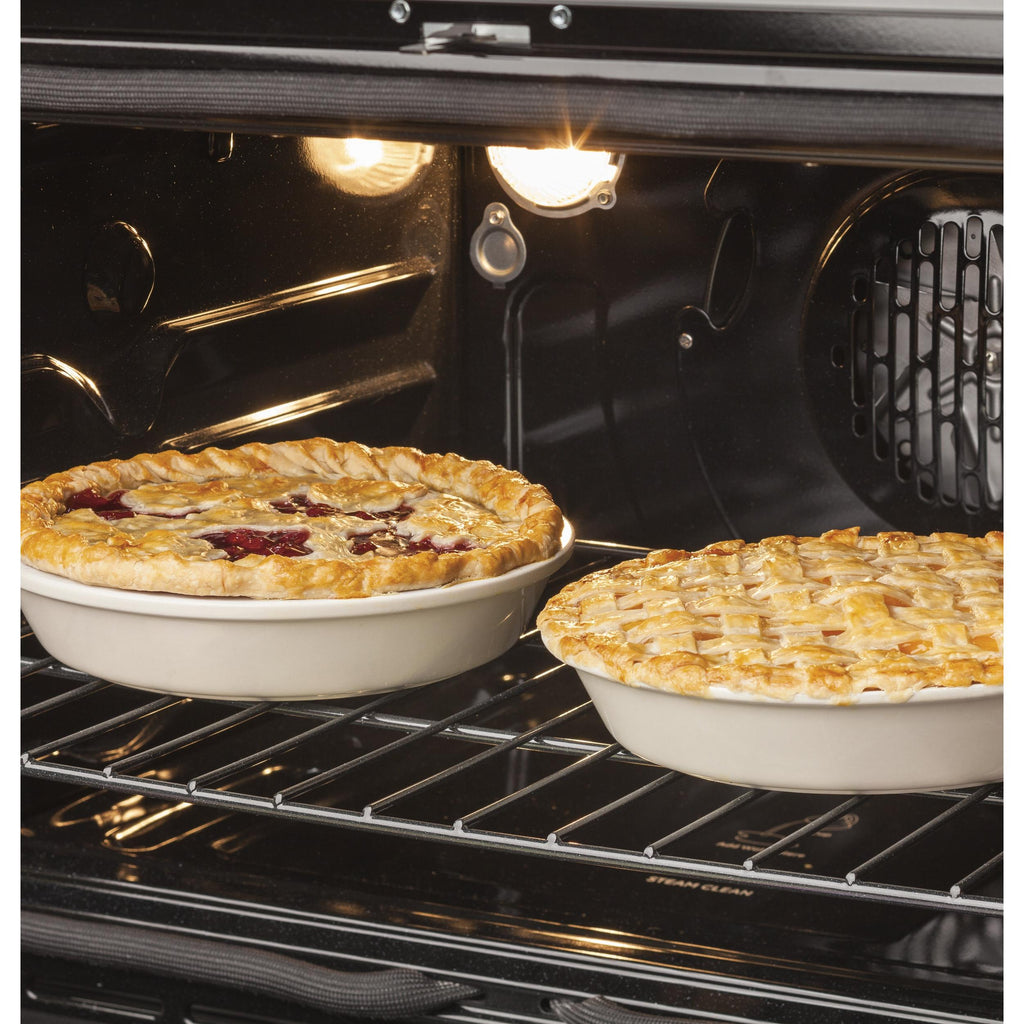

HIDDEN BAKE ELEMENT
Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.
Additional Features

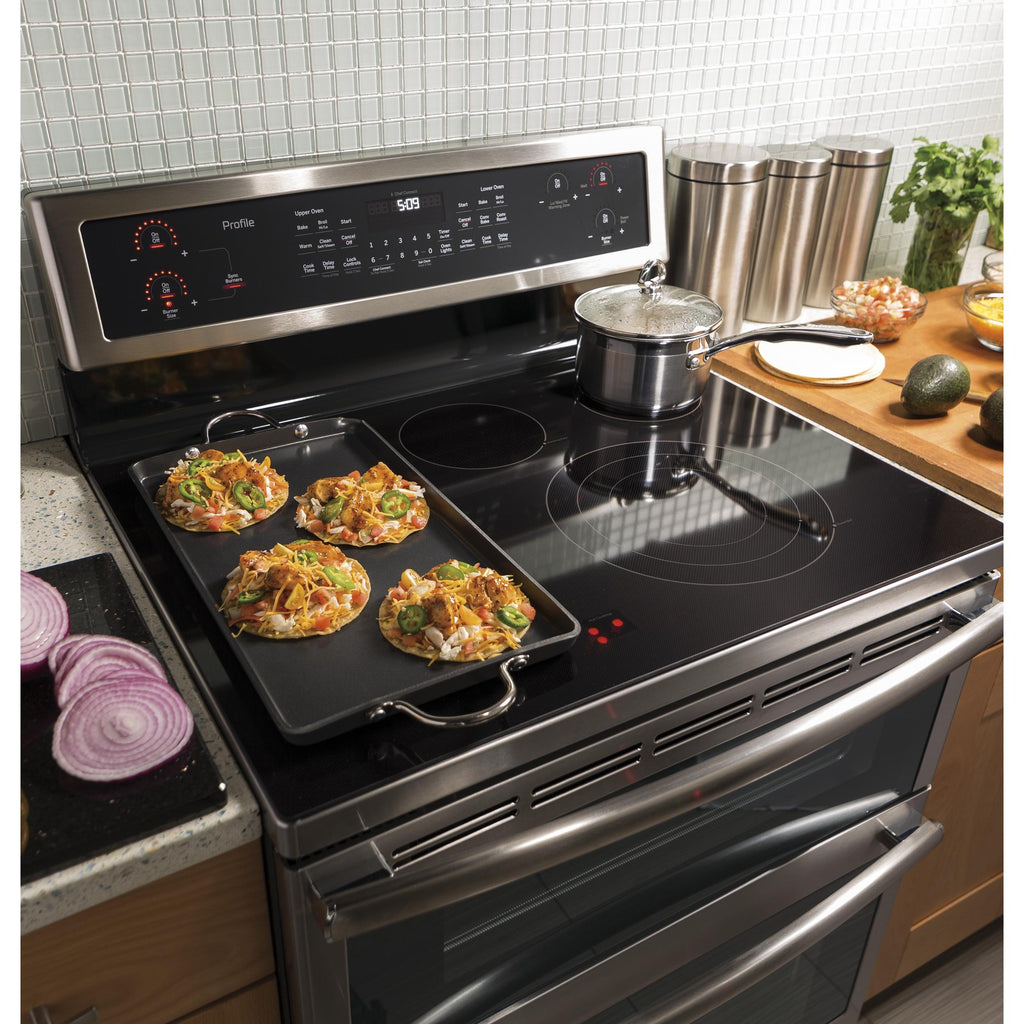

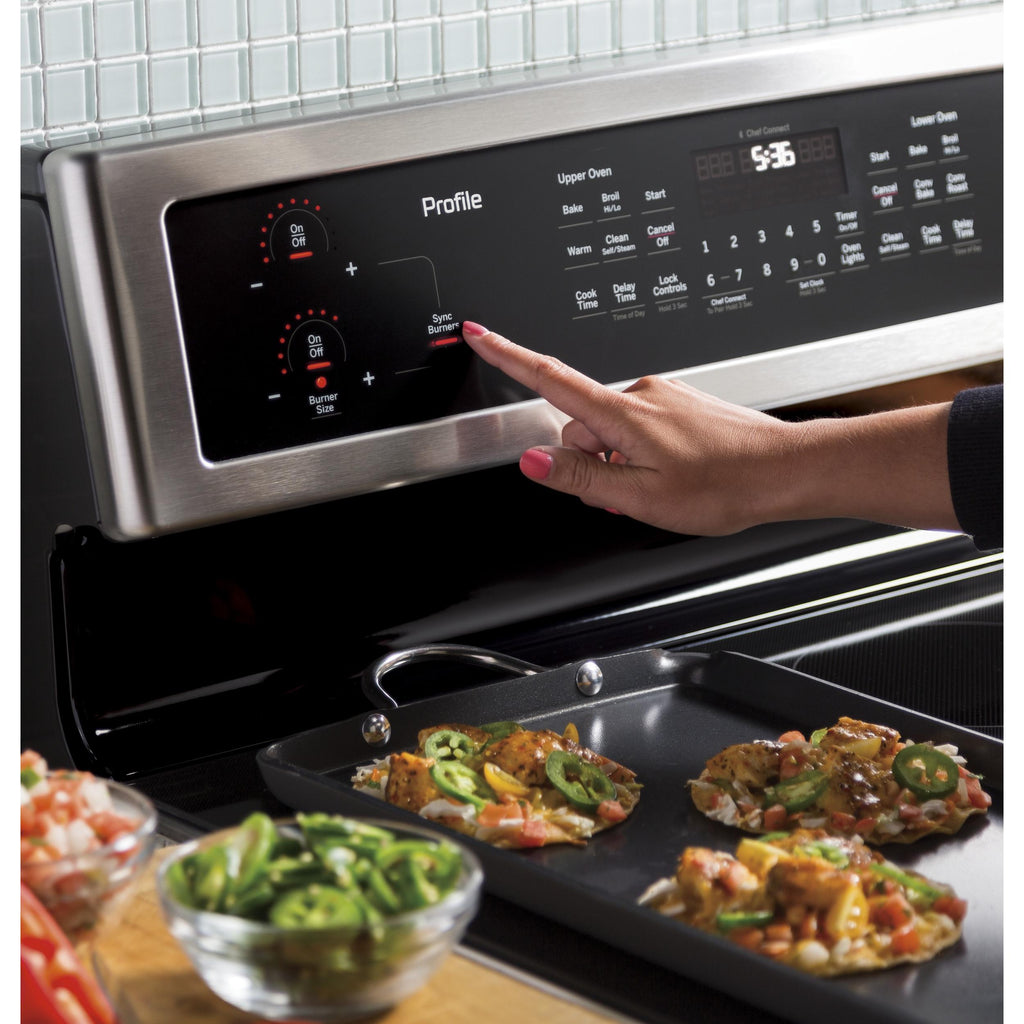

Synchronized elements
Control two elements with the touch of a single button and create a larger cooking surface for big cookware like griddles
FAST PREHEAT
Make hot meals in a hurry with less time preheating
8"/5" DUAL ELEMENT
Two heating elements in one offer flexibility.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 1900W, Bridge
• Left Rear: 2000W, Bridge
• Right Front: 3600W, Power Boil
• Right Rear: 1200W
• Center: 80W, Warming Zone
• Left Rear: 2000W, Bridge
• Right Front: 3600W, Power Boil
• Right Rear: 1200W
• Center: 80W, Warming Zone
Burner/Element Size
• Left Front: 8"
• Left Rear: 8"
• Right Front: 12"/9"/6"
• Right Rear: 6"
• Center: 6"
• Left Rear: 8"
• Right Front: 12"/9"/6"
• Right Rear: 6"
• Center: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
• Upper oven: 2.2 cu. ft.
• Lower oven: 4.4 cu. ft.
• Total Capacity: 6.6 cu. ft.
• Lower oven: 4.4 cu. ft.
• Total Capacity: 6.6 cu. ft.

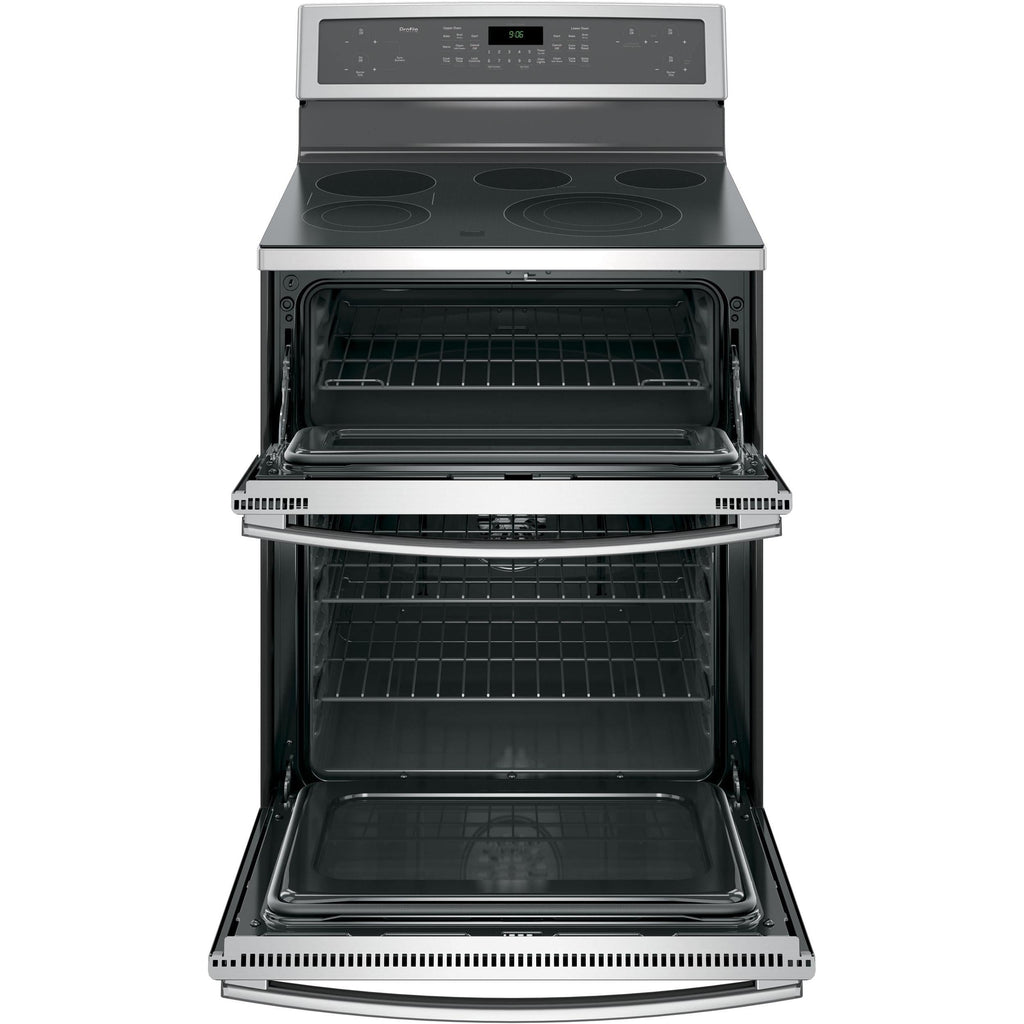

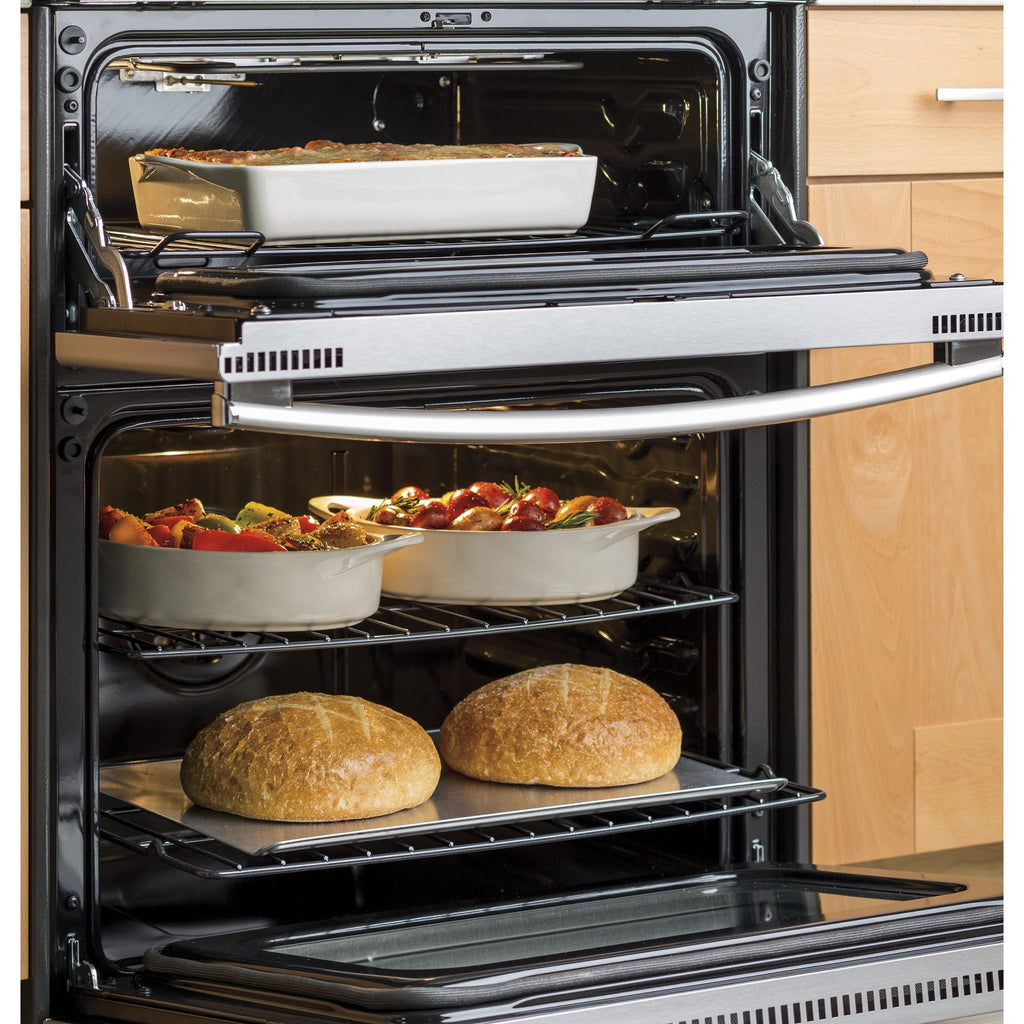

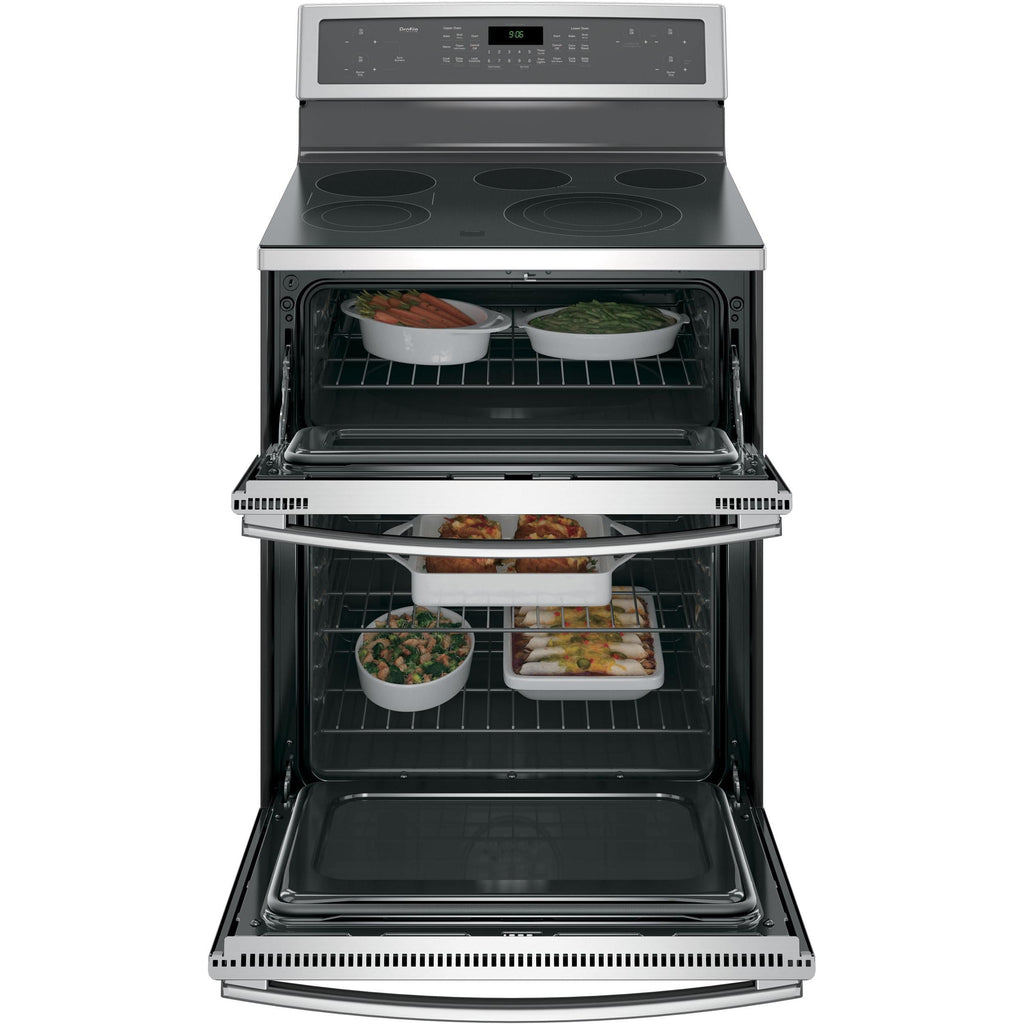

Number of Ovens
Double
Features
Technologies
• Certified Sabbath Mode
• Chef Connect
• Chef Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Edge to edge cooktop
• Electronic touch control
• 12"/9"/6" 3,600W Power Boil element
• Chef connect
• Synchronized elements
• True European Convection with Precise Air
• Fast preheat
• 8"/5" dual element
• Hidden bake oven interior
• Electronic touch control
• 12"/9"/6" 3,600W Power Boil element
• Chef connect
• Synchronized elements
• True European Convection with Precise Air
• Fast preheat
• 8"/5" dual element
• Hidden bake oven interior
Electrical Information
Information
• 208/240 V
• 40 A
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47 inch(es) / 119.38 cm
Depth (Without Handles)
25.75 inch(es) / 65.40 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
219.01 lb(s) / 99.34 kg
Additional Dimensions
• Cabinet Width: 30 in
• Oven Interior Dimensions (lower)24" x 17 1/2" x 18 1/4"
• Oven Interior Dimensions (upper)24" x 8 7/8" x 18 1/4"
• Overall Height: 47 in
• Overall Width: 29 7/8 in
• Overall Depth: 28 1/4 in
• Depth with Door Open: 45 in
• Depth Without Handle: 25 3/4 in
• Height to Cooking Surface (in.)35 3/4 - 36 1/2
• Oven Interior Dimensions (lower)24" x 17 1/2" x 18 1/4"
• Oven Interior Dimensions (upper)24" x 8 7/8" x 18 1/4"
• Overall Height: 47 in
• Overall Width: 29 7/8 in
• Overall Depth: 28 1/4 in
• Depth with Door Open: 45 in
• Depth Without Handle: 25 3/4 in
• Height to Cooking Surface (in.)35 3/4 - 36 1/2
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
51 inch(es) / 129.54 cm
Depth
30.2 inch(es) / 76.71 cm
Weight
240 lb(s) / 108.86 kg
Warranty
Warranty
Limited 1-year entire appliance
UPC
UPC#
084691812616
