Features
EDGE-TO-EDGE COOKTOP
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

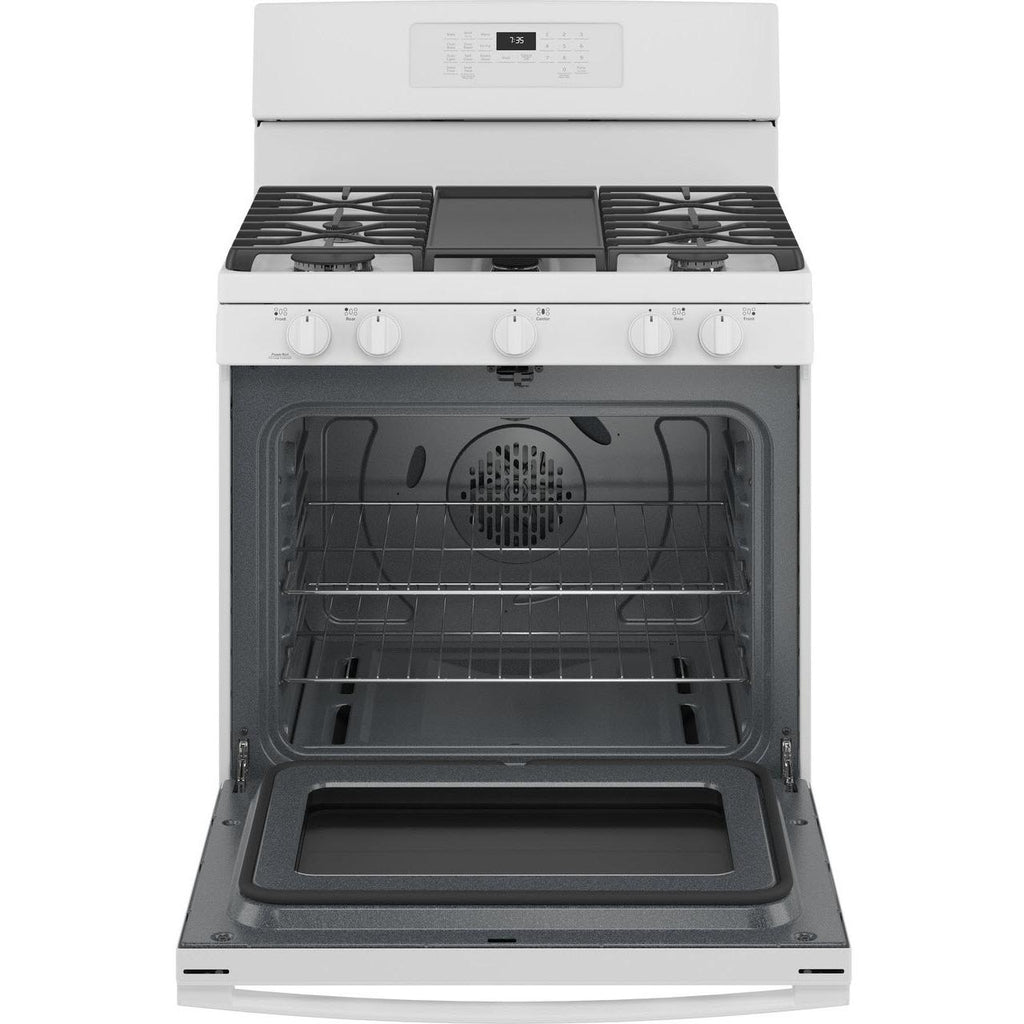

CONVECTION OVEN
This convection oven cooks and browns more evenly, using a rear fan to circulate hot air
SELF-CLEAN WITH STEAM CLEAN OPTION
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
INTEGRATED GRIDDLE
This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once.
NO PREHEAT AIR FRY
With this air fryer right in the oven, you can cook healthier, crispier versions of your favorite foods. There's no preheat required and it shortens the cook time because every minute counts
Additional Features
HEAVY DUTY, DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
REMOVABLE FULL-WIDTH STORAGE DRAWER
Store cookware or kitchen accessories
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Appliance Care
• Self-Clean with Steam Clean Option
• Auto Self Clean
• Auto Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Power Boil Burner: 18,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Oval Burner: 10,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Oval Burner: 10,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.0 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• No Preheat AirFry
• No Preheat AirFry
Features
Technologies
Convection Technology
Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Electric Ignition
• Heavy Cast Iron Grates
• Electronic Touch Control
• Audible Preheat Signal
• 1 Auto Incandescent Light
• 2 Oven Rack
• Continuous Grates with Griddle
• Heavy Cast Iron Grates
• Electronic Touch Control
• Audible Preheat Signal
• 1 Auto Incandescent Light
• 2 Oven Rack
• Continuous Grates with Griddle
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Integrated Non-Stick Griddle
• Integrated Non-Stick Griddle
Optional
• Roller Rack WB48X20990
• Center Grate JXGRATE1
• Center Grate JXGRATE1
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
189.99 lb(s) / 86.18 kg
Additional Dimensions
Oven Interior Dimensions (W x H x D): 24" x 19" x 19"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
220.99 lb(s) / 100.24 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691853619
