Features
EDGE-TO-EDGE SEAMLESS COOKTOP
A large, seamless surface makes it easy to wipe away messes

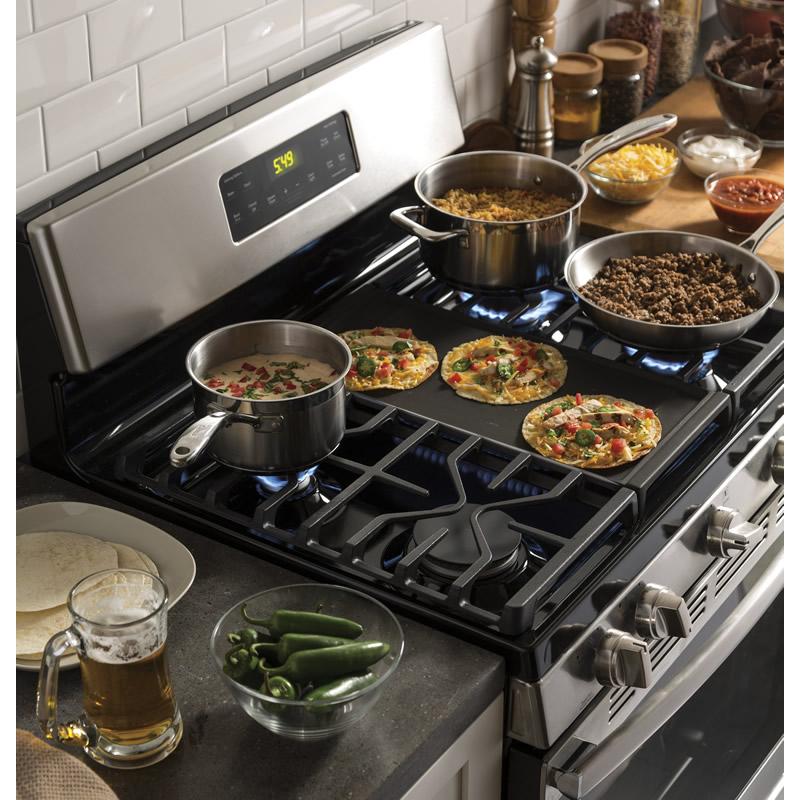

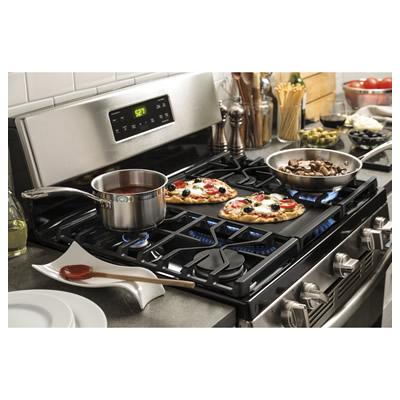

EXTRA-LARGE INTEGRATED NON-STICK GRIDDLE
Cook up to six grilled cheeses at once on the industry's largest integrated griddle
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.
STEAM CLEAN
Fill the resevoir with water and set your oven to "Steam Clean". After 30 minutes you're able to wipe clean all grime and residue.
SEALED COOKTOP BURNERS
Helps contain spills from dripping beneath cooktop for easy clean-up. Sealed gas burner controls let you adjust flame height for various cooking needs.
Additional Features
HEAVY DUTY, DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 15,000 BTU
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 9,500 BTU
• Right Rear: 12,000 BTU
• Center: 10,000 BTU Oval
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 9,500 BTU
• Right Rear: 12,000 BTU
• Center: 10,000 BTU Oval
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.0
Number of Ovens
Single
Features
Control Lock
Yes
Convection
No
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Additional Information
• Electronic Ignition System
• Steam Clean
• Cooktop Surface: Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel
• Continuous Grate (Heavy Cast Iron)
• Oven Control Features: Audible Preheat Signal, Auto Oven Shut-Off, Certified Sabbath Mode, Delay Bake Option, Electronic Clock and Timer, Hi / Low Broil, Oven Control Lock Capability
• 2 Flat Nickel Racks
• Integrated Non-Stick Griddle
• LP Conversion Kit Included
• Big View Oven Window
• Steam Clean
• Cooktop Surface: Edge-to-Edge, One-Piece Upswept, Porcelain-Enamel
• Continuous Grate (Heavy Cast Iron)
• Oven Control Features: Audible Preheat Signal, Auto Oven Shut-Off, Certified Sabbath Mode, Delay Bake Option, Electronic Clock and Timer, Hi / Low Broil, Oven Control Lock Capability
• 2 Flat Nickel Racks
• Integrated Non-Stick Griddle
• LP Conversion Kit Included
• Big View Oven Window
Drawer Features
Baking
No
Broiler
Yes
Storage
No
Warming
No
Electrical Information
Information
• 120 V
• 15 A
• 60 Hz
• 15 A
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Depth Without Handle: 26 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 19 x 19
• Overall Depth: 28 3/4 in
• Overall Height: 47 1/4 in
• Height to Cooking Surface (in.): 36 - 36 1/2
• Overall Width: 30 in
• Depth with Door Open: 46 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 19 x 19
• Overall Depth: 28 3/4 in
• Overall Height: 47 1/4 in
• Height to Cooking Surface (in.): 36 - 36 1/2
• Overall Width: 30 in
• Depth with Door Open: 46 1/4 in
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
172 lb(s) / 78.02 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
084691817963
