Features
ADA COMPLIANT
Designed to be accessible and easy to open
SELF-CLEAN OVEN
A GE invention, the Self-Clean feature uses concentrated heat to remove baked-on splatters, eliminating the need for scrubbing or use of harsh chemicals.
Additional Features

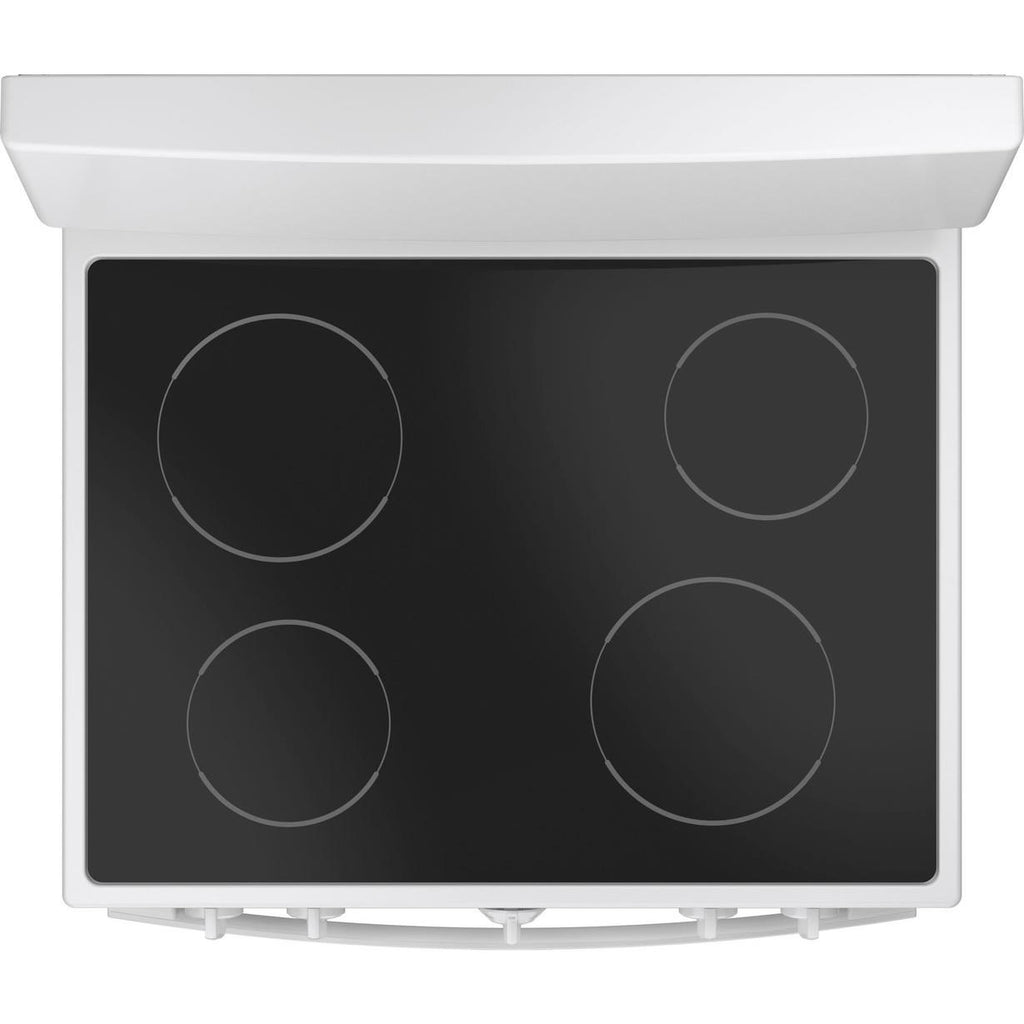

CERAMIC GLASS COOKTOP
Smooth cooktop easily wipes clean.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
4
Burners/Elements Output
• Element - Left Front: 1500W
• Element - Left Rear: 2000W
• Element - Right Front: 2000W
• Element - Right Rear: 1500W
• Element - Left Rear: 2000W
• Element - Right Front: 2000W
• Element - Right Rear: 1500W
Burner/Element Size
• Element - Left Front: 6"
• Element - Left Rear: 8"
• Element - Right Front: 8"
• Element - Right Rear: 6"
• Element - Left Rear: 8"
• Element - Right Front: 8"
• Element - Right Rear: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.0 cu. ft.
Number of Ovens
Single
Features
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Removable full-width storage drawer
• Front controls
• Dual-element Bake
• Handle: Designer Style, Stainless Steel
• Oven Door Features: Big View Oven Window, Glass Door
• Textured Steel Side Panels
• Cooktop Surface: Black Ceramic Glass
• Heating Element "ON" Indicator Light
• Hot Surface Indicator Lights
• Oven Control Features: Oven "ON" Light, Self-Cleaning Cycling Light
• Oven Features: 4-Pass Bake Element, 6-Pass Broil Element
• Oven Rack Features: 2 Oven Racks, 6 Rack Positions
• Front controls
• Dual-element Bake
• Handle: Designer Style, Stainless Steel
• Oven Door Features: Big View Oven Window, Glass Door
• Textured Steel Side Panels
• Cooktop Surface: Black Ceramic Glass
• Heating Element "ON" Indicator Light
• Hot Surface Indicator Lights
• Oven Control Features: Oven "ON" Light, Self-Cleaning Cycling Light
• Oven Features: 4-Pass Bake Element, 6-Pass Broil Element
• Oven Rack Features: 2 Oven Racks, 6 Rack Positions
Electrical Information
Information
• Amp Rating at 208V: 40
• Amp Rating at 240V: 40
• Bake Wattage: 2585W
• Broiler Wattage: 3410W
• KW Rating at 208V: 7.9
• KW Rating at 240V: 10.5
• Amp Rating at 240V: 40
• Bake Wattage: 2585W
• Broiler Wattage: 3410W
• KW Rating at 208V: 7.9
• KW Rating at 240V: 10.5
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
24"
Width
30 inch(es) / 76.20 cm
Height
47 inch(es) / 119.38 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
29 inch(es) / 73.66 cm
Weight
141.01 lb(s) / 63.96 kg
Additional Dimensions
• Cabinet Width: 30.0 in
• Depth with Door Open: 46.75 in
• Height to Cooking Surface (in.): 36 - 36 1/2
• Depth with Door Open: 46.75 in
• Height to Cooking Surface (in.): 36 - 36 1/2
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
49.5 inch(es) / 125.73 cm
Depth
30.2 inch(es) / 76.71 cm
Weight
161 lb(s) / 73.03 kg
Warranty
Warranty
• Parts Warranty: Limited 1-year entire appliance
• Labor Warranty: Limited 1-year entire appliance
• Labor Warranty: Limited 1-year entire appliance
UPC
UPC#
084691916055
