Specifications
General
Series Name
Lamazza
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam

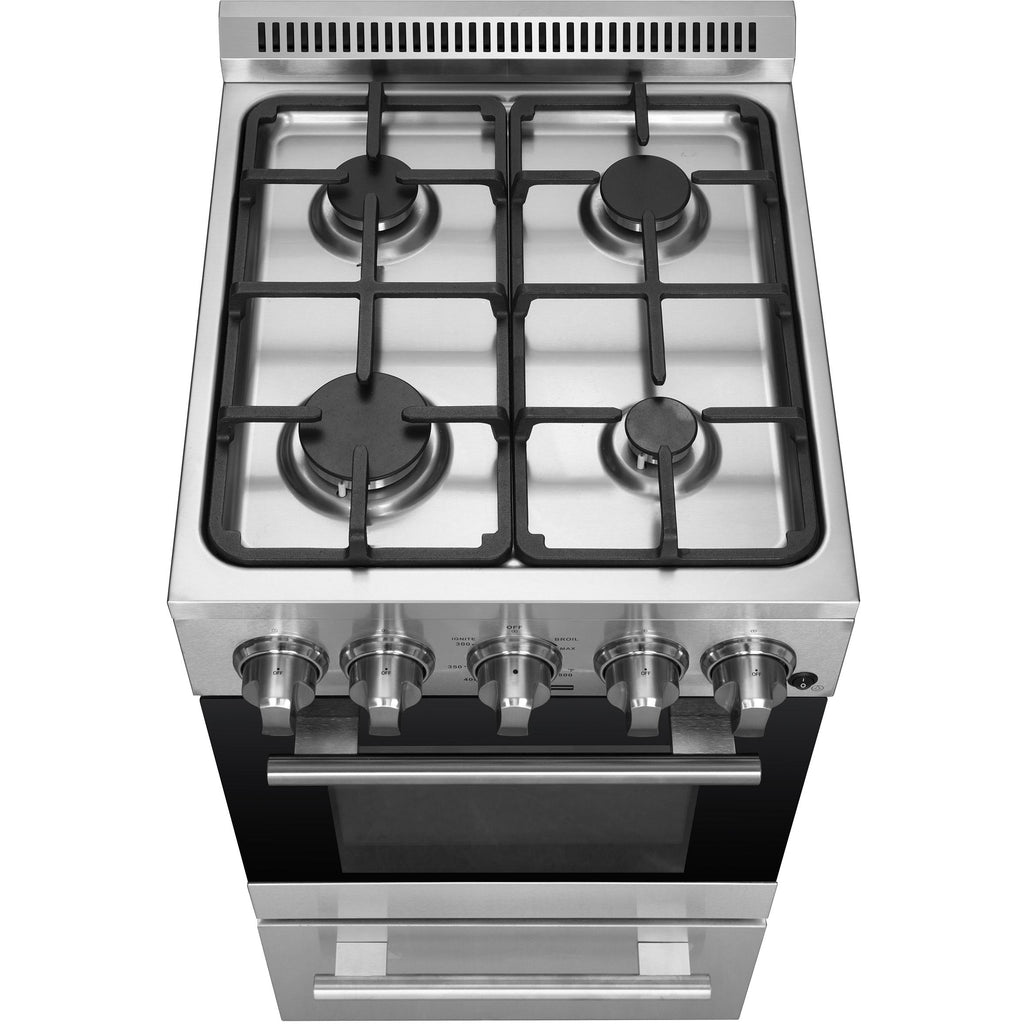

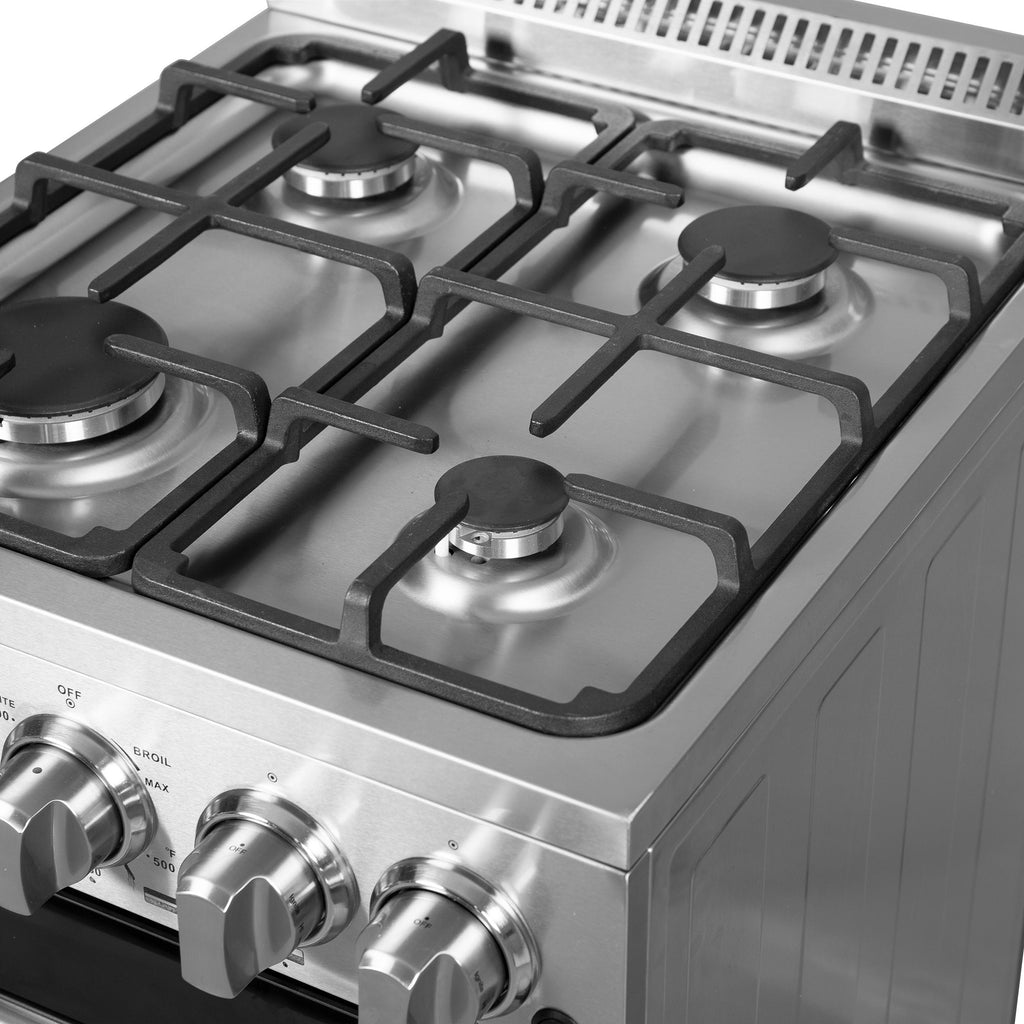

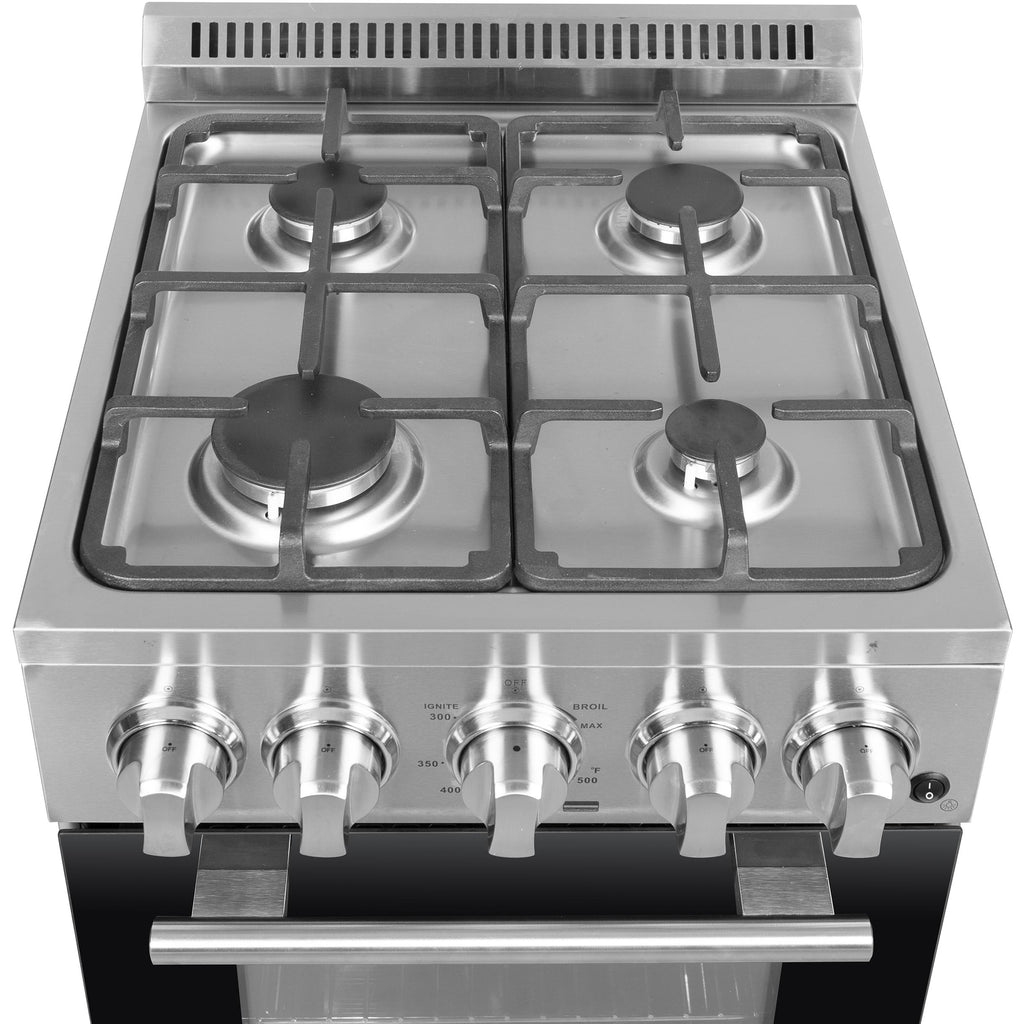

Cooktop
Burners/Elements
4
Burners/Elements Output
• Total Stovetop BTU / Watts: 21200
• Front Right Burner: 2,700 BTU
• Front Left Burner: 8,500 BTU
• Rear Right Burner: 5,000 BTU
• Rear Left Burner: 5,000 BTU
• Front Right Burner: 2,700 BTU
• Front Left Burner: 8,500 BTU
• Rear Right Burner: 5,000 BTU
• Rear Left Burner: 5,000 BTU
Burners
Sealed

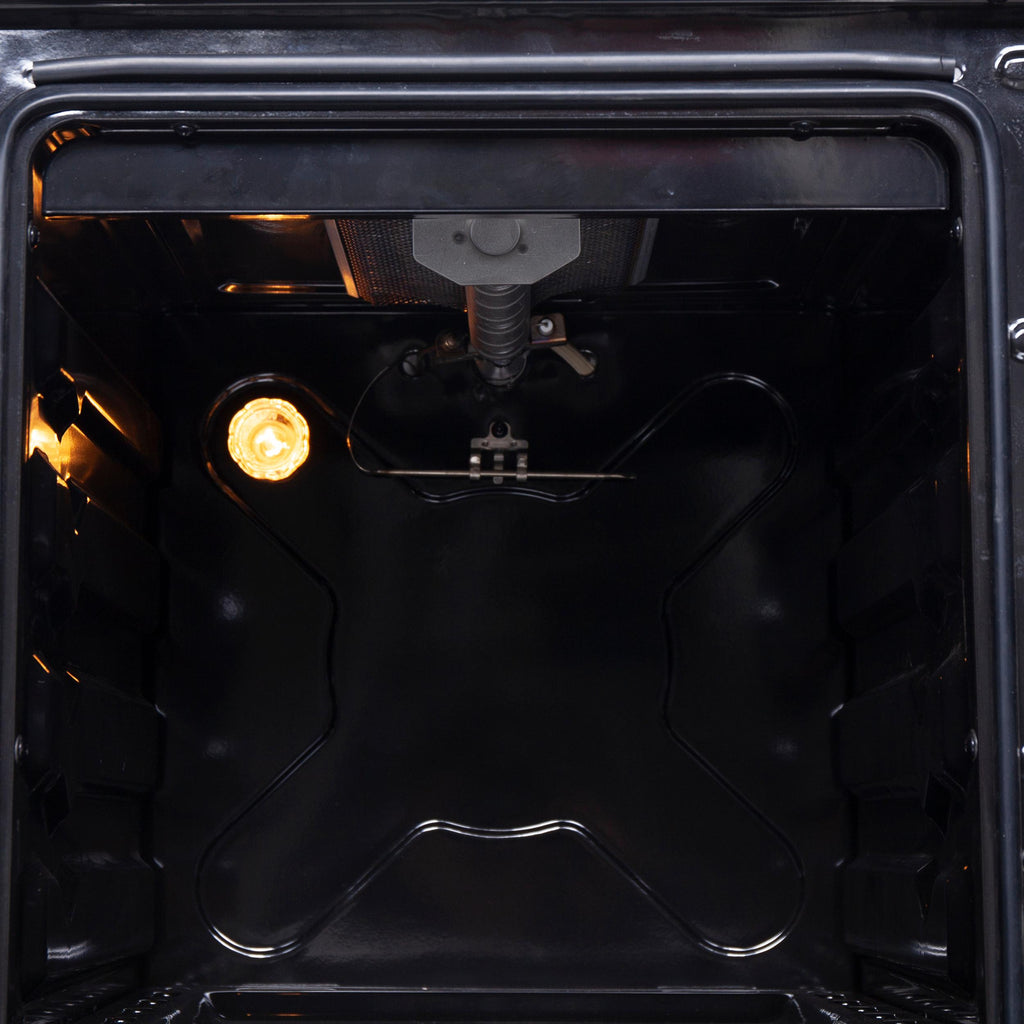

Oven
Capacity (cu. ft.)
2.05 Cubic Feet
Number of Ovens
Single
Features
Convection
Yes
Oven Light
Yes
Additional Information

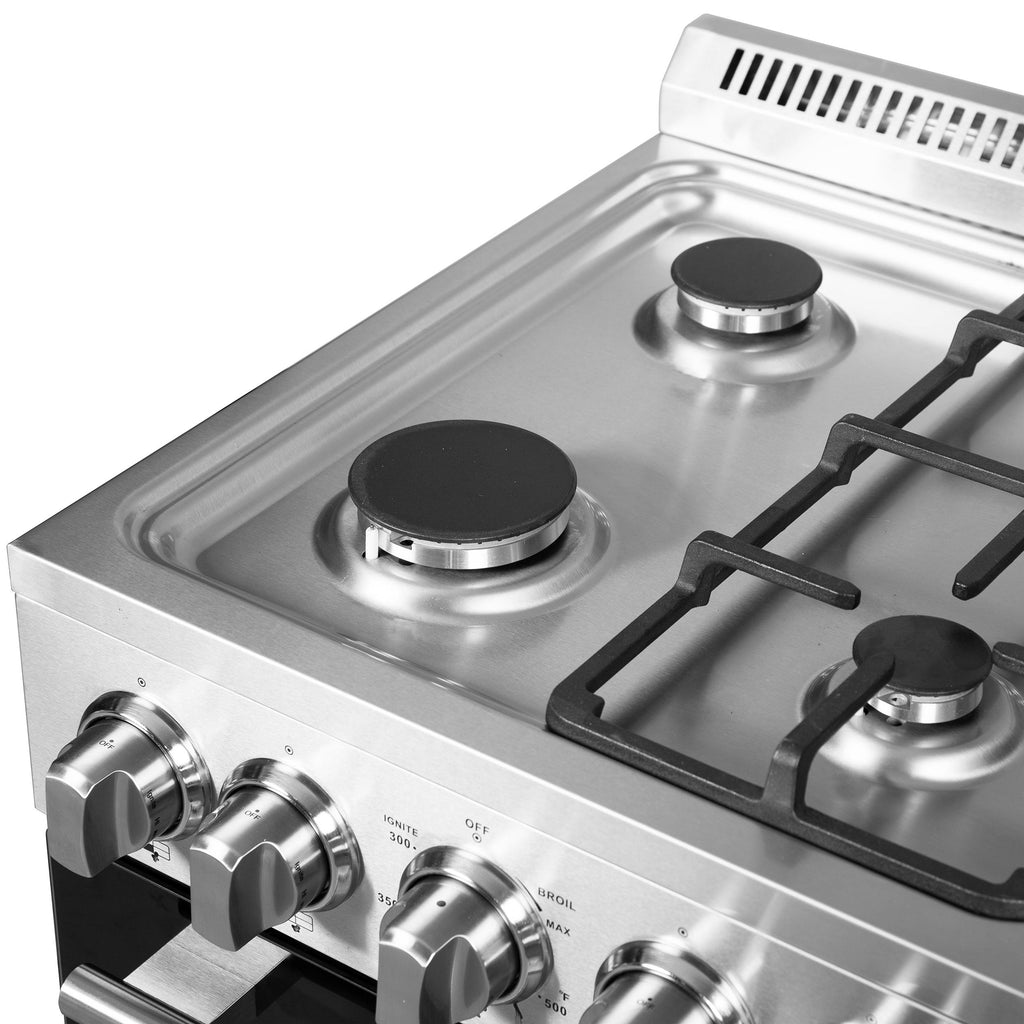

• Continuous Cast Iron Grates
• Recessed Stainless Steel Cooktop

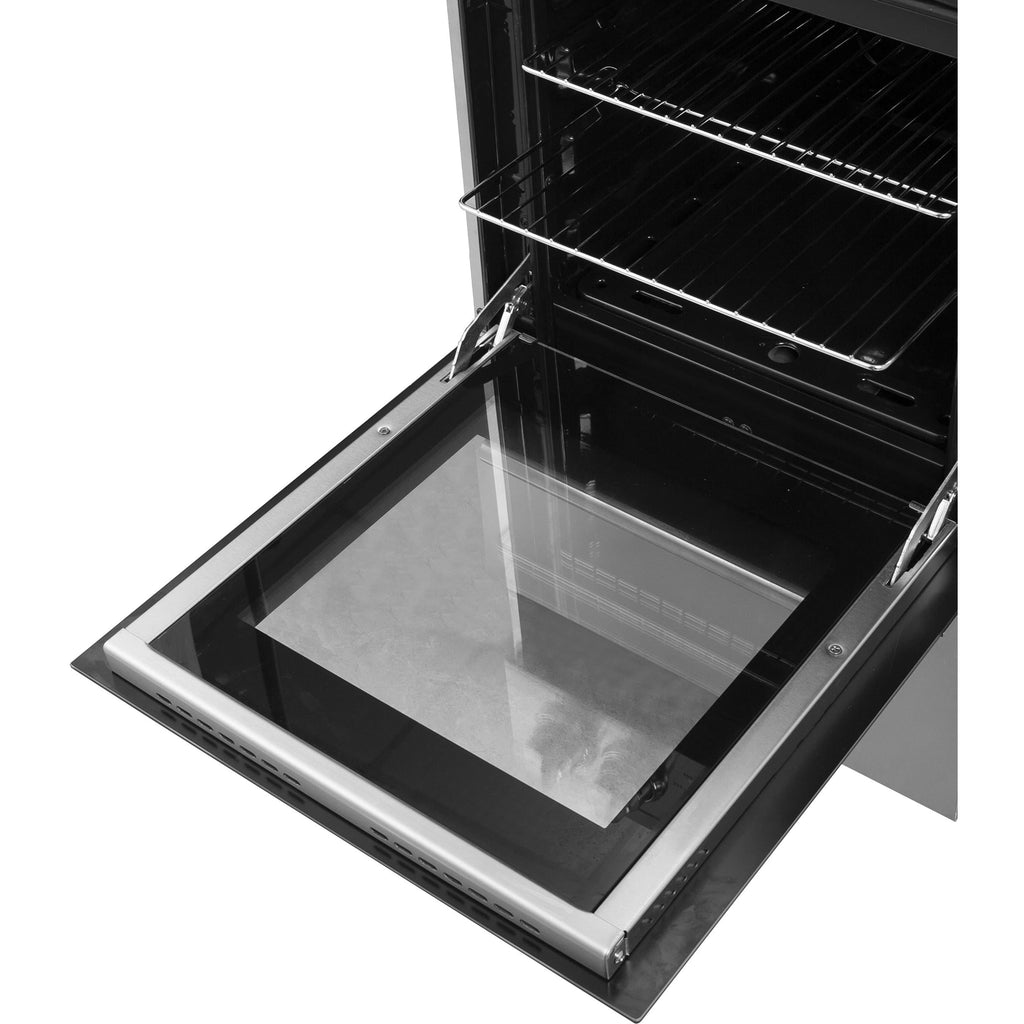

• 3-Layer Glass Door
• Smooth Friction Hinges
• Recessed Stainless Steel Cooktop
• 3-Layer Glass Door
• Smooth Friction Hinges
Electrical Information
Information
• 15 Amps
• 120 Volts
• 3-Prong Grounded
• 120 Volts
• 3-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included
• Includes LP conversion kit and 3-Prong Plug
• LP Kit Included
• LP Kit Included
Dimensions
Class Width
20"
Width
19.5 inch(es) / 49.53 cm
Height
37.8 inch(es) / 96.01 cm
Depth (Without Handles)
22 inch(es) / 55.88 cm
Weight
118.61 lb(s) / 53.8 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 39.75
• Depth with Oven Door Open 90º (CM): 100.965
• Oven Interior (IN): 14"W x 16.5"D x 14"H
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 39.75
• Depth with Oven Door Open 90º (CM): 100.965
• Oven Interior (IN): 14"W x 16.5"D x 14"H
Shipping Dimensions
Width
21.8 inch(es) / 55.37 cm
Height
39.7 inch(es) / 100.84 cm
Depth
25.7 inch(es) / 65.28 cm
Weight
130.01 lb(s) / 58.97 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136962865
