Specifications
General
Series Name
Alta Qualita
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Manual

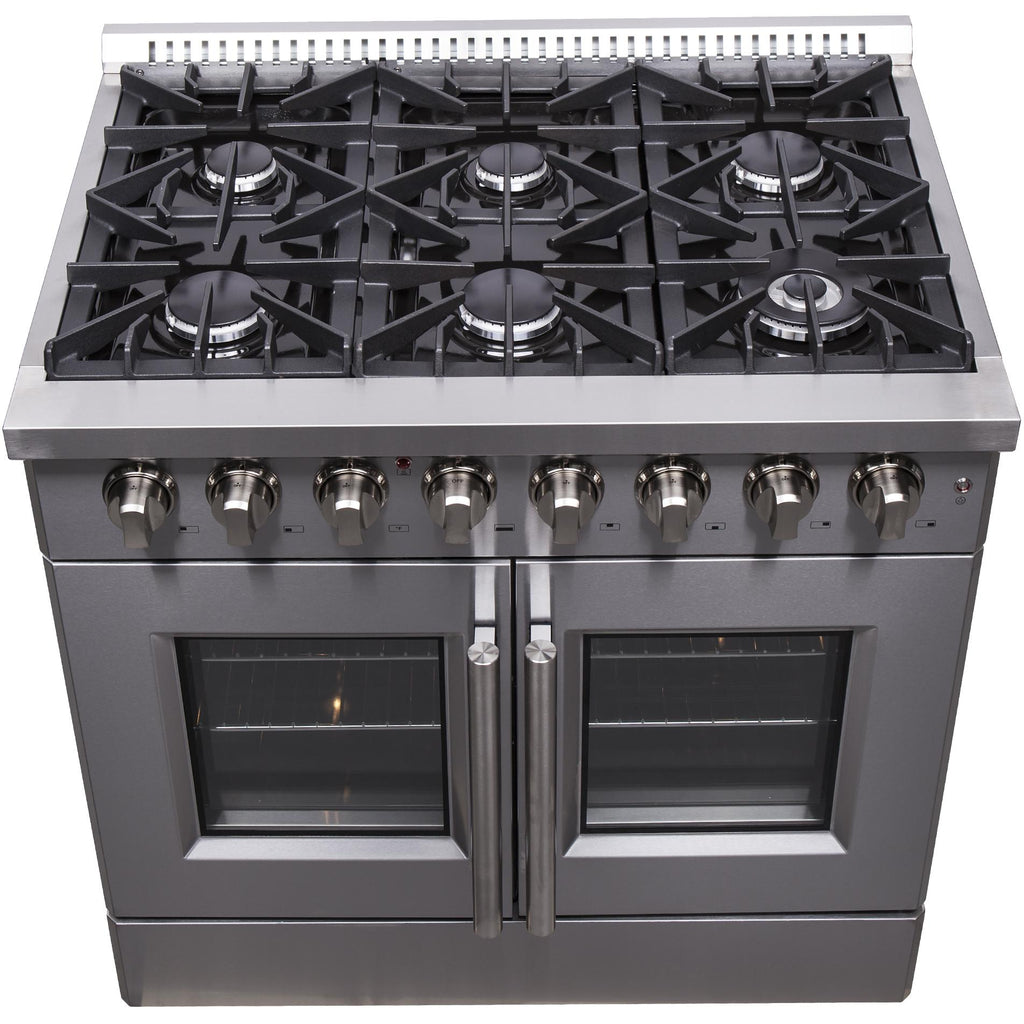

Cooktop
Burners/Elements
6
Burners/Elements Output
• Total Stovetop BTU / Watts: 83,000 BTU
• Front Right Burner: 20,000 BTU
• Front Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
• Front Right Burner: 20,000 BTU
• Front Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
Burners
Sealed

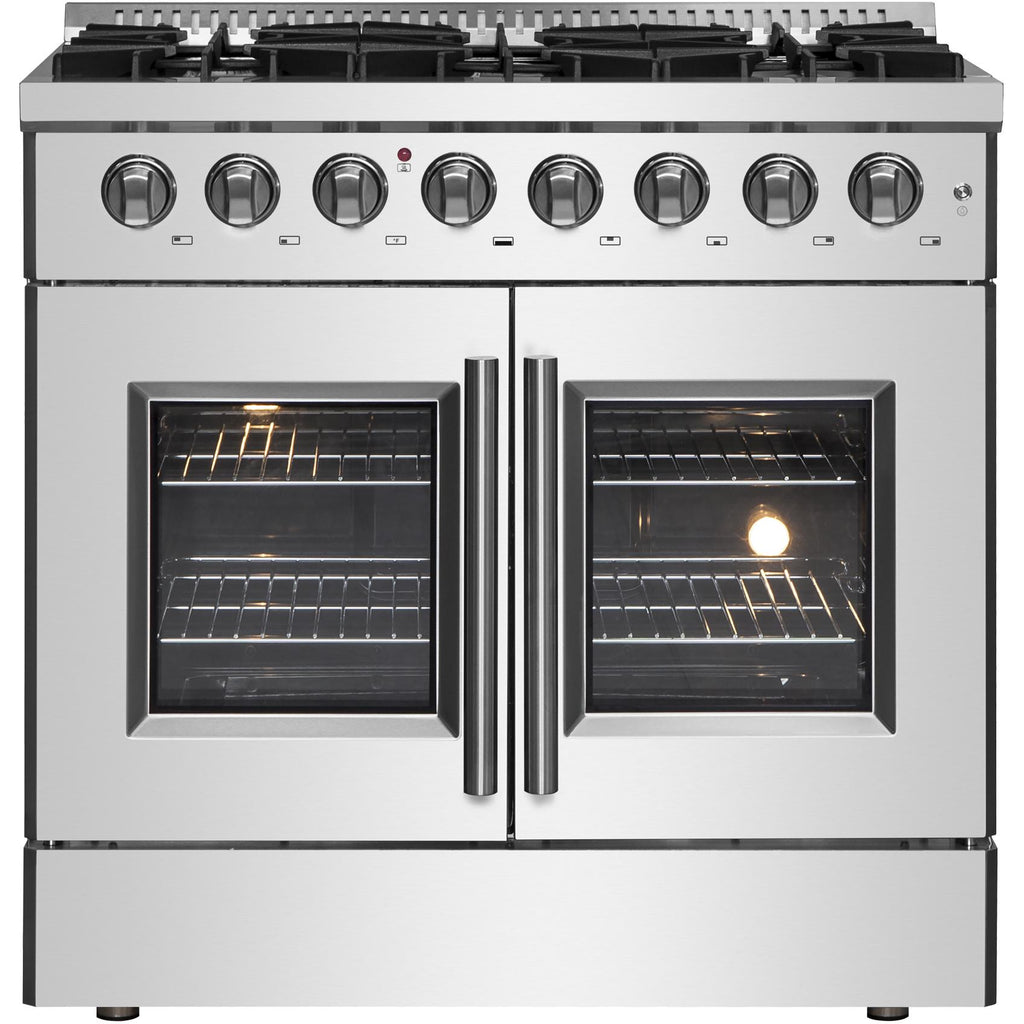

Oven
Capacity (cu. ft.)
5.36 Cubic Feet
Number of Ovens
Single
Features
Technologies

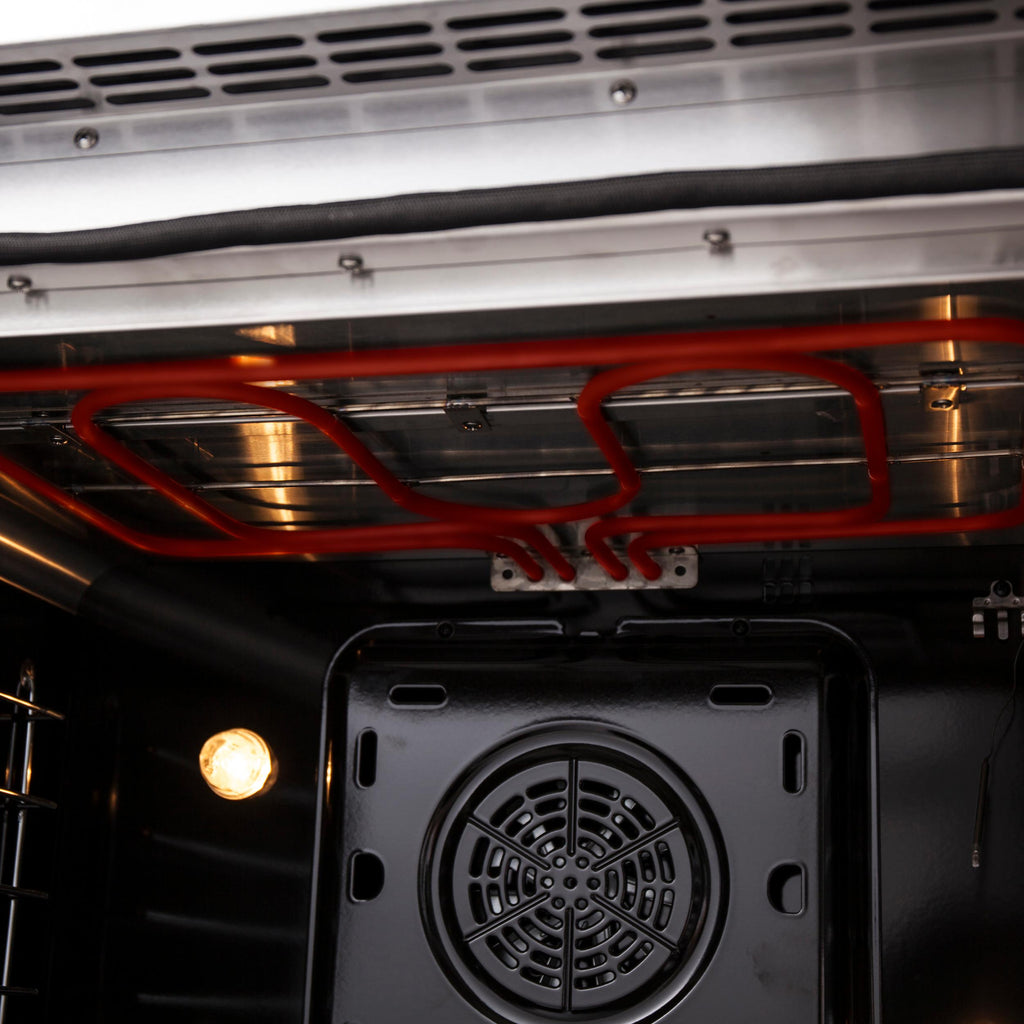

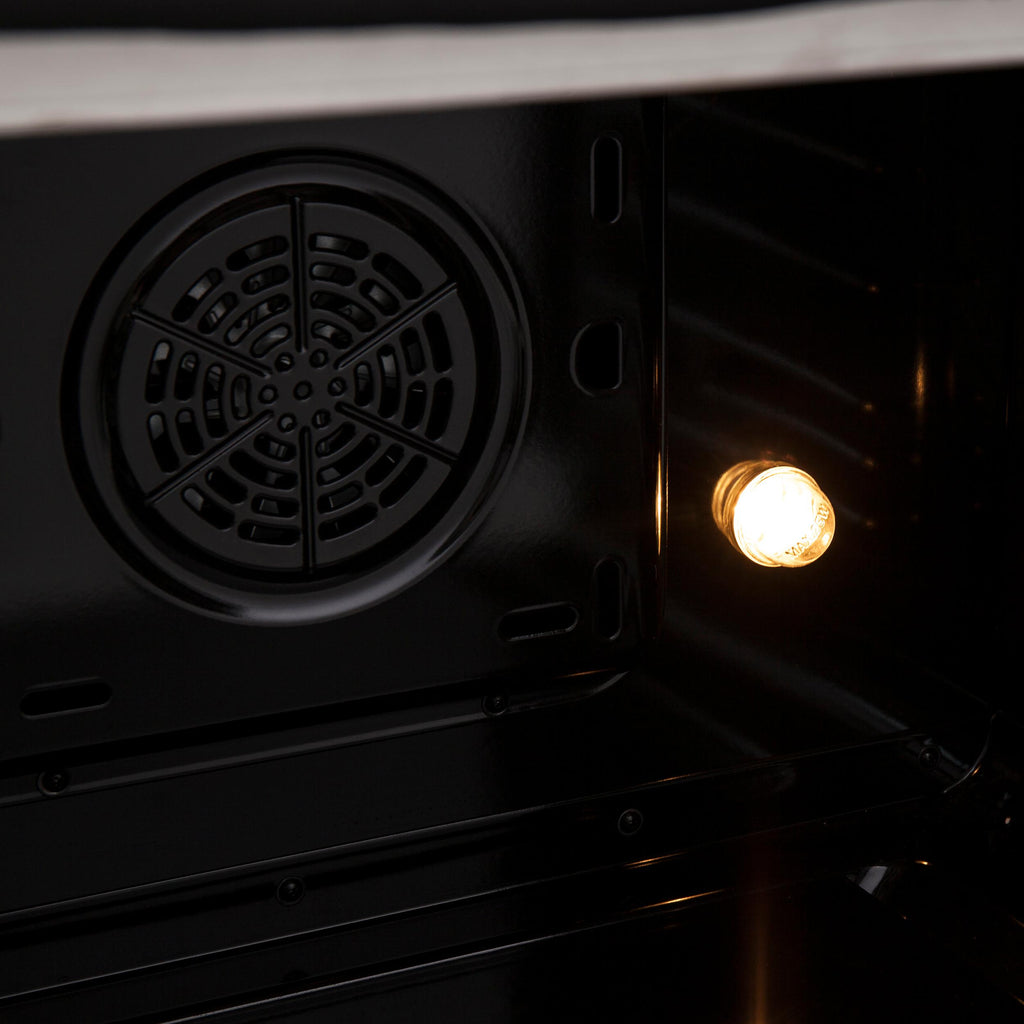

True Convection
Convection
Yes
Oven Light
Yes
Additional Information
• 20K Burner with simmer
• Continuous Cast Iron Grates

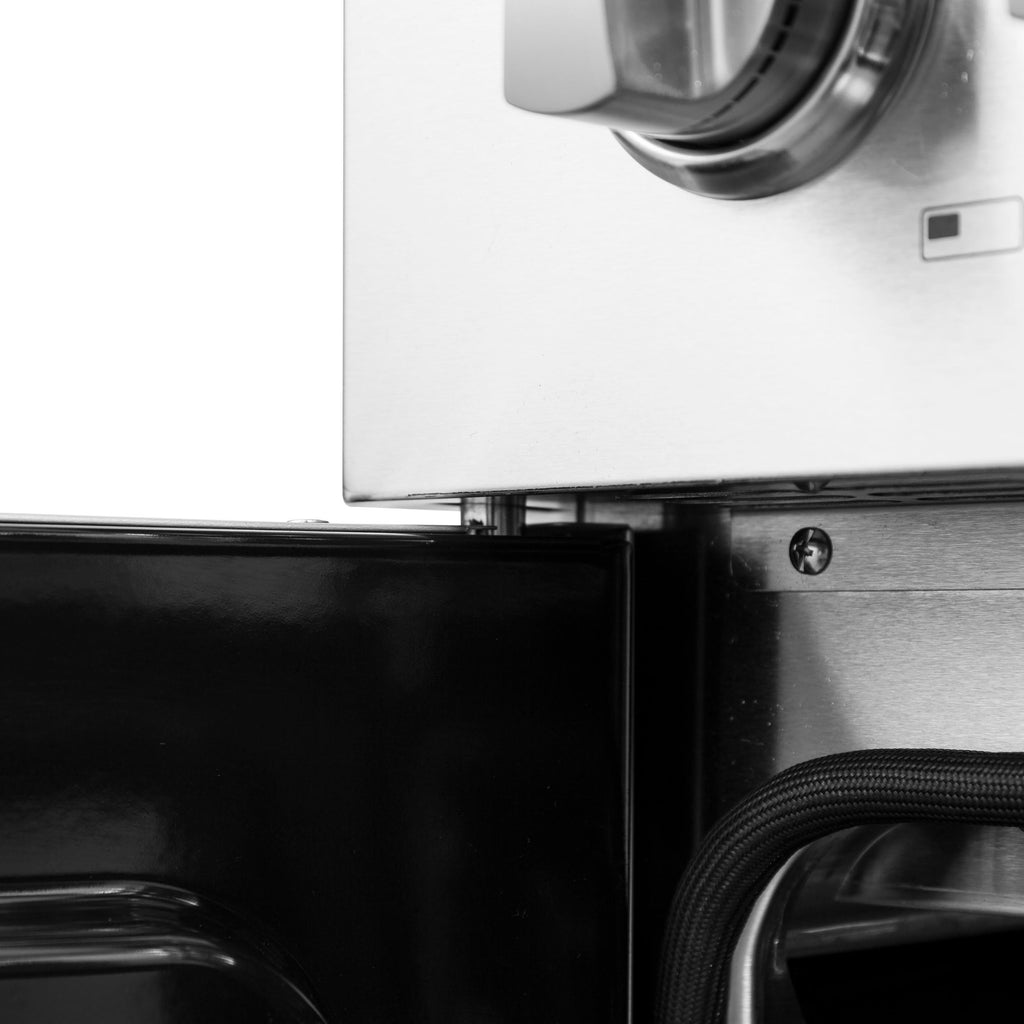

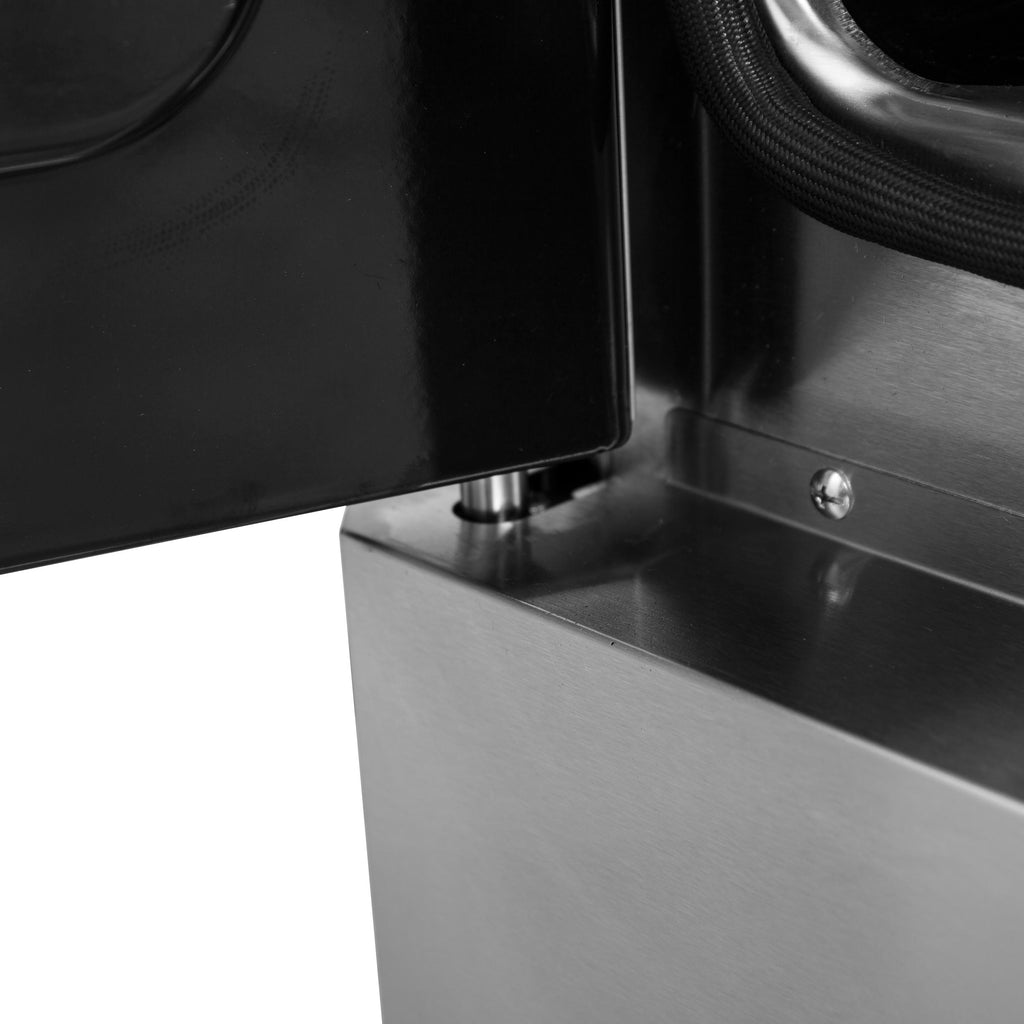

• Enamel Ovens and Smooth Friction Hinges
• Continuous Cast Iron Grates
• Enamel Ovens and Smooth Friction Hinges
Electrical Information
Information
• 30 Amps
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included

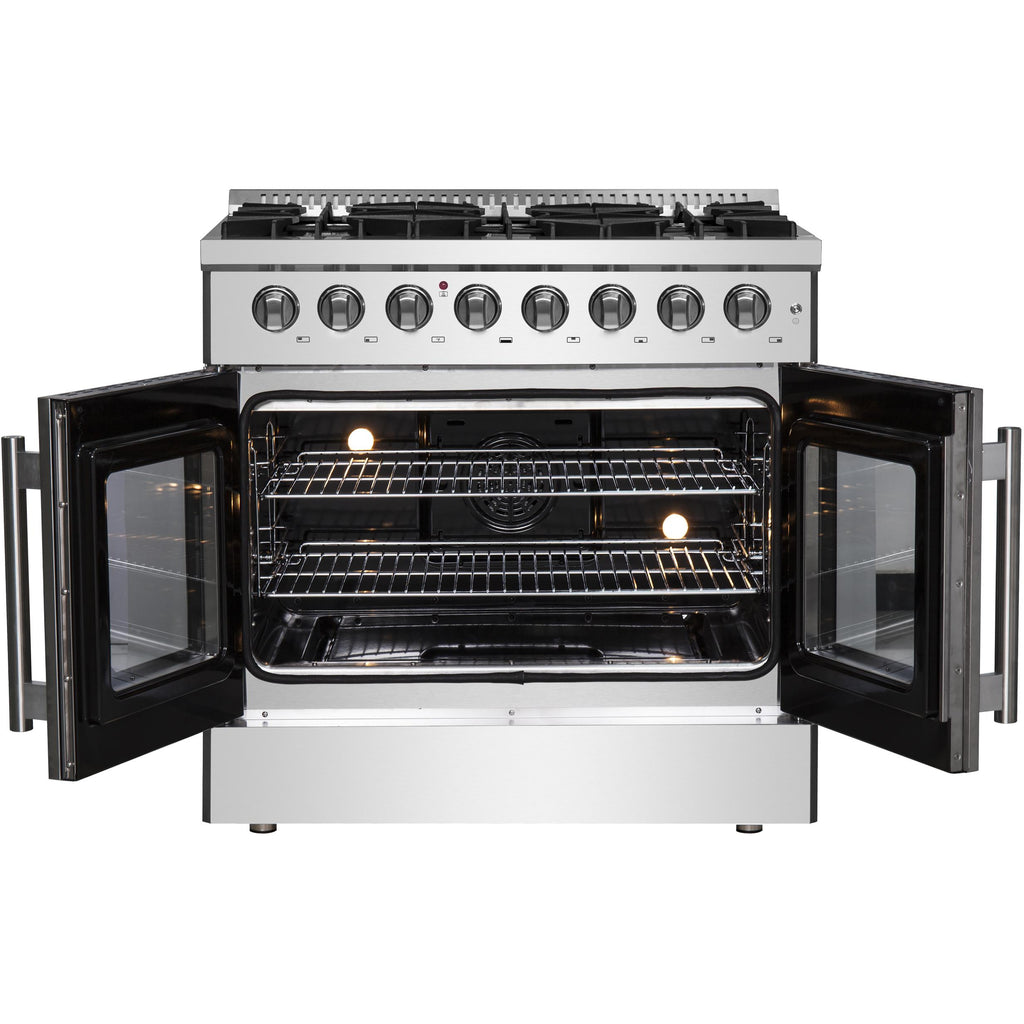

• Includes 2 Electro-Plated Oven Racks with 7.5mm frame and 4mm grid, LP Conversion Kit and 4-Prong plug.
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
37.4 inch(es) / 95 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
283.29 lb(s) / 128.5 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 41.5
• Depth with Oven Door Open 90º (CM): 105.41
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 41.5
• Depth with Oven Door Open 90º (CM): 105.41
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
Shipping Dimensions
Width
38.39 inch(es) / 97.51 cm
Height
43.58 inch(es) / 110.69 cm
Depth
30.75 inch(es) / 78.11 cm
Weight
283.01 lb(s) / 128.37 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136963015
