Specifications
General
Series Name
Alta Qualita
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Total Stovetop BTU / Watts: 68,000 BTU
• Middle Burner: 20,000 BTU
• Front Right Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
• Middle Burner: 20,000 BTU
• Front Right Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.32 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Convection bake
• Convection broil
• Low bake
• Convection bake
• Convection broil
• Low bake
Features
Technologies
True Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information

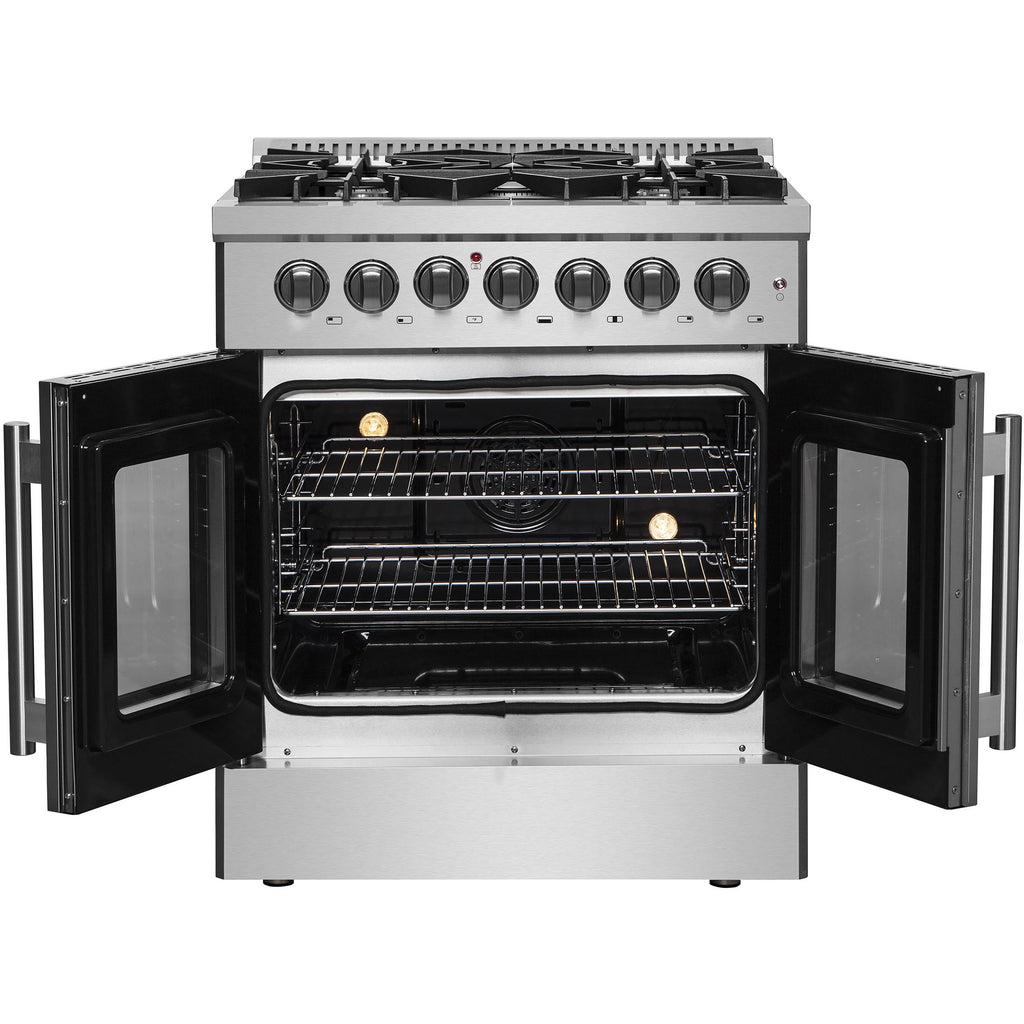

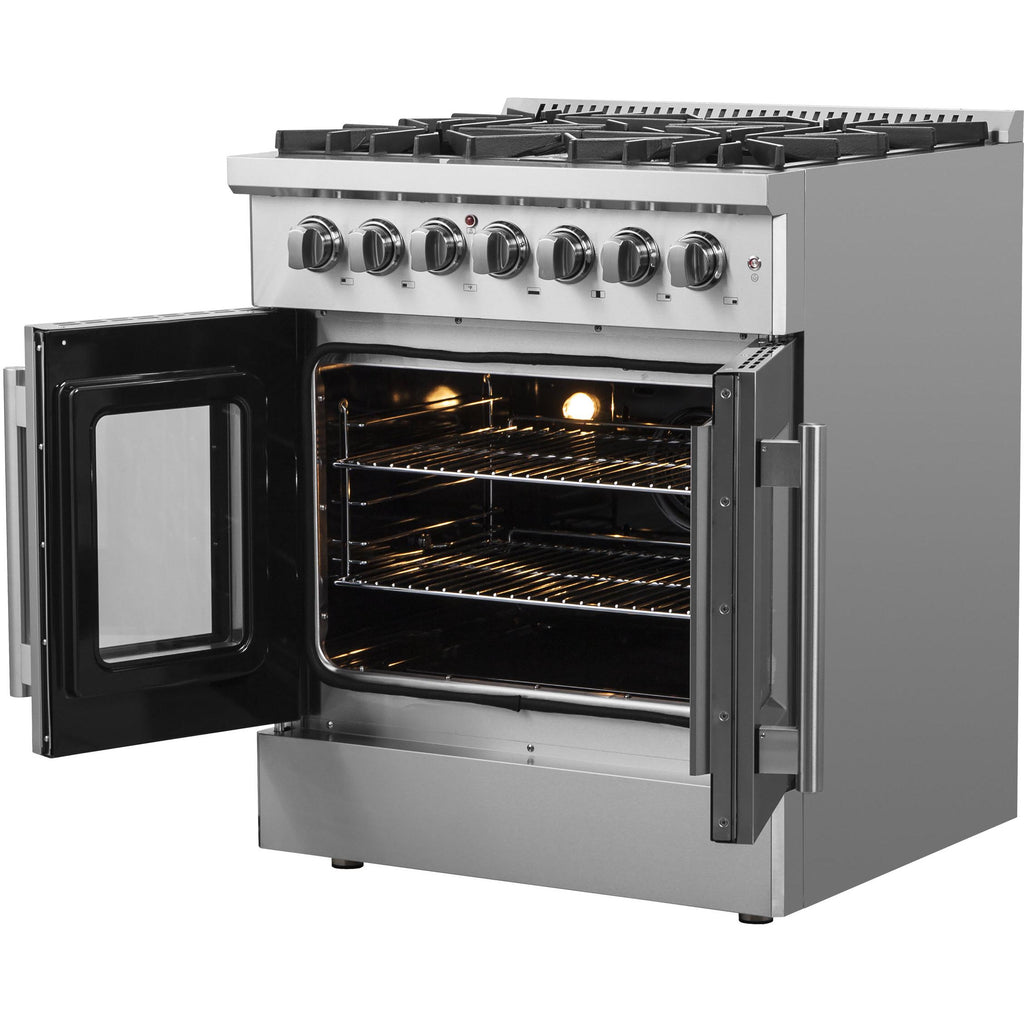

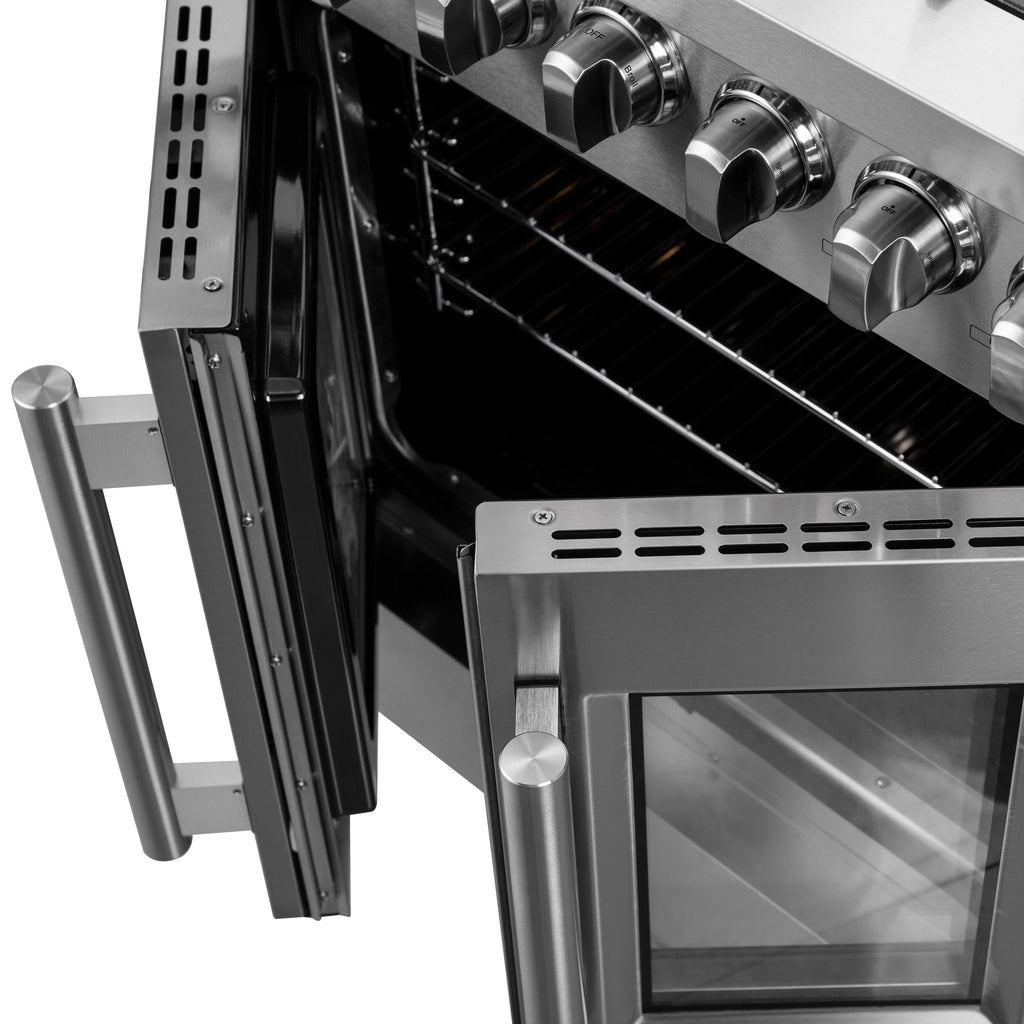

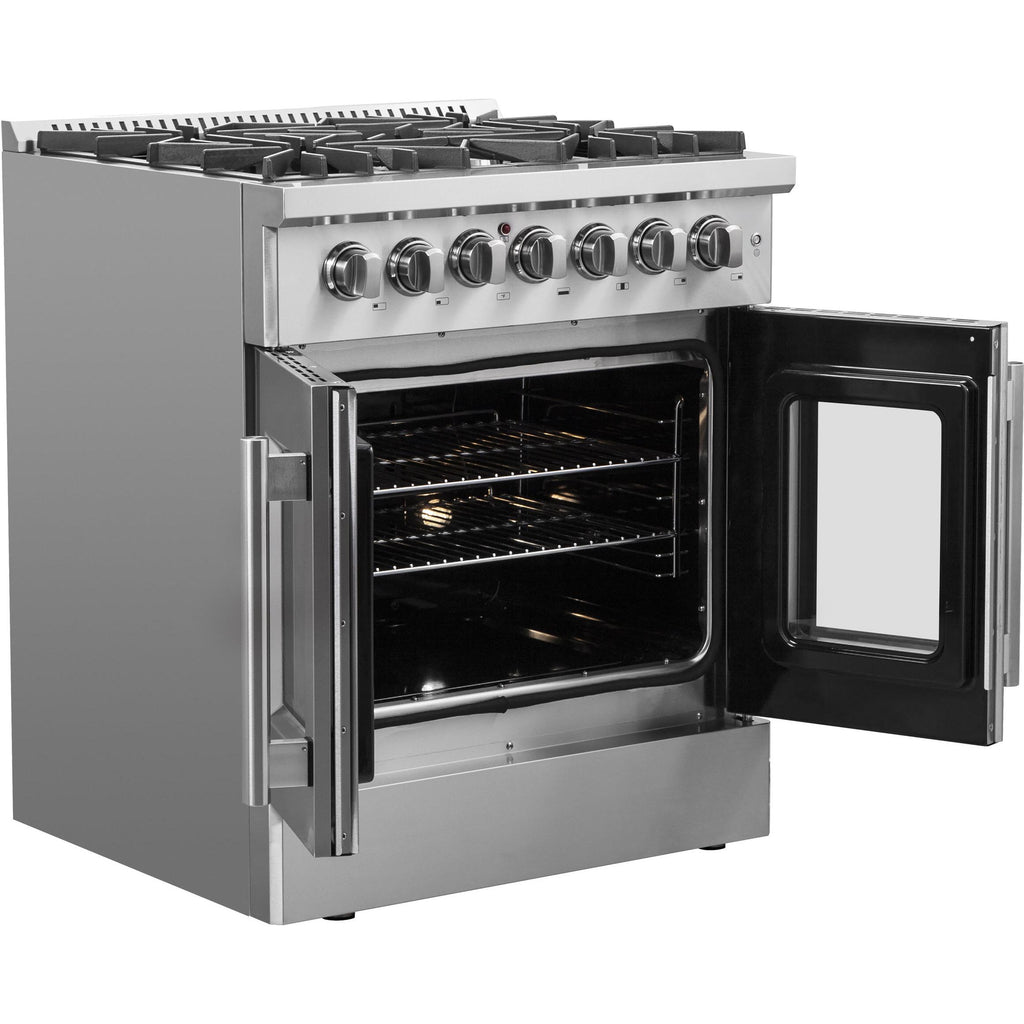

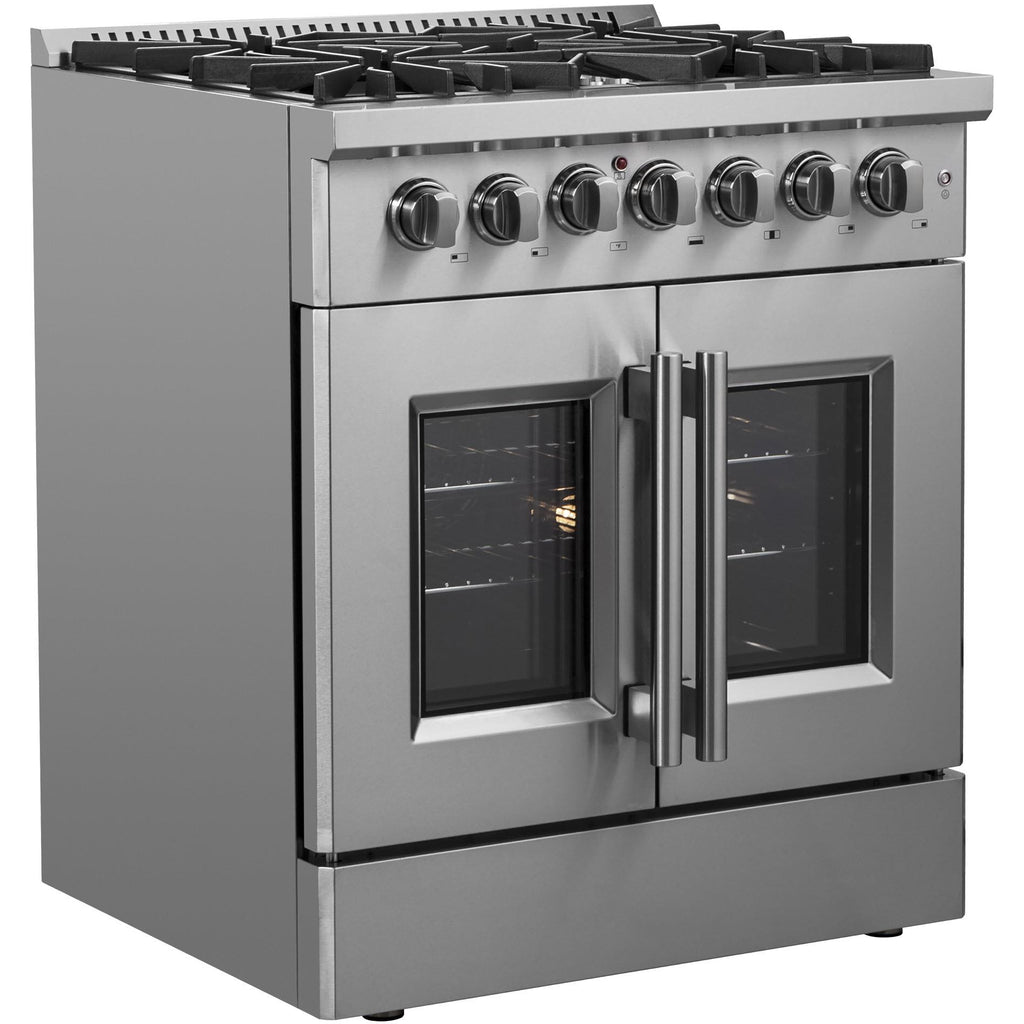

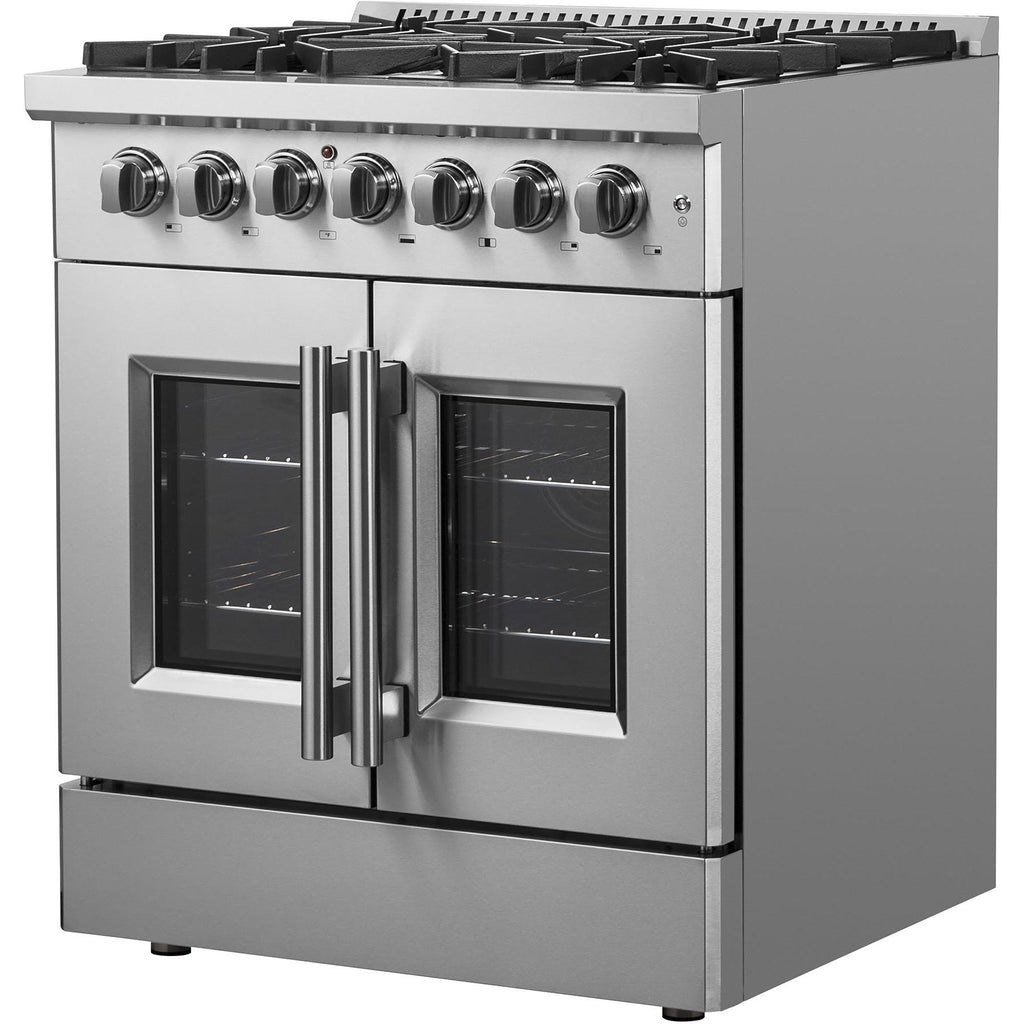

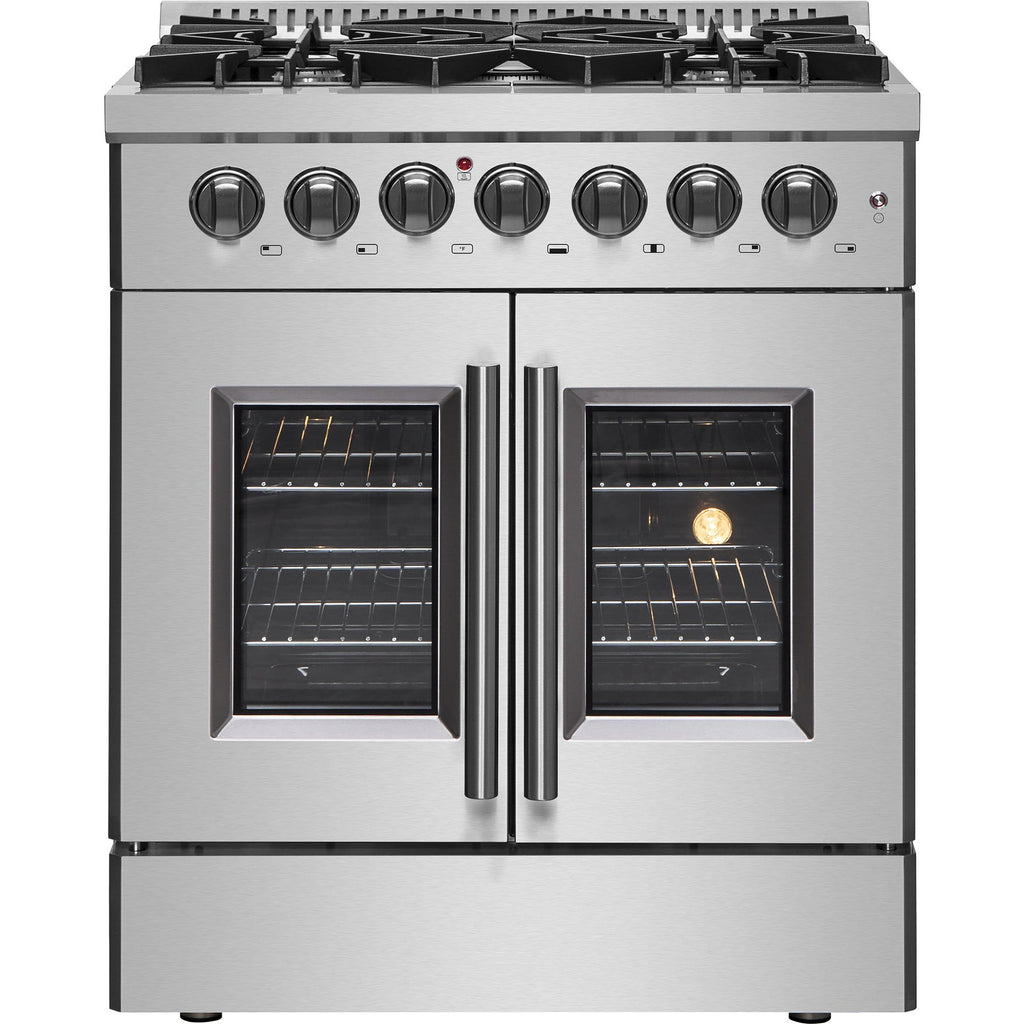

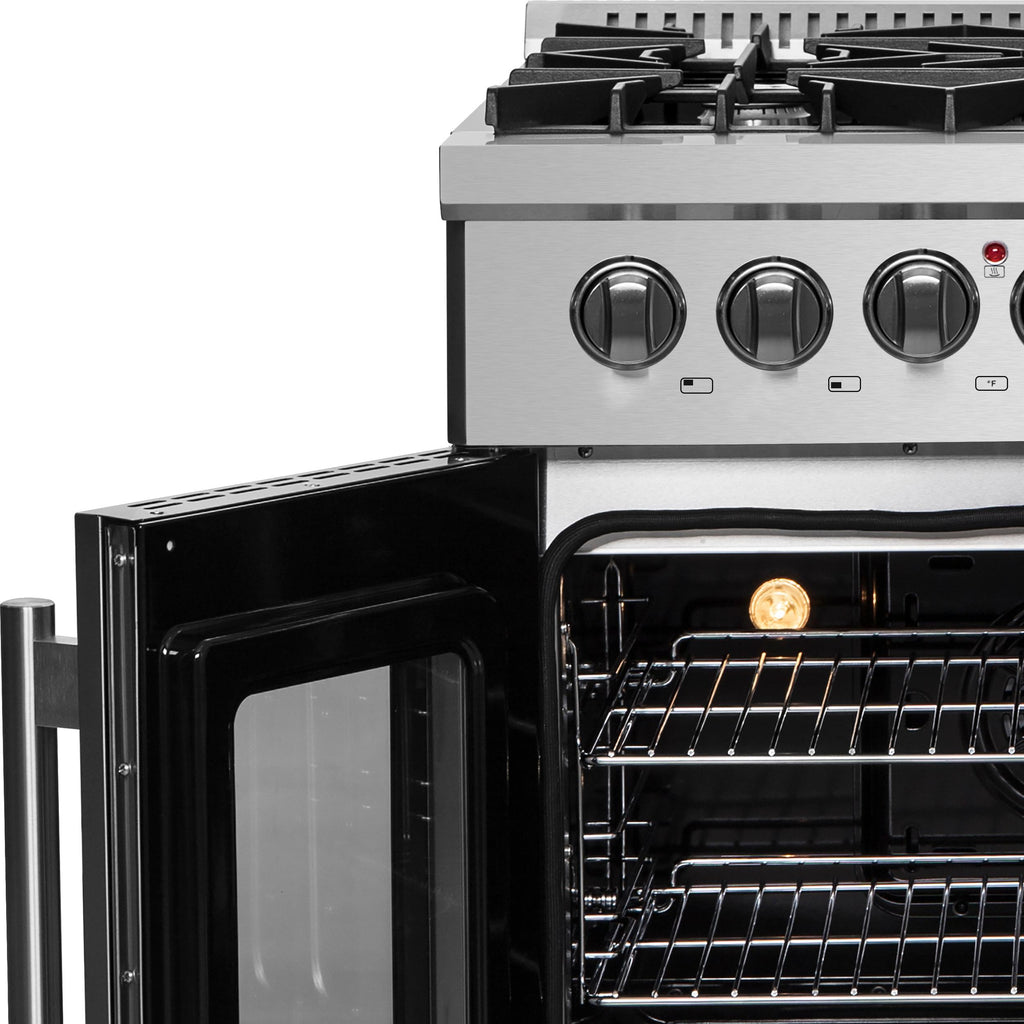

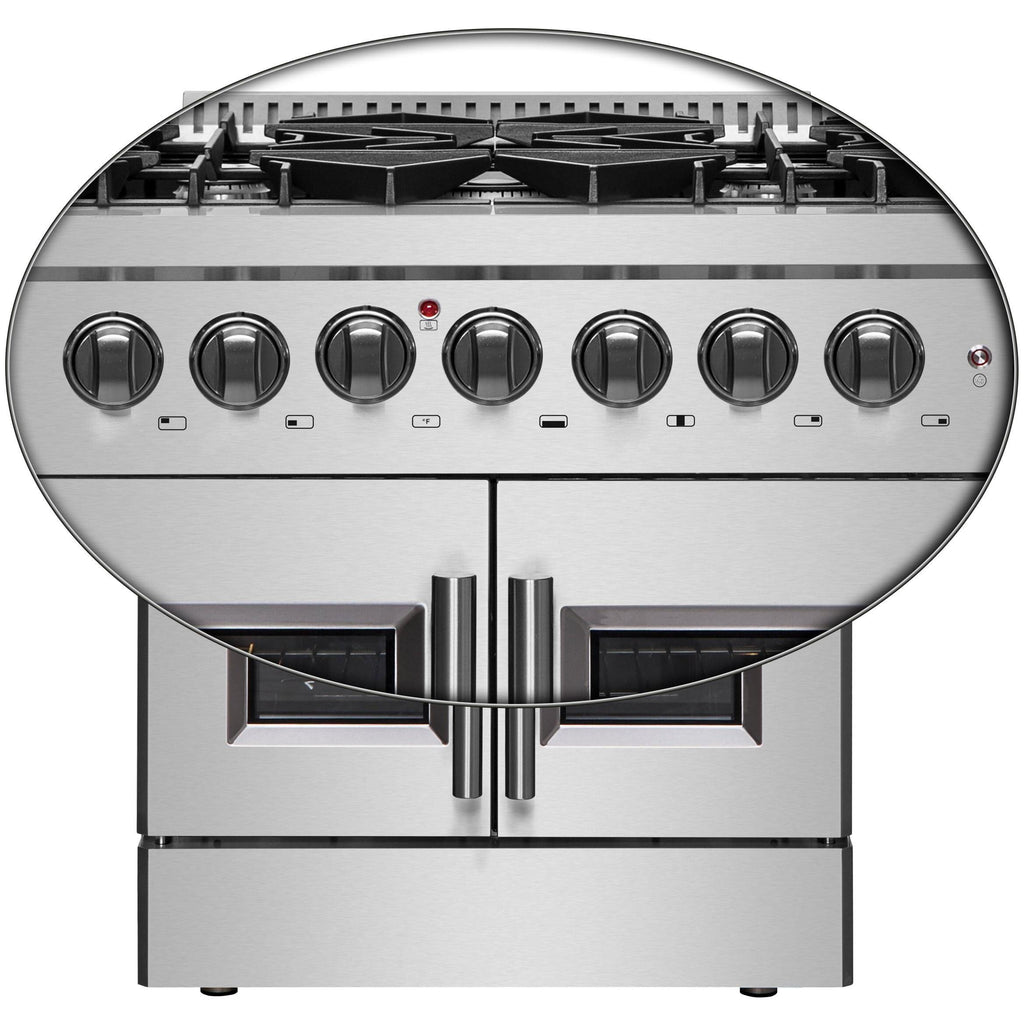

• French door design - Simplifying the process of loading and unloading large dishes, reducing the risk of burns.

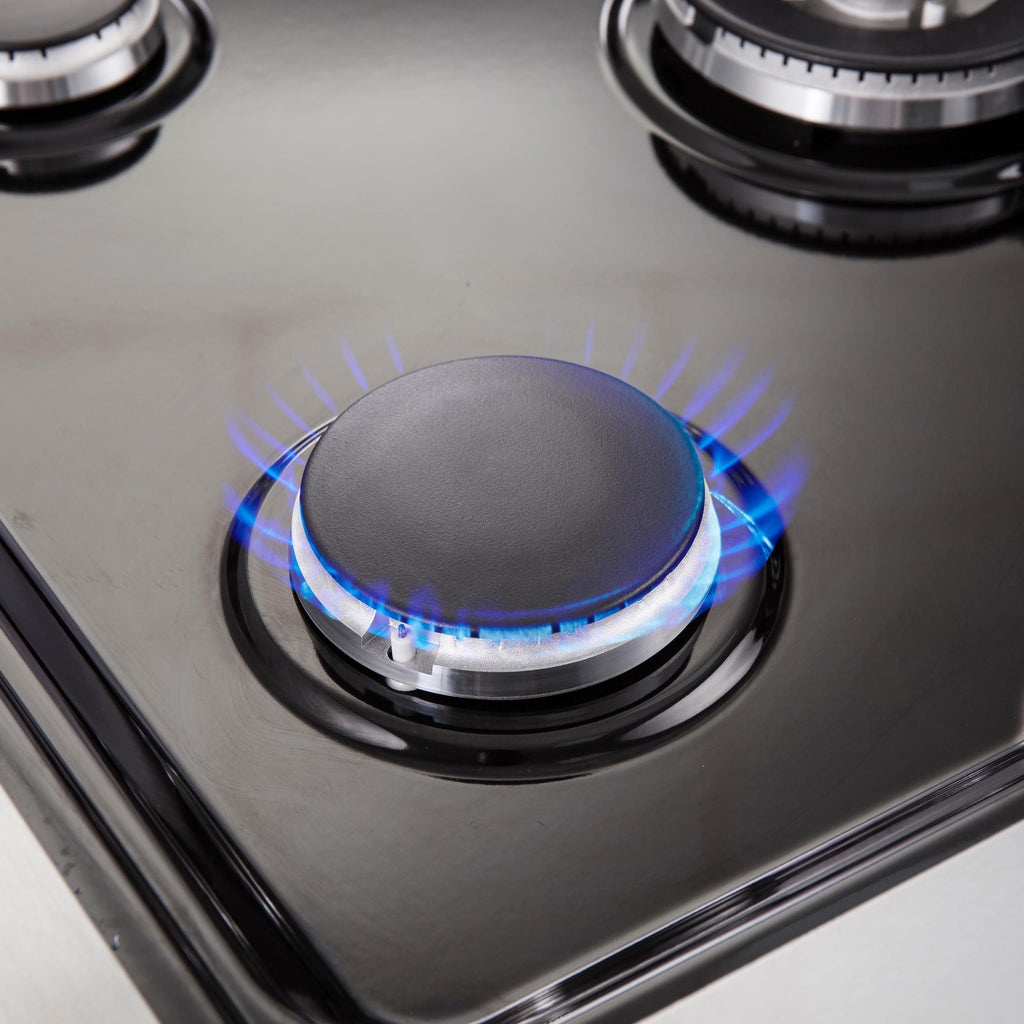

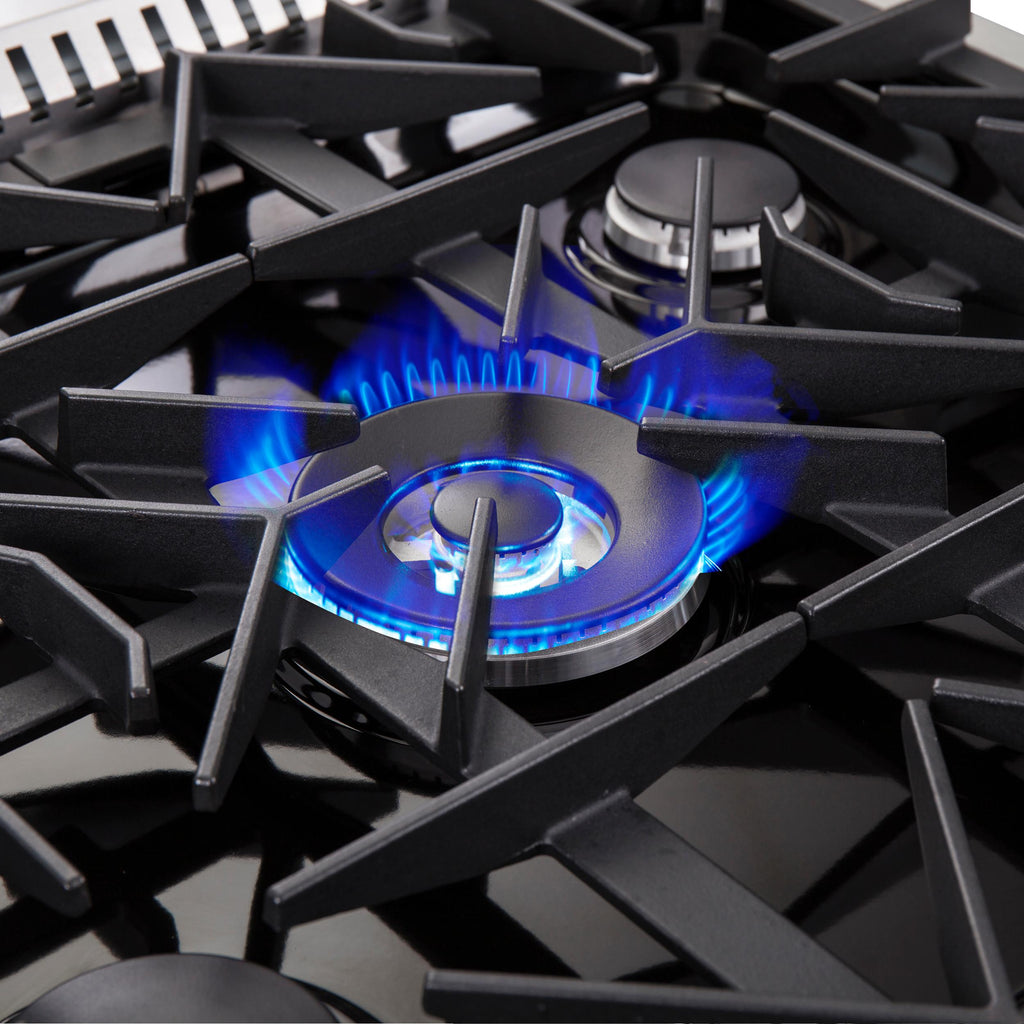

• Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control.

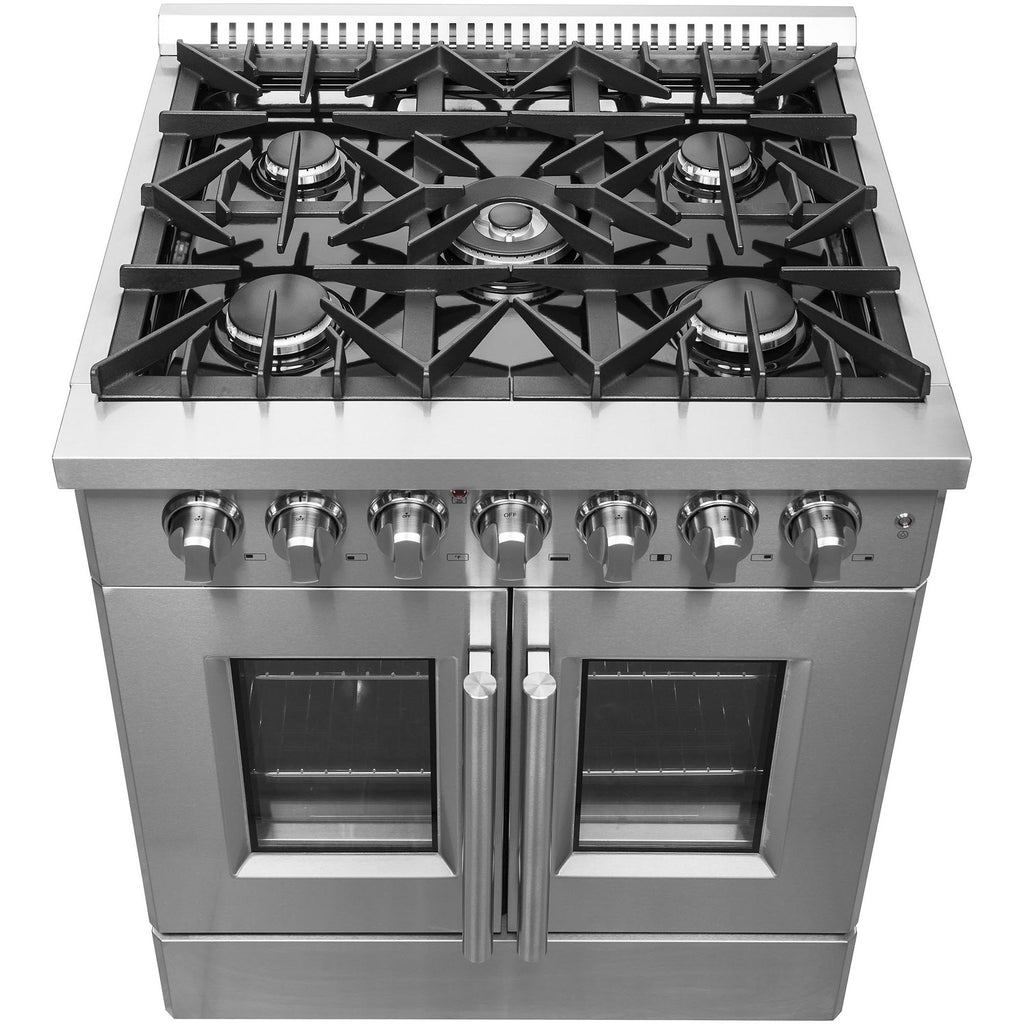

• 5 Sealed Burners combine a total -top out of 68,000 BTU.
• Continuous Cast Iron Grates provide even heat distribution and stable cookware and mobility.

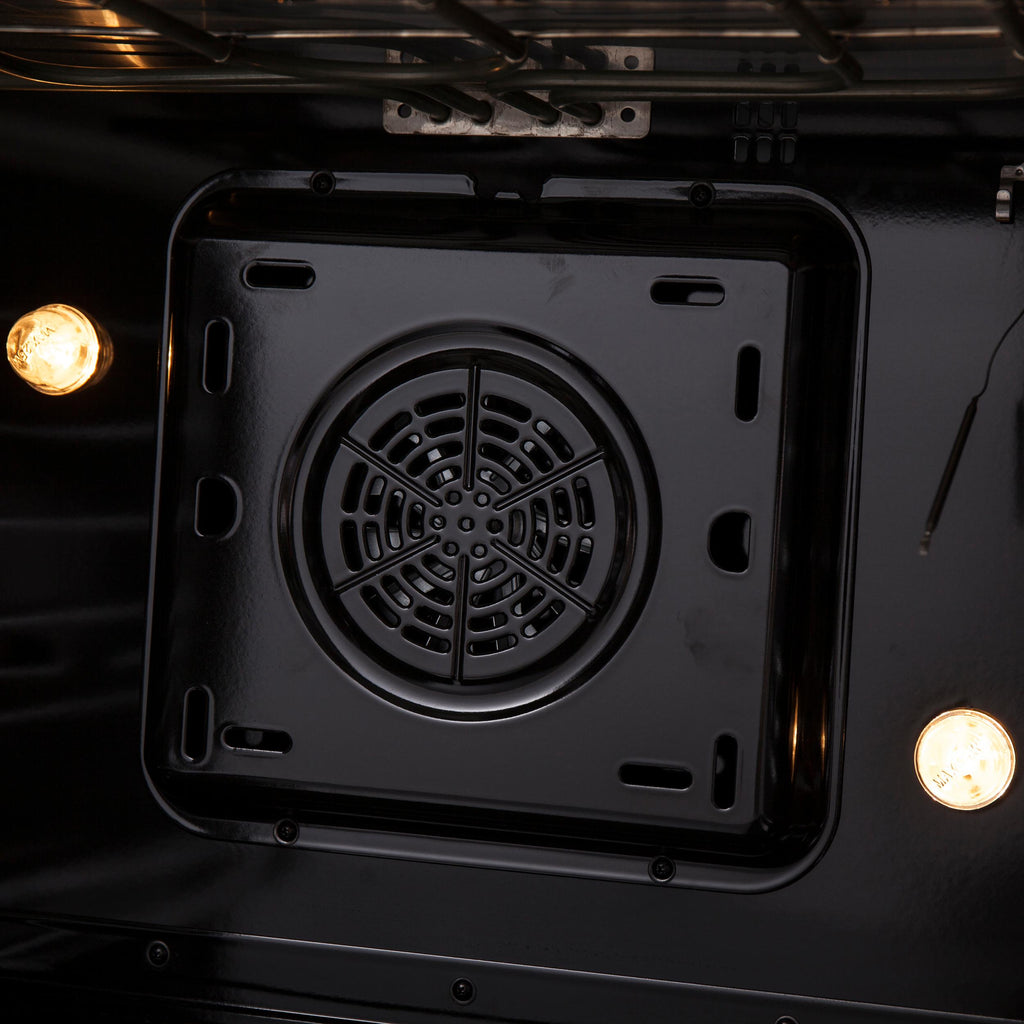

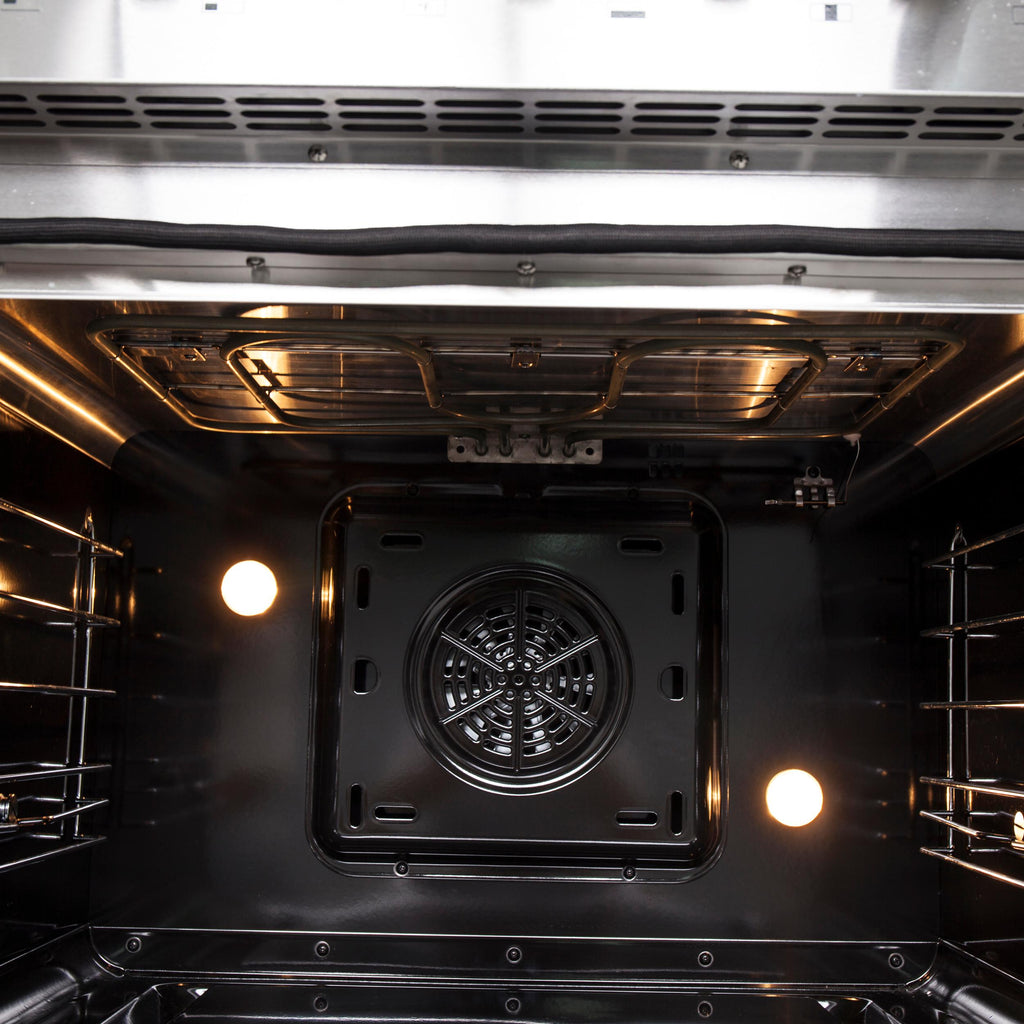

• Black Enamel Oven Interior with 2 Halogen Lights.

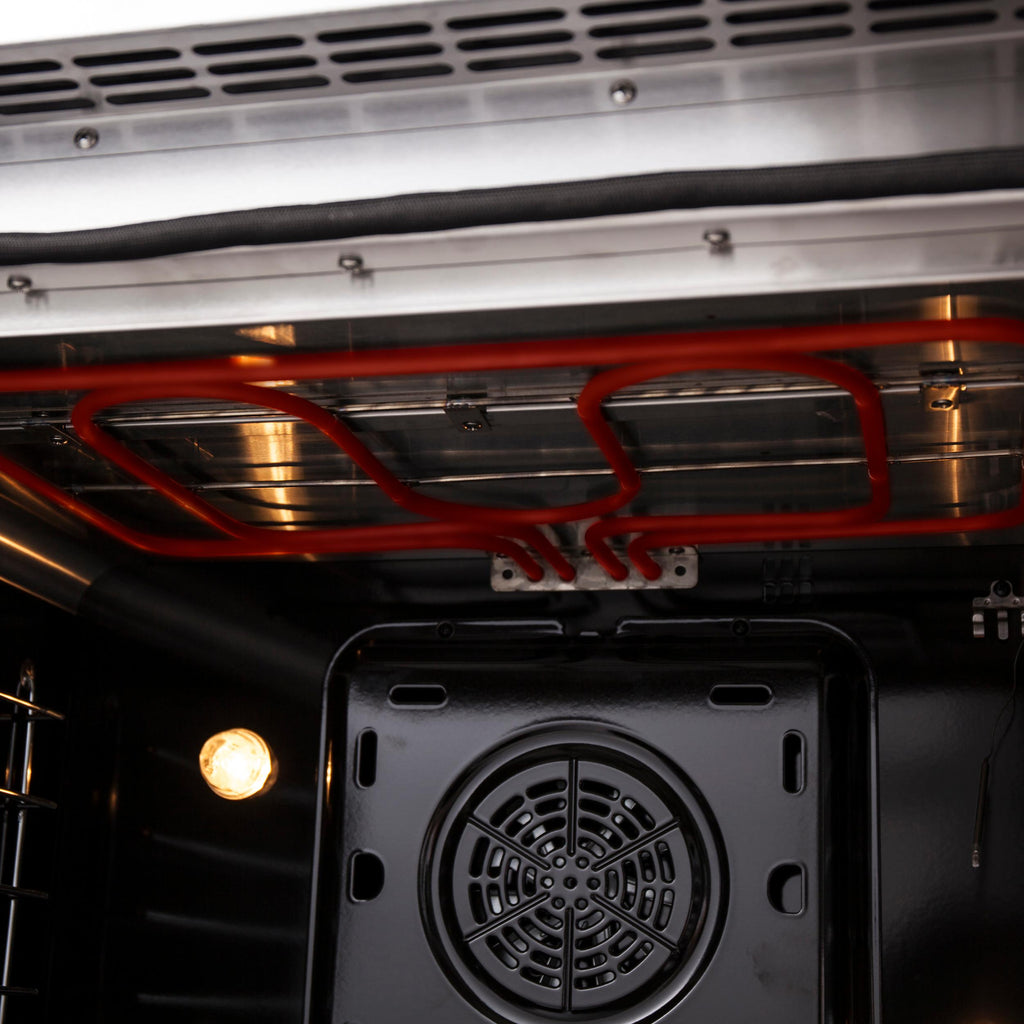

• 4.32 Cu.Ft True Convection Fan Oven with 4,800 Watt Total Broil and Bake output.Dual element for high broil temperatures and lower wattage element for delicate fish and chicken broiling.
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups.

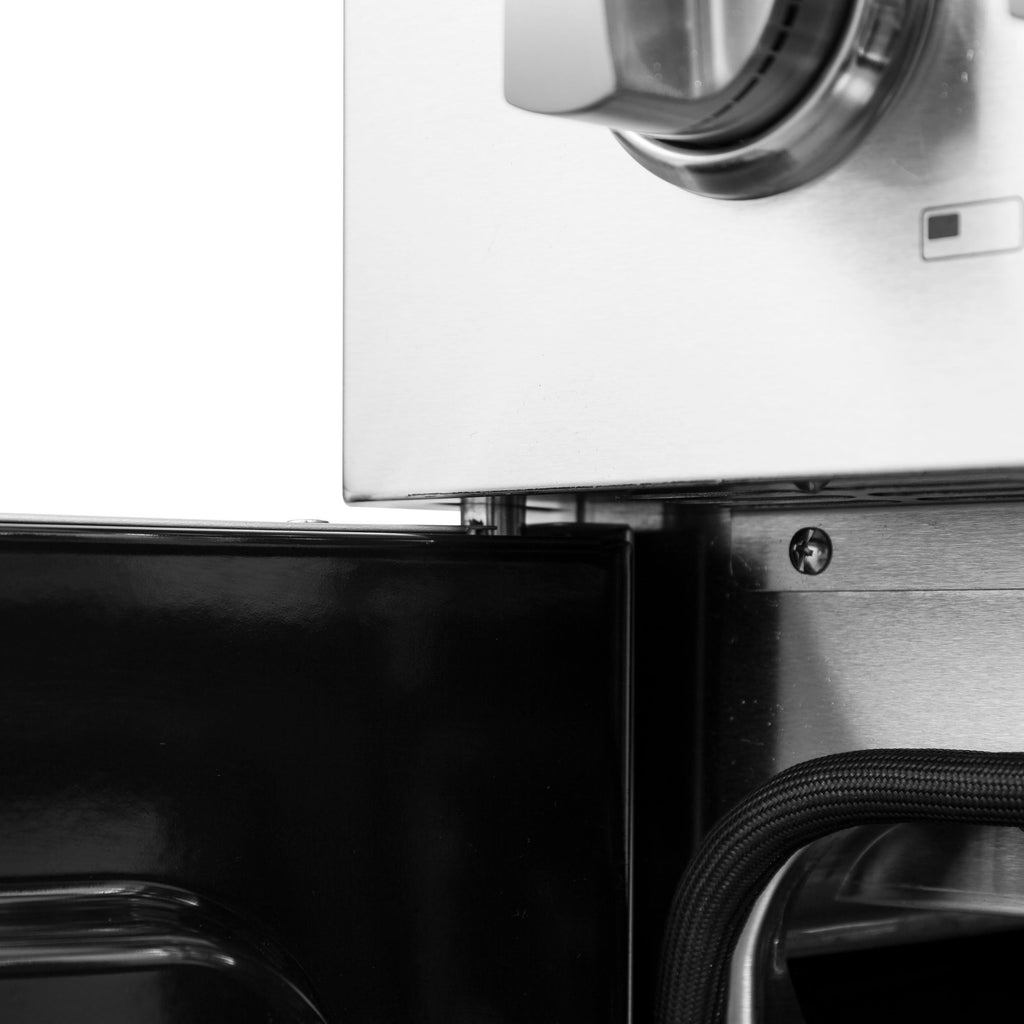

• Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings.
• Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control.
• 5 Sealed Burners combine a total -top out of 68,000 BTU.
• Continuous Cast Iron Grates provide even heat distribution and stable cookware and mobility.
• Black Enamel Oven Interior with 2 Halogen Lights.
• 4.32 Cu.Ft True Convection Fan Oven with 4,800 Watt Total Broil and Bake output.Dual element for high broil temperatures and lower wattage element for delicate fish and chicken broiling.
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups.
• Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings.
Electrical Information
Information
• 30 Amps
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included

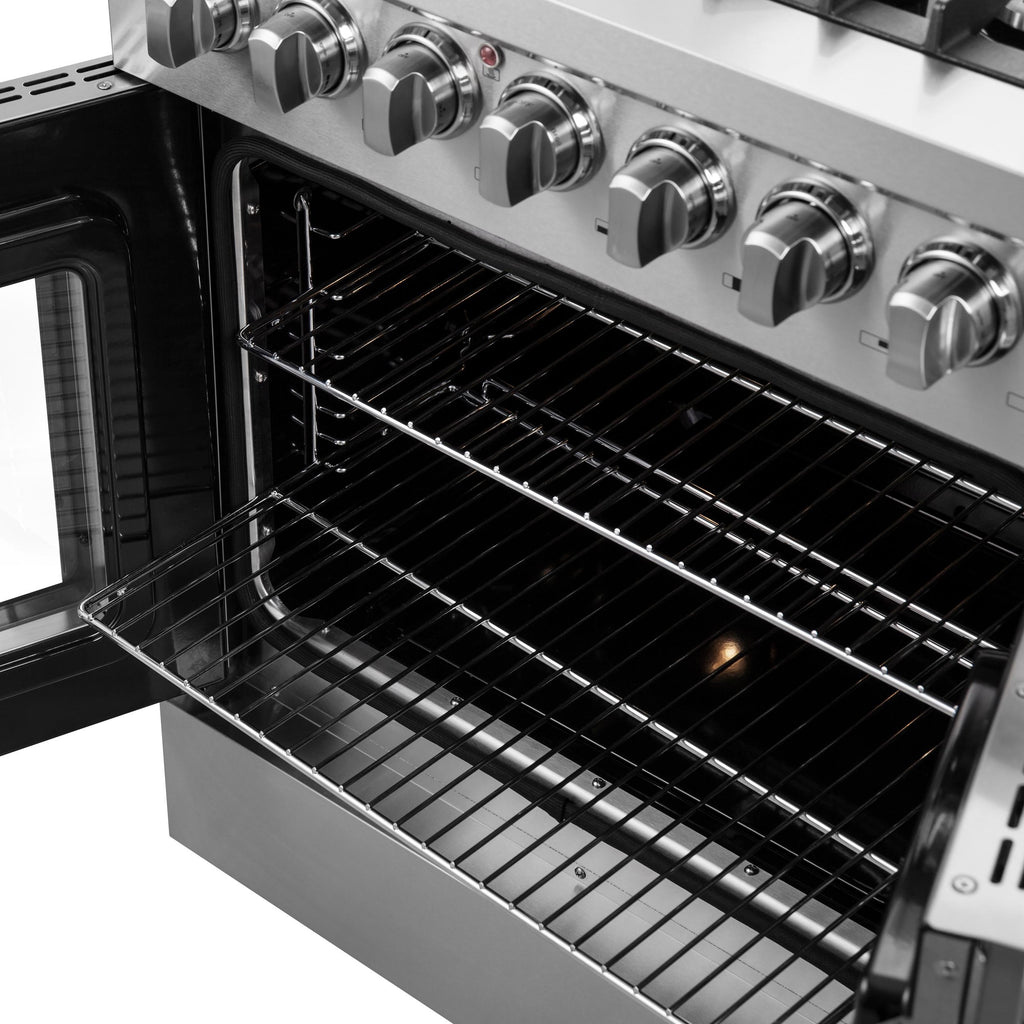

• Includes 2 Electro-Plated Oven Racks with 7.5mm frame and 4mm grid, LP Conversion Kit and 4-Prong plug.
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
37.4 inch(es) / 95 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Weight
283.29 lb(s) / 128.5 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 38.5
• Depth with Oven Door Open 90º (CM): 97.79
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 38.5
• Depth with Oven Door Open 90º (CM): 97.79
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
Shipping Dimensions
Width
32.53 inch(es) / 82.63 cm
Height
43.56 inch(es) / 110.64 cm
Depth
30.75 inch(es) / 78.11 cm
Weight
250 lb(s) / 113.4 kg
Warranty
Warranty
Limited 2-Year
UPC
UPC#
686136963008
