Specifications
General
Series Name
Marco
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
White
Manufacturer Color
White and Antique Brass Accents
Appliance Care
Steam Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Front Right Burner BTU: 15000
• Front Left Burner BTU: 9000
• Rear Right Burner BTU: 4000
• Rear Left Burner BTU: 9000
• Total BTU Output: 37000
• Front Left Burner BTU: 9000
• Rear Right Burner BTU: 4000
• Rear Left Burner BTU: 9000
• Total BTU Output: 37000
Burner/Element Size
• Front Right Burner Diameter (in): 6
• Front Left Burner Diameter (in): 3
• Rear Right Burner Diameter (in): 2
• Rear Left Burner Diameter (in): 3
• Front Left Burner Diameter (in): 3
• Rear Right Burner Diameter (in): 2
• Rear Left Burner Diameter (in): 3
Burners
Sealed
Oven
Capacity (cu. ft.)
4.32 cu. ft.
Number of Ovens
Single
Features
Technologies
Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information

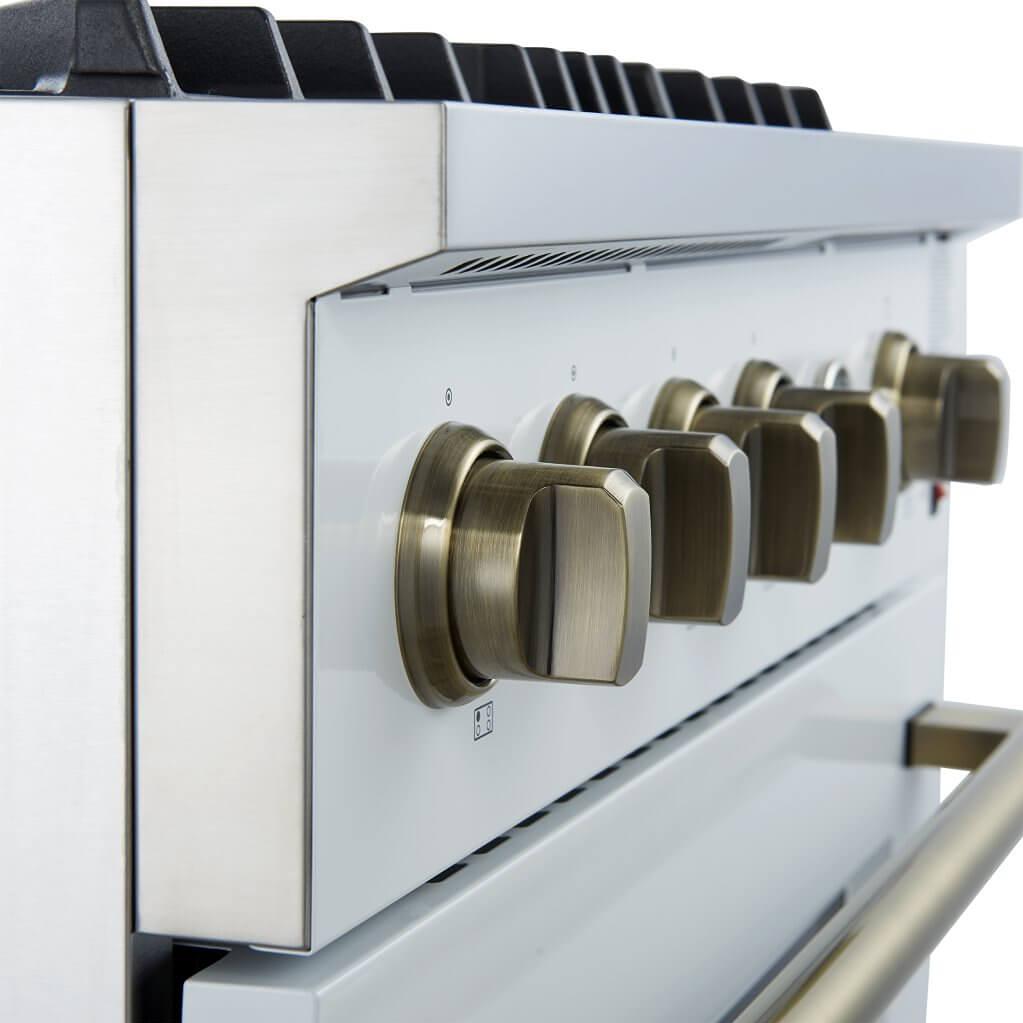

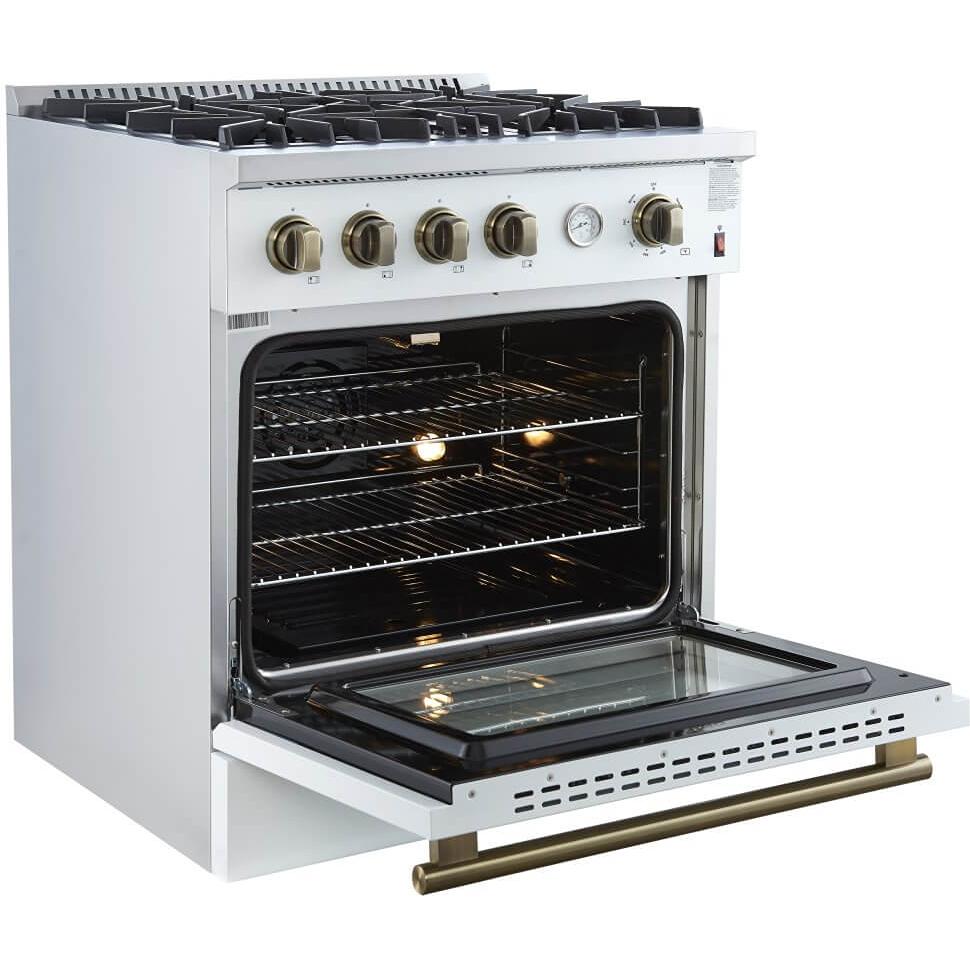

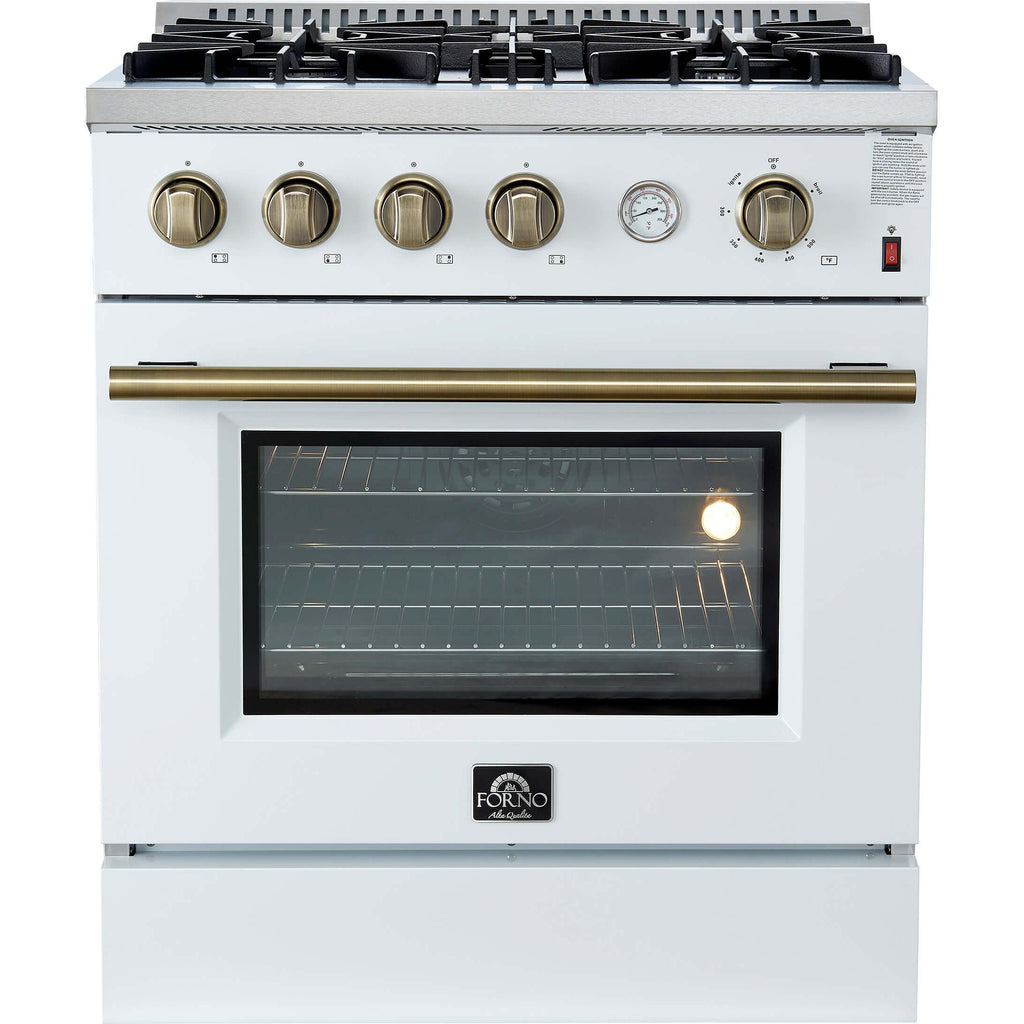

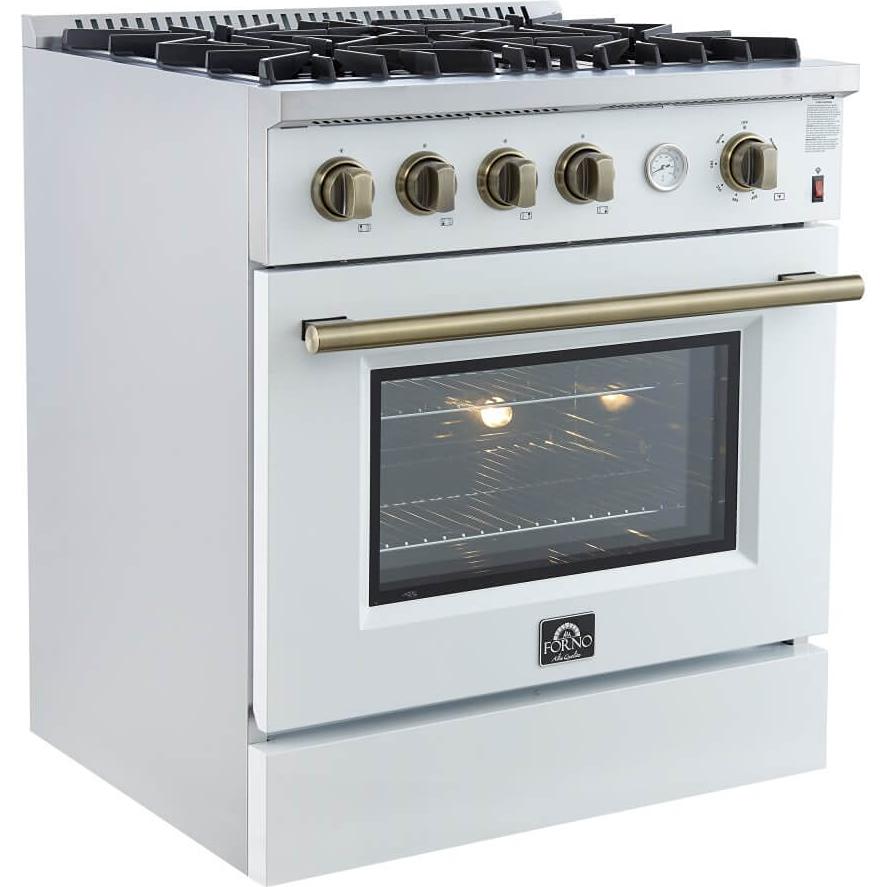

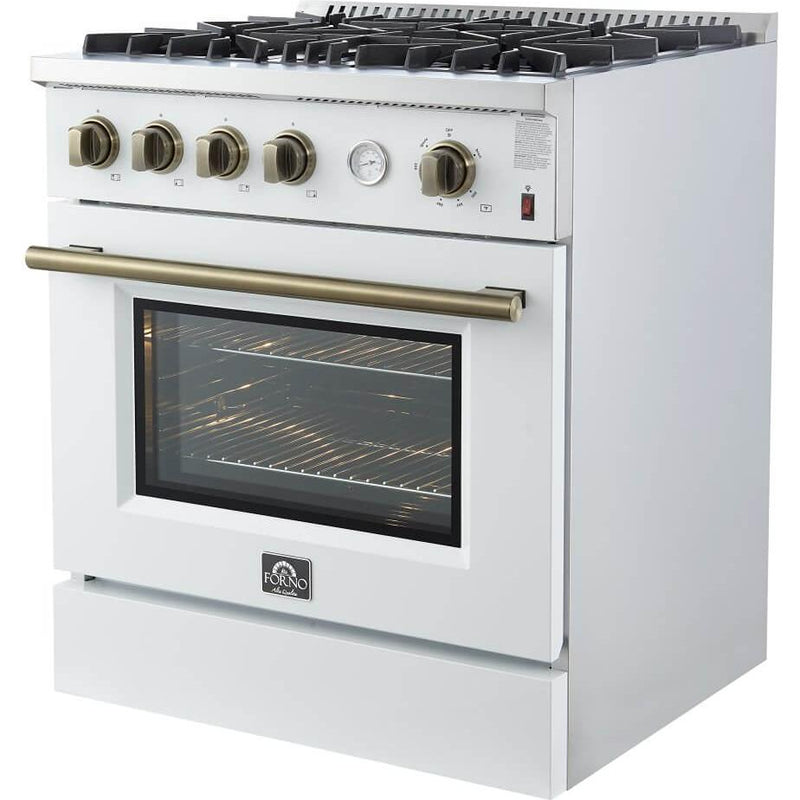

• The crisp white front, complemented by antique brass knobs and handles and stainless steel surroundings, delivers a timeless aesthetic.

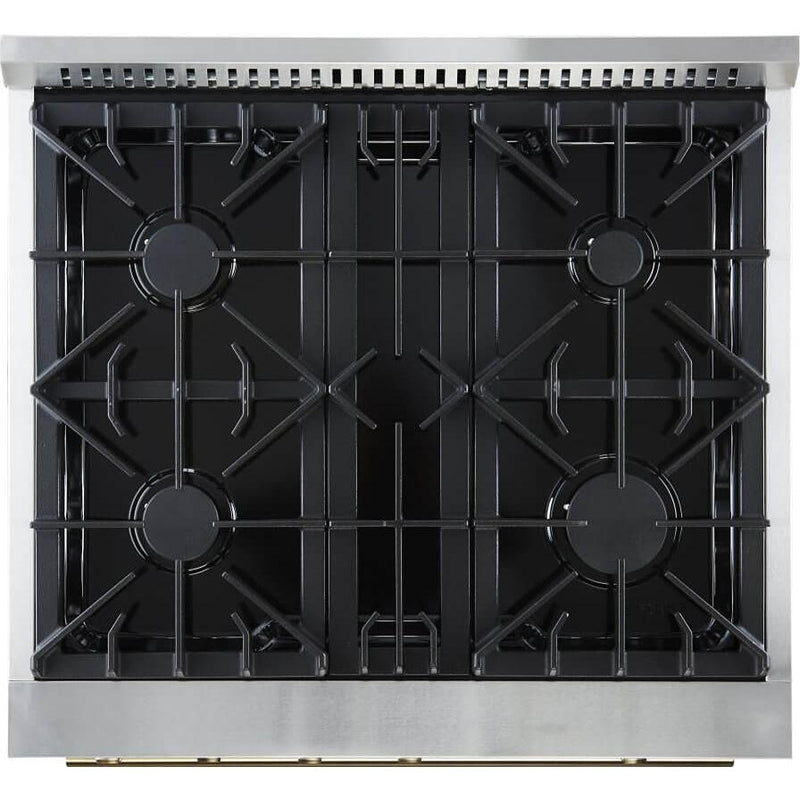

• Four sealed burners with a total output of 37,000 BTU provide flexibility for all cooking styles.
• Includes burners with adjustable output ranging from 4,000 to 15,000 BTU for maximum precision.
• Features a dedicated 4,000 BTU burner for delicate simmering, a 15,000 BTU searing burner, and two reliable 9,000 BTU burners.

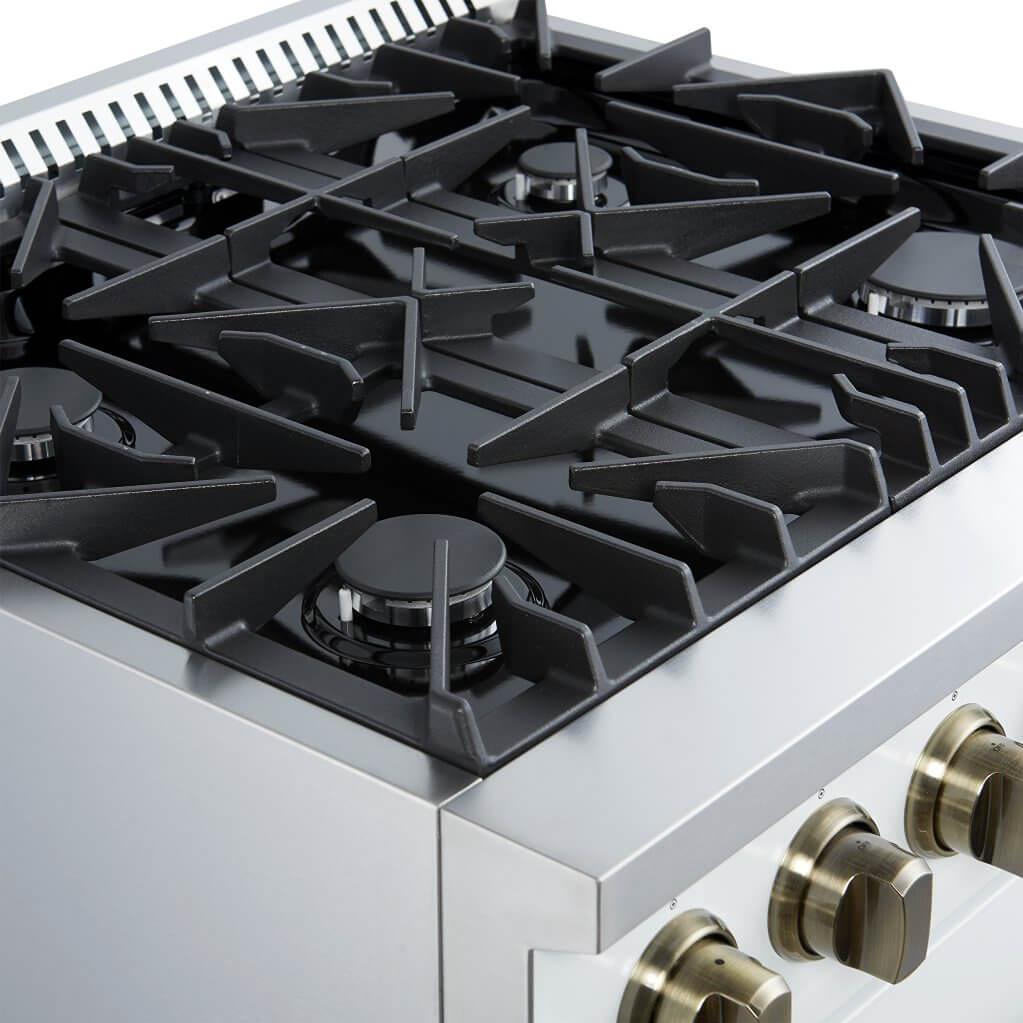

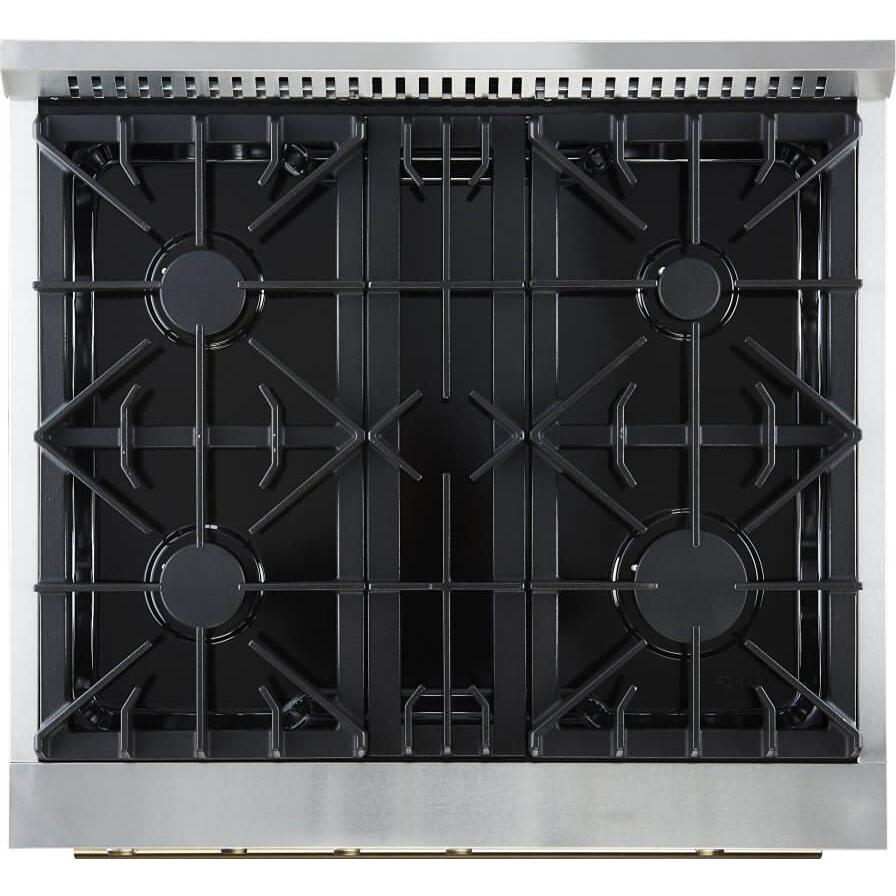

• Durable cast iron grates ensure cookware stability and smooth movement across the cooking surface.
• Deep recessed black enamel surface captures spills, making cleanup fast and easy.

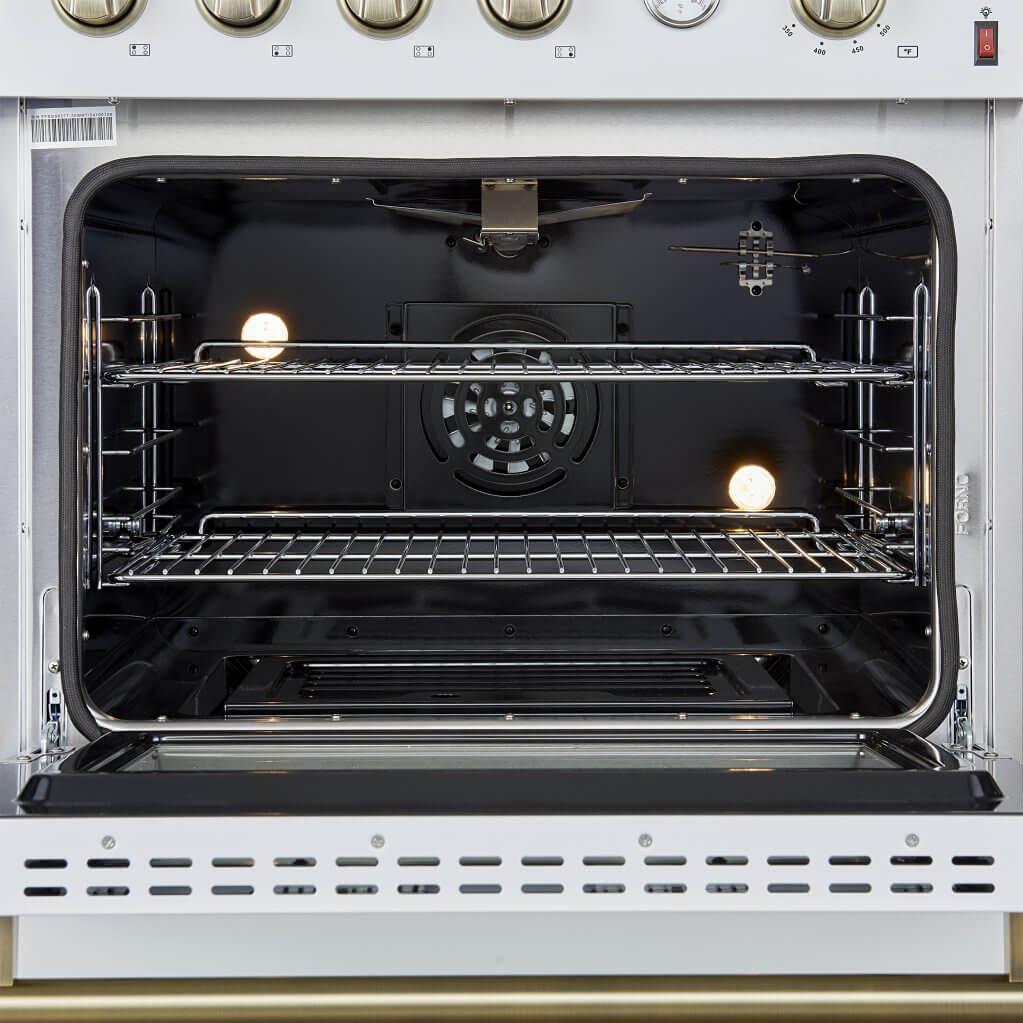

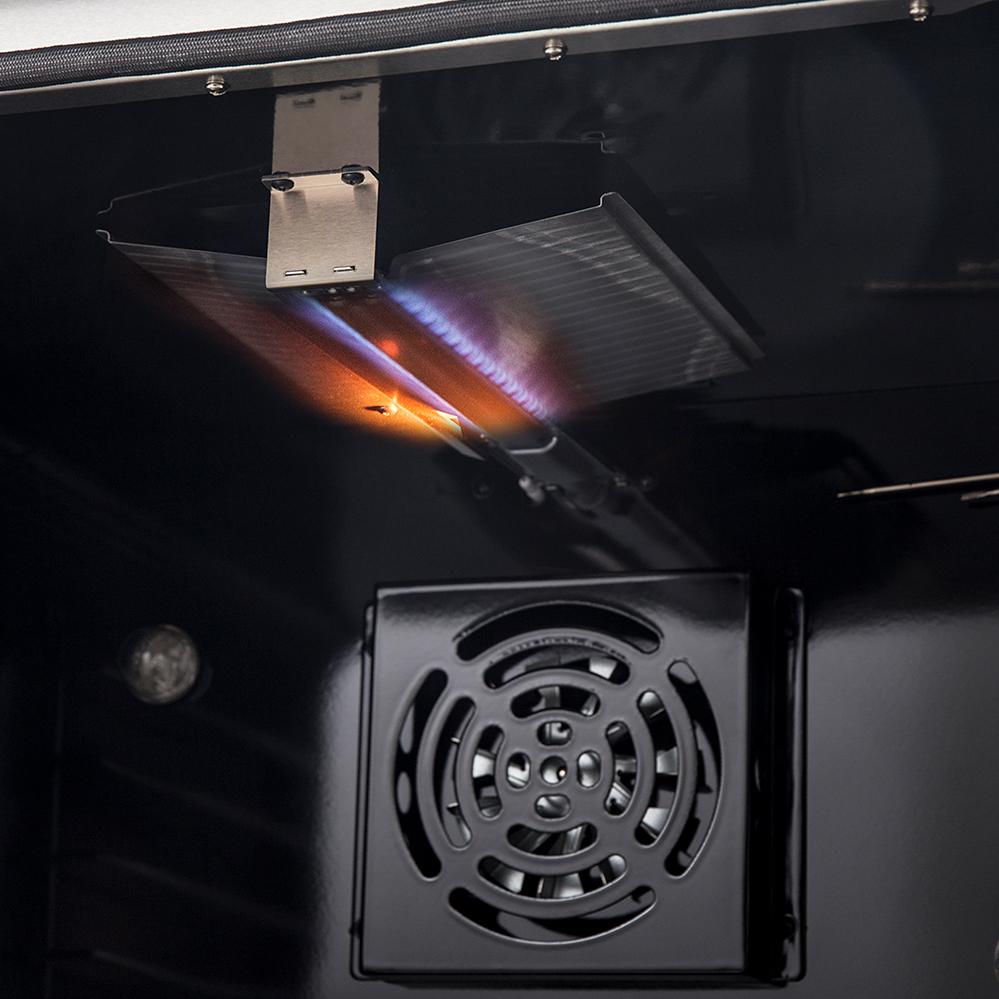

• 4.32 cu. ft. convection oven with 26,000 BTU broil and bake output delivers even and consistent cooking results.

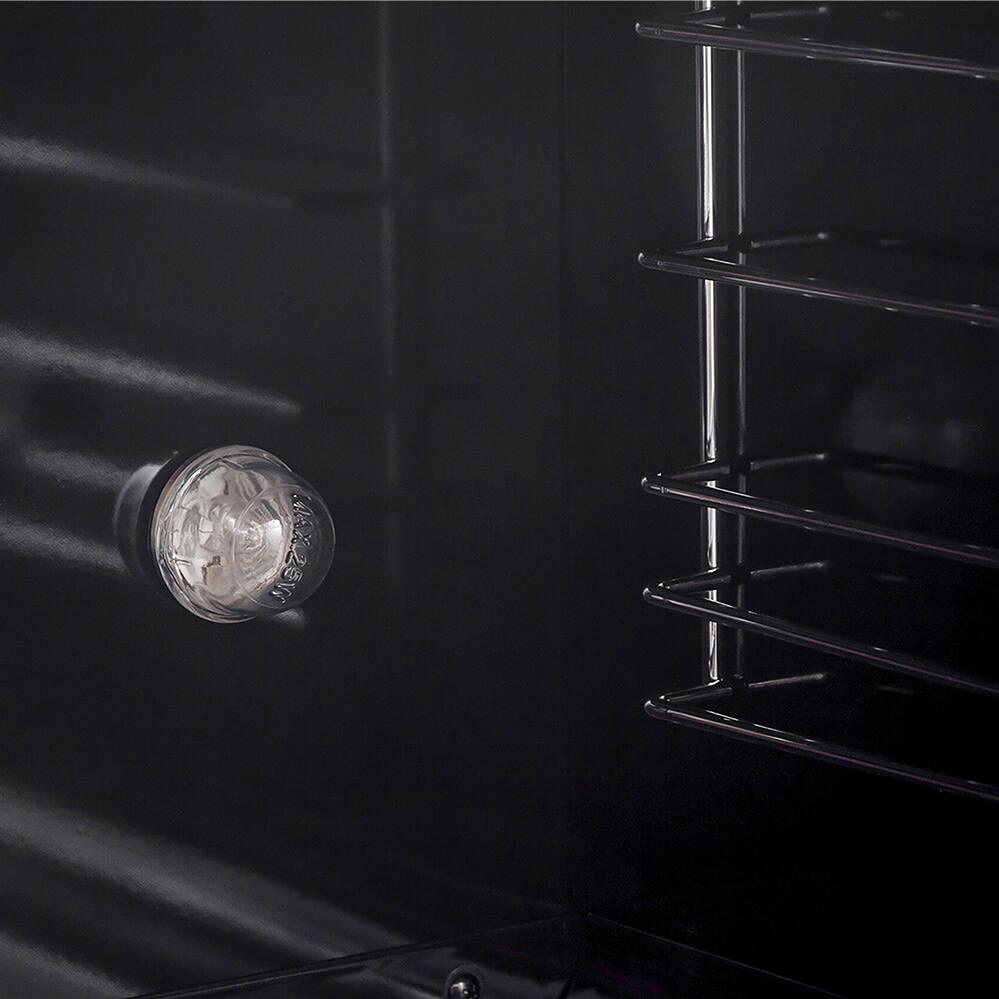

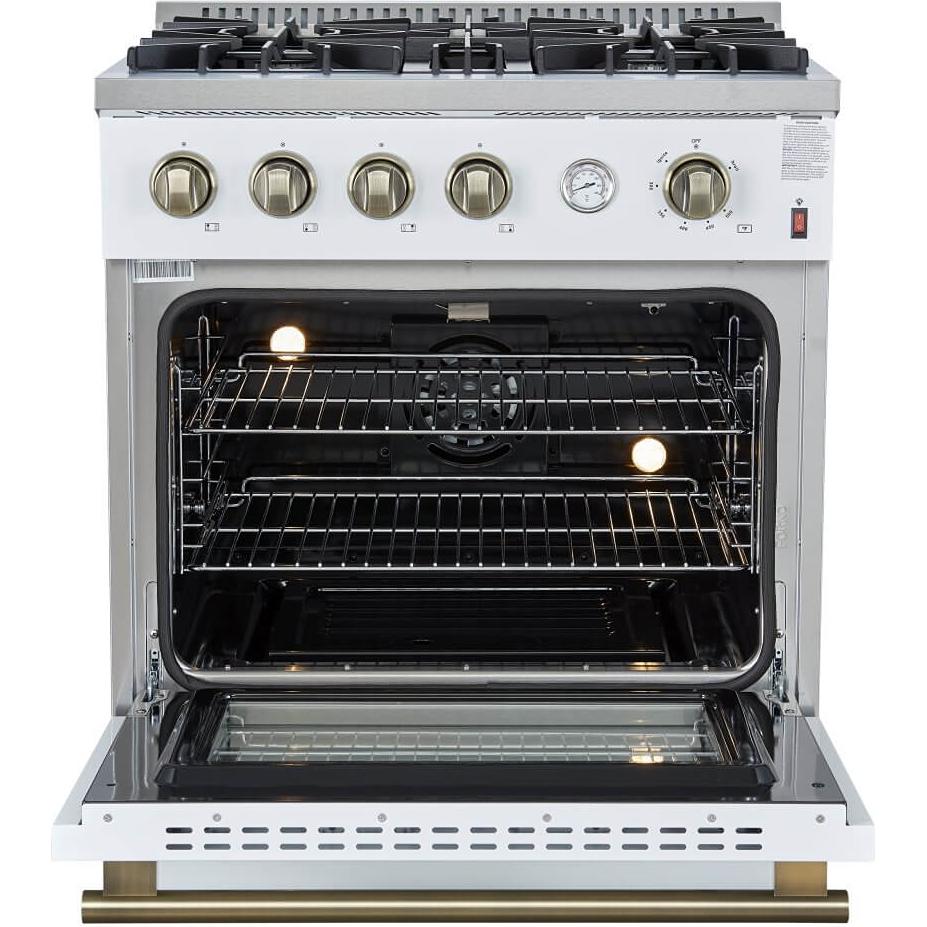

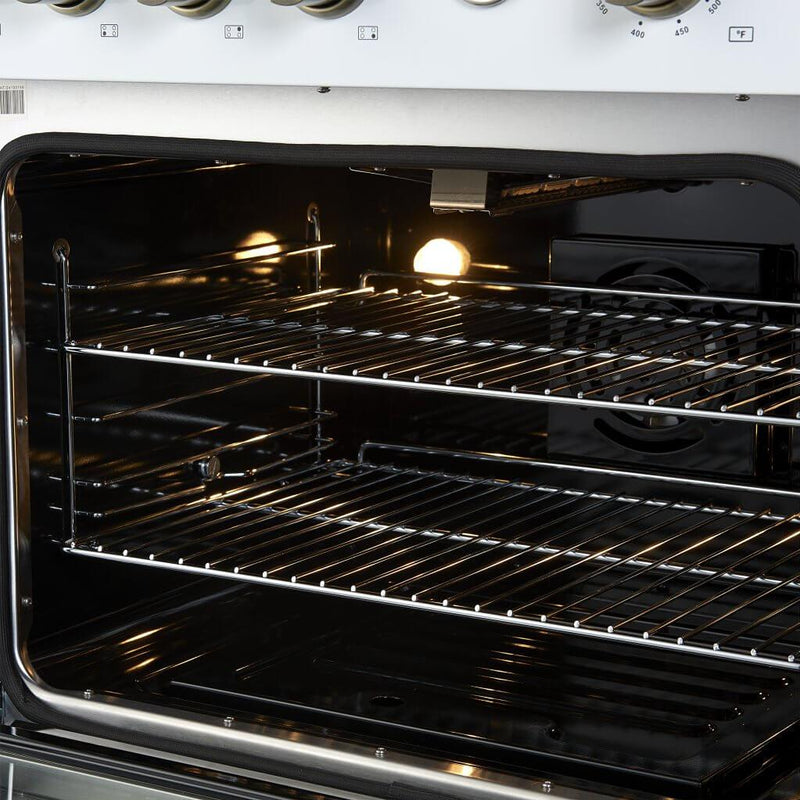

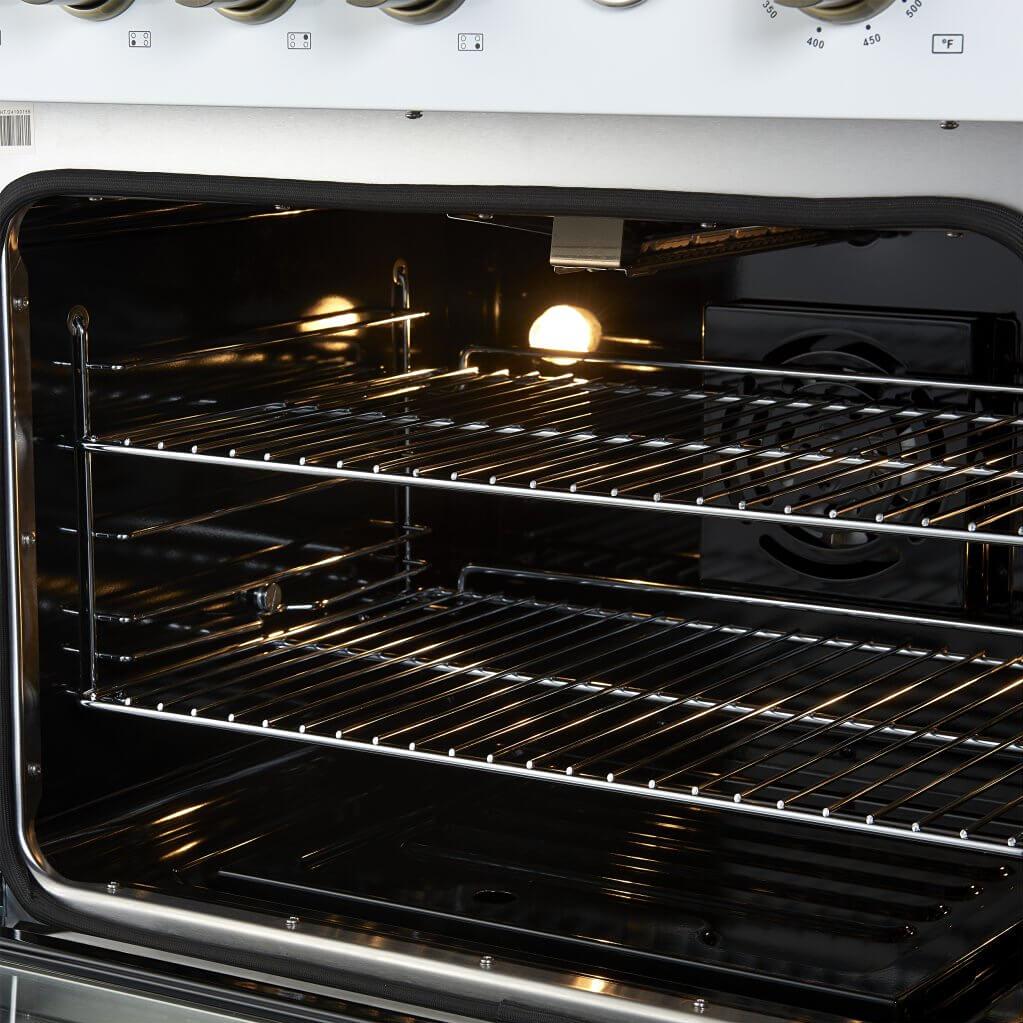

• Sleek black enamel oven interior with two halogen lights for enhanced visibility and easy cleaning.
• Oven racks accommodate baking pans up to 24" wide by 15" deep, providing ample space for your cooking needs.
• Built-in temperature gauge ensures accurate monitoring for every recipe.
• Adjustable legs fit counter heights between 35.5 and 36.5 inches for a seamless fit.
• Four sealed burners with a total output of 37,000 BTU provide flexibility for all cooking styles.
• Includes burners with adjustable output ranging from 4,000 to 15,000 BTU for maximum precision.
• Features a dedicated 4,000 BTU burner for delicate simmering, a 15,000 BTU searing burner, and two reliable 9,000 BTU burners.
• Durable cast iron grates ensure cookware stability and smooth movement across the cooking surface.
• Deep recessed black enamel surface captures spills, making cleanup fast and easy.
• 4.32 cu. ft. convection oven with 26,000 BTU broil and bake output delivers even and consistent cooking results.
• Sleek black enamel oven interior with two halogen lights for enhanced visibility and easy cleaning.
• Oven racks accommodate baking pans up to 24" wide by 15" deep, providing ample space for your cooking needs.
• Built-in temperature gauge ensures accurate monitoring for every recipe.
• Adjustable legs fit counter heights between 35.5 and 36.5 inches for a seamless fit.
Drawer Features
Storage
Yes

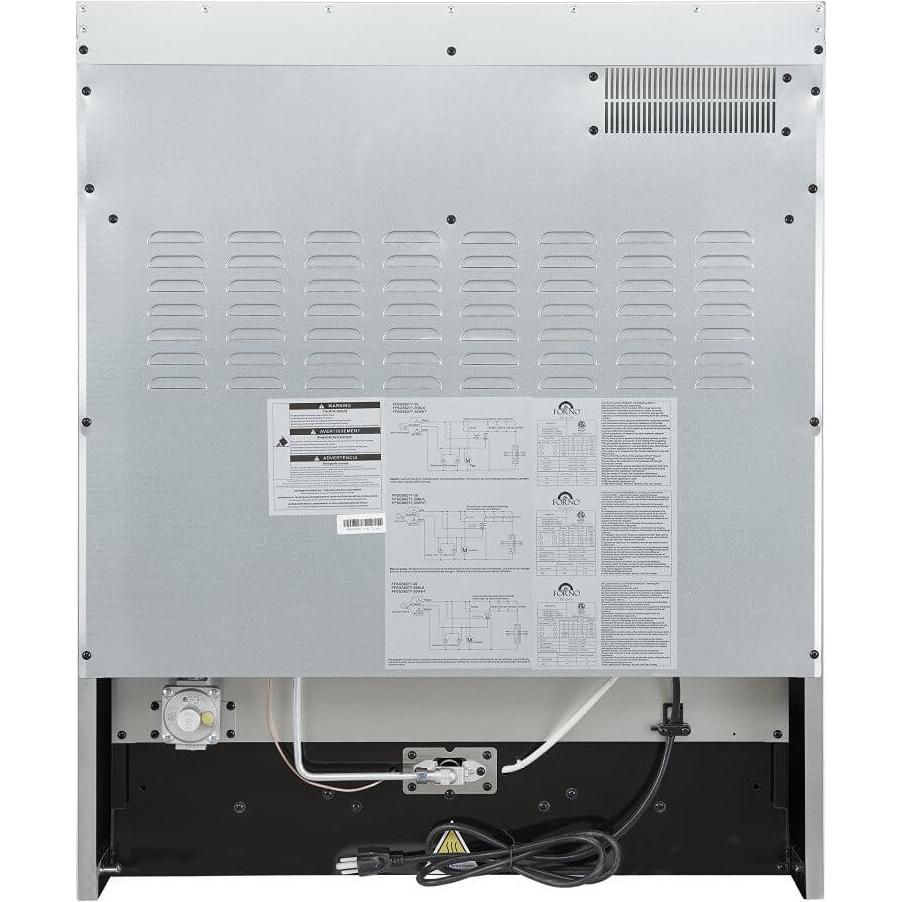

Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
37 inch(es) / 93.98 cm
Depth (Without Handles)
29 inch(es) / 73.66 cm
Weight
167.99 lb(s) / 76.2 kg
Additional Dimensions
• Cutout Height - Top to Bottom (in): 36
• Cutout Width - Side to Side (in): 30
• Cutout Depth - Front to Back (in): 25
• Cutout Width - Side to Side (in): 30
• Cutout Depth - Front to Back (in): 25
Warranty
Warranty
Limited 2 Years
