Features
EXTRA-LARGE OVEN WINDOW.
The Extra-Large Oven Window provides a sleek look and a wide view to keep an eye on your meal.
EASY-CLEAN GLASS DOOR.
Easy-Clean Glass Door is smooth and flat so messes, spills and smudges just wipe away. Crumbs won't catch and splatters won't matter.

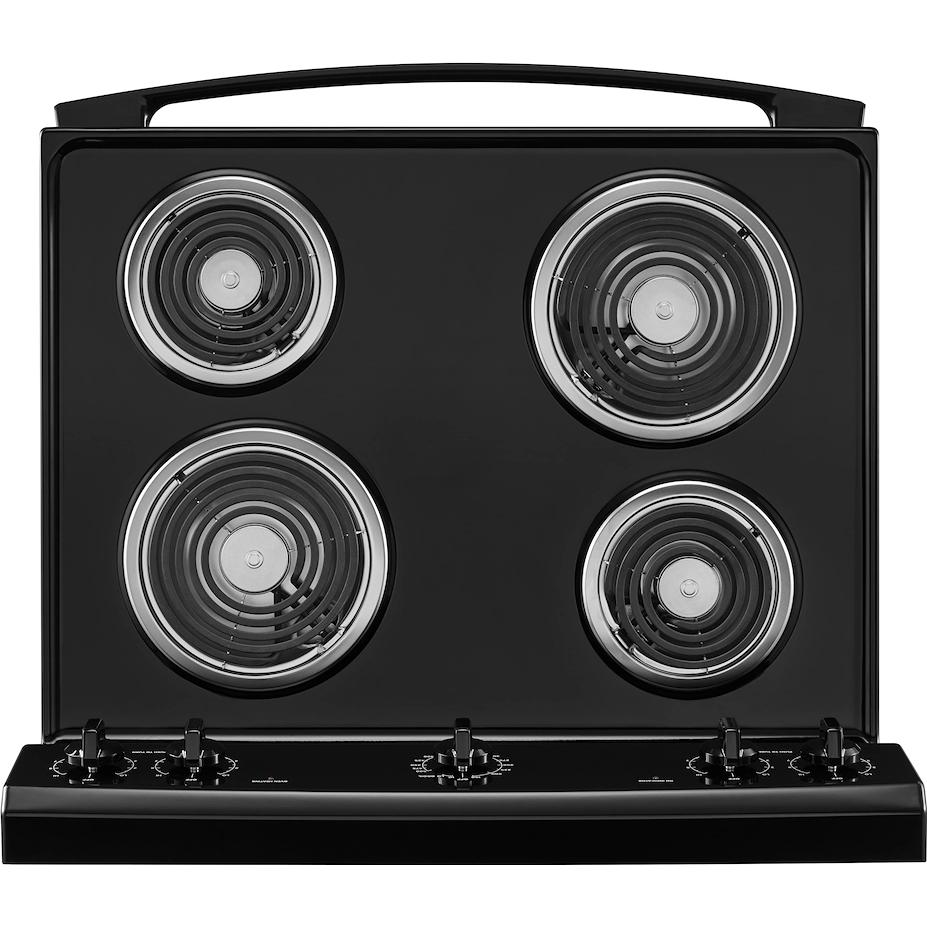

VERSATILE COOKTOP.
Versatile Cooktop features multiple element options and provides up to 2,400 watts on the largest burner to help you cook more of your favorites at once.
TEMP ASSURE™ COOKING SYSTEM.
Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Additional Features

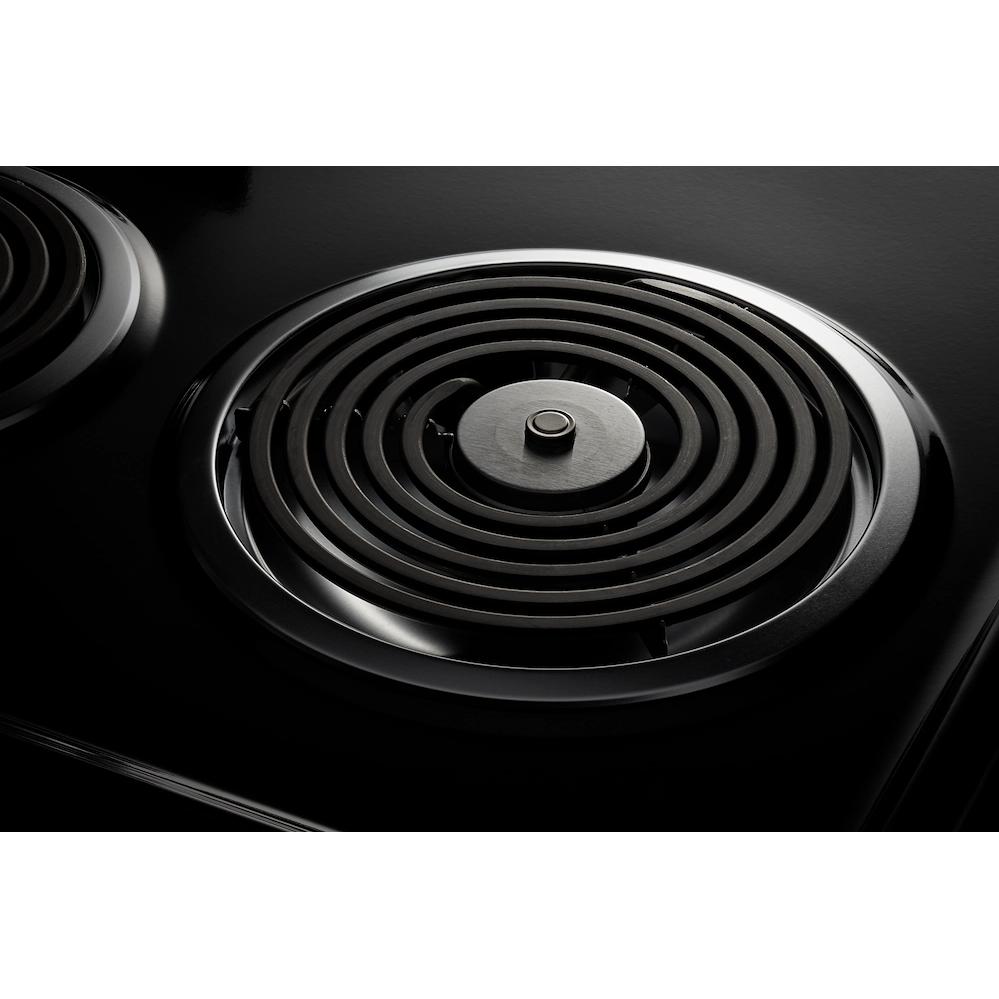

SENSOR COIL ELEMENTS
Sensor Coil Elements, designed to cycle off and on to help keep temperature in optimal range, meet the UL858 Household Electric Ranges Standard for Safety.
STORAGE DRAWER
This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
SPILLSAVER™ UPSWEPT COOKTOP.
SpillSaver™ Upswept Cooktop comes with raised edges to keep spills contained and make cleanup a cinch.
ENERGY STAR® CERTIFIED

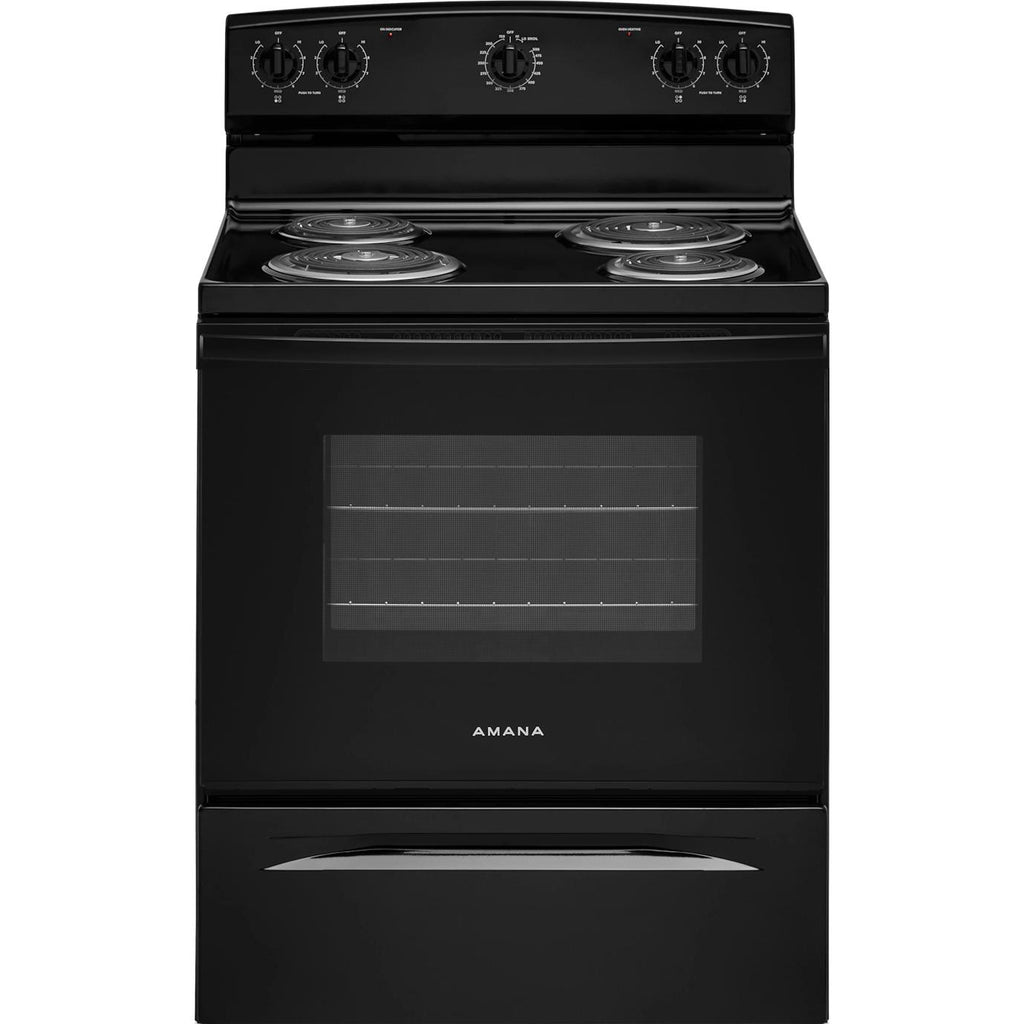

This Amana® Electric Range is ENERGY STAR® Certified to help you use and pay for less energy.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Black
Manufacturer Color
Black
Appliance Care
Manual Clean
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element Power: 2,100 W
• Left Rear Element-Burner Power: 1,250 W
• Right Front Element Power: 1,250 W
• Right Rear Element Power: 2,100 W
• Left Rear Element-Burner Power: 1,250 W
• Right Front Element Power: 1,250 W
• Right Rear Element Power: 2,100 W
Burner/Element Size
• Left Front Element Size: 8 in.
• Left Rear Element-Burner Size: 6 in.
• Right Front Element Size: 6 in.
• Right Rear Element Size: 8 in.
• Left Rear Element-Burner Size: 6 in.
• Right Front Element Size: 6 in.
• Right Rear Element Size: 8 in.
Elements
Coil
Oven
Capacity (cu. ft.)
4.8 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Keep Warm / Warm Hold
• Broil
• Keep Warm / Warm Hold
Features
Technologies
• Temp Assure™ Cooking System
• SpillSaver™ Upswept Cooktop
• SpillSaver™ Upswept Cooktop
Oven Light
Yes
Additional Information
• Cooktop Control Knob Color: Black
• Cooktop Control Knob Type: Dishwasher-safe plastic

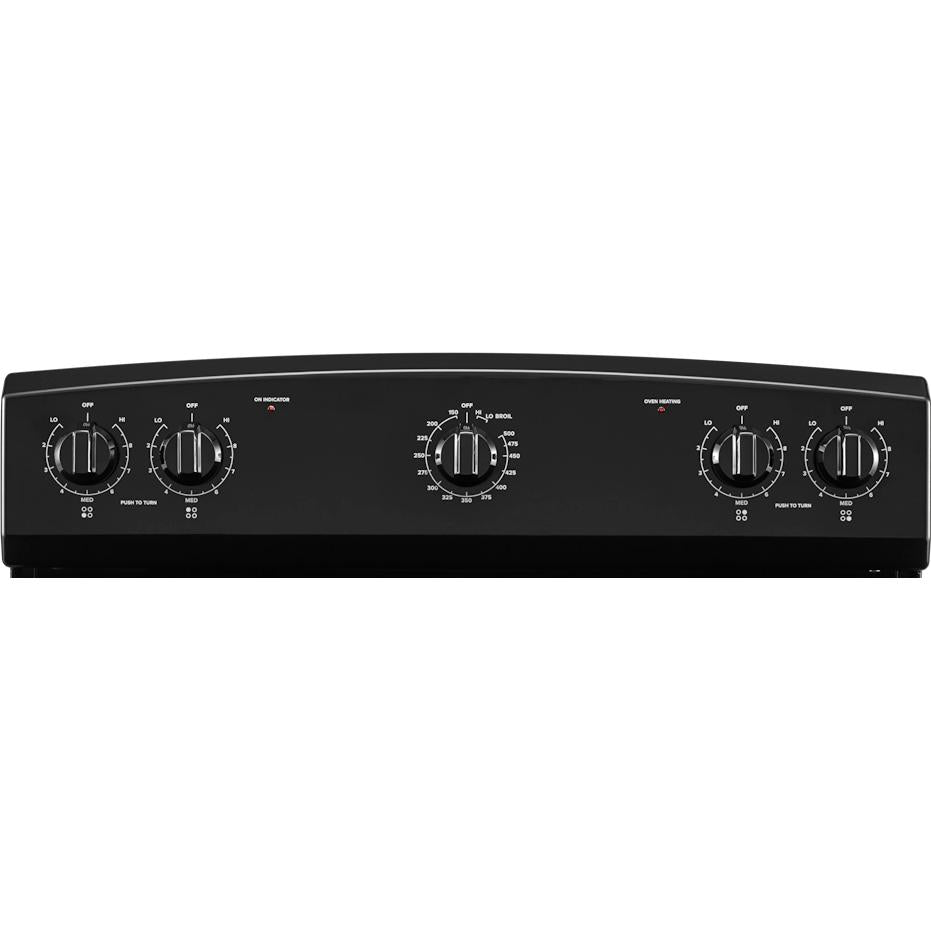

• Cooktop Control Location: Backguard
• Cooktop Control Type: Knobs
• Cooktop Surface Color: Black
• Cooktop Surface Material: Porcelain-coated steel
• Heating Element On Indicator Light
• Door Type: Metal & glass
• Handle Color: Black
• Handle Material: Plastic
• Handle Type: Reach-through handle
• Knob Color: Black
• Knob Type: Dishwasher-safe plastic
• Oven Control Knob Color: Black
• Oven Control Knob Type: Dishwasher-safe plastic
• Oven Control Location: Backguard
• Oven Control Type: Knobs
• Bake Element Power: 2,400 W
• Broiler Element Power: 3,400 W
• Broiler Location: Top of oven
• Door Removable
• Interior Color: Grey

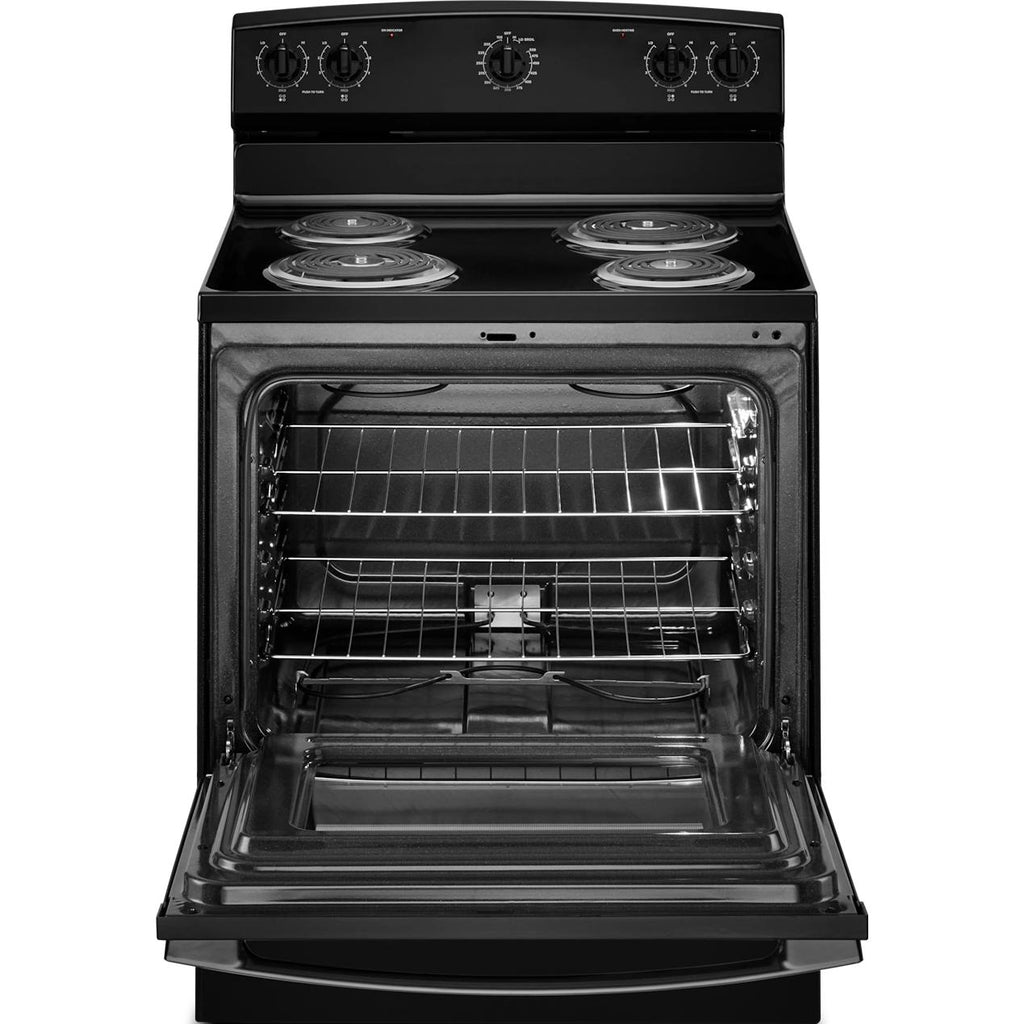

• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cleaning Type: Manual clean
• Oven Cooking System: Thermal
• Oven Rack Type: 2 standard
• Cooktop Control Knob Type: Dishwasher-safe plastic
• Cooktop Control Location: Backguard
• Cooktop Control Type: Knobs
• Cooktop Surface Color: Black
• Cooktop Surface Material: Porcelain-coated steel
• Heating Element On Indicator Light
• Door Type: Metal & glass
• Handle Color: Black
• Handle Material: Plastic
• Handle Type: Reach-through handle
• Knob Color: Black
• Knob Type: Dishwasher-safe plastic
• Oven Control Knob Color: Black
• Oven Control Knob Type: Dishwasher-safe plastic
• Oven Control Location: Backguard
• Oven Control Type: Knobs
• Bake Element Power: 2,400 W
• Broiler Element Power: 3,400 W
• Broiler Location: Top of oven
• Door Removable
• Interior Color: Grey
• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cleaning Type: Manual clean
• Oven Cooking System: Thermal
• Oven Rack Type: 2 standard
Drawer Features
Storage
Yes
Electrical Information
Information
• 208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
Information
• UL Listed
• Energy Star® Certified
• Energy Star® Certified
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
46.87 inch(es) / 119.06 cm
Depth (Without Handles)
25.31 inch(es) / 64.3 cm
Depth (Including Handles)
27.75 inch(es) / 70.49 cm
Weight
125 lb(s) / 56.7 kg
Additional Dimensions
• Common Size: 30 in
• Cutout Depth: 24 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Depth: 27.75 in
• Depth (closed, excluding handles): 25.313 in
• Depth (closed, including handles): 27.75 in
• Depth with door open 90°: 46.688 in
• Height: 46.875 in
• Maximum Height: 47.875 in
• Minimum Height: 46.875 in
• Oven Interior Depth: 18.5 in
• Oven Interior Height: 18.125 in
• Oven Interior Width: 24.5 in
• Cutout Depth: 24 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Depth: 27.75 in
• Depth (closed, excluding handles): 25.313 in
• Depth (closed, including handles): 27.75 in
• Depth with door open 90°: 46.688 in
• Height: 46.875 in
• Maximum Height: 47.875 in
• Minimum Height: 46.875 in
• Oven Interior Depth: 18.5 in
• Oven Interior Height: 18.125 in
• Oven Interior Width: 24.5 in
Shipping Dimensions
Weight
142 lb(s) / 64.41 kg
Warranty
Warranty
1 Year Parts and Labor
