Features
NO PREHEAT MODE
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.

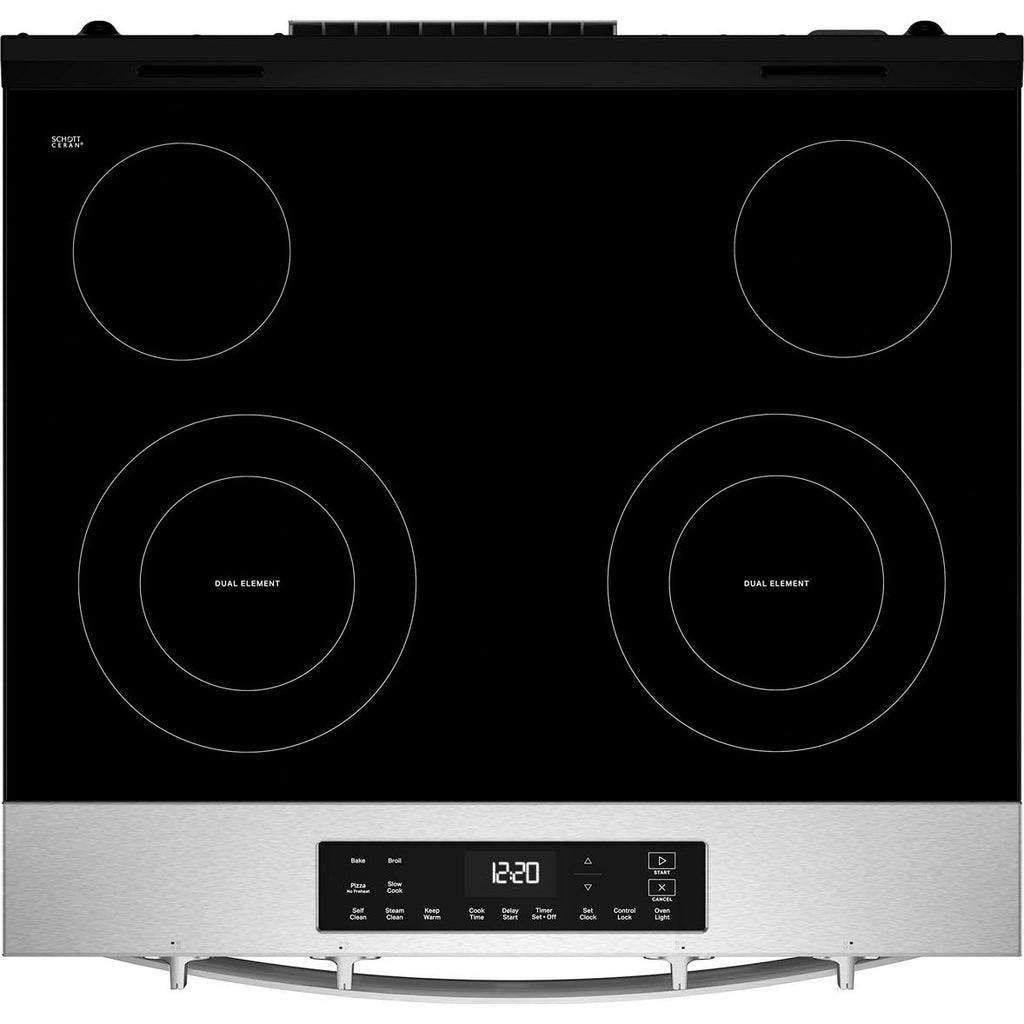

EDGE-TO-EDGE GLASS COOKTOP
Upgrade your kitchen with the streamlined design of the Edge-to-Edge Glass Cooktop. Creating an easy transition to your countertop and allowing you to move pots and pans easily from your counter to the cooking surface.
2 FLEXHEAT™ DUAL RADIANT ELEMENTS
Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring.
*When comparing the 9" element to the standard 6" element on the same unit.
*When comparing the 9" element to the standard 6" element on the same unit.
BROIL SETTING
When you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Additional Features
SLOW COOK
Heat up all day dishes with Slow Cook. Our high speed fan optimizes air flow to maintain a low, even temperature for longer cook times to thoroughly heat up your food. Tackle your to-do list while soups, pastas and roasts come to temp without the worry.
HIGH SPEED PREHEAT

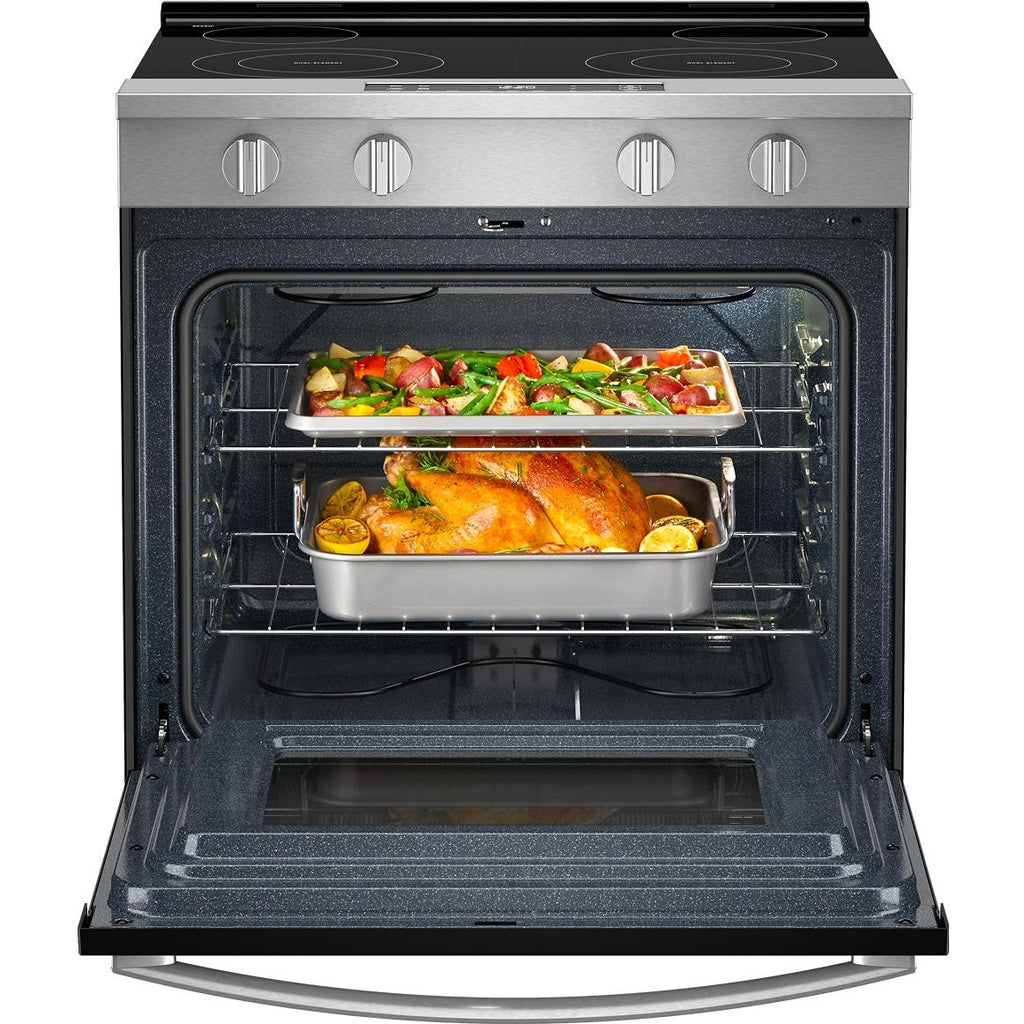

Cook for a crowd and fit large dishes like a full-sized 20lb turkey with High Speed Preheat. Whirlpool's specially designed oven preheats in under 8 minutes* with Whirlpool's fastest preheat available. Get food on the table with less waiting and more enjoying.
*Using rapid preheat to 350 degrees when the cooktop is not in use.
*Using rapid preheat to 350 degrees when the cooktop is not in use.
STEAM & SELF CLEAN CYCLES
Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters. For lighter messes, use the Steam Clean setting to quickly and easily loosen residue inside the oven without harsh chemicals or cleaners—just add water, run the cycle and wipe away.
COOKTOP FLEXIBILITY
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.
KEEP WARM SETTING
Keep dishes ready to serve while you work on the rest of the meal. This setting delivers low heat to the oven to keep prepared dishes from getting cold.

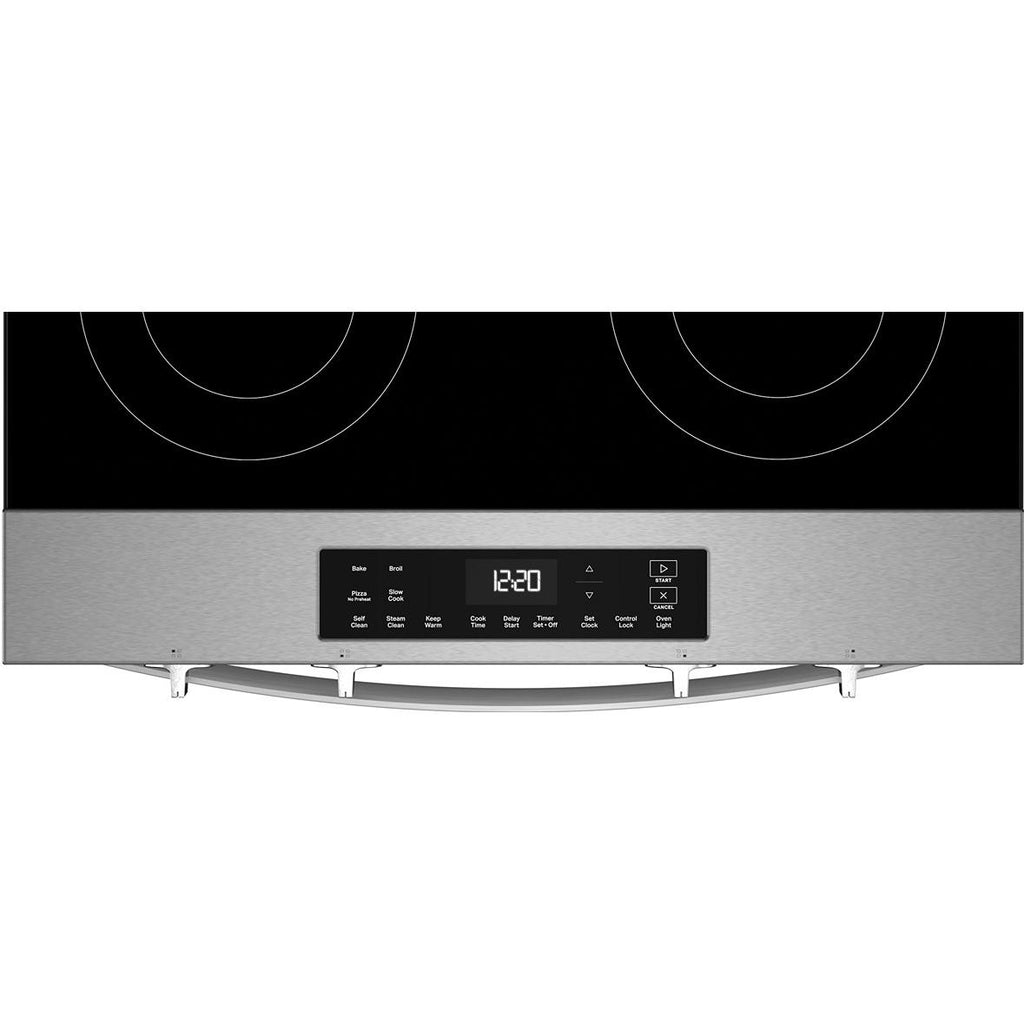

FRONT CONTROL DESIGN
Easily upgrade your kitchen with the features you want and a premium look that brings controls to the front of the range for easy reach with Front Control Design.
ADA COMPLIANT
This range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
SABBATH MODE
This range is designed to meet the needs of those who are kosher and Sabbath observant. When Sabbath mode is enabled, the oven is set to remain on the "Bake" setting at a constant temperature until it's manually turned off. In addition, displays, tones and all other cooking and cleaning cycles are disabled. The oven light will also not activate when the oven door is opened and heating elements will not immediately turn on or off.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Cooktop Element Style: Radiant
• Left Front Element-Burner Power: 3000W
• Left Rear Element-Burner Power: 1200W
• Right Front Element-Burner Power: 3000W
• Right Rear Element-Burner Power: 1200W
• Left Front Element-Burner Power: 3000W
• Left Rear Element-Burner Power: 1200W
• Right Front Element-Burner Power: 3000W
• Right Rear Element-Burner Power: 1200W
Burner/Element Size
• Left Front Element-Burner Size: 9"/6"
• Left Front Element-Burner Type: Dual
• Left Rear Element-Burner Size: 6"
• Left Rear Element-Burner Type: Single
• Right Front Element-Burner Size: 9"/6"
• Right Front Element-Burner Type: Dual
• Right Rear Element-Burner Size: 6"
• Right Rear Element-Burner Type: Single
• Left Front Element-Burner Type: Dual
• Left Rear Element-Burner Size: 6"
• Left Rear Element-Burner Type: Single
• Right Front Element-Burner Size: 9"/6"
• Right Front Element-Burner Type: Dual
• Right Rear Element-Burner Size: 6"
• Right Rear Element-Burner Type: Single
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single
Programs
Oven Selections:
• Audible Signal
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Keep Warm/Warm Hold
• Language Conversion
• No Preheat - Frozen
• Rapid Preheat
• Reheat
• Sabbath Mode
• Start Time
• Stop Time
• Timer
• Audible Signal
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Keep Warm/Warm Hold
• Language Conversion
• No Preheat - Frozen
• Rapid Preheat
• Reheat
• Sabbath Mode
• Start Time
• Stop Time
• Timer
Features
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Door Lock: Yes
• Door Type: Glass
• Handle Color: Black
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Knob Color: Black
• Knob Type: Weighted-Plastic
• Oven Control Location: Front
• Oven Control Type: Tap Touch
• Oven Window Size: Extra Large
• Bake Element Power: 2,400 W
• Broiler Element Power: 3,400 W
• Broiler Location: Top Center
• Convection Functions: Bake, Broil, Keep Warm, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Slow Cook
• Door Removable: Yes
• Hidden Bake Element: Exposed
• Interior Color: Blue Graphite
• Number of Oven Lights: 1
• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cleaning Type: Self Clean + Steam Clean
• Oven Light Switch Location: Oven Control
• Oven Light Type: Halogen
• Oven Rack Front Material: Metal
• Oven Rack Type: 2 Standard
• Temperature Sensor: Yes
• Cooktop Control Knob Type: Plastic
• Cooktop Control Location: Front
• Cooktop Control Type: Knobs
• Cooktop Surface Material: Glass
• Heating Element On Indicator Light: Yes
• Hot Surface Indicator Light: Yes
• Oven Automatic Shut-Off: Yes
• Power On Indicator Light: Yes
• Power Outage Compatible: Yes
• Display Color: White
• Door Type: Glass
• Handle Color: Black
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Knob Color: Black
• Knob Type: Weighted-Plastic
• Oven Control Location: Front
• Oven Control Type: Tap Touch
• Oven Window Size: Extra Large
• Bake Element Power: 2,400 W
• Broiler Element Power: 3,400 W
• Broiler Location: Top Center
• Convection Functions: Bake, Broil, Keep Warm, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Slow Cook
• Door Removable: Yes
• Hidden Bake Element: Exposed
• Interior Color: Blue Graphite
• Number of Oven Lights: 1
• Number of Oven Racks: 2
• Number of Rack Guides: 5
• Oven Cleaning Type: Self Clean + Steam Clean
• Oven Light Switch Location: Oven Control
• Oven Light Type: Halogen
• Oven Rack Front Material: Metal
• Oven Rack Type: 2 Standard
• Temperature Sensor: Yes

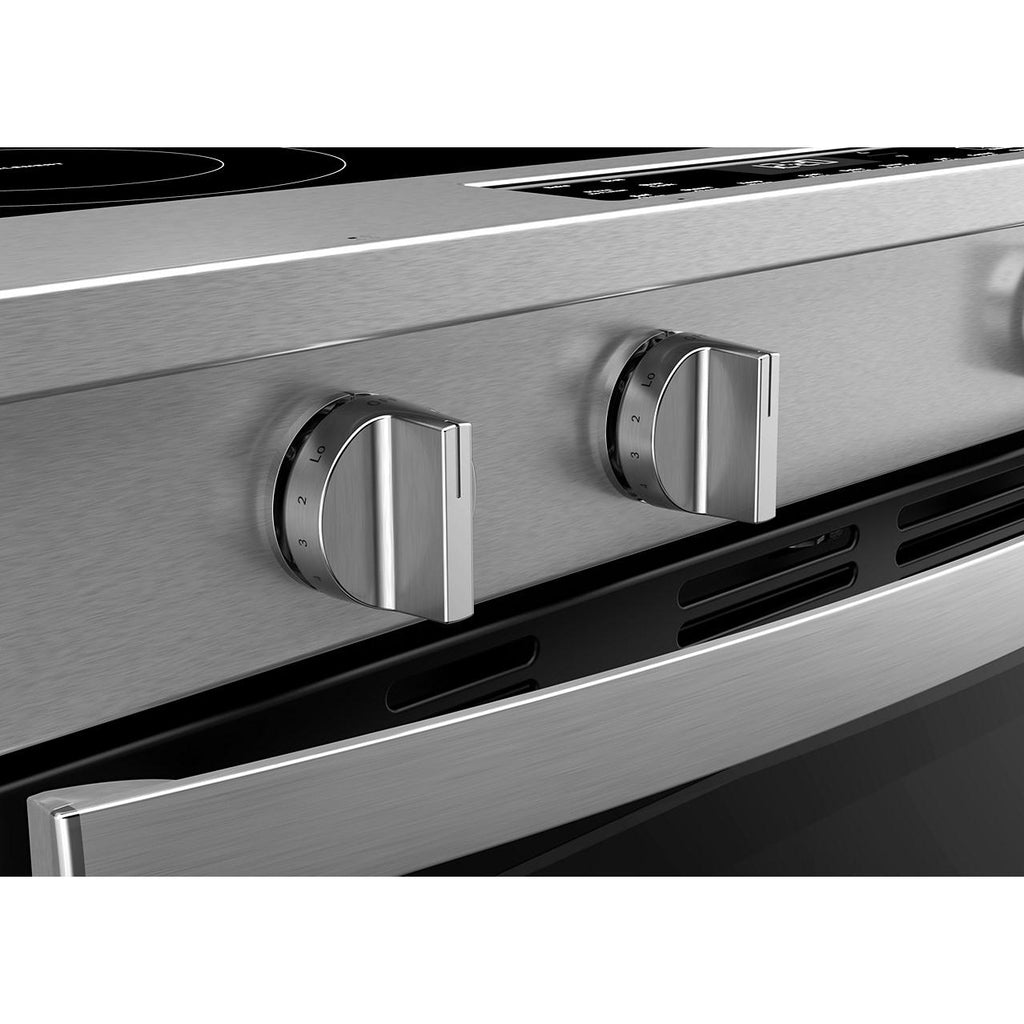

• Cooktop Control Knob Type: Plastic
• Cooktop Control Location: Front
• Cooktop Control Type: Knobs
• Cooktop Surface Material: Glass
• Heating Element On Indicator Light: Yes
• Hot Surface Indicator Light: Yes
• Oven Automatic Shut-Off: Yes
• Power On Indicator Light: Yes
• Power Outage Compatible: Yes
• Display Color: White
Electrical Information
Information
• Amps: 40
• Hz: 60
• Power Cord Included: No
• Volts: 208
• Watts: 12
• Hz: 60
• Power Cord Included: No
• Volts: 208
• Watts: 12
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
• UL
• Energy Star® Qualified
• Energy Star® Qualified
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
34 inch(es) / 86.36 cm
Depth (Without Handles)
27.4 inch(es) / 69.6 cm
Depth (Including Handles)
29.1 inch(es) / 73.91 cm
Weight
153.99 lb(s) / 69.85 kg
Additional Dimensions
• Cutout Depth: 24 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Depth: 25.4 in
• Depth Excluding Doors: 25.4 in
• Depth With Door Open 90 Degree: 47.7 in
• Maximum Height: 35 in
• Minimum Height: 33.5 in
• Oven Interior Depth: 19 in
• Oven Interior Height: 17.9 in
• Oven Interior Width: 24.2 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Depth: 25.4 in
• Depth Excluding Doors: 25.4 in
• Depth With Door Open 90 Degree: 47.7 in
• Maximum Height: 35 in
• Minimum Height: 33.5 in
• Oven Interior Depth: 19 in
• Oven Interior Height: 17.9 in
• Oven Interior Width: 24.2 in
Shipping Dimensions
Weight
170 lb(s) / 77.11 kg
