Features
SPEEDHEAT™ BURNER
Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.
FAN CONVECTION COOKING

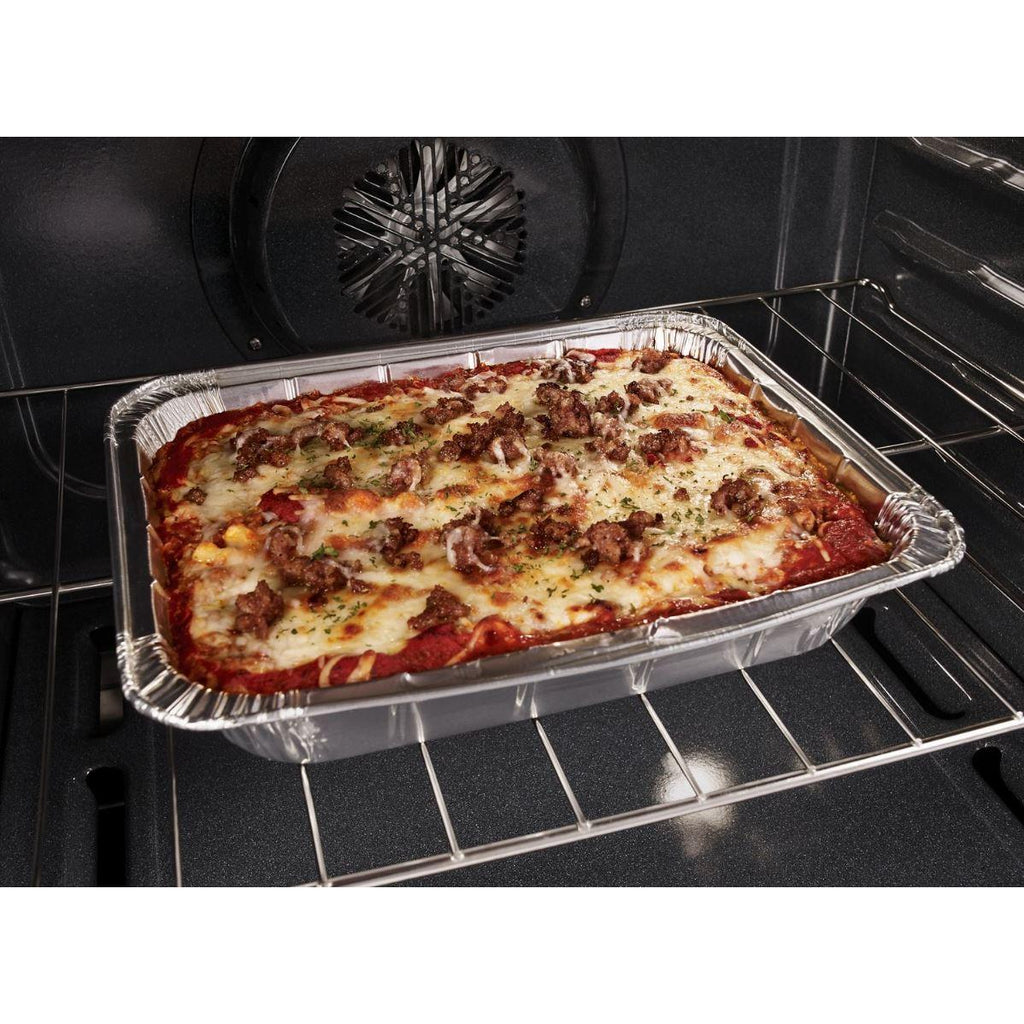

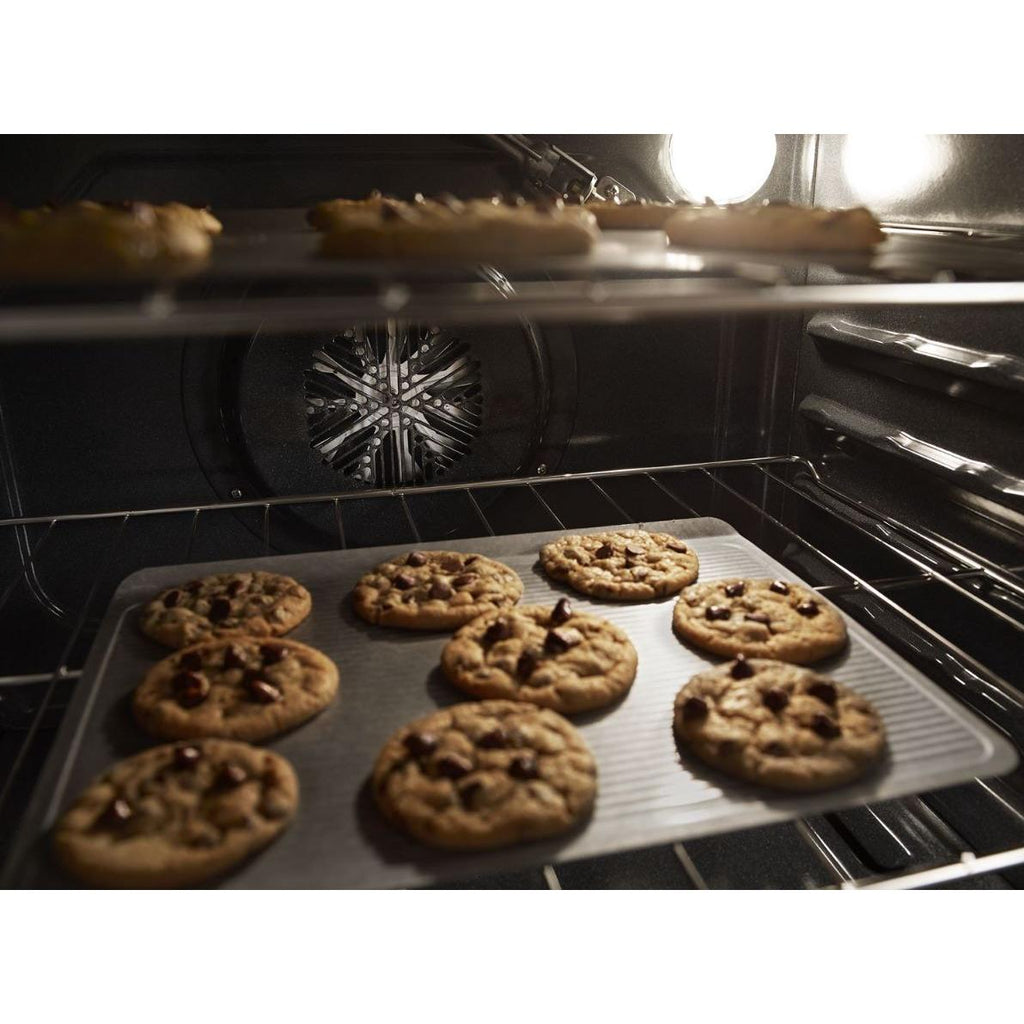

Bake multiple items at once with Fan Convection Cooking. The oven fan circulates hot air from two heating elements around the oven so you don't have to move dishes around as you cook.
Additional Features
FROZEN BAKE™ TECHNOLOGY
Frozen Bake™ technology cooks frozen foods faster by eliminating the need to preheat the oven for your favorite foods such as frozen pizza, lasagna, chicken nuggets, fries and pies.
EDGE-TO-EDGE COOKING GRATES
Edge-to-edge grates extend across the entire cooktop, so you don't have to balance large pots on small burners.
TEMPERATURE SENSOR
A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
ACCUSIMMER® BURNER
AccuSimmer® burner allows for precise temperature control that is perfect for melting chocolate or simmering sauces. When using the AccuSimmer® burner, power is reduced to deliver better control and lower temperatures.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Right Front Element-Burner Power: 15,000 BTU
• Right Rear Element-Burner Power: 5,000 BTU
• Left Front Element-Burner Power: 15,000 BTU
• Left Rear Element-Burner Power: 9,500 BTU
• Right Rear Element-Burner Power: 5,000 BTU
• Left Front Element-Burner Power: 15,000 BTU
• Left Rear Element-Burner Power: 9,500 BTU
Burners
Sealed
Oven
Number of Ovens
Single
Features
Technologies
• SpeedHeat™ Burners
• Frozen Bake™ technology
• Frozen Bake™ technology
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Convect Bake
• Timed cooking
• Keep Warm
• Power On Indicator Light
• Bake Element Power: 16500 BTU
• Broiler Element Power: 10000 BTU
• Timed cooking
• Keep Warm
• Power On Indicator Light
• Bake Element Power: 16500 BTU
• Broiler Element Power: 10000 BTU
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 60 Hz
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
46.87 inch(es) / 119.06 cm
Depth (Without Handles)
25.44 inch(es) / 64.61 cm
Depth (Including Handles)
27.87 inch(es) / 70.8 cm
Additional Dimensions
• Max depth: 27-7/8"
• Cooktop height (max.) with leveling legs screwed all the way in: 36"
• Depth With Door Open 90 Degree: 46-9/16"
• Cooktop height (max.) with leveling legs screwed all the way in: 36"
• Depth With Door Open 90 Degree: 46-9/16"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
48.75 inch(es) / 123.83 cm
Depth
29 inch(es) / 73.66 cm
Weight
187 lb(s) / 84.82 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049411453
