Specifications
General
Series Name
Professional
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel

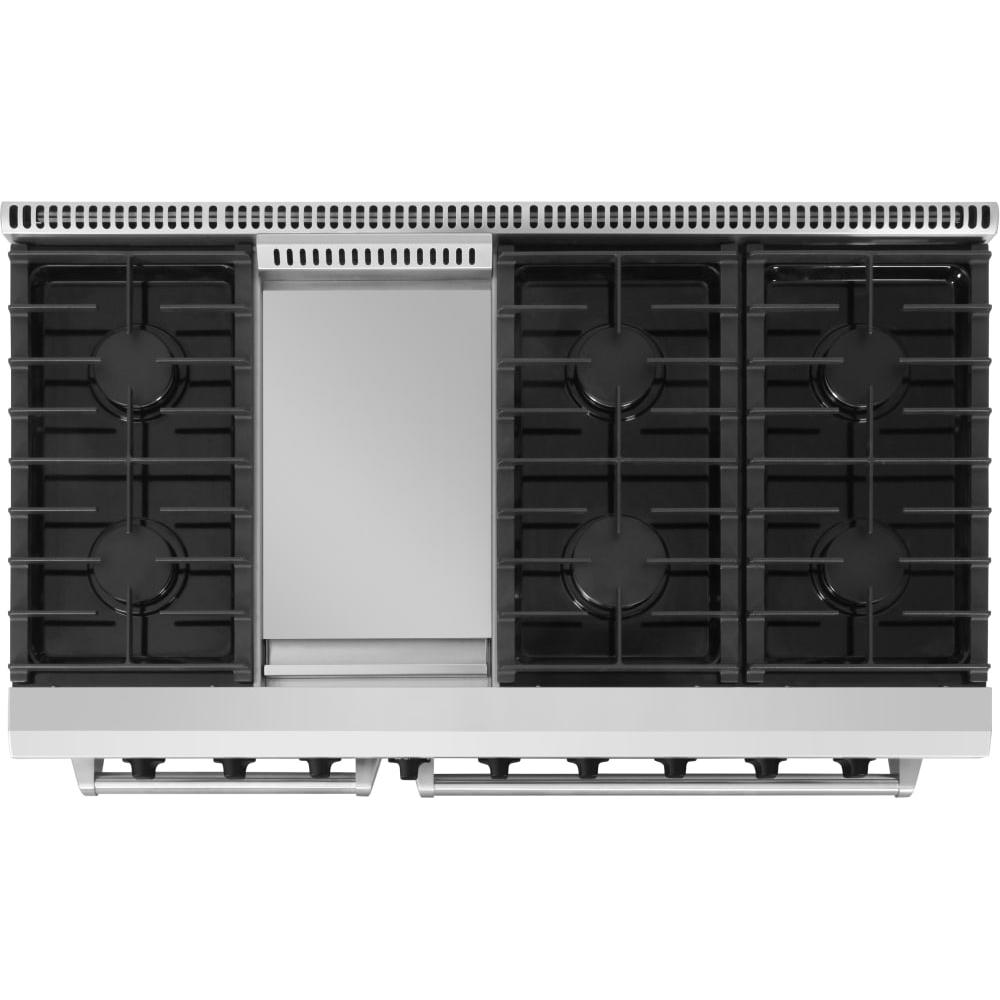

Cooktop
Burners/Elements
7
Burners/Elements Output
• Front Right Burner (Single): 12,000 BTU
• Front Left Burner (Single): 12,000 BTU
• Front Middle Burner(Single): 18,000 BTU
• Rear Right Burner (Single): 12,000 BTU
• Rear Left Burner (Single): 12,000 BTU
• Rear Middle Burner (Single): 12,000 BTU
• Griddle: 15,000 BTU
• Front Left Burner (Single): 12,000 BTU
• Front Middle Burner(Single): 18,000 BTU
• Rear Right Burner (Single): 12,000 BTU
• Rear Left Burner (Single): 12,000 BTU
• Rear Middle Burner (Single): 12,000 BTU
• Griddle: 15,000 BTU

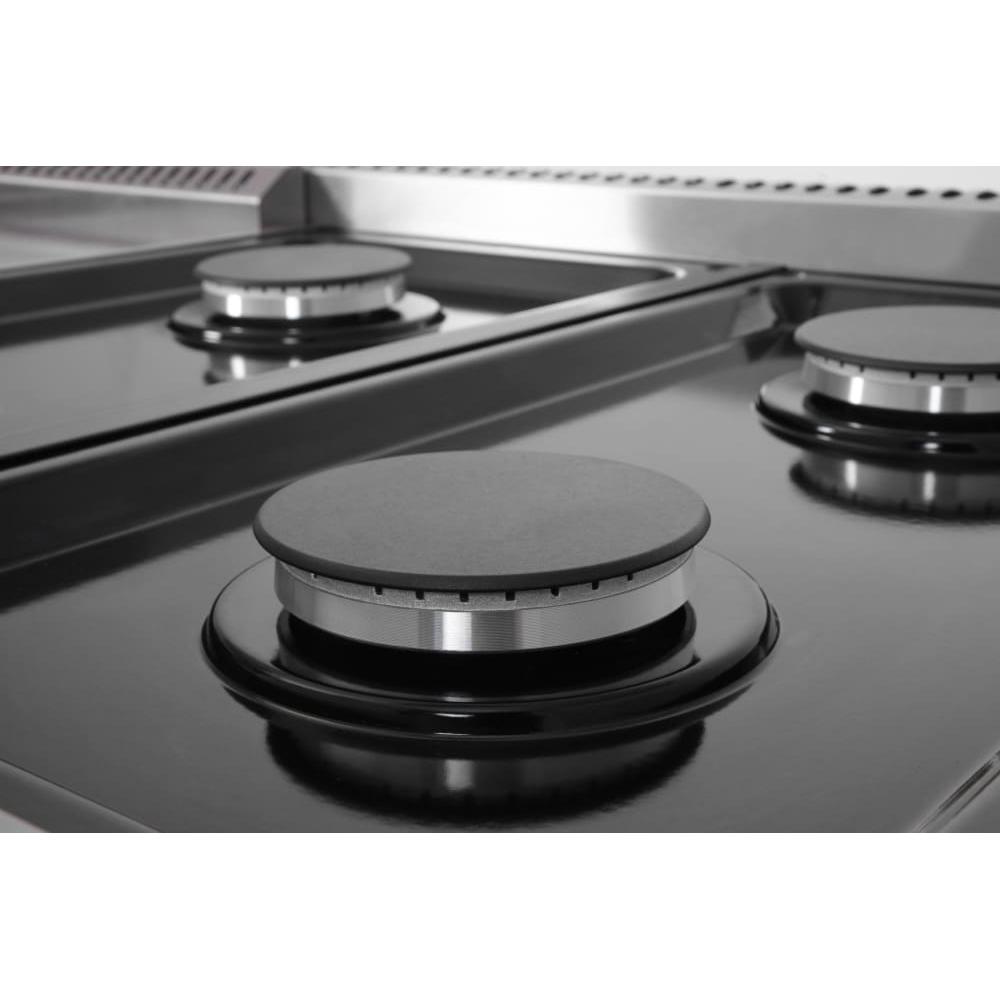

Burners
Sealed
Other
Griddle

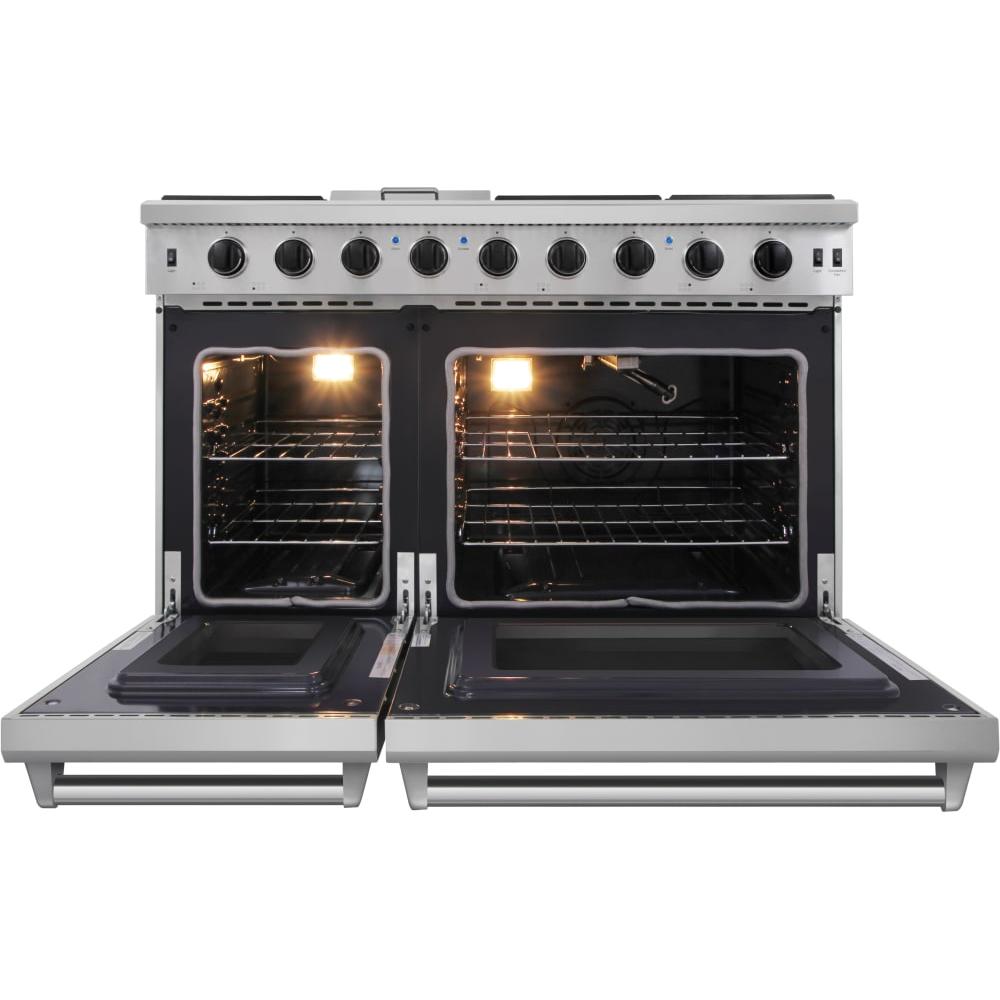

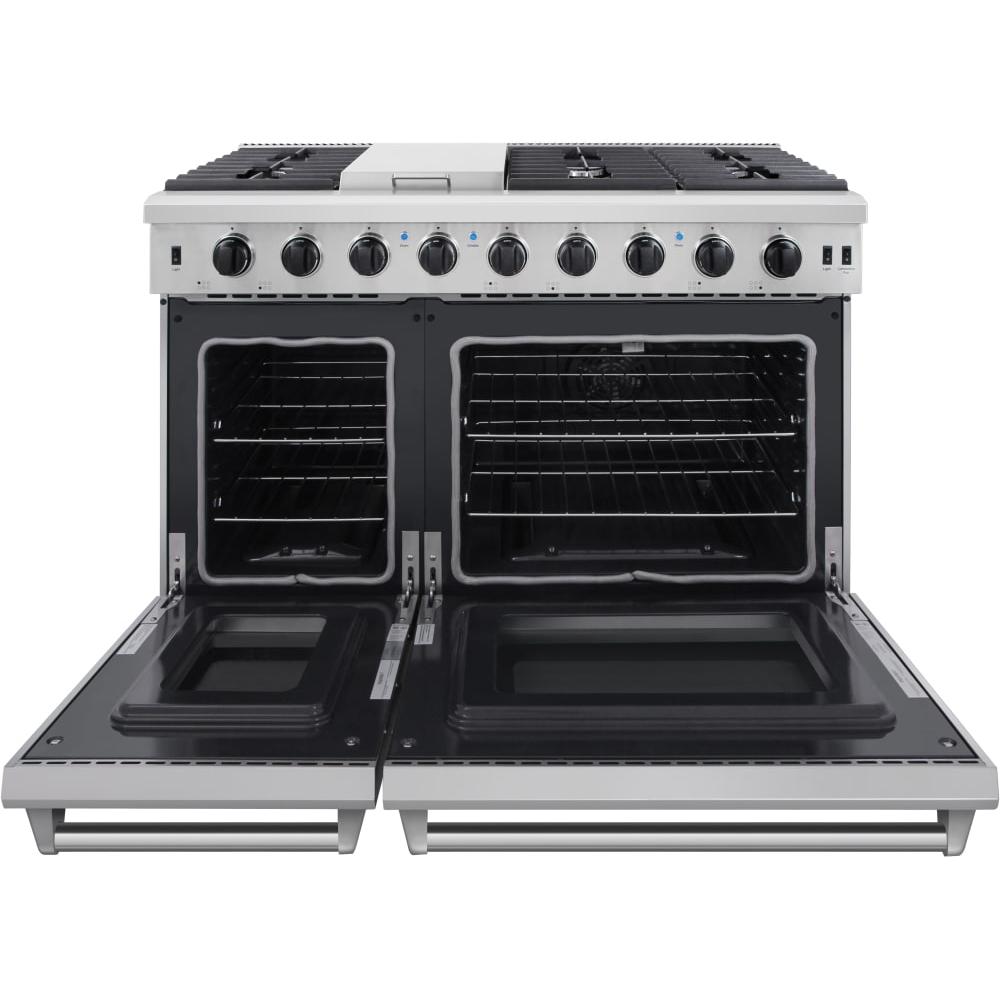

Oven
Capacity (cu. ft.)
• Total Capacity: 6.8 cu.ft.
• Large Oven: 4.6 cu.ft.
• Small Oven: 2.2 cu.ft.
• Large Oven: 4.6 cu.ft.
• Small Oven: 2.2 cu.ft.
Number of Ovens
Double
Features
Oven Light
Yes
Additional Information
• Tube Broil Burner: 10,000 BTU
• U-Shape Burner (30" Oven): 22,000 BTU
• Tube Burner (18" Oven): 14,000 BTU
• 2 x Halogen Lights (Large Oven)
• 1 x Halogen Light (Small Oven)
• Black ABS Knobs
• Automatic Re-Ignition Safety
• Heavy-Duty Continuous Cast Iron Cooking Grates
• Black Porcelain Drip Pan
• U-Shape Burner (30" Oven): 22,000 BTU
• Tube Burner (18" Oven): 14,000 BTU
• 2 x Halogen Lights (Large Oven)
• 1 x Halogen Light (Small Oven)
• Black ABS Knobs
• Automatic Re-Ignition Safety
• Heavy-Duty Continuous Cast Iron Cooking Grates
• Black Porcelain Drip Pan
Electrical Information
Information
• 120 V
• 60 Hz
• 15 or 20 A
• 60 Hz
• 15 or 20 A
Accessories
Optional
• LPKLRG4807U Liquid Propane Gas Conversion Kit
• RG1022 Cast Iron Reversible Griddle
• RG1022 Cast Iron Reversible Griddle
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
35.5 inch(es) / 90.17 cm
Depth (Without Handles)
27.5 inch(es) / 69.85 cm
Depth (Including Handles)
29.25 inch(es) / 74.3 cm
Warranty
Warranty
Limited 2 Years Parts and Labor
