Features

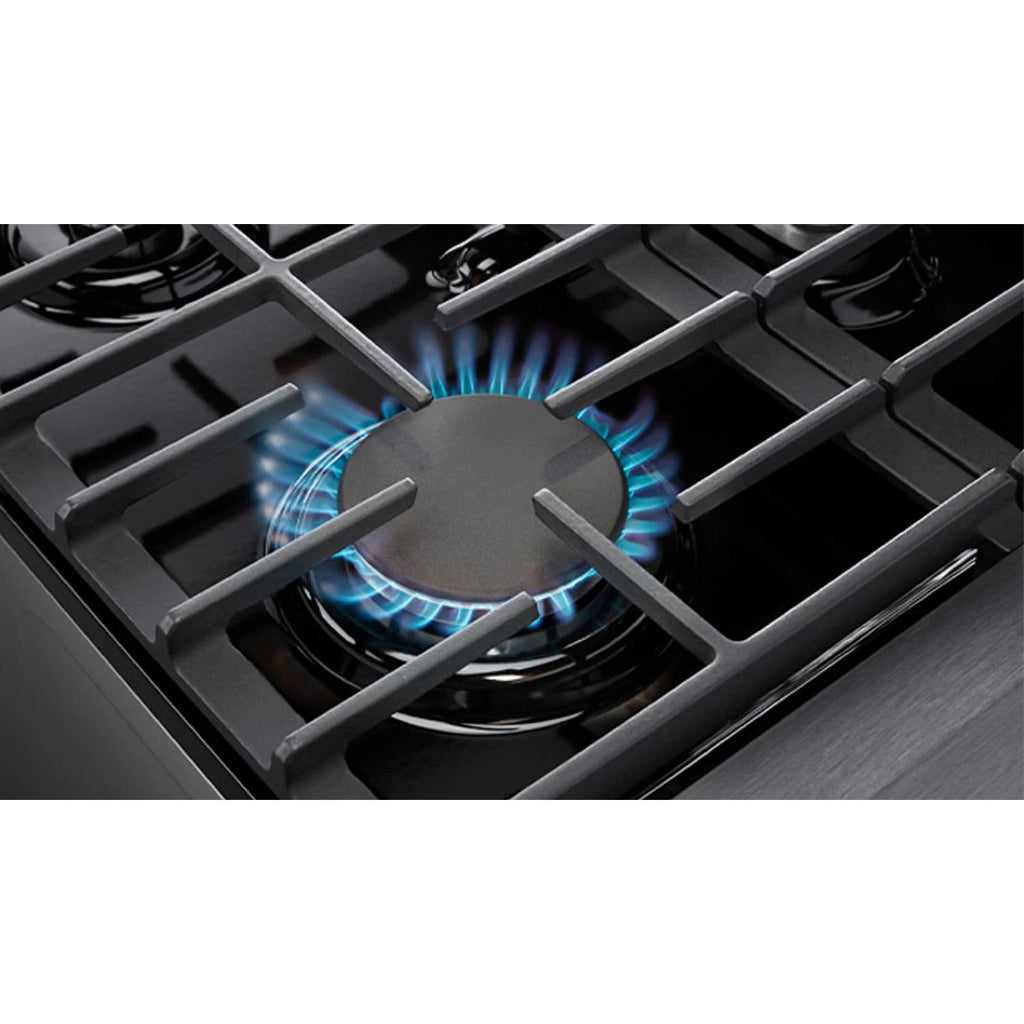

HIGH-POWERED BTU BURNERS (18,000 BTU)
The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes.
STORAGE SPACE
The storage drawer provides additional storage space for cooking trays and other kitchen utensils.
COMMERCIAL CONVECTION FAN
The convection fan provides controlled heat distribution for fast and efficient cooking.
EVEN HEAT BROILER
Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices.

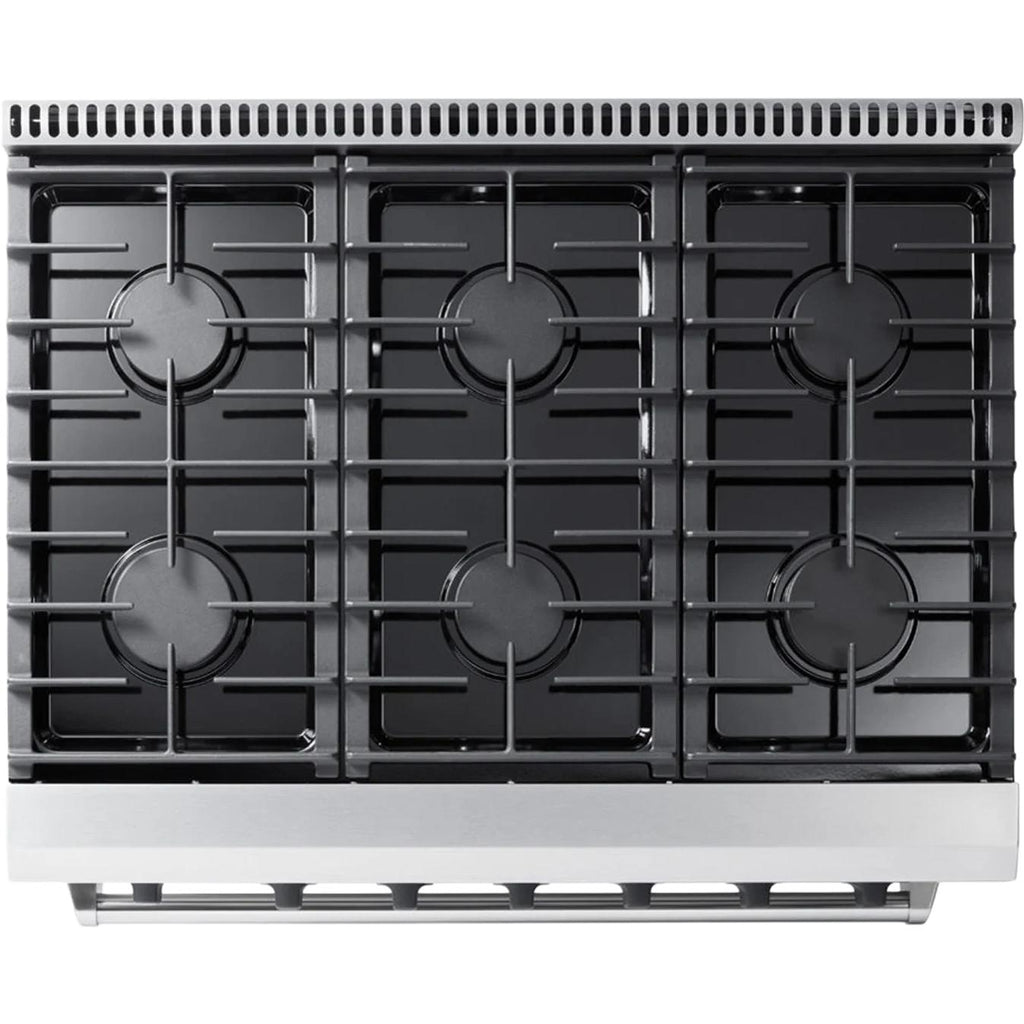

CONTINUOUS CAST-IRON GRATES
Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.

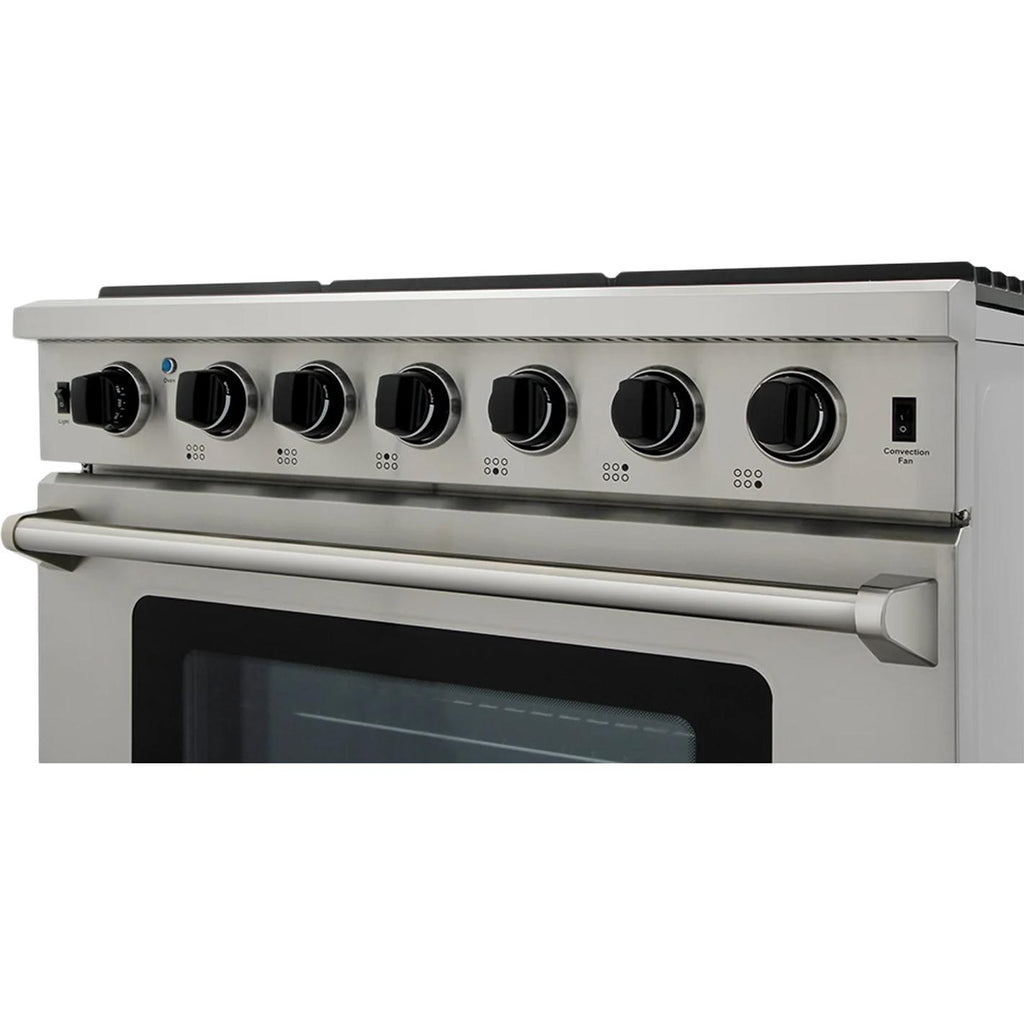

PROFESSIONAL KNOBS
Black burner control knobs add style to the bold range design.
PORCELAIN SPILL TRAY
Single-piece black porcelain spill tray catches the mess and makes cleanup easy.

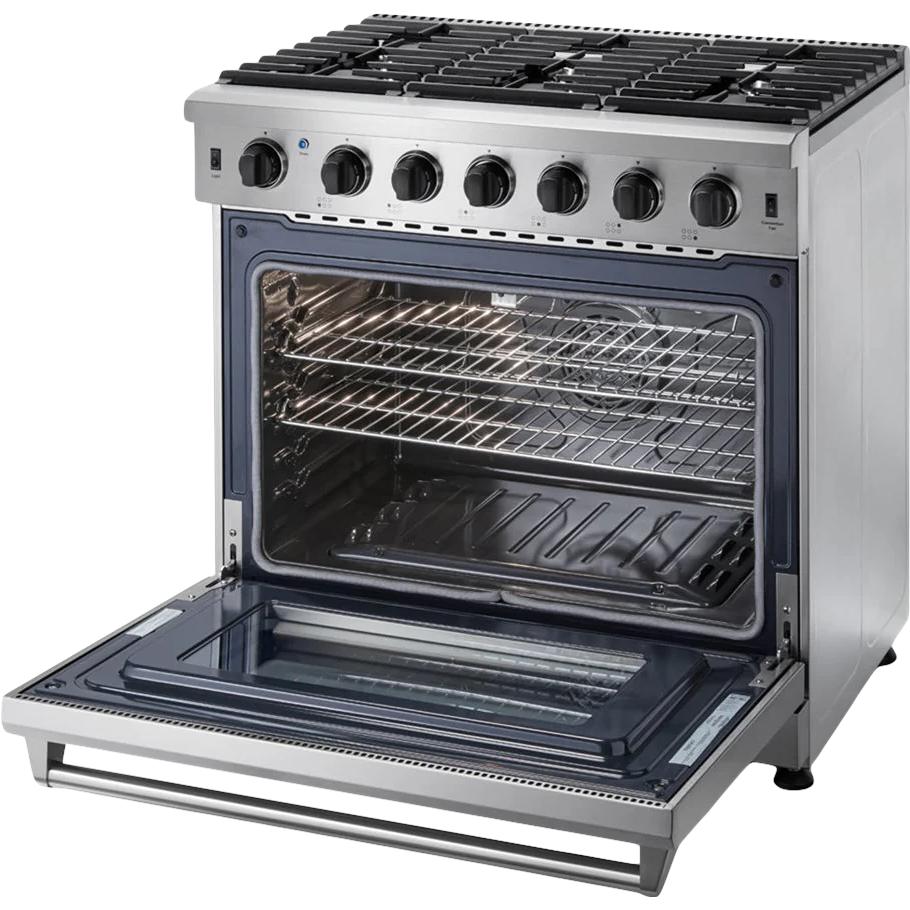

PORCELAIN INTERIORS
The gray porcelain oven interior adds a stylish touch and is easy to clean.
Specifications
General
Fuel Type
Dual Fuel - Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
6
Burners/Elements Output
• Front Left (Single): 18,000 BTU
• Front Middle (Single): 12,000 BTU
• Front Right (Single): 18,000 BTU
• Rear Left (Single): 9,000 BTU
• Rear Middle (Single): 12,000 BTU
• Rear Right (Single): 9,000 BTU
• Tube Broil Burner: 10,000 BTU
• U-Shape Burner (36" Oven): 18,500 BTU
• Front Middle (Single): 12,000 BTU
• Front Right (Single): 18,000 BTU
• Rear Left (Single): 9,000 BTU
• Rear Middle (Single): 12,000 BTU
• Rear Right (Single): 9,000 BTU
• Tube Broil Burner: 10,000 BTU
• U-Shape Burner (36" Oven): 18,500 BTU
Oven
Capacity (cu. ft.)
6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
Number of Ovens
Single
Electrical Information
Information
• Electrical Requirements: 120V
• Circuit Breaker: 15A
• Frequency: 60 Hz
• Circuit Breaker: 15A
• Frequency: 60 Hz
Accessories
Optional
• Liquid Propane Gas Conversion Kit: LPKLRG3601U
• Wok Ring: WK01
• Cast Iron Reversible Griddle: RG1022
• Wok Ring: WK01
• Cast Iron Reversible Griddle: RG1022
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Additional Dimensions
• Product height (from bottom to top of backsplash): 36 5/8"-37 5/8"
• Product height (from bottom to top of side panel): 36 1/8"-37 1/8"
• Product depth (from back panel to bullnose): 27-1/2"
• Product depth (from back panel to control board): 27-1/16"
• Product depth (from back panel to side panel front): 24-3/4"
• Depth of control panel (minimum): 2-1/4"
• Depth of control panel (bullnose): 3-9/16"
• Adjustable legs not to exceed: 1"
• Required Cutout Size: 36-1/8" x 24-3/4" x 35-5/8" (+1")
• Product height (from bottom to top of side panel): 36 1/8"-37 1/8"
• Product depth (from back panel to bullnose): 27-1/2"
• Product depth (from back panel to control board): 27-1/16"
• Product depth (from back panel to side panel front): 24-3/4"
• Depth of control panel (minimum): 2-1/4"
• Depth of control panel (bullnose): 3-9/16"
• Adjustable legs not to exceed: 1"
• Required Cutout Size: 36-1/8" x 24-3/4" x 35-5/8" (+1")
