Specifications
General
Series Name
Professional
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
6
Burners/Elements Output

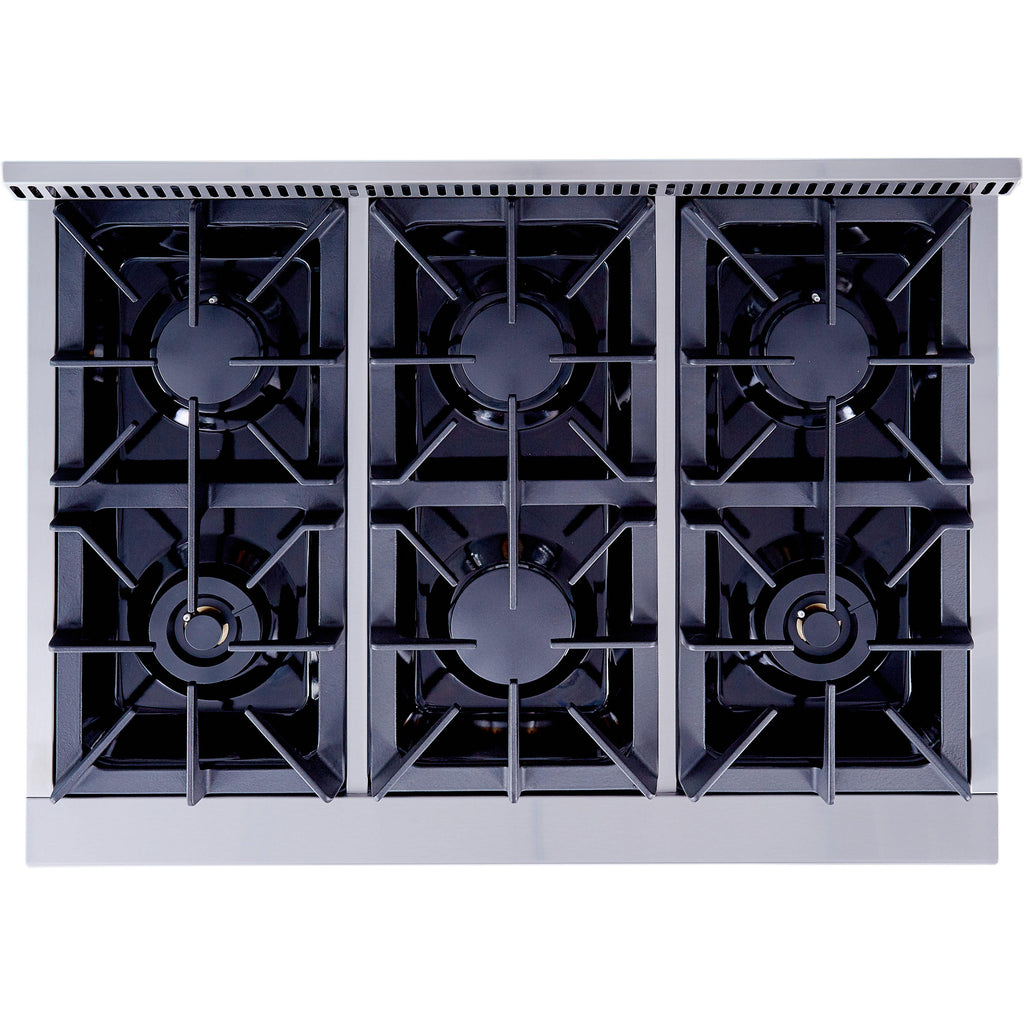

• Front Left Sealed Dual Burner BTU: 15,000
• Extra Low Simmer Function BTU: 650
• Front Center Sealed Single Burner BTU: 18,000
• Front Right Sealed Dual Burner BTU: 15,000
• Extra Low Simmer Function BTU: 650
• Rear Left Sealed Single Burner BTU: 12,000
• Rear Center Sealed Single Burner BTU: 12,000
• Rear Right Sealed Single Burner BTU: 12,000
• Extra Low Simmer Function BTU: 650
• Front Center Sealed Single Burner BTU: 18,000
• Front Right Sealed Dual Burner BTU: 15,000
• Extra Low Simmer Function BTU: 650
• Rear Left Sealed Single Burner BTU: 12,000
• Rear Center Sealed Single Burner BTU: 12,000
• Rear Right Sealed Single Burner BTU: 12,000
Burners
Sealed
Oven
Capacity (cu. ft.)
5.2 cu.ft.
Number of Ovens
Single
Features
Technologies
Commercial Convection Fan
Convection
Yes
Oven Light
Yes
Additional Information
• Black porcelain drip pan for easy surface cleaning
• Three continuous flat cast-iron cooking grates for easy movement of large cookware
• 16,500 BTU infrared broil burner that provides fast and even broiling to lock in savory juices
• U shape stove burner: 22,000 BTU

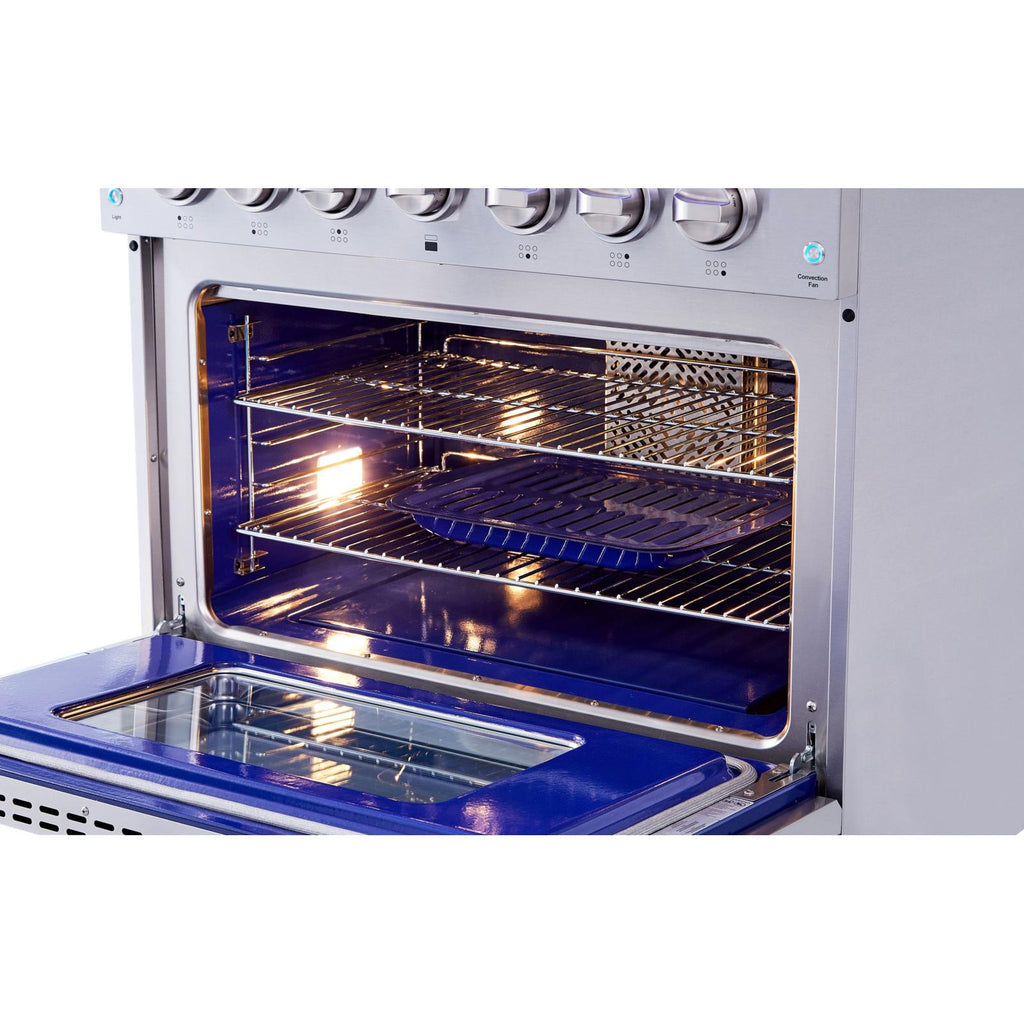

• Blue porcelain oven interior
• Commercial convection fan that circulates heat to maximize even cooking
• Two nickel platted oven racks
• Two halogen lights illuminate the oven cavity
• Thermostatically controlled for precise temperatures
• CSA Certified
• Three continuous flat cast-iron cooking grates for easy movement of large cookware
• 16,500 BTU infrared broil burner that provides fast and even broiling to lock in savory juices
• U shape stove burner: 22,000 BTU
• Blue porcelain oven interior
• Commercial convection fan that circulates heat to maximize even cooking
• Two nickel platted oven racks
• Two halogen lights illuminate the oven cavity
• Thermostatically controlled for precise temperatures
• CSA Certified
Electrical Information
Information
• 120 V
• 15 or 20 A
• 60 Hz
• 15 or 20 A
• 60 Hz
Accessories
Optional
• LPKHRG3618U Liquid Propane Gas Conversion Kit
• TR36SS 36-inch Telescopic Rack
• ITHRG3618U 36-inch Island Trim
• RG1022 Cast Iron Reversible Griddle
• RG1032 Cast Iron Range Griddle
• TR36SS 36-inch Telescopic Rack
• ITHRG3618U 36-inch Island Trim
• RG1022 Cast Iron Reversible Griddle
• RG1032 Cast Iron Range Griddle
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
38.48 inch(es) / 97.74 cm
Depth (Without Handles)
27.94 inch(es) / 70.97 cm
Depth (Including Handles)
29.53 inch(es) / 75.01 cm
Weight
281 lb(s) / 127.46 kg
Additional Dimensions
Required Cutout Size (W x D x H): 36" x 24"-25" x 35 ½"-36 ½"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44 inch(es) / 111.76 cm
Depth
41 inch(es) / 104.14 cm
Weight
330.01 lb(s) / 149.69 kg
Warranty
Warranty
2-Year parts and labor warranty
