Features
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.

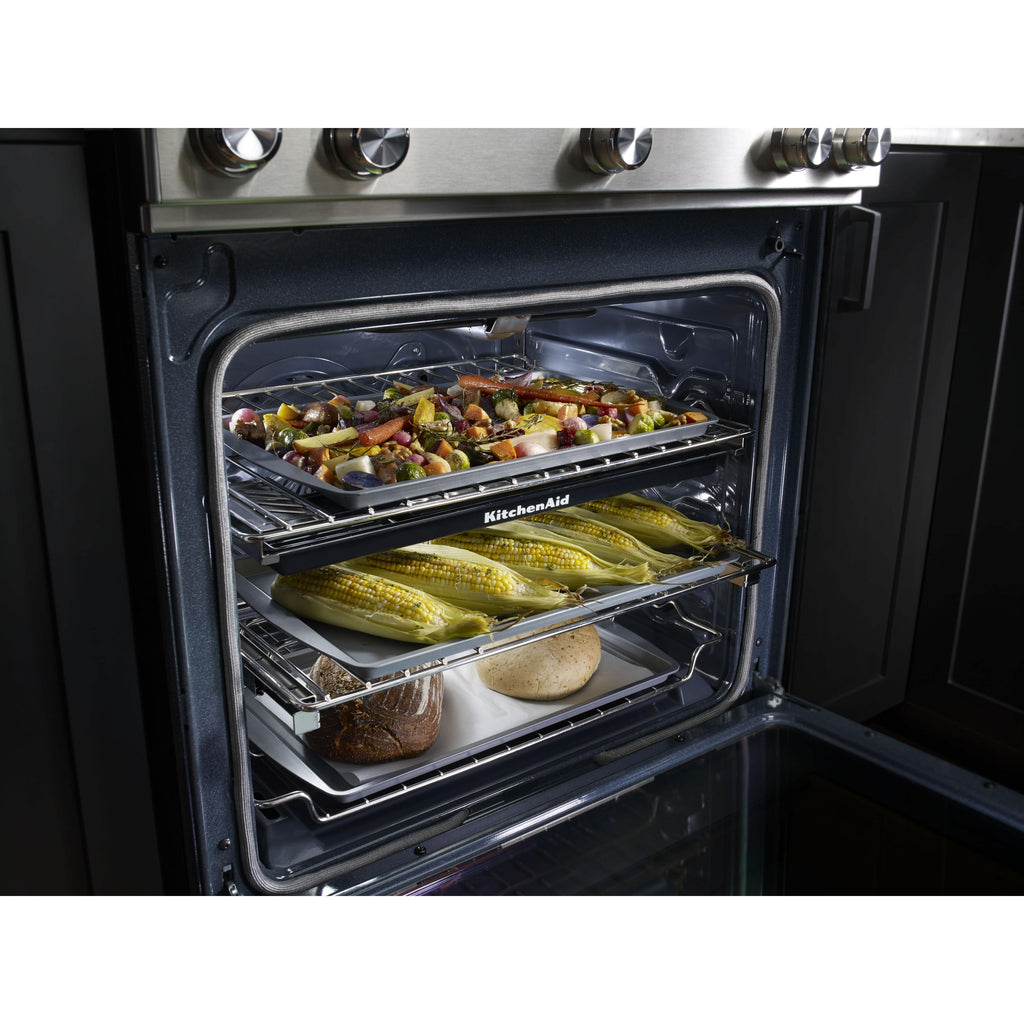

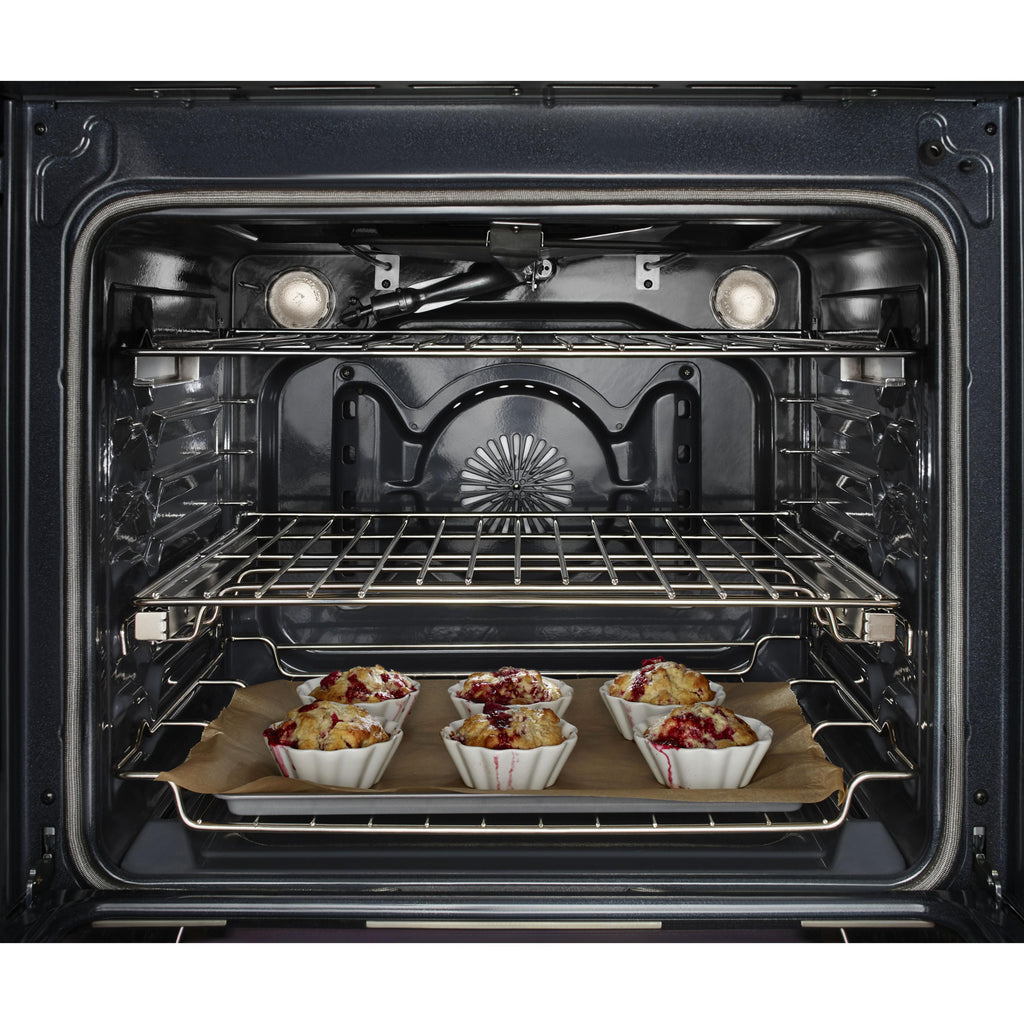

EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
FIT GUARANTEE
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.

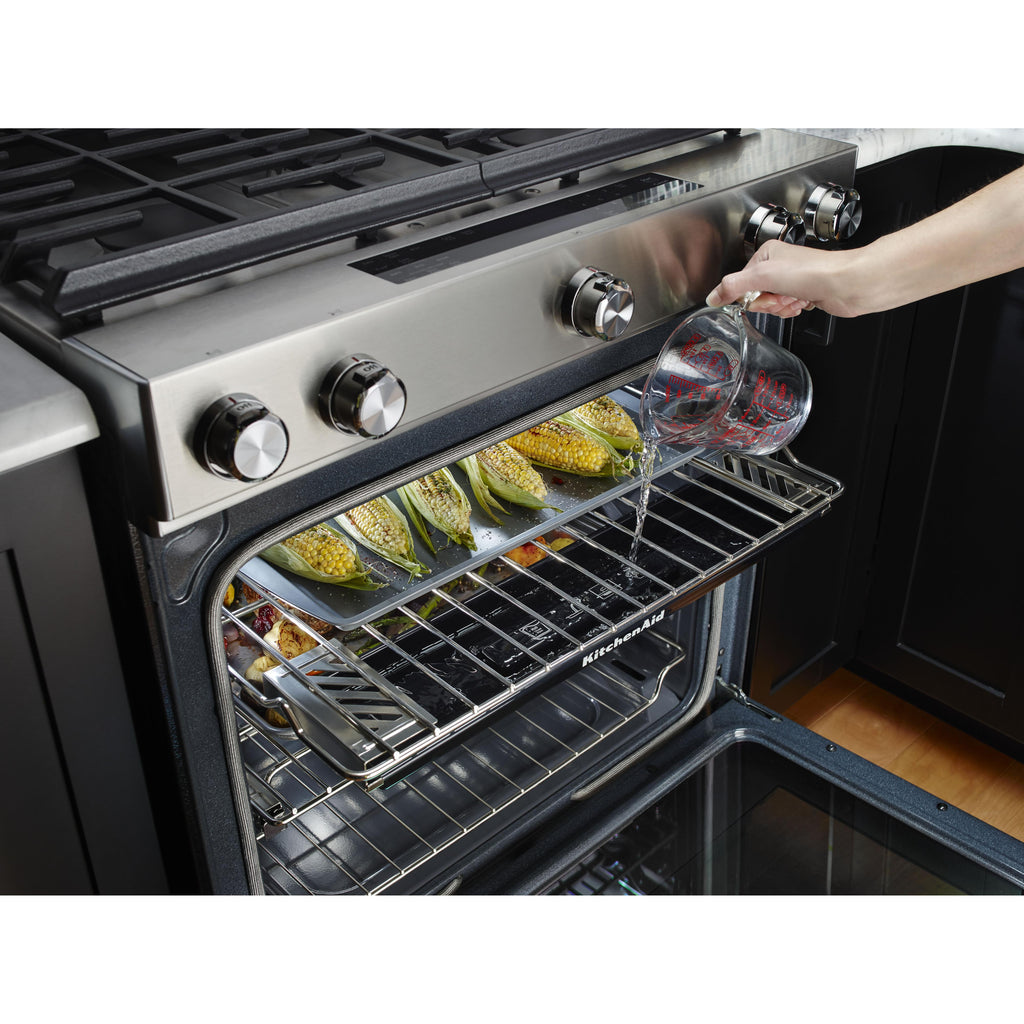

STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features
BAKING DRAWER
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel

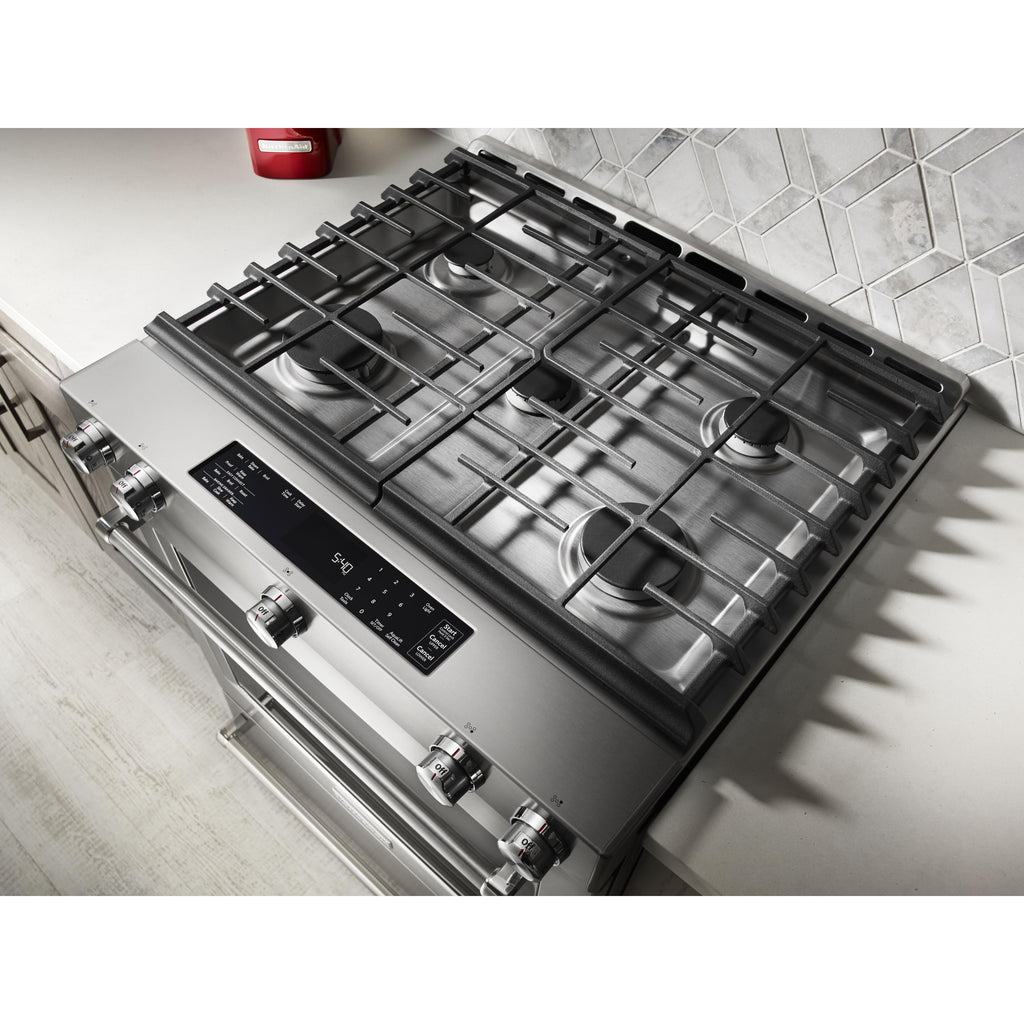

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center rear: 8000 BTU
• Left front: 19000 BTU
• Left rear: 5000 BTU
• Right front: 15000 BTU
• Right rear: 9200 BTU
• Left front: 19000 BTU
• Left rear: 5000 BTU
• Right front: 15000 BTU
• Right rear: 9200 BTU
Burners
Sealed
Other

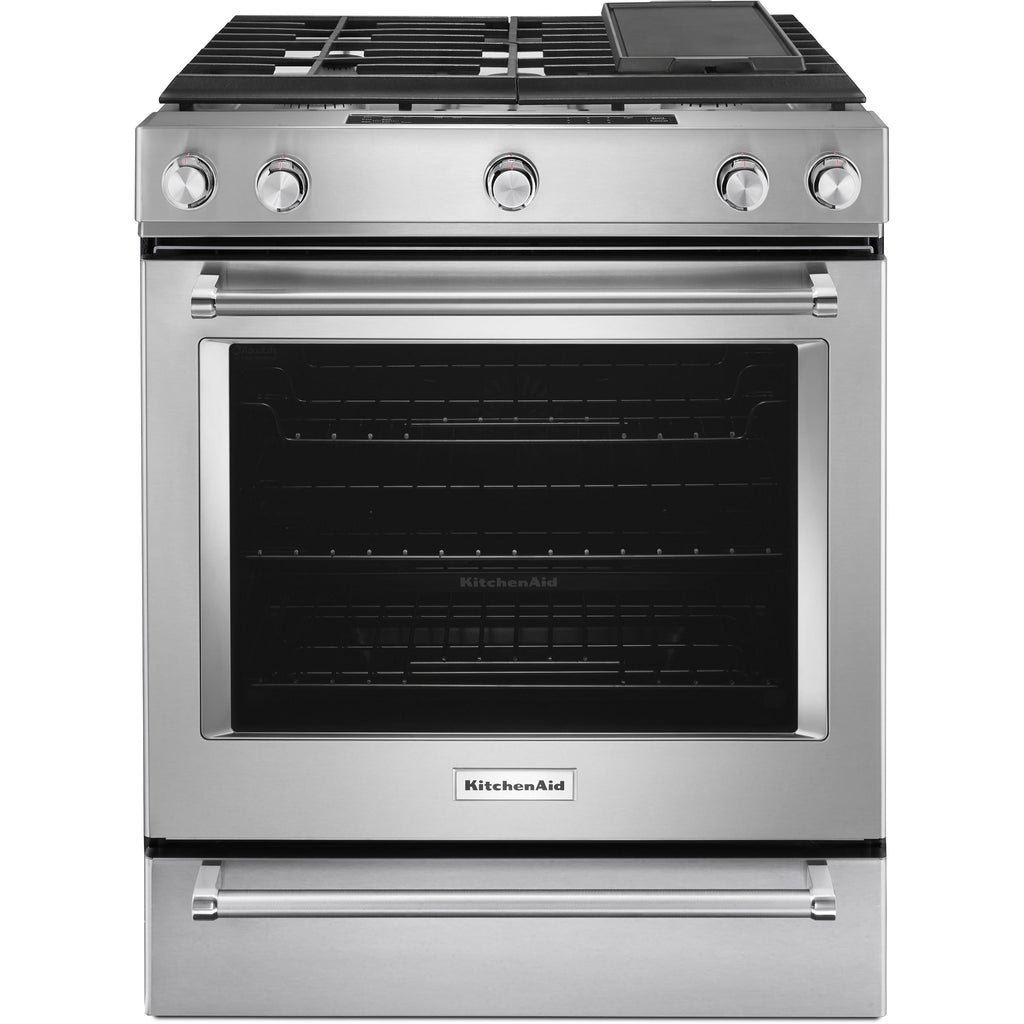

Griddle

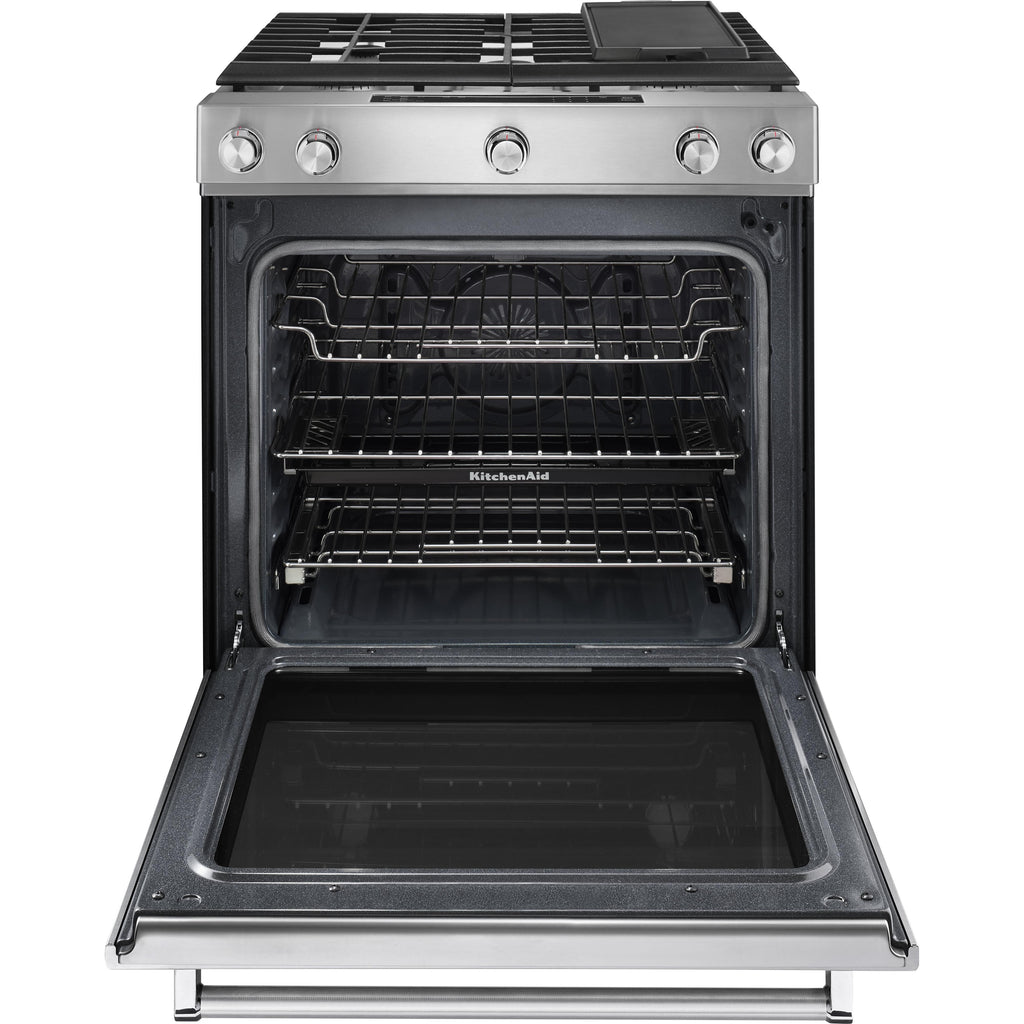

Oven
Capacity (cu. ft.)
6.5 cu. ft.
Number of Ovens
Single
Features
Control Lock
No
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• 2 continuous Grates
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• Baking drawer's separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• 2 continuous Grates
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• Baking drawer's separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm
Drawer Features
Baking
Yes
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
120 V
Certifications and Approvals
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.37 inch(es) / 66.99 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
214.99 lb(s) / 97.52 kg
Additional Dimensions
• 1 3/16" (3.0 cm) height from cooktop to top of vent
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
• 36" (91.4 cm) height to top of cooktop edge with leveling legs screwed all the way in (Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.)
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
262 lb(s) / 118.84 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
883049343587
