Features

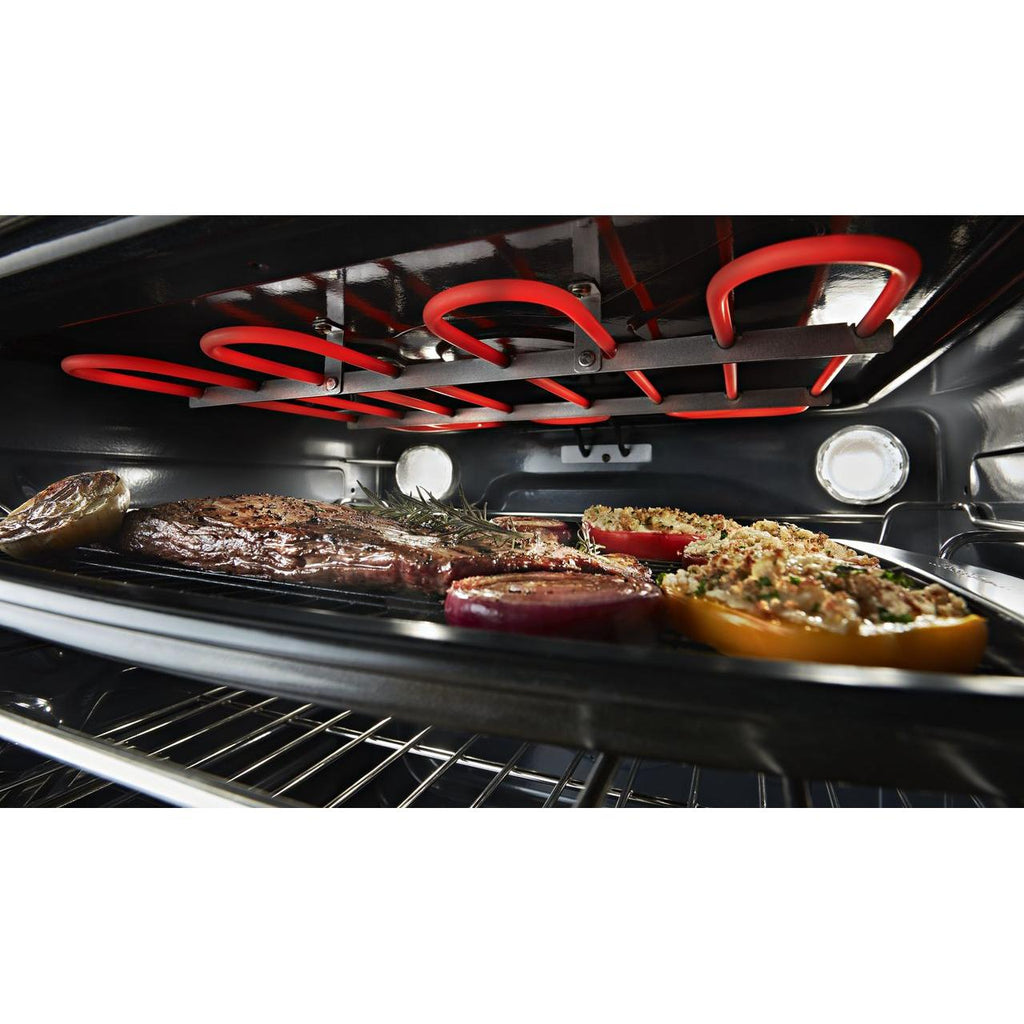

EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
STEAM RACK
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
FIT GUARANTEE
A promise to fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
AQUALIFT®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
STORAGE DRAWER
Provides a convenient storage area for frequently used pots and pans.
GLASS TOUCH CONTROLS
Offer an intuitive, easy-to-use touch screen experience.
Additional Features
SIDE TRIM ACCESSORY KIT
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel

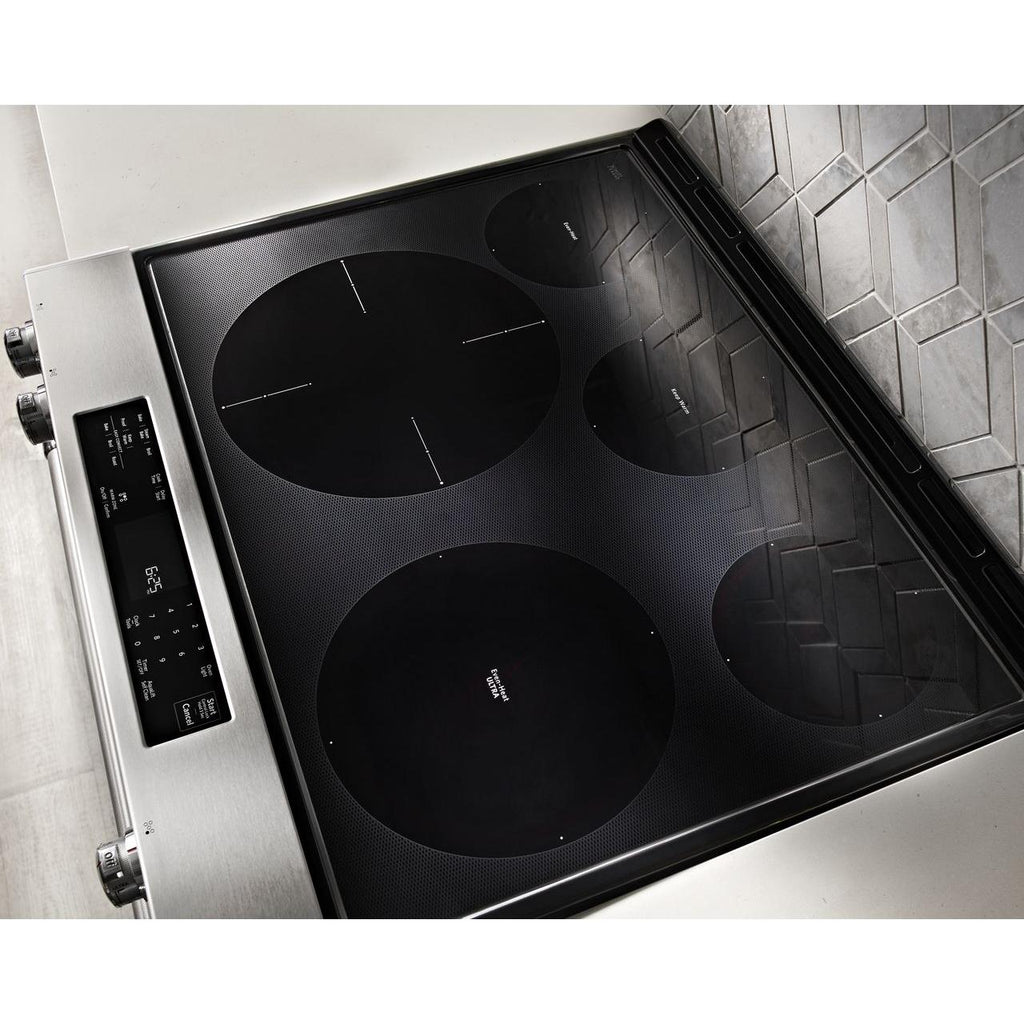

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center rear: 100 watt
• Left front: 3000/1950/1050 watt
• left rear: 1300 watt
• Right front: 3200 watt
• Right rear: 1200 watt.
• Left front: 3000/1950/1050 watt
• left rear: 1300 watt
• Right front: 3200 watt
• Right rear: 1200 watt.
Burner/Element Size
• Center rear: 6"
• Left front: 12"/9"/6" Triple
• Left rear: 6"
• Right front: 10"
• Right rear: 6".
• Left front: 12"/9"/6" Triple
• Left rear: 6"
• Right front: 10"
• Right rear: 6".
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4 cu. ft.
Number of Ovens
Single
Features
Control Lock
No
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• EasyConvect™ Time and Temperature Conversion System takes the guesswork out of convection cooking
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• Storage Drawer
• 4000w Broil feature provides a variable temperature option, giving you complete control while you broil.
• Even-Heat™ True Convection System provides consistent heating and even cooking on both lower oven racks
• Steam rack offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results
• Aqualift® cleans your oven in less than an hour without odors and at a temperature below 200°F
• Storage Drawer
• 4000w Broil feature provides a variable temperature option, giving you complete control while you broil.
Drawer Features
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
240V
Certifications and Approvals
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.31 inch(es) / 71.91 cm
Additional Dimensions
• 1 3/16" (3.0 cm) Height From Cooktop To Top Of Vent
• Model/serial Number Plate (located Behind The Oven Door On The Top Right-hand Side Of The Oven Frame)
• 36" (91.4 Cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In (Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.)
• 28 5/16" (71.9 Cm) Max. Depth From Front Of Console To Back Of Range.
• 28 7/8" (73.3 cm) Max. Depth From Handle To Back Of Range.
• Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.
• Model/serial Number Plate (located Behind The Oven Door On The Top Right-hand Side Of The Oven Frame)
• 36" (91.4 Cm) Height To Top Of Cooktop Edge With Leveling Legs Screwed All The Way In (Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.)
• 28 5/16" (71.9 Cm) Max. Depth From Front Of Console To Back Of Range.
• 28 7/8" (73.3 cm) Max. Depth From Handle To Back Of Range.
• Range Can Be Raised Approximately 1" (2.5 Cm) By Adjusting The Leveling Legs.
Warranty
Warranty
• 1-year guarantee on parts and labor
• FIT guarantee
• FIT guarantee
UPC
UPC#
883049329819
