Features
EASYCONVECT™ CONVERSION SYSTEM
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
EVEN-HEAT™ TRUE CONVECTION
Features a unique bow-tie design with heating element and fan that provide even airflow and consistent temperatures throughout the entire oven for crisp, flaky baked goods, juicy, evenly browned roasts and flavorful, caramelized vegetables.
2,0000 BTU ULTRA POWER™ DUAL-FLAME BURNER
Give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, saute´, simmer and sizzle, all on the same burner.
5,000 BTU SIMMER AND MELT BURNER
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
STAR-K CERTIFIED
Approves the oven for use on the Sabbath and other religious holidays when Sabbath Mode is being used.
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Red
Manufacturer Color
Signature Red
Cooktop

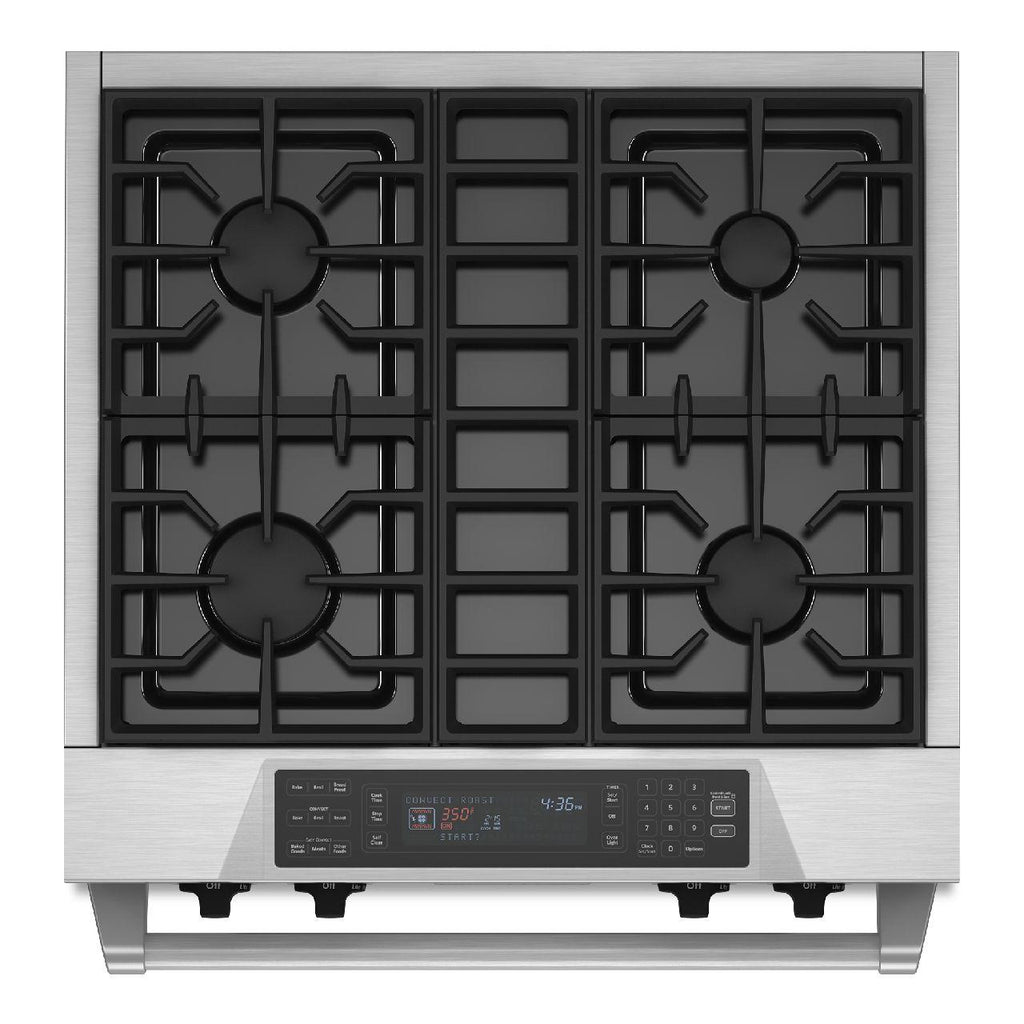

Burners/Elements
4
Burners/Elements Output
• Left Front: 20,000 BTU
• Left Rear: 15,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 5,000 BTU
• Left Rear: 15,000 BTU
• Right Front: 15,000 BTU
• Right Rear: 5,000 BTU
Burners
Sealed

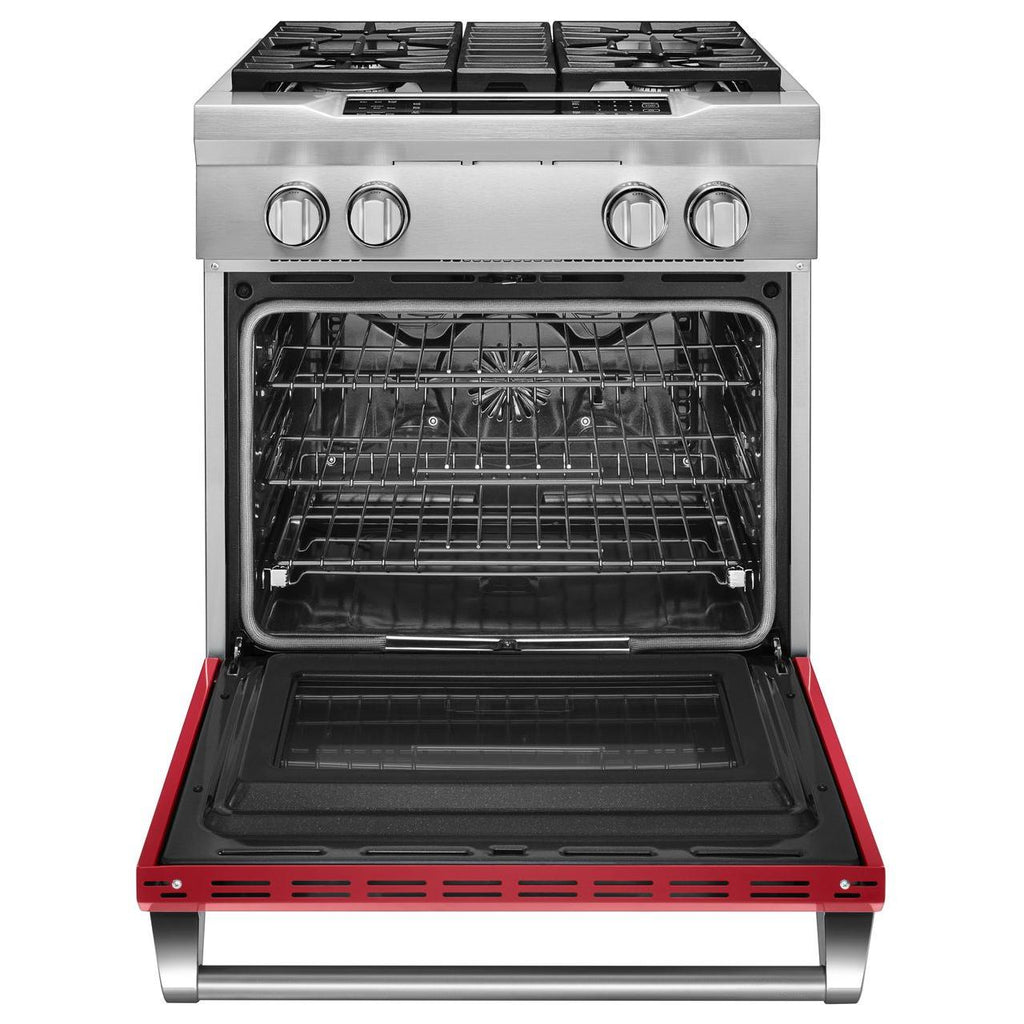

Oven
Capacity (cu. ft.)
4.1 cu. ft.
Number of Ovens
Single
Programs
• Automatic Door Latch
• Clock
• Control Lock
• Delay Start
• Easy Convect Conversion
• Hidden Bake Element
• Keep Warm Setting
• Power Outage Compatible
• Proofing
• Sabbath Mode
• Simmer
• Temperature Probe
• Timer
• Warm Hold
• Clock
• Control Lock
• Delay Start
• Easy Convect Conversion
• Hidden Bake Element
• Keep Warm Setting
• Power Outage Compatible
• Proofing
• Sabbath Mode
• Simmer
• Temperature Probe
• Timer
• Warm Hold
Features
Technologies
• Even-Heat™ True Convection
• 20K BTU Ultra Power™ Dual-Flame Burner
• EasyConvect™ Conversion System
• 20K BTU Ultra Power™ Dual-Flame Burner
• EasyConvect™ Conversion System
Control Lock
No
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• 5K BTU simmer/melt burner is designed to cook foods gently at lower temperatures
• Convect Bake, Roast, and Broil
• Large glass-touch oven display
• Commercial-Style Design
• Porcelain coated steel surface
• Dishwasher safe cast iron grates
• 1 Gliding Roll-Out oven rack
• 2 Heavy Duty oven racks
• Convect Bake, Roast, and Broil
• Large glass-touch oven display
• Commercial-Style Design
• Porcelain coated steel surface
• Dishwasher safe cast iron grates
• 1 Gliding Roll-Out oven rack
• 2 Heavy Duty oven racks
Electrical Information
Information
240/208 Volts
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.75 inch(es) / 75.57 cm
Height
35.75 inch(es) / 90.81 cm
Depth (Without Handles)
27.75 inch(es) / 70.49 cm
Depth (Including Handles)
29.56 inch(es) / 75.09 cm
Shipping Dimensions
Width
33 inch(es) / 83.82 cm
Height
47 inch(es) / 119.38 cm
Depth
33.5 inch(es) / 85.09 cm
Weight
412.99 lb(s) / 187.33 kg
Warranty
Warranty
Limited one year warranty parts and labor
UPC
UPC#
883049443102
