Features

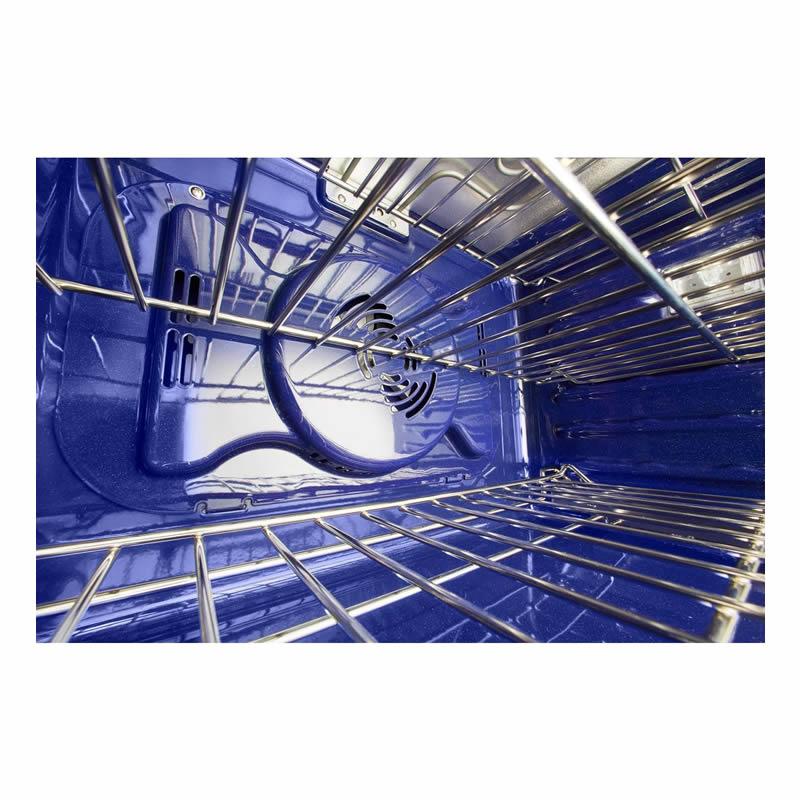

EVEN-HEAT™ TRUE CONVECTION OVEN
Provides consistent heating and even cooking on all racks with a unique bow-tie shaped design and convection fan that helps ensure the most even baking.
TEMPERATURE PROBE
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.

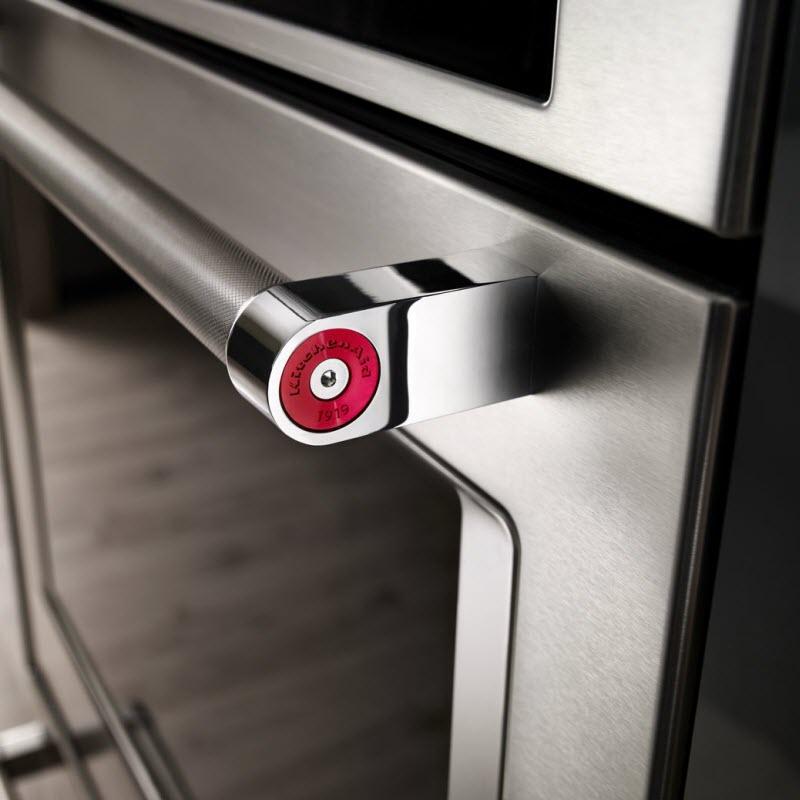

PROFESSIONALLY-INSPIRED DESIGN (FULL VBL)
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles, Precision Touch Controls, a stunning Chrome Inlaid Frame, the KitchenAid® Badge and Brand Medallion.
FIT SYSTEM GUARANTEE
Allows for customization of wall oven instillation to match the height of existing cabinets through flexible design elements.
Additional Features
EASYCONVECT™ CONVERSION SYSTEM
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
EVEN-HEAT™ PREHEAT
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

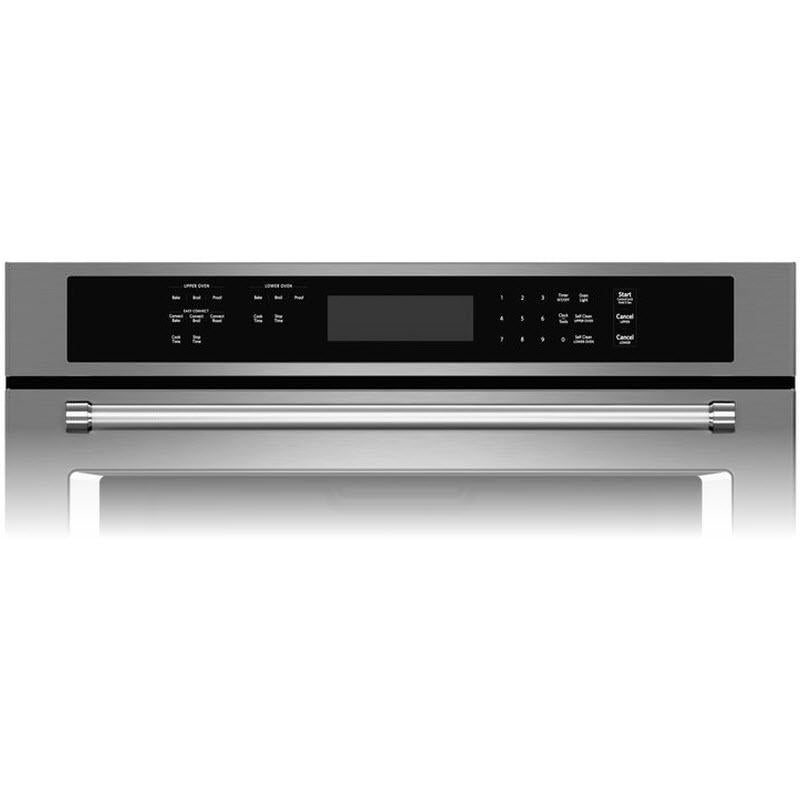

GLASS-TOUCH DISPLAY WITH CONTROL LOCK FUNCTION
Gives an intuitive glass touch screen experience that’s easy to wipe clean.
SELF CLEANING CYCLE
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Specifications
General
Fuel Type
Electric
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Total Capacity
10 cu. ft.
Main Oven Capacity
5 cu. ft.
Secondary Oven Capacity
5 cu. ft.
Oven Specifications
Clock
Yes
Control Lock
Yes
Convection
Yes
Steam Oven
No
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Removable Door
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Even-heat™ True Convection Oven (Upper) and Thermal Oven(Lower)
• Temperature Probe (upper oven)
• Professionally-Inspired Design
• FIT System Guarantee
• EasyConvect™ Conversion System
• Even-Heat™ Preheat
• SatinGlide™ Roll-Out Extension Rack (upper oven)
• Glass-Touch Display with Control Lock Function
• Bake Element Power: 2800W/2427W (Both)
• Broiler Element Power: 4000W/3467W (Both)
• Convection Element Power: 3200W<
• Flush Installation Approved
• Extra Large Oven Window Size
• Temperature Probe (upper oven)
• Professionally-Inspired Design
• FIT System Guarantee
• EasyConvect™ Conversion System
• Even-Heat™ Preheat
• SatinGlide™ Roll-Out Extension Rack (upper oven)
• Glass-Touch Display with Control Lock Function
• Bake Element Power: 2800W/2427W (Both)
• Broiler Element Power: 4000W/3467W (Both)
• Convection Element Power: 3200W<
• Flush Installation Approved
• Extra Large Oven Window Size
Electrical Information
Information
240 Volts
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
51.25 inch(es) / 130.18 cm
Depth
26.87 inch(es) / 68.26 cm
Additional Dimensions
• Interior Depth (in.) 19 (Both)
• Interior Height (in.) 18 (Both)
• Interior Width (in.) 25 (Both)
• Cutout Depth 24"
• Cutout Height 50 1/4"
• Cutout Width 28 1/2"
• Interior Height (in.) 18 (Both)
• Interior Width (in.) 25 (Both)
• Cutout Depth 24"
• Cutout Height 50 1/4"
• Cutout Width 28 1/2"
Shipping Dimensions
Width
34.81 inch(es) / 88.42 cm
Height
53.5 inch(es) / 135.89 cm
Depth
30.81 inch(es) / 78.26 cm
Weight
291.01 lb(s) / 132 kg
Warranty
Warranty
First Year Limited Warranty on Parts and Labor
UPC
UPC#
883049327198
