Features
PRODRY™ SYSTEM
Combines a heating element, water repellent tech, and natural ventilation to give you dry, table-ready dishes. To activate, select the ProDry™ Option or ProDry™ Max Option.
PROWASH™ CYCLE.
Uses a sensor to measure soil levels and adapts wash time and water temperature as needed for tough messes or lighter loads, because no two meals are exactly the same.
PRINTSHIELD™ FINISH
Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
SATINGLIDE® MAX RAILS IN THIRD AND MIDDLE RACKS
Allow racks to move effortlessly, even when fully loaded.
ADJUSTABLE ROWS IN MIDDLE AND LOWER RACKS
Fold down to make room for dishes in a variety of shapes and sizes like roasting pans, serving bowls, colanders and dutch ovens.
Additional Features

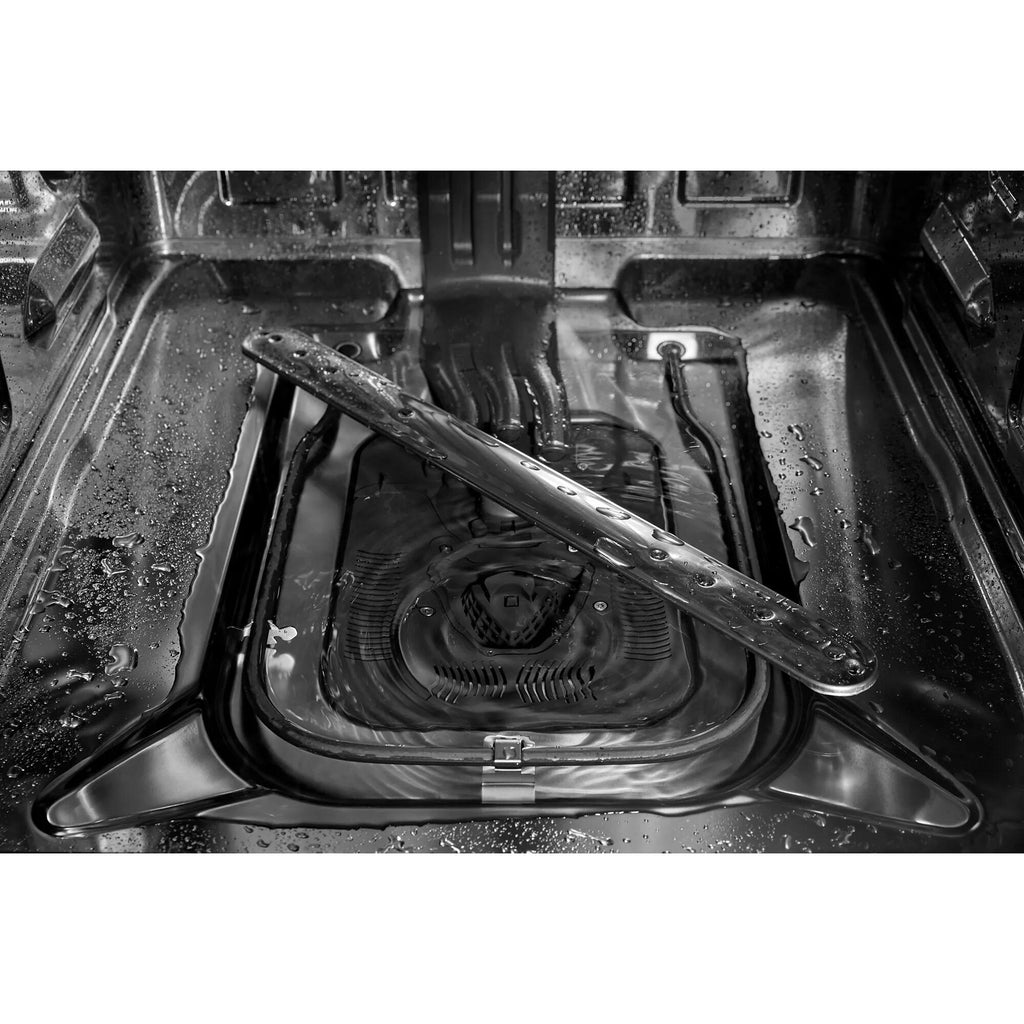

TRUE SELF-CLEANING FILTRATION
Is the only dishwasher filtration system* available that eliminates the need for manual filter cleaning. It continuously captures food particles, so only clean water circulates through the wash jets, then cleans itself as the dishwasher drains, so you can load without pre-rinsing.

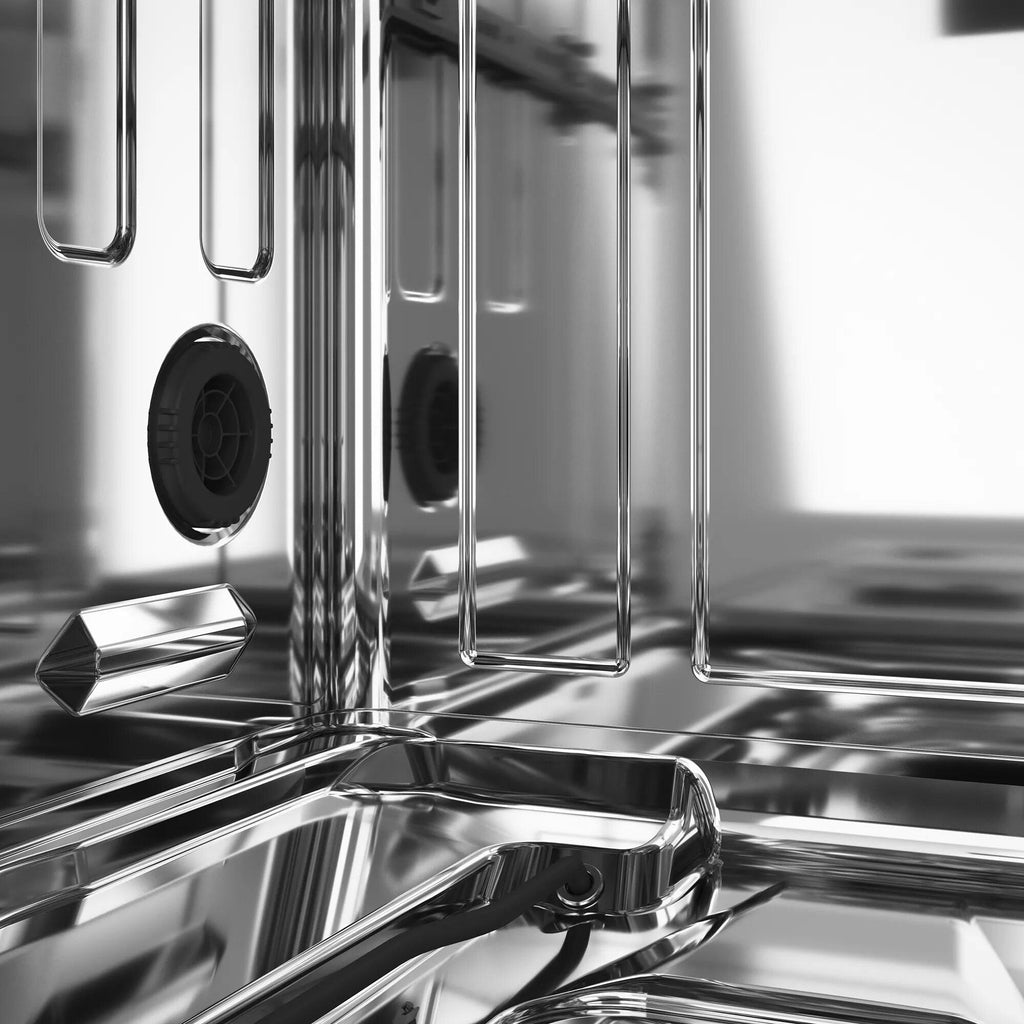

DURABLE STAINLESS STEEL INTERIOR
Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains and odors, while retaining heat to help improve drying.

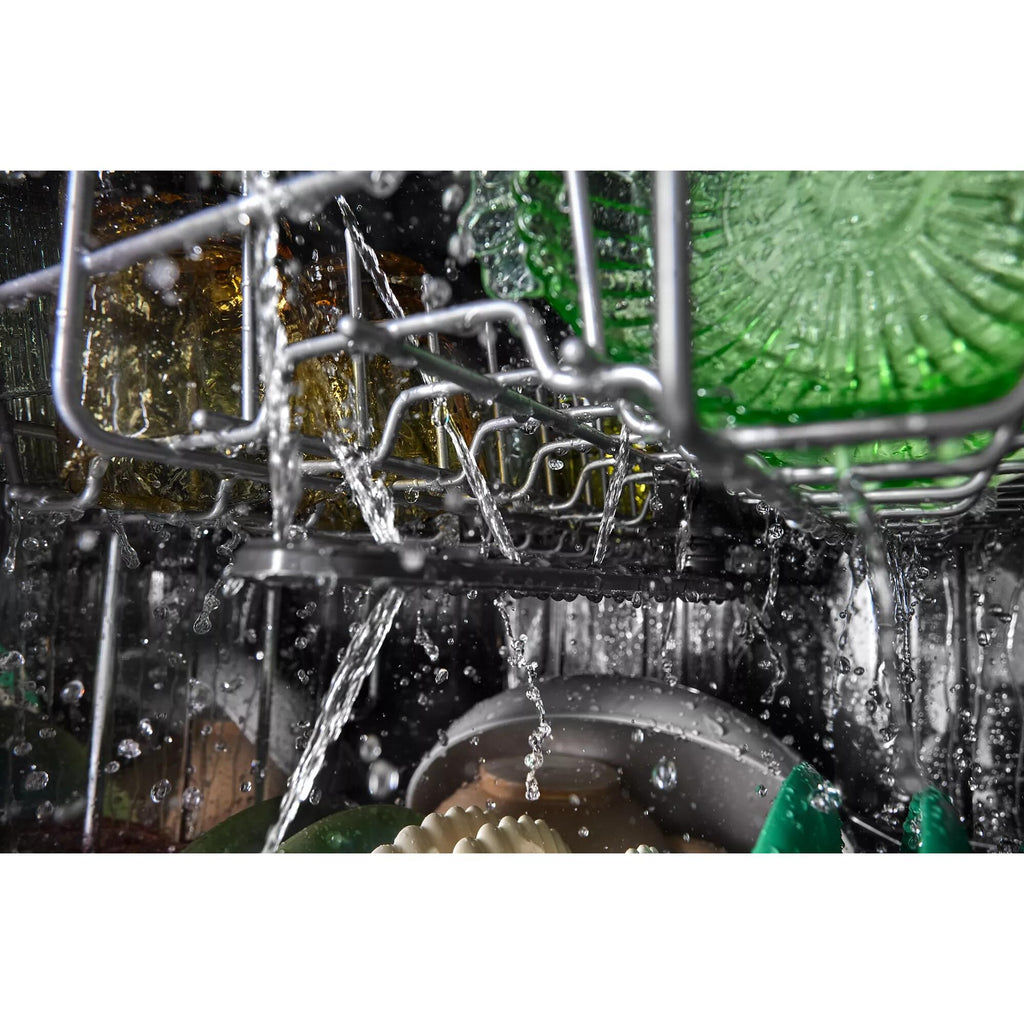

50+ TOTAL WASH JETS
Provide complete cleaning coverage for dishes across all three racks, eliminating the need for pre-rinsing. With 3x more jets* than the leading competitor's third rack model, it ensures targeted cleaning for dishes on every level.
*Compared to Bosch SHX9PCM5N
360° MAX JETS™ THIRD RACK WITH WATER REPELLENT TECH
It is the only third rack with 360° wash jets to clean pint glasses, coffee mugs, and cereal bowls inside and out. The largest third rack available,* it also has a removable utensil caddy for cooking tools and features moisture-wicking tines for table-ready dishes.
*Among leading brands based on usable volume.
*Among leading brands based on usable volume.
STEMWARE SHIELD AND STEMWARE CLIPS
Provide a soft touch zone with a protective strip that cradles up to 7 delicate glasses while support clips secure them in place during wash and dry cycles, so you can skip the hand washing to make post-party clean up effortless.
DESIGNED FOR QUIET CLEANING AT 44 DBA
So you can let the dishwasher get a head start on cleanup while you entertain and enjoy meals, even in open-concept kitchens.
DESIGNED TO BE PERSONALIZED - KDTS434SPS
With a curated palette of mixed metal hardware. Personalize your hardware with optional handle accessory kits in Brass, Bronze, Black Ore, and Stainless Steel.
EXPRESS WASH CYCLE - KDTS434SPS
Cleans 72% better than the leading competitor's Speed 60 cycle.* Dishes get a thorough wash in just over an hour, so you always have what you need while prepping, cooking, and entertaining.
*Compared to Bosch SHX9PCM5N.
*Compared to Bosch SHX9PCM5N.
SANI-RINSE OPTION
Eliminates 99.999% of food soil bacteria by adding a high-heat final rinse to sanitize dishes.
PRODRY™ MAX OPTION
Extends the ProDry™ Cycle for loads that need extra time to provide better drying results*
*Compared to ProDry™ Cycle

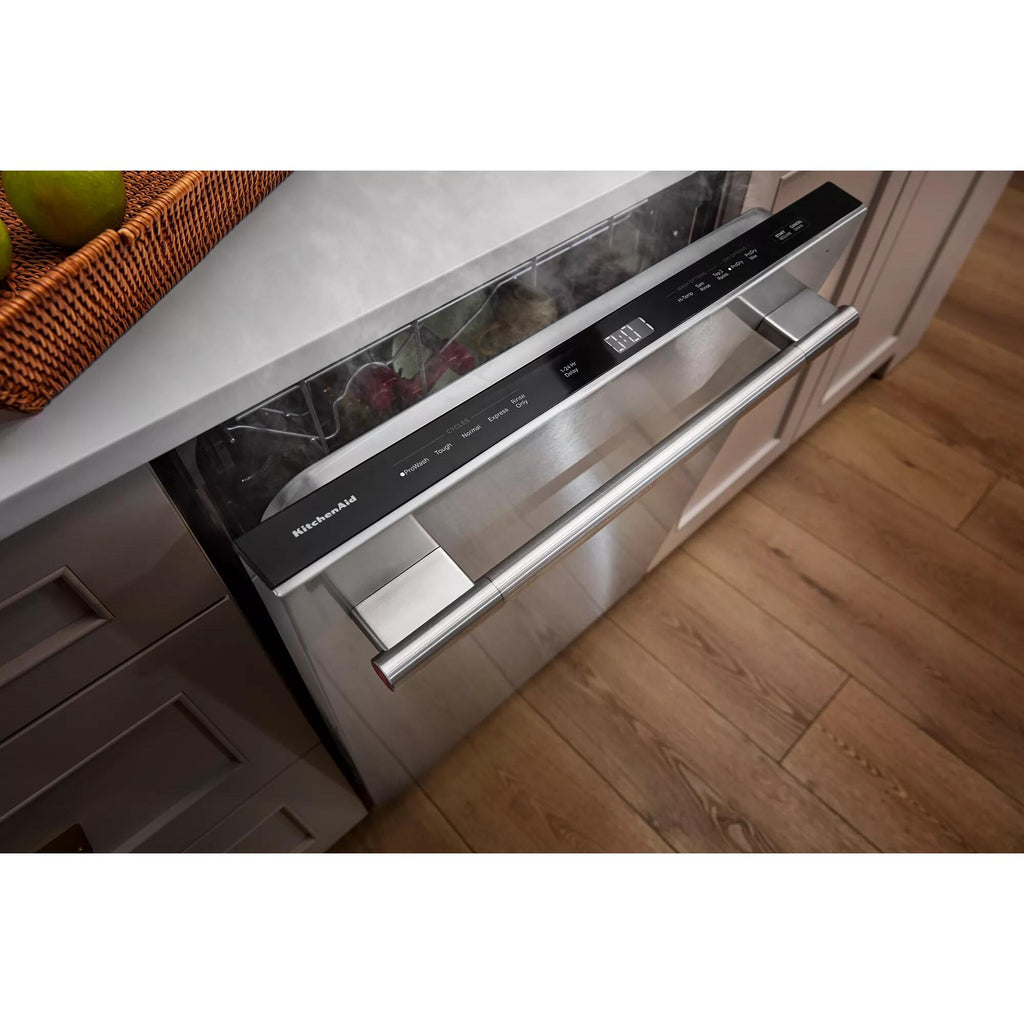

TOP CONTROLS.
Are tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
LEAK IDENTIFICATION SYSTEM
Helps detect most types of leaks and includes a drip tray underneath. If the system detects a problem, the dishwasher can stop filling, drain the tub and alert that service is needed.*
*Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors
*Will not detect leaks from the water inlet or tub drain connections and hoses or leaks due to cracked tubs or doors
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
44 dB
Cycle Information
Number of Cycles
5
Wash Cycles
Express Wash, Normal, ProWash™, Rinse Only, Tough
Options
4 Hour Delay, Control Lock, High Temp, ProDry™, ProDry™ Max, Sani Rinse, Top 2 Racks Wash
Features
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Capacity: 7.25 cu. ft.
• Control Panel Color: Black
• Door Style: Flat
• Handle Color: Stainless Steel
• Handle Material: Metal
• Handle Type: Towel Bar
• Magnetic Door: Yes
Lower Rack:
• Lower Rack Cushion-Tip Tines: Yes
• Lower Rack Extras: Stainless Steel Wash Arm
• Lower Rack Fold-Down Tines: 1 Adjustable 1 Fold Down
• Lower Rack Glides: Wheels
• Lower Rack Style: Extended
Second Level Rack:
• Second Level Rack Adjustable: 2 Position Removable
• Second Level Rack Cushion-Tip Tines: Yes
• Second Level Rack Extras: 2 Stemware Holders, Stainless Steel Wash Arm, Stemware Shield
• Second Level Rack Fold-Down Tines: 1 Row 6 Position
• Second Level Rack Glides: Hybrid Rail
• Second Level Rack Removable: Yes
• Silverware Basket Covers: Yes
• Silverware Basket Location: Lower Rack - Right Side
• Silverware Basket Type: Large In the Rack Basket
• Third Level Rack Glides: Hybrid Rail
• Third Level Rack Removable: Yes
• Third Level Rack Type: Third rack with dual rotating wash tubes
• Dispensers: Detergent and Rinse Aid
• Drying System Type: Heating Element with Door Open Dry
• Leak Detect: Yes
• Number of Racks: 3
• Number of Wash Levels: 7
• Number of Washarms: 5
• Sensor: Yes
• Sound Package: Yes
• Wash System: Self-Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Automatic Temperature Controls: Yes
• Control Location: Top
• Control Type: Tap Touch with Display
• End of Cycle Signal: Yes
• Status Light: Multi-Color
• Control Panel Color: Black
• Door Style: Flat
• Handle Color: Stainless Steel
• Handle Material: Metal
• Handle Type: Towel Bar
• Magnetic Door: Yes
Lower Rack:
• Lower Rack Cushion-Tip Tines: Yes
• Lower Rack Extras: Stainless Steel Wash Arm
• Lower Rack Fold-Down Tines: 1 Adjustable 1 Fold Down
• Lower Rack Glides: Wheels
• Lower Rack Style: Extended
Second Level Rack:
• Second Level Rack Adjustable: 2 Position Removable
• Second Level Rack Cushion-Tip Tines: Yes
• Second Level Rack Extras: 2 Stemware Holders, Stainless Steel Wash Arm, Stemware Shield
• Second Level Rack Fold-Down Tines: 1 Row 6 Position
• Second Level Rack Glides: Hybrid Rail
• Second Level Rack Removable: Yes
• Silverware Basket Covers: Yes
• Silverware Basket Location: Lower Rack - Right Side
• Silverware Basket Type: Large In the Rack Basket
• Third Level Rack Glides: Hybrid Rail
• Third Level Rack Removable: Yes
• Third Level Rack Type: Third rack with dual rotating wash tubes
• Dispensers: Detergent and Rinse Aid
• Drying System Type: Heating Element with Door Open Dry
• Leak Detect: Yes
• Number of Racks: 3
• Number of Wash Levels: 7
• Number of Washarms: 5
• Sensor: Yes
• Sound Package: Yes
• Wash System: Self-Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Automatic Temperature Controls: Yes
• Control Location: Top
• Control Type: Tap Touch with Display
• End of Cycle Signal: Yes
• Status Light: Multi-Color
Electrical Information
Information
• Amps: 15
• Hz: 60
• Power Cord Included: No
• Volts: 110
• Hz: 60
• Power Cord Included: No
• Volts: 110
Certifications and Approvals
NSF® Certified
Yes
Information
• CUL
• ENERGY STAR® Qualified
• Star K Certified
• ENERGY STAR® Qualified
• Star K Certified
Accessories
Included
Hoses Included: Drain Hose
Dimensions
Class Width
24"
Width
23.94 inch(es) / 60.8 cm
Height (Min.)
33.63 inch(es) / 85.41 cm
Depth (Without Handle)
24.5 inch(es) / 62.23 cm
Weight
78.99 lb(s) / 35.83 kg
Additional Dimensions
• Cutout Depth: 24 in
• Cutout Height: 34.5 in
• Cutout Width: 24 in
• Depth Closed Excluding Handles: 24.5 in
• Depth Closed Including Handles: 26.75 in
• Depth With Door Open 90 Degree: 51 in
• Maximum Height: 34.625 in
• Minimum Height: 33.625 in
• Cutout Height: 34.5 in
• Cutout Width: 24 in
• Depth Closed Excluding Handles: 24.5 in
• Depth Closed Including Handles: 26.75 in
• Depth With Door Open 90 Degree: 51 in
• Maximum Height: 34.625 in
• Minimum Height: 33.625 in
Shipping Dimensions
Weight
89.99 lb(s) / 40.82 kg
Warranty
Warranty
1-Year parts and labor
