Features
BUILT-IN WIFI
Use the SmartHQ app to control and monitor this WiFi-enabled smart air conditioner from anywhere.
ENERGY REPORTING
Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
GEOLOCATION
Geofence technology pinpoints your smartphone location, then automatically adjusts the smart air conditioner settings for when you're home.
EASY INSTALLATION

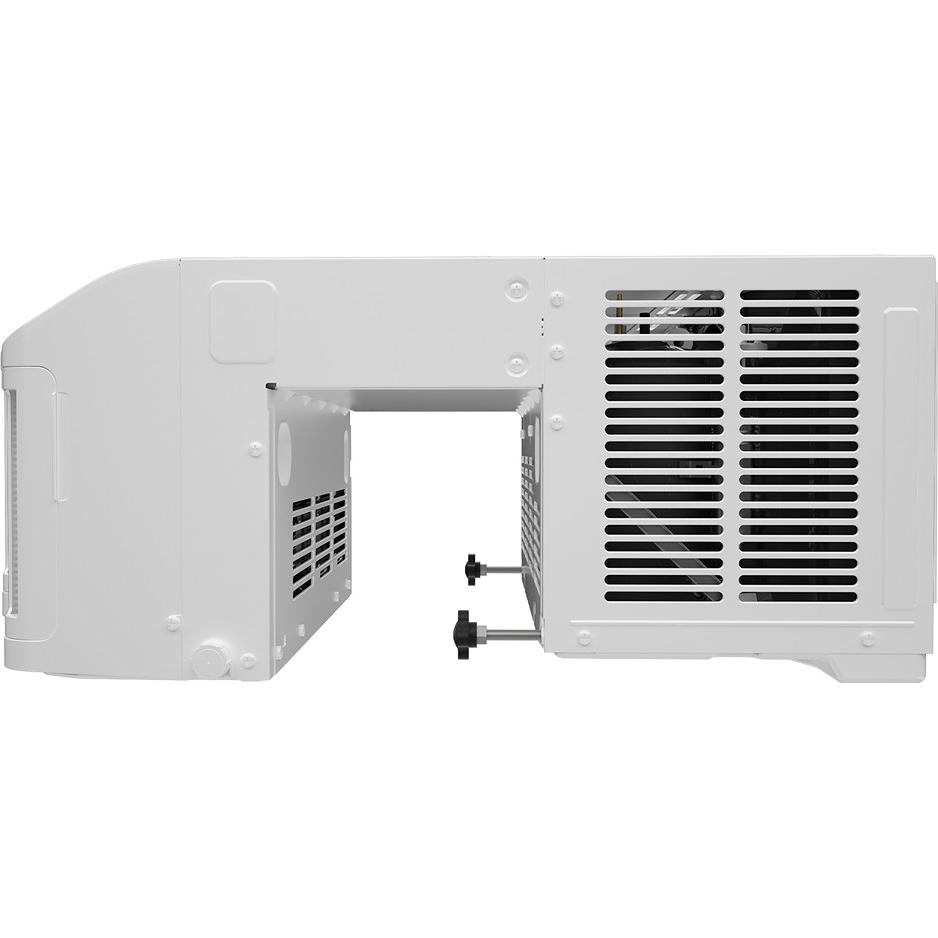

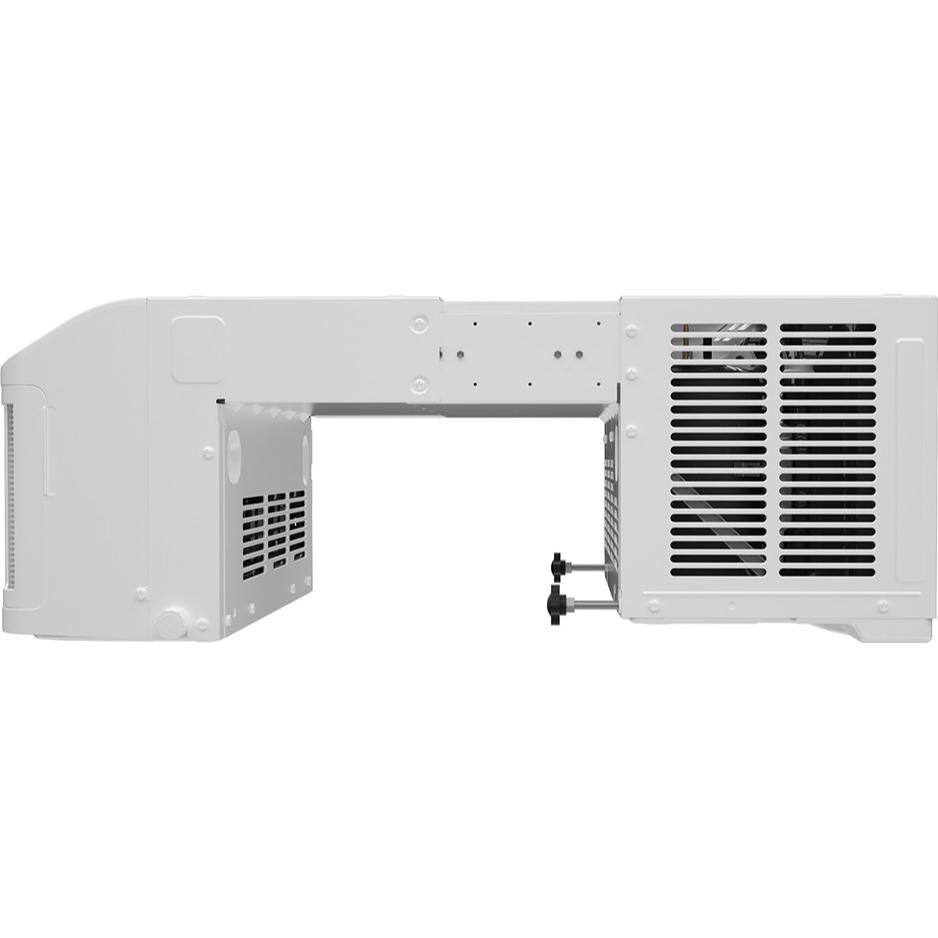

This unit sits below the window sill and is easy and safe to install in a double hung window with an included installation kit.

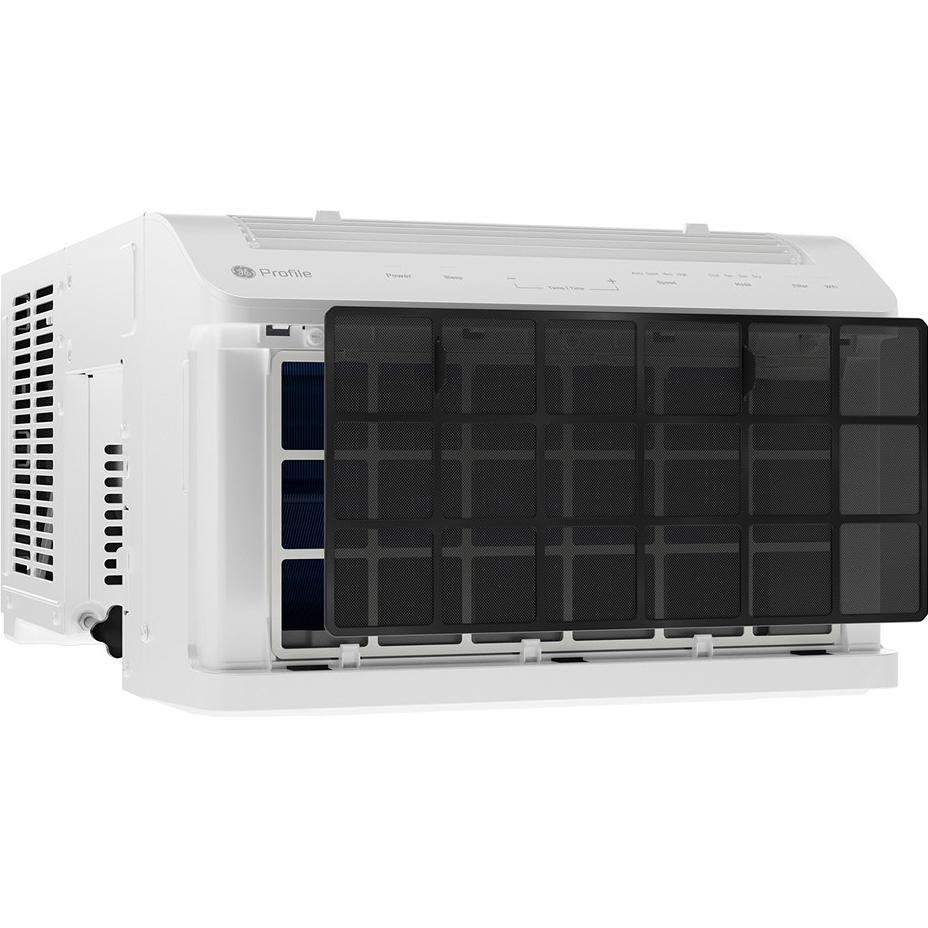

FILTER REMINDER
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best.

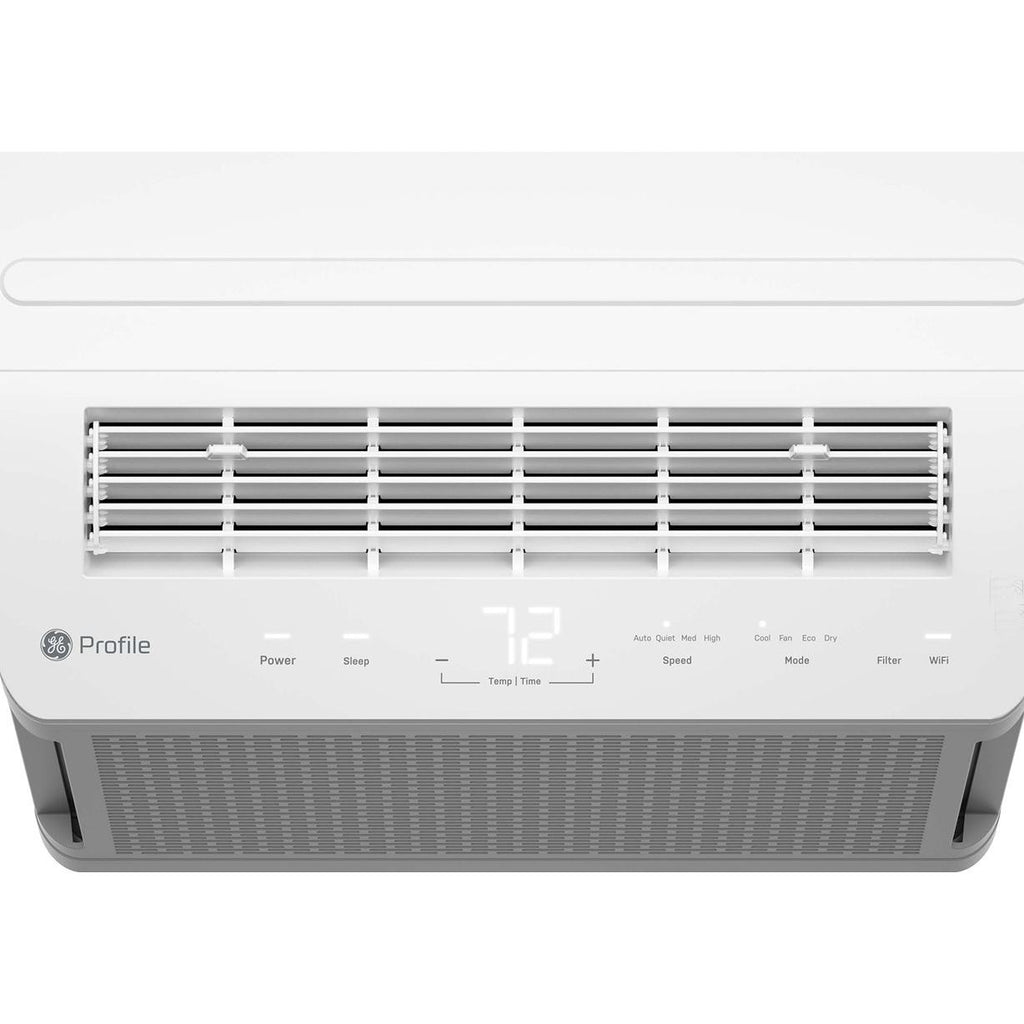

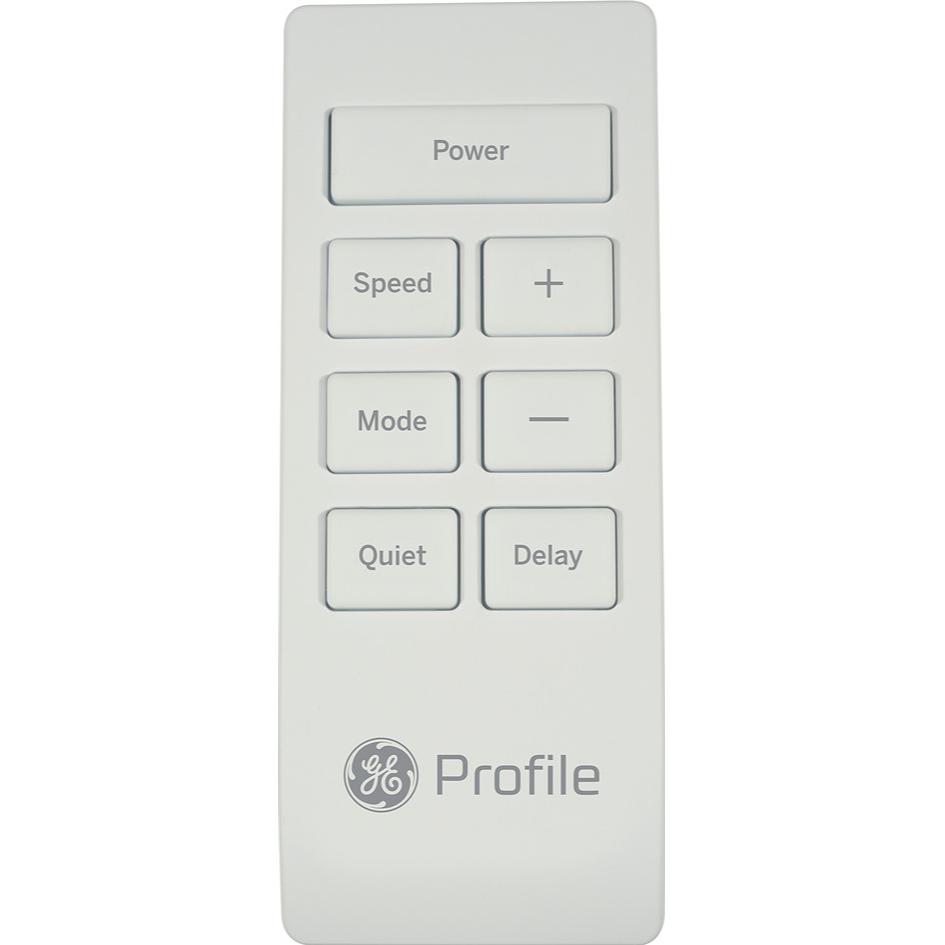

CAPACITIVE TOUCH WITH REMOTE
The capacitive touch screen controls are flush with the air conditioner and require less pressure to operate, or simply use the included remote for effortless control.

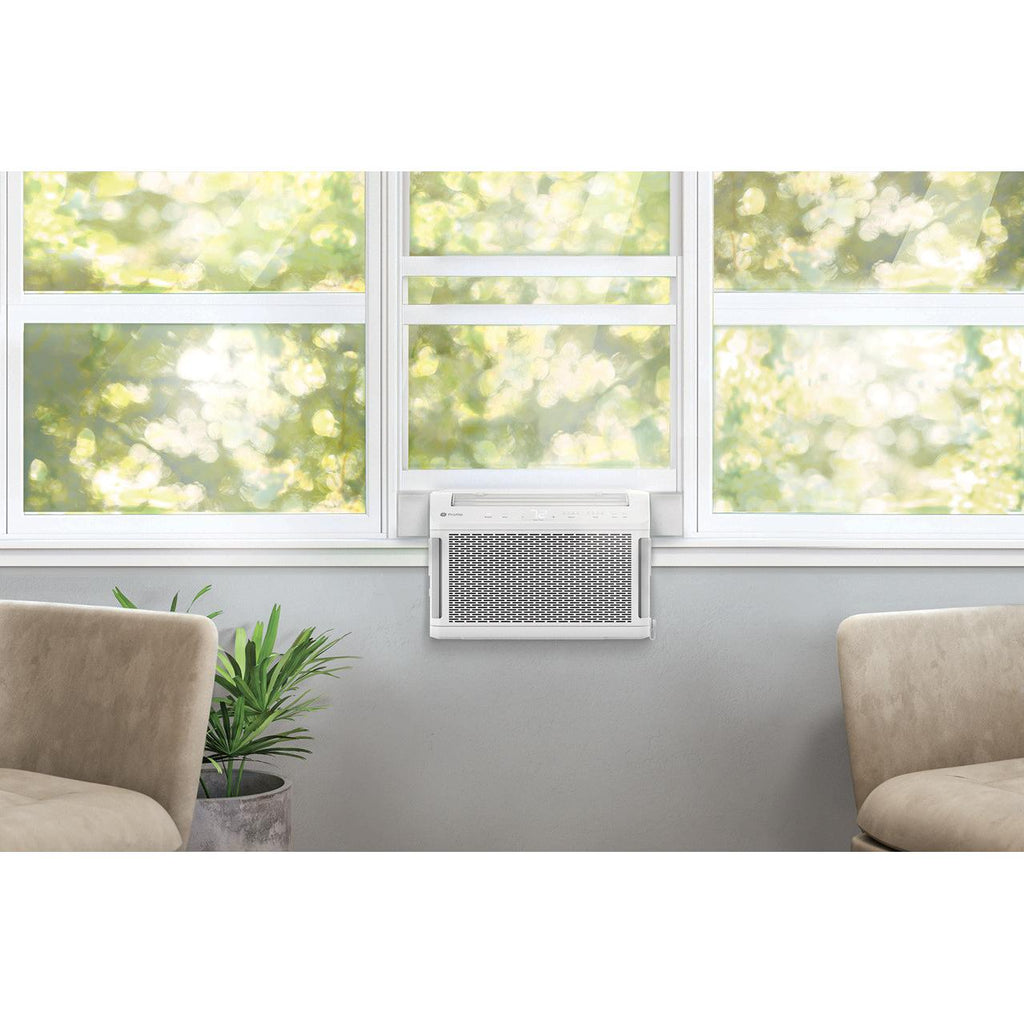

OPERATIONAL WINDOW

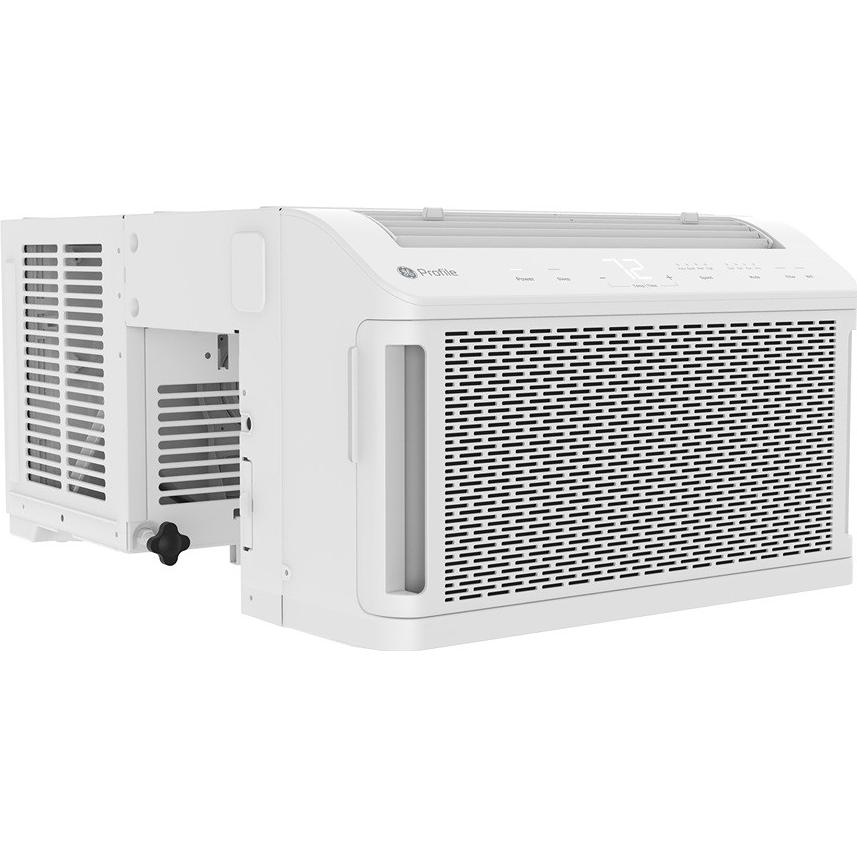

The ClearView design allows you to open and close the window freely with the unit installed, providing flexibility to let the fresh air in on a nice day.
Additional Features
FULL WINDOW VIEW
This ENERGY STAR® certified air conditioner is designed to preserve the view through the window, allowing more natural light into the room.
ULTRA QUIET - 41 dBA
This quiet air conditioner reaches sound levels as low as 41 dBA, making it ideal for bedrooms and other quiet spaces.
VOICE CONTROL
Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
MAXIMUM COMFORT COOL - 3 SETTINGS
Three cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency.
AUTO-DIMMING
The LED display automatically dims after one minute of inactivity, so you aren't disturbed by the light as you sleep.
BUILT-IN PUMP
An advanced built-in pump system collects the condensation from the indoor side, then automatically transports the water through the unit to empty efficiently outside.
Specifications
General
Installation Type
Window
Type
Cooling
Built-In
No
Cooling Power
6100 BTU
Air CFM
145/110
Temperature Control Range/Area
Up to 250 sq ft
Fan Speed
3 settings
Features
Technologies
• Amazon Alexa
• The Google Assistant
• Google Home
• The Google Assistant
• Google Home
Controls
Digital
Wi-Fi
Yes
Remote Control
Yes
Sleep Mode
Yes
Additional Information
• Quiet Package: 63 dBA
• Sound Level (dBA): 52/63 dBA (High Fan, Cool)
• Sound Level (dBA): 51/63 dBA (Low Fan, Cool)
• Sound Level (dBA): 41 dBA (Quiet Mode, Low Cool)
• CEER: 11.5
• Cooling - Rated Cooling Amps AHAM: 4.6
• Cooling - Watts: 510
• ADA Compliant
• Color Appearance: White
• Installation: Double Hung, EZ Mount
• Dehumidification (pts./hr.): 1.3
• Chassis Type: Fixed
• ClearView: Yes
• Delay Timer: 24-Hour On/Off Timer
• Digital Time Temp Display: Yes
• EER: 11.5
• Fan Speed Selections: 4 Cooling, 4 Fan Only
• Filter Type: One Touch Lift-Out
• LCDI / AFCI power cord: Yes
• Louver Style: 2-Way
• Mounting Type: EZ Mount
• Plug Type: Parallel/NEMA 5-15
• Power Cord Length: 72" Minimum
• Product Type: Window
• Refrigerant Type: R32
• Rotary Compressor: Yes
• Thermostat Type: Electronic
• Vent/Air Exchange Exhaust: Top Air Discharge
• Room Air Conditioner Features: Dry Mode, Delay Timer, Check Filter Remind, Capacitive Touch, Ultra Quiet
• Sound Level (dBA): 52/63 dBA (High Fan, Cool)
• Sound Level (dBA): 51/63 dBA (Low Fan, Cool)
• Sound Level (dBA): 41 dBA (Quiet Mode, Low Cool)
• CEER: 11.5
• Cooling - Rated Cooling Amps AHAM: 4.6
• Cooling - Watts: 510
• ADA Compliant
• Color Appearance: White
• Installation: Double Hung, EZ Mount
• Dehumidification (pts./hr.): 1.3
• Chassis Type: Fixed
• ClearView: Yes
• Delay Timer: 24-Hour On/Off Timer
• Digital Time Temp Display: Yes
• EER: 11.5
• Fan Speed Selections: 4 Cooling, 4 Fan Only
• Filter Type: One Touch Lift-Out
• LCDI / AFCI power cord: Yes
• Louver Style: 2-Way
• Mounting Type: EZ Mount
• Plug Type: Parallel/NEMA 5-15
• Power Cord Length: 72" Minimum
• Product Type: Window
• Refrigerant Type: R32
• Rotary Compressor: Yes
• Thermostat Type: Electronic
• Vent/Air Exchange Exhaust: Top Air Discharge
• Room Air Conditioner Features: Dry Mode, Delay Timer, Check Filter Remind, Capacitive Touch, Ultra Quiet
Electrical Information
Voltage
115 V
Frequency
60 Hertz
Dimensions
Width
19.63 inch(es) / 49.85 cm
Height
12.75 inch(es) / 32.39 cm
Depth
28 inch(es) / 71.12 cm
Additional Dimensions
• Depth to Louvers: 15.875 in
• Grille Depth: 2 in
• Min./Max. Window Opening Width (in.): 20/40
• Minimum Window Opening Height (in.): 13 in
• Grille Depth: 2 in
• Min./Max. Window Opening Width (in.): 20/40
• Minimum Window Opening Height (in.): 13 in
Weight
77.16 lb(s) / 35 kg
Warranty
Warranty
• Labor Warranty: No Warranty
• Parts Warranty: 1-Year Replacement, Return to vendor
• See written warranty for full details
• Parts Warranty: 1-Year Replacement, Return to vendor
• See written warranty for full details
