Features

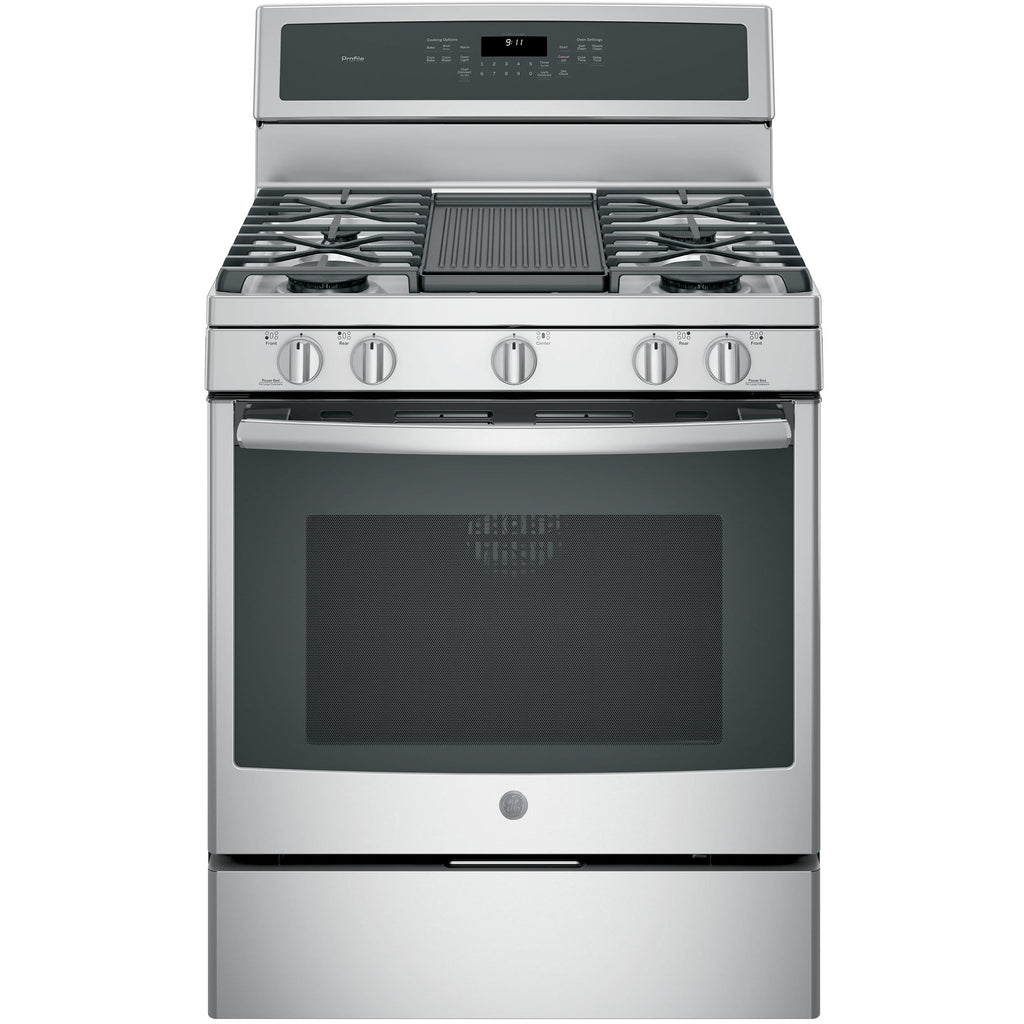

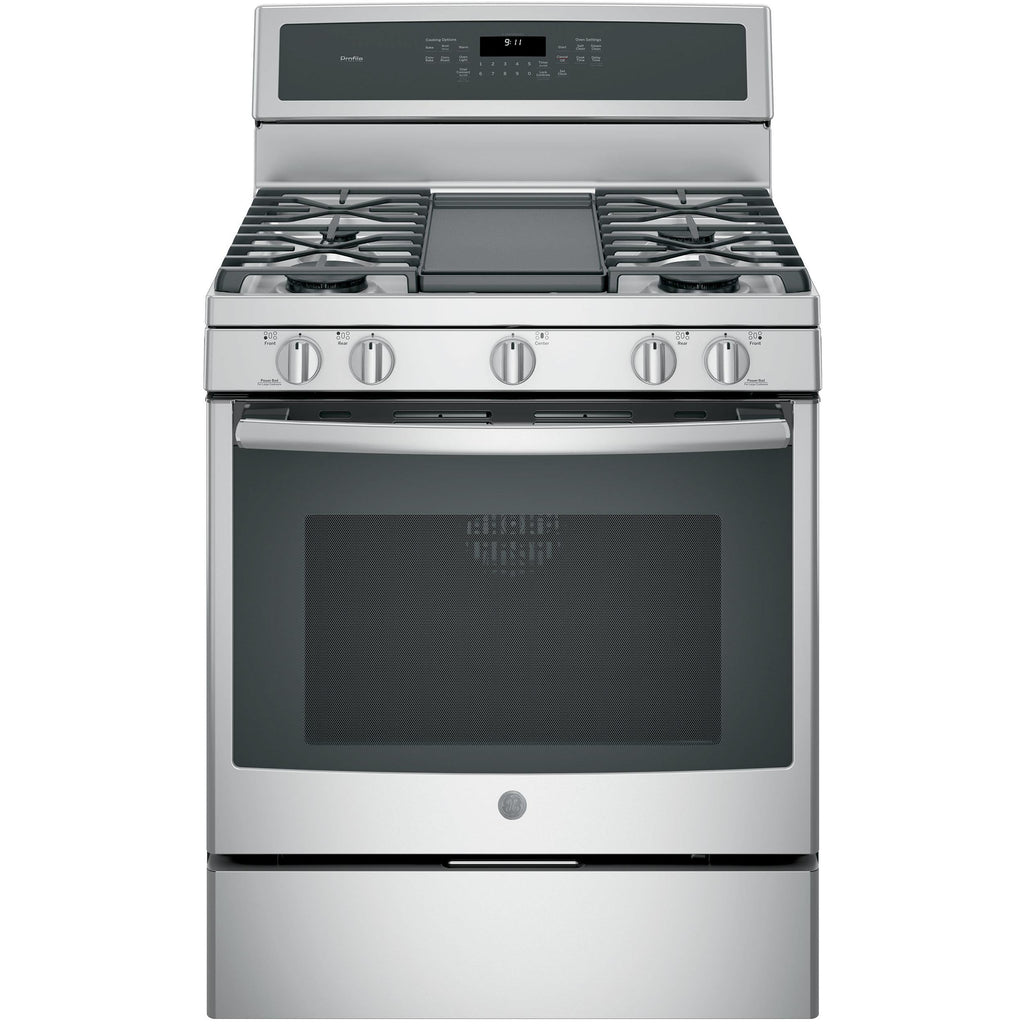

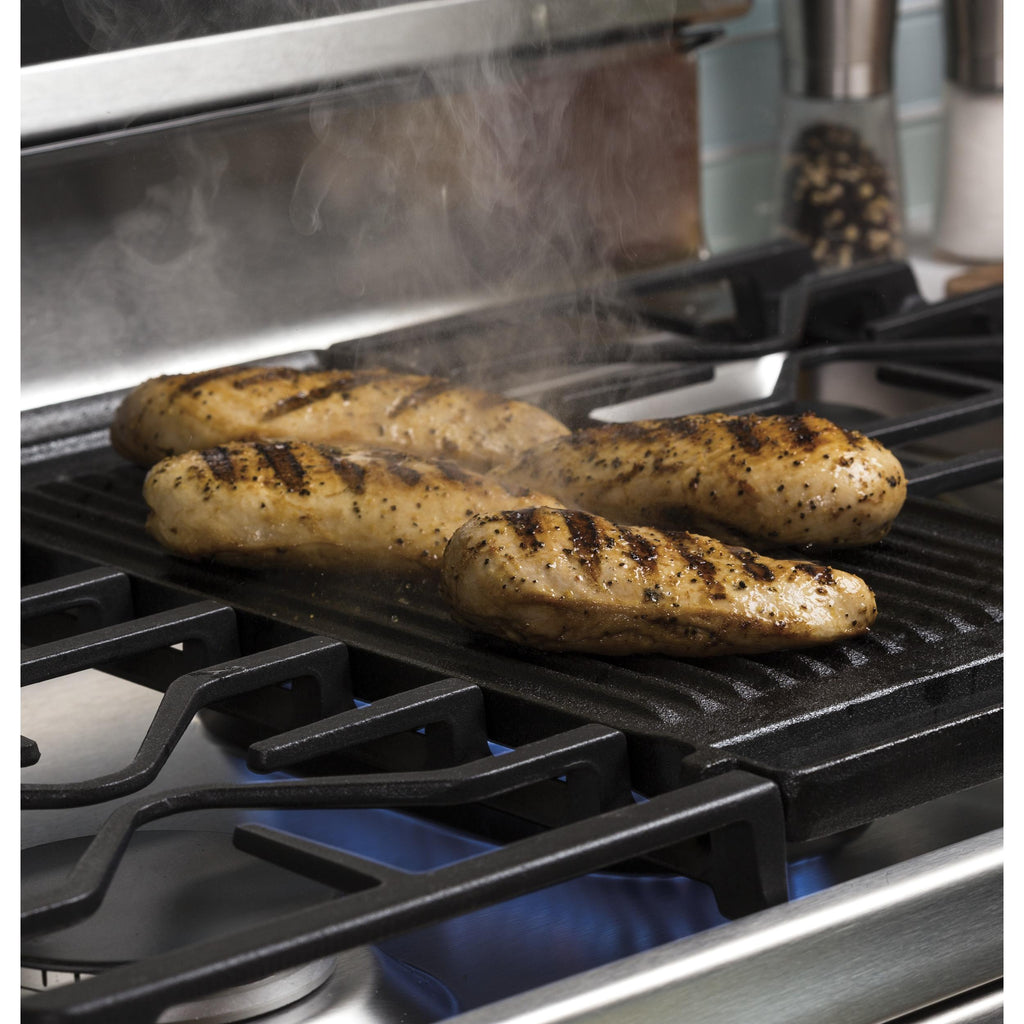

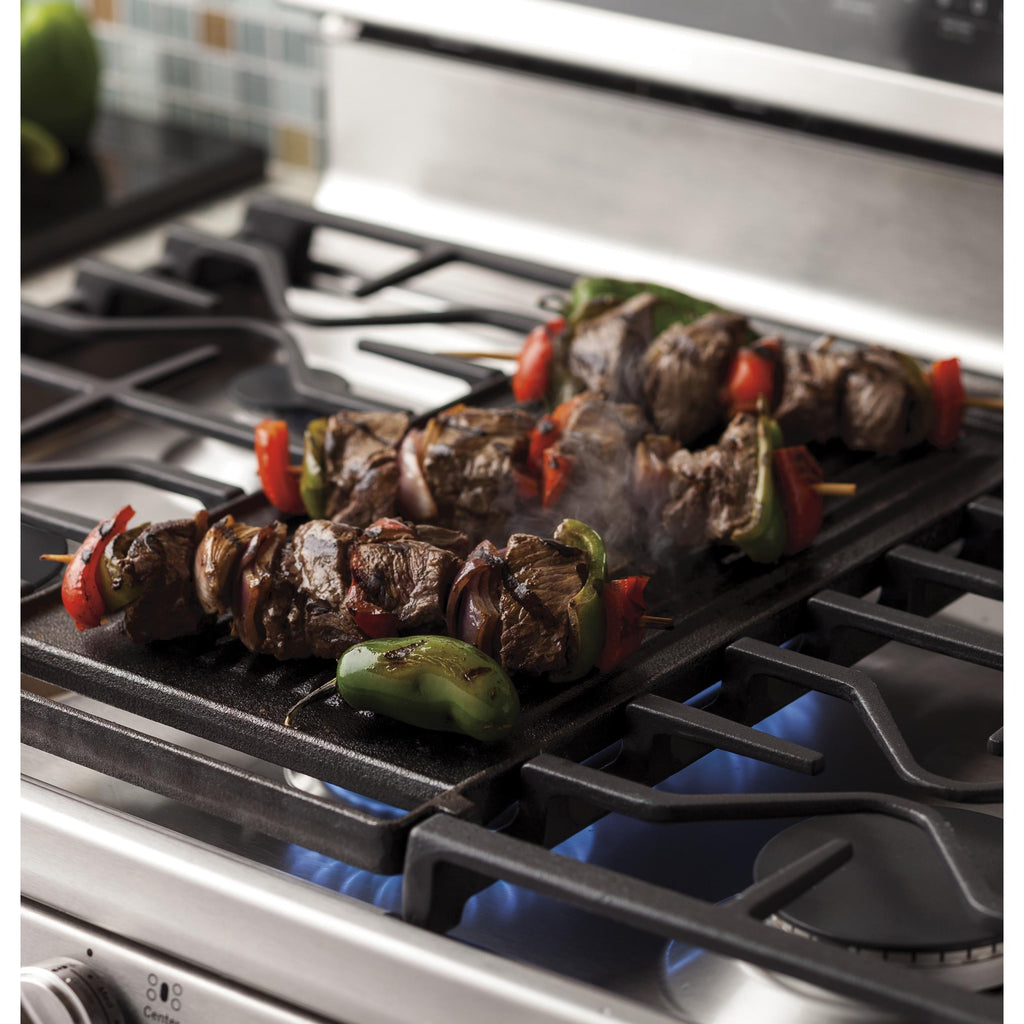

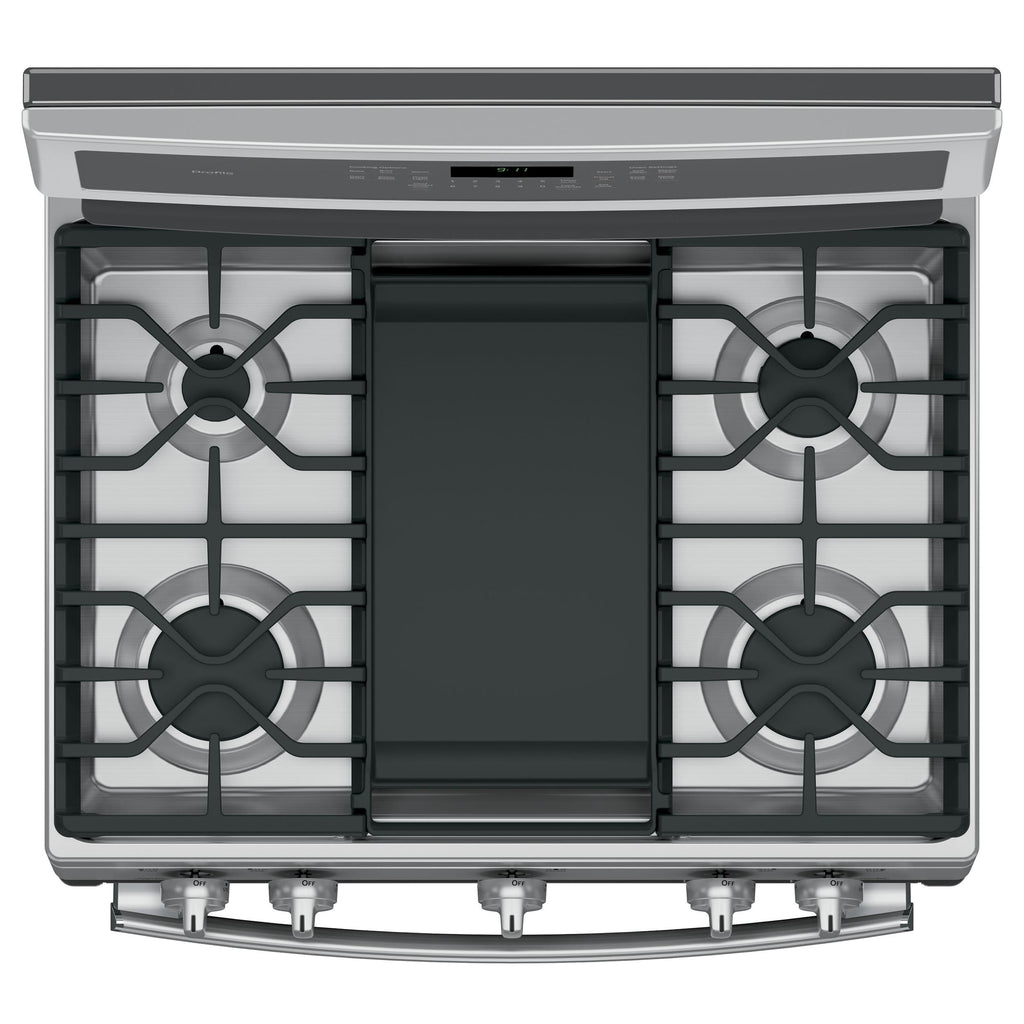

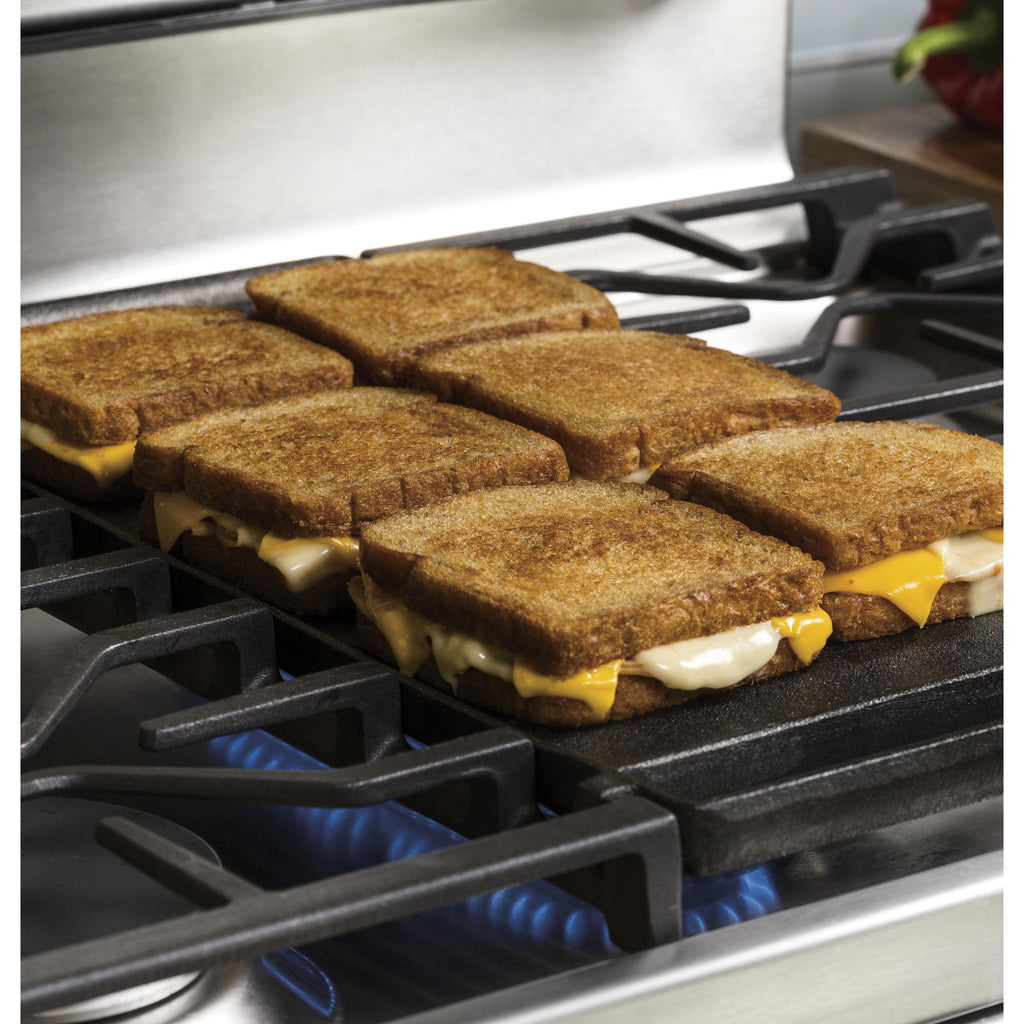

EXTRA-LARGE, INTEGRATED REVERSIBLE CAST IRON GRILL/GRIDDLE

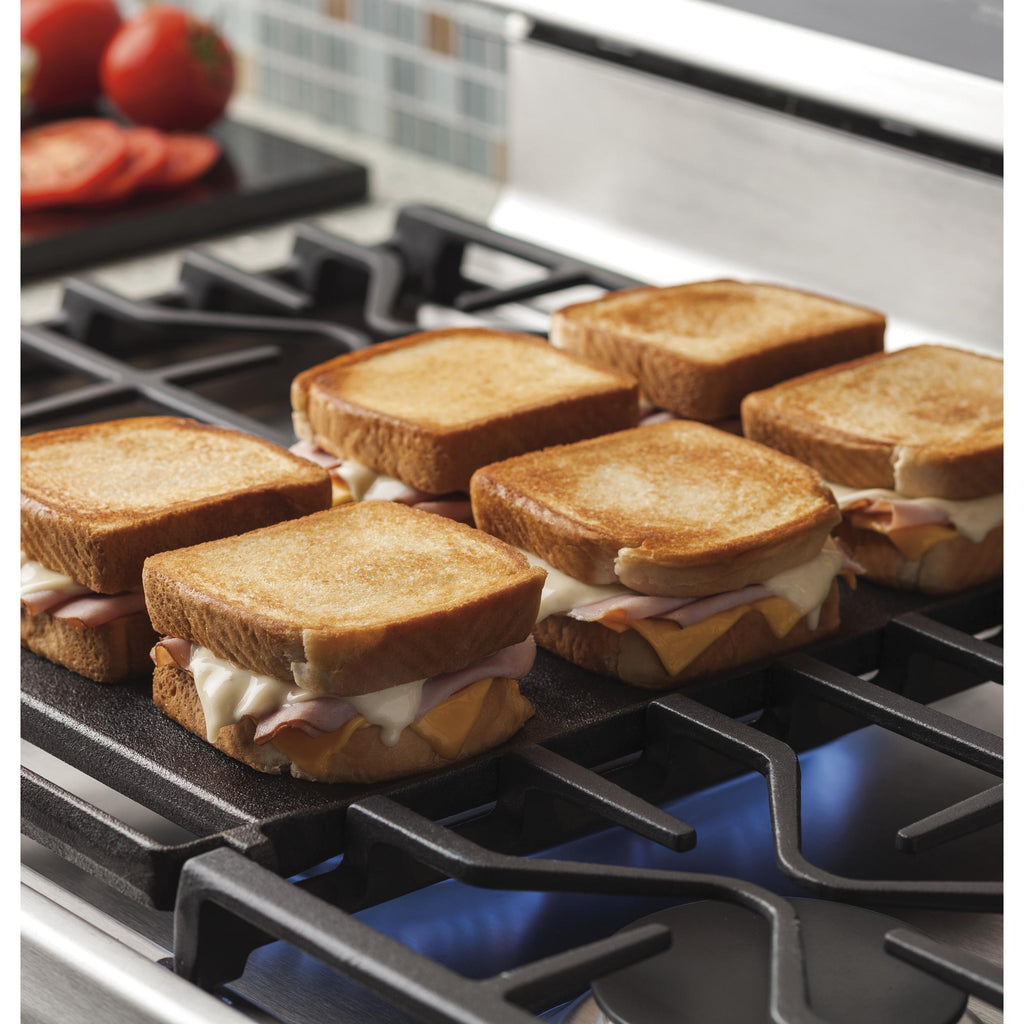

Enjoy ultimate cooking versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle, and then flip it over to grill your favorite foods.

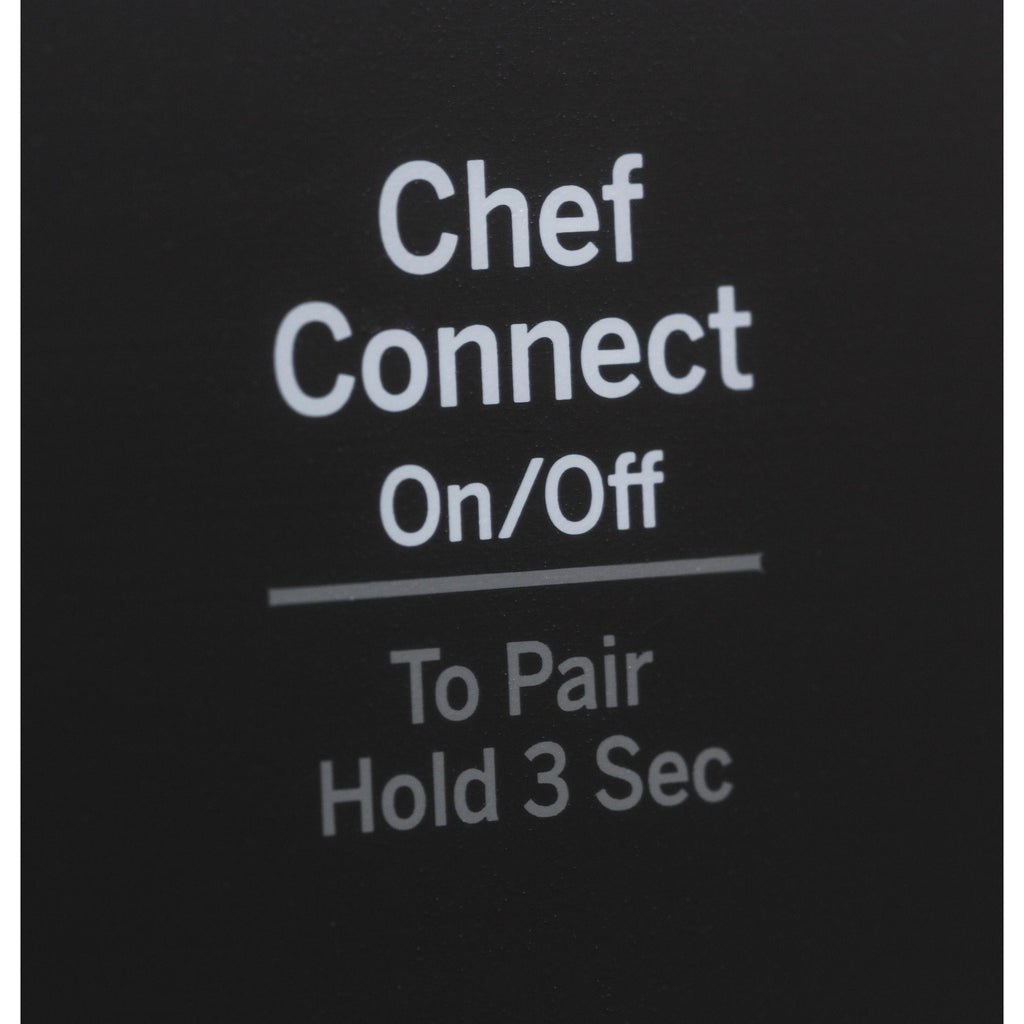

CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
TWO EXTRA-LARGE 18K POWER BOIL BURNERS
Get twice the high-heat cooking power with two up-front extra-large burners

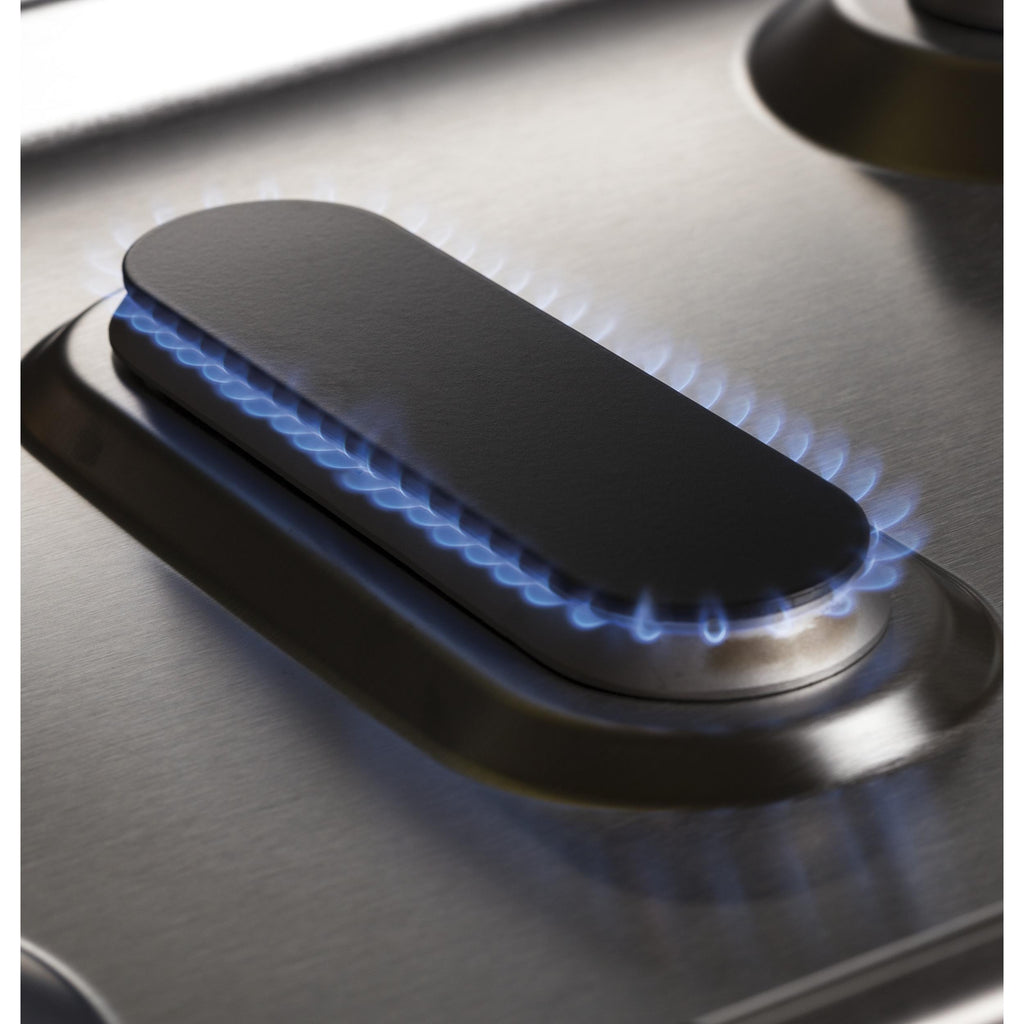

CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.

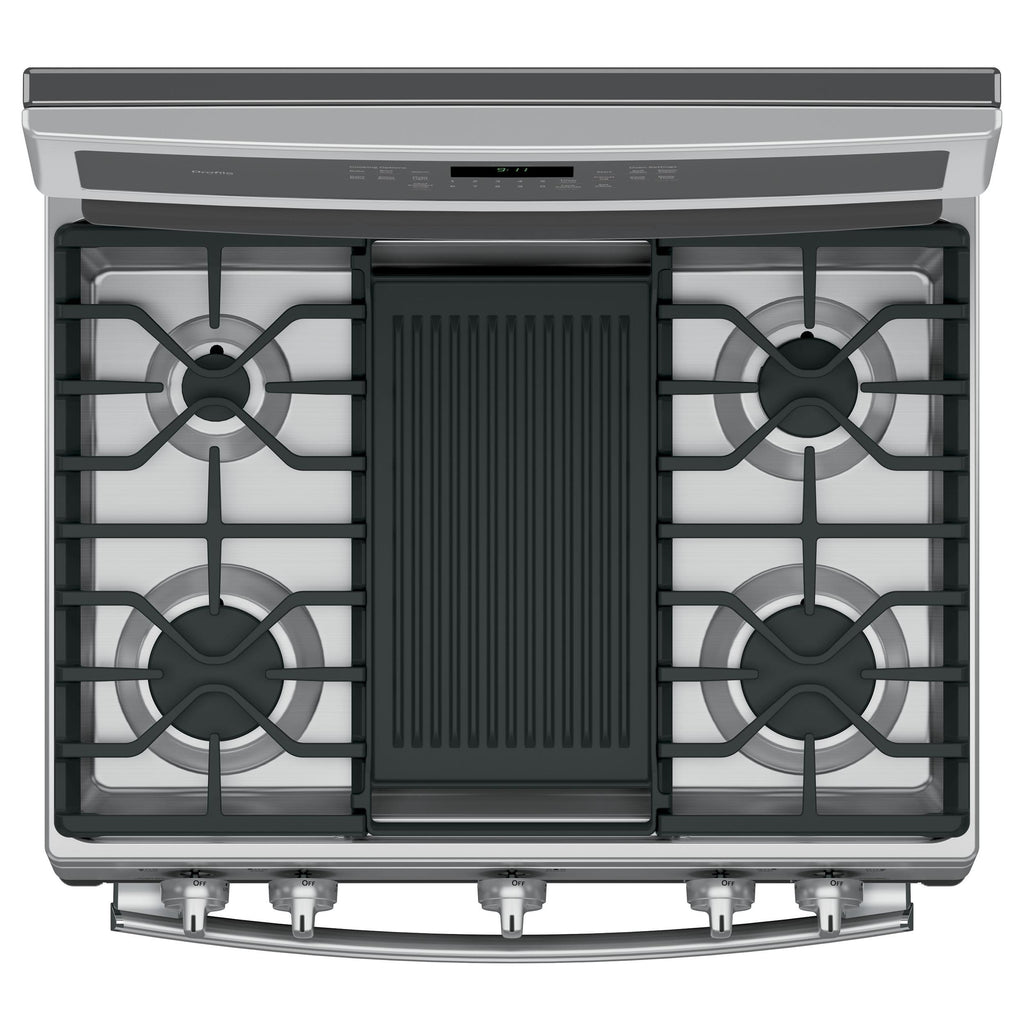

EDGE-TO-EDGE COOKTOP
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

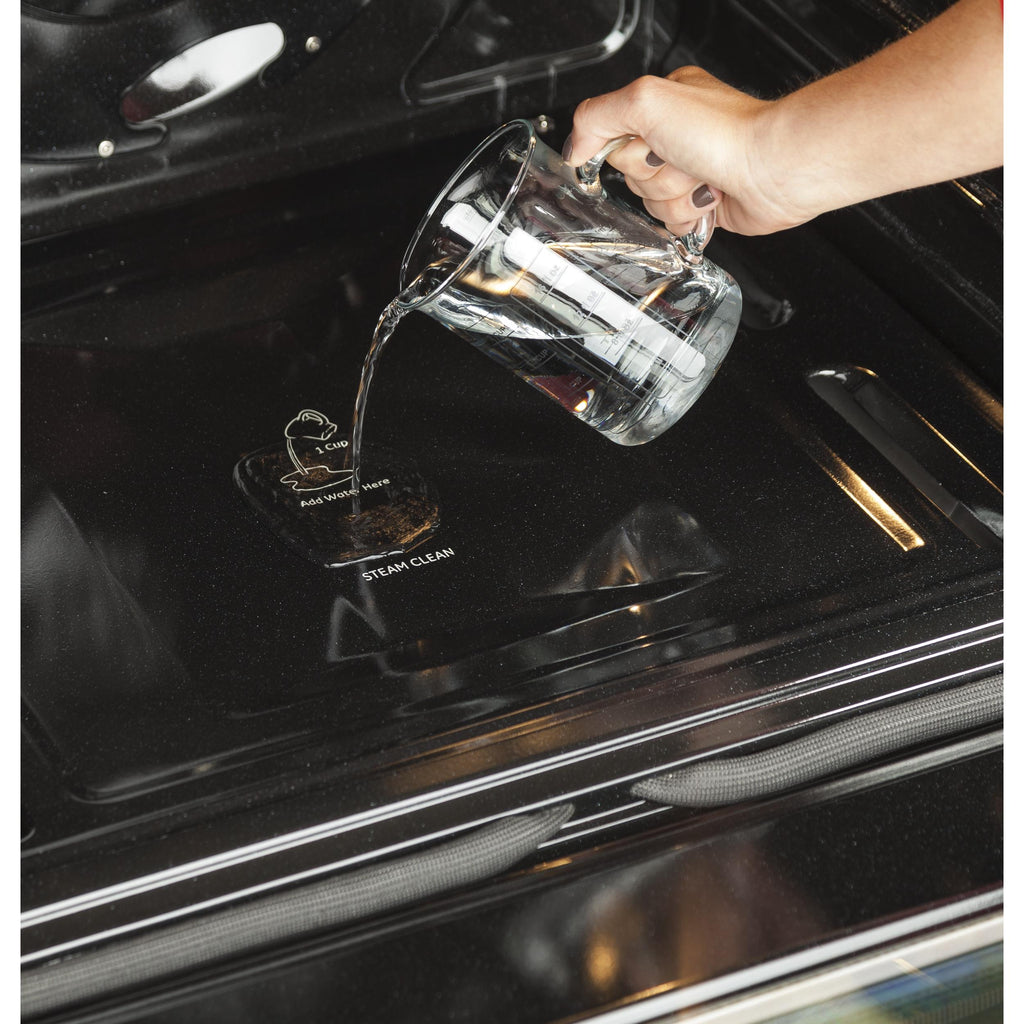

SELF CLEAN WITH STEAM CLEAN OPTION
Gives the option of self-cleaning or steam cleaning.
18,000 BTU POWER BOIL BURNER
Boil water fast with intense heat from this 18,000 BTU burner
Additional Features

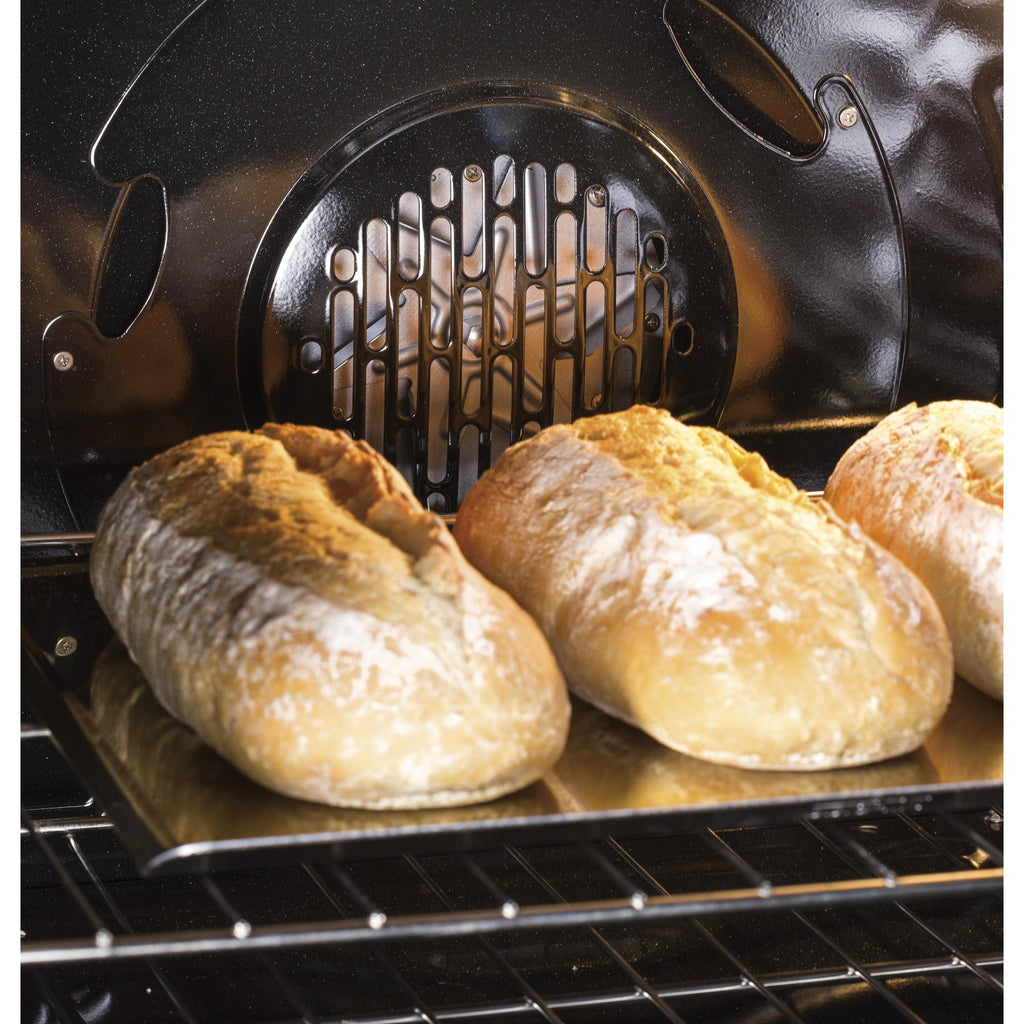

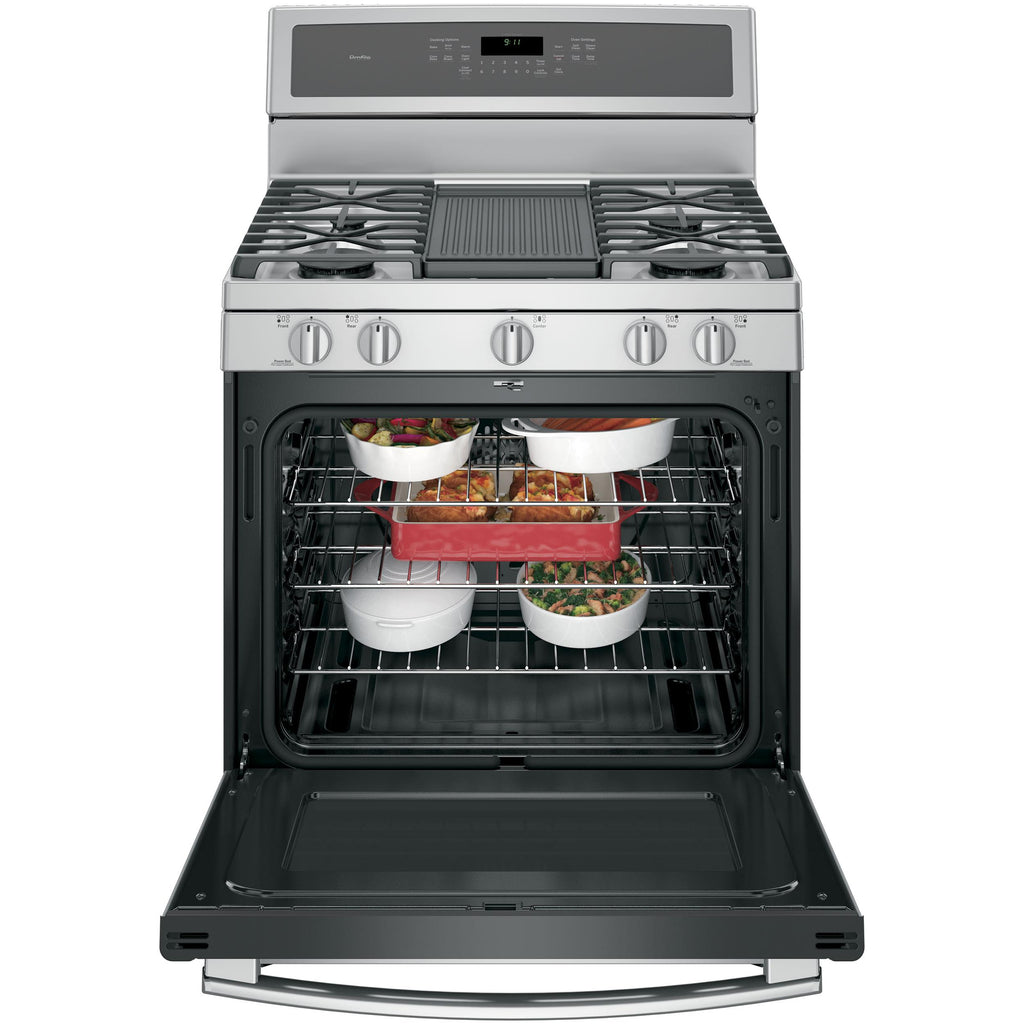

GAS CONVECTION OVEN
Circulates heat for high-quality results.

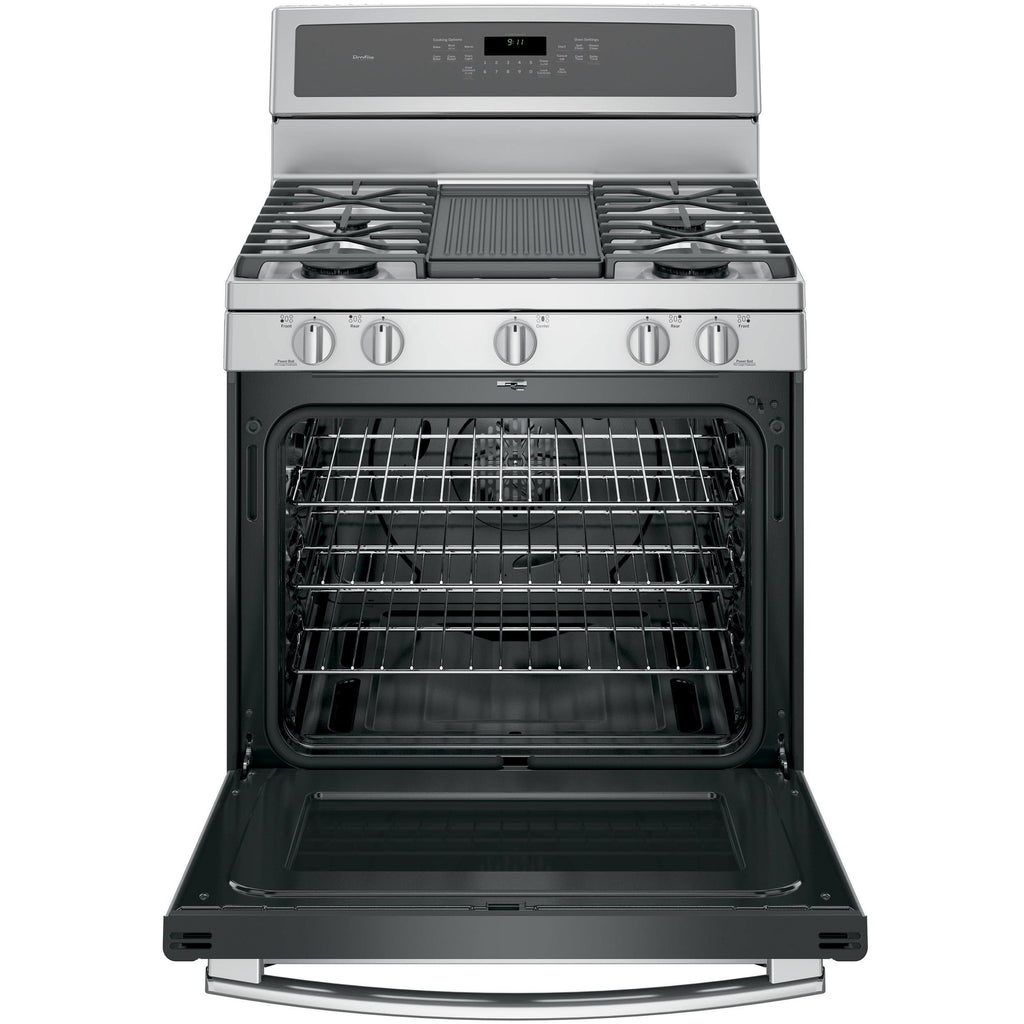

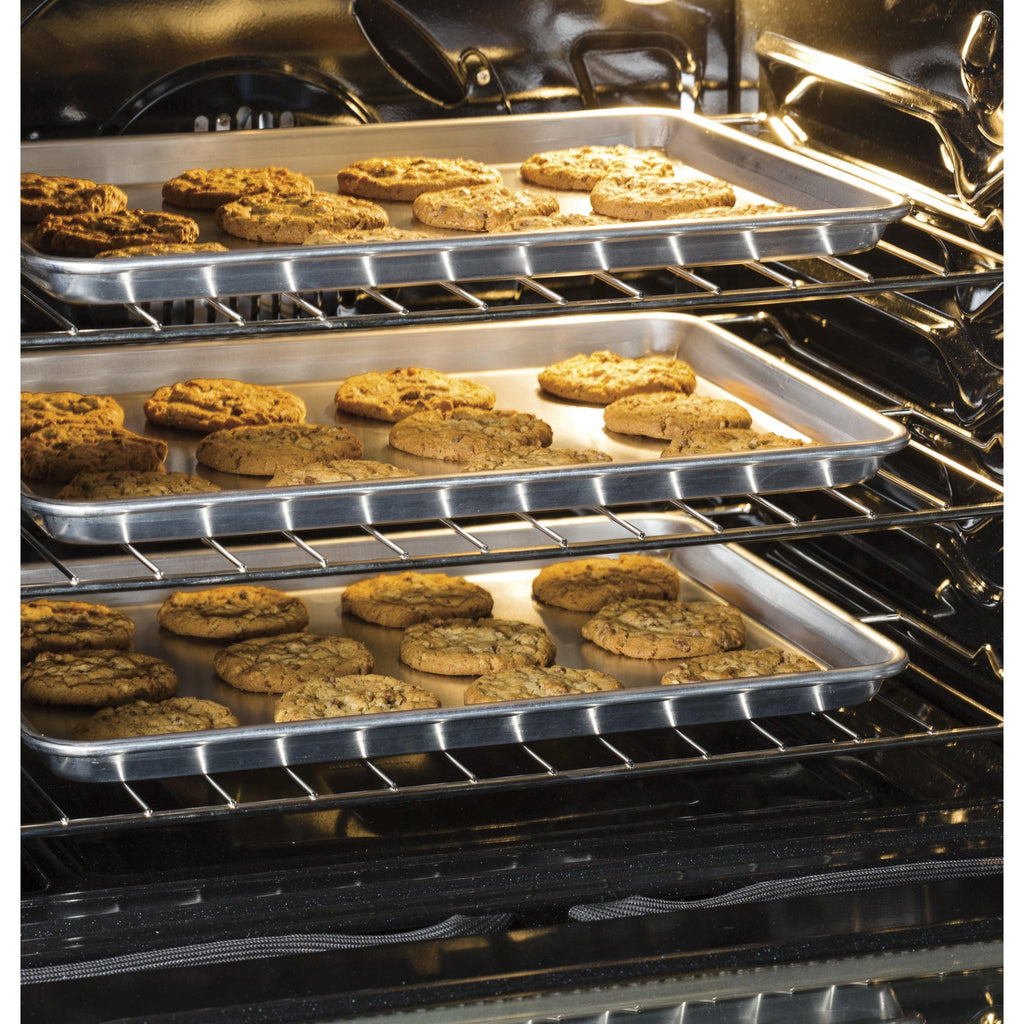

3 OVEN RACKS
Enjoy extra oven space with three adjustable racks
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-clean with Steam Clean option
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 18,000 BTU Power Boil
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 18,000 BTU Power Boil
• Right Rear Burner: 9,500 BTU
• Center Burner: 10,000 BTU Oval
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 18,000 BTU Power Boil
• Right Rear Burner: 9,500 BTU
• Center Burner: 10,000 BTU Oval
Burners
Sealed
Other
Griddle,Grill
Oven
Capacity (cu. ft.)
5.6 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Proof
• Warming
• Convection Roast
• Proof
• Warming
Features
Technologies
• Convection Technology
• Chef Connect
• Chef Connect
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Edge-to-Edge Surface
• One-Piece Upswept Surface
• Audible Preheat Signal
• 1 Auto Incandescent Light
• 3 Oven Racks
• Bake/Broiler BTU Rating LP (000's BTU's): 16.0 Bake / 12.0 Broiler
• Bake/Broiler BTU Rating Nat. Gas (000's BTU's): 16.0 Bake / 13.5 Broiler
• Top Burner BTU Rating LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0
• Top Burner BTU Rating Nat. Gas (000's BTU's): (2) 18.0; (1) 10.0; (1) 9.5; (1) 5.0
• One-Piece Upswept Surface
• Audible Preheat Signal
• 1 Auto Incandescent Light
• 3 Oven Racks
• Bake/Broiler BTU Rating LP (000's BTU's): 16.0 Bake / 12.0 Broiler
• Bake/Broiler BTU Rating Nat. Gas (000's BTU's): 16.0 Bake / 13.5 Broiler
• Top Burner BTU Rating LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0
• Top Burner BTU Rating Nat. Gas (000's BTU's): (2) 18.0; (1) 10.0; (1) 9.5; (1) 5.0
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 HZ
• 15 A
• 60 HZ
• 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Reversible Integrated Grill/Griddle
• Reversible Integrated Grill/Griddle
Optional
Center Grate
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
205.01 lb(s) / 92.99 kg
Additional Dimensions
Oven Interior Dimensions(W x H x D): 24" x 19-1/2" x 20-5/8"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
225 lb(s) / 102.06 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691811695
