Features

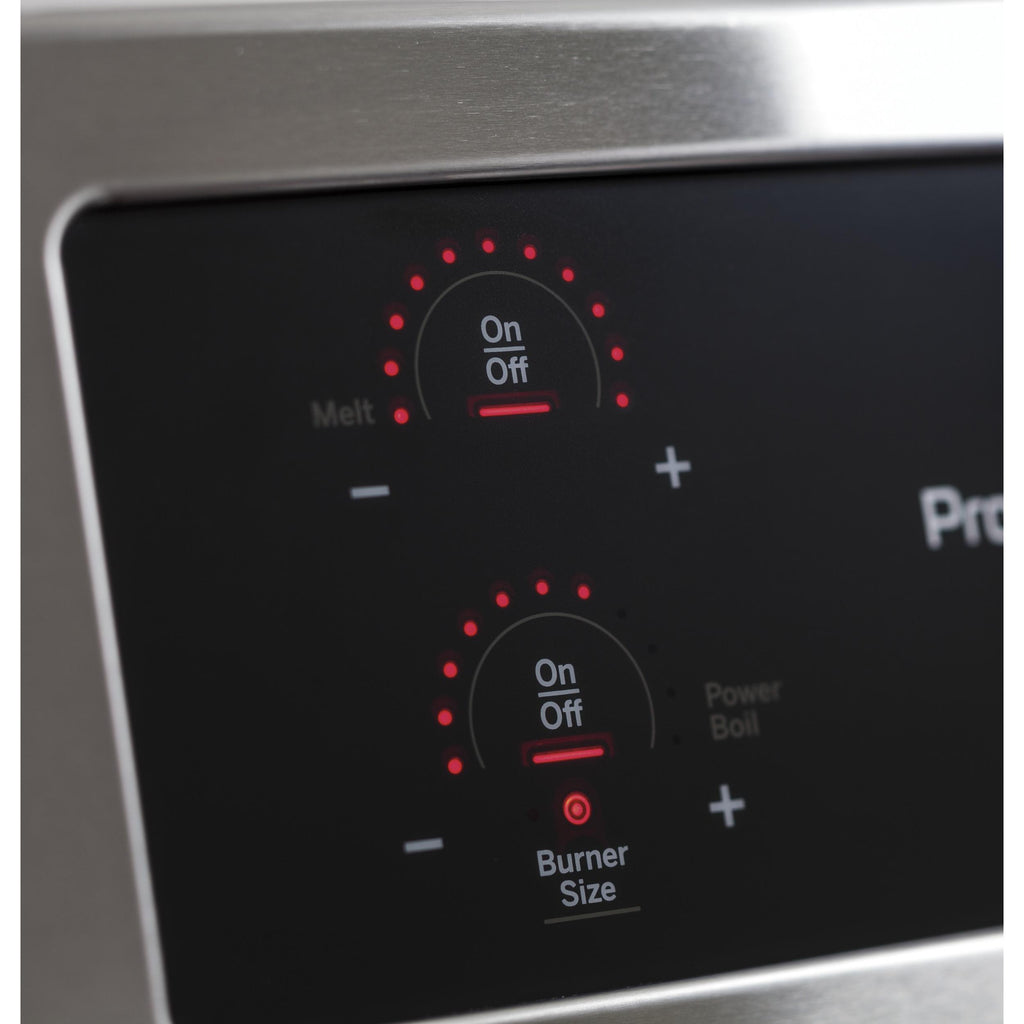

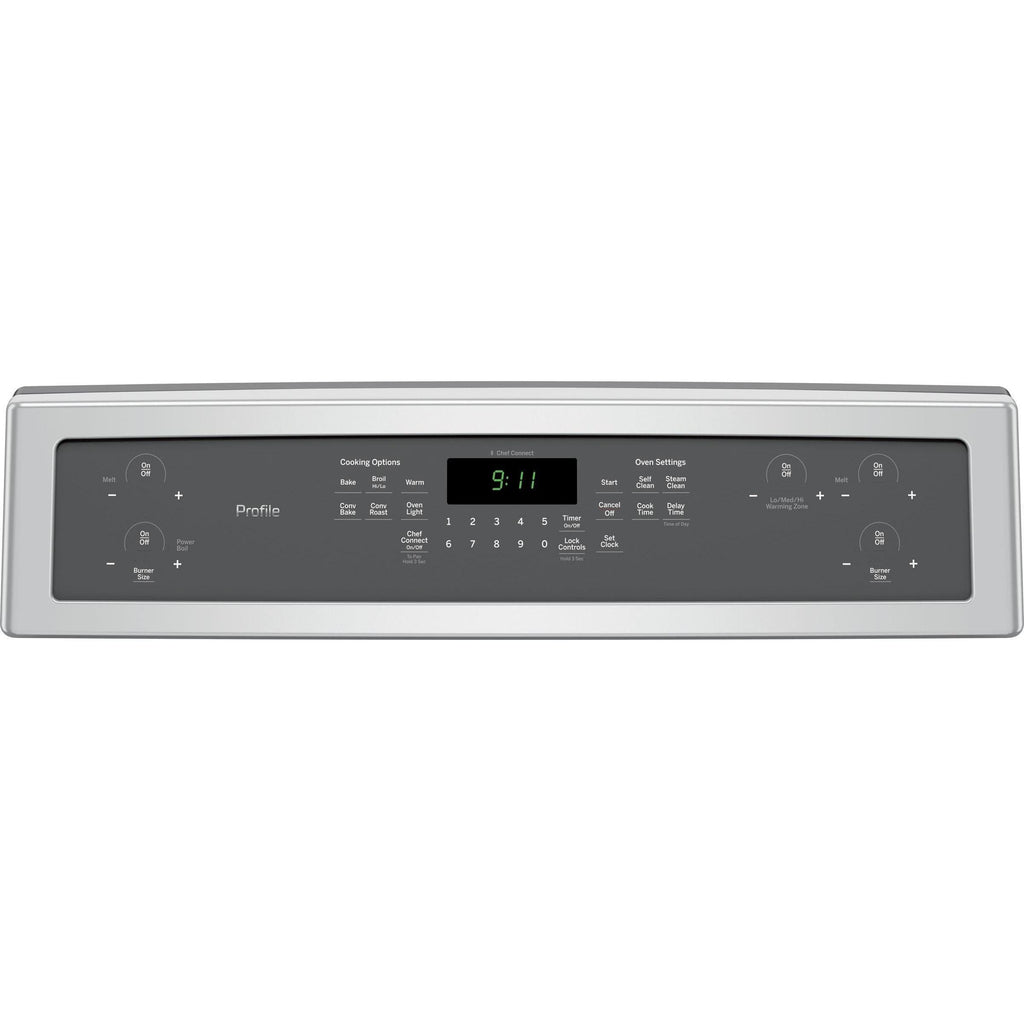

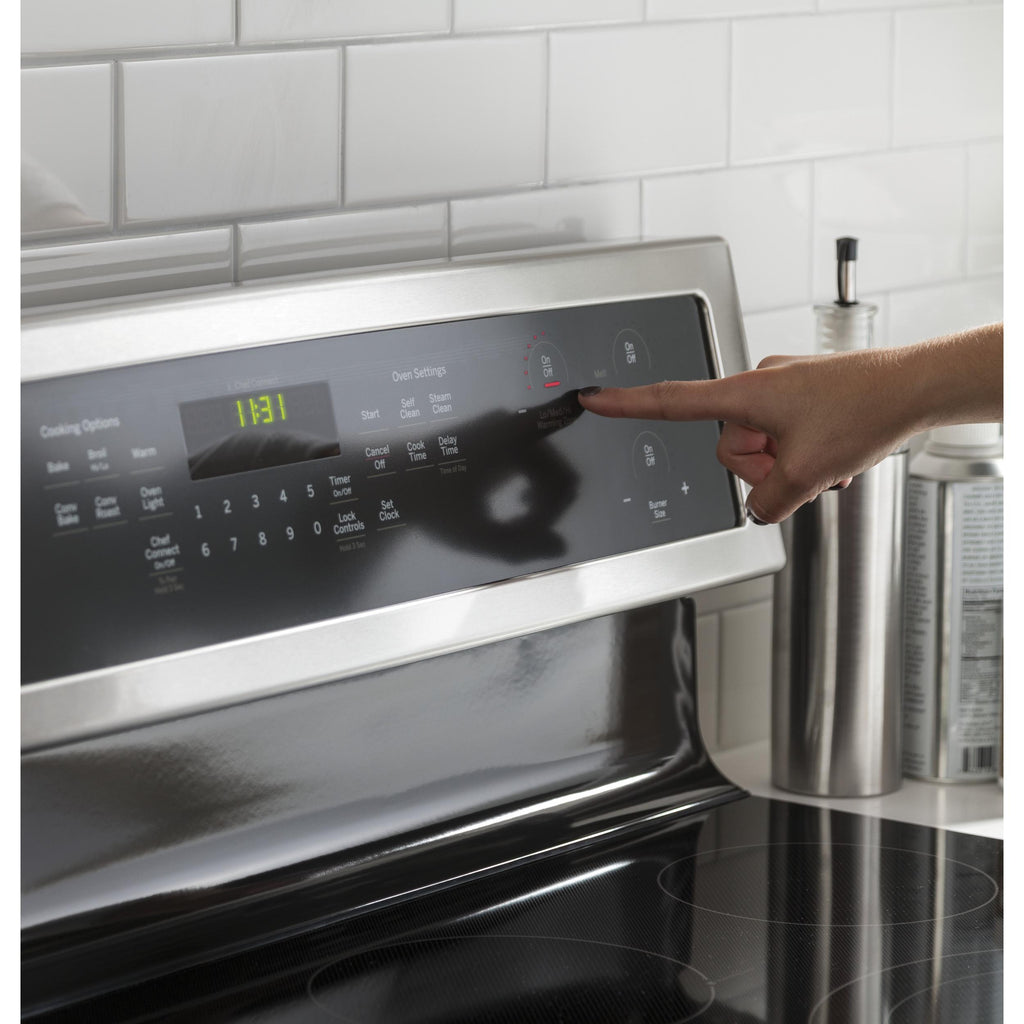

ELECTRONIC TOUCH CONTROLS
Enjoy easy operation and cleanability with streamlined controls

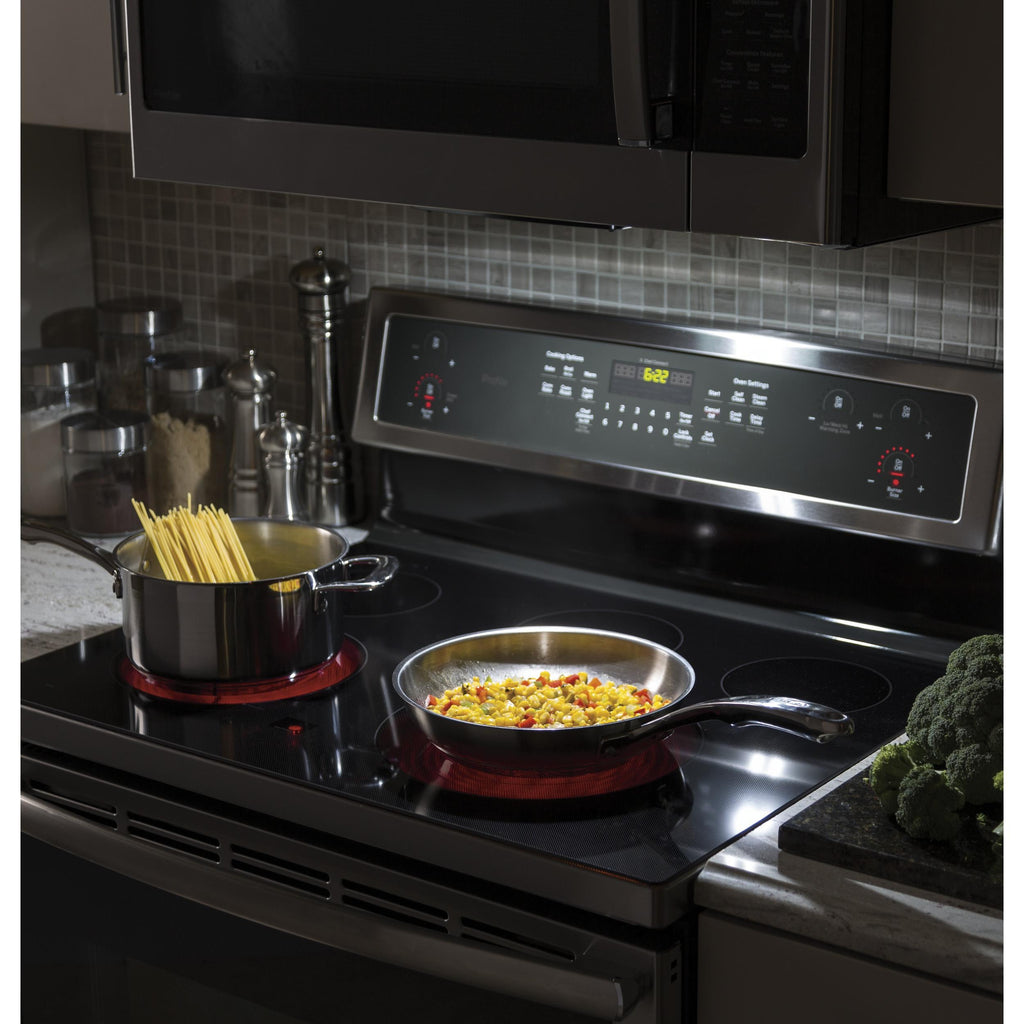

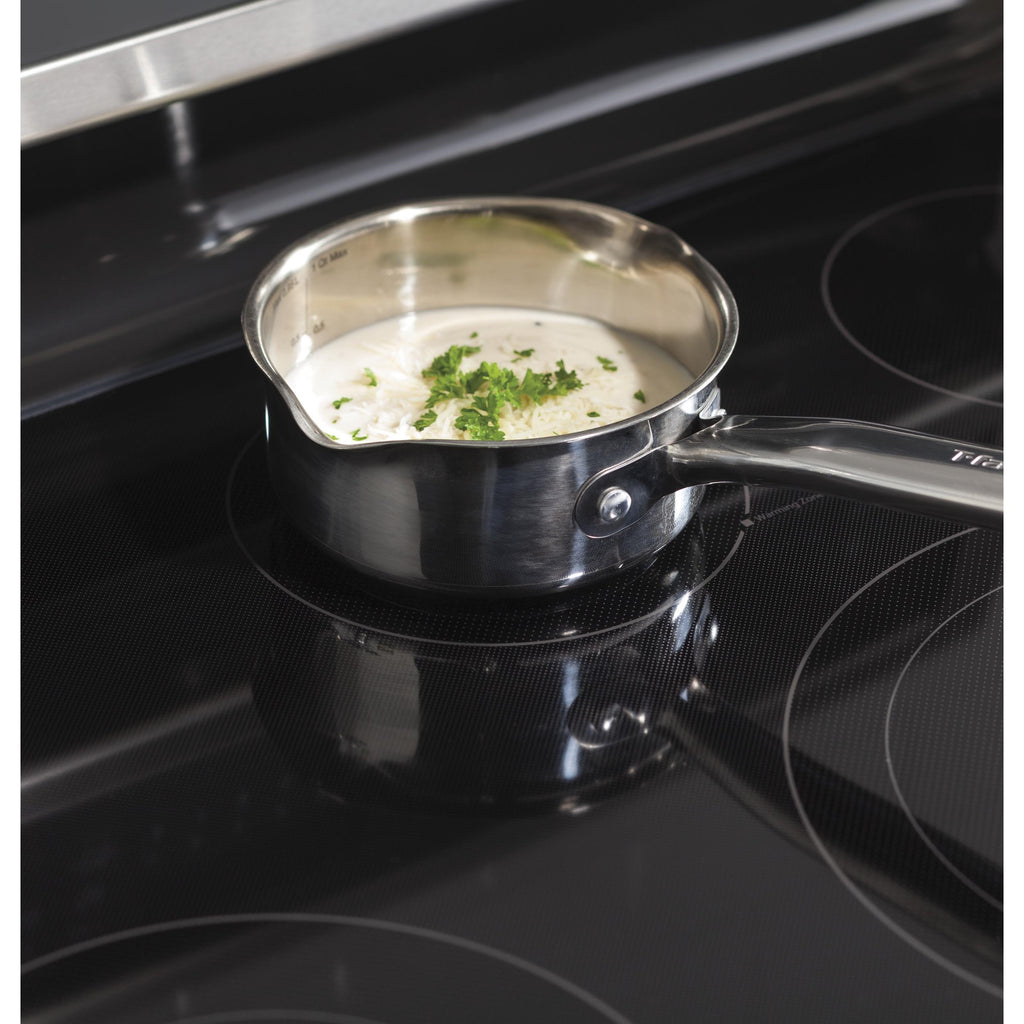

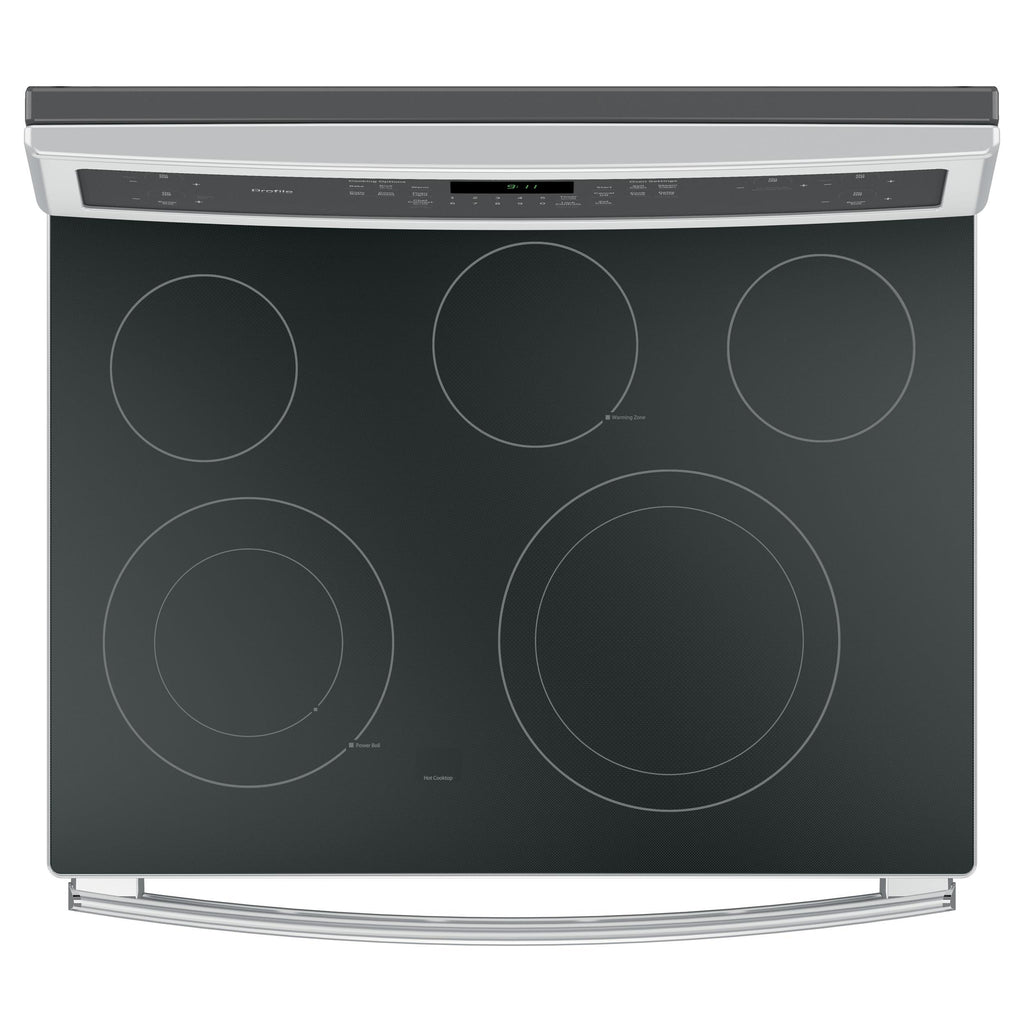

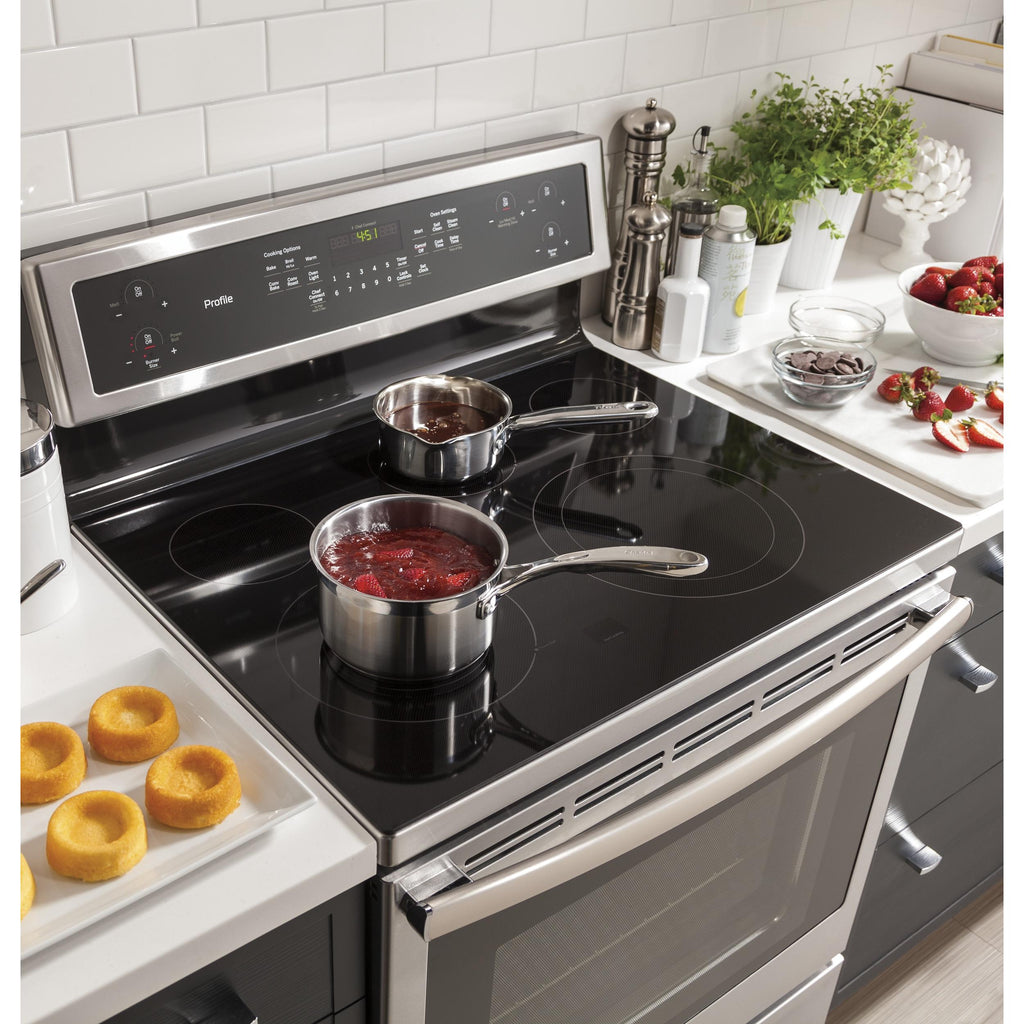

EDGE-TO-EDGE COOKTOP
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

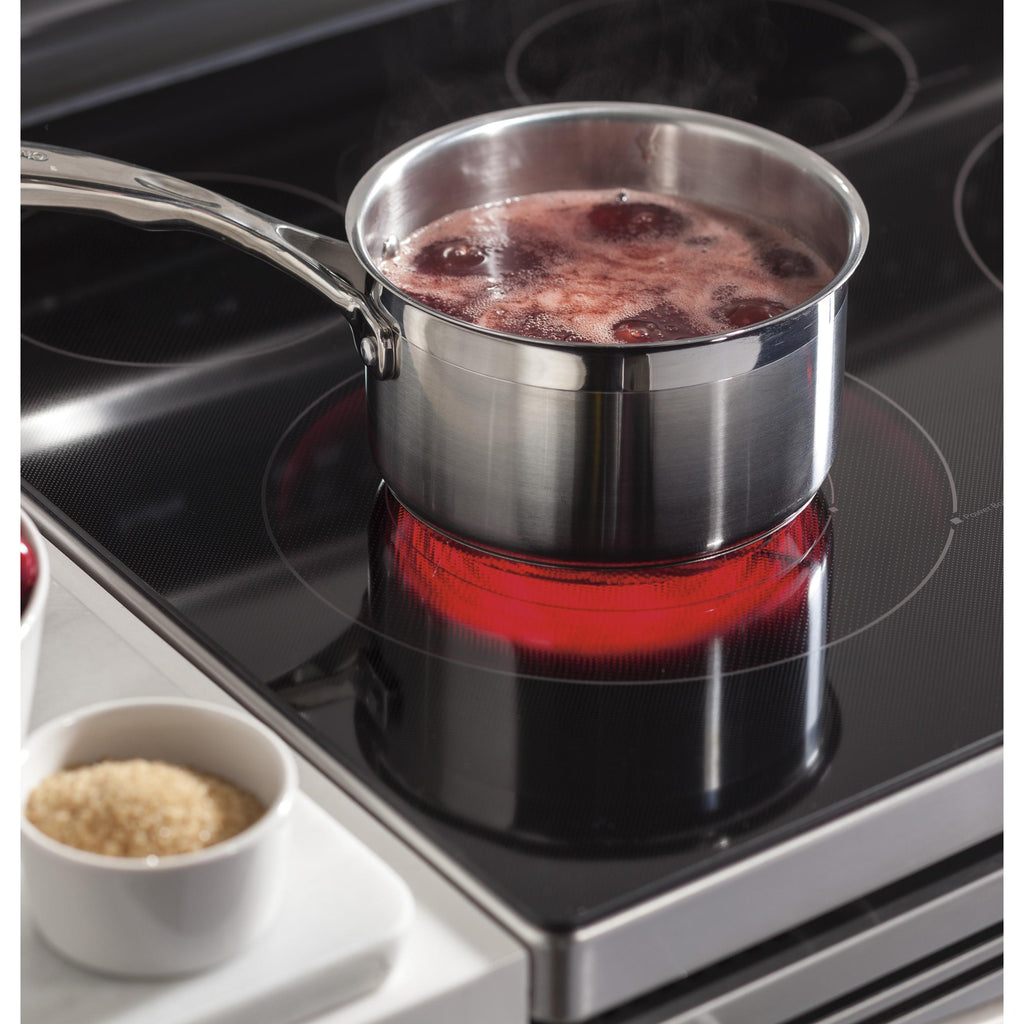

9"/6" POWER BOIL ELEMENT
Produces rapid, powerful heat

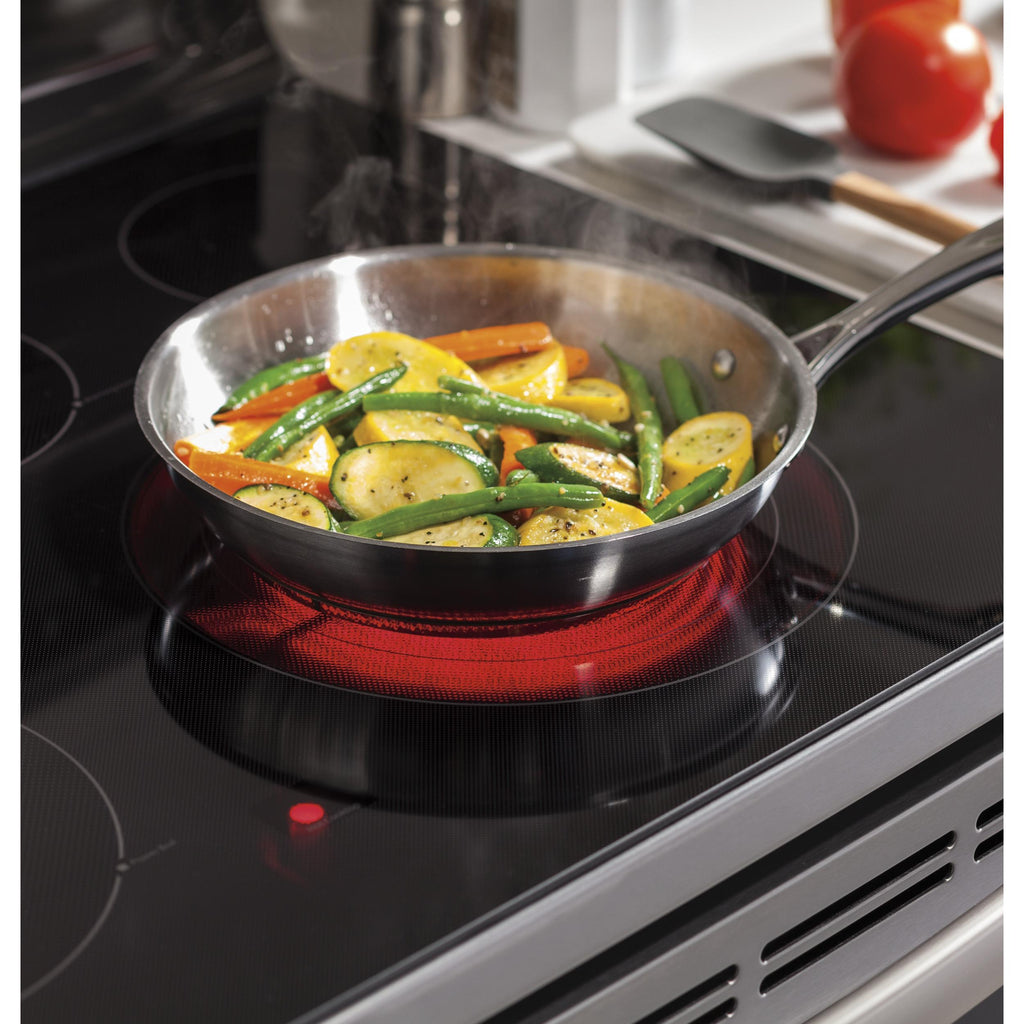

12"/9" DUAL ELEMENT
Choose a 12" or 9" heating element

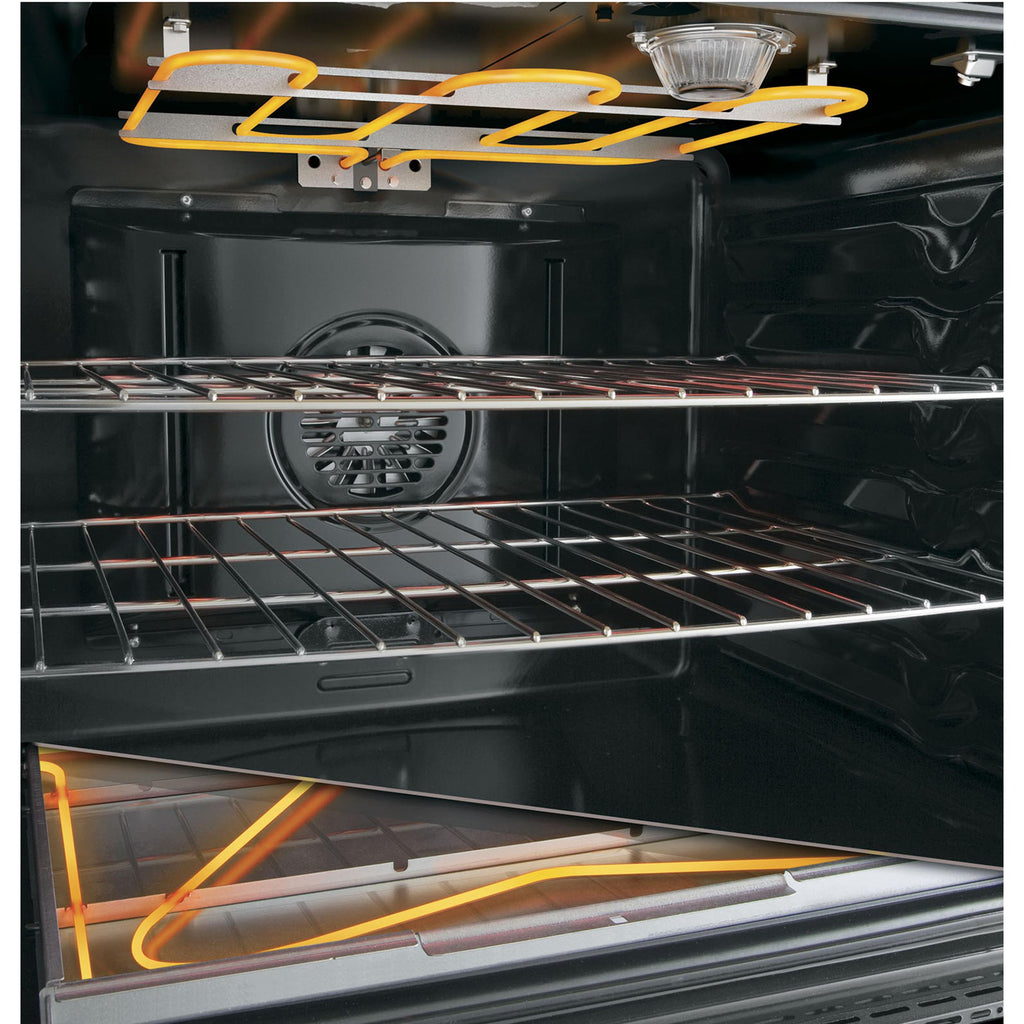

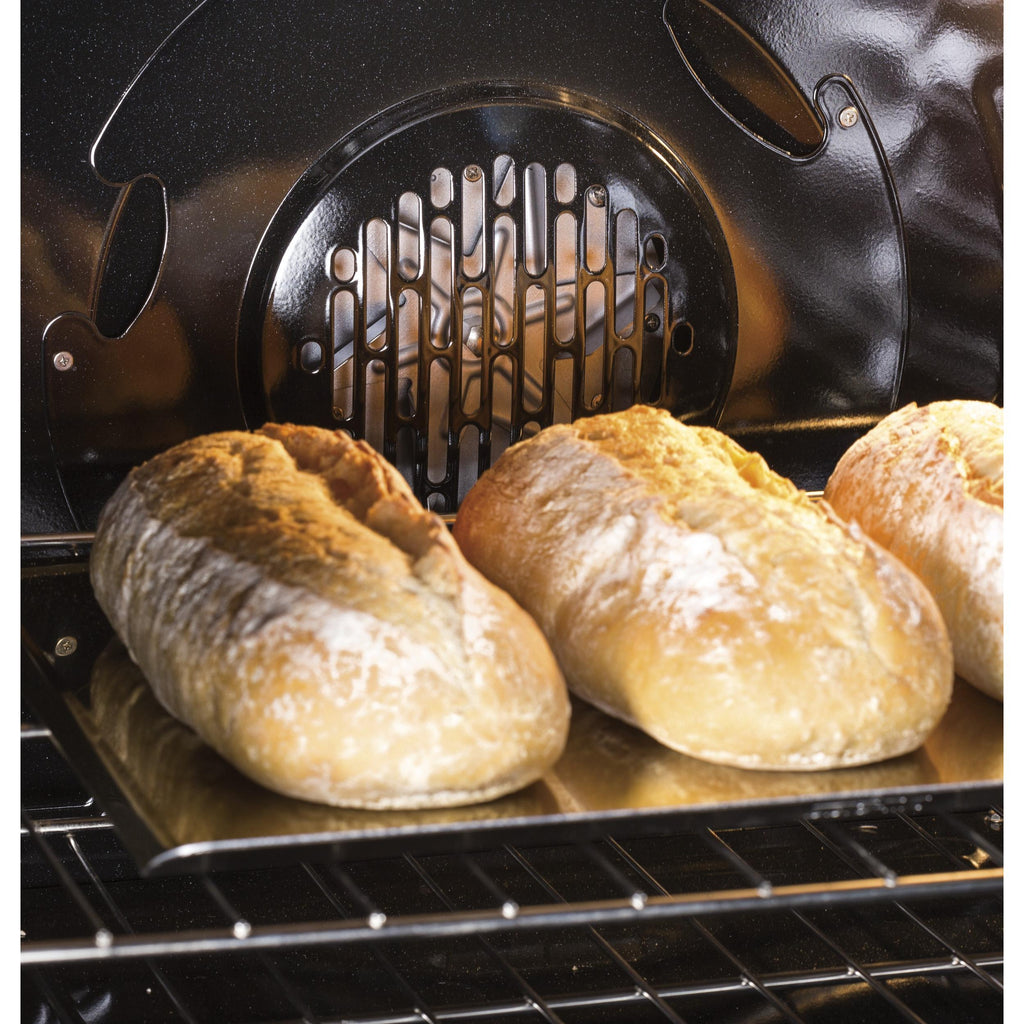

TRUE EUROPEAN CONVECTION WITH PRECISE AIR
Advanced convection uses a 3rd heating element and a reversing fan to provide the highest level of heat and air circulation.

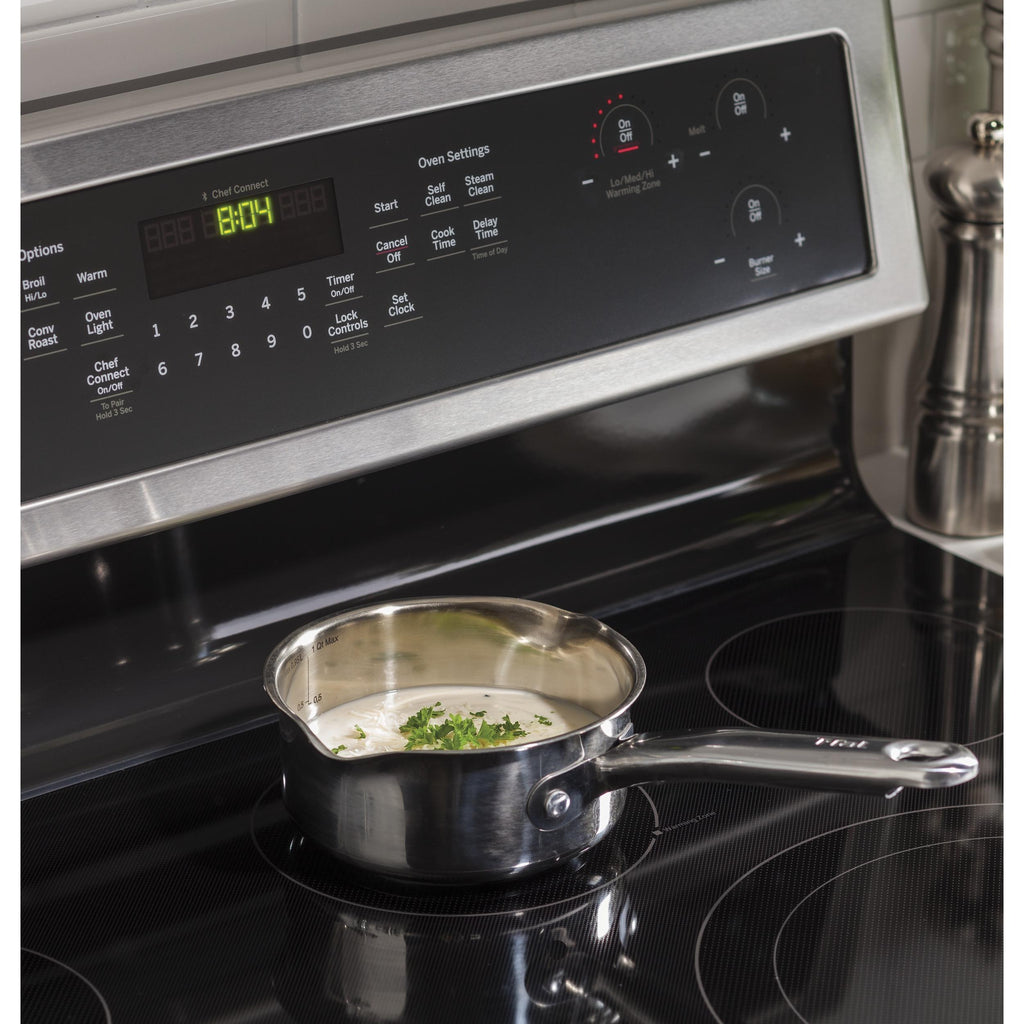

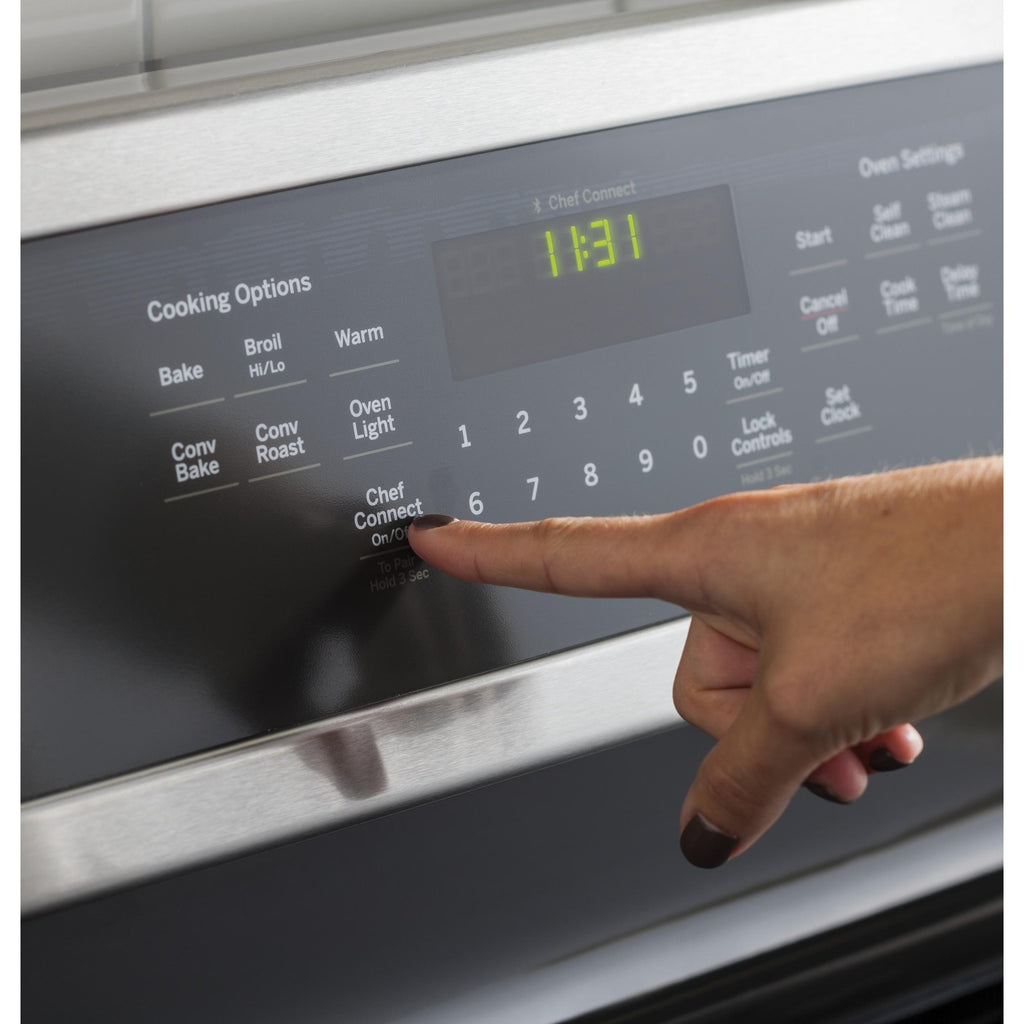

CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

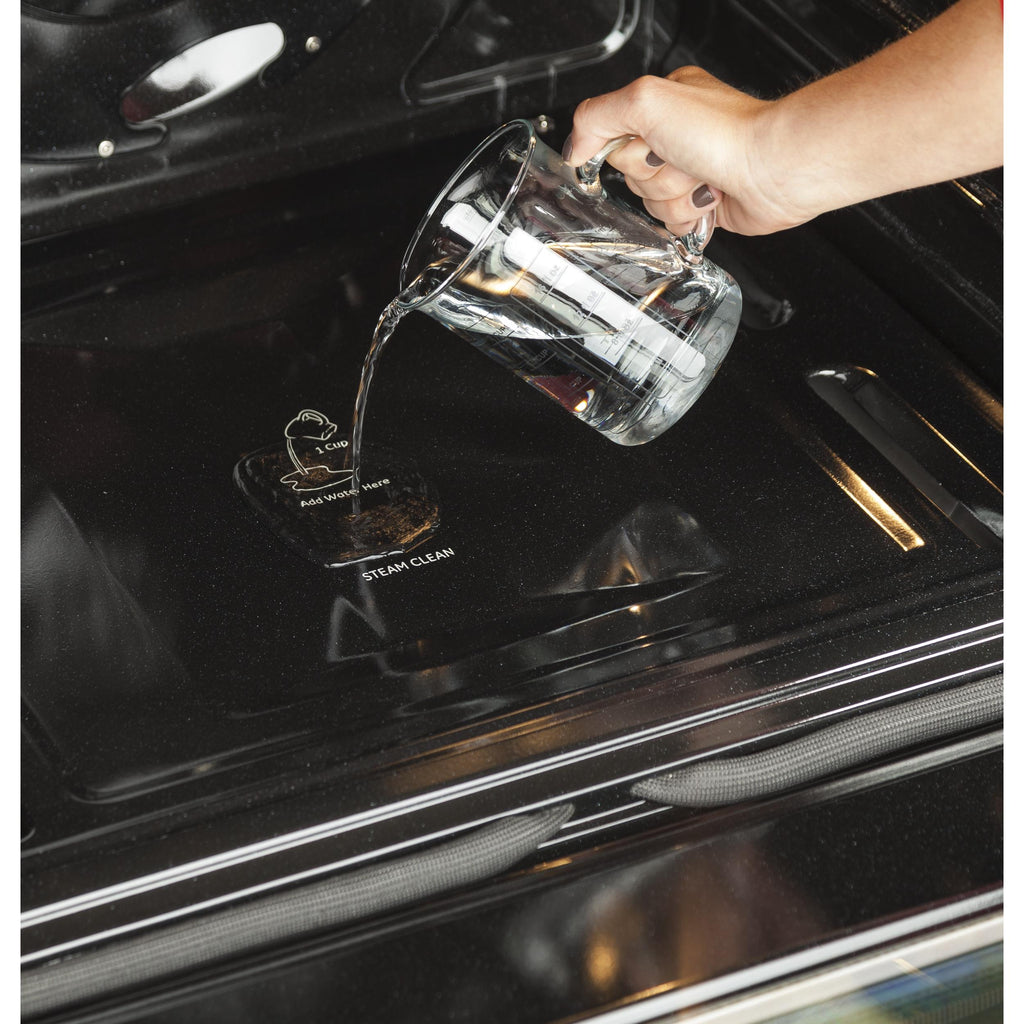

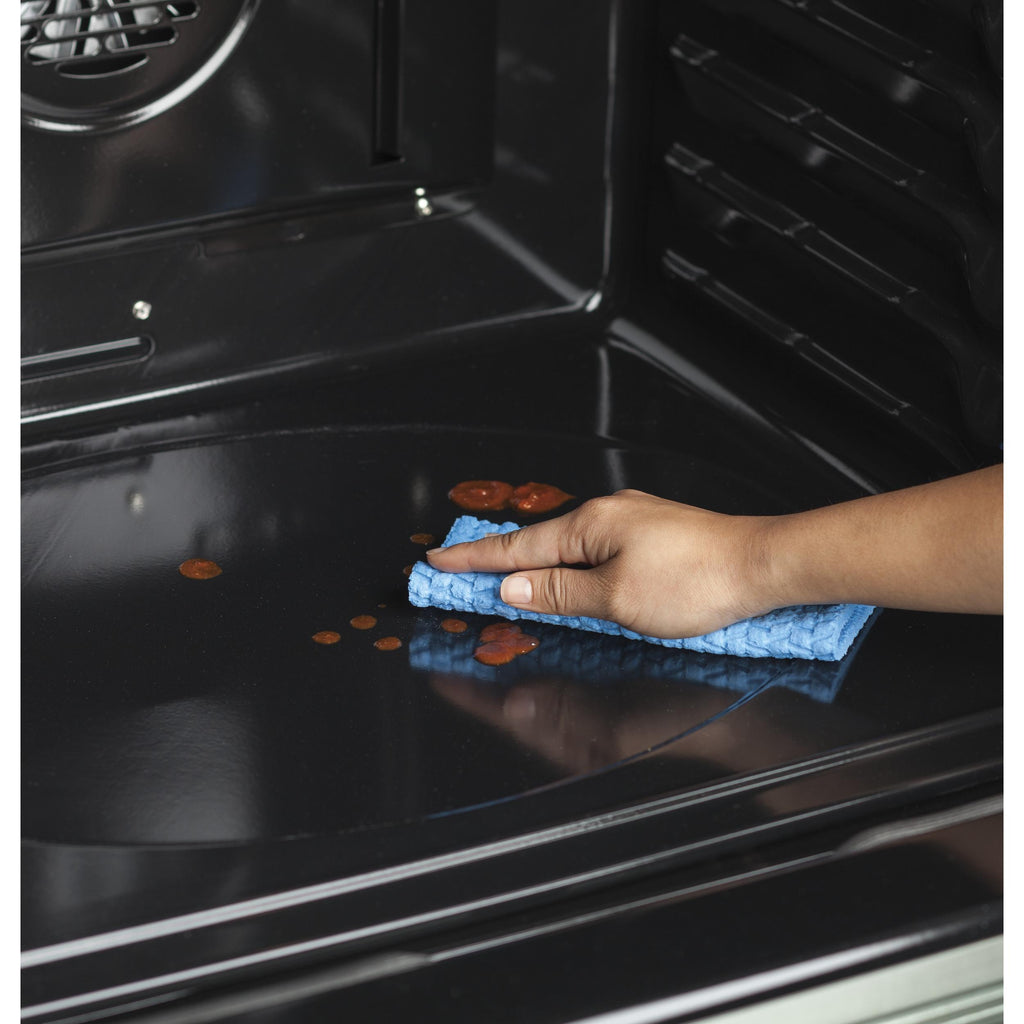

SELF CLEAN WITH STEAM CLEAN OPTION
Gives the option of self-cleaning or steam cleaning.
Additional Features
FAST PREHEAT
Make hot meals in a hurry with less time preheating
FIFTH ELEMENT WARMING ZONE
A convenient low-heat warming zone provides even temperature control for foods on the cooktop
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Self-Clean with Steam Clean Option
• Self-Clean Cool Down Time Display
• Steam Clean
• Auto Self Clean
• Self-Clean Cool Down Time Display
• Steam Clean
• Auto Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element: 3100W Power Boil
• Left Rear Element: 1200W
• Right Front Element: 3000W
• Right Rear Element: 1200W
• Center Element: 80W Warming Zone
• Left Rear Element: 1200W
• Right Front Element: 3000W
• Right Rear Element: 1200W
• Center Element: 80W Warming Zone
Burner/Element Size
• Left Front Element: 9"/6"
• Left Rear Element: 6"
• Right Front Element: 12"/9"
• Right Rear :Element 6"
• Center Element: 6"
• Left Rear Element: 6"
• Right Front Element: 12"/9"
• Right Rear :Element 6"
• Center Element: 6"
Elements
Smoothtop

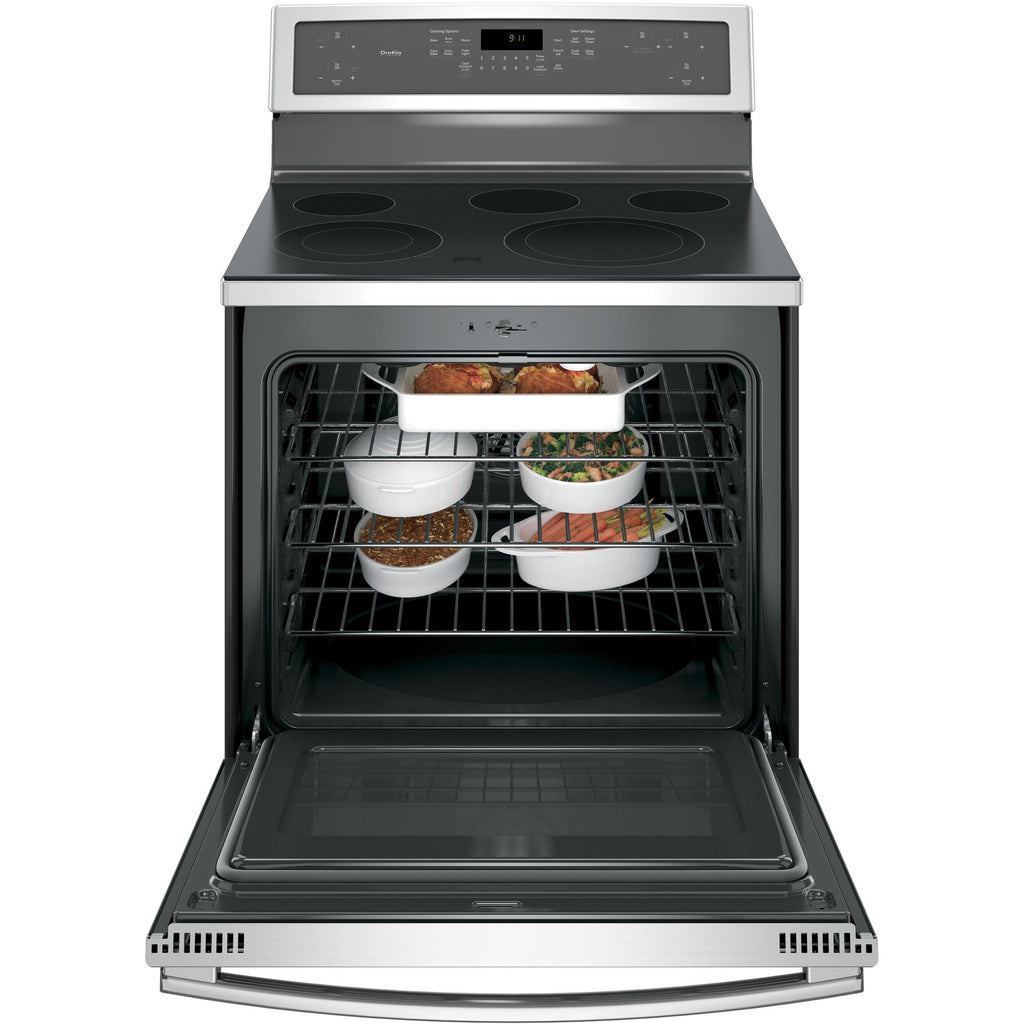

Oven
Capacity (cu. ft.)
5.3 cu.ft.
Number of Ovens
Single
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Chef Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Black Ceramic Glass Cooktop Surface
• Edge-to-Edge Cooktop Surface
• One-Piece Upswept Cooktop Surface
• Melt Setting
• 5 Heating Element "ON" Indicator Light
• 1 Hot Surface Indicator Lights
• 1 Halogen Light
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• Convection Roast
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Delay Clean Option
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• 6-Pass Broil Element
• Hidden Bake
• 3 Heavy-Duty Oven Racks
• 6 Rack Position
• Edge-to-Edge Cooktop Surface
• One-Piece Upswept Cooktop Surface
• Melt Setting
• 5 Heating Element "ON" Indicator Light
• 1 Hot Surface Indicator Lights
• 1 Halogen Light
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• Convection Roast
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Delay Clean Option
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• 6-Pass Broil Element
• Hidden Bake
• 3 Heavy-Duty Oven Racks
• 6 Rack Position
Drawer Features
Storage
Yes
Electrical Information
Information
• 208 V / 240 V
• 40 A
• 40 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
Cream and Sponge
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47 inch(es) / 119.38 cm
Depth (Without Handles)
25.5 inch(es) / 64.77 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
164.99 lb(s) / 74.84 kg
Additional Dimensions
Oven Interior Dimensions (W x H x D): 24-1/8(61.28 cm) x 19-1/2(49.53 cm) x 19-3/8(49.21 cm)
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
49.5 inch(es) / 125.73 cm
Depth
30.2 inch(es) / 76.71 cm
Weight
184.99 lb(s) / 83.91 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691812708
