Features

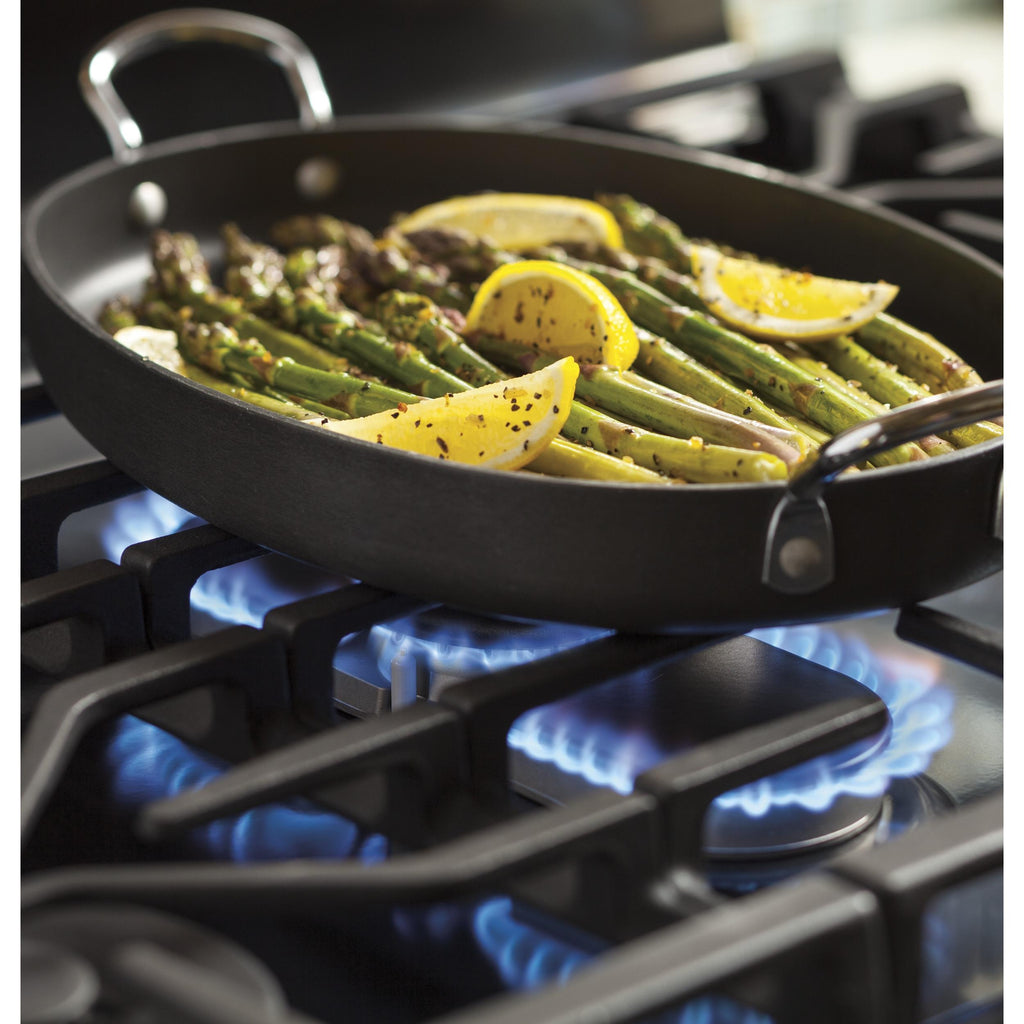

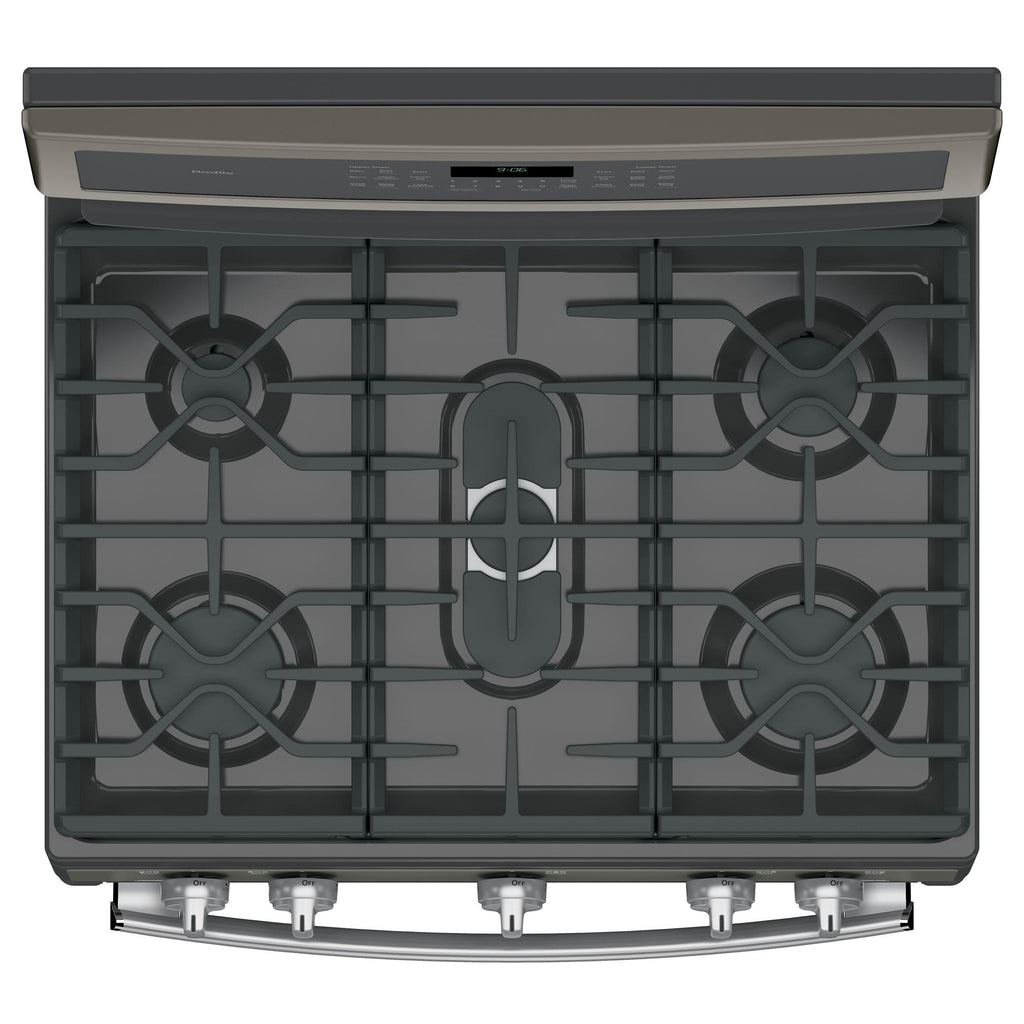

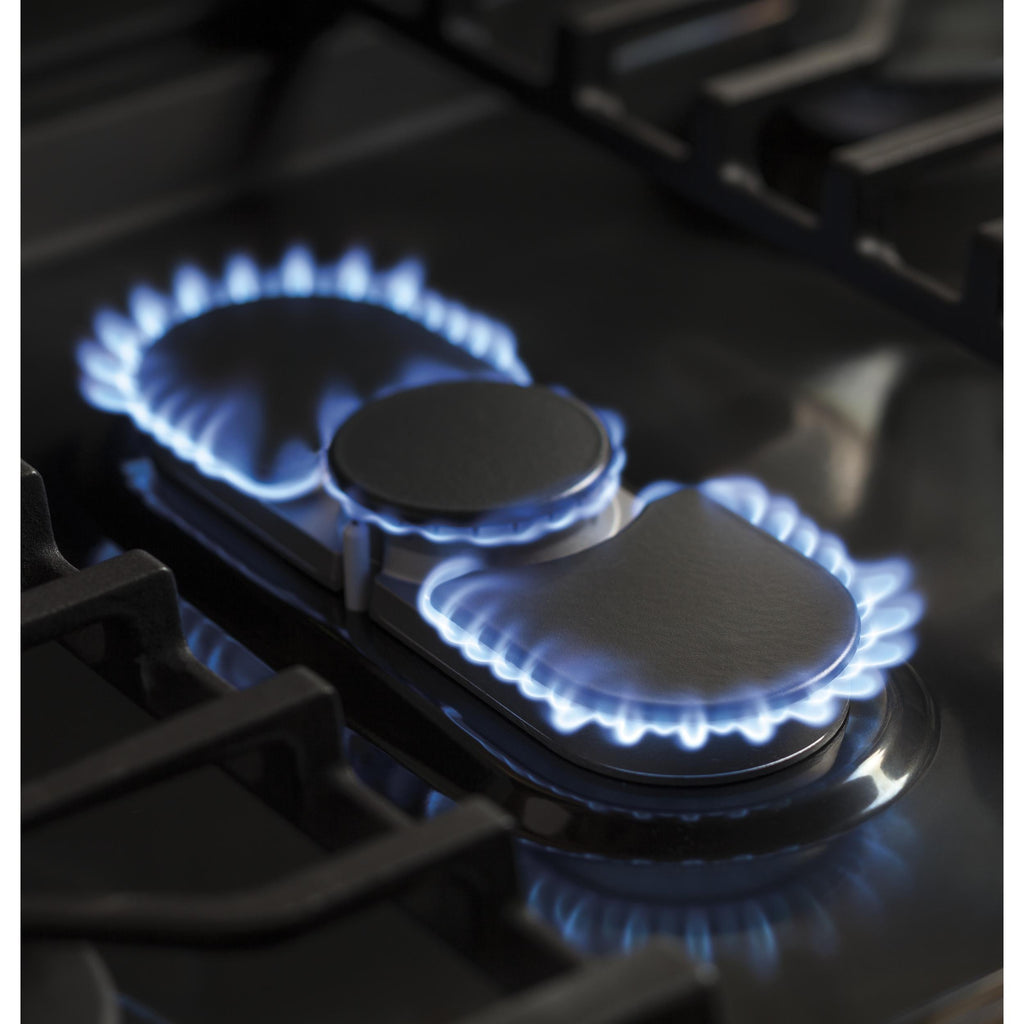

DUAL PURPOSE CENTER BURNER
Accommodate everything from grills and griddles to oversized pots with the industry's first combination oval/round burner

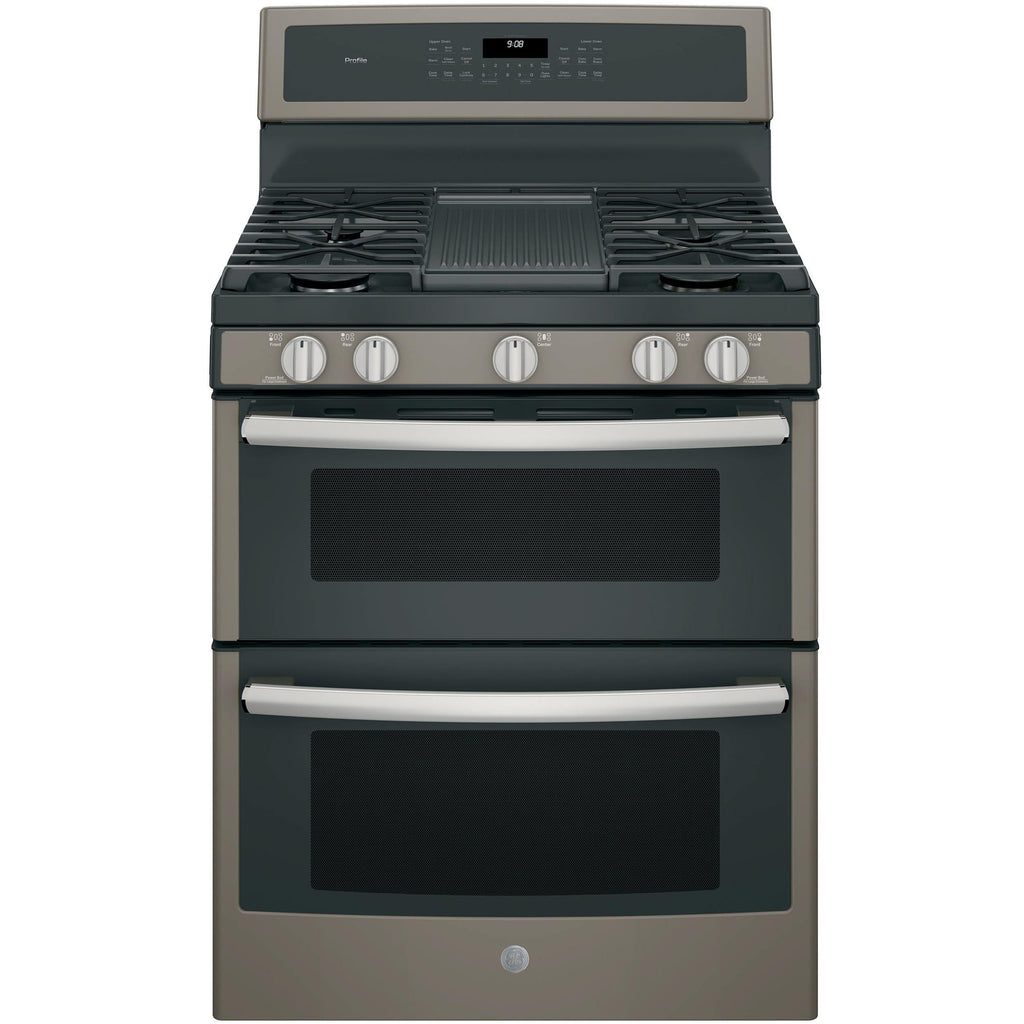

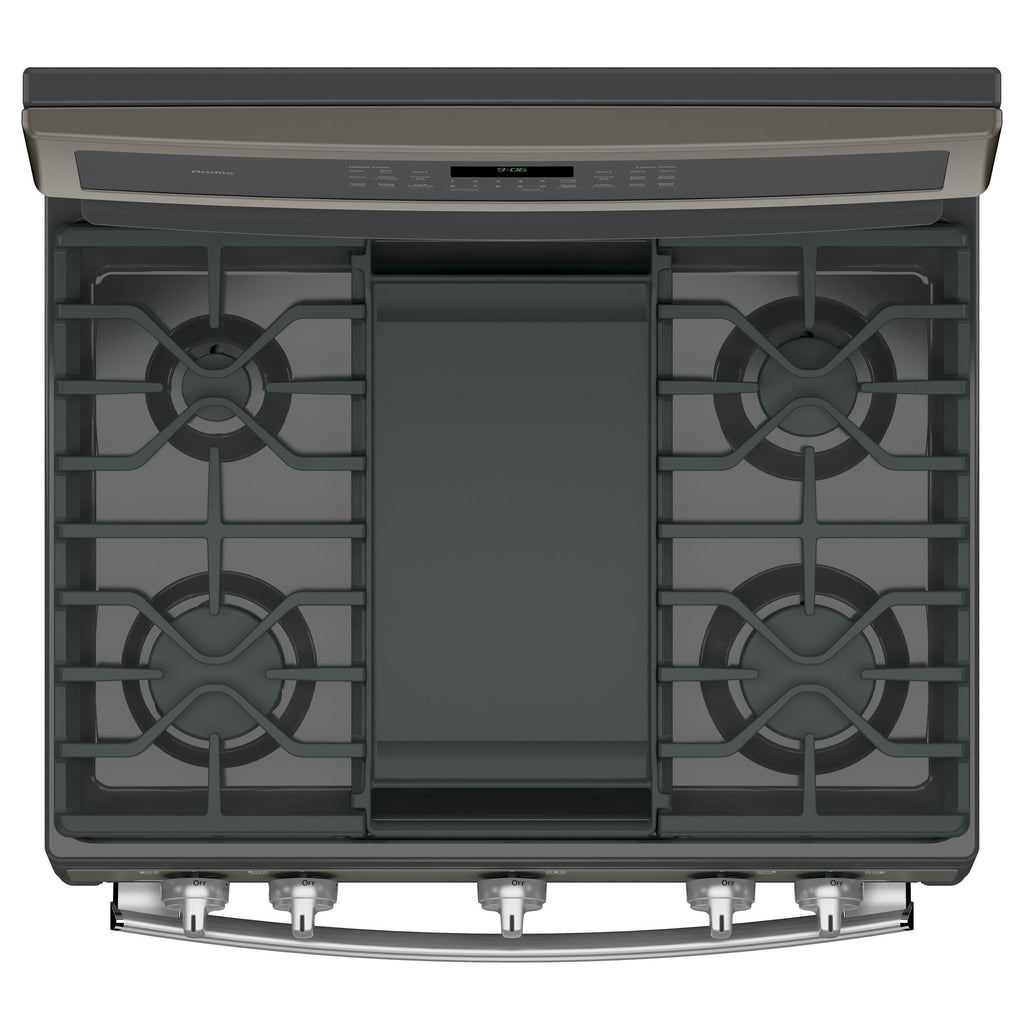

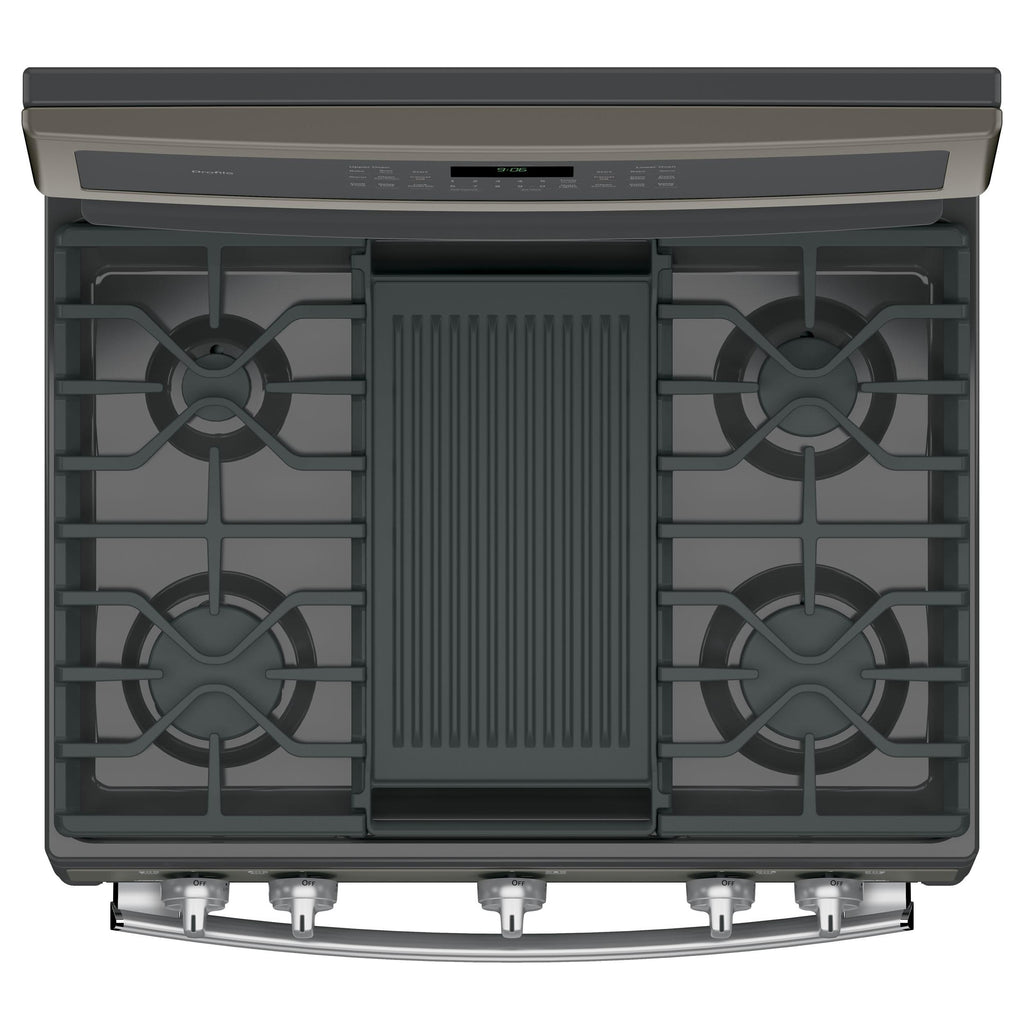

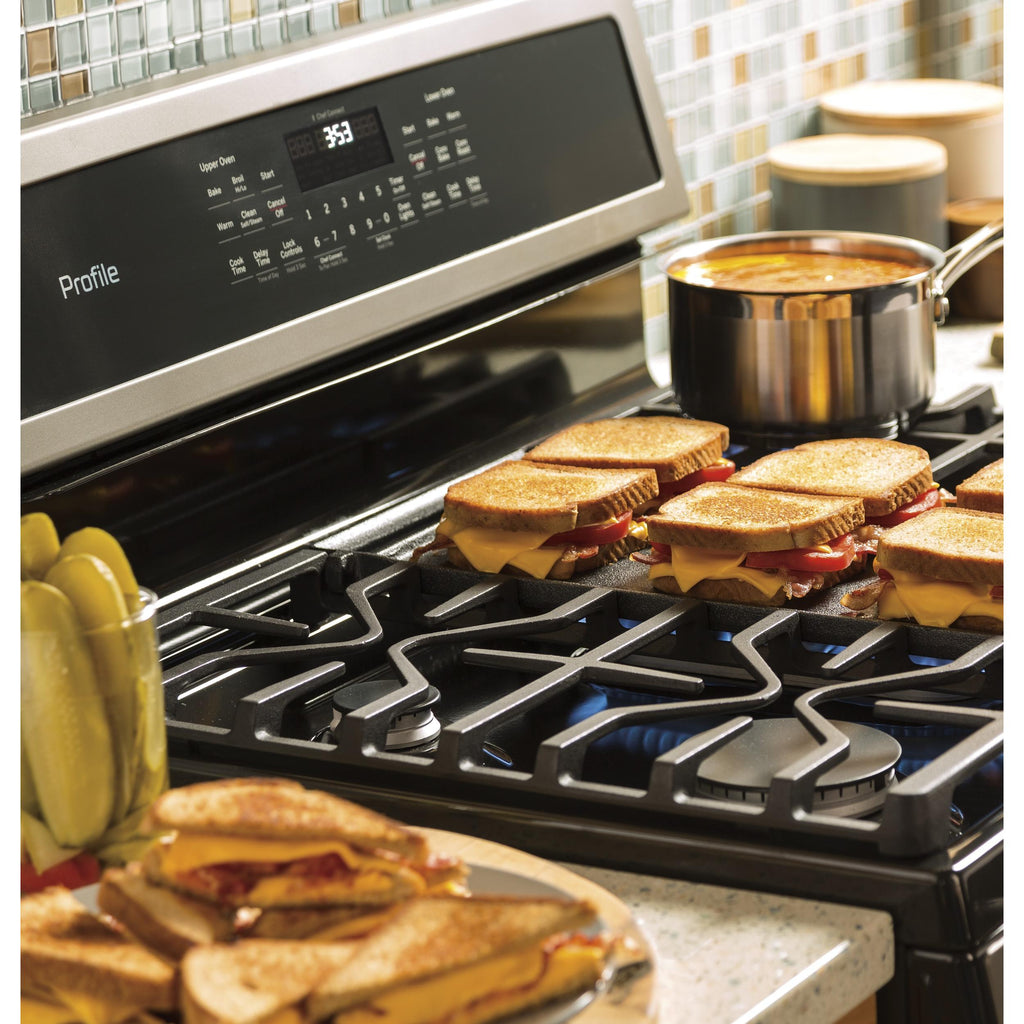

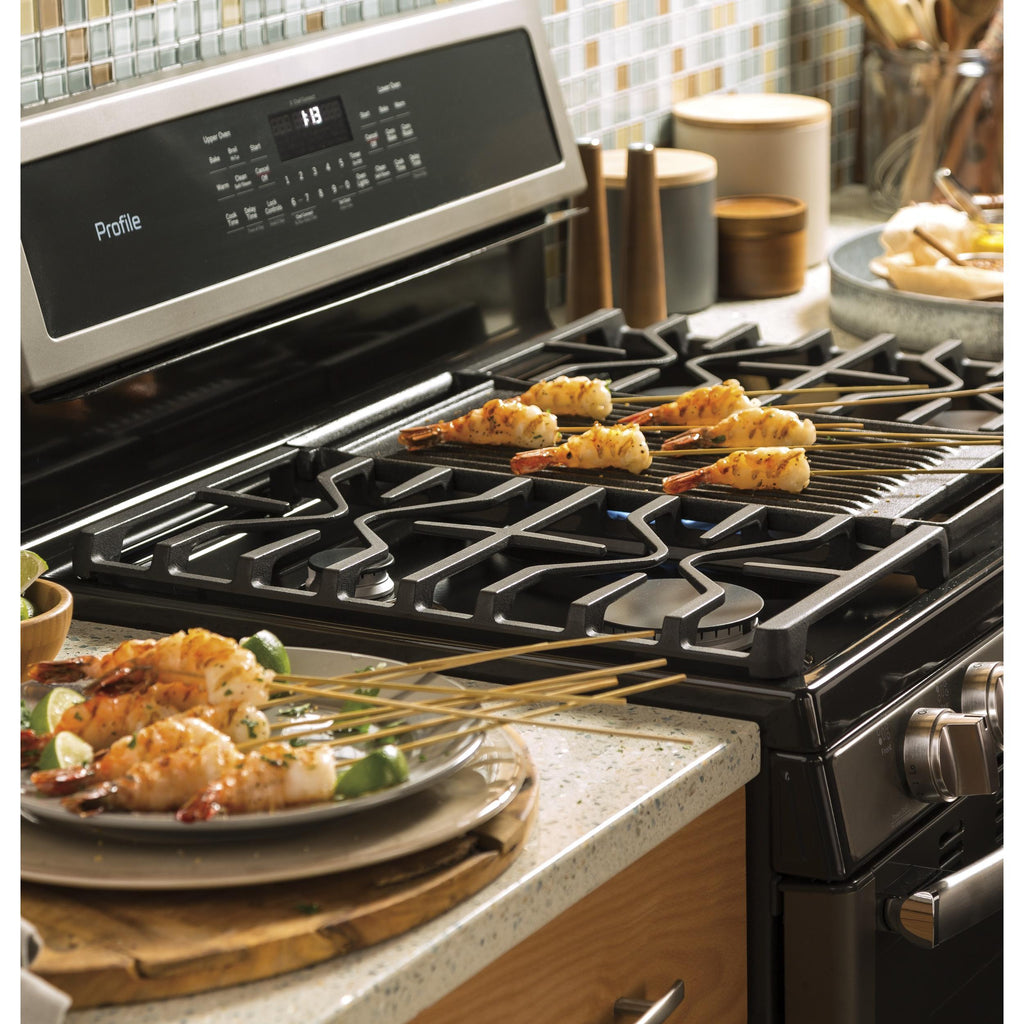

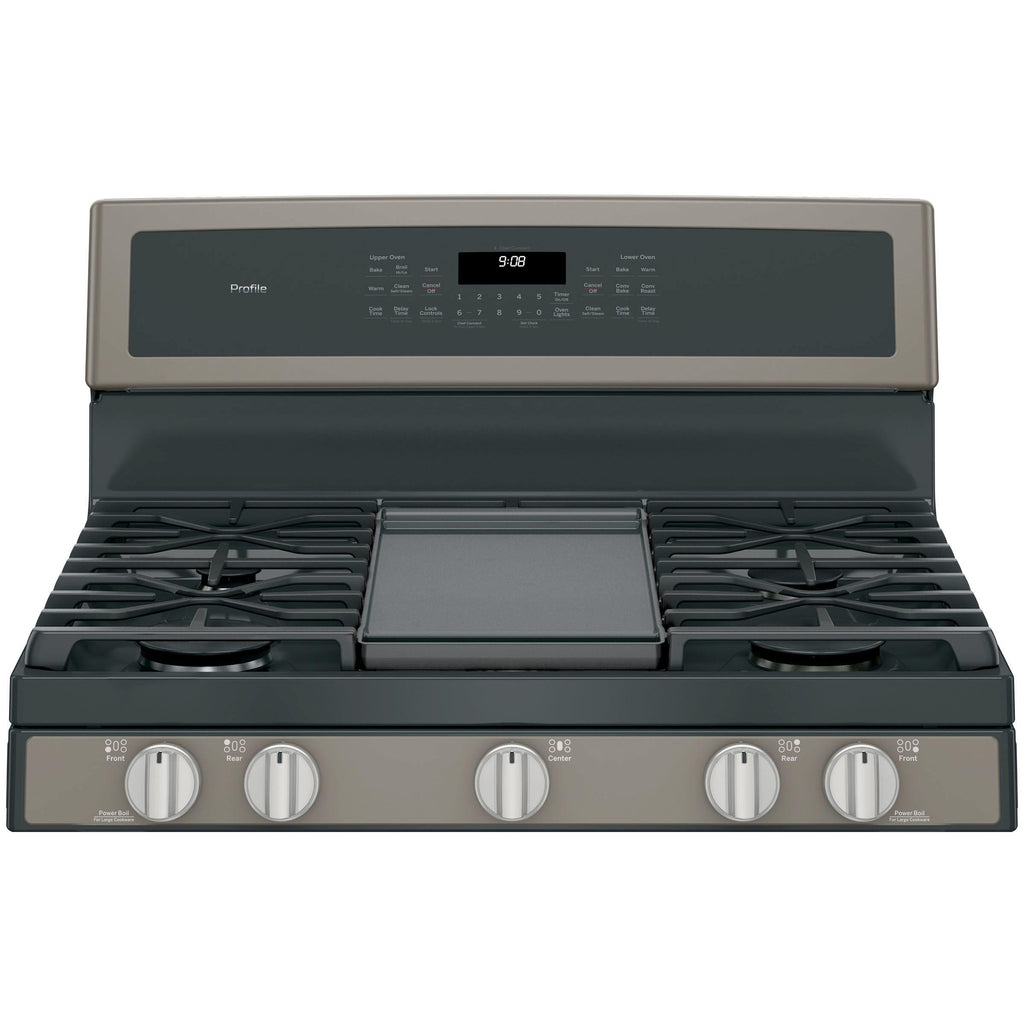

EXTRA-LARGE, INTEGRATED REVERSIBLE CAST IRON GRILL/GRIDDLE
Enjoy ultimate cooking versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle, and then flip it over to grill your favorite foods.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

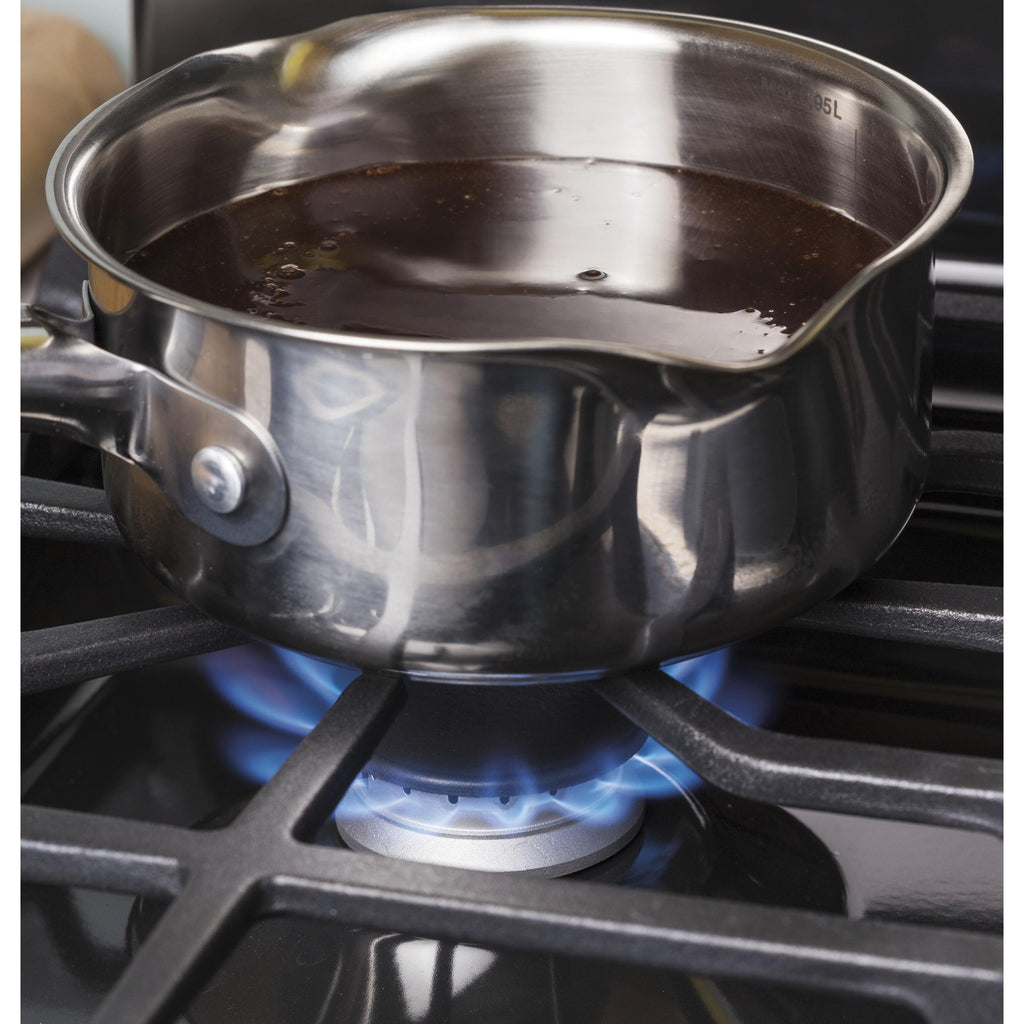

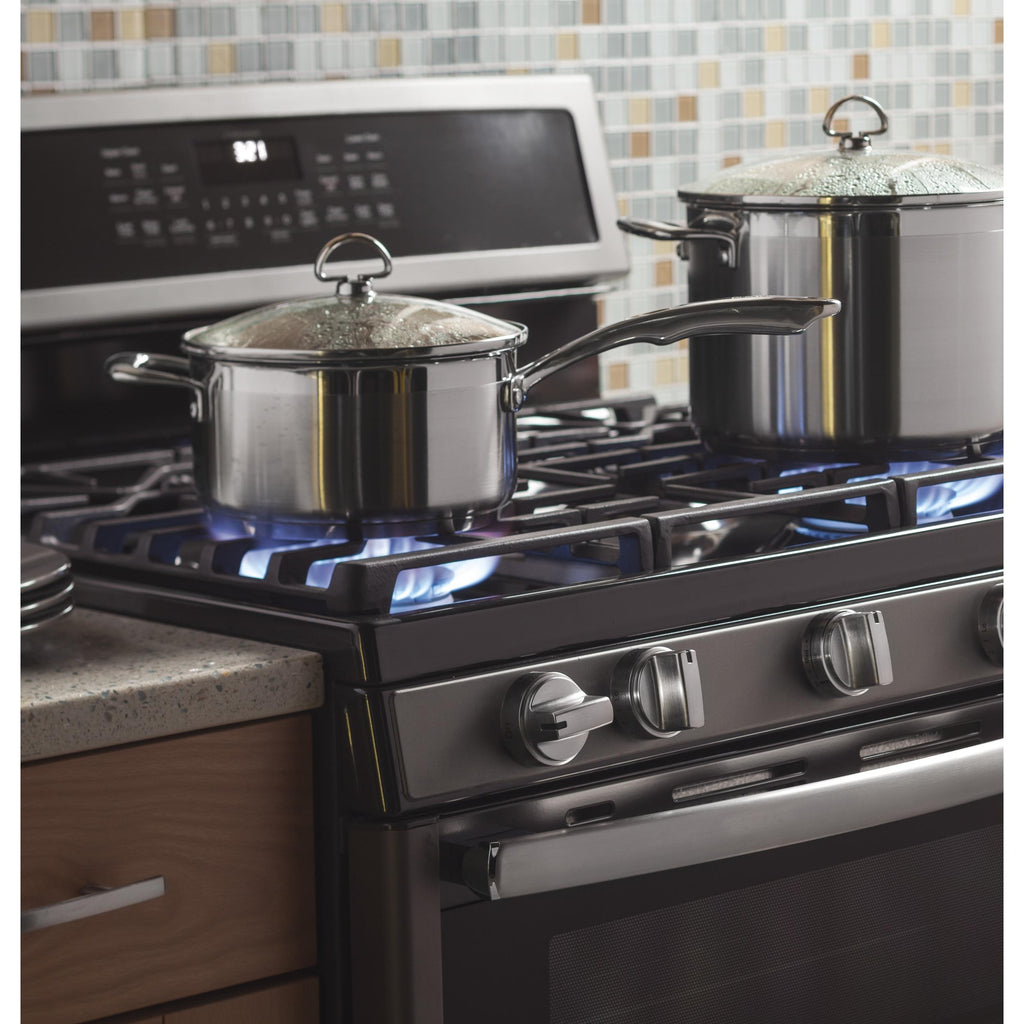

TWO EXTRA-LARGE 18K POWER BOIL BURNERS
Get twice the high-heat cooking power with two up-front extra-large burners

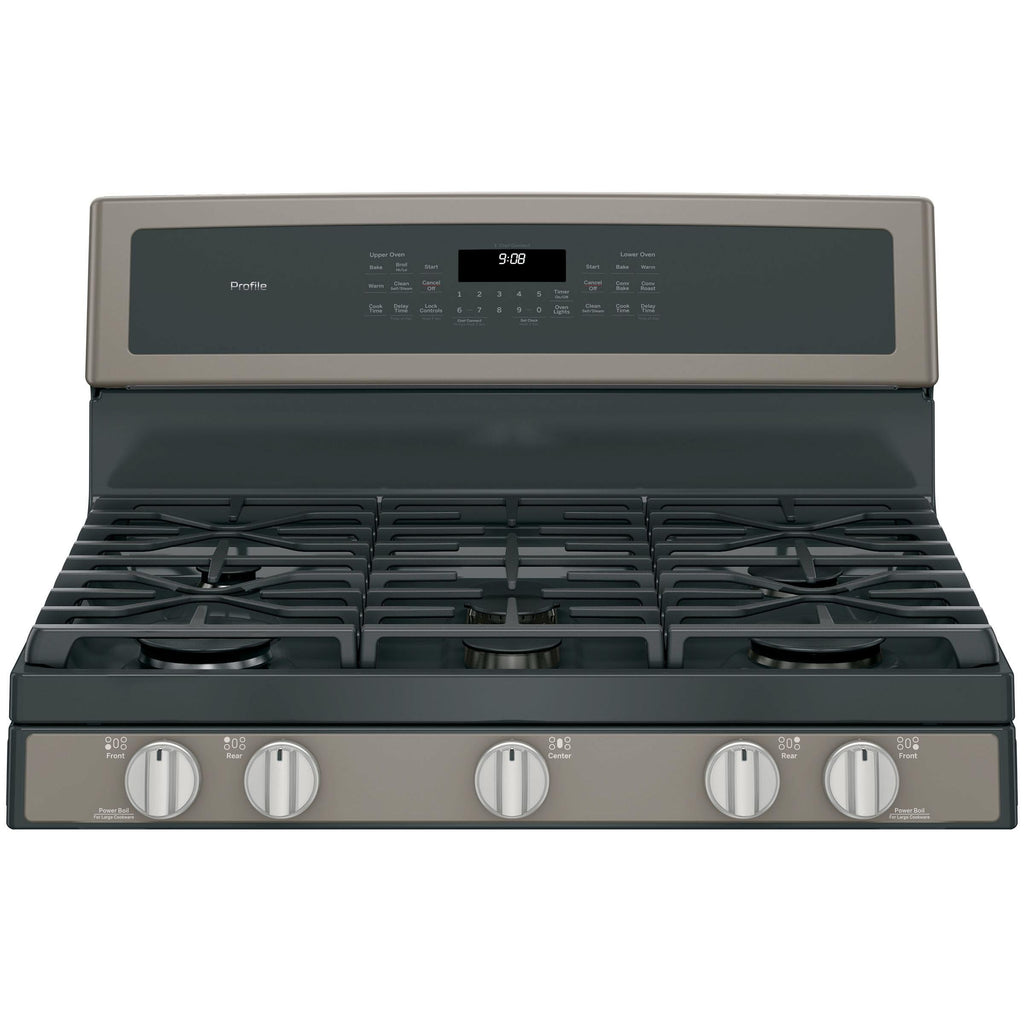

EDGE-TO-EDGE COOKTOP
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.

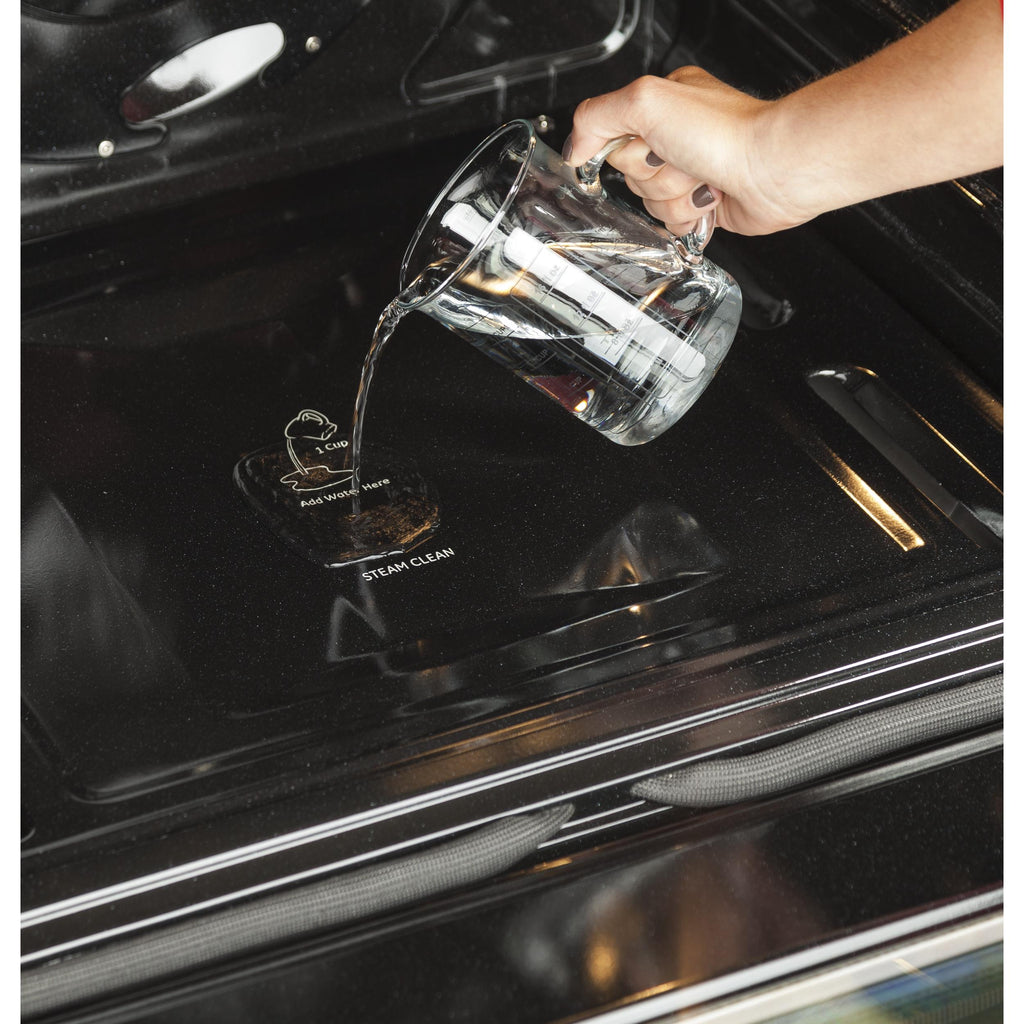

SELF CLEAN WITH STEAM CLEAN OPTION
Gives the option of self-cleaning or steam cleaning.
Additional Features

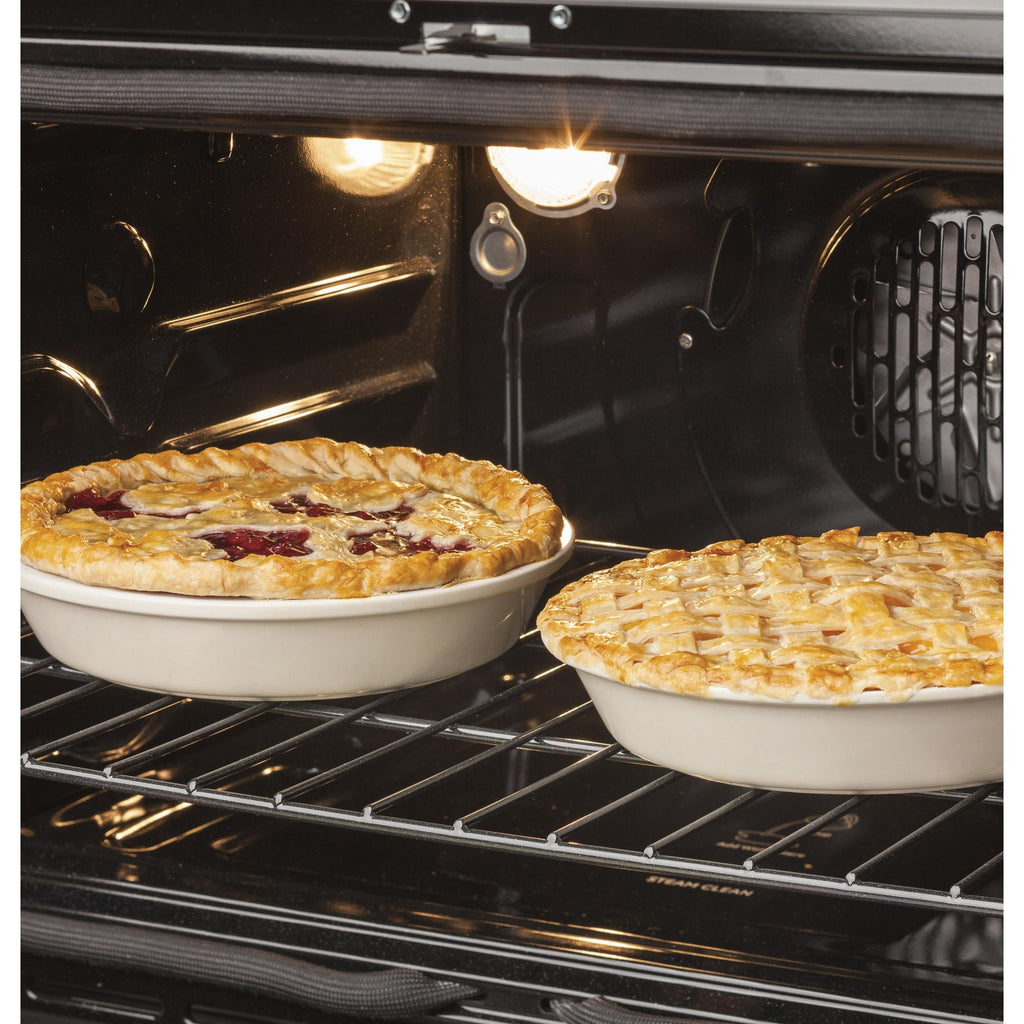

GAS CONVECTION OVEN
Circulates heat for high-quality results.
HEAVY DUTY, SELF-CLEAN GRATES
Easily clean grates by placing them in the oven during the self-clean cycle
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Slate Grey
Manufacturer Color
Slate
Appliance Care
• Self-Clean with Steam Clean Option (Both Ovens)
• Auto Self Clean
• Auto Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 18,000 BTU Power Boil

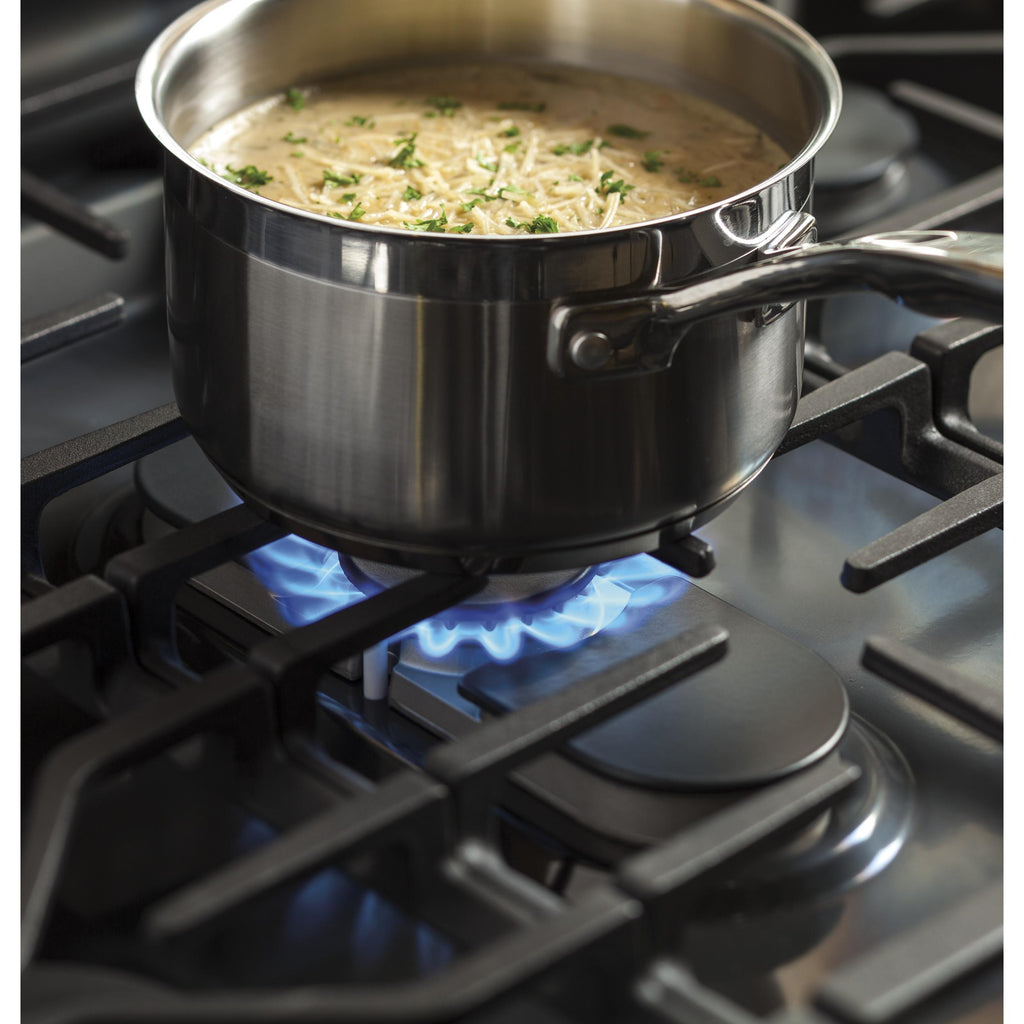

• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 18,000 BTU Power Boil
• Right Rear Burner: 9,500 BTU
• Center Burner: 10,000 BTU Oval
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 18,000 BTU Power Boil
• Right Rear Burner: 9,500 BTU
• Center Burner: 10,000 BTU Oval
Burners
Sealed
Other
Griddle,Grill
Oven
Capacity (cu. ft.)
• Total Capacity: 6.8 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.

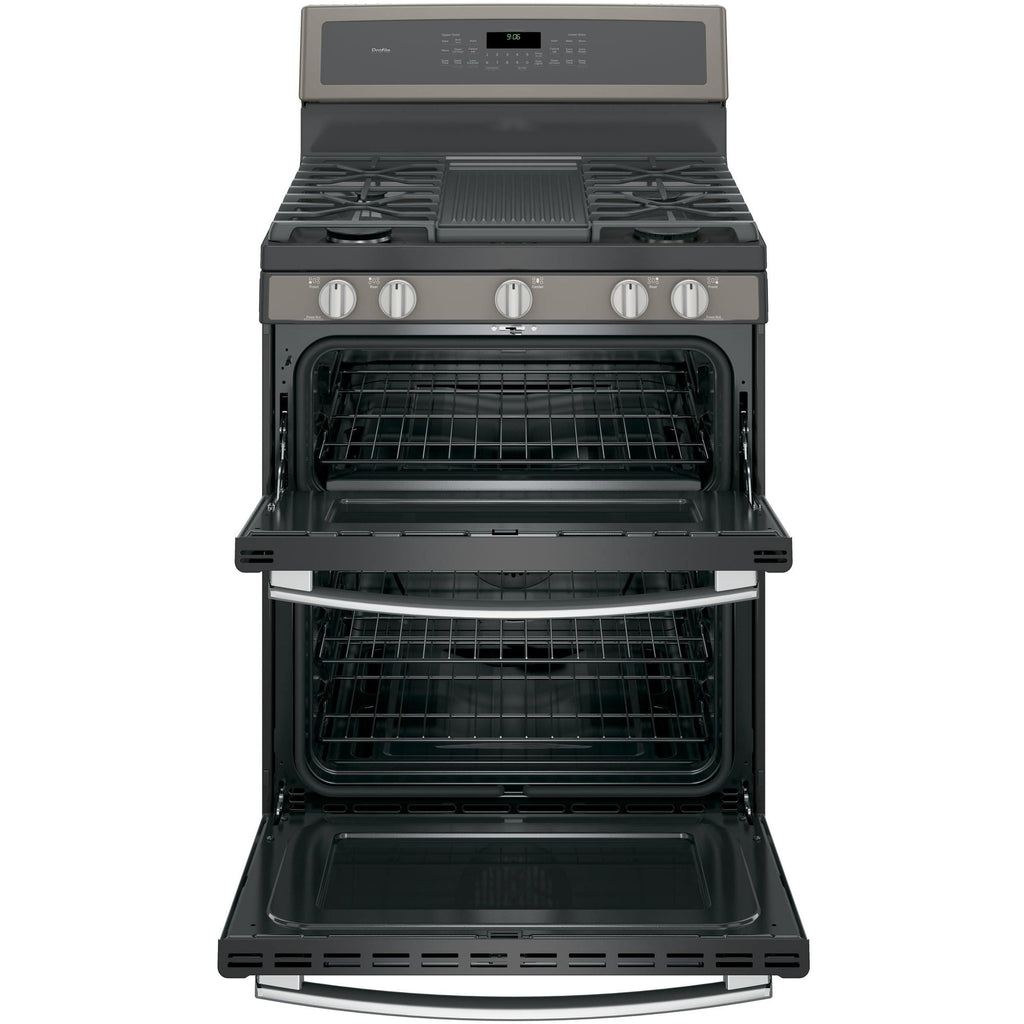

Number of Ovens
Double
Features
Technologies
• Convection Technology
• Chef Connect
• Chef Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Cooking Technology: Traditional Upper; Convection Lower
• 1 Auto Incandescent (Both Ovens)
• Audible Preheat Signal
• Continuous Grates (Heavy Cast Iron)
• Edge-to-Edge Surface
• One-Piece Upswept Surface
• 2 Upper / 5 Lower Rack Positions
• 3 Self-Clean Oven Racks
• Bake/Broiler BTU Rating LP (000's BTU's: 10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower
• Bake/Broiler BTU Rating Nat. Gas (000's BTU's): 12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower
• Top Burner BTU Rating LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0
• Top Burner BTU Rating Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (2) 18.0; (1) 5.0
• 1 Auto Incandescent (Both Ovens)
• Audible Preheat Signal
• Continuous Grates (Heavy Cast Iron)
• Edge-to-Edge Surface
• One-Piece Upswept Surface
• 2 Upper / 5 Lower Rack Positions
• 3 Self-Clean Oven Racks
• Bake/Broiler BTU Rating LP (000's BTU's: 10.0 / 10.0 - Upper; 13.5 / 0.0 - Lower
• Bake/Broiler BTU Rating Nat. Gas (000's BTU's): 12.0 / 10.0 - Upper; 14.0 / 0.0 - Lower
• Top Burner BTU Rating LP (000's BTU's): (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0
• Top Burner BTU Rating Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (2) 18.0; (1) 5.0
Electrical Information
Information
• 120 V
• 60 HZ
• 15 A
• 60 HZ
• 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Reversible Integrated Grill/Griddle
• Center Grate
• Reversible Integrated Grill/Griddle
• Center Grate
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
27.75 inch(es) / 70.48 cm
Depth (Including Handles)
29.25 inch(es) / 74.30 cm
Weight
205.01 lb(s) / 92.99 kg
Additional Dimensions
• Oven Interior Dimensions Upper (W x H x D): 24" x 9-1/2" x 19-1/8
• Oven Interior Dimensions Lower (W x H x D): 24" x 15" x 20-5/8"
• Oven Interior Dimensions Lower (W x H x D): 24" x 15" x 20-5/8"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
225 lb(s) / 102.06 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691811459
