Features
EDGE-TO-EDGE SEAMLESS COOKTOP
A large, seamless surface makes it easy to wipe away messes

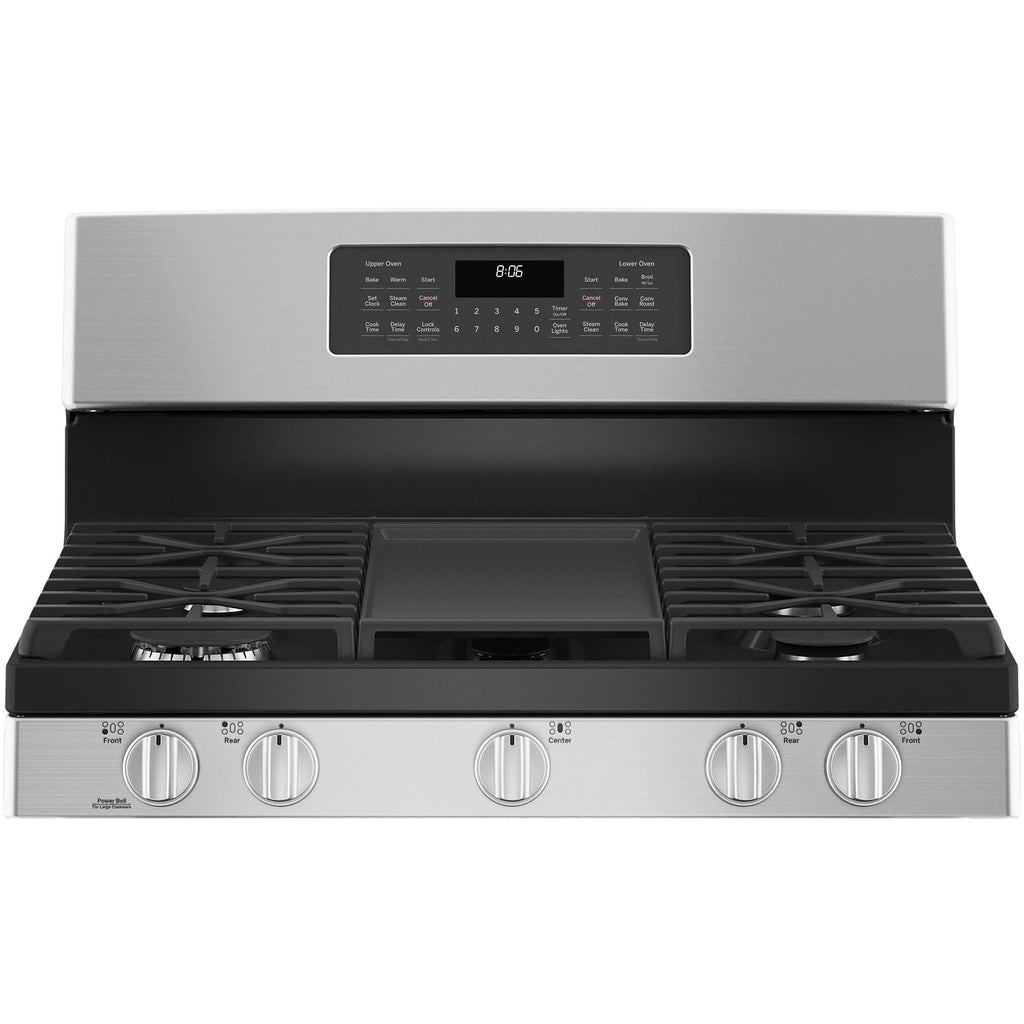

CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
STEAM CLEAN
Fill the resevoir with water and set your oven to "Steam Clean". After 30 minutes you're able to wipe clean all grime and residue.
Additional Features
POWER BOIL 15,000 BTU BURNER
This powerful element turns up the heat for boiling, sautéing and stir frying.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 15,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Oval Burner: 10,000 BTU
• Left Rear Precise Simmer Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 12,000 BTU
• Center Oval Burner: 10,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total Capacity: 6.8 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.5 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Programs
• Convection Bake (Upper Oven)
• Convection Roast (Upper Oven)
• Bake
• Broil
• Convection Roast (Upper Oven)
• Bake
• Broil
Features
Technologies
Convection Technology
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Bake/Broiler BTU Rating - LP (000's BTU's) 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower)
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
• Top Burner BTU Rating - LP (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
• 2 Upper / 5 Lower Rack Positions
• 3 Oven Racks
• Audible Preheat Signal
• Heavy Cast Iron Grates
• Electronic Ignition System
• 1 Auto Incandescent Lighting (Both Ovens)
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
• Top Burner BTU Rating - LP (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
• 2 Upper / 5 Lower Rack Positions
• 3 Oven Racks
• Audible Preheat Signal
• Heavy Cast Iron Grates
• Electronic Ignition System
• 1 Auto Incandescent Lighting (Both Ovens)
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Integrated Non-Stick Griddle
• Integrated Non-Stick Griddle
Optional
Center Grate
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.75 inch(es) / 67.94 cm
Depth (Including Handles)
29.25 inch(es) / 74.30 cm
Weight
205.01 lb(s) / 92.99 kg
Additional Dimensions
• Oven Interior Dimensions (W x H x D): 24" x 9-1/2" x 19-1/8" - Upper; 24" x 15" x 20-5/8" - Lower
• Depth with Door Open: 43 1/2"
• Height to Cooking Surface: 36" - 36 1/2"
• Depth with Door Open: 43 1/2"
• Height to Cooking Surface: 36" - 36 1/2"
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
225 lb(s) / 102.06 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691853473
