Features
PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.

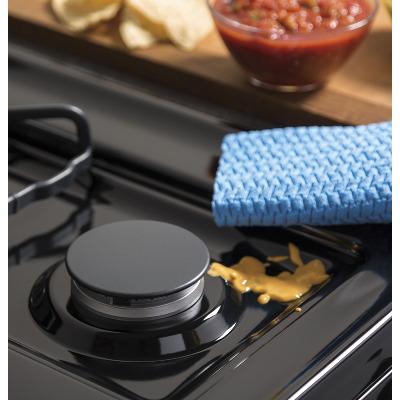

SEALED COOKTOP BURNERS
Helps contain spills from dripping beneath cooktop for easy clean-up. Sealed gas burner controls let you adjust flame height for various cooking needs.
STANDARD CLEAN OVEN
Standard clean oven smooth surface and rounded corners make clean-up quick and easy.
Additional Features
CERTIFIED SABBATH MODE
Allows consumers to keep cooked foods warm on the Jewish Sabbath and Jewish holidays
ELECTRONIC OVEN CONTROLS
Electronic pads on the control panel are easy to operate with just a touch.

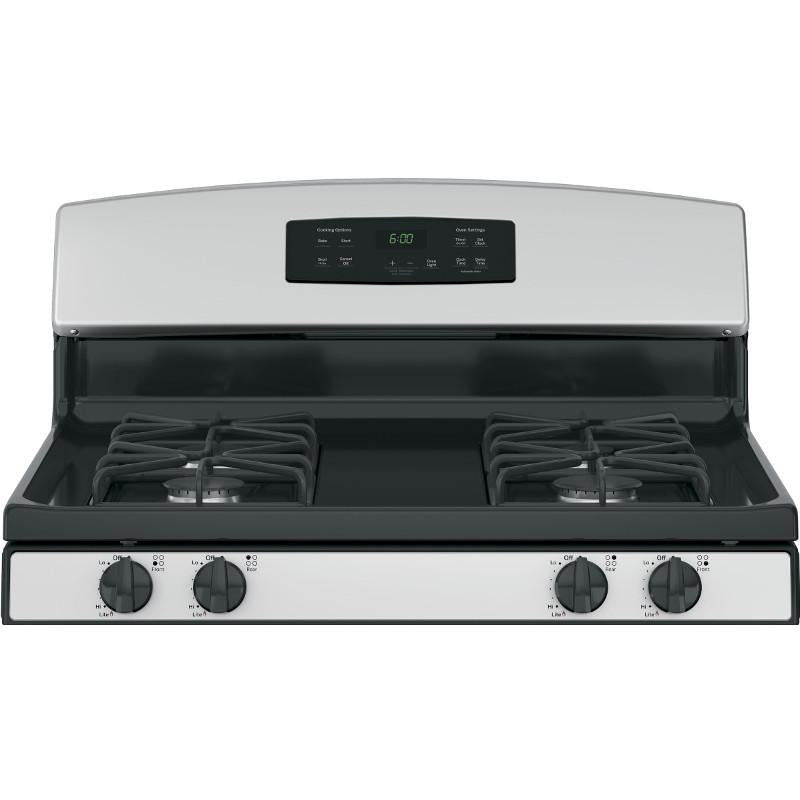

ONE-PIECE UPSWEPT COOKTOP
The CleanDesign™ upswept cooktop eliminates crevices so dirt has nowhere to hide. Cleaning is fast and easy.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop

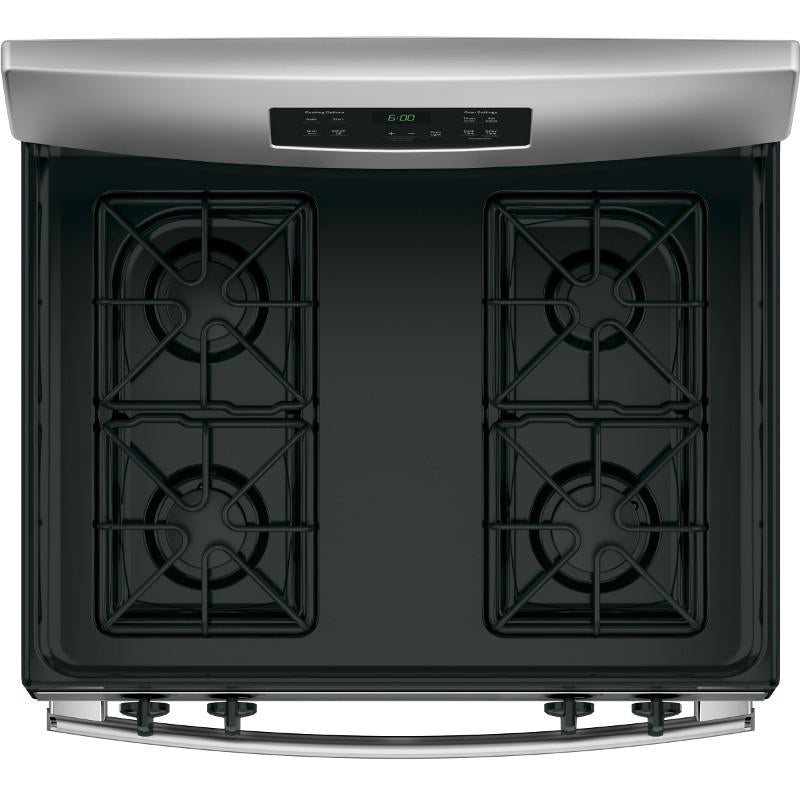

Burners/Elements
4
Burners/Elements Output
• Left Front: 9,500 BTU
• Left Rear: 9,500 BTU
• Right Front: 13,000 BTU
• Right Rear: 5,000 BTU Precise Simmer
• Left Rear: 9,500 BTU
• Right Front: 13,000 BTU
• Right Rear: 5,000 BTU Precise Simmer
Burners
Sealed

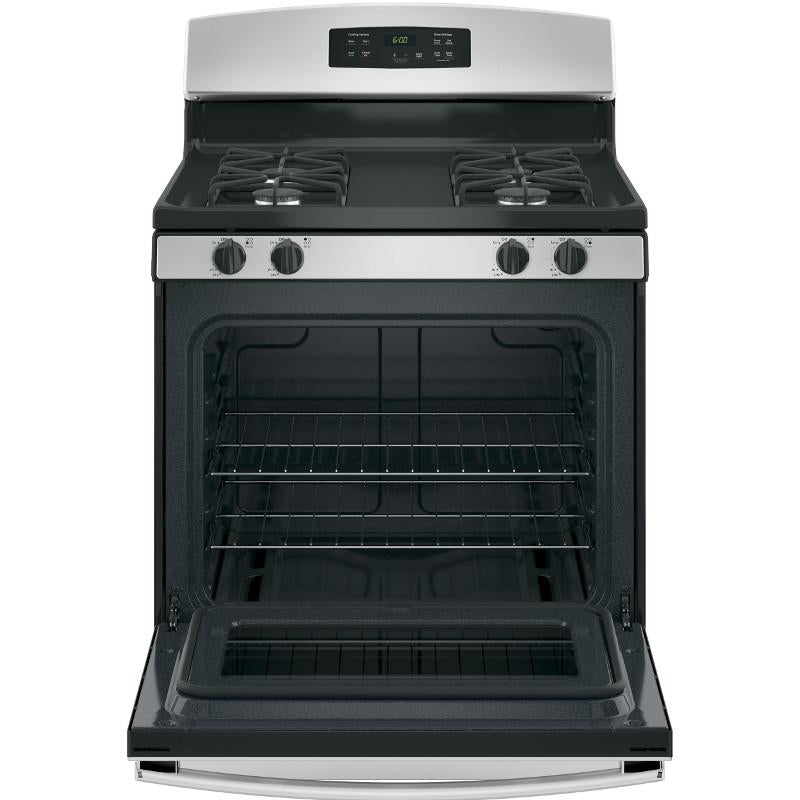

Oven
Capacity (cu. ft.)
4.8
Number of Ovens
Single
Programs
• Audible Preheat Signal
• Auto Oven Shut-Off
• Electronic Clock & Kitchen Timer
• Delay Bake Option
• Auto Oven Shut-Off
• Electronic Clock & Kitchen Timer
• Delay Bake Option
Features
Technologies
Certified Sabbath Mode
Control Lock
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Additional Information
• Black matte steel grates
• Standard Clean
• Electronic ignition system
• Black one-piece upswept
• Porcelain-Enamel cooktop surface
• Audible preheat signal
• Auto oven shut-off
• Hi/Low broil
• 2 flat nickel racks
• Gloss black control knobs
• Precise Simmer burner
• Standard Clean
• Electronic ignition system
• Black one-piece upswept
• Porcelain-Enamel cooktop surface
• Audible preheat signal
• Auto oven shut-off
• Hi/Low broil
• 2 flat nickel racks
• Gloss black control knobs
• Precise Simmer burner
Drawer Features
Baking
No
Broiler
Yes
Storage
No
Warming
No
Electrical Information
Information
• 120 V
• 15 A
• 60 Hz
• 15 A
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
46.25 inch(es) / 117.48 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Height to Cooking Surface (in.) 36 - 36 1/4
• Depth with Door Open 46 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 18.5 x 19
• Depth with Door Open 46 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 18.5 x 19
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
172 lb(s) / 78.02 kg
Warranty
Warranty
1 year on parts and labour
UPC
UPC#
084691817994
