Features
SELF-CLEAN OVEN
A GE invention, the Self-Clean feature uses concentrated heat to remove baked-on splatters, eliminating the need for scrubbing or use of harsh chemicals.
SENSI-TEMP TECHNOLOGY
Enjoy the same cooking power as a traditional coil.
Additional Features
REMOVABLE FULL-WIDTH STORAGE DRAWER
Store cookware or kitchen accessories
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Auto Self Clean
• Self-Clean Cool Down Time Display
• Self-Cleaning Cycling Light
• Self-Clean Cool Down Time Display
• Self-Cleaning Cycling Light

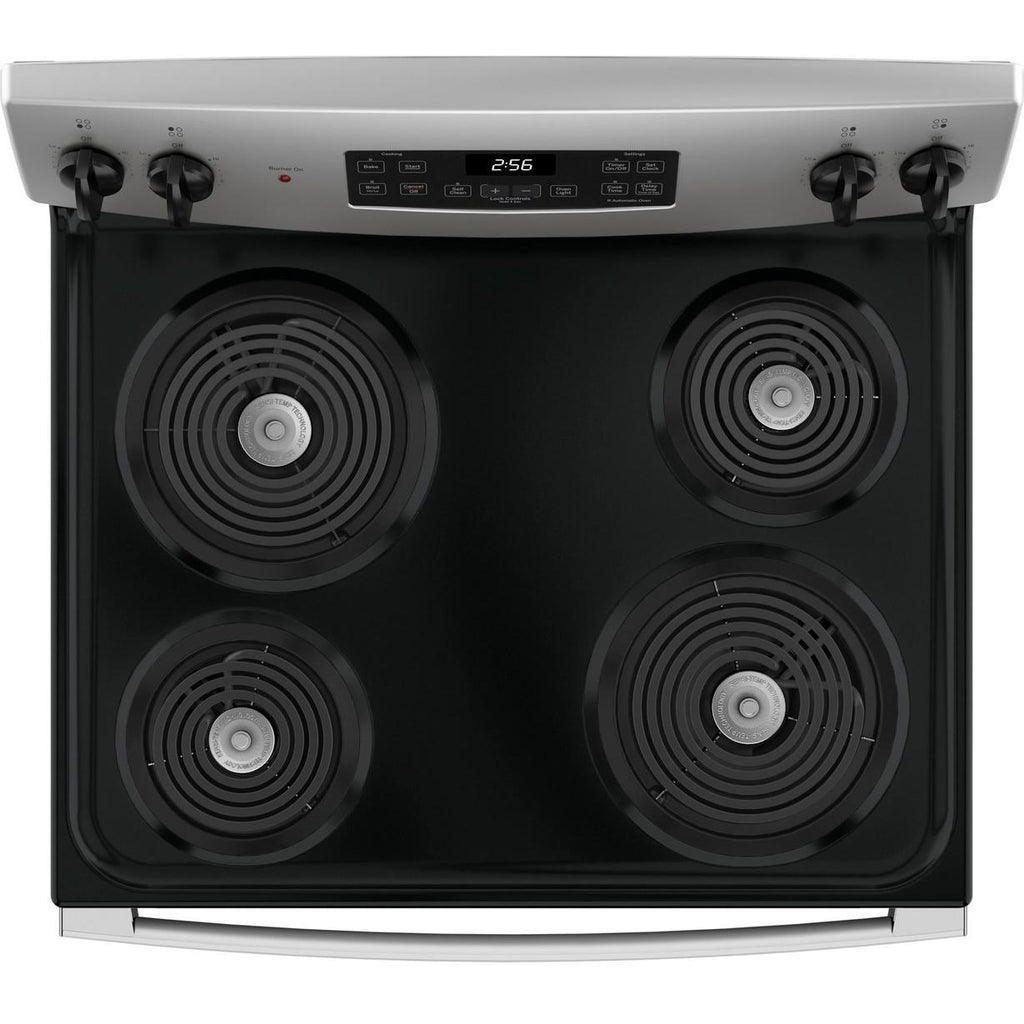

Cooktop
Burners/Elements
4
Burners/Elements Output
• Left front: 1250W
• Left rear: 2400W
• Right front: 2400W
• Right rear: 1250W
• Left rear: 2400W
• Right front: 2400W
• Right rear: 1250W
Burner/Element Size
• Left front: 6"
• Left rear: 8"
• Right front: 8"
• Right rear: 6"
• Left rear: 8"
• Right front: 8"
• Right rear: 6"
Burners
Sealed
Elements
Coil
Oven
Capacity (cu. ft.)
5.0 cu ft
Number of Ovens
Single
Programs
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Control Lock Capability
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Electronic Clock & Kitchen Timer
• Hi / Low Broil
• Oven "ON" Light
• 4-Pass Bake Element
• 4-Pass Broil Element
• Auto Oven Shut-Off with Override
• Control Lock Capability
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Electronic Clock & Kitchen Timer
• Hi / Low Broil
• Oven "ON" Light
• 4-Pass Bake Element
• 4-Pass Broil Element
Features
Technologies
Sensi-temp technology
Control Lock
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Oven Interior: 1 Incandescent Light
• Control knobs: Glossy black
• Handle: Designer Style Stainless Steel
• Oven Door Features: Big View Oven Window Glass Door
• Textured Steel Side Panels
• Control knobs: Glossy black
• Handle: Designer Style Stainless Steel
• Oven Door Features: Big View Oven Window Glass Door
• Textured Steel Side Panels
Drawer Features
Storage
Yes
Electrical Information
Information
• Amp Rating at 208V: 40
• Amp Rating at 240V: 40
• Bake Wattage: 2585W
• Broiler Wattage: 3410W
• KW Rating at 208V: 8.8
• KW Rating at 240V: 11.7
• Amp Rating at 240V: 40
• Bake Wattage: 2585W
• Broiler Wattage: 3410W
• KW Rating at 208V: 8.8
• KW Rating at 240V: 11.7
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47 inch(es) / 119.38 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
150 lb(s) / 68.04 kg
Additional Dimensions
• Depth with Door Open: 46.25"
• Oven Interior Dimensions (W x H x D) (in.): 23-3/4" x 19" x 18-1/2"
• Cabinet Width: 30.0"
• Height to Cooking Surface (in.): 36" - 36 1/2"
• Oven Interior Dimensions (W x H x D) (in.): 23-3/4" x 19" x 18-1/2"
• Cabinet Width: 30.0"
• Height to Cooking Surface (in.): 36" - 36 1/2"
Shipping Dimensions
Width
32.5 inch(es) / 82.55 cm
Height
49.5 inch(es) / 125.73 cm
Depth
30.2 inch(es) / 76.71 cm
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
• Parts warranty: Limited 1-year entire appliance
• Labor warranty: Limited 1-year entire appliance
• Warranty Notes: See written warranty for full details
• Labor warranty: Limited 1-year entire appliance
• Warranty Notes: See written warranty for full details
UPC
UPC#
084691906681
