Features
DRY BOOST™
Dry Boost™ Technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry.

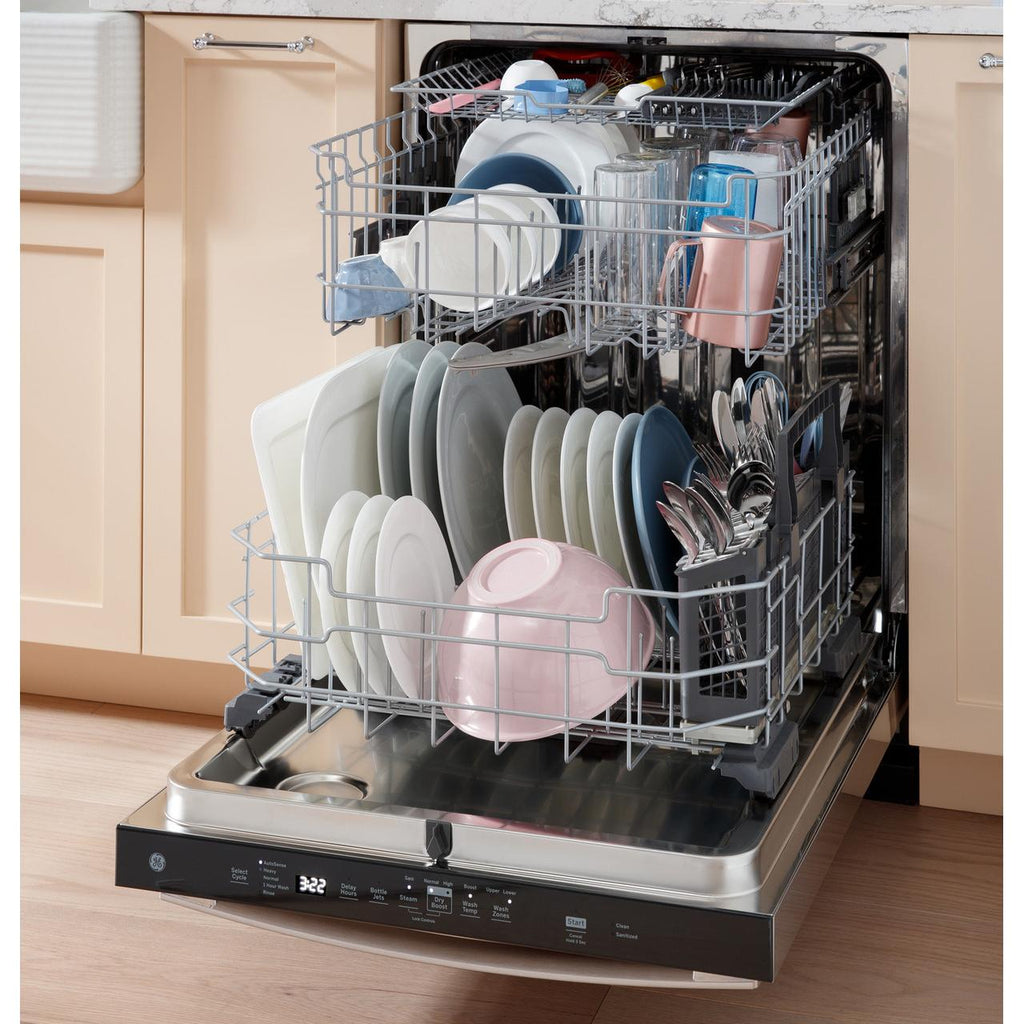

THIRD RACK
The versatile third rack was redesigned to load more than just silverware with additional space for unique items.
4 BOTTLE WASH JETS
Ensure a deep clean for tall items, narrow glasses, jars and more thanks to this dishwasher with bottle jets. 4 powerful jets direct water and detergent inside to effectively wash hard-to-reach areas.
ADJUSTABLE UPPER RACK
Lift or lower the adjustable top rack of the dishwasher to accommodate bottles, large platters, or any items as tall as 10.5" thanks to flexible loading capabilities.
STEAM + SANI
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes.
HIGH WASH PERFORMANCE
Get a complete wash with no pre-rinse, thanks to a variety of powerful wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time.
ACTIVE FLOOD PROTECT
An internal sensor prevents the dishwasher from overflowing, so you have peace of mind with every cycle.
RELIABLE PERFORMANCE
Enjoy a trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.
1-HOUR WASH CYCLE
Unload spotless plates, glasses, pots, and pans without waiting hours for the dishwasher to finish with this one-hour dishwasher cycle.
AUTOSENSE WASH CYCLE
This energy-saving dishwasher has an AutoSense Cycle that detects soil level and amount of dishes before automatically adjusting the wash setting for the ultimate clean.
WASH ZONES
Wash a true half-load in the upper or lower rack whenever you need to thanks to this dishwasher with Wash Zones. The feature works in combination with most cycles, saving you time and conserving energy.
PIRANHA™ HARD FOOD DISPOSER
The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged.
EXTRA LARGE CAPACITY FOR 16 PLACE SETTINGS
This extra-large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings.
SMOOTH-GLIDE UPPER RACK
This dishwasher with a smooth-glide rack makes loading and unloading smooth and simple. It easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
45 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• AutoSense
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Rinse
• Heavy Wash
• Normal Wash
• 1 Hour Wash
• Rinse
Options
• Delay Start 1-12 Hr.
• Child Lock
• Start/Cancel
• Bottle Jets
• Steam + Sani (Certified to NSF Standard 184)
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
• Sabbath Mode
• Child Lock
• Start/Cancel
• Bottle Jets
• Steam + Sani (Certified to NSF Standard 184)
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
• Sabbath Mode
Features
Technologies
• Dry Boost™
• Piranha™ Hard Food Disposer with removable filter (100% water filtration)
• Piranha™ Hard Food Disposer with removable filter (100% water filtration)
Delay Start Information
1-12 hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Control Panel: Color Matched
• Door Appearance: Full-length door
• Door Style: Long Door with Front Controls
• Handle: Recessed
• Handle: Color-Matched
• Door Insulation: Insulation, Mastic
• Motor Type: Variable Speed
• Outer Wrap: Full-wrap Blanket, Bitumen
• Quiet Water Valve
• Sealed Toe Kick
• Tub Collar Trim
• Active Flood Protect

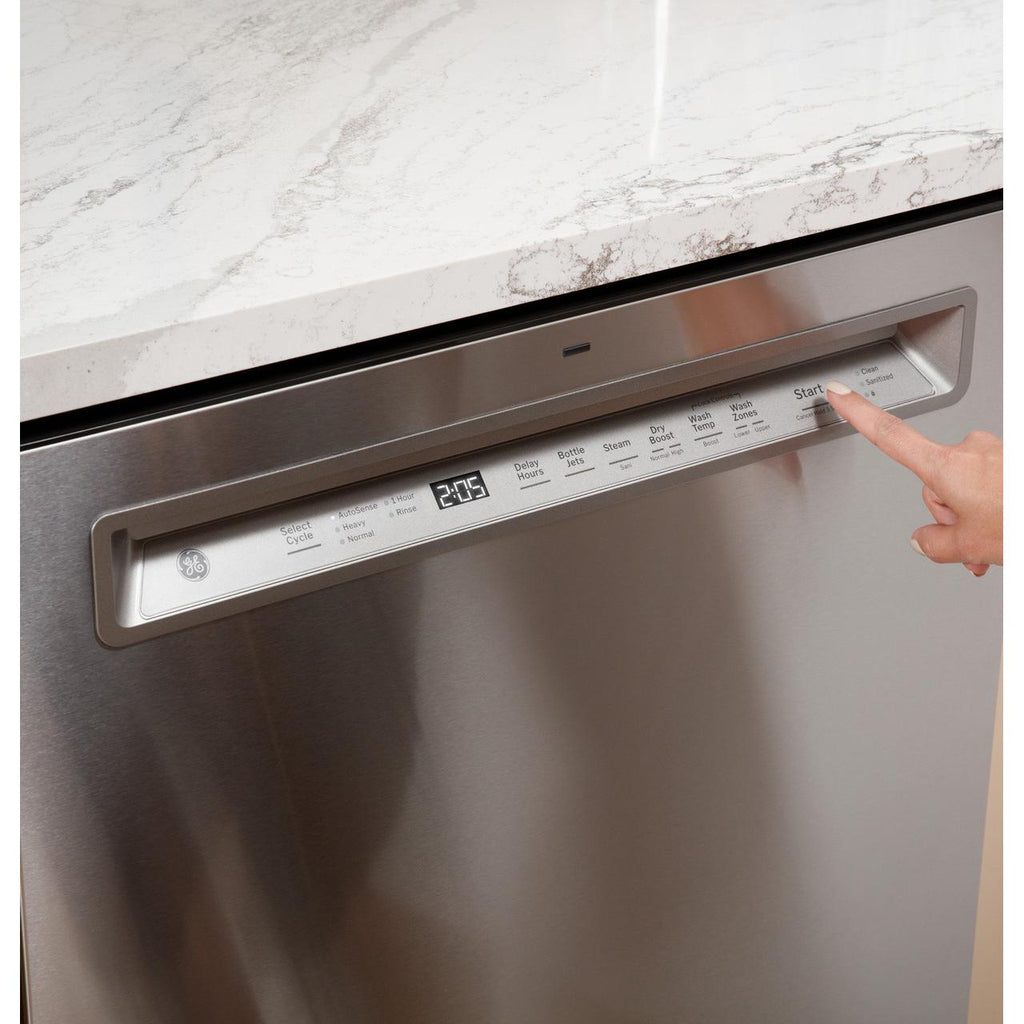

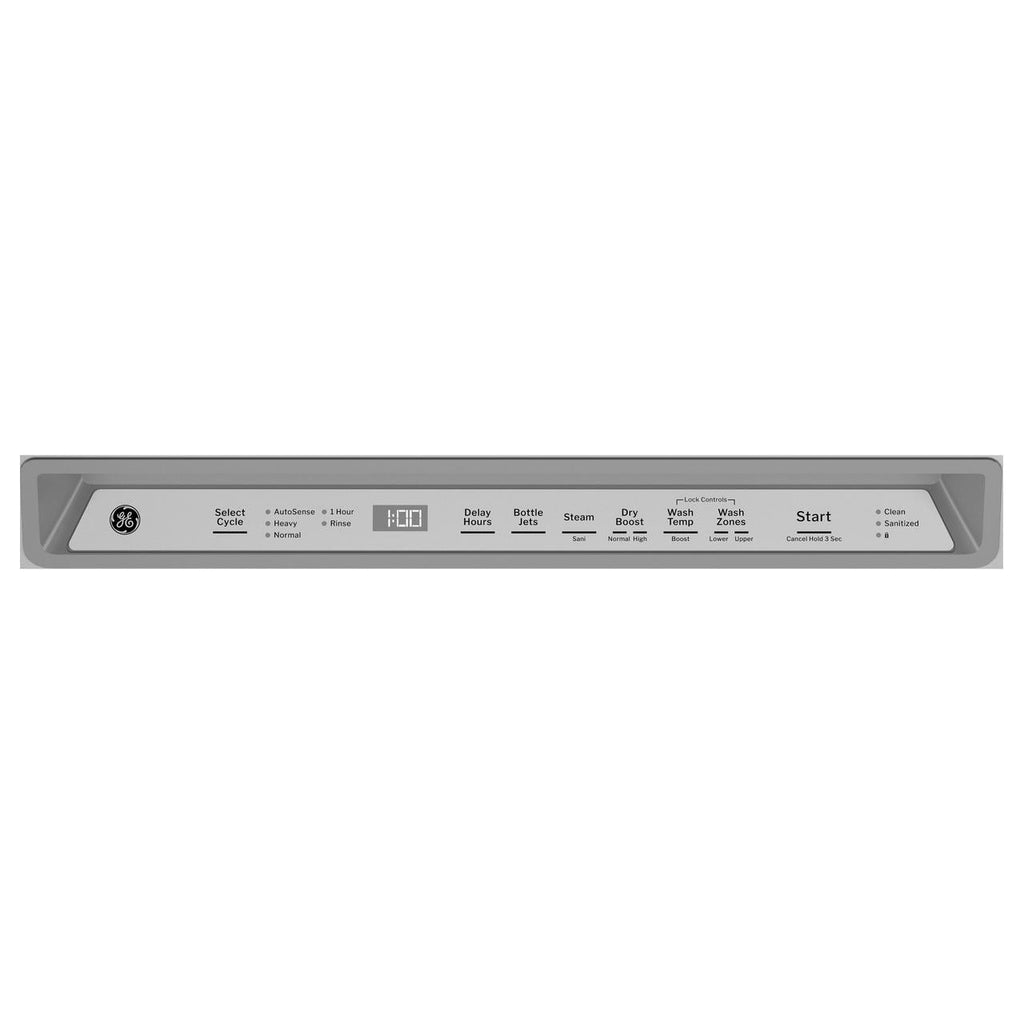

• Control Type: Front Controls, 8 Touchpads, Cap Touch Controls
• 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Control Lock with 1 Light
• Dishwasher Drying: Normal, High, Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Traditional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs

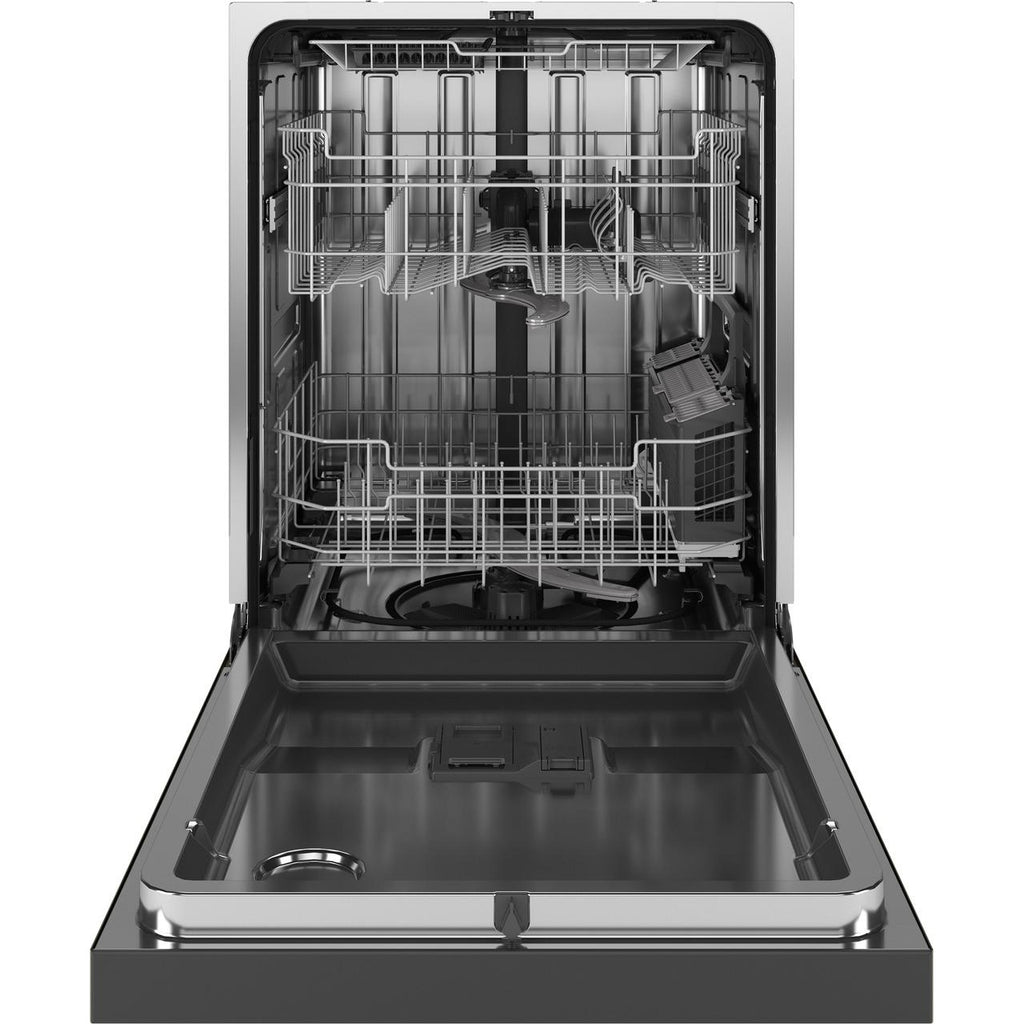

• Upper Rack: Removable, Height Adjustable, Ball-Tip Tines
• Lower Rack: Ball-Tip Tines
• Wash Arms: 3 Wash Levels, Lower, Middle, Upper, Bottle Jets
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control
• Drain Pump
• Automatic HotStart
• Door Appearance: Full-length door
• Door Style: Long Door with Front Controls
• Handle: Recessed
• Handle: Color-Matched
• Door Insulation: Insulation, Mastic
• Motor Type: Variable Speed
• Outer Wrap: Full-wrap Blanket, Bitumen
• Quiet Water Valve
• Sealed Toe Kick
• Tub Collar Trim
• Active Flood Protect
• Control Type: Front Controls, 8 Touchpads, Cap Touch Controls
• 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Control Lock with 1 Light
• Dishwasher Drying: Normal, High, Off
• Dispenser: Rinse Aid with Indicator and Adjustment
• Exterior Style: Traditional
• Latch: Pull with Handle
• Leveling System: 4 Leveling Legs
• Upper Rack: Removable, Height Adjustable, Ball-Tip Tines
• Lower Rack: Ball-Tip Tines
• Wash Arms: 3 Wash Levels, Lower, Middle, Upper, Bottle Jets
• Variable Speed Dual Pumps and Motors
• Automatic Temperature Control
• Drain Pump
• Automatic HotStart
Electrical Information
Information
• Calrod Heater Watts: 800/500
• 120V
• 60Hz
• 6.6A
• 120V
• 60Hz
• 6.6A
Certifications and Approvals
Information
ENERGY STAR® Qualified
Accessories
Included
• Junction Box Cover and #10 Hex-Head Junction Box Screw 3/8" long
• Drain Hose (approximately 58" long)
• Hose Clamp
• Drain Hose Hanger
• Tub Trim Pieces
• Mounting Brackets (for wood countertops or side cabinets)
• #8-18 x 5/8" Phillips Special Head Screws (to secure dishwasher to underside of countertop or to side cabinets)
• Handle and 1/8" Allen wrench
• Insulation Pieces
• Toekick (pre-installed on some models)
• Plug Buttons
• Bottle Jets clips
• Literature
• Drain Hose (approximately 58" long)
• Hose Clamp
• Drain Hose Hanger
• Tub Trim Pieces
• Mounting Brackets (for wood countertops or side cabinets)
• #8-18 x 5/8" Phillips Special Head Screws (to secure dishwasher to underside of countertop or to side cabinets)
• Handle and 1/8" Allen wrench
• Insulation Pieces
• Toekick (pre-installed on some models)
• Plug Buttons
• Bottle Jets clips
• Literature
Optional
• Optional 12' Drain Hose Kit: WD24X10065
• Optional WiFi Connect: Requires part no. PBX23W00Y0
• Optional cord kit: GPFCORD - WX09X70910, WX09X70911
• Optional WiFi Connect: Requires part no. PBX23W00Y0
• Optional cord kit: GPFCORD - WX09X70910, WX09X70911
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
99.01 lb(s) / 44.91 kg
Additional Dimensions
• Height w/ Legs Retracted - Minimum Height: 33 3/8"
• Height w/ Legs Extended - Maximum Height: 34 5/8"
• Overall Depth: 24"
• Overall Height: 34"
• Height w/ Legs Extended - Maximum Height: 34 5/8"
• Overall Depth: 24"
• Overall Height: 34"
Warranty
Warranty
• Limited 1-year entire appliance (parts and labor)
• See written warranty for full details
• See written warranty for full details
