Features
PIRANHA™ HARD FOOD DISPOSER WITH REMOVABLE FILTER
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms.
AUTO SENSE CYCLE
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.
SANITIZE OPTION (NSF CERTIFIED)
High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes.
ENERGY STAR CERTIFIED
Certified to exceed Energy Star® guidelines for energy efficiency
CONNECTED CAPABILITIES
Amazon Alexa, IFTTT, Google Assistant.
Additional Features
ADA COMPLIANT
Designed to be accessible and easy to open
3 LEVEL WASH SYSTEM
Expect exceptionally clean table-ready dishes with powerful wash arms.
WIFI CONNECT
Connect to WiFi* for real-time feedback, optimized performance, alerts and more.
*Requires a U+ Connect Plus WiFi module, sold separately.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
12
Tub Material
Stainless Steel
Silence Rating
51 dB
Cycle Information
Number of Cycles
3
Wash Cycles
• Auto Sense
• Heavy Wash
• Light Wash
• Heavy Wash
• Light Wash
Options
• Child Lock
• Delay Start 1-12 Hr.
• Sani (NSF Certified)
• Start/Reset
• TempBoost
• Delay Start 1-12 Hr.
• Sani (NSF Certified)
• Start/Reset
• TempBoost
Features
Technologies
• Piranha™ Hard Food Disposer
• Flood Control System
• Amazon Alexa
• IFTTT
• The Google Assistant
• Flood Control System
• Amazon Alexa
• IFTTT
• The Google Assistant
Delay Start Information
1-12 Hours
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Automatic HotStart
• Automatic Temperature Control
• Dual Pump

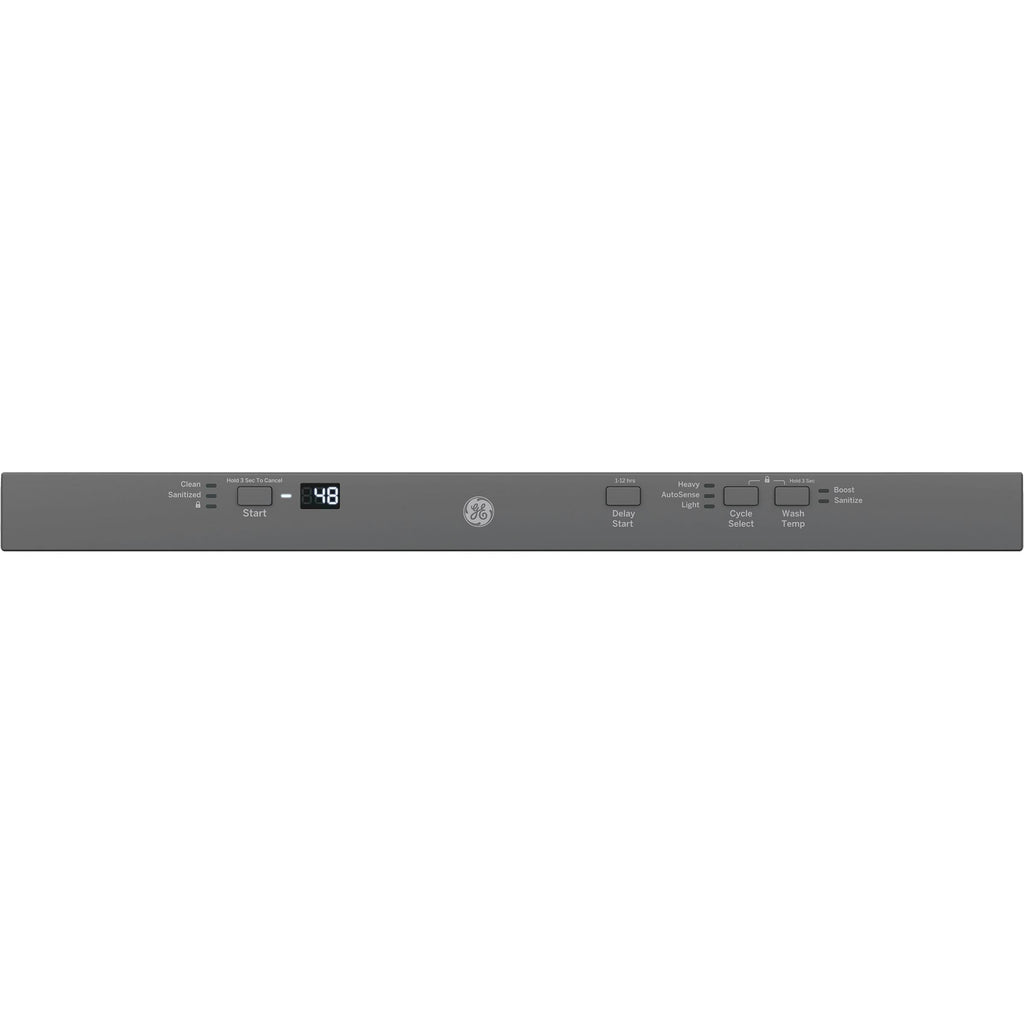

• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Audible End-of-Cycle Signal
• Cycle Countdown
• Last Cycle Memory
• Start/Reset Pad
• Clean Sensor
• 2 with Upper Nozzle Wash Arms
• 3-Stage Manual Clean Filtration
• Rinse Aid with Indicator and Adjustment
• 1 Plastic Utility Shelf - Upper
• 2 Piece Silverware Basket with Cell Covers
• Ball-Tipped Tines
• Stem Safe
• Adjustable Nylon Upper Rack
• Automatic Temperature Control
• Dual Pump
• 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators
• Audible End-of-Cycle Signal
• Cycle Countdown
• Last Cycle Memory
• Start/Reset Pad
• Clean Sensor
• 2 with Upper Nozzle Wash Arms
• 3-Stage Manual Clean Filtration
• Rinse Aid with Indicator and Adjustment
• 1 Plastic Utility Shelf - Upper
• 2 Piece Silverware Basket with Cell Covers
• Ball-Tipped Tines
• Stem Safe
• Adjustable Nylon Upper Rack
Electrical Information
Information
• 120 V
• 60 Hz
• 8.9 A
• 60 Hz
• 8.9 A
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
ADA Compliant
Yes
Accessories
Optional
WiFi Connect: (Requires part no. PBX23W00Y0)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
32.25 inch(es) / 81.92 cm
Depth (Without Handle)
23.5 inch(es) / 59.69 cm
Depth (Including Handle)
23.5 inch(es) / 59.69 cm
Weight
81 lb(s) / 36.74 kg
Additional Dimensions
Height with Legs Extended Maximum Height: 34 5/8"
Shipping Dimensions
Width
26.5 inch(es) / 67.31 cm
Height
36 inch(es) / 91.44 cm
Depth
25.3 inch(es) / 64.26 cm
Weight
95.99 lb(s) / 43.54 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691844648
