Features
STEAM + SANI
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes.
AUTO SENSE CYCLE
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.
ACTIVE FLOOD PROTECT
An internal sensor prevents the dishwasher from overflowing, so you have peace of mind with every cycle.
RELIABLE PERFORMANCE
Enjoy a trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.
3RD RACK
Easily clean an entire flatware collection, knives and small utensils with an additional rack across the top of the dishwasher.
Additional Features
HEAVY-DUTY PLASTIC INTERIOR
The heavy-duty plastic interior is extremely long-lasting and durable, with an attractive American Gray finish.

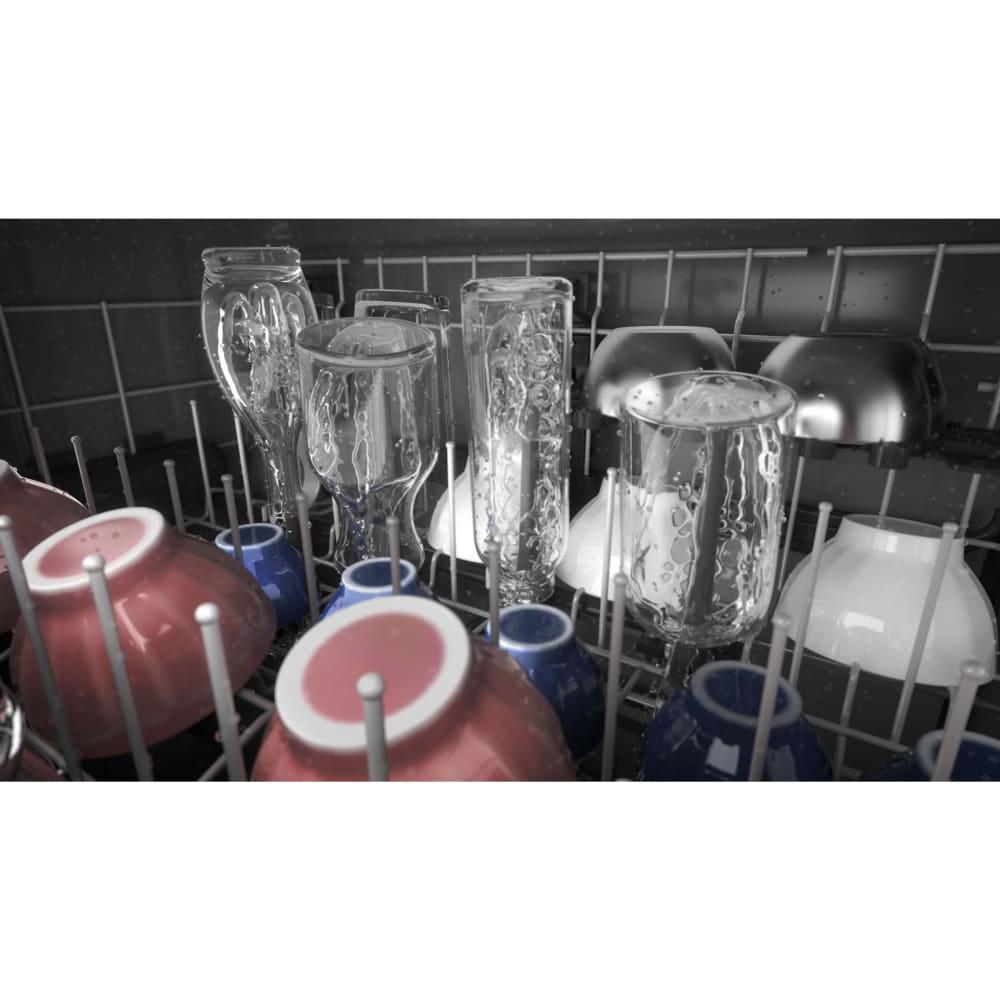

BOTTLE JETS
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
Specifications
General
Series Name
630 Series
Type
Built-In
Color
Slate Grey
Manufacturer Color
Slate
Place Settings
16
Tub Material
Plastic
Silence Rating
50 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• 1 Hour Wash
• Auto Sense
• Heavy Wash
• Normal Wash
• Rince
• Auto Sense
• Heavy Wash
• Normal Wash
• Rince
Options
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Lock Controls
• Sabbath Mode
• Start/Reset
• Steam + Sani (Certified to NSF Standard 184)
• Steam PreWash
• Wash TempBoost
• Bottle Jets
• Zone Upper Only
• Wash Zone Lower Only
• Dry Boost™ (Normal)
• Lock Controls
• Sabbath Mode
• Start/Reset
• Steam + Sani (Certified to NSF Standard 184)
• Steam PreWash
• Wash TempBoost
• Bottle Jets
• Zone Upper Only
• Wash Zone Lower Only
Features
Technologies
• 100% Filtration with Piranha Hard Food Disposer and Removable Filter
• Dry Boost™
• Dry Boost™
Delay Start Information
1-12 Hr. with Countdown
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Wash System: 3-Level
• Audible End-of-Cycle Signal
• Last Cycle Memory

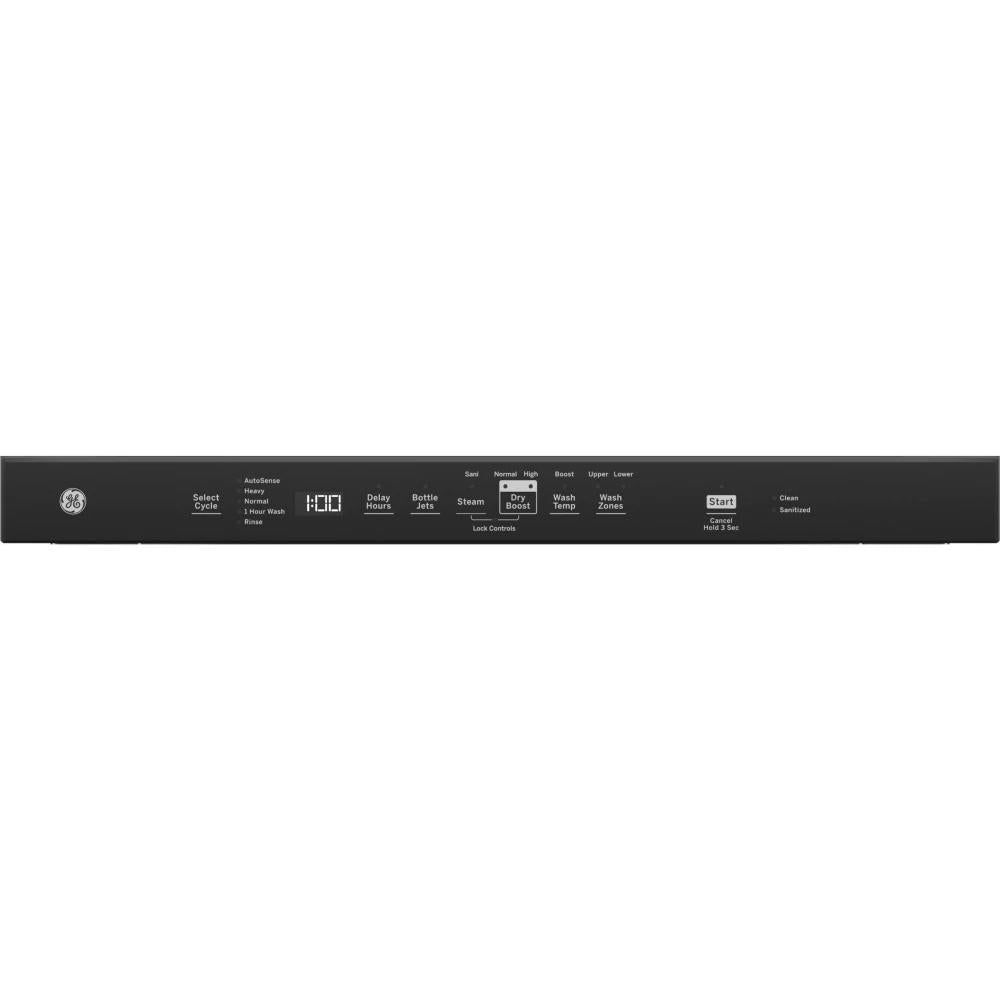

• 8 Touchpads
• Tall Tub
• Dispenser: Detergent, Rinse Aid
• 1 Piece Silverware Basket with 3 Cell Covers
Cutlery Tray: One piece removable 3rd rack • Automatic HotStart
• Automatic Temperature Control
• Fill Level Pressure Sensor
• Active Flood Protect
• Calrod Heater
• 4 Leveling Legs
• Audible End-of-Cycle Signal
• Last Cycle Memory
• 8 Touchpads
• Tall Tub
• Dispenser: Detergent, Rinse Aid
• 1 Piece Silverware Basket with 3 Cell Covers
Cutlery Tray: One piece removable 3rd rack • Automatic HotStart
• Automatic Temperature Control
• Fill Level Pressure Sensor
• Active Flood Protect
• Calrod Heater
• 4 Leveling Legs
Electrical Information
Information
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Calrod Heater Watts: 800/500
• Calrod Heater Watts: 800/500
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Accessories
Optional
• Cord kit (GPFCORD - WX09X70910, WX09X70911)
• WiFi Connect - Optional (PBX23W00Y0)
• WiFi Connect - Optional (PBX23W00Y0)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
60.01 lb(s) / 27.22 kg
Additional Dimensions
Height with Legs Extended - Maximum Height: 34.625 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.5 inch(es) / 90.17 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
74.01 lb(s) / 33.57 kg
Warranty
Warranty
Limited 1-year on entire appliance on parts and labor
UPC
UPC#
084691863656
