Features
STEAM + SANI
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes.
AUTO SENSE CYCLE
A beam of light measures soil levels and water temperature to adjust to the ideal cycle time.

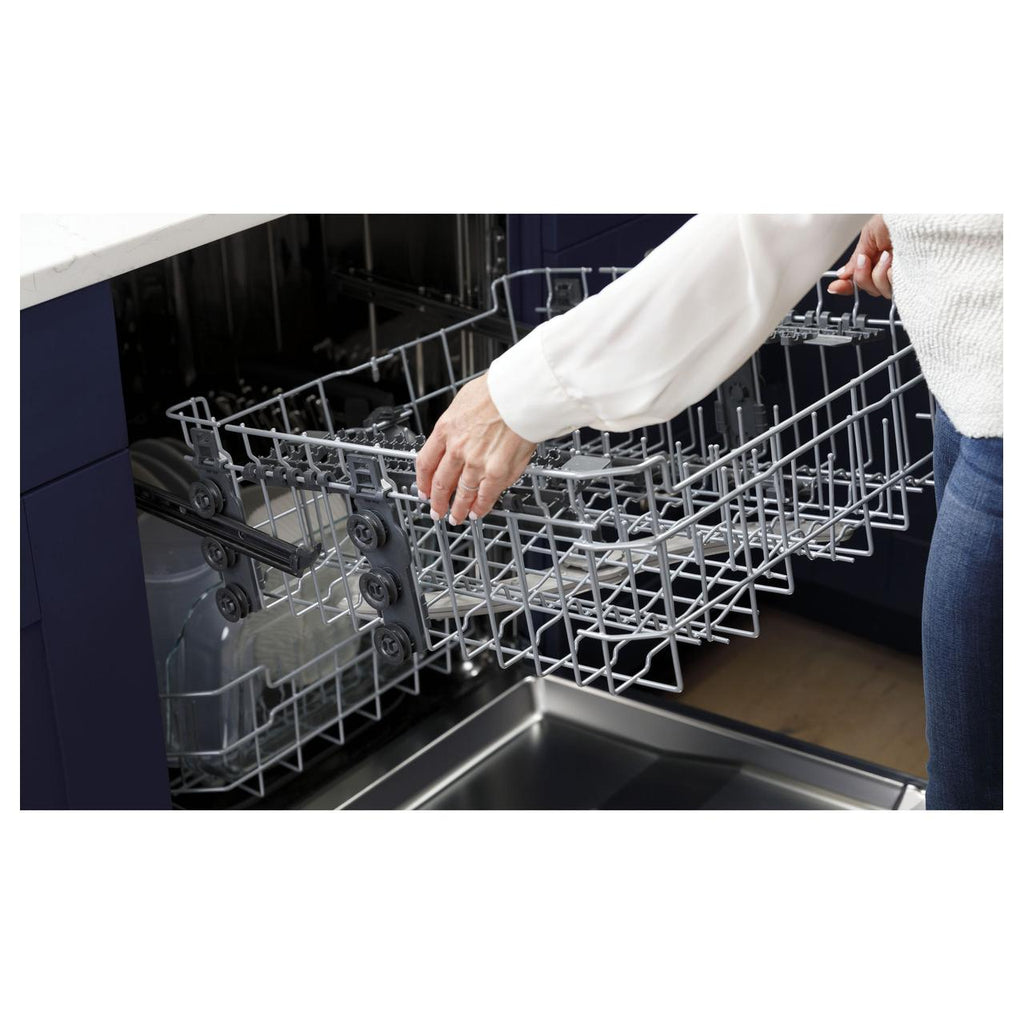

ADJUSTABLE UPPER RACK
Lift or lower the adjustable top rack of the dishwasher to accommodate bottles, large platters, or any items as tall as 10.5" thanks to flexible loading capabilities.
ACTIVE FLOOD PROTECT
An internal sensor prevents the dishwasher from overflowing, so you have peace of mind with every cycle.
RELIABLE PERFORMANCE
Enjoy a trusted performance from a trusted brand with this American-made, dependable dishwasher that provides totally clean and dry dishes with every cycle.
Additional Features
HEAVY-DUTY PLASTIC INTERIOR
The heavy-duty plastic interior is extremely long-lasting and durable, with an attractive American Gray finish.
Specifications
General
Series Name
550 Series
Type
Built-In
Color
White
Manufacturer Color
White
Place Settings
16
Tub Material
Plastic
Silence Rating
52 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• 1 Hour Wash
• Auto Sense
• Heavy Wash
• Normal Wash
• Auto Sense
• Heavy Wash
• Normal Wash
Options
• Dry Boost™ (High)
• Dry Boost™ (Normal)
• Lock Controls
• Sabbath Mode
• Start/Reset
• Steam + Sani (Certified to NSF Standard 184)
• Steam PreWash
• Wash TempBoost
• Dry Boost™ (Normal)
• Lock Controls
• Sabbath Mode
• Start/Reset
• Steam + Sani (Certified to NSF Standard 184)
• Steam PreWash
• Wash TempBoost
Features
Technologies
• 100% Filtration with Piranha Hard Food Disposer and Removable Filter
• Dry Boost™
• Dry Boost™
Delay Start Information
1-12 Hr. with Countdown
Delay Start
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Wash System: 3-Level
• Audible End-of-Cycle Signal
• Last Cycle Memory

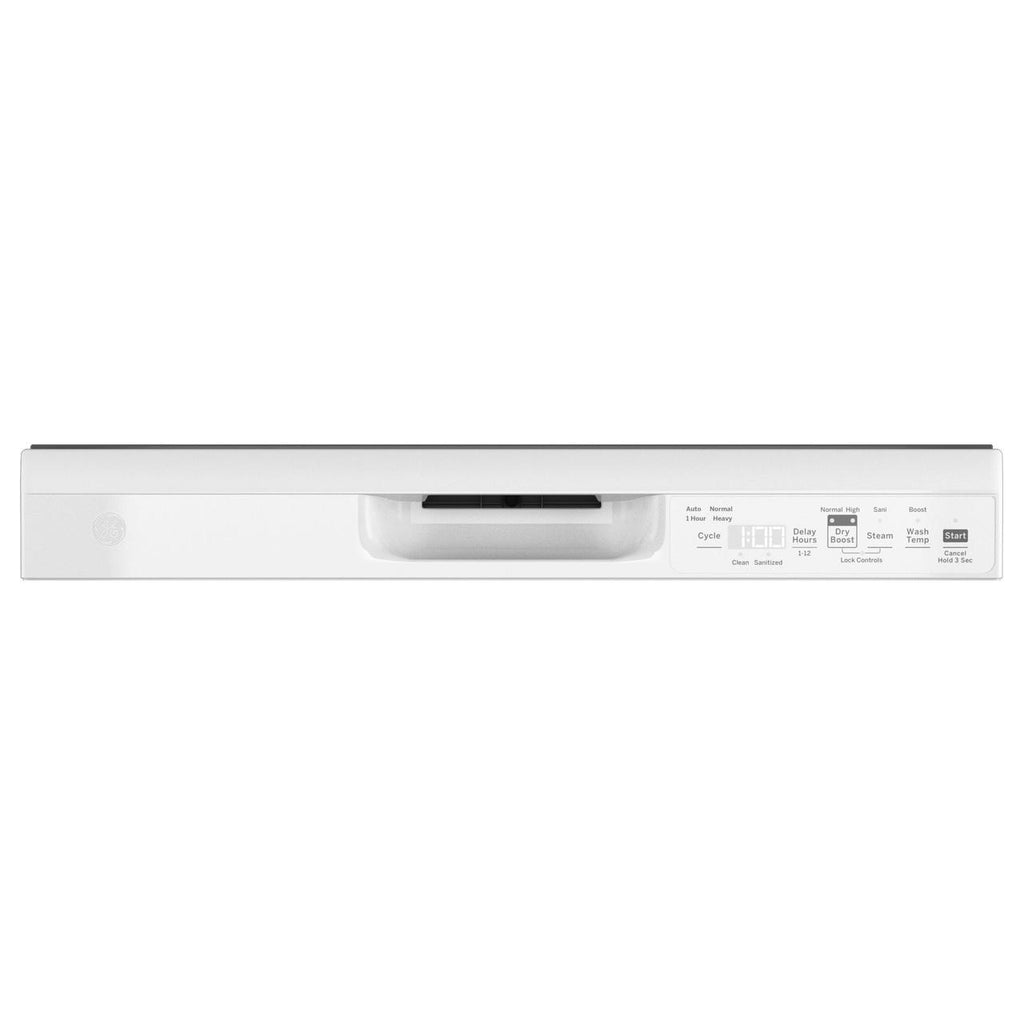

• 6 Touchpads
• Front Controls
• Fully Integrated Inlaid Electronic Buttons
• Tall Tub
• Dispenser: Detergent, Rinse Aid
• Upper Rack: 1 Adjustable/Removable Stem Safe Shelf
• 1 Piece Silverware Basket with 3 Cell Covers
• 1 Utility Shelf with Stem Safe
• Ball-Tipped Tines
• Chop stick slots
• Automatic HotStart
• Automatic Temperature Control
• Fill Level Pressure Sensor
• Active Flood Protect
• Calrod Heater
• 4 Leveling Legs
• Sabbath Mode
• Audible End-of-Cycle Signal
• Last Cycle Memory
• 6 Touchpads
• Front Controls
• Fully Integrated Inlaid Electronic Buttons
• Tall Tub
• Dispenser: Detergent, Rinse Aid
• Upper Rack: 1 Adjustable/Removable Stem Safe Shelf
• 1 Piece Silverware Basket with 3 Cell Covers
• 1 Utility Shelf with Stem Safe
• Ball-Tipped Tines
• Chop stick slots
• Automatic HotStart
• Automatic Temperature Control
• Fill Level Pressure Sensor
• Active Flood Protect
• Calrod Heater
• 4 Leveling Legs
• Sabbath Mode
Electrical Information
Information
• Electrical Requirements: 120V ; 60Hz ; 7.1A
• Calrod Heater Watts: 800/500
• Calrod Heater Watts: 800/500
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Accessories
Optional
• Cord kit (GPFCORD - WX09X70910, WX09X70911)
• 3rd rack (GPF3RACK)
• WiFi Connect - Optional (PBX23W00Y0)
• 3rd rack (GPF3RACK)
• WiFi Connect - Optional (PBX23W00Y0)
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
56.99 lb(s) / 25.85 kg
Additional Dimensions
Height with Legs Extended - Maximum Height: 34.625 in
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.5 inch(es) / 90.17 cm
Depth
26.1 inch(es) / 66.29 cm
Weight
71.01 lb(s) / 32.21 kg
Warranty
Warranty
Limited 1-year on entire appliance on parts and labor
UPC
UPC#
084691863601
