Features
FILTER REMINDER
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

Additional Features
COOLS EXTRA-LARGE ROOMS (18,600/1,000 BTU)
18,600 BTU cooling capacity offers maximum comfort in rooms up to 1,000 square feet.

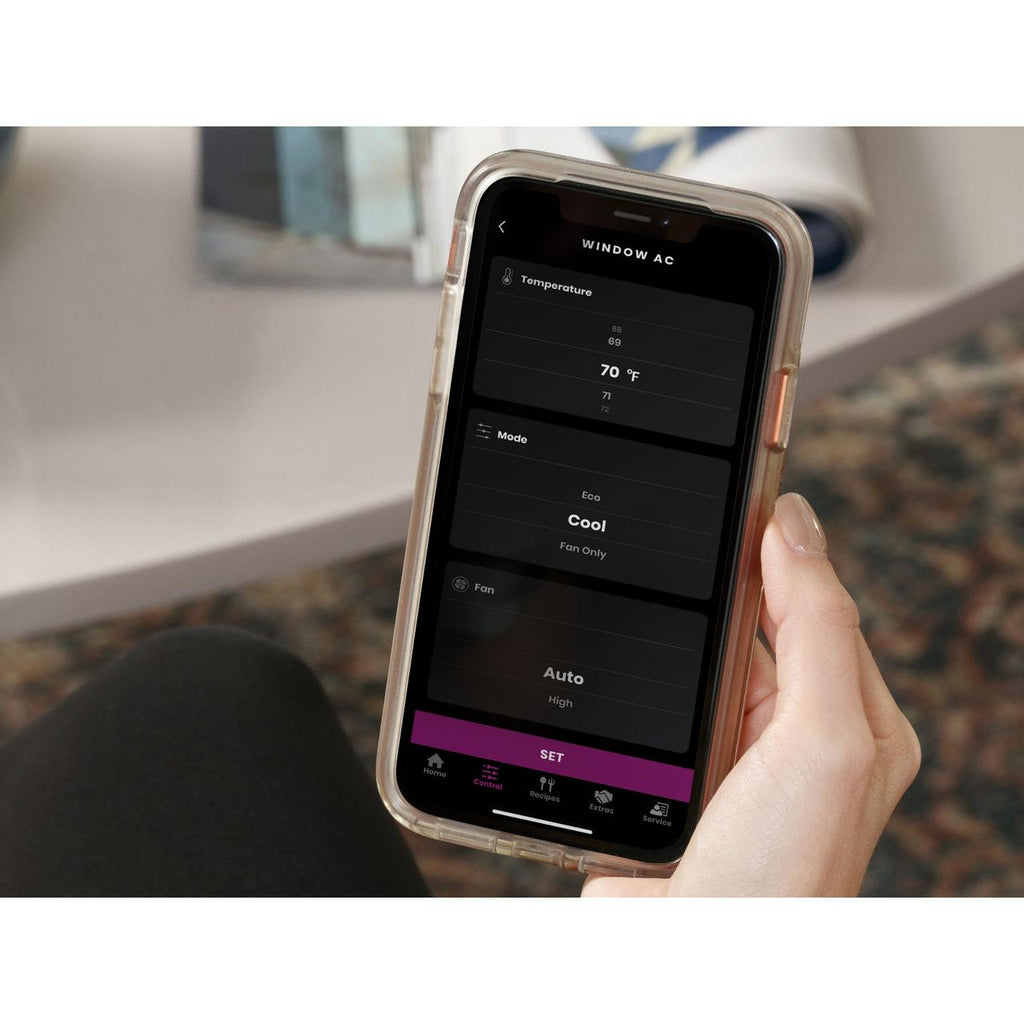

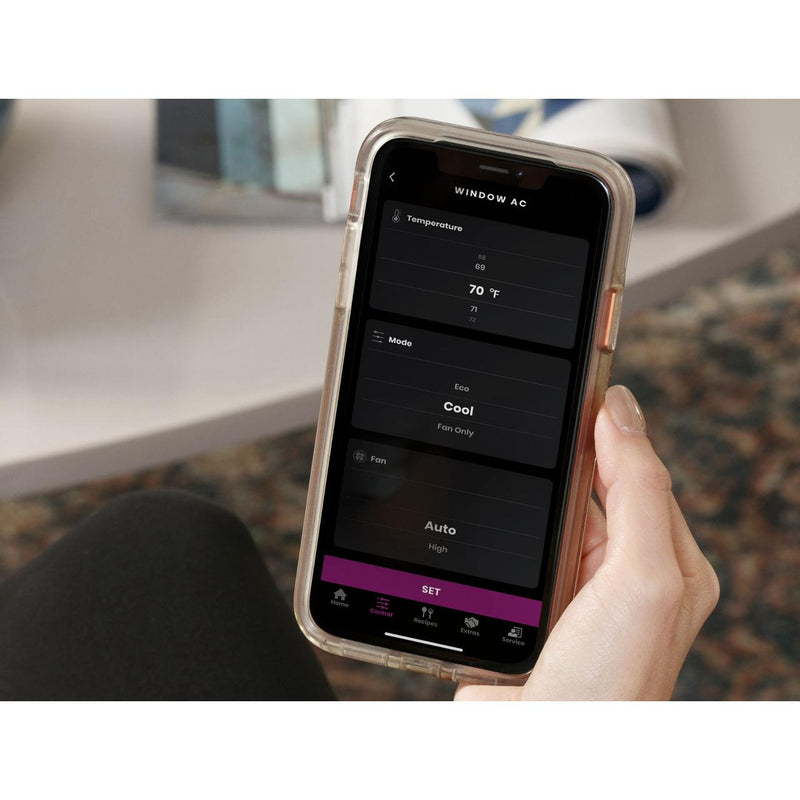

BUILT-IN WI-FI.
Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind.
MAXIMUM COMFORT COOL.
Select from 3 cooling and 3 fan speeds for energy efficient cooling.
VOICE CONTROL
Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant

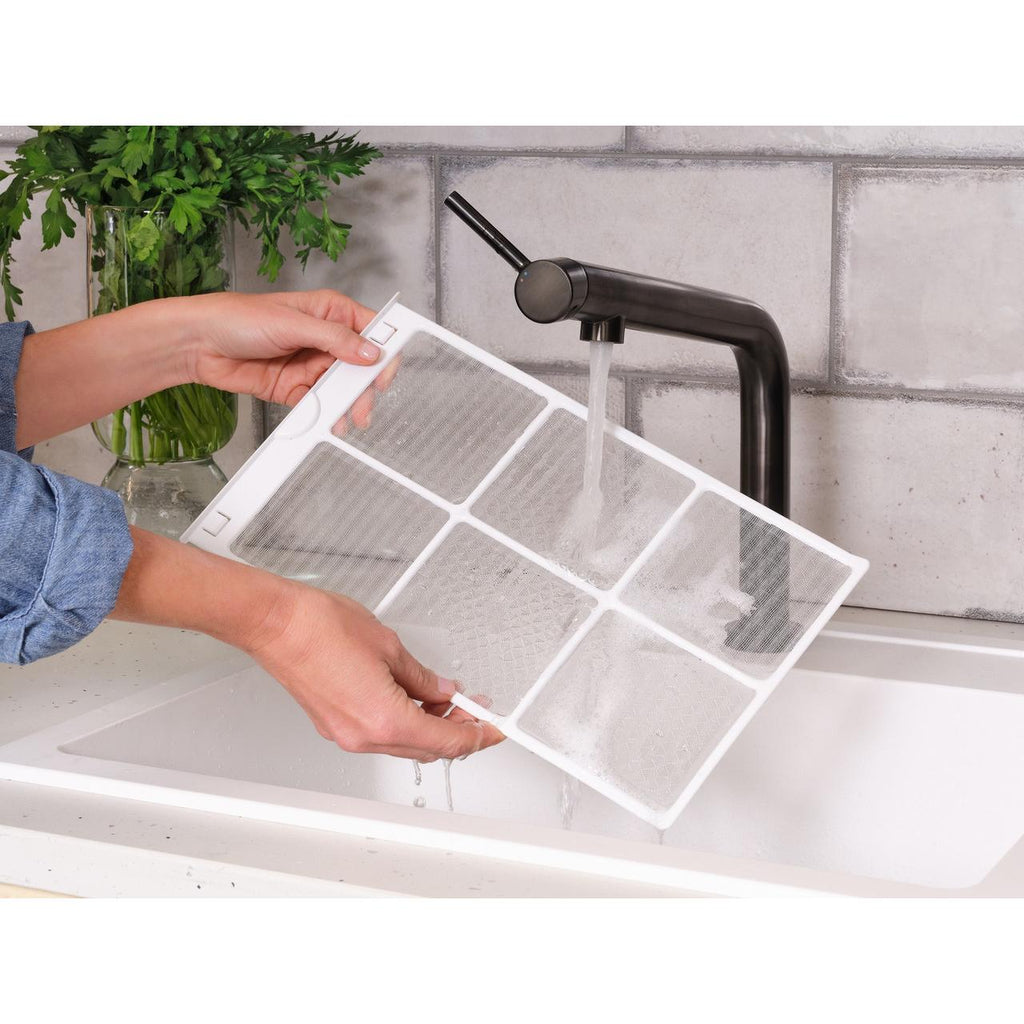

WASHABLE FILTER
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment.
ENERGY REPORTING
Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
GEOLOCATION
Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home.
ECO MODE.
The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs.

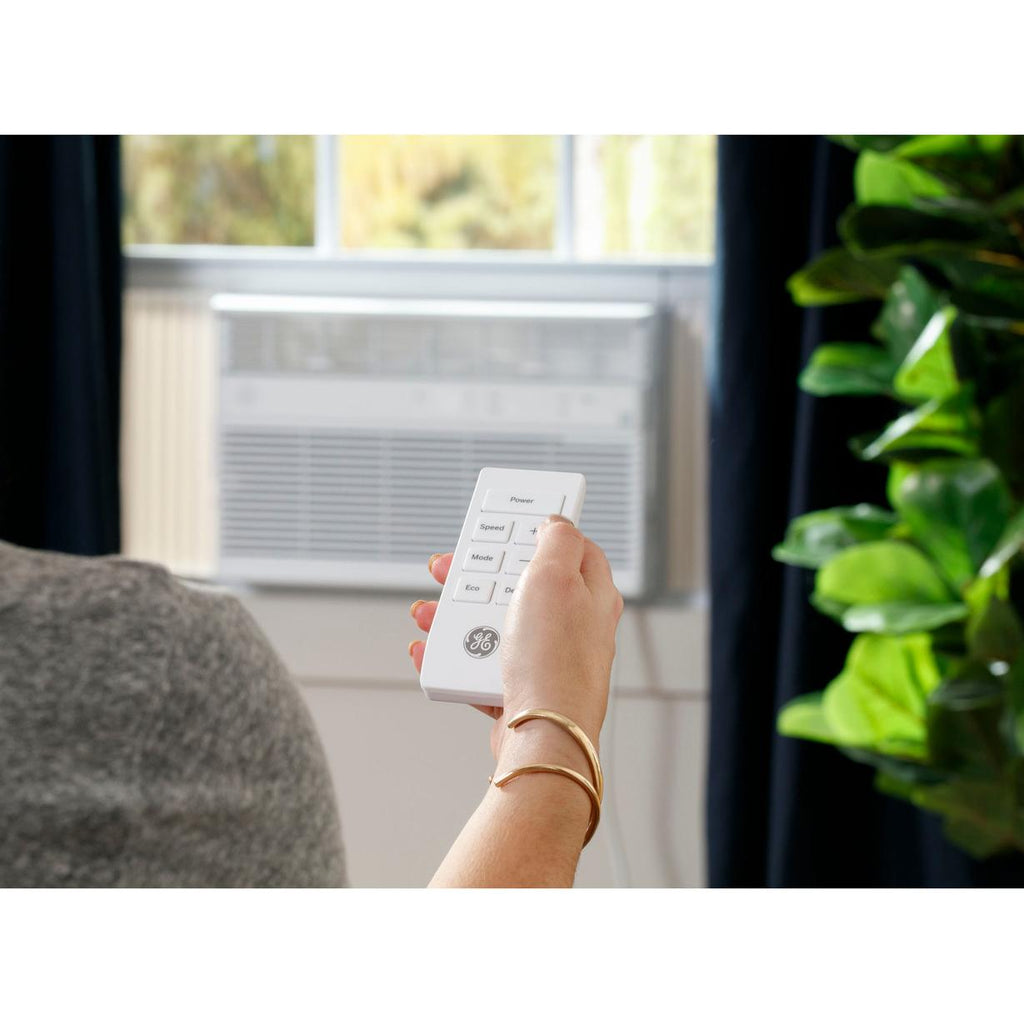

ELECTRONIC THERMOSTAT WITH REMOTE
Digital controls with included remote make it easy to adjust and manage your settings from anywhere in your room.
EASY INSTALLATION (EZ MOUNT)
This AC has a slide-out chassis and installs easily in a double hung window with included EZ Mount installation kit.
LOUVER STYLE
The 4-way adjustable louvers distribute air evenly throughout the room.
Specifications
General
Installation Type
Window
Type
Cooling
Cooling Power
18600 BTU
Air CFM
• Airflow (cfm) Room side (hi/low): 461/380
• Airflow Direction: Top
• 4-Way Adjustable
• Airflow Direction: Top
• 4-Way Adjustable
Temperature Control Range/Area
700-1000
Fan Speed
3 settings
Features
Technologies
• Amazon Alexa
• The Google Assistant
• Wi-Fi Built-in
• The Google Assistant
• Wi-Fi Built-in
Controls
Digital
Wi-Fi
Yes
Remote Control
Yes
Timer Start
Yes
Energy Star Certified
Yes
Additional Information
• EZ Mount Installation
• 24-Hour On/Off Timer
• Chassis Type: Slide-Out
• Digital Time Temp Display
• Filter Type: One Touch Lift-Out
• LCDI / AFCI power cord
• Louver Style: 4-Way Adjustable
• Plug Type: Tandem/NEMA 6-15
• Power Cord Length: 72" Minimum
• Refrigerant Type: R32
• Rotary Compressor
• Top Air Discharge
• Cooling - Rated Cooling Amps AHAM: 7.0/7.5
• Cooling - Watts: 1580/1540
• Sound Level (Low/High): 64/67 dbA
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• 24-Hour On/Off Timer
• Chassis Type: Slide-Out
• Digital Time Temp Display
• Filter Type: One Touch Lift-Out
• LCDI / AFCI power cord
• Louver Style: 4-Way Adjustable
• Plug Type: Tandem/NEMA 6-15
• Power Cord Length: 72" Minimum
• Refrigerant Type: R32
• Rotary Compressor
• Top Air Discharge
• Cooling - Rated Cooling Amps AHAM: 7.0/7.5
• Cooling - Watts: 1580/1540
• Sound Level (Low/High): 64/67 dbA
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
Electrical Information
Voltage
208 V
Dimensions
Width
25.87 inch(es) / 65.72 cm
Height
18.25 inch(es) / 46.36 cm
Depth
26.31 inch(es) / 66.83 cm
Additional Dimensions
• Minimum Window Opening Height (in.): 19-1/8
• Depth to Louvers: 9 in
• Grille Depth: 2 in
• Min./Max. Window Opening Width (in.): 30/42
• Minimum Window Opening Height (in.): 19-1/8
• Depth to Louvers: 9 in
• Grille Depth: 2 in
• Min./Max. Window Opening Width (in.): 30/42
• Minimum Window Opening Height (in.): 19-1/8
Weight
114.6 lb(s) / 51.98 kg
Shipping Dimensions
Width
29.3 inch(es) / 74.42 cm
Height
20.3 inch(es) / 51.56 cm
Depth
30.7 inch(es) / 77.98 cm
Weight
133.2 lb(s) / 60.42 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691892205
