Features
READY-SELECT CONTROLS
Select options or control cooking temperature with their easy-to-use controls.

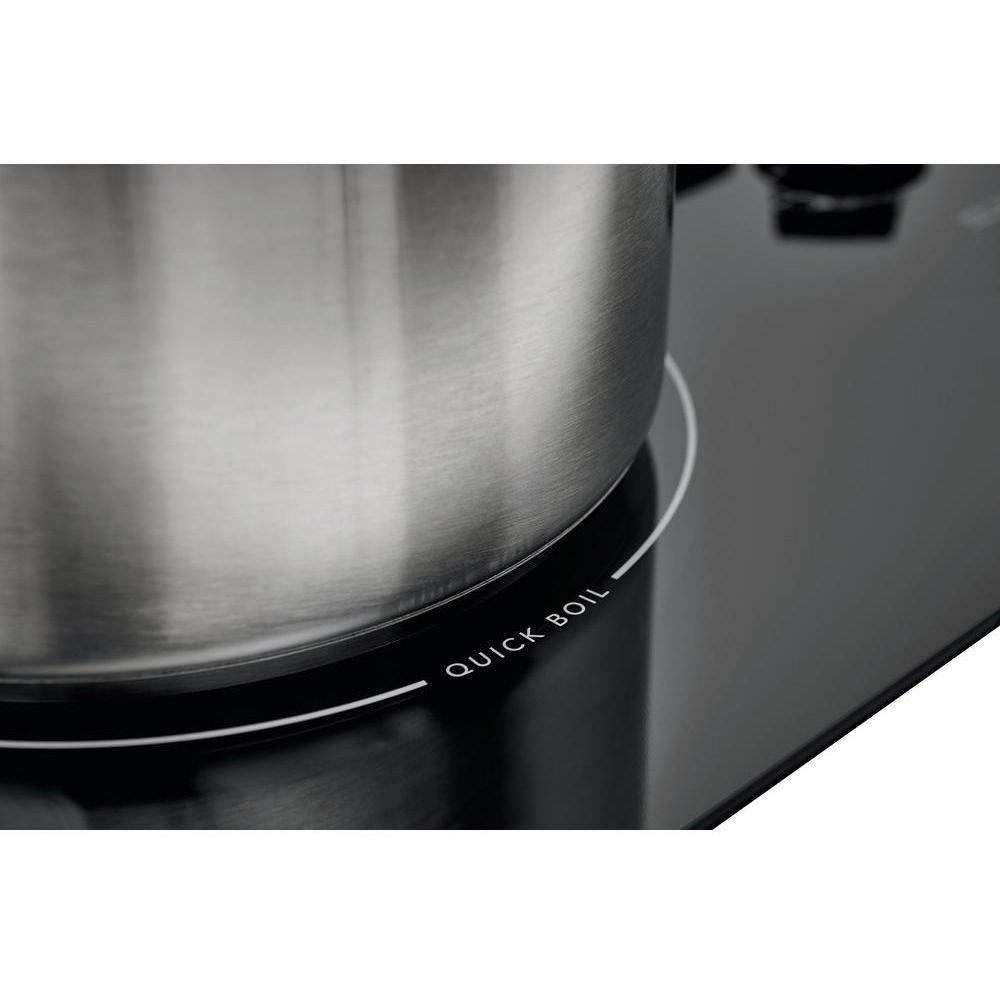

QUICK BOIL ELEMENT 3000W
Get meals on the table faster with our powerful 3,000W Quick Boil element.
SPACEWISE® EXPANDABLE ELEMENT
Flexible element expands to accommodate various sizes of cookware.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element: 1,600 / 3,000 W
• Right Rear Element: 1,200 W
• Left Front Element: 2,500 W
• Left Rear Element: 1,200 W
• Center Rear Element Keep Warm Zone: 100 W
• Right Rear Element: 1,200 W
• Left Front Element: 2,500 W
• Left Rear Element: 1,200 W
• Center Rear Element Keep Warm Zone: 100 W
Burner/Element Size
• Right Front Element: 6" / 9"
• Right Rear Element: 6"
• Left Front Element: 9"
• Left Rear Element: 6"
• Center Rear Element Keep Warm Zone: 6"
• Right Rear Element: 6"
• Left Front Element: 9"
• Left Rear Element: 6"
• Center Rear Element Keep Warm Zone: 6"
Elements
Smoothtop
Surface Features
Ceramic Glass
Features
Technologies
• SpaceWise® Expandable Element
• Ready-Select® Controls
• Ready-Select® Controls
Additional Information
• Hot Surface Indicator
• Quick Boil Element
• Keep Warm Zone
• Quick Boil Element
• Keep Warm Zone
Electrical Information
Information
• 240 V /208 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Dimensions
Class Width
36"
Width
36.75 inch(es) / 93.35 cm
Height
2.62 inch(es) / 6.66 cm
Depth
21.37 inch(es) / 54.29 cm
Weight
39.99 lb(s) / 18.14 kg
Additional Dimensions
• Cutout Dimension Width (Min.-Max.): 33-7/8"-36-1/8"
• Cutout Dimension: Depth (Min.-Max.): 19-1/8"-20-1/2"
• Cutout Dimension: Height (Min.): 5"
• Cutout Dimension: Depth (Min.-Max.): 19-1/8"-20-1/2"
• Cutout Dimension: Height (Min.): 5"
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
057112992303
