Specifications
General
Series Name
Massimo
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam Clean
Cooktop
Burners/Elements
10
Burners/Elements Output
• Front Right Burner BTU: 20000
• Front Left Center Burner BTU: 20000
• Front Right Center Burner BTU: 15000
• Front Center Burner BTU: 15000
• Front Left Burner BTU: 15000
• Rear Right Burner BTU: 15000
• Rear Right Center Burner BTU: 9000
• Rear Center Burner BTU: 9000
• Rear Left Center Burner BTU: 15000
• Rear Left Burner BTU: 9000
• Total BTU Output: 142000
• Front Left Center Burner BTU: 20000
• Front Right Center Burner BTU: 15000
• Front Center Burner BTU: 15000
• Front Left Burner BTU: 15000
• Rear Right Burner BTU: 15000
• Rear Right Center Burner BTU: 9000
• Rear Center Burner BTU: 9000
• Rear Left Center Burner BTU: 15000
• Rear Left Burner BTU: 9000
• Total BTU Output: 142000
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 8.64 cu. ft.
• Left Oven: 4.32 cu. ft.
• Right Oven: 4.32 cu. ft.
• Left Oven: 4.32 cu. ft.
• Right Oven: 4.32 cu. ft.
Number of Ovens
Double
Programs
• Broil
• Bake
• Convection bake
• Bake
• Convection bake
Features
Technologies
Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information
• 10 sealed burners combine for a total stove-top output of 142,000 BTU.
• Includes 2 dual-ring burners for high-heat searing or delicate simmering control.

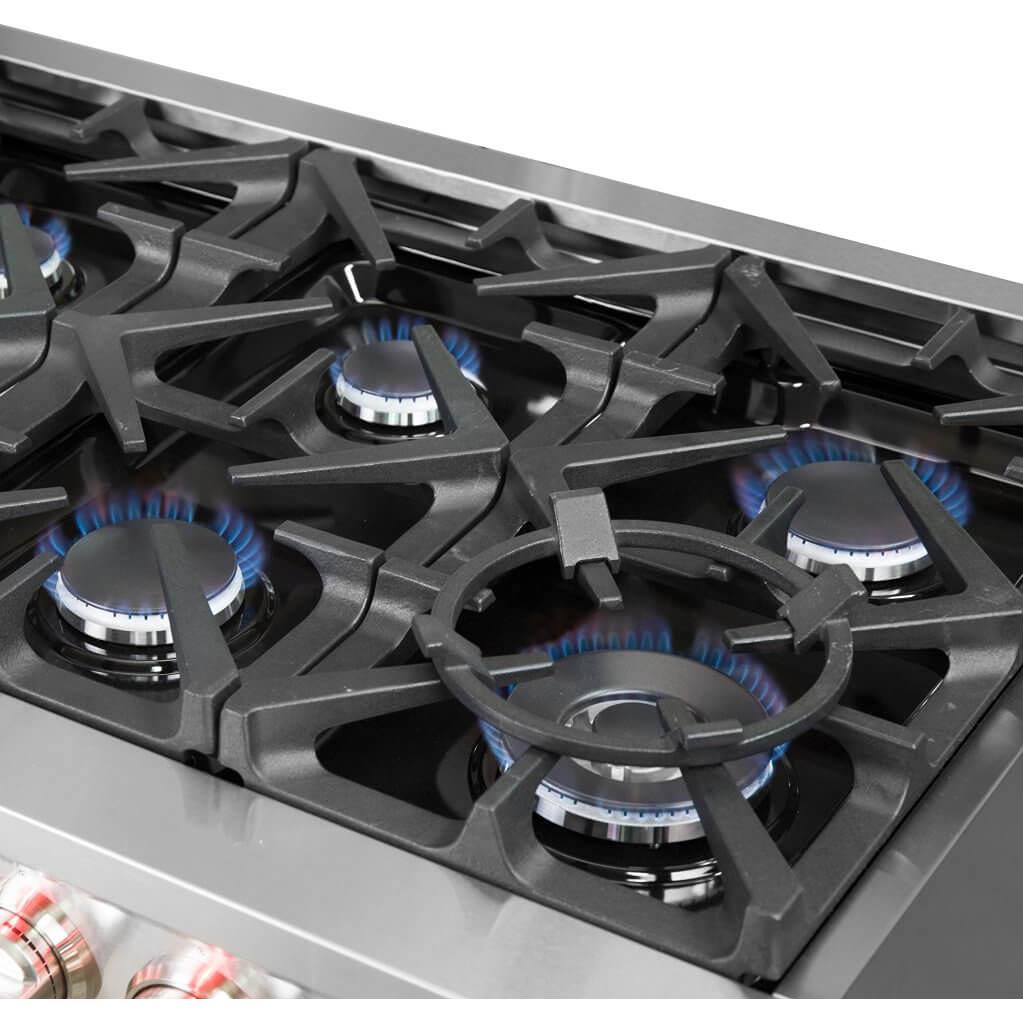

• Continuous cast iron grates ensure even heat, providing cookware stability and mobility off the heat source.
• Deep recessed black enamel range top cavity contains spills for quick clean-ups.

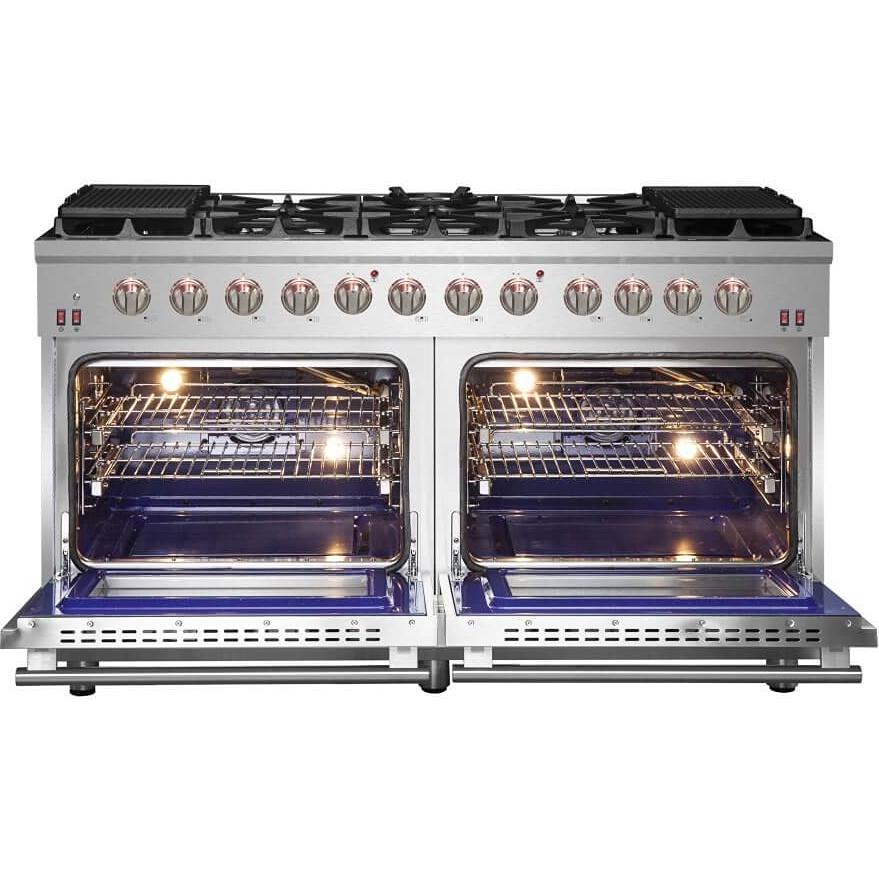

• Dual 4.32 cu. ft. convection ovens with 30,000 BTU total broil and bake output each.

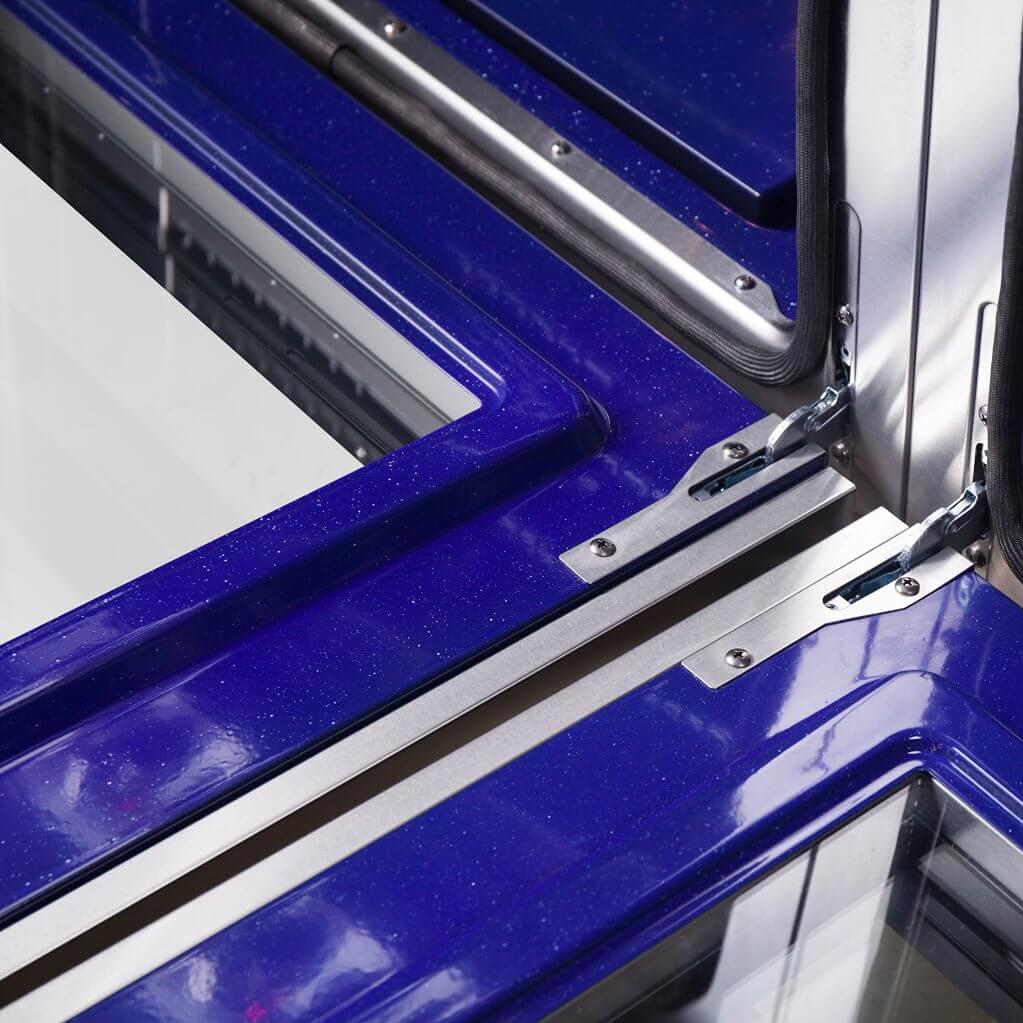

• Insulated oven doors with 3-layer glass windows and smooth friction hinges.

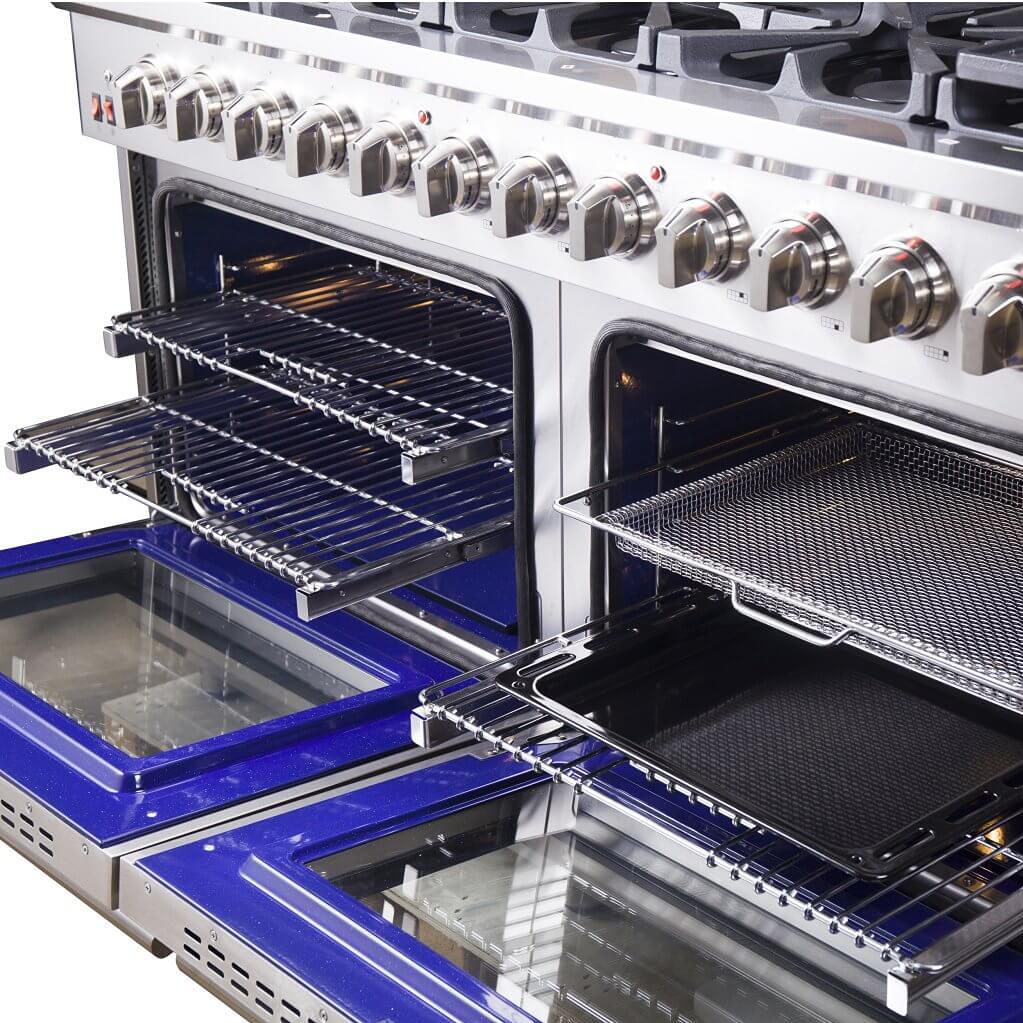

• Speckled blue enamel oven interior includes an air fryer basket and drip pan.

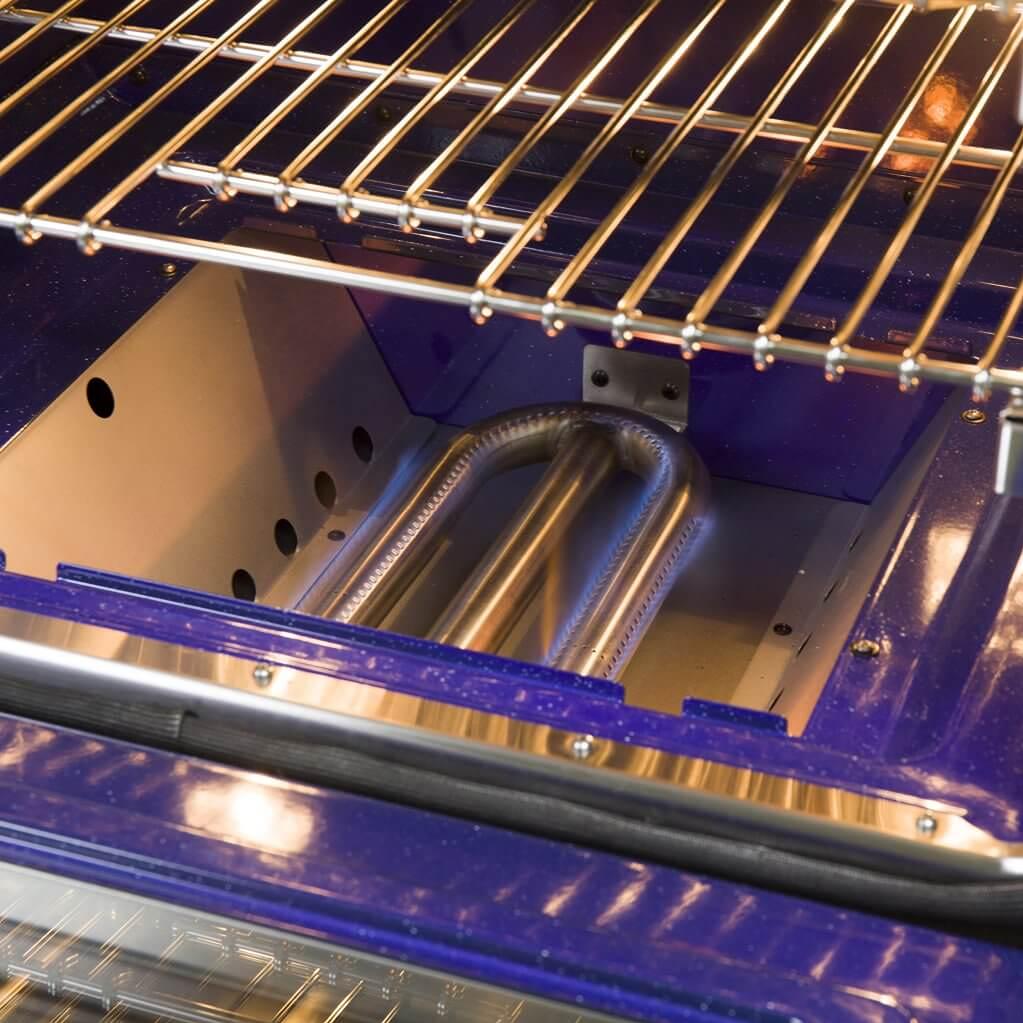

• 4 heavy-duty telescopic oven racks with ball bearing rack guides.

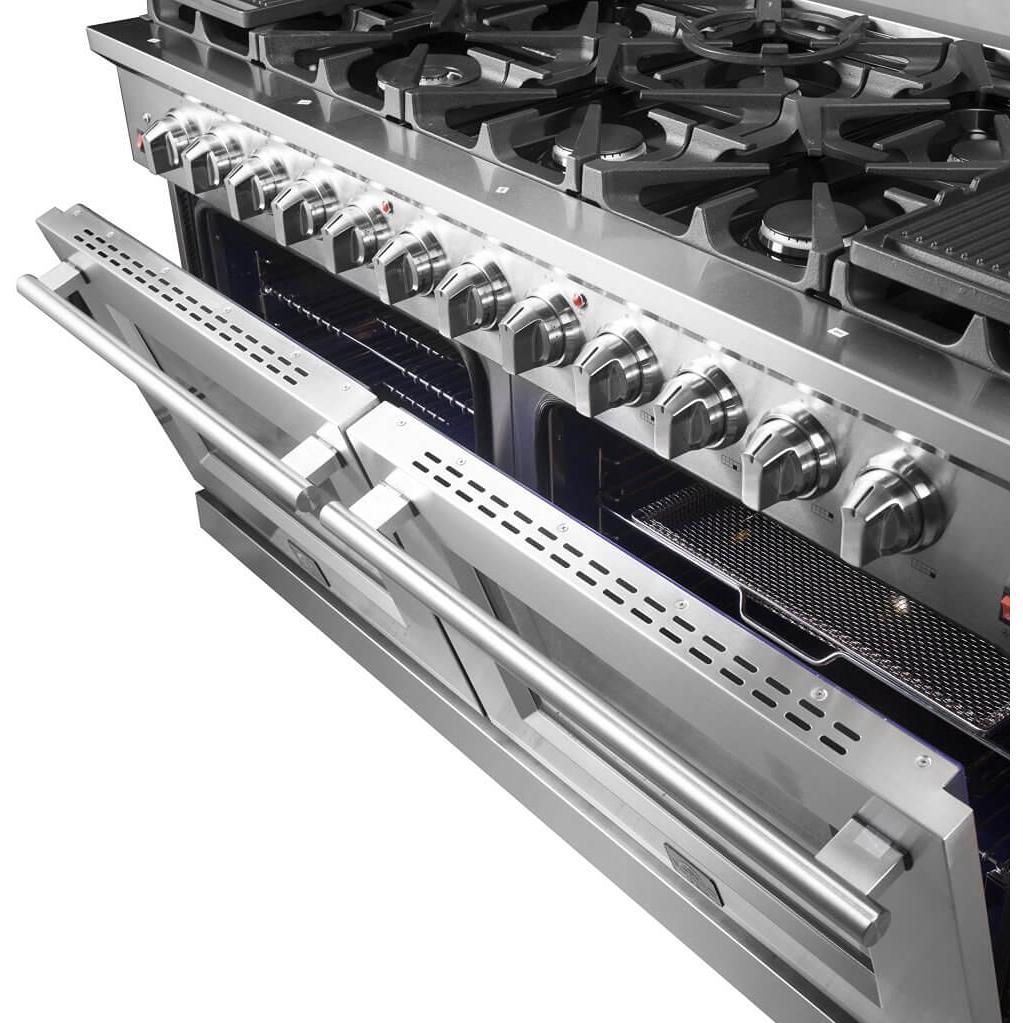

• Pro-style handles and illuminated zinc-coated metal control knobs with bezel rings.
• Includes LP conversion kit, wok support, two griddles, air fry basket, drip pan, and NEMA 5-15P power cord.
• Includes 2 dual-ring burners for high-heat searing or delicate simmering control.
• Continuous cast iron grates ensure even heat, providing cookware stability and mobility off the heat source.
• Deep recessed black enamel range top cavity contains spills for quick clean-ups.
• Dual 4.32 cu. ft. convection ovens with 30,000 BTU total broil and bake output each.
• Insulated oven doors with 3-layer glass windows and smooth friction hinges.
• Speckled blue enamel oven interior includes an air fryer basket and drip pan.
• 4 heavy-duty telescopic oven racks with ball bearing rack guides.
• Pro-style handles and illuminated zinc-coated metal control knobs with bezel rings.
• Includes LP conversion kit, wok support, two griddles, air fry basket, drip pan, and NEMA 5-15P power cord.
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Dimensions
Class Width
60"
Width
59.84 inch(es) / 151.99 cm
Height
38.39 inch(es) / 97.51 cm
Depth (Without Handles)
27.36 inch(es) / 69.49 cm
Additional Dimensions
• Cutout Width - Side to Side (in): 60
• Cutout Height - Top to Bottom (in): 36
• Cutout Depth - Front to Back (in): 25
• Depth with door open 90° (in): 44.33
• Cutout Height - Top to Bottom (in): 36
• Cutout Depth - Front to Back (in): 25
• Depth with door open 90° (in): 44.33
Warranty
Warranty
Limited 2 Years
