Specifications
General
Series Name
Loiano
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam

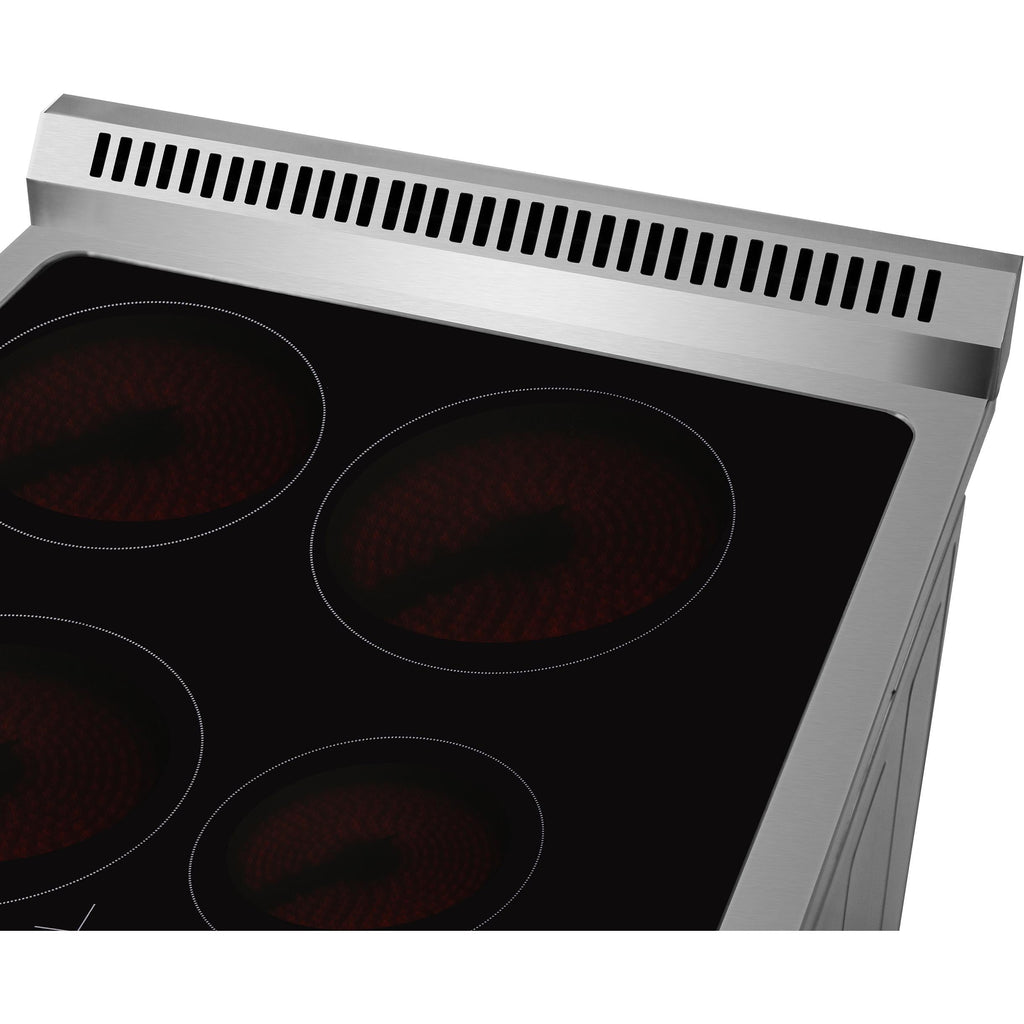

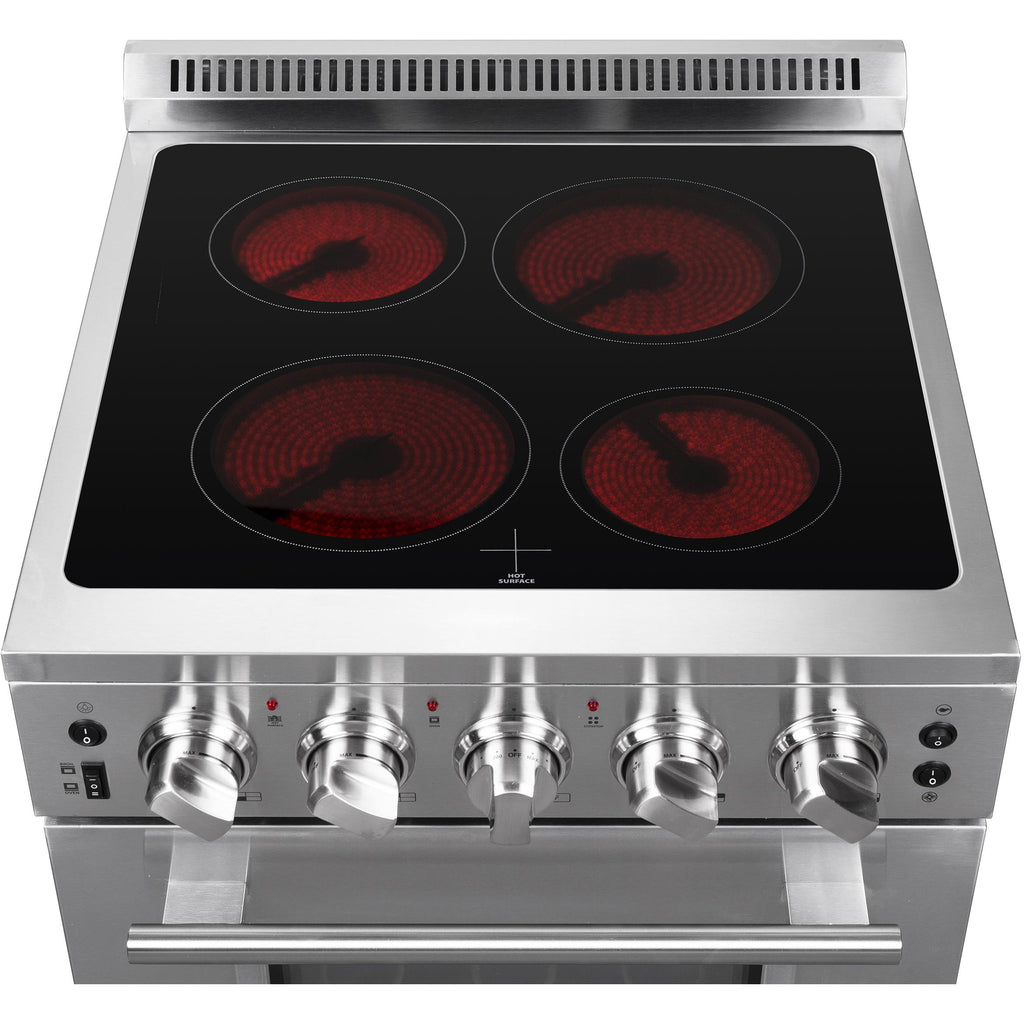

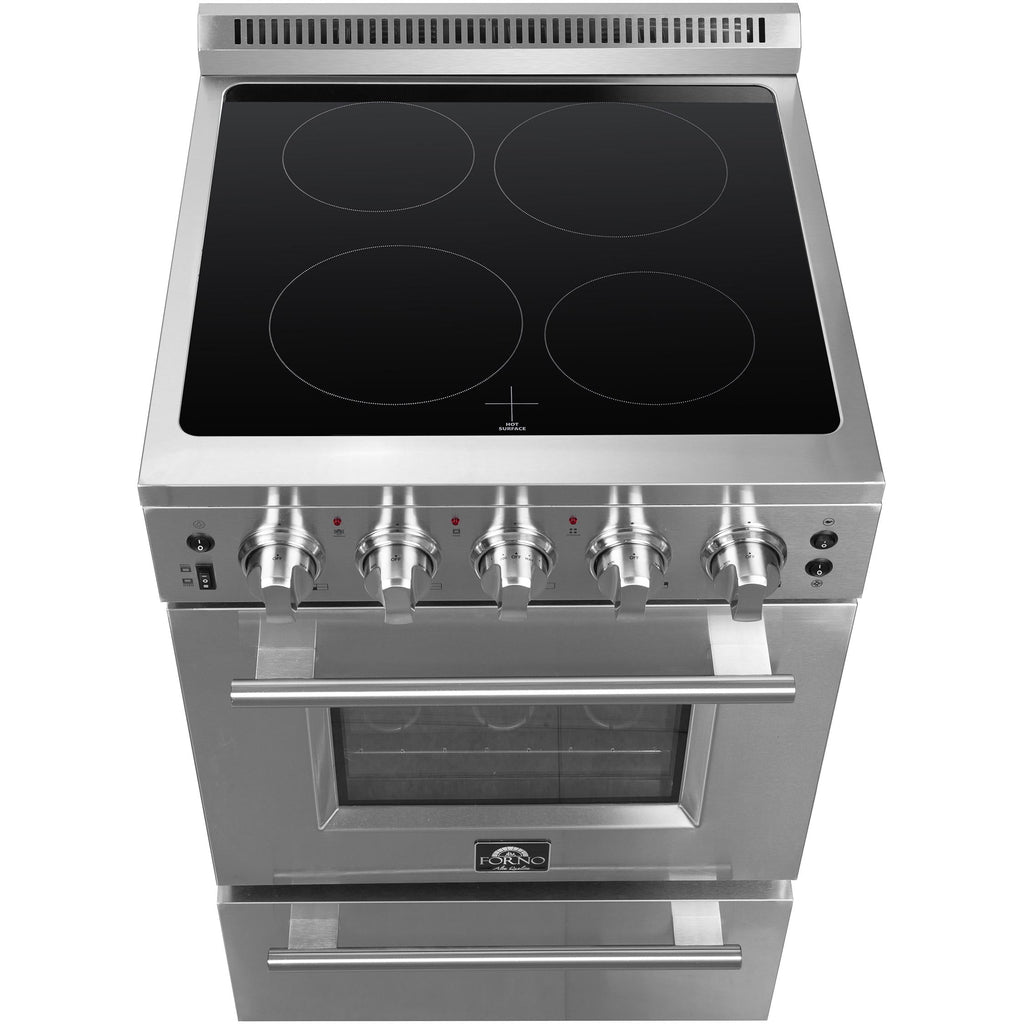

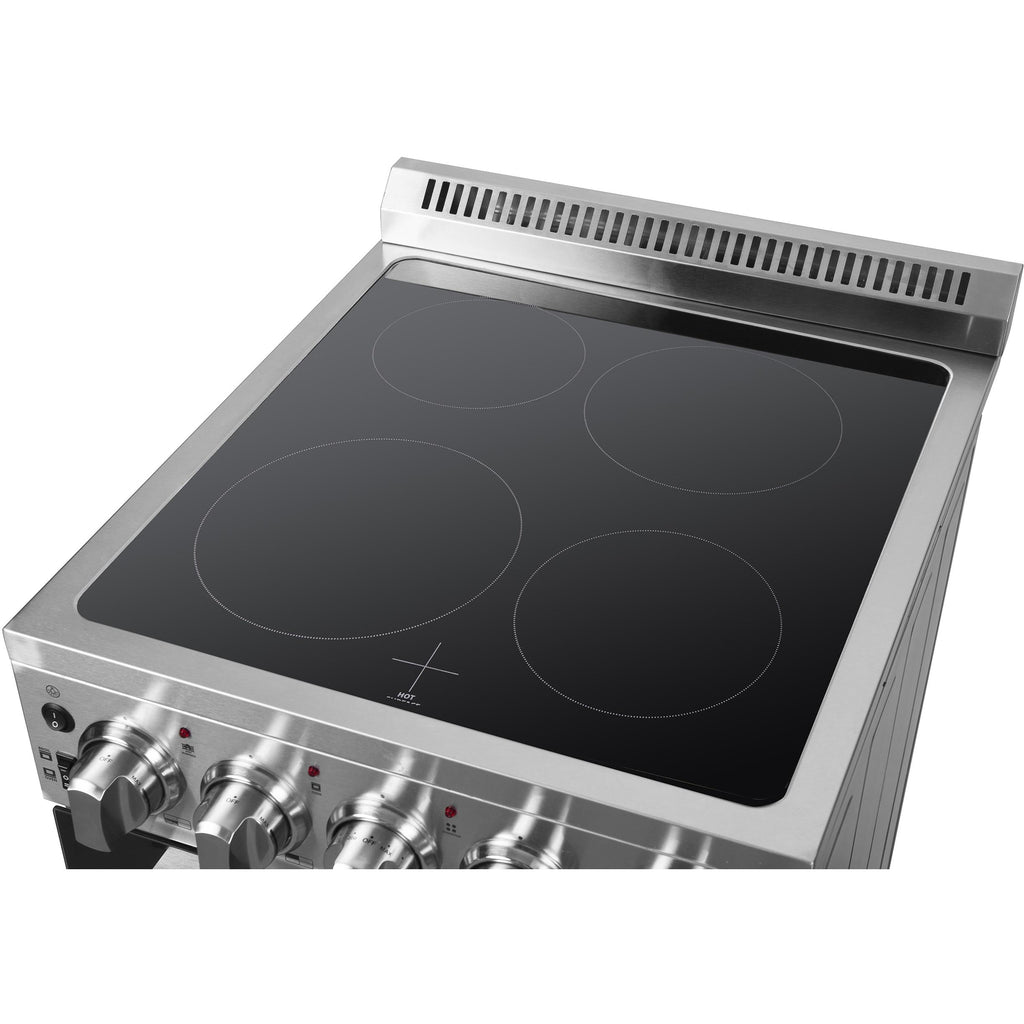

Cooktop
Burners/Elements
4
Burners/Elements Output
• Total Stovetop BTU / Watts: 6,000 Watts
• Front Right Burner: 6.5" Round Element 1,200 Watts
• Front Left Burner: 8" Round Element 1,800 Watts
• Rear Right Burner: 8" Round Element 1,800 Watts
• Rear Left Burner: 6.5" Round Element 1,200 Watts
• Front Right Burner: 6.5" Round Element 1,200 Watts
• Front Left Burner: 8" Round Element 1,800 Watts
• Rear Right Burner: 8" Round Element 1,800 Watts
• Rear Left Burner: 6.5" Round Element 1,200 Watts
Elements
Smoothtop

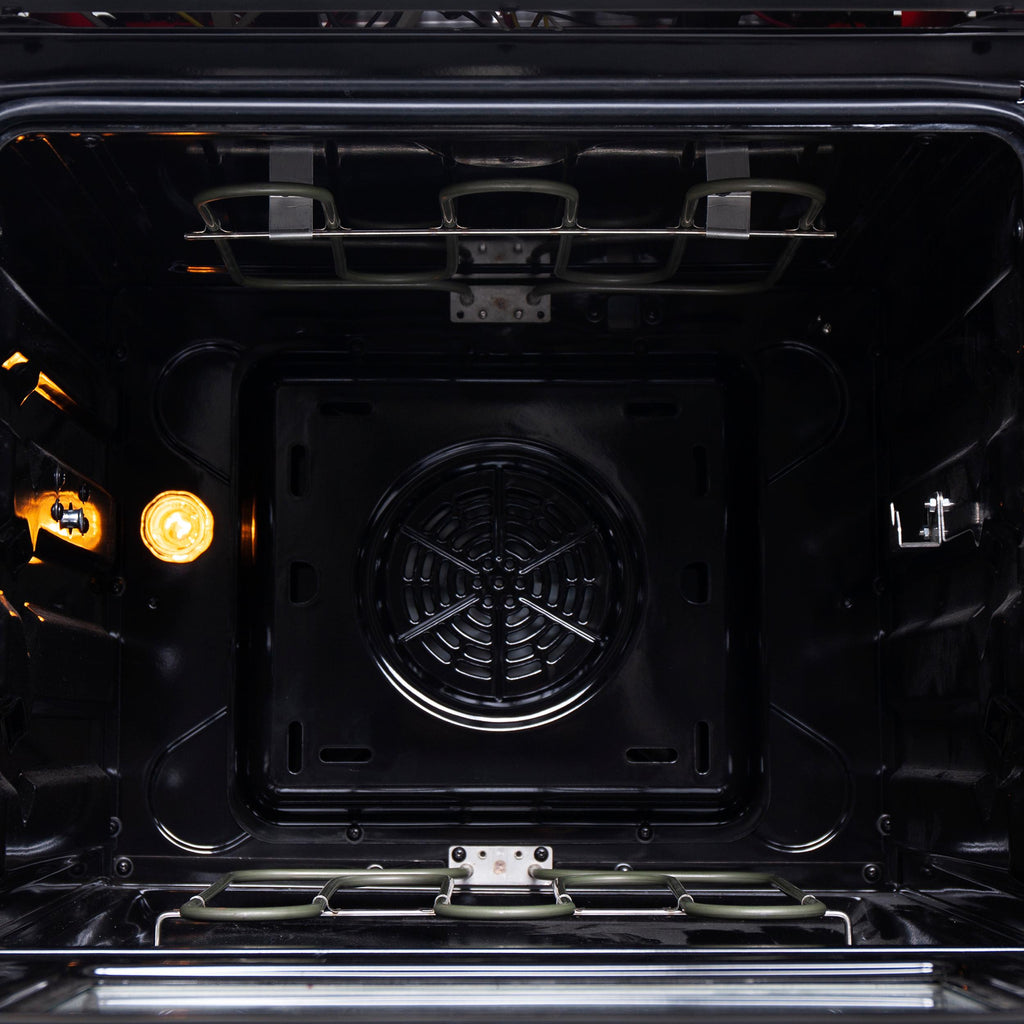

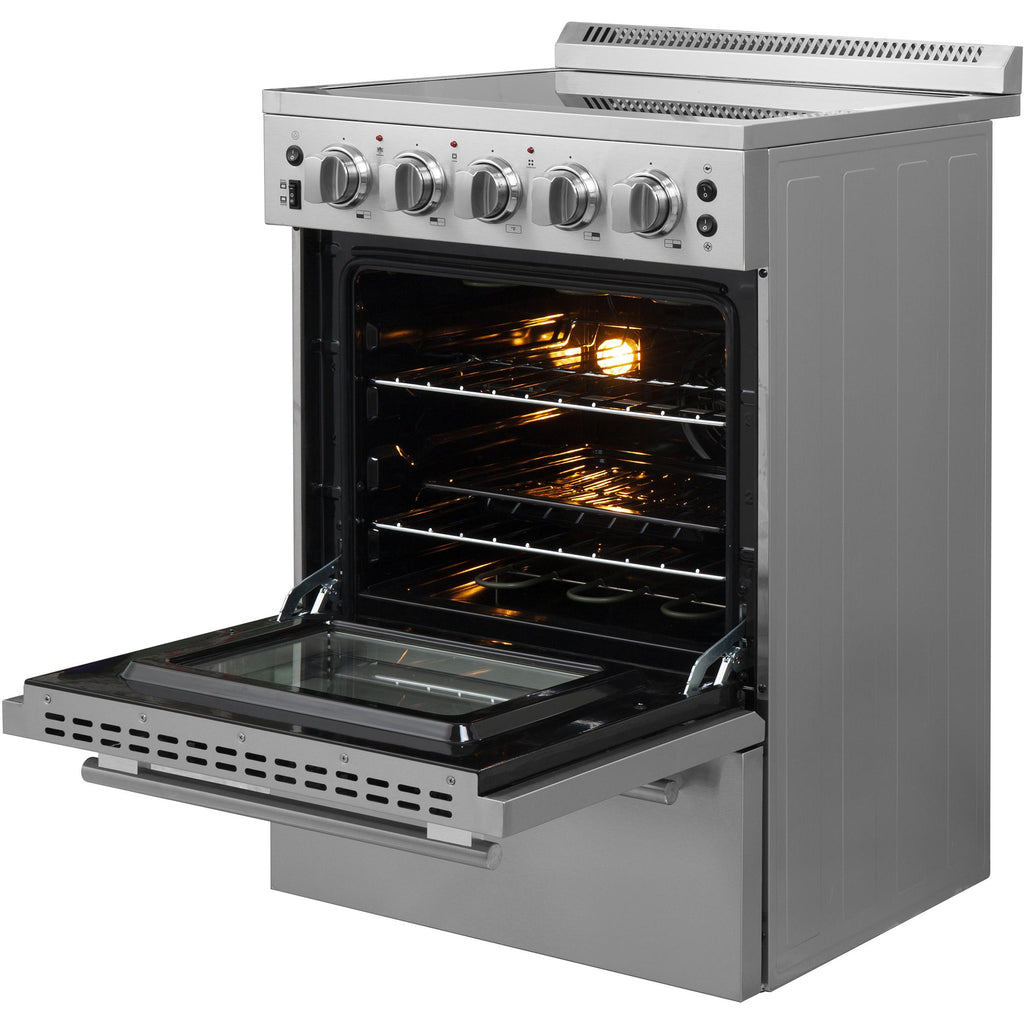

Oven
Capacity (cu. ft.)
2.3 Cubic Feet
Number of Ovens
Single
Features
Oven Light
Yes
Self-Cleaning
No
Additional Information
• 20K Burner with simmer
• Continuous Cast Iron Grates

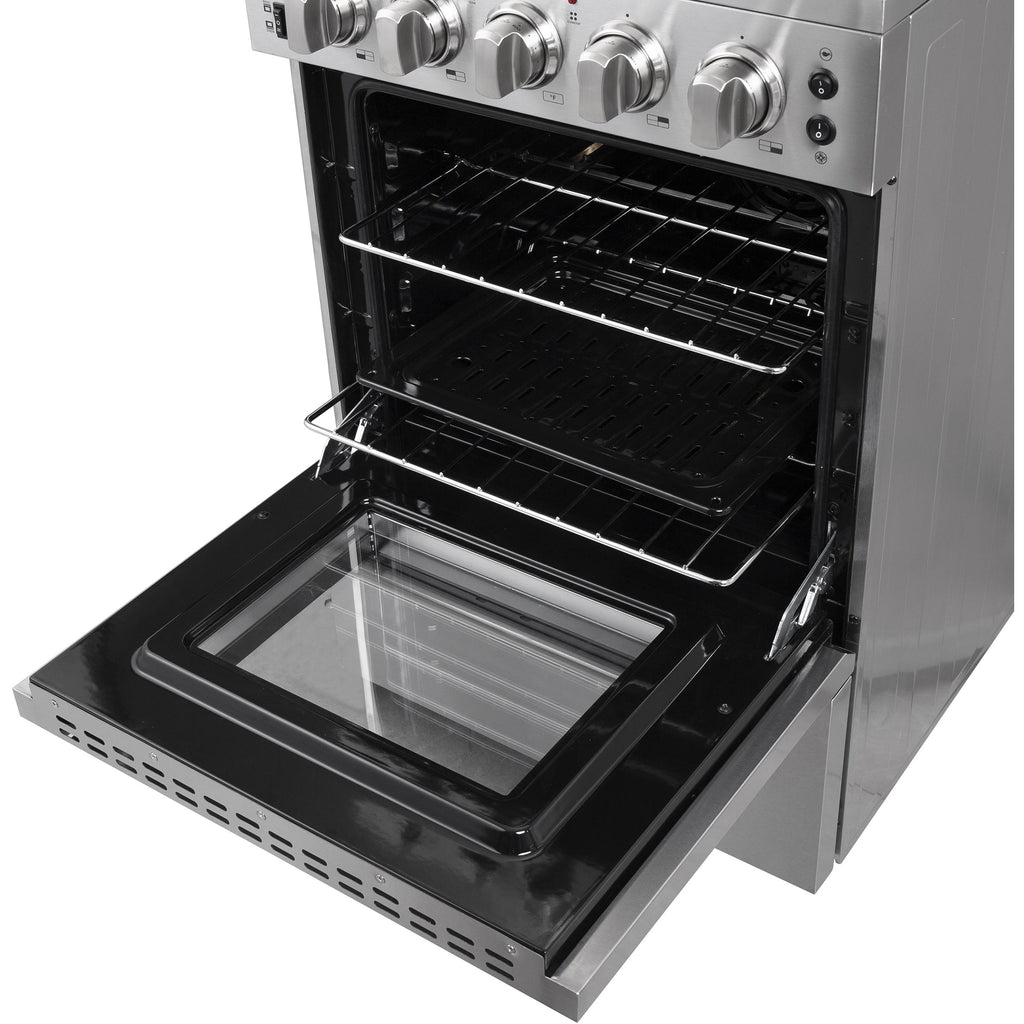

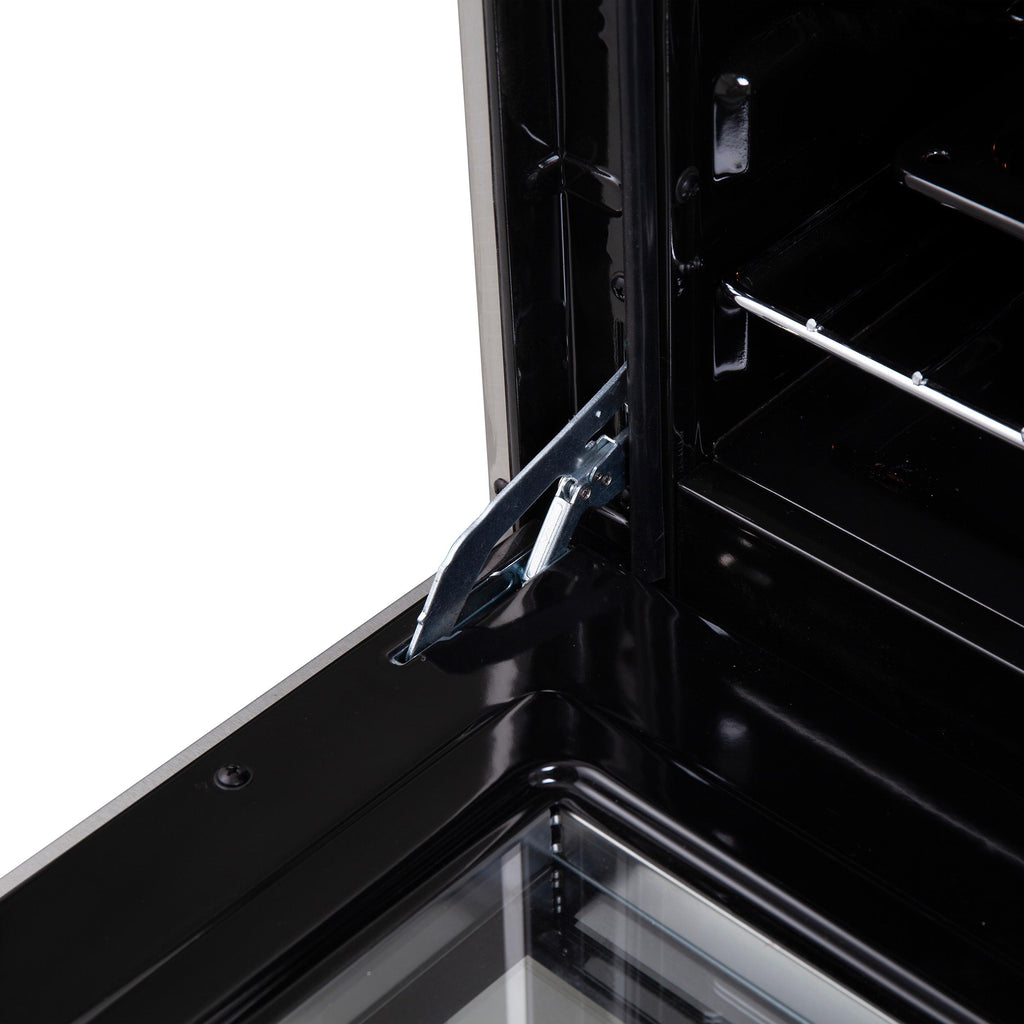

• Enamel Oven and Smooth Friction Hinges
• Continuous Cast Iron Grates
• Enamel Oven and Smooth Friction Hinges
Electrical Information
Information
• 30 Amps
• 240 Volts
• 4200 Watts
• Hard-Wired
• 240 Volts
• 4200 Watts
• Hard-Wired
Certifications and Approvals
Information
ETL Listed
Dimensions
Class Width
24"
Width
23.2 inch(es) / 58.93 cm
Height
37.8 inch(es) / 96.01 cm
Depth (Without Handles)
23.4 inch(es) / 59.44 cm
Weight
144.4 lb(s) / 65.5 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 40.75
• Depth with Oven Door Open 90º (CM): 103.505
• Oven Interior (IN): 18"W x 17.5"D x 13"H
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 40.75
• Depth with Oven Door Open 90º (CM): 103.505
• Oven Interior (IN): 18"W x 17.5"D x 13"H
Shipping Dimensions
Width
25.7 inch(es) / 65.28 cm
Height
39.7 inch(es) / 100.84 cm
Depth
26.8 inch(es) / 68.07 cm
Weight
153.4 lb(s) / 69.58 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136960069
