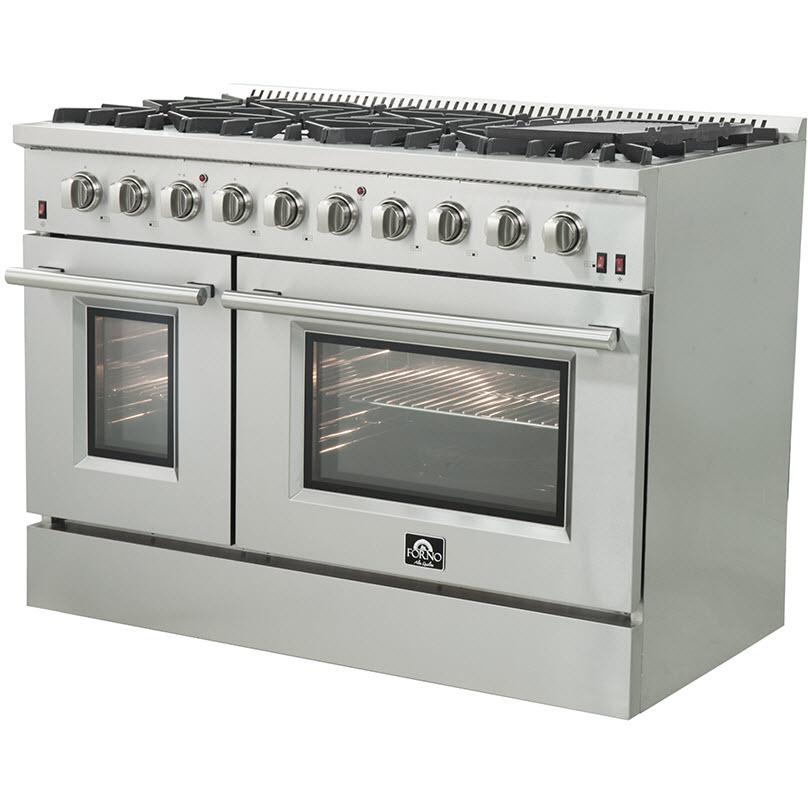

Specifications
General
Series Name
Galiano Alta Qualita
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Appliance Care
Manual
Cooktop
Burners/Elements
8
Burners/Elements Output
• Total Stovetop BTU / Watts: 107,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Right Center Burner: 9,000 BTU
• Rear Left Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Right Center Burner: 9,000 BTU
• Rear Left Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
Burners
Sealed
Other
Grill
Oven
Capacity (cu. ft.)
• 6.58 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet

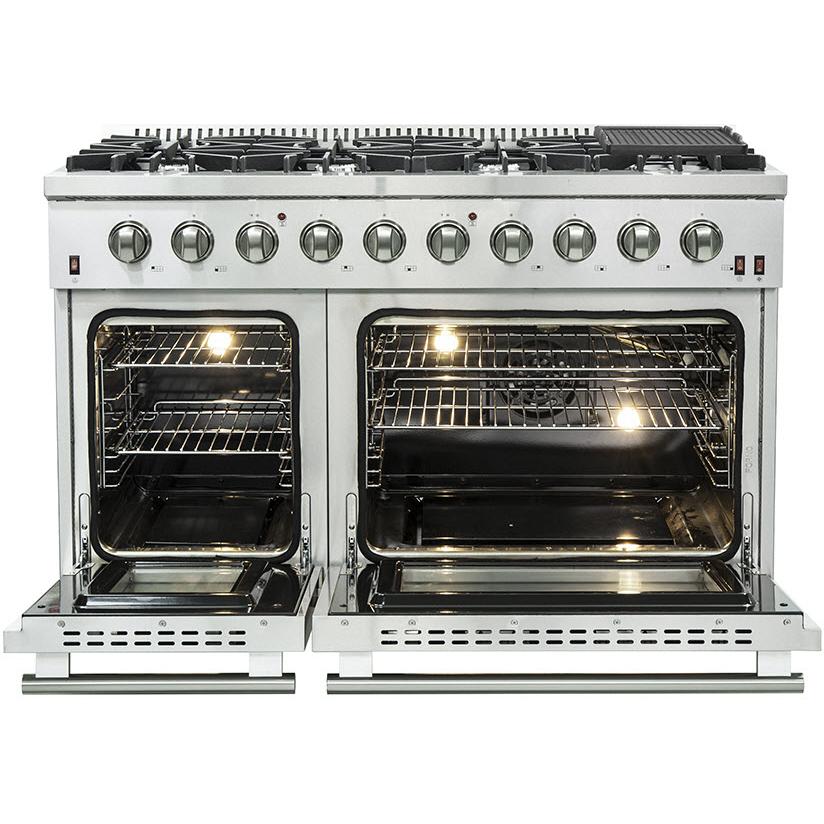

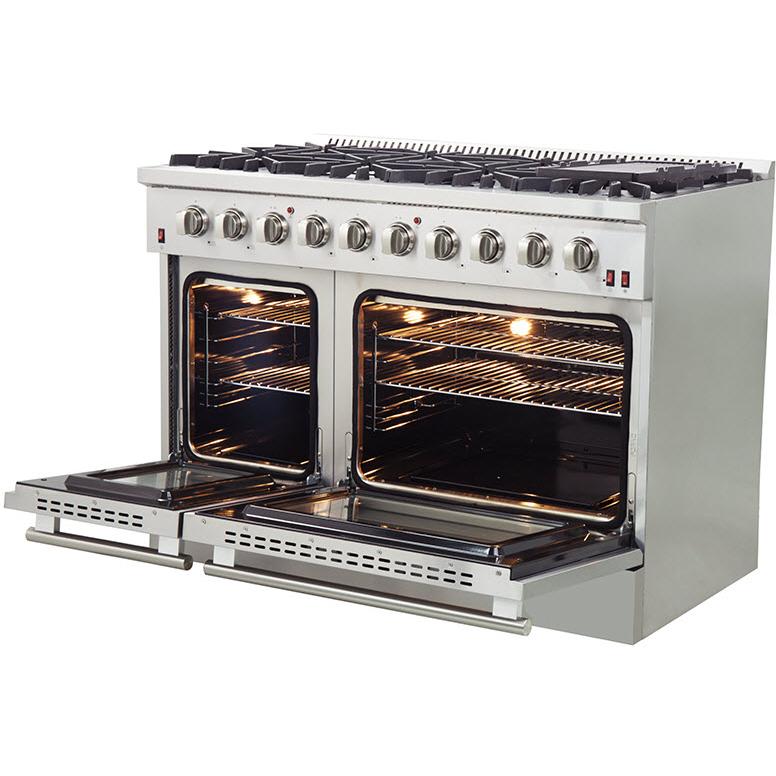

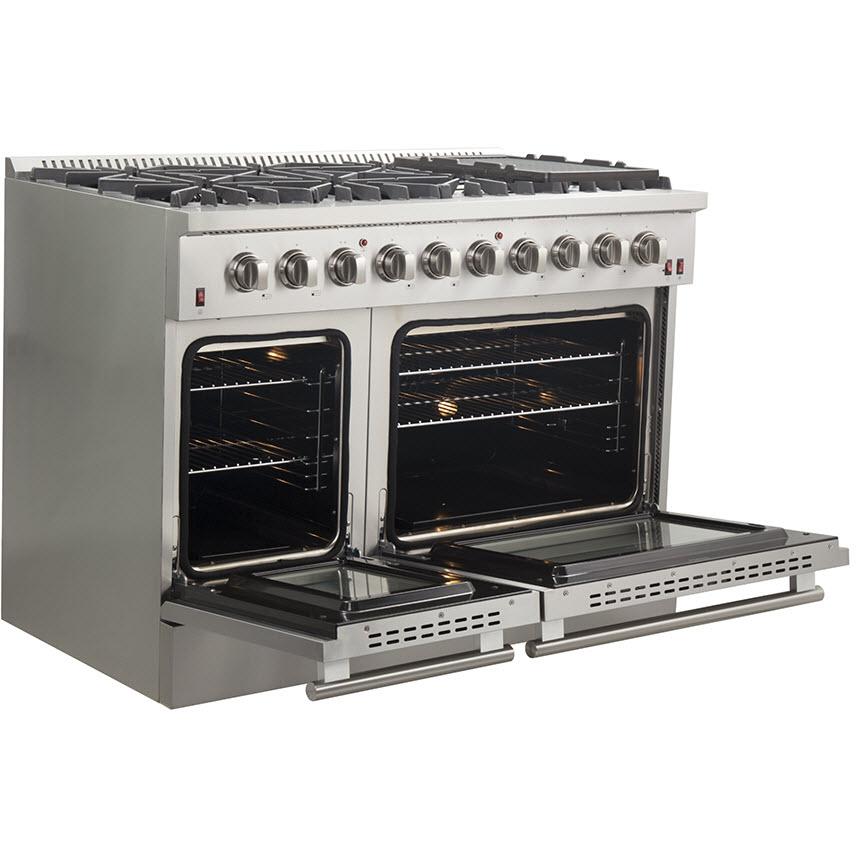

Number of Ovens
Double
Features

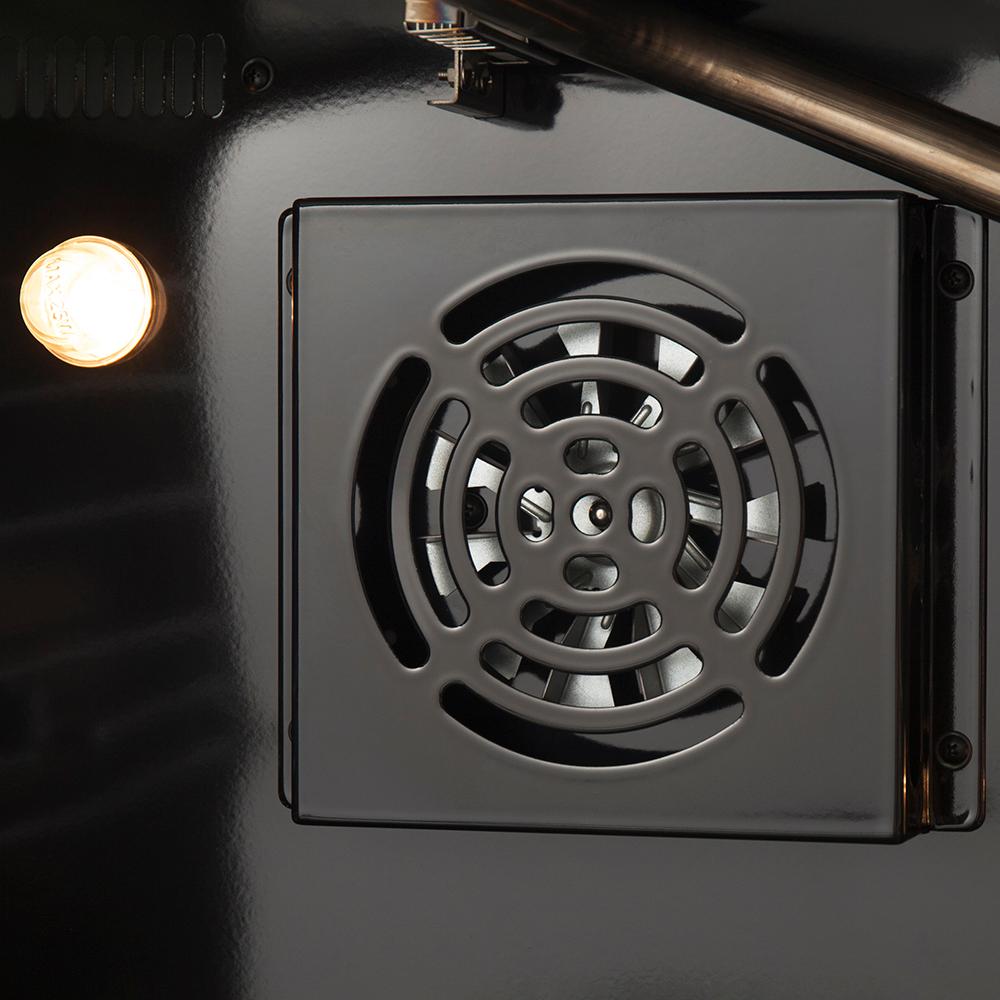

Convection
Yes
Oven Light
Yes
Additional Information
• Sealed Dual-Ring Burner
• Recessed Black Enamel Cooktop

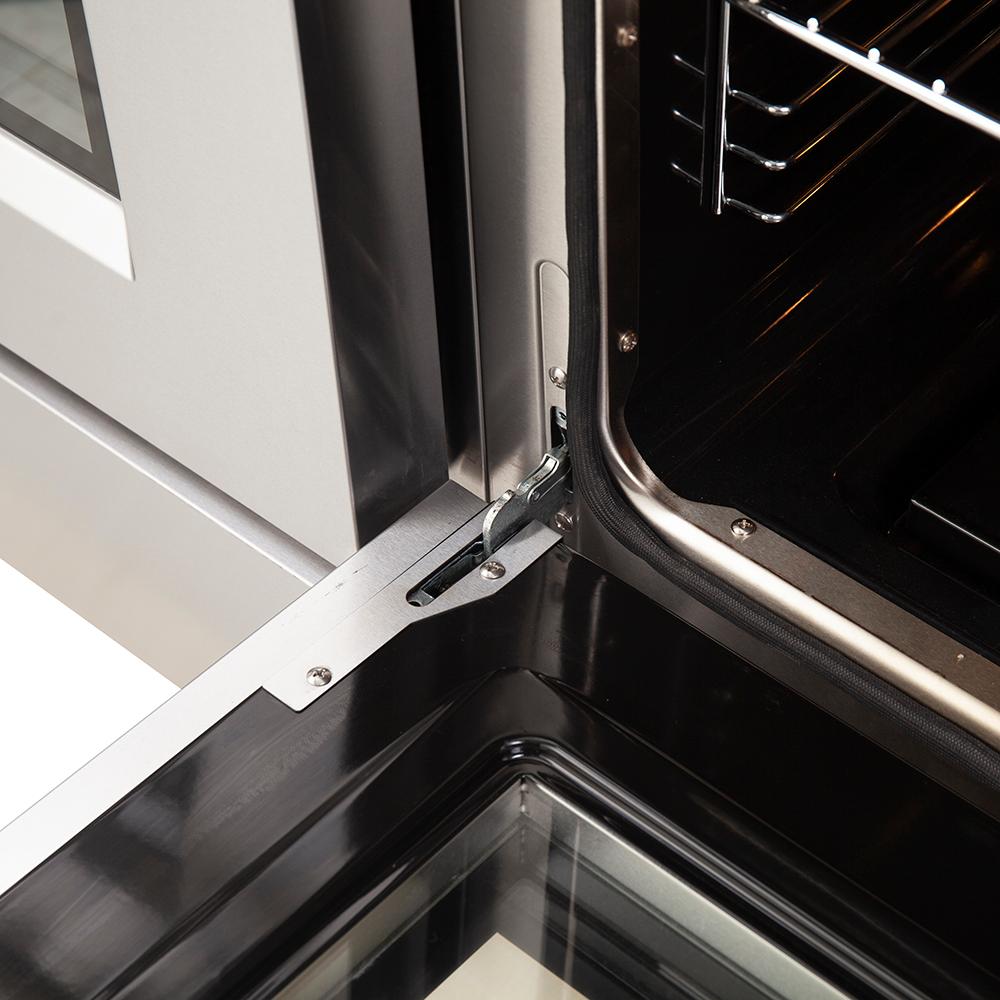

• Smooth Friction Hinges

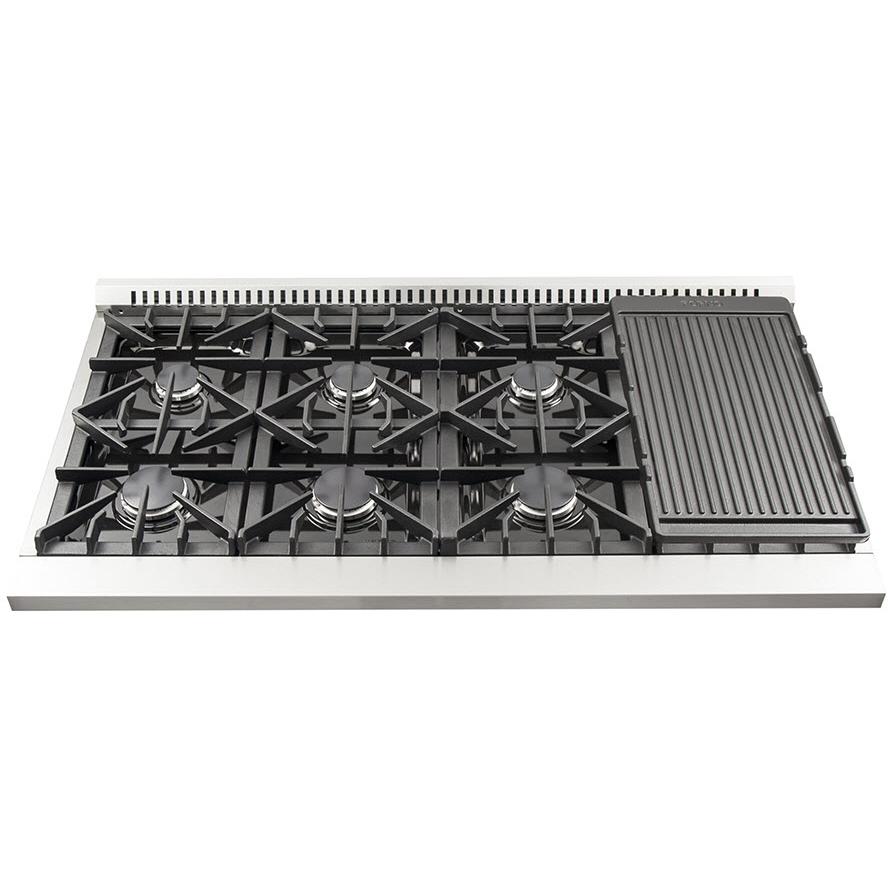

• Cast Iron Grates with MidGrill
• BBQ Cook Plate Reversible Accessory
• Black Enameled Cooktop

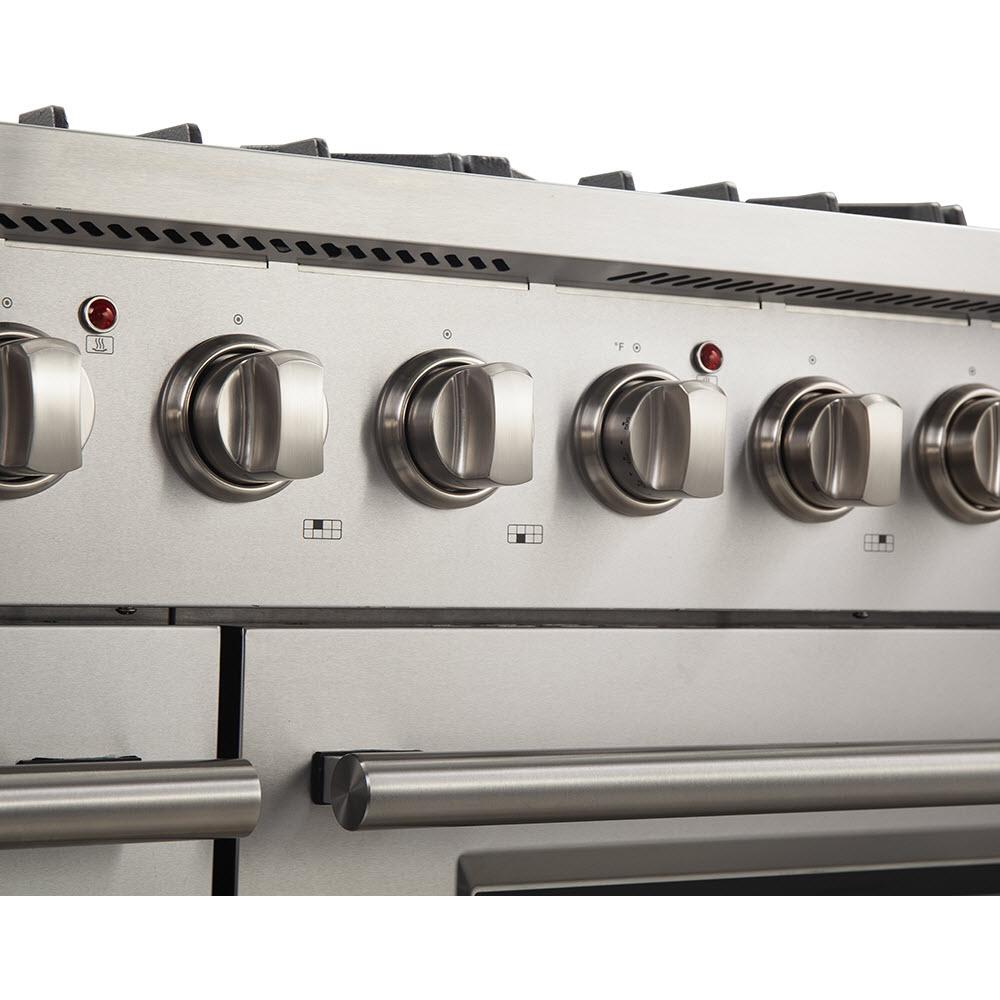

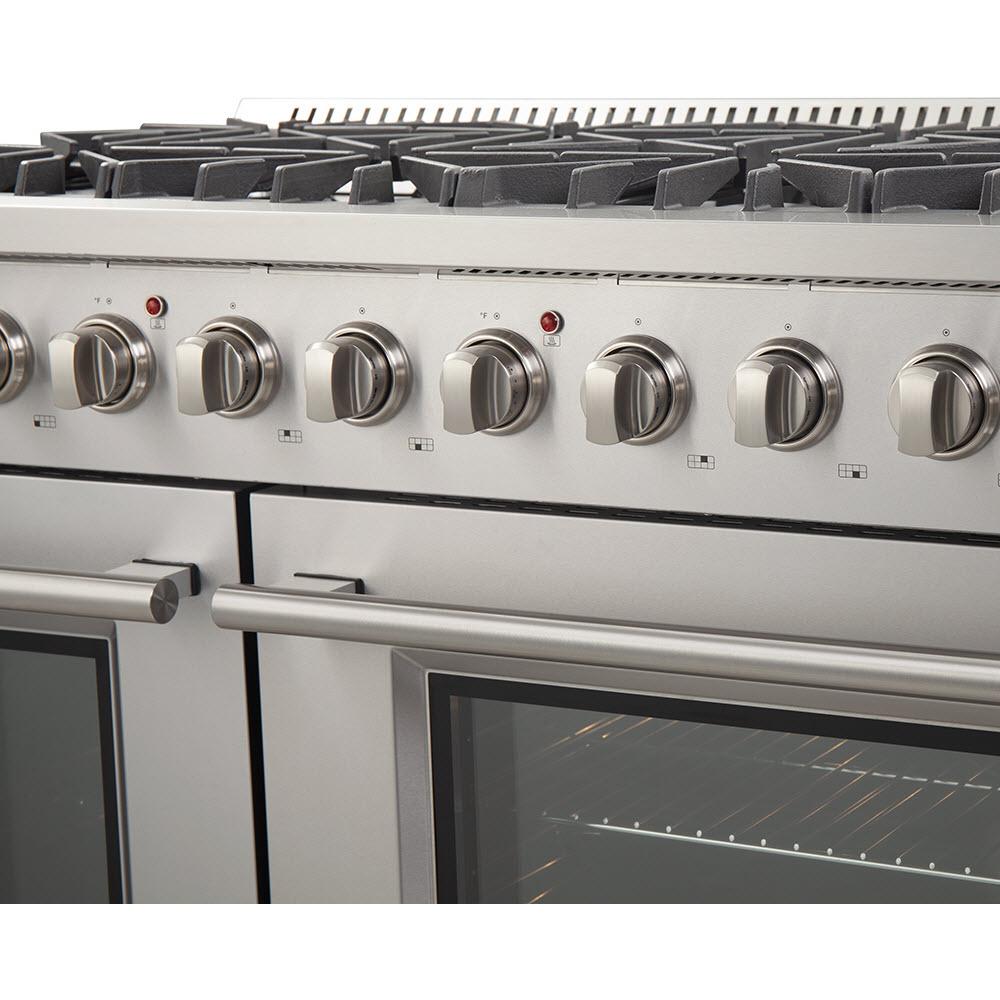

• Knobs with Ring
• Pro?Style Handle
• Oven Door Glass 3 Layers
• Black Enameled Oven Interior
• 2 Halogen Oven Lights

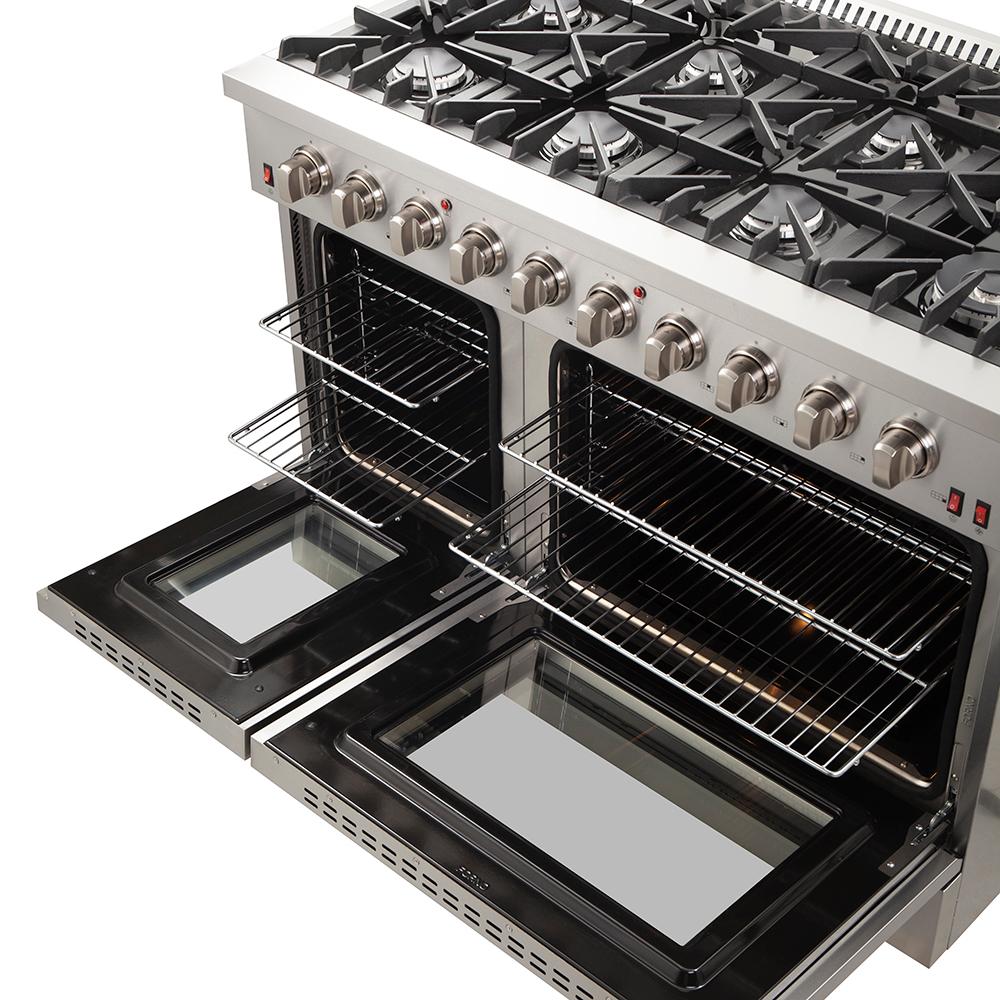

• 2 Electroplate Racks (4mm &7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38" to39")
• Automatic Ignition
• 8 Italian Defendi Burner
• Recessed Black Enamel Cooktop
• Smooth Friction Hinges
• Cast Iron Grates with MidGrill
• BBQ Cook Plate Reversible Accessory
• Black Enameled Cooktop
• Knobs with Ring
• Pro?Style Handle
• Oven Door Glass 3 Layers
• Black Enameled Oven Interior
• 2 Halogen Oven Lights
• 2 Electroplate Racks (4mm &7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38" to39")
• Automatic Ignition
• 8 Italian Defendi Burner
Electrical Information
Information
• 15 Amps
• 120 Volts

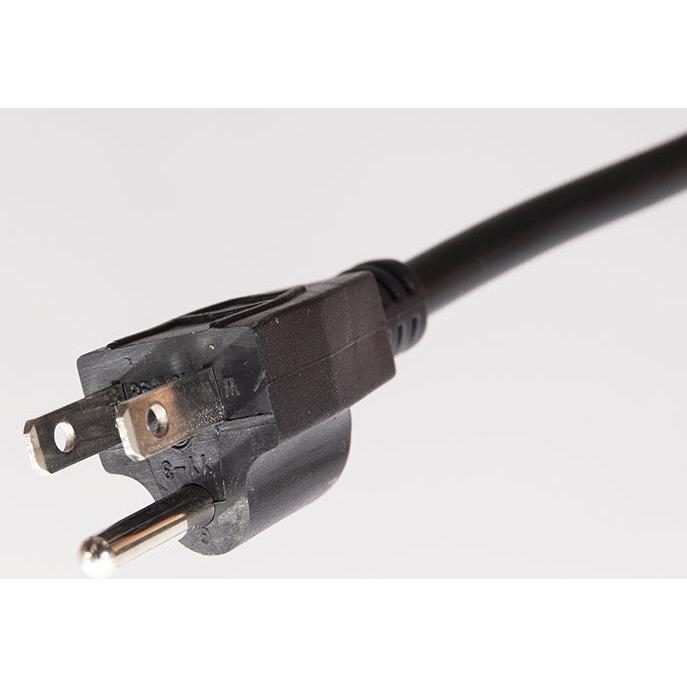

• 3-Prong Grounded
• 120 Volts
• 3-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included
• Includes Cast Iron Wok-Ring, Reversible Grill/Griddle, LP conversion kit and 3-Prong Plug

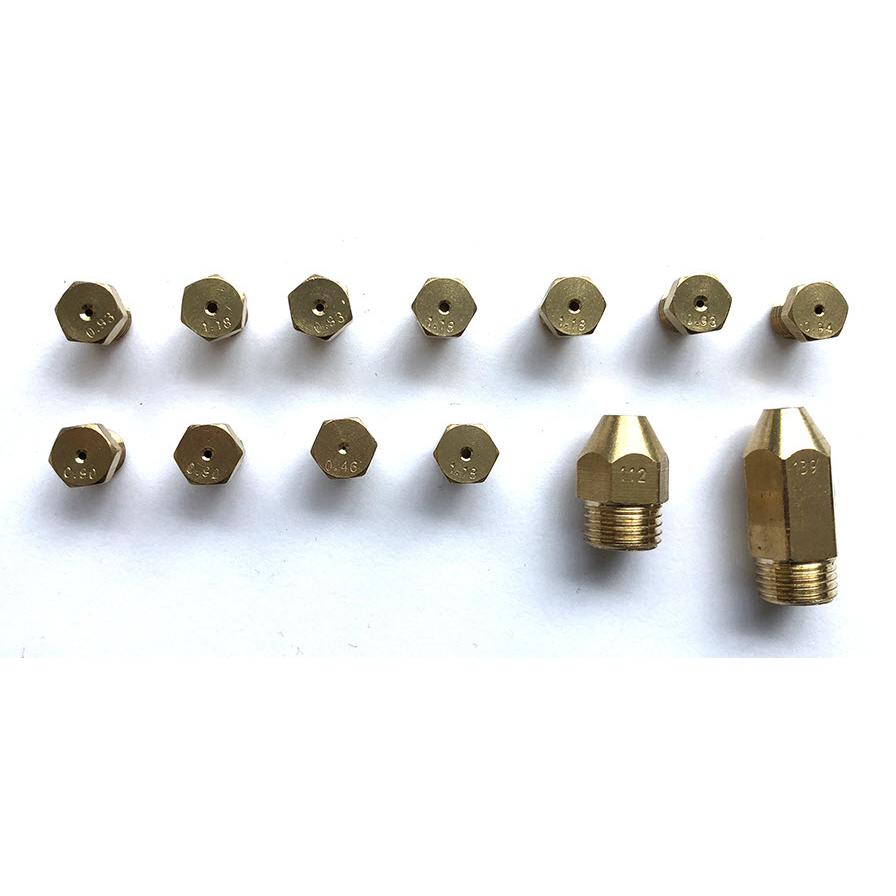

• LP Kit Included
• Reversible Grill/Griddle
• LP Kit Included
• Reversible Grill/Griddle
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
38 inch(es) / 96.52 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Weight
389.01 lb(s) / 176.45 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
Shipping Dimensions
Width
50.9 inch(es) / 129.29 cm
Height
43.58 inch(es) / 110.69 cm
Depth
30.39 inch(es) / 77.19 cm
Weight
431 lb(s) / 195.5 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136962544
