Specifications
General
Series Name
Galiano Alta Qualita
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Appliance Care
Manual

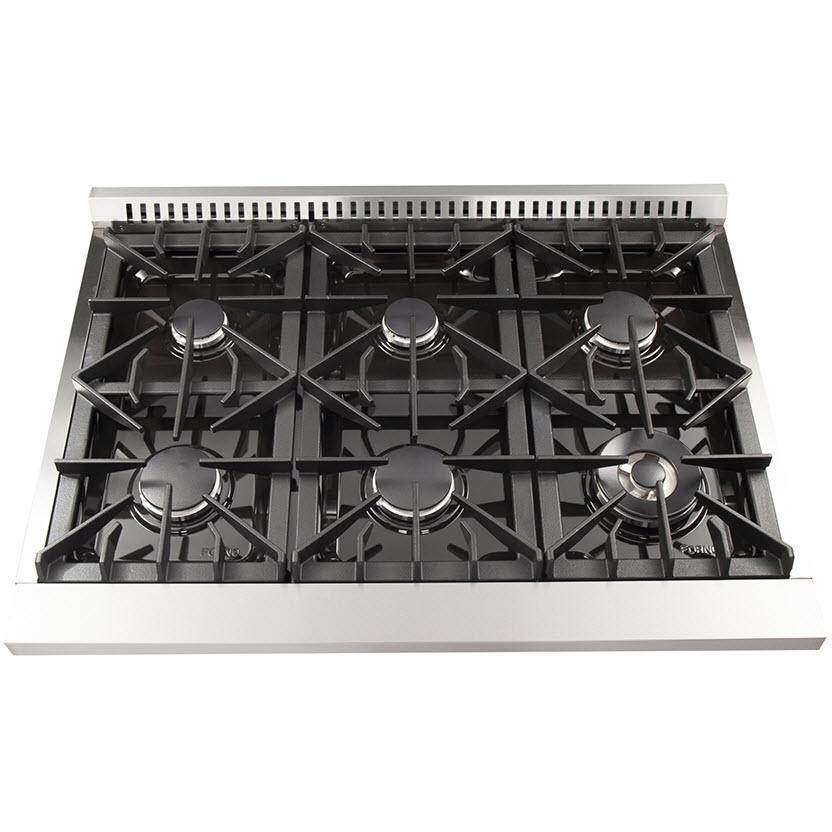

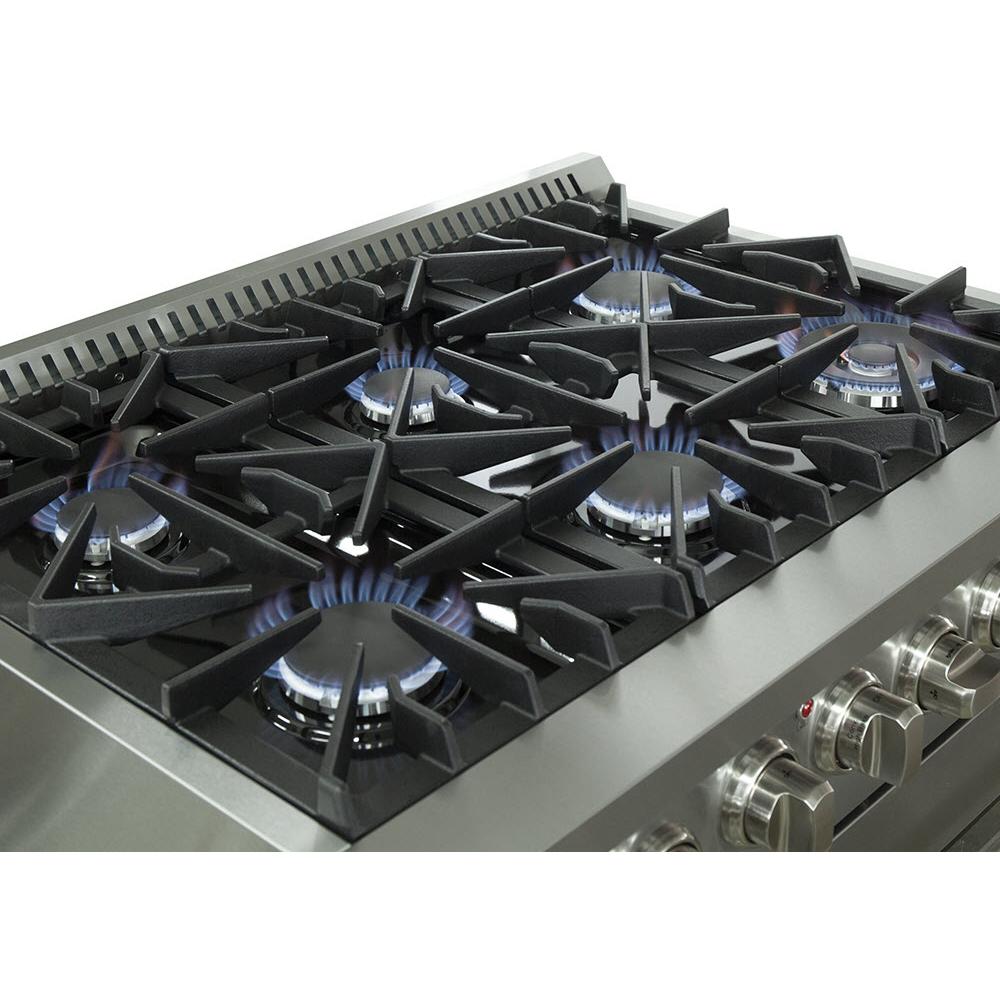

Cooktop

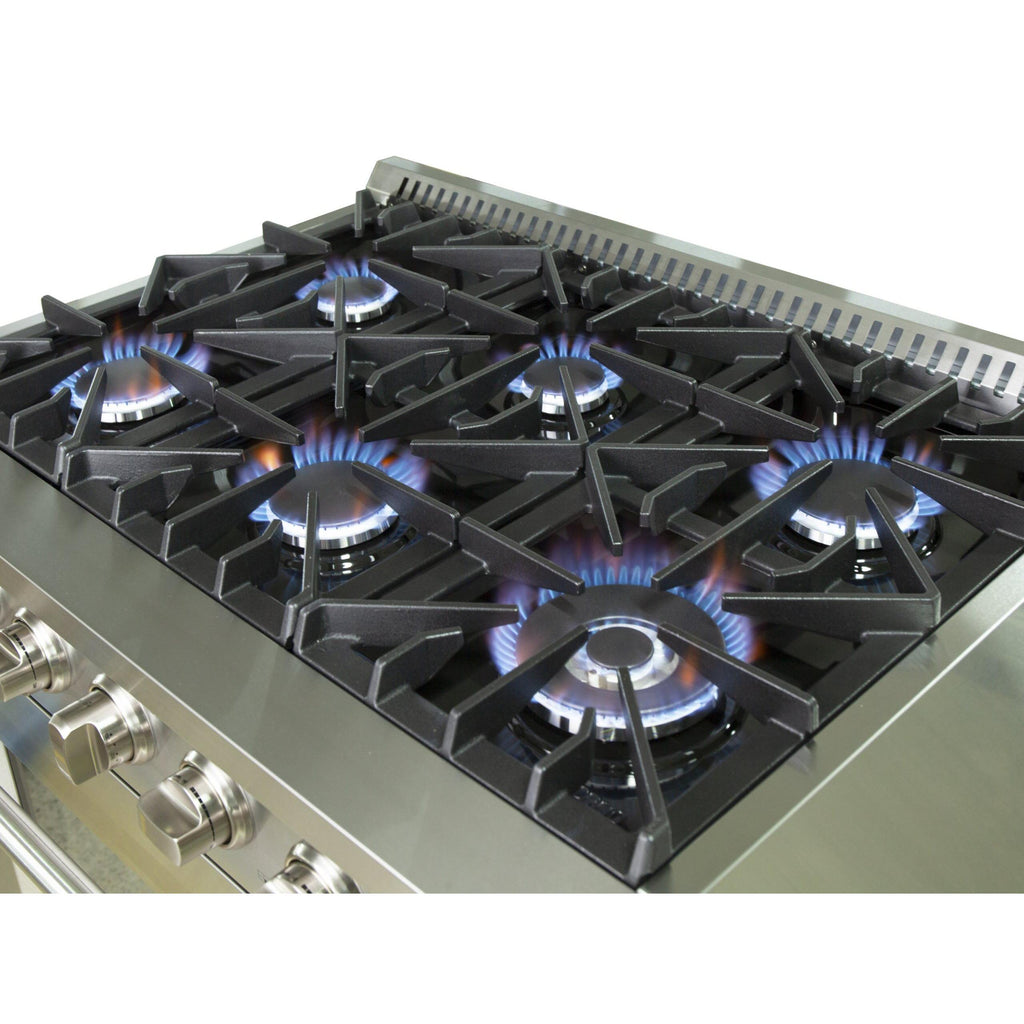

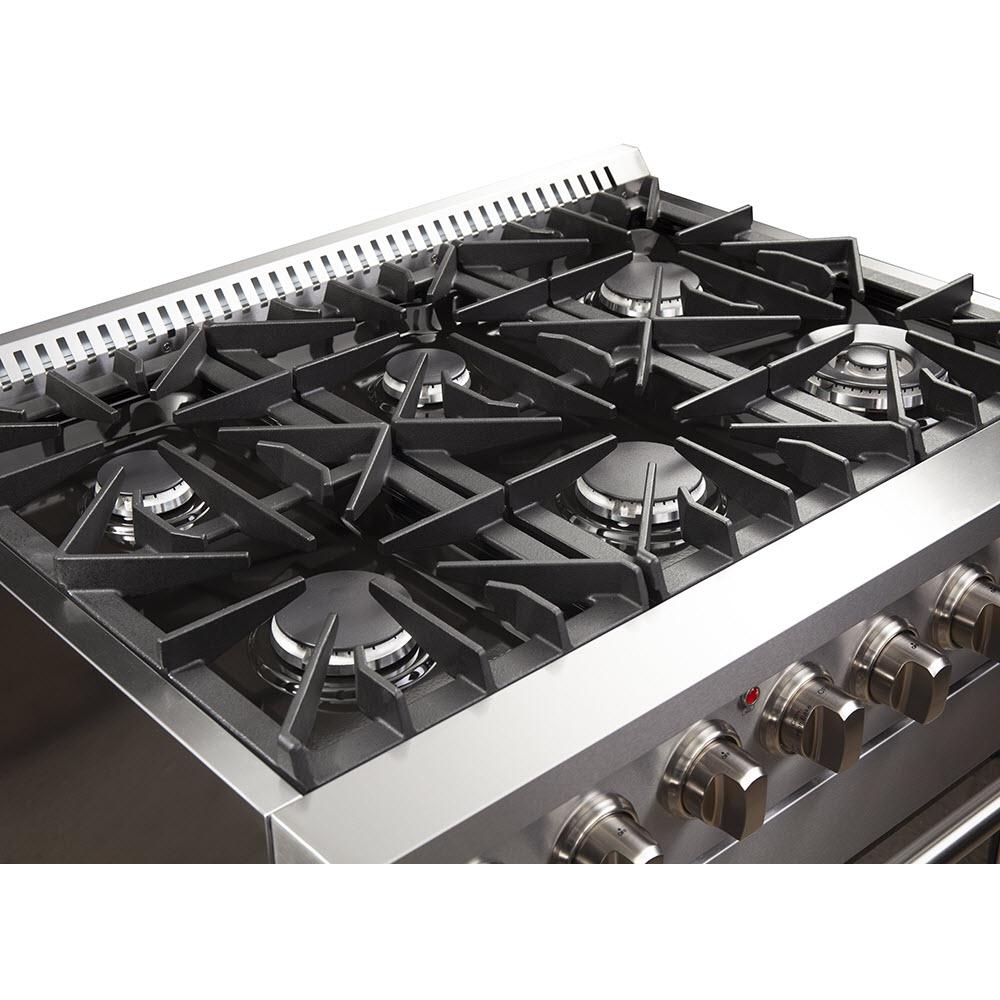

Burners/Elements
6
Burners/Elements Output
• Total Stovetop BTU / Watts: 83,000 BTU
• Front Right Burner: 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
• Front Right Burner: 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
Burners
Sealed

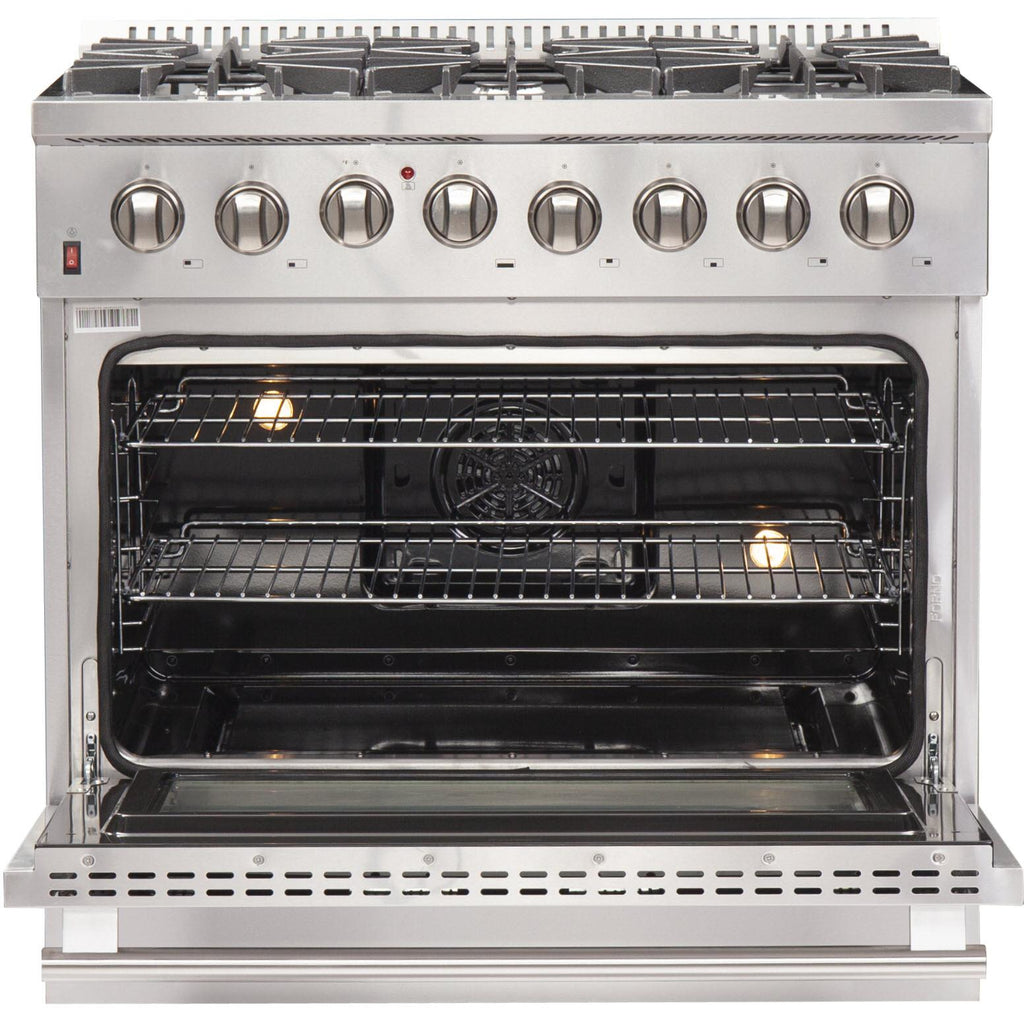

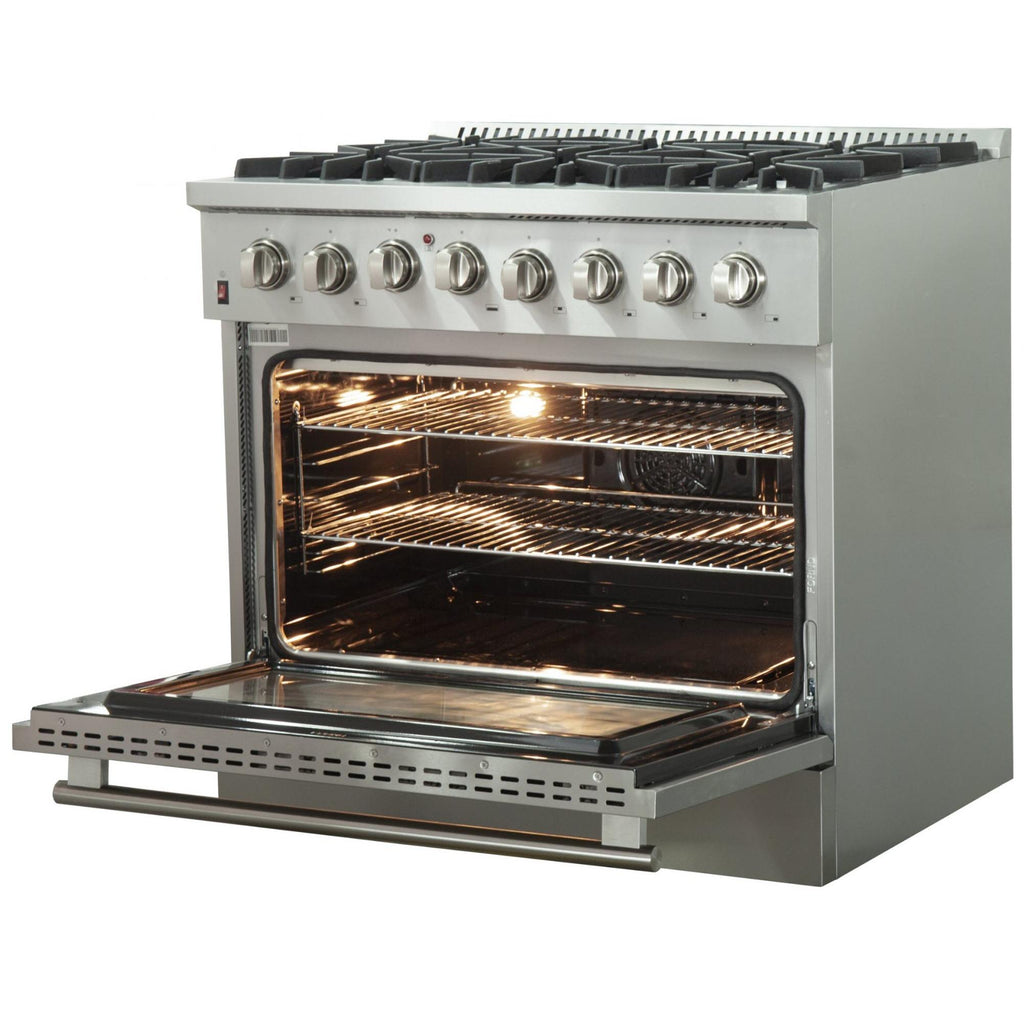

Oven
Capacity (cu. ft.)
5.36 Cubic Feet
Number of Ovens
Single
Features
Technologies

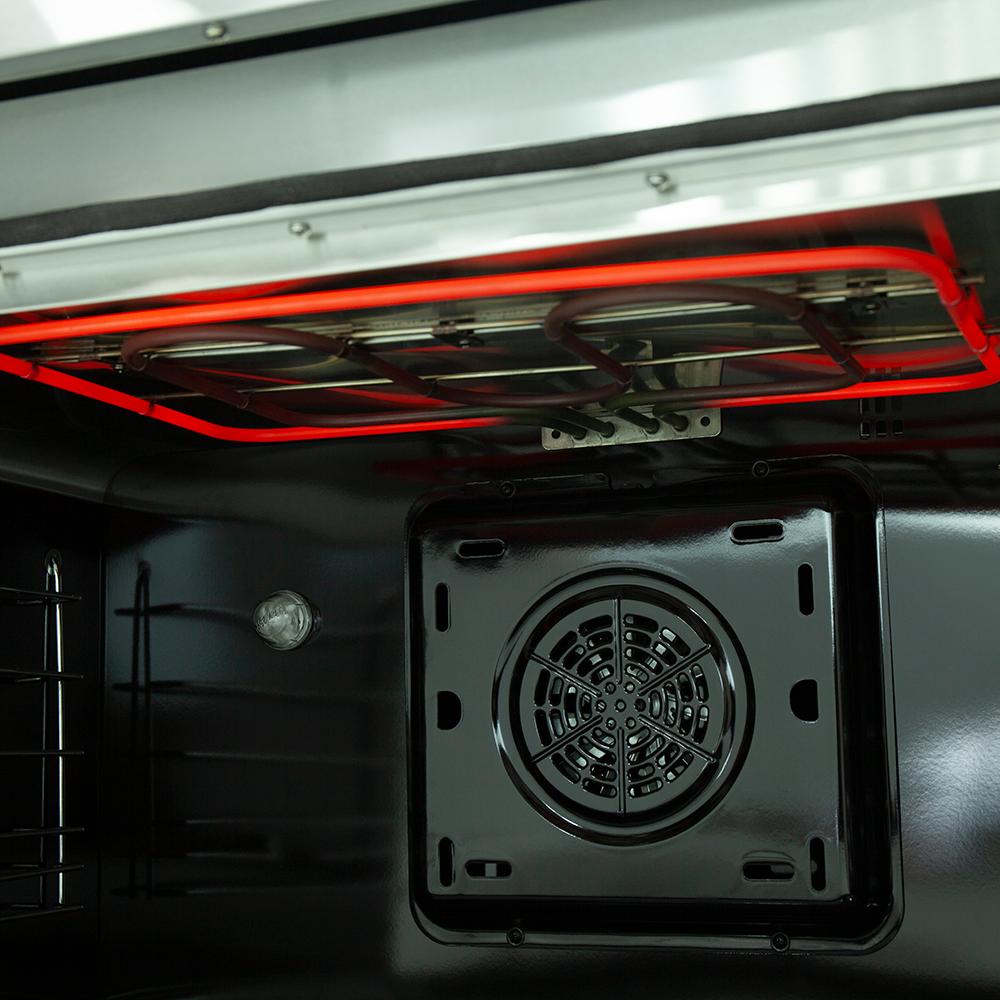

True Convection
Convection
Yes
Oven Light
Yes
Additional Information

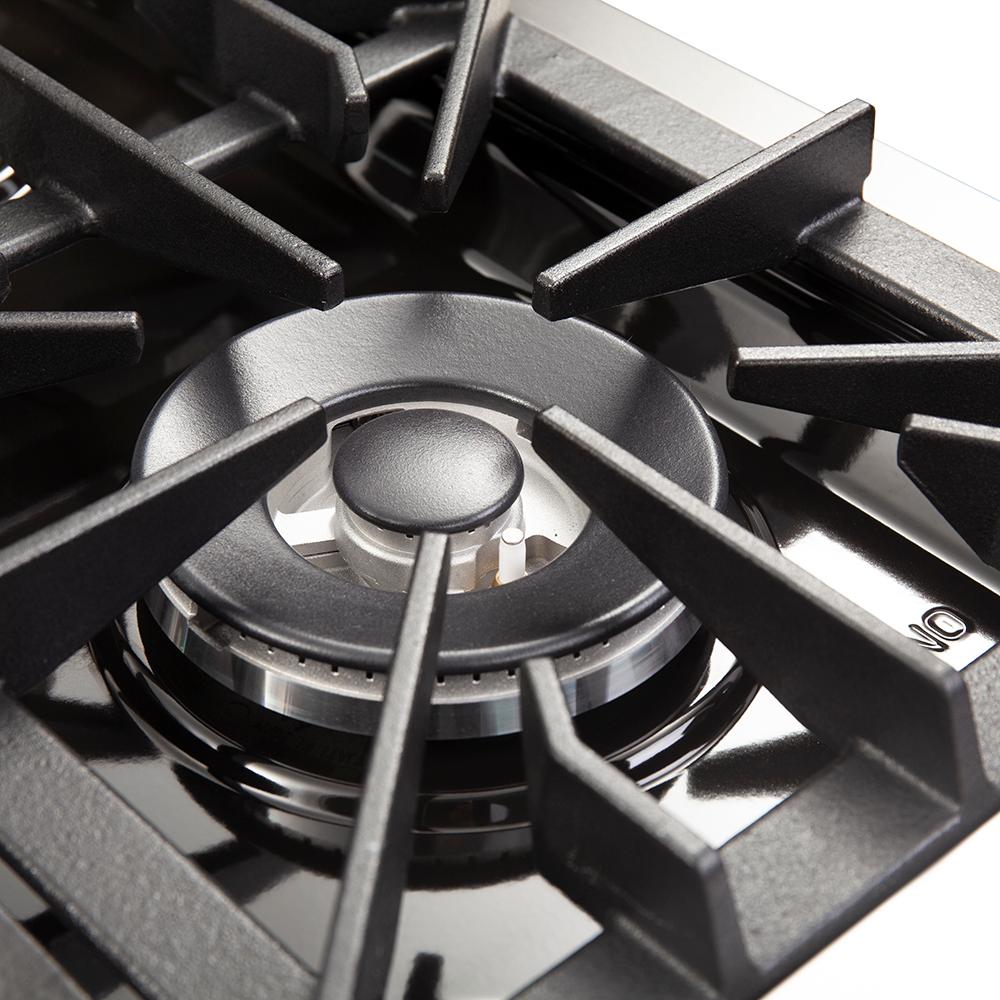

• 1 20K Sealed Dual-Ring Burner
• Black Enamel Cooktop

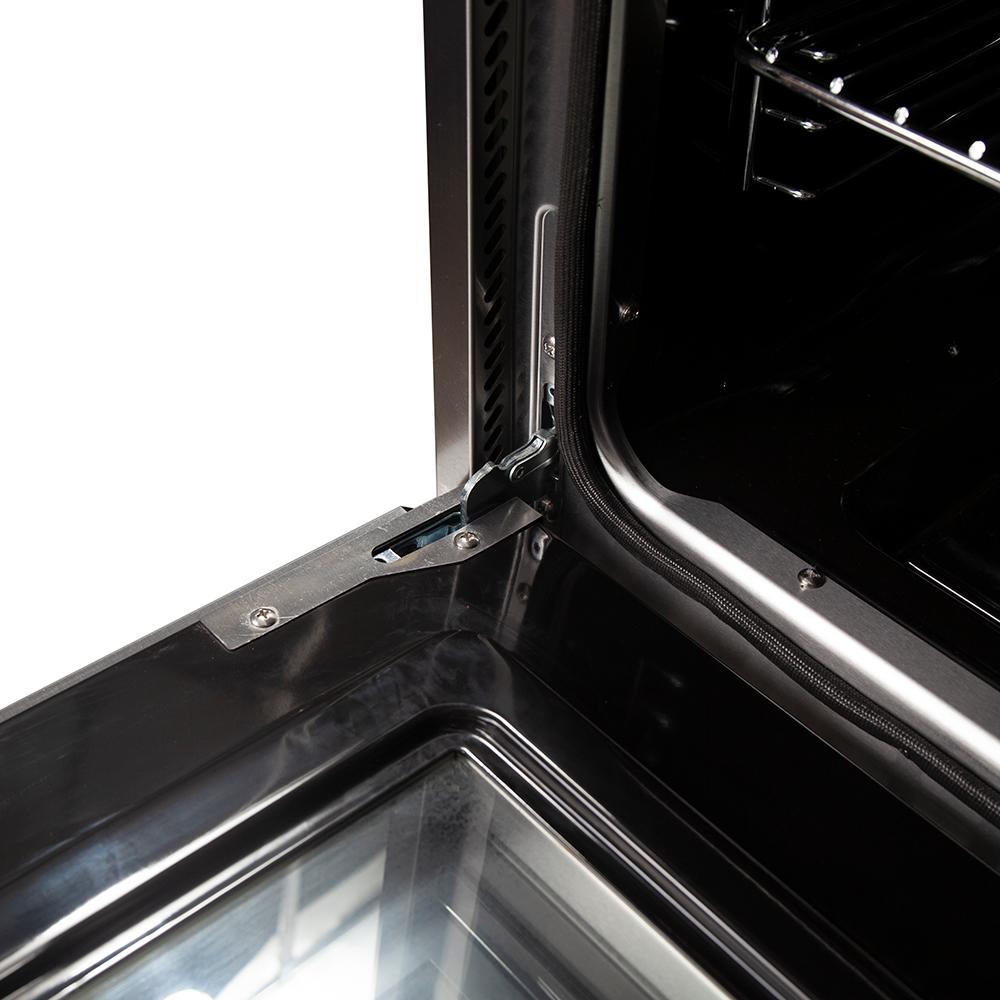

• Smooth Friction Hinges
• Cast Iron Grates with MidGrill
• Black Enameled Cooktop
• Knobs with Ring
• Pro-Style Handle
• Oven Door Glass 3 Layers

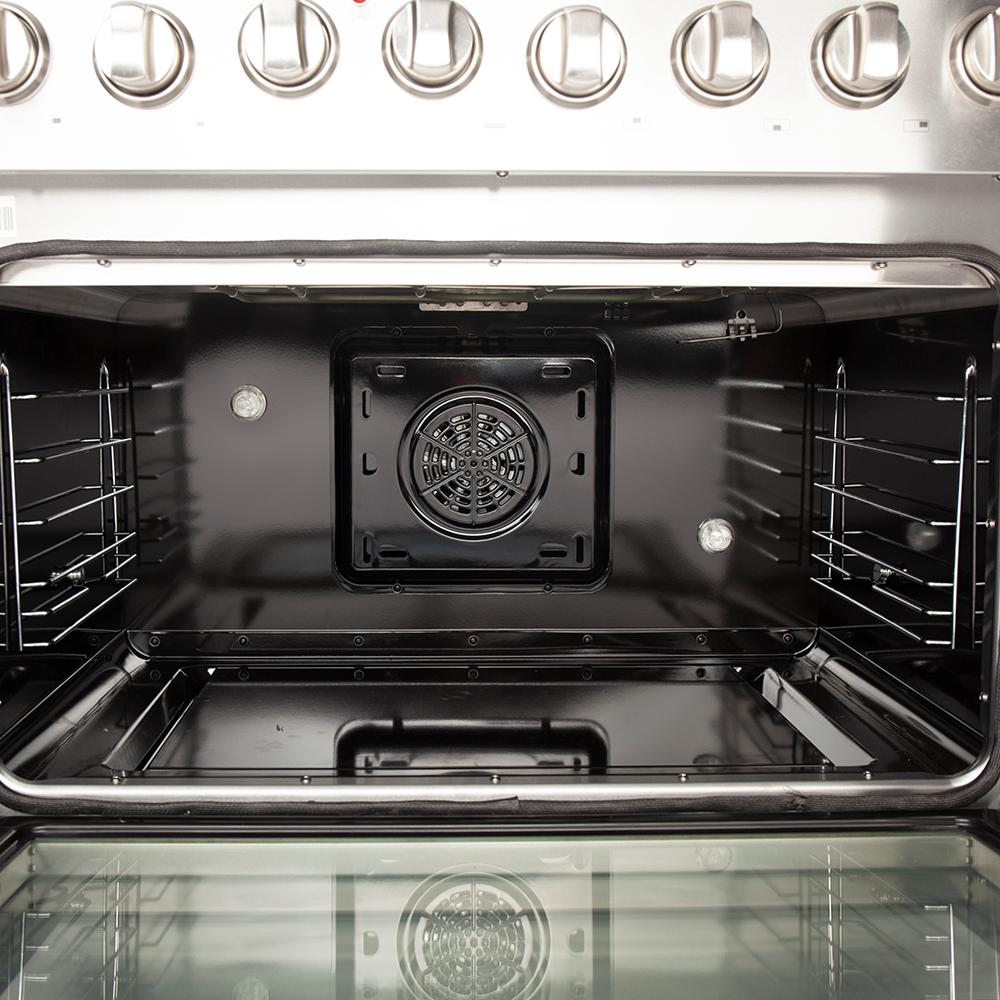

• Black Enameled Oven Interior
• 2 Halogen Oven Lights
• 2 Electroplate Racks (4mm &7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38" to39")
• Automatic Ignition
• 6 Italian Defendi Burne
• Black Enamel Cooktop
• Smooth Friction Hinges
• Cast Iron Grates with MidGrill
• Black Enameled Cooktop
• Knobs with Ring
• Pro-Style Handle
• Oven Door Glass 3 Layers
• Black Enameled Oven Interior
• 2 Halogen Oven Lights
• 2 Electroplate Racks (4mm &7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38" to39")
• Automatic Ignition
• 6 Italian Defendi Burne
Electrical Information
Information
• 30 Amps
• 240 Volts
• 6300 Watts

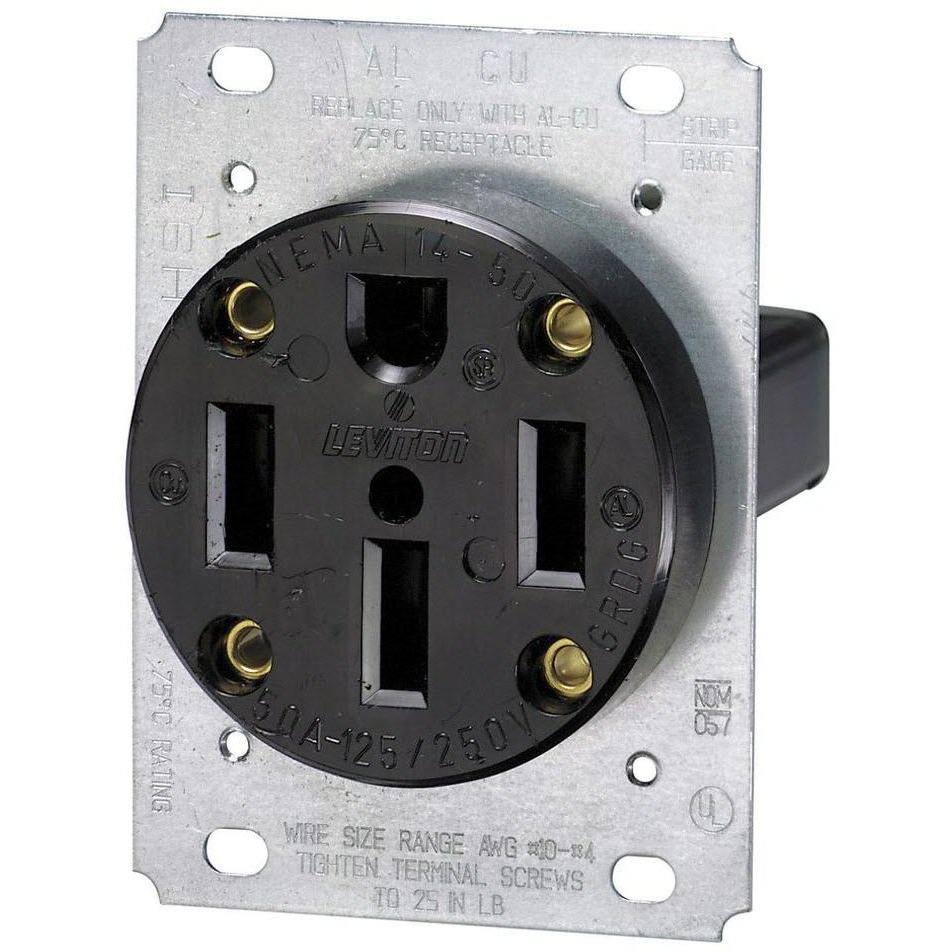

• 4-Prong Grounded
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included
• Includes LP conversion kit and 4-Prong Plug
• LP Kit Included
• LP Kit Included
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
38 inch(es) / 96.52 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Weight
283.29 lb(s) / 128.5 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
Shipping Dimensions
Width
38.82 inch(es) / 98.6 cm
Height
43.31 inch(es) / 110.01 cm
Depth
30.71 inch(es) / 78 cm
Weight
320 lb(s) / 145.15 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136961356
