Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Manual
Cooktop
Burners/Elements
8
Burners/Elements Output
• Total Stovetop BTU / Watts: 107,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Right Center Burner: 9,000 BTU
• Rear Left Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 15,000 BTU
• Front Left Center Burner: 15,000 BTU
• Front Left Burner: 15,000 BTU
• Rear Right Burner: 15,000 BTU
• Rear Right Center Burner: 9,000 BTU
• Rear Left Center Burner: 9,000 BTU
• Rear Left Burner: 9,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
• 6.58 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet
Number of Ovens
Double
Features
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Additional Information
• Sealed Dual-Ring Brass Burners
• Black Enamel Cooktop
• Heavy-Duty Continuous Cast Iron Grates
• Brass Burners 20K BTU high with simmer
• Black Enamel Cooktop
• Heavy-Duty Continuous Cast Iron Grates
• Brass Burners 20K BTU high with simmer
Electrical Information
Information
• 15 Amps
• 120 Volts
• 3-Prong Grounded
• 120 Volts
• 3-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included
• Includes 4 Electro-Plated Oven Racks with 7.5mm frame and 4mm grid,Cast Iron Wok-Ring, Reversible Grill/Griddle, LP Conversion Kit and 3-Prong Plug.
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included

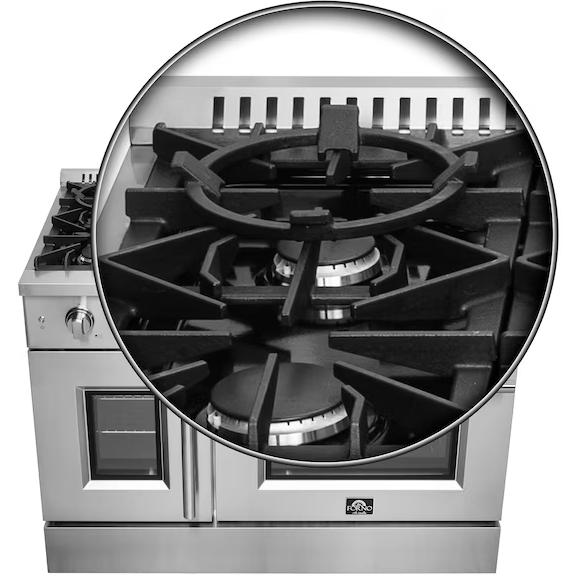

• Wok-Ring
• Reversible Grill/Griddle
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
• Wok-Ring
• Reversible Grill/Griddle
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
37.4 inch(es) / 95 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
389.01 lb(s) / 176.45 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
Shipping Dimensions
Width
50.9 inch(es) / 129.29 cm
Height
43.58 inch(es) / 110.69 cm
Depth
30.39 inch(es) / 77.19 cm
Weight
431 lb(s) / 195.5 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136964067
