Specifications
General
Series Name
Galiano
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam
Cooktop
Burners/Elements
5
Burners/Elements Output
• Total Stovetop BTU / Watts: 7,700 Watts
• Front Right Burner: 12" Round Element 3,000 Watts
• Front Left Burner: 9" Round Element 2,200 Watts
• Rear Right Burner: 6" Round Element 1,200 Watts
• Rear Center Burner: 6" Round Element 100 Watts
• Rear Left Burner: 6" Round Element 1,200 Watts
• Front Right Burner: 12" Round Element 3,000 Watts
• Front Left Burner: 9" Round Element 2,200 Watts
• Rear Right Burner: 6" Round Element 1,200 Watts
• Rear Center Burner: 6" Round Element 100 Watts
• Rear Left Burner: 6" Round Element 1,200 Watts
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.36 Cubic Feet
Number of Ovens
Single
Features
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Additional Information
• Ceramic Glass is easy to clean
• Stainless Steel surround on surface and zinc coated knobs compliment the stainless steel finish

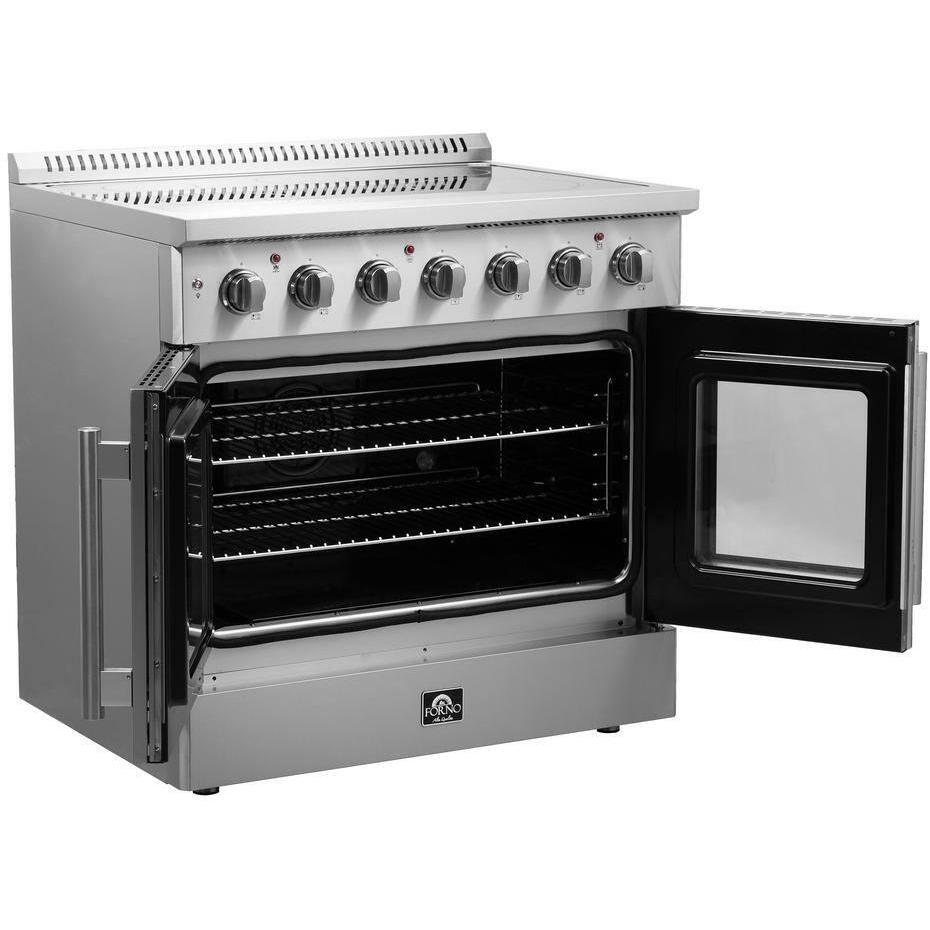

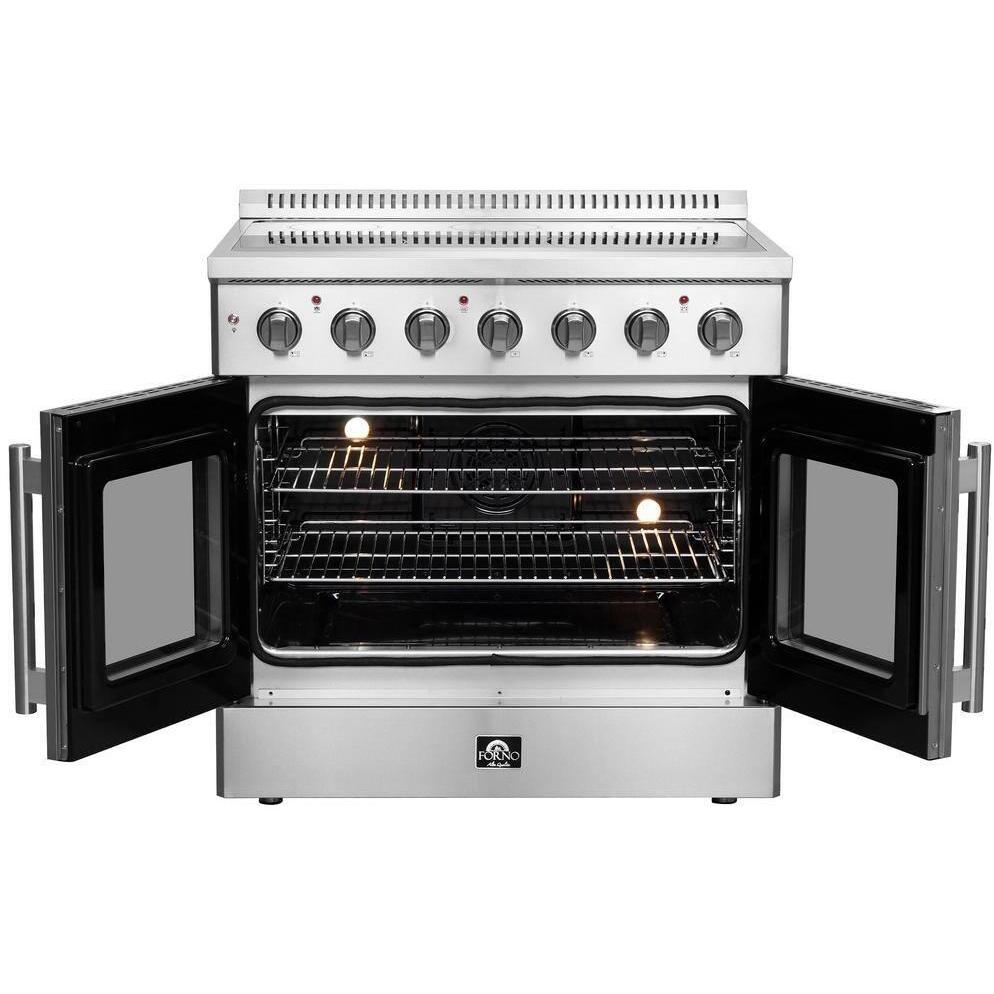

• Revolutionary French Oven Door design that allows you to open oven with one hand
• Enamel Oven Interior with 2 Halogen Lights
• 2 Chromed Oven Racks with 7.5mm frame and 4mm grid
• Stainless steel side panels allow for install at end of counter for long lasting beauty with bezel surrounding knobs
• Stainless steel side panels allow for install at end of counter
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• Dual Element For High Broil Temps and Lower Wattage Element for Fish and Chicken Broiling
• Cooktop Surface: Ceramic Glass
• Cooktop Cavity: Stainless Steel
• Oven Interior Finish: Enamel
• Number of Racks: 2
• Number of Rack Positions: 5
• Number of Interior Lights: 2
• Control Type: Knob
• Control Location: Front
• Number of Knob: 7
• Switches: 1 + 0
• Oven 1 inside Broil Wattage: 1000
• Oven 1 Outside Broil Wattage: 1800
• Oven 1 Bake Wattage: 2000
• Oven 1 True Convection Wattage: 1500
• Stainless Steel surround on surface and zinc coated knobs compliment the stainless steel finish
• Revolutionary French Oven Door design that allows you to open oven with one hand
• Enamel Oven Interior with 2 Halogen Lights
• 2 Chromed Oven Racks with 7.5mm frame and 4mm grid
• Stainless steel side panels allow for install at end of counter for long lasting beauty with bezel surrounding knobs
• Stainless steel side panels allow for install at end of counter
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• Dual Element For High Broil Temps and Lower Wattage Element for Fish and Chicken Broiling
• Cooktop Surface: Ceramic Glass
• Cooktop Cavity: Stainless Steel
• Oven Interior Finish: Enamel
• Number of Racks: 2
• Number of Rack Positions: 5
• Number of Interior Lights: 2
• Control Type: Knob
• Control Location: Front
• Number of Knob: 7
• Switches: 1 + 0
• Oven 1 inside Broil Wattage: 1000
• Oven 1 Outside Broil Wattage: 1800
• Oven 1 Bake Wattage: 2000
• Oven 1 True Convection Wattage: 1500
Electrical Information
Information
• 50 Amps
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
• 240 Volts
• 6300 Watts
• 4-Prong Grounded
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
38 inch(es) / 96.52 cm
Depth (Without Handles)
27.3 inch(es) / 69.34 cm
Weight
466.3 lb(s) / 211.51 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 41.5
• Depth with Oven Door Open 90º (CM): 105.41
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 41.5
• Depth with Oven Door Open 90º (CM): 105.41
• Oven Interior Width (IN): 30.92
• Oven Interior Depth (CM): 78.5368
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
UPC
UPC#
686136969024
