Specifications
General
Series Name
Alta Qualita
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam
Cooktop
Burners/Elements
8
Burners/Elements Output
• Total Stovetop BTU / Watts: 160,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 1000 BTU to 20,000 BTU
• Front Left Center Burner: 1000 BTU to 20,000 BTU
• Front Left Burner: 1000 BTU to 20,000 BTU
• Rear Right Burner: 1000 BTU to 20,000 BTU
• Rear Right Center Burner: 1000 BTU to 20,000 BTU
• Rear Left Center Burner: 1000 BTU to 20,000 BTU
• Rear Left Burner: 1000 BTU to 20,000 BTU
• Front Right Burner: 1000 BTU to 20,000 BTU
• Front Right Center Burner: 1000 BTU to 20,000 BTU
• Front Left Center Burner: 1000 BTU to 20,000 BTU
• Front Left Burner: 1000 BTU to 20,000 BTU
• Rear Right Burner: 1000 BTU to 20,000 BTU
• Rear Right Center Burner: 1000 BTU to 20,000 BTU
• Rear Left Center Burner: 1000 BTU to 20,000 BTU
• Rear Left Burner: 1000 BTU to 20,000 BTU
Burners
Sealed
Other
Wok
Oven
Capacity (cu. ft.)
• 6.58 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet
• Right Oven Capacity: 4.32 Cubic Feet
• Left Oven Capacity: 2.26 Cubic Feet
Number of Ovens
Double
Features
Air Fry
Yes

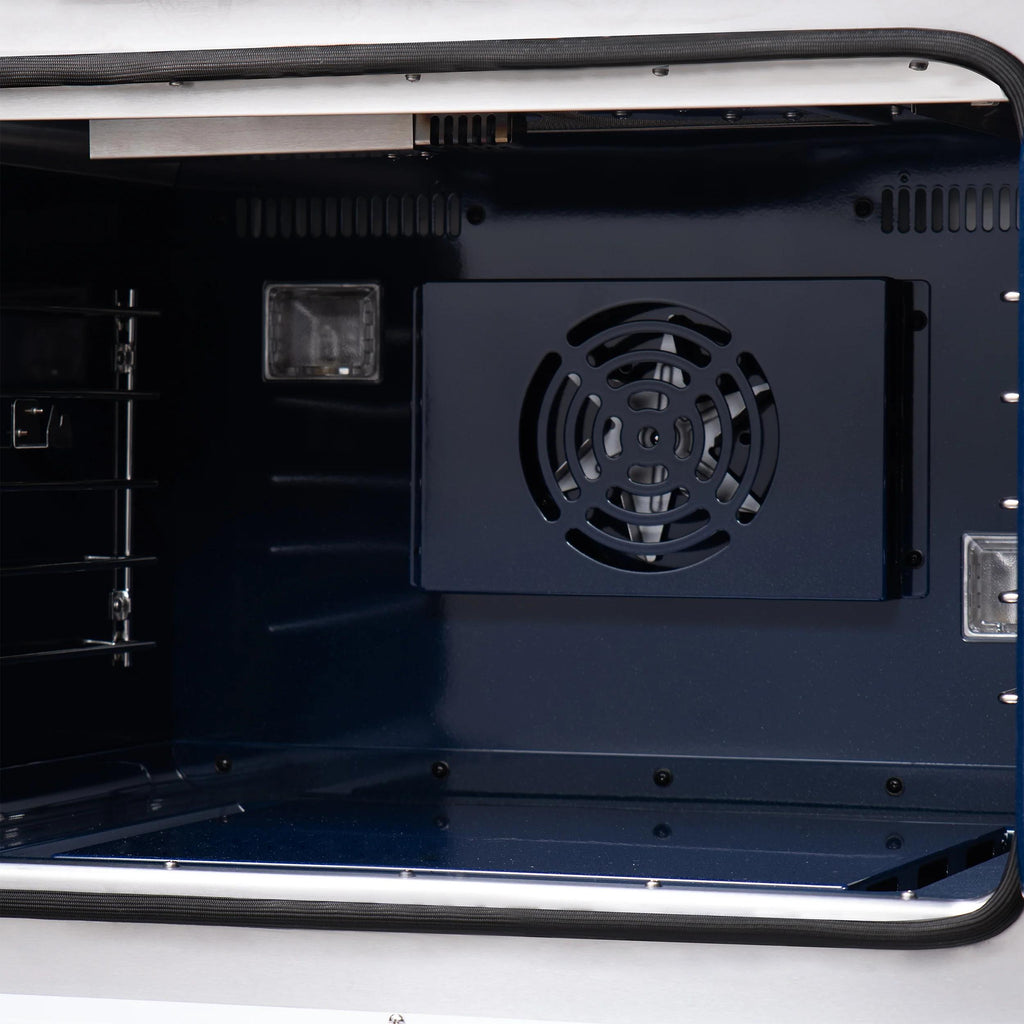

Convection
Yes
Oven Light
Yes
Additional Information
• Left Swing Door allows you to easily open with one hand
• Sealed Dual-Ring Brass Burners can achieve high heat searing or delicate simmering control
• Heavy-Duty Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
• Insulated Oven Doors with 3-Layer Glass Windows and Smooth Friction Hinges

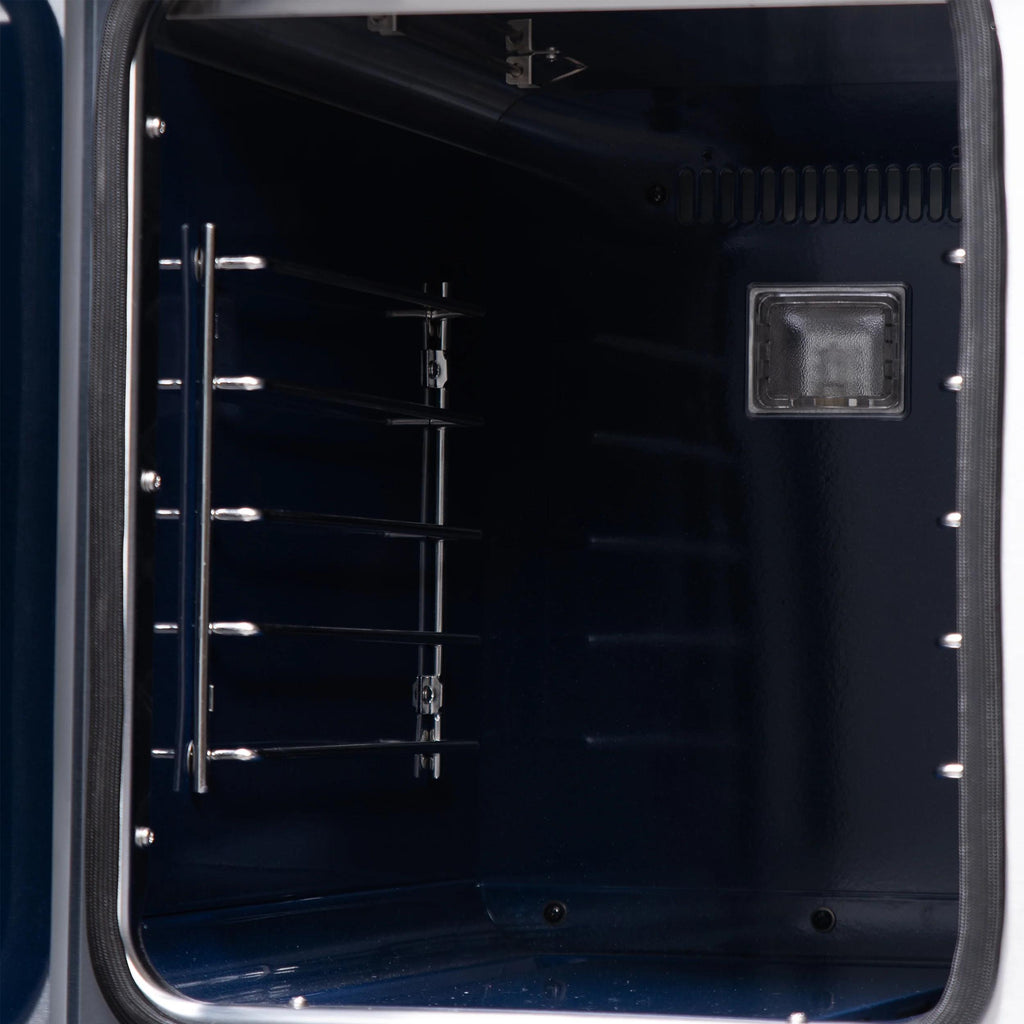

• Speckled Blue Enamel Oven Interiors with 3 Halogen Lights
• Pro-Style Handles and Illuminated Zinc Coated Metal Control Knobs and Bezel Rings
• Sleek, Durable Design 304 Stainless-Steel Panels and
• LP Gas Convertible
• Heavy-Duty Cooktop Surface: Continuous Cast Iron Grates
• Cooktop Cavity: Recessed Enamel
• Oven Interior Finish: Blue Enamel
• Number of Racks: 6
• Number of Rack Positions: 2 x 5
• Number of Interior Lights: 3
• Control Type: Knob
• Control Location: Front
• Number of Knob: 10
• Switches: 2 + 3
• Overall Broil Top: 10,000 BTU
• Overall Bottom: 34,000 BTU
• Right Broil Top: 10,000 BTU
• Right Bottom: 20,000 BTU
• Left Bottom: 14,000 BTU
• Sealed Dual-Ring Brass Burners can achieve high heat searing or delicate simmering control
• Heavy-Duty Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
• Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
• Insulated Oven Doors with 3-Layer Glass Windows and Smooth Friction Hinges
• Speckled Blue Enamel Oven Interiors with 3 Halogen Lights
• Pro-Style Handles and Illuminated Zinc Coated Metal Control Knobs and Bezel Rings
• Sleek, Durable Design 304 Stainless-Steel Panels and
• LP Gas Convertible
• Heavy-Duty Cooktop Surface: Continuous Cast Iron Grates
• Cooktop Cavity: Recessed Enamel
• Oven Interior Finish: Blue Enamel
• Number of Racks: 6
• Number of Rack Positions: 2 x 5
• Number of Interior Lights: 3
• Control Type: Knob
• Control Location: Front
• Number of Knob: 10
• Switches: 2 + 3
• Overall Broil Top: 10,000 BTU
• Overall Bottom: 34,000 BTU
• Right Broil Top: 10,000 BTU
• Right Bottom: 20,000 BTU
• Left Bottom: 14,000 BTU
Electrical Information
Information
• 15 Amps
• 120 Volts
• 3-Prong Grounded
• 120 Volts
• 3-Prong Grounded
Certifications and Approvals
Information
ETL Listed
Accessories
Included
• Includes 6 Heavy-Duty Stainless Steel Telescopic Oven Racks, Cast Iron Wok-Ring, Reversible Grill/Griddle, Reversible Grill/Griddle, Air Fryer Basket, Rack & Drip Pan, Rotisserie Kit with Skewer Forks, LP Conversion Kit and 3-Prong Plug.
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
• Wok-Ring
• Reversible Grill/Griddle
• Rotisserie Kit
• Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5" to 36.5"
• LP Kit Included
• Wok-Ring
• Reversible Grill/Griddle
• Rotisserie Kit
Dimensions
Class Width
48"
Width
48 inch(es) / 121.92 cm
Height
37.4 inch(es) / 95 cm
Depth (Without Handles)
28 inch(es) / 71.12 cm
Weight
466.3 lb(s) / 211.51 kg
Additional Dimensions
• Power Cord Length: 5 feet
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
• Minimum Counter Height (IN): 35.5
• Minimum Counter Height (CM): 90.17
• Maximum Counter Height (IN): 36.5
• Maximum Counter Height (CM): 92.71
• Depth with Oven Door Open 90º (IN): 44.25
• Depth with Oven Door Open 90º (CM): 112.395
• Oven Interior Width (IN): 24.92
• Oven Interior Depth (CM): 63.2968
• Oven Interior Depth (IN): 18.7
• Oven Interior Depth (CM): 47.498
• Oven Interior Height (IN): 16
• Oven Interior Height (CM): 40.64
• Left Oven Interior Width (IN): 13.03
• Left Oven Interior Depth (CM): 33.0962
• Left Oven Interior Depth (IN): 18.7
• Left Oven Interior Depth (CM): 47.498
• Left Oven Interior Height (IN): 17
• Left Oven Interior Height (CM): 43.18
Shipping Dimensions
Width
50.9 inch(es) / 129.29 cm
Height
43.58 inch(es) / 110.69 cm
Depth
30.39 inch(es) / 77.19 cm
Weight
504.99 lb(s) / 229.06 kg
Warranty
Warranty
Limited 2-Year Warrenty on Parts and Labor
UPC
UPC#
686136964142
