Specifications
General
Series Name
Biagio
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Ducting Information
6"
Speeds
3 Speeds
Additional Information
• CFM (cubic feet per minute ):
• Level 1 350 CFM
• Level 2 450 CFM
• Level 3 600 CFM
• Air flow Level:
• 1 795 m3/hr
• Level 2 765 m3/hr
• Level 3 1,020 m3/hr
• RPM (Revolutions Per Minute):
• Level 1 500
• Level 2 630
• Level 3 800
• Noise Level at each speed:
• Level 1 52 dB
• Level 2 56 dB
• Level 3 63 dB
• Efficient Single Motor (600 CFM): Delivers reliable airflow to effectively remove smoke, odors, and grease from your kitchen.
• Designed for 30" Cooktops: Offers optimal coverage for standard cooking surfaces, capturing steam and odors at the source.

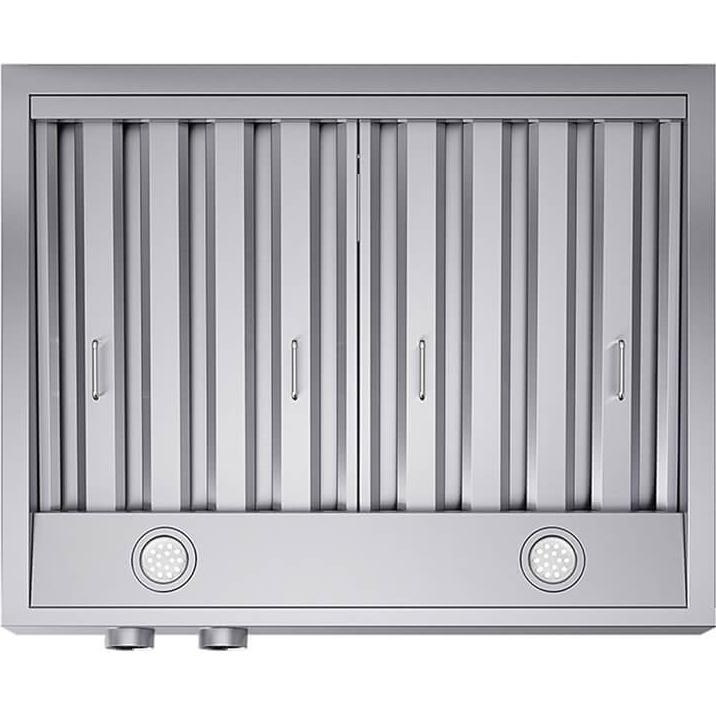

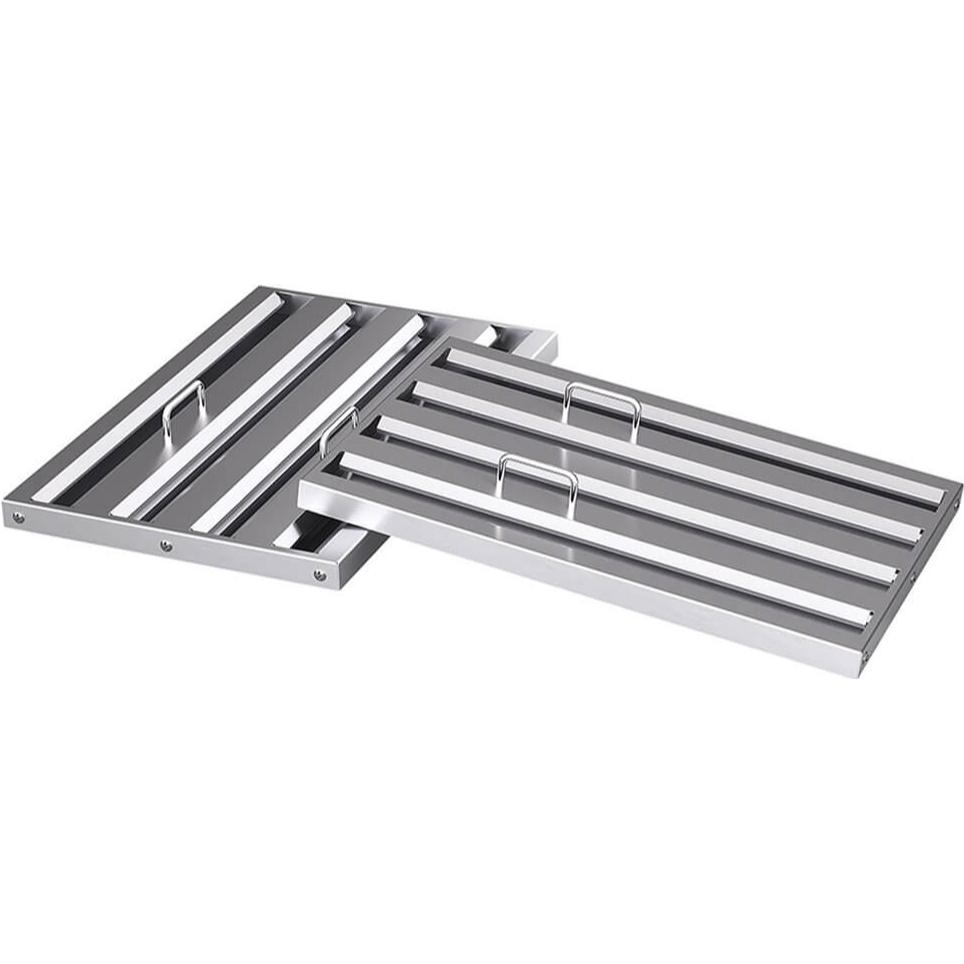

• Heavy-Duty Baffle Filters: Trap grease efficiently and are dishwasher-safe for easy, hassle-free cleaning.
• 3-Speed Fan Control: Easily adapts to your cooking needs, from simmering to high-heat searing.
• Low-Noise Operation: Keeps your kitchen environment comfortable and quiet while you cook.
• Power-Off Delay Function (5 minutes): Touch the power button once to activate a delay shutoff; tap again to power off immediately.

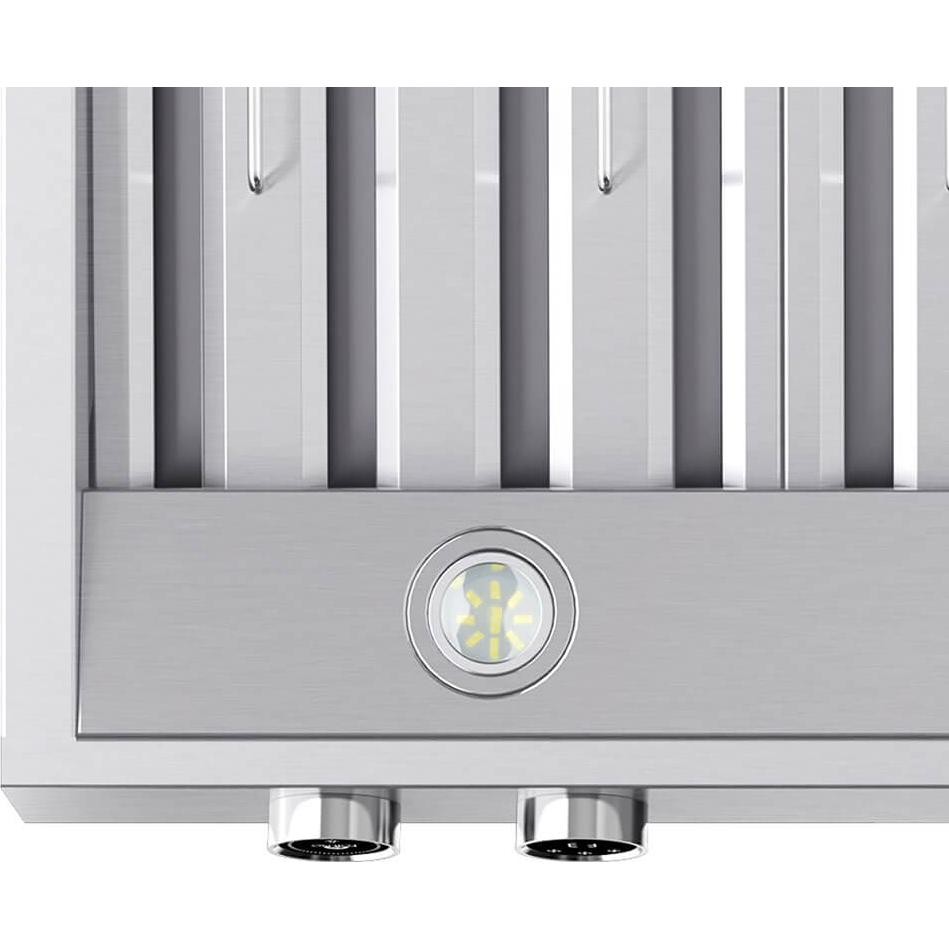

• Bright, Dimmable LED Lighting: Provides crisp, adjustable illumination for clear visibility at any time of day.
• Durable Stainless Steel Construction: Heat-resistant, easy to maintain, and designed to withstand daily use.
• Ducted Ventilation System: Efficiently expels air to keep your kitchen fresh during intense cooking sessions.

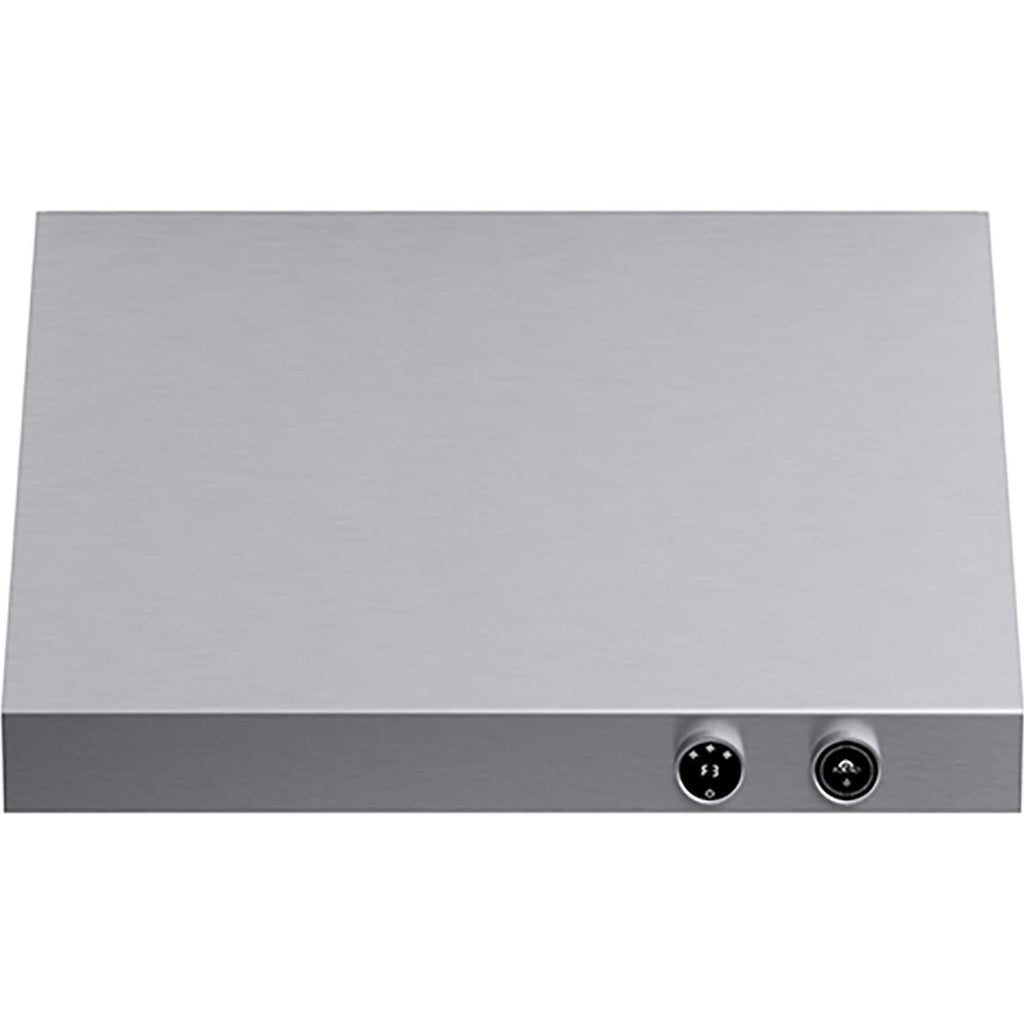

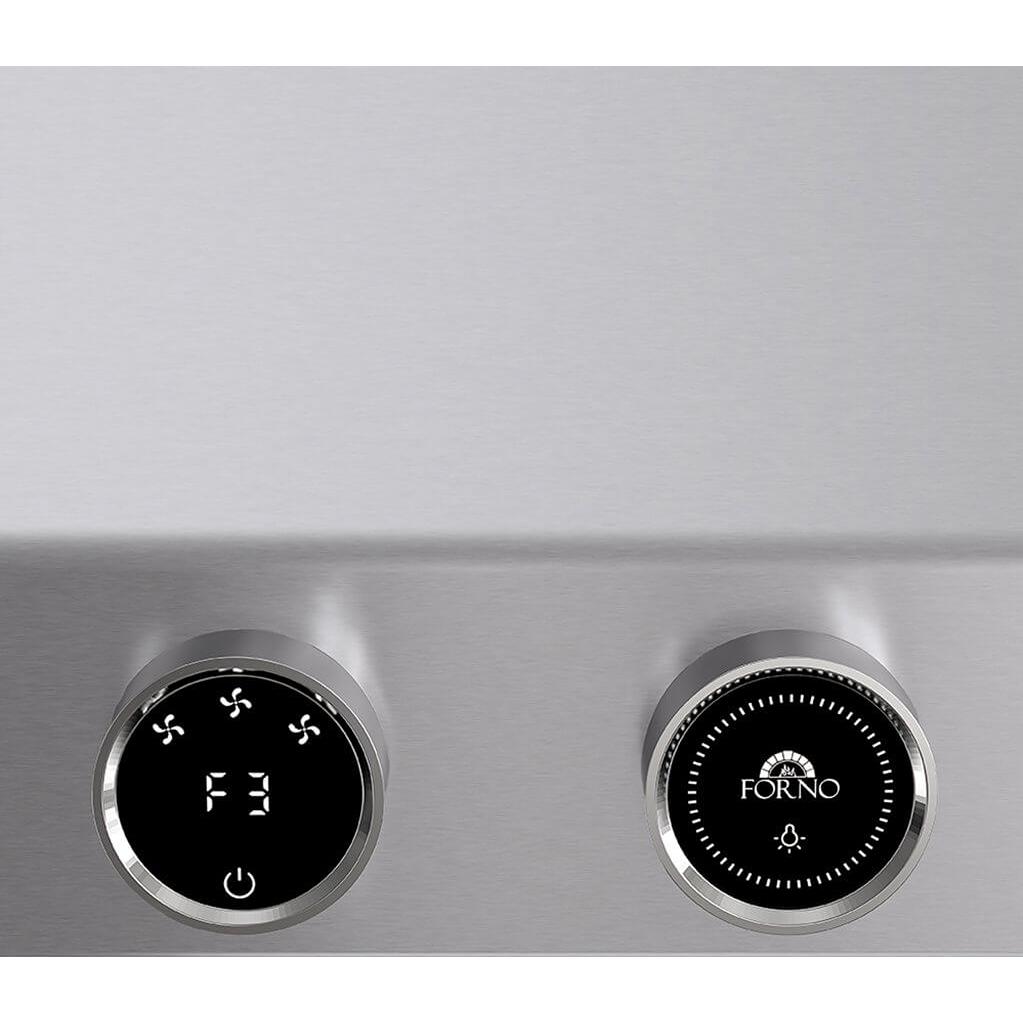

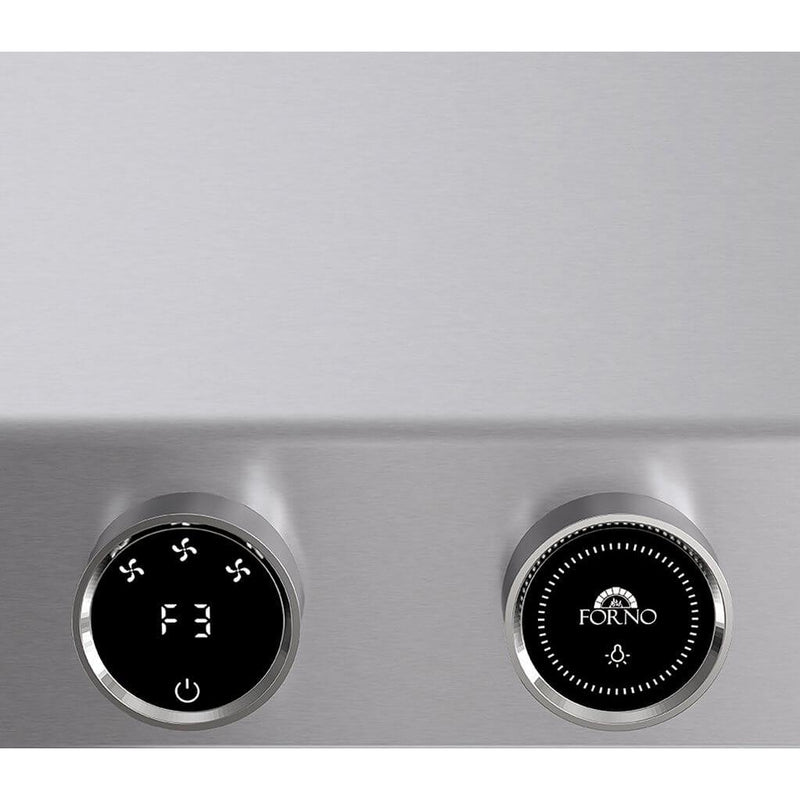

• Intuitive Knob Controls: Effortlessly manage fan speed and lighting with simple, precise adjustments.
• Versatile Installation Options: Compatible with both wall-mounted and under-cabinet setups for maximum flexibility.
• Level 1 350 CFM
• Level 2 450 CFM
• Level 3 600 CFM
• Air flow Level:
• 1 795 m3/hr
• Level 2 765 m3/hr
• Level 3 1,020 m3/hr
• RPM (Revolutions Per Minute):
• Level 1 500
• Level 2 630
• Level 3 800
• Noise Level at each speed:
• Level 1 52 dB
• Level 2 56 dB
• Level 3 63 dB
• Efficient Single Motor (600 CFM): Delivers reliable airflow to effectively remove smoke, odors, and grease from your kitchen.
• Designed for 30" Cooktops: Offers optimal coverage for standard cooking surfaces, capturing steam and odors at the source.
• Heavy-Duty Baffle Filters: Trap grease efficiently and are dishwasher-safe for easy, hassle-free cleaning.
• 3-Speed Fan Control: Easily adapts to your cooking needs, from simmering to high-heat searing.
• Low-Noise Operation: Keeps your kitchen environment comfortable and quiet while you cook.
• Power-Off Delay Function (5 minutes): Touch the power button once to activate a delay shutoff; tap again to power off immediately.
• Bright, Dimmable LED Lighting: Provides crisp, adjustable illumination for clear visibility at any time of day.
• Durable Stainless Steel Construction: Heat-resistant, easy to maintain, and designed to withstand daily use.
• Ducted Ventilation System: Efficiently expels air to keep your kitchen fresh during intense cooking sessions.
• Intuitive Knob Controls: Effortlessly manage fan speed and lighting with simple, precise adjustments.
• Versatile Installation Options: Compatible with both wall-mounted and under-cabinet setups for maximum flexibility.
Electrical Information
Information
• Running Amperage: 2 A
• 120 V
• 60 Hz
• 15 A
• Receptacle Type: Nema 5-15P
• 120 V
• 60 Hz
• 15 A
• Receptacle Type: Nema 5-15P
Dimensions
Class Width
30"
Width
29.5 inch(es) / 74.93 cm
Height
18 inch(es) / 45.72 cm
Depth
24 inch(es) / 60.96 cm
Weight
60.01 lb(s) / 27.22 kg
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
33 inch(es) / 83.82 cm
Depth
24 inch(es) / 60.96 cm
Weight
92.99 lb(s) / 42.18 kg
Warranty
Warranty
Limited 2 Years
