Features
FRONT CONTROL DESIGN
Effortlessly upgrade your back-control range to built-in style. This range will easily replace traditional 30" freestanding ranges.
PERFECT TASTE™ CONVECTION
For consistently delicious taste and texture,
home chefs rely on our convection heat,
which circulates air evenly with two variable
speeds that work in tandem with three
heating elements.
PERFECT TASTE™ TEMP PROBE
The Perfect Taste™ Temp Probe does more
than measure temperature — it keeps an
active eye on your dishes by alerting you
when food is at the peak of perfection and
automatically adjusting to the Keep Warm
setting.

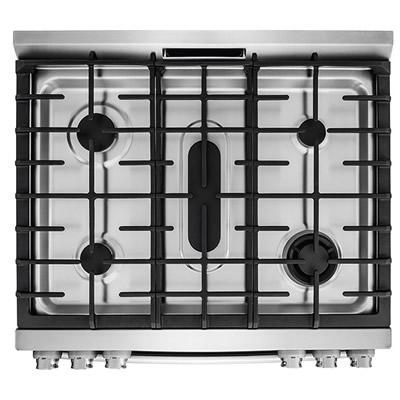

OVAL BURNER + INCLUDED GRIDDLE
Allows you to cook with larger pots and pans or use the complementary griddle to achieve a variety of perfect flavors. (For best results, use large cookware on your power burner.)
MIN-2-MAX® GAS BURNER
Designed with a dual-flame sealed burner, this cooktop provides exceptional power and precision for the widest range of flavor possibilities.
DEEP-WELL DESIGN
Keeps spills contained for easy cleanup and lowers the cooking surface to countertoplevel, which makes moving oversized pots and pans onto and off of the cooking surface much easier.

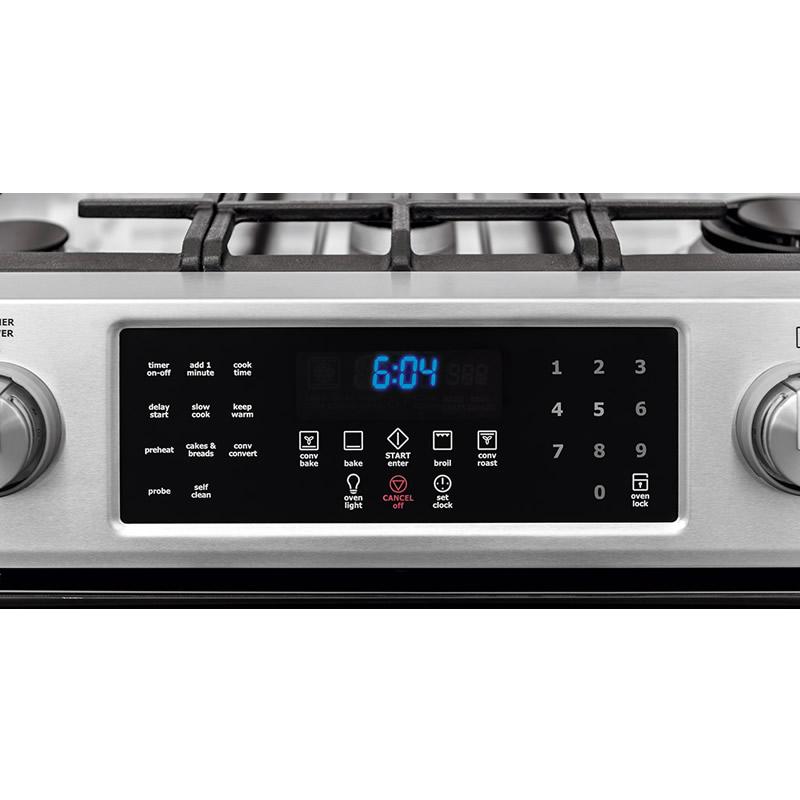

IQ-TOUCH™ CONTROLS
For those who like to have their options always visible on their wall oven, the IQ-Touch™ control panel displays all of your options, at all times.
WARMER DRAWER
Maintain the perfect temperature of your food until serving time.
Additional Features
CONVECTION CONVERSION
Automatically adjusts standard baking temperatures to convection temperatures, for perfect, consistent results.
MULTIPLE SELF-CLEAN OPTIONS WITH AUTOMATIC DOOR LOCK
Provides easy self-cleaning while keeping your family safe during the process.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Sealed Power Burner : 18,000 BTU
• Sealed Power Burner : 14,200 BTU
• Sealed Precision Burner : 9,500 BTU
• Sealed Precision Burner : 5,000 BTU
• Center Oval Burner : 10,000 BTU
• Oven 1 Bake: 18000 BTU
• Oven 1 Broil: 11500 BTU
• Oven 1 Convection: 350 Watts
• Sealed Power Burner : 14,200 BTU
• Sealed Precision Burner : 9,500 BTU
• Sealed Precision Burner : 5,000 BTU
• Center Oval Burner : 10,000 BTU
• Oven 1 Bake: 18000 BTU
• Oven 1 Broil: 11500 BTU
• Oven 1 Convection: 350 Watts
Burners
Sealed
Oven
Capacity (cu. ft.)
4.5 ft³
Number of Ovens
Single
Features
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Continuous Grates with Deep-Well Top
• Seamless Cooktop
• Electric Pilotless Ignition
• Bake Burner – 18,000 BTU
• Broil Burner – 13,500 BTU
• Convection Burner – 350 Watts
• Cobalt Blue Interior
• Self-Clean Options with Door Lock
• Perfect Taste™ Convection
• 6 Cooking Modes – Bake, Broil, Convection Bake, Convection Roast, Keep Warm, Slow Cook
• 3 Baking Options – Temperature Probe, Delay Bake, Convection Convert
• Luxury-Glide® Racks
• Conventional Racks
• Convection Roasting Rac
• Griddle – PN# 318251608 Included
• LP Gas Conversion Kit Included
• Meat Probe Included
• Stainless Steel Backguard – PN# A02535501k Optional
• Seamless Cooktop
• Electric Pilotless Ignition
• Bake Burner – 18,000 BTU
• Broil Burner – 13,500 BTU
• Convection Burner – 350 Watts
• Cobalt Blue Interior
• Self-Clean Options with Door Lock
• Perfect Taste™ Convection
• 6 Cooking Modes – Bake, Broil, Convection Bake, Convection Roast, Keep Warm, Slow Cook
• 3 Baking Options – Temperature Probe, Delay Bake, Convection Convert
• Luxury-Glide® Racks
• Conventional Racks
• Convection Roasting Rac
• Griddle – PN# 318251608 Included
• LP Gas Conversion Kit Included
• Meat Probe Included
• Stainless Steel Backguard – PN# A02535501k Optional
Drawer Features
Baking
No
Broiler
No
Storage
No
Warming
Yes
Electrical Information
Information
120V
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.13 inch(es) / 91.76 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Weight
300.01 lb(s) / 136.08 kg
Additional Dimensions
• Height (Adjustable) : 36-1/8" - 36-5/8"
• Depth (with 90° Door Open) : 46"
• CUT-OUT DIMENSIONS
• Cut-Out Width: 30-1/8"
• Cut-Out Height: 36"
• Depth (with 90° Door Open) : 46"
• CUT-OUT DIMENSIONS
• Cut-Out Width: 30-1/8"
• Cut-Out Height: 36"
Shipping Dimensions
Weight
259.99 lb(s) / 117.93 kg
Warranty
Warranty
Limited 1-Year Parts and Labor
UPC
UPC#
0-12505-80342-0
