Specifications
General
Series Name
Danby Designer
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• 1 x 12,000 BTU
• 1 x 9,500 BTU
• 1 x 5,000 BTU
• 1 x 9,500 BTU
• 1 x 9,500 BTU
• 1 x 5,000 BTU
• 1 x 9,500 BTU
Burners
Sealed

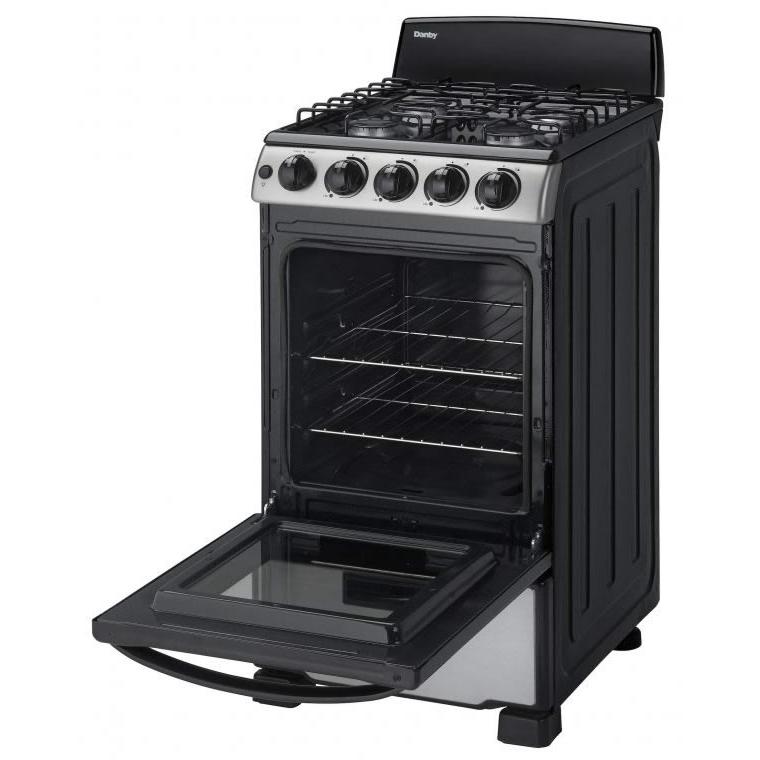

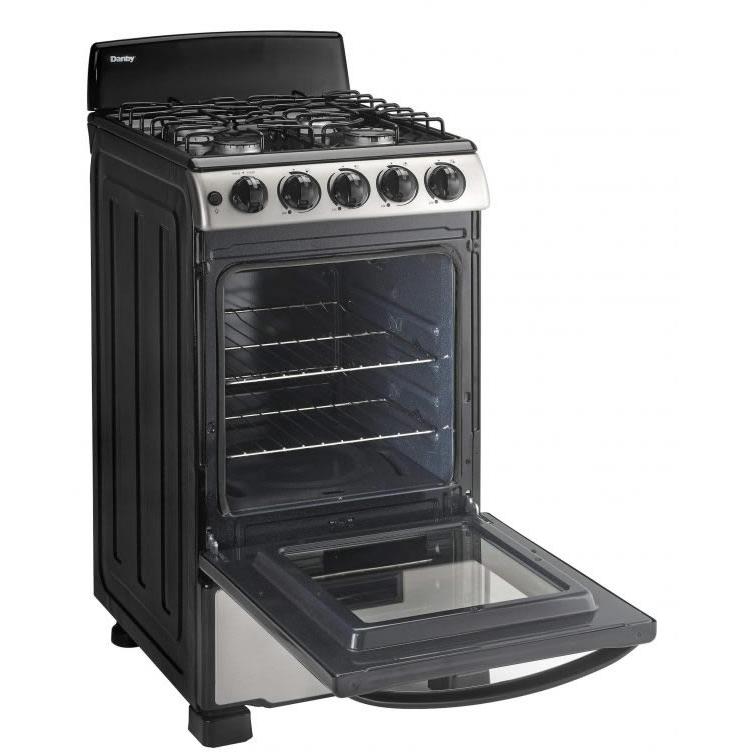

Oven
Capacity (cu. ft.)
2.3 cu. ft.
Number of Ovens
Single
Features
Additional Information
• Compact solution for small space living
• Powerful 13,000 BTU for maximum baking power

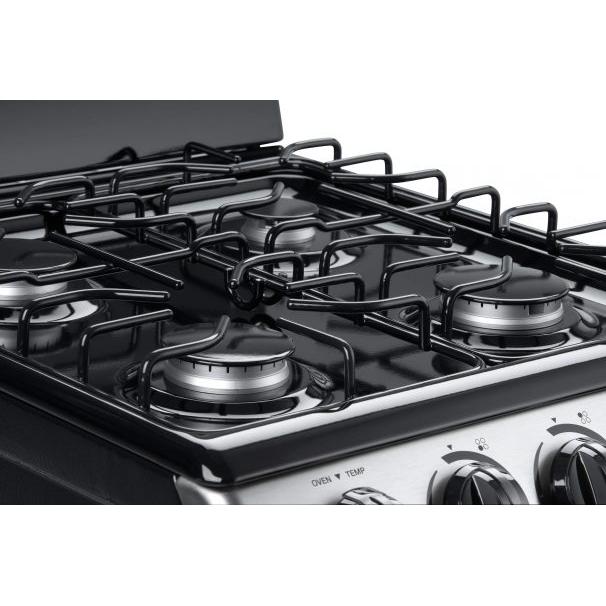

• 2-piece Black porcelain wire grates
• Surface finish: Porcelain enamel
• Ignition system: Electronic/Glow bar
• Oven Interior Color Pirolytic blue

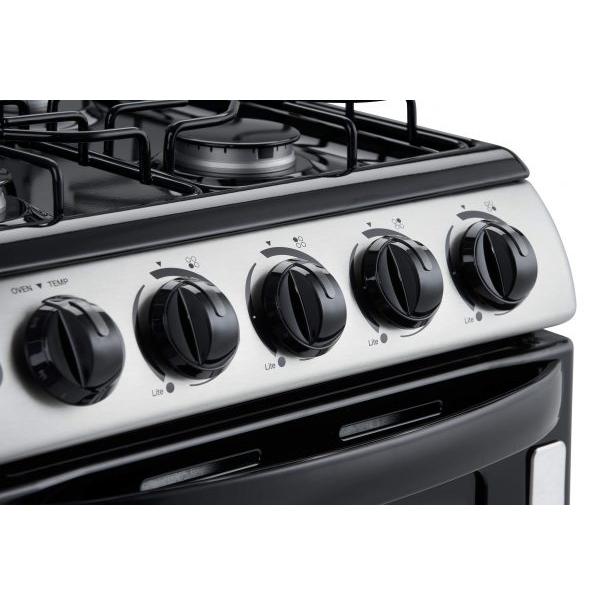

• Angular control panel with push-and-turn front knobs

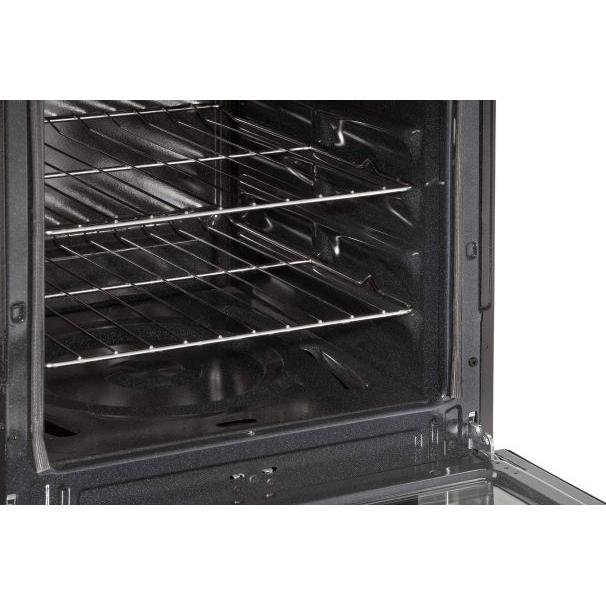

• 2 Nickel racks
• 4 Rack positions
• 4 Leveling feet
• ADA Compliant
• Powerful 13,000 BTU for maximum baking power
• 2-piece Black porcelain wire grates
• Surface finish: Porcelain enamel
• Ignition system: Electronic/Glow bar
• Oven Interior Color Pirolytic blue
• Angular control panel with push-and-turn front knobs
• 2 Nickel racks
• 4 Rack positions
• 4 Leveling feet
• ADA Compliant
Drawer Features

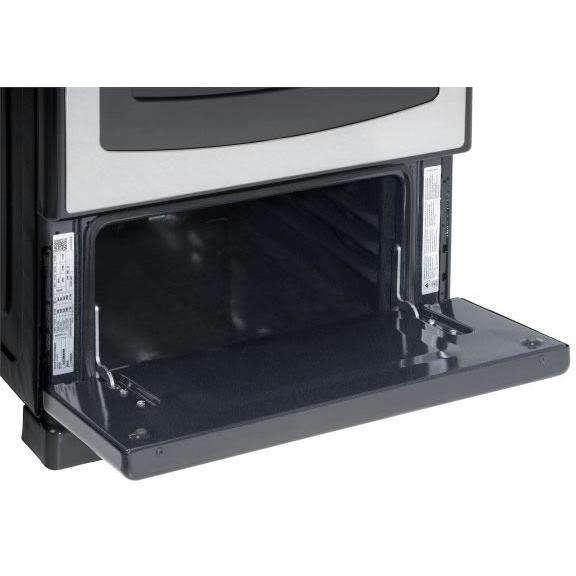

Broiler
Yes
Electrical Information
Information
120V
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• Anti-tip Bracket
• Grid and Broil Pan
• Broil Drawer Rack
• Grid and Broil Pan
• Broil Drawer Rack
Dimensions
Class Width
20"
Width
19.75 inch(es) / 50.17 cm
Height
41.75 inch(es) / 106.05 cm
Depth (Without Handles)
23.7 inch(es) / 60.20 cm
Additional Dimensions
Backsplash height: 5.24"
Shipping Dimensions
Width
22.34 inch(es) / 56.74 cm
Height
42.84 inch(es) / 108.81 cm
Depth
29.05 inch(es) / 73.79 cm
Weight
120.59 lb(s) / 54.70 kg
Warranty
Warranty
• 12 months parts and labor with in-home service
• Installation and/or yearly maintenance (cleaning) are not covered under warranty
• Installation and/or yearly maintenance (cleaning) are not covered under warranty
UPC
UPC#
067638015257
