Features
CAPTUR™ SYSTEM
The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.
EZ1 INSTALLATION SYSTEM
Two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
BRIGHT HALOGEN LIGHTING
The warm glow of powerful, multi-level halogen lighting provides full illumination over and around cooktop areas.
Additional Features

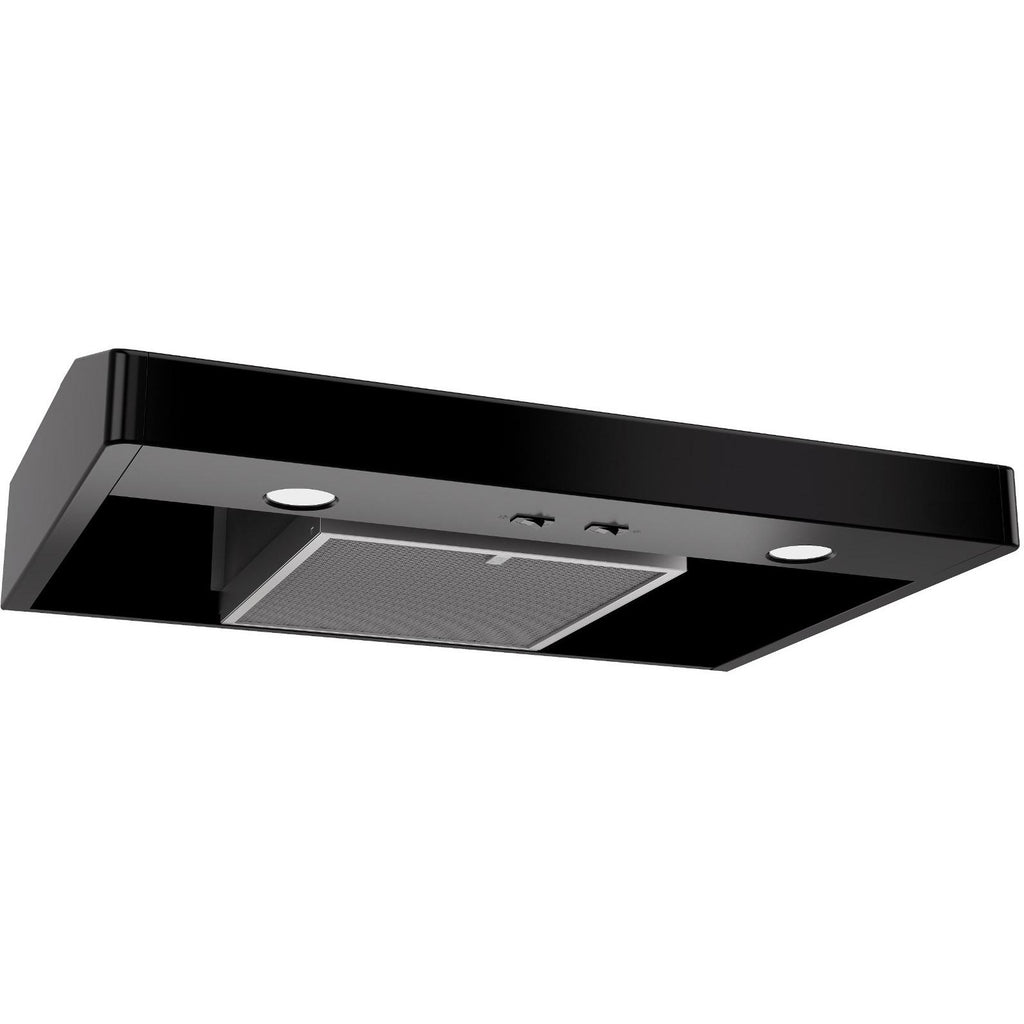

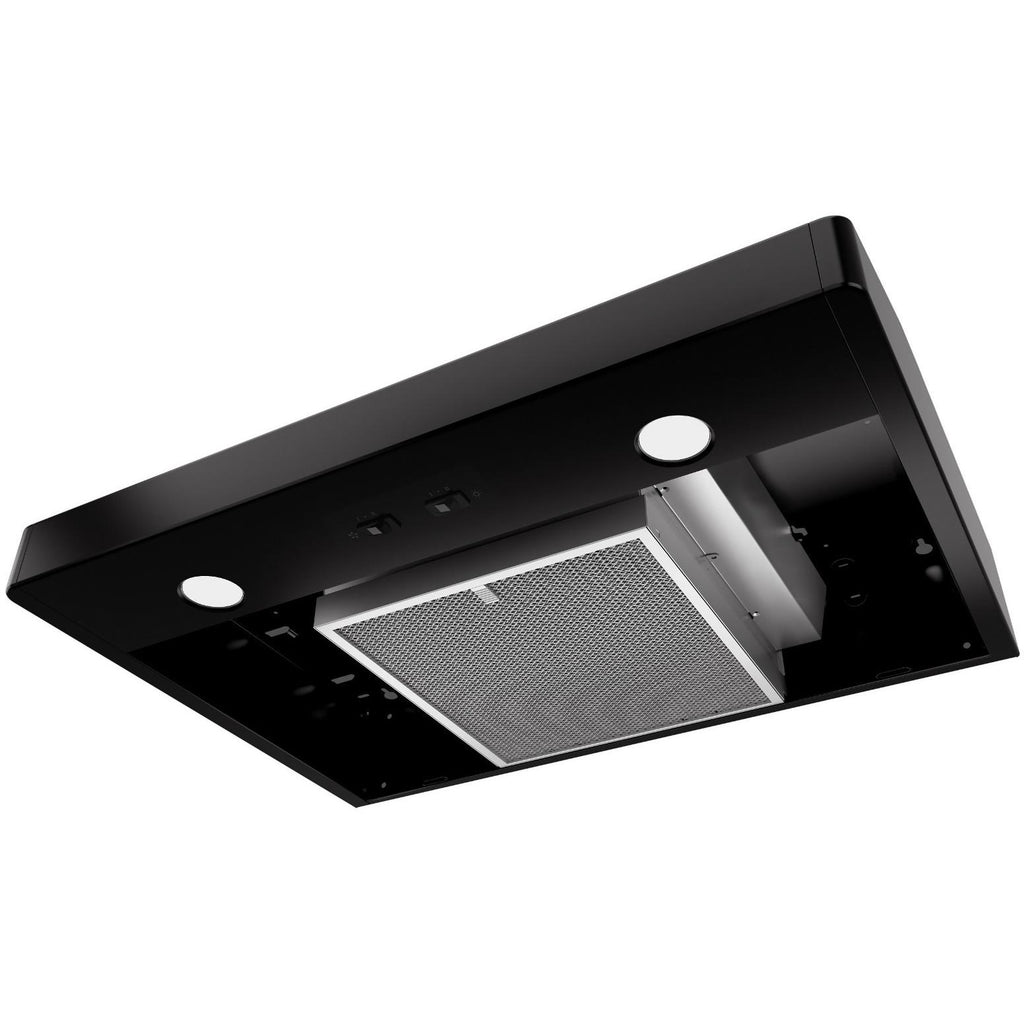

DISHWASHER-SAFE OPEN MESH FILTERS
Enhance grease removal behind a peripheral panel that increases capture of cooking effluents. The filter clean reminder ensures they will always maintain a high level of capture.
Specifications
General
Series Name
• Broan® Elite
• Tenaya 1
• Tenaya 1
Blower Included
Yes
Airflow
250 CFM
Style
Standard
Color
Black
Manufacturer Color
Black

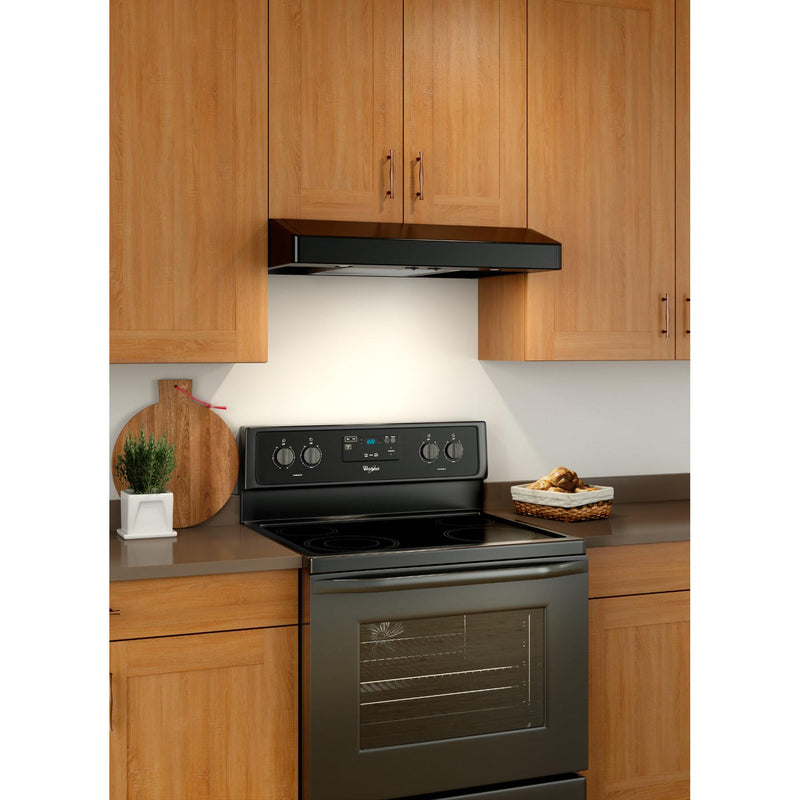

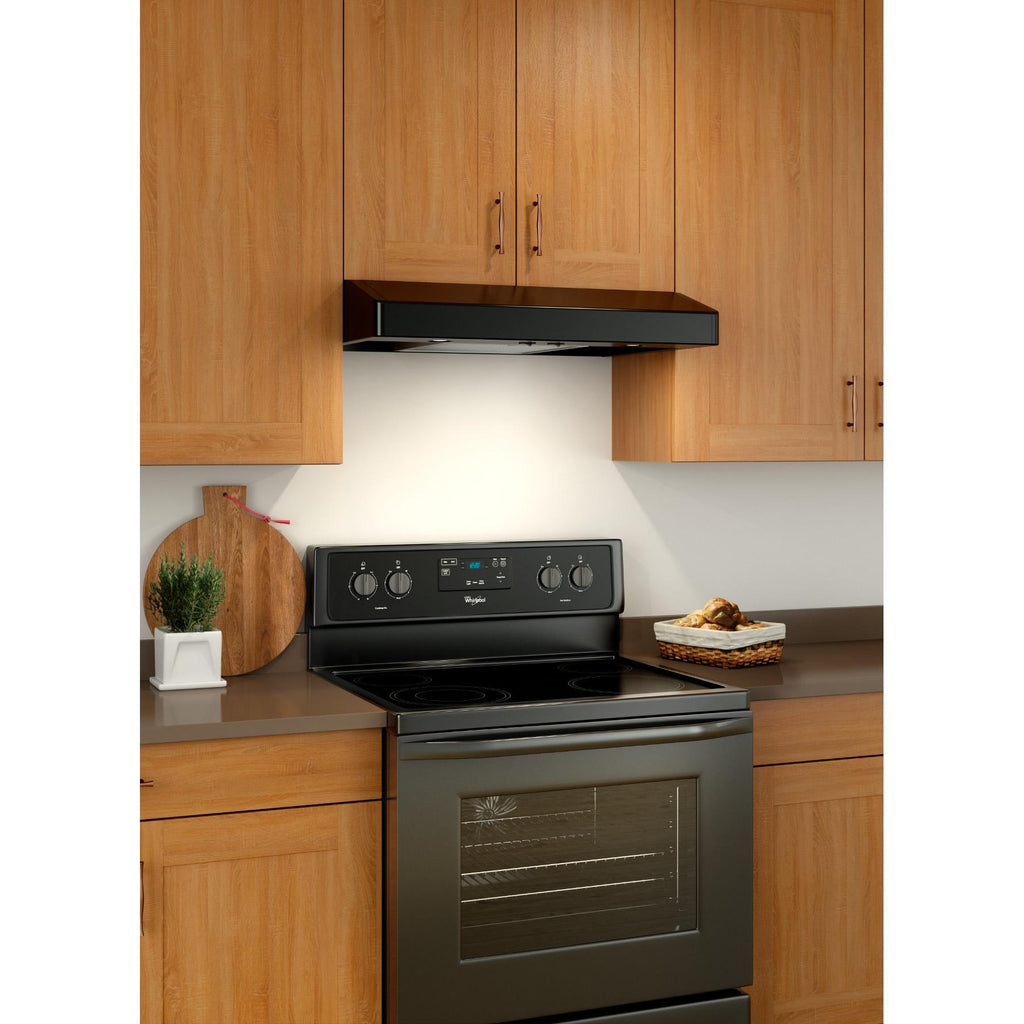

Installation
Under-Cabinet
Features
Wi-Fi
No
Dishwasher-Proof Filters
Yes
Technologies
• Captur™ system
• EZ1 brackets
• EZ1 brackets
Ducting Information
• 7" Round - Vertical
• 3 1/4" x 10" - Horizontal/Vertical
• 3 1/4" x 10" - Horizontal/Vertical
Speeds
2
Additional Information
• Hidden on/off rocker switch control
• Non-ducted recirculation capable
• Halogen lighting (50W bulbs sold separately)
• Light levels: 2
• Smooth-flow blower wheel design
• Capture efficiency: 97.4
• Large dishwasher-safe, single open mesh filter
• Sones: 5.0
• UL Listed
• ADA Capable
• Non-ducted recirculation capable
• Halogen lighting (50W bulbs sold separately)
• Light levels: 2
• Smooth-flow blower wheel design
• Capture efficiency: 97.4
• Large dishwasher-safe, single open mesh filter
• Sones: 5.0
• UL Listed
• ADA Capable
Electrical Information
Information
• 120V
• 60Hz
• Rated amps: 1.4
• Wattage: 168
• 60Hz
• Rated amps: 1.4
• Wattage: 168
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Accessories
Optional
• Replacement grease filter: HPFA (Type "A0")
• Non-duct filter: HPF1 (Type "Xa")
• 7" Round damper: BP87Q
• Make-up air dampers: MD6TU, MD8TU and MD10TU
• Non-duct filter: HPF1 (Type "Xa")
• 7" Round damper: BP87Q
• Make-up air dampers: MD6TU, MD8TU and MD10TU
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
5 inch(es) / 12.7 cm
Depth
21.13 inch(es) / 53.66 cm
Additional Dimensions
Mounting height: 18" to 24" from cooktop to bottom of hood
Warranty
Warranty
1-Year on parts and labor
