Features
SMUDGE-PROOF™ STAINLESS STEEL
Resists fingerprints and smudges so it’s easy to clean.
EFFORTLESSDRY™ SYSTEM
Move your dishes straight to your cabinets with our EffortlessDry™ System. Towel drying becomes a thing of the past.

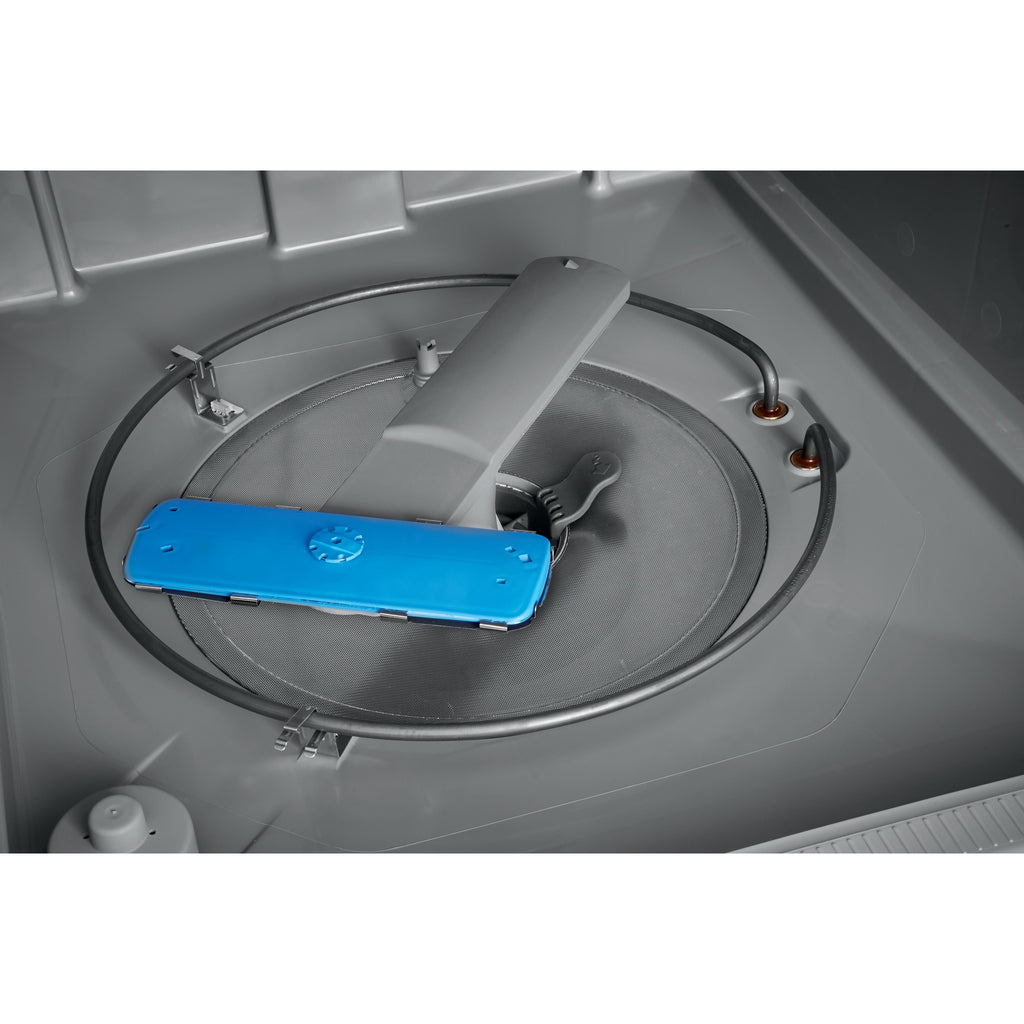

BLADESPRAY™ WASH SPRAY ARM
4 times better water coverage for an excellent clean with our BladeSpray™ washing system.
DISHSENSE™ TECHNOLOGY
Automatically adjusts the cycle time based on how much cleaning your dishes need.
MULTIPLE-CYCLE OPTION
Features easy-to-use cleaning cycle options including Top Rack, Rinse Only and Heavy Wash.
ENERGY STAR®
Maximize your energy and dollar savings with ENERGY STAR® Certified Appliances.
NSF® CERTIFIED
Sanitize cycle removes 99.9% of common household bacteria.
STAY-PUT® DOOR
The door stays put at whatever angle you open it for easy loading and unloading.
GREYSTONE, POLYMER TUB
Supports the drying process, keeping dishes dry the first time.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless steel with matching console
Place Settings
14
Tub Material
Polymer
Silence Rating
54 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Heavy clean
• Normal
• Quick wash
• Rinse only
• Upper rack wash only
• Normal
• Quick wash
• Rinse only
• Upper rack wash only
Options
• Heat / No heat dry
• Hi-Temp wash
• NSF® Certified sanitize rinse
• Hi-Temp wash
• NSF® Certified sanitize rinse
Features
Technologies
• Smudge-Proof™ stainless steel
• BladeSpray® spray arm
• Effortless™ dry
• DishSense™ technology
• Ultra Quiet IV sound reduction system
• Nylon TufRacks™
• SpaceWise® silverware basket
• BladeSpray® spray arm
• Effortless™ dry
• DishSense™ technology
• Ultra Quiet IV sound reduction system
• Nylon TufRacks™
• SpaceWise® silverware basket
Delay Start Information
2–4–6 hours
Delay Start
Yes
3rd Rack System
No
Control Lock
Yes
Cutlery Tray
No
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
No
Additional Information
• 2 cup shelves/stemware grips
• Cycle indicator light
• Direct feed wash system
• Low rinse-aid indicator light
• Soft food disposer
• Rack handles
• 5 wash levels
• 5 wash speeds
• Tall tub
• Cycle indicator light
• Direct feed wash system
• Low rinse-aid indicator light
• Soft food disposer
• Rack handles
• 5 wash levels
• 5 wash speeds
• Tall tub
Electrical Information
Information
• 120V
• 60Hz
• 60Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
ADA Compliant
No
Accessories
Optional
Cabinet seal kit: 154528701
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.5 inch(es) / 85.09 cm
Depth (Without Handle)
25 inch(es) / 63.5 cm
Additional Dimensions
• Height (adjustable) : 33-1/2"– 35"
• Depth (to tub flange) : 22-1/2"
• Depth with door open 90 degrees : 49-1/4"
• Cutout dimensions: Height (min.) 34-1/4", height (max.) 35", width (min.) 24", depth (min.) 24"
• Depth (to tub flange) : 22-1/2"
• Depth with door open 90 degrees : 49-1/4"
• Cutout dimensions: Height (min.) 34-1/4", height (max.) 35", width (min.) 24", depth (min.) 24"
Shipping Dimensions
Weight
83 lb(s) / 37.65 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
0-12505-11492-2
