Features

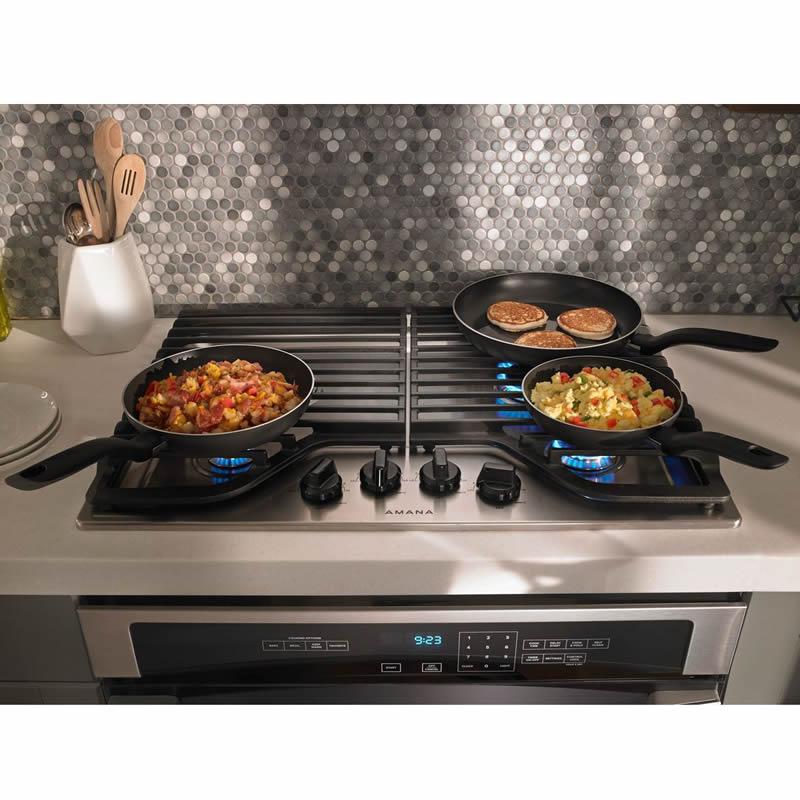

INSTALLS OVER WALL OVEN
Complement the style of your wall oven with this easy-to-install cooktop.
FRONT CONTROLS
Easily accessible and lets you turn up the heat just how you like it.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Rangetop
Cooktop
Burners/Elements
4
Power Output
• Left Front: 5000 BTU
• Left Rear: 12,000 BTU
• Right Front: 9100 BTU
• Right Rear: 12,000 BTU
• Left Rear: 12,000 BTU
• Right Front: 9100 BTU
• Right Rear: 12,000 BTU
Burners
Sealed
Surface Features
Stainless/porcelain coated steel
Features
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information

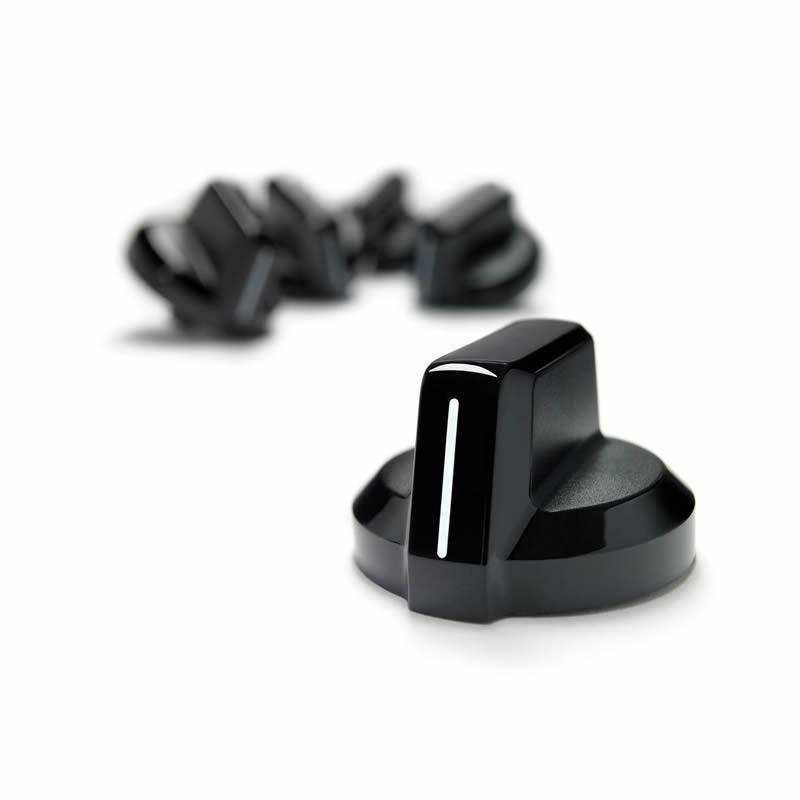

• Dishwasher-safe grates and knobs
• Front controls
• ADA compliant
• Front controls
• ADA compliant
Electrical Information
Information
120 V
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
4.13 inch(es) / 10.48 cm
Depth
21 inch(es) / 53.34 cm
Weight
34 lb(s) / 15.42 kg
Additional Dimensions
• Cutout Depth - 19 1/2"
• Cutout Width - 28 7/8"
• Cutout Width - 28 7/8"
Shipping Dimensions
Width
34.81 inch(es) / 88.42 cm
Height
12.06 inch(es) / 30.64 cm
Depth
25 inch(es) / 63.5 cm
Weight
39.99 lb(s) / 18.14 kg
Warranty
Warranty
Limited One Year Warranty - Parts and Labor
UPC
UPC#
883049401843
